EP0904815A3 - Merry-go-round - Google Patents

Merry-go-round Download PDF

Info

Publication number
EP0904815A3
EP0904815A3 EP98118115A EP98118115A EP0904815A3 EP 0904815 A3 EP0904815 A3 EP 0904815A3 EP 98118115 A EP98118115 A EP 98118115A EP 98118115 A EP98118115 A EP 98118115A EP 0904815 A3 EP0904815 A3 EP 0904815A3
Authority
EP
European Patent Office
Prior art keywords
support rods
carousel
rotary carrier
pivoted
merry
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP98118115A
Other languages
German (de)
French (fr)
Other versions
EP0904815A2 (en
Inventor
Hette Knijpstra
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Knijpstra Konstruktie BV
Original Assignee
Knijpstra Konstruktie BV
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Knijpstra Konstruktie BV filed Critical Knijpstra Konstruktie BV
Publication of EP0904815A2 publication Critical patent/EP0904815A2/en
Publication of EP0904815A3 publication Critical patent/EP0904815A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • A—HUMAN NECESSITIES
    • A63—SPORTS; GAMES; AMUSEMENTS
    • A63G—MERRY-GO-ROUNDS; SWINGS; ROCKING-HORSES; CHUTES; SWITCHBACKS; SIMILAR DEVICES FOR PUBLIC AMUSEMENT
    • A63G1/00—Roundabouts
    • A63G1/28—Roundabouts with centrifugally-swingable suspended seats

Landscapes

  • Seats For Vehicles (AREA)
  • Types And Forms Of Lifts (AREA)
  • Motorcycle And Bicycle Frame (AREA)
  • Vehicle Step Arrangements And Article Storage (AREA)

Abstract

Die Erfindung betrifft ein Karussell mit einem oberen an einem zentralen Mast (1) gelagerten Drehträger (2), an dessen Umfangsbereich nach außen/innen schwenkbare Tragstangen (3) angeordnet sind, an denen Gondel- oder Sitzträger (4) befestigt sind. Erfindungsgemäß sind die in einem Winkel zur Radial- bzw. Umfangsrichtung des Drehträgers verschwenkbaren Tragstangen durch Krafteinwirkung nach außen/innen verschwenkbar, wobei insbesondere bei einem abwechselnden Verschwenken am Drehträger aufeinanderfolgender Tragstangen (3) der gesamte Platzbedarf des Karussells trotz hoher Fahrgastfrequenz und weiter Ausschwenkmöglichkeit der Sitze oder Gondeln sehr klein gehalten werden kann.

Figure 00000001

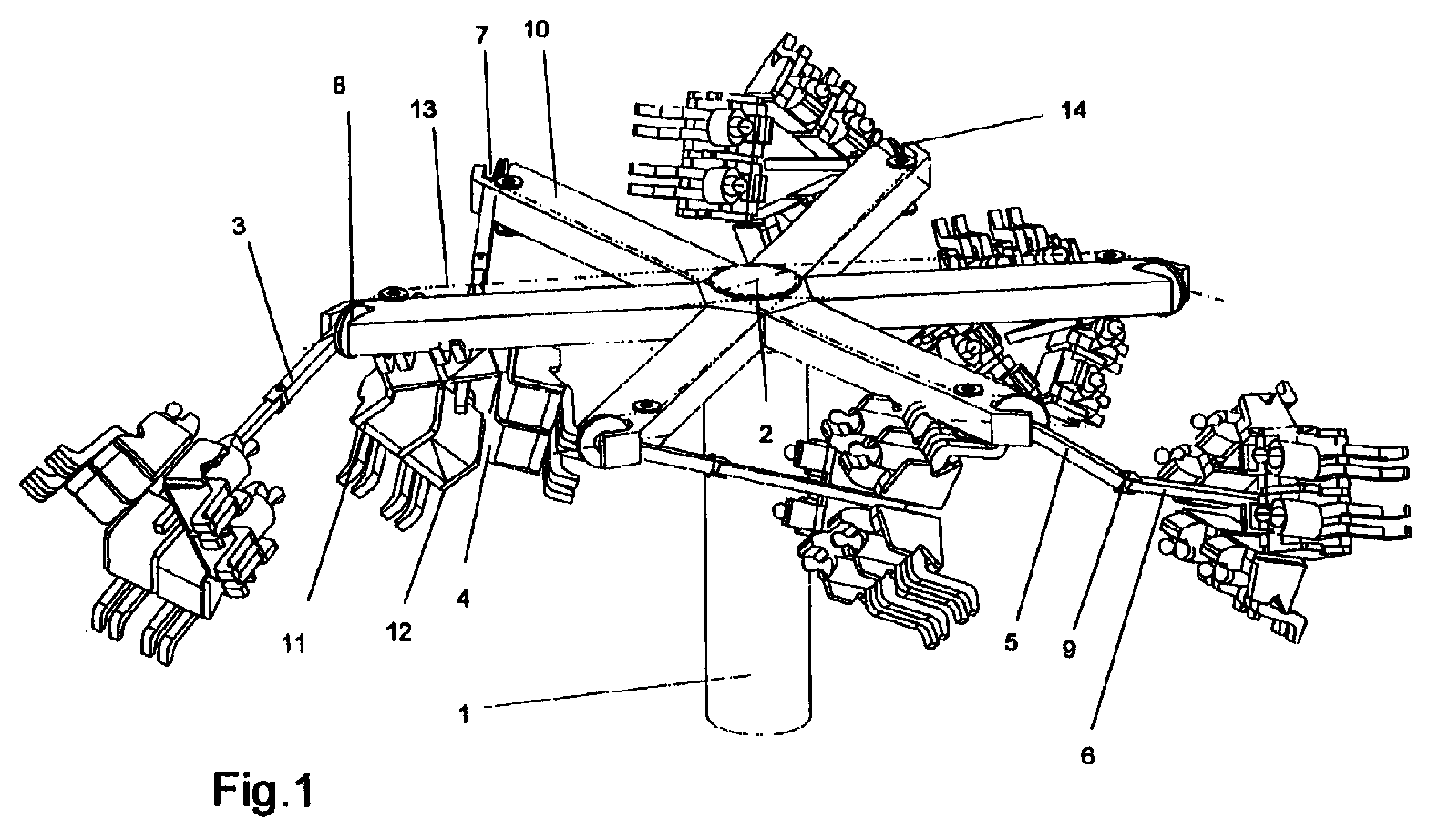

The invention relates to a carousel with an upper rotating support (2) mounted on a central mast (1), on the circumferential area of which pivotable support rods (3) are arranged, on which gondola or seat supports (4) are fastened. According to the invention, the support rods, which can be pivoted at an angle to the radial or circumferential direction of the rotary carrier, can be pivoted outwards / inwards by the action of force, the total space requirement of the carousel despite high passenger frequency and the possibility of further pivoting out of the seats, in particular in the case of an alternating pivoting on the rotary carrier of successive support rods (3) or gondolas can be kept very small.
Figure 00000001
EP98118115A 1997-09-25 1998-09-24 Merry-go-round Withdrawn EP0904815A3 (en)
