WO1992018434A1 - Composition de ciment a faible developpement de chaleur - Google Patents

Composition de ciment a faible developpement de chaleur Download PDF

Info

Publication number
WO1992018434A1
WO1992018434A1 PCT/JP1992/000430 JP9200430W WO9218434A1 WO 1992018434 A1 WO1992018434 A1 WO 1992018434A1 JP 9200430 W JP9200430 W JP 9200430W WO 9218434 A1 WO9218434 A1 WO 9218434A1
Authority
WO
WIPO (PCT)
Prior art keywords
composition
low heat
heat generation
cement composition
cement
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP1992/000430
Other languages
English (en)
French (fr)
Inventor
Kazuya Nakatsu
Takaharu Goto
Toru Higaki
Hideki Endo
Satoru Hirose
Yukinori Yamazaki
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Taiheiyo Cement Corp
Original Assignee
Nihon Cement Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Nihon Cement Co Ltd filed Critical Nihon Cement Co Ltd
Priority to DE69227582T priority Critical patent/DE69227582T2/de
Priority to KR1019960705434A priority patent/KR960016061B1/ko
Priority to JP50751992A priority patent/JP3178836B2/ja
Priority to KR1019930703028A priority patent/KR970001242B1/ko
Priority to EP92908048A priority patent/EP0579831B1/en
Publication of WO1992018434A1 publication Critical patent/WO1992018434A1/ja
Anticipated expiration legal-status Critical
Priority to US08/452,644 priority patent/US5547505A/en
Ceased legal-status Critical Current

Links

Classifications

    • CCHEMISTRY; METALLURGY
    • C04CEMENTS; CONCRETE; ARTIFICIAL STONE; CERAMICS; REFRACTORIES
    • C04BLIME, MAGNESIA; SLAG; CEMENTS; COMPOSITIONS THEREOF, e.g. MORTARS, CONCRETE OR LIKE BUILDING MATERIALS; ARTIFICIAL STONE; CERAMICS; REFRACTORIES; TREATMENT OF NATURAL STONE
    • C04B7/00Hydraulic cements
    • C04B7/345Hydraulic cements not provided for in one of the groups C04B7/02 - C04B7/34
    • CCHEMISTRY; METALLURGY
    • C04CEMENTS; CONCRETE; ARTIFICIAL STONE; CERAMICS; REFRACTORIES
    • C04BLIME, MAGNESIA; SLAG; CEMENTS; COMPOSITIONS THEREOF, e.g. MORTARS, CONCRETE OR LIKE BUILDING MATERIALS; ARTIFICIAL STONE; CERAMICS; REFRACTORIES; TREATMENT OF NATURAL STONE
    • C04B2103/00Function or property of ingredients for mortars, concrete or artificial stone
    • C04B2103/0068Ingredients with a function or property not provided for elsewhere in C04B2103/00
    • C04B2103/0089Agents for reducing heat of hydration

Definitions

  • the present invention C a O a specific range - S i 0 2 - A 1 2 0 3 based composition, and mainly amorphous or et of that low heat generation type cell e n t sets Narubutsu, and the composition
  • the present invention relates to a novel low heat generation type cement composition in which a stimulant is mixed with a main composition.
  • Mass concrete construction such as dams, footing for bridges, foundations for high-rise buildings, foundations for LNG tanks and nuclear power plants, is The heat of hydration of the cement in which the concrete is cast heats the hardened concrete. As a result, the temperature of the inside of the hardened concrete increases, and the temperature near the surface of the hardened concrete is low, close to the outside temperature. The difference in temperature between the two appears as a difference in the coefficient of thermal expansion, and cracks occur.
  • a cement with a low calorific value and its manufacturing method are being studied. For example, change the proportion of minerals contained in Portland cement (for example, if the main component is dicalcium silicate, which has a low heat of hydration). ), Alter the particle distribution of the cement, or mix mortar or concrete on site. Method to reduce the water cement when kneading.
  • C a O - S i 0 2 - A 1 2 0 3 system scan lag as a composition, or the scan lag and Se e n t a mixed cell e n t compounded with Is also known.
  • the slag shown in this document is a general one, and its composition is C a 0 38.7 to 41.9% and S i 0 2 31.8 to 34.3. % (C a O / S i 0 2 ( molar ratio) -.. 1 2 1 ⁇ 1 4 1)..., A 1 2 0 3 1 4 4 ⁇ 1 9 2% other M g O of any impurities Stake a few percent.
  • a typical moderate heat portland cement as a low heat type cement has a compressive strength of 100 to 20 weeks at 1 and 13 weeks of age. It is as low as 0 kg / cii, 300-500 kg / ciS, and the heat of hydration is as high as 50-70 cal / g and 80-95 ca1 / g.
  • the compressive strength / heat of hydration for the 13-week-old material is 3.1 to 6.3.
  • the purpose of this application using this cement is to cast a concrete kneaded material, harden it, and then disperse it. Cool with water or leave the kneaded material partially cast in place for a long period of time to dissipate the heat in the hardened concrete and allow it to cool, and then renew the adjacent portion.
  • a method is used in which the joint is made with a concrete mixed wire. Therefore, each had its own drawbacks, such as the necessity of a water spray cooling work process or the natural cooling to prolong the period significantly.
  • the conventional cement satisfies both compressive strength and heat of hydration in long-term aging when it is used for the construction of advanced concrete. As a result, a new alternative was expected.
  • the cement used in order to construct a massive concrete structure, the cement used must have low hydration heat for a long period of time and have an appropriate compressive strength. Both expression are important.
  • the evaluation of the properties (compressive strength, heat of hydration) of modular 'concrete used for general purposes can be determined even at 1 or 4 weeks of material age. Considering the above, The cement used for advanced concrete is not appropriate to be evaluated solely by short-term aging, such as four weeks or less. Moreover, since the two characteristics are closely related, it is optimal to evaluate them as one parameter.
  • the present inventors have as a material you adapt to the condition C a 0 - S i 0 2 - about the A 1 2 0 3 based compositions were studied intensively by Tsu also the following objects. ⁇
  • the second objective is to develop a cement composition that has a compressive strength / heat of hydration of at least 7.0 over 13 weeks of age.
  • the first invention of the present application Ri main amorphous powder or et, C a 0 / S i 02 ( molar ratio) 0 8 ⁇ ;.. I 5 , A 1 2 0 3 Chikaraku 1. . 0 ⁇ : L 0 0 wt% der Ru C a O - S i 0 2 - a 1 2 03 Ru low heat generation type cell e n t composition der the system.
  • mixed cell e n t (blast cell e n t) C a O can remain use as a material for - S i 0 2 - blast furnace lag that mainly A 1 2 03 system, Ya operation of the blast furnace order to good Ku purity pig iron, a l 2 03 content being adjusted to 1 4 to 1 8 wt%, a l z 0 a 1 4 wt% or less has not been manufactured.
  • the compressive strength / heat of hydration at 13 weeks of age was 7.0 to 1 for the cement composition of the present invention, whereas the conventional slag was 5.0 to 6.8. 5, which is quite high and can be sufficiently used in industry. Desirable is 8.0 or more, more preferably 10.0 or more.
  • the proportion of amorphous contained in the cement composition (hereinafter, referred to as a glass conversion rate) is at least 60%, preferably at least 80%.
  • the main minerals Wa La be sampled Na wells (C a 0 ⁇ S i 0 2), La Nki Na wells (3 C a O '2 S i O silicic acid dicalcium (2 C a O' S i 0 2), gain one Les Na wells (2 C a 0 ⁇ a 1 0 2 0 3 ⁇ S ⁇ 0 2) , etc. in Oh Ru.
  • Se e n t composition substantially C a O, Ri a S i 0 2 and A 1 2 03 3 compounds or found, other raw materials described above, impurities der were mixed such pressurized et unavoidably manufacturing process You.
  • a 1 2 0 3 content contrary correct preferred Ri it is Do the heat of hydration less, the melting temperature of the material rises, shows a tendency proportion Contact and initial strength of the amorphous decreases. Therefore, when the cement composition is used, if the initial strength is extremely low, the strength is not developed at 13 weeks, and as a result, the compressive strength, the heat of hydration is small, and the long-term use is not possible. It is not preferable because the frame cannot be removed.
  • This Toka et al. A 1 2 03 content of this is Ru 1.0% by weight or more necessary der also rather small. Also, A l 2 03 1 0. Exceeding 0% preferred to rather have the ratio of the amorphous even extremely lowered even compressive strength.
  • the fineness of the cement composition is at least 300 OciiZg. Compressive strength tends to increase as the size decreases. However, the effect on the heat of hydration is surprisingly small. Therefore, depending on the purpose of use of the cement composition, a finer composition may be preferred, but a finer composition increases the production cost and is economical. Disadvantageous. Desirable fineness is 4 O O O L O O O O OiZ g.
  • the raw material for the A l 2 0 3 is, C a if O raw material for you and S i 0 z for raw materials in sufficient amount of A 1 2 0 3 has long been ⁇ , be sure to not use also You can do it.
  • the obtained mixed raw material is put into a conventional melting furnace (eg, electric furnace), sufficiently melted (135 O'C or more), then put into ice water and quenched. Remove immediately.
  • the low heat generation type cement composition of the first invention is produced by pulverizing to a desired fineness with a conventional pulverizing means (eg, ball mill).
  • the second invention C a OZS i 0 2 (molar ratio) 0.8 Less than 1.0 to 12.0% by weight of Al and Al 2 O 3 and less than 1.0 to 12.0% by weight, and mainly composed of amorphous C a O —S i O 2 —A 1 z 03 powder composition It is a low heat generating cement composition in which an object and a stimulating material are mixed at 70% by weight or more and 30% by weight or less, respectively.
  • This invention has a low heat of hydration and almost the same compressive strength at 13 weeks, while maintaining a high heat of hydration at the beginning of the week, while increasing the initial hydration to shorten the setting time and improve the initial strength. It is a hint composition. Specifically, the setting time (initial time) of the cement composition of the first invention is 5 hours or more, but in the second invention, it is reduced to about 2 hours.
  • the cement composition of the second invention is an improvement of the first invention.
  • a 1 2 03 content of the powder composition of the second invention is less than Se e n t composition by Ri Many 1 2 wt% of the first invention or in the even of can be used.
  • the heat of hydration increases, that is, the heat of hydration of the compressive strength decreases, which is not preferable. Less than 1.0% by weight is not preferred The reason is the same as in the first invention.
  • Preferred contents are from 2 to 10% by weight, more preferably from 3 to 8% by weight. .
  • the stimulating material is one or two of those belonging to Portland cement, gypsum, Alkali metal compounds, and Alkaline earth metal compounds. The above can be used in combination.
  • Portland cements are classified as ordinary, fast, and moderate heat boilland cement and clean cement, mixed cement (blast furnace cement). Gemstones, fly ash cements, etc.), gypsums such as dihydrate, hemihydrate, and anhydrite gypsum, and water as an aluminum metal compound.
  • Sodium oxide, sodium carbonate, potassium hydroxide, etc. are used as alkaline earth metal compounds, such as calcium hydroxide, calcium oxide, etc. Are mentioned.
  • the preferred stimulus is usually Portland cement.
  • the proportion of the stimulant exceeds 30% by weight in the mixing ratio (proportion) of the powder composition and the stimulant, the heat of hydration increases, that is, the compressive strength / heat of hydration increases. I don't like it because it gets low.
  • the preferred proportion of stimulants is between 0.1 and 15% by weight. Note the mixing ratio of the case where the stimulus material Ru have use stones This cormorants s is 0 at S 0 3 corresponding value. 1-5 5. 0 wt% is preferred arbitrariness.
  • the mixing of the powder composition and the stimulant may be performed according to a conventional mixing method, and is not particularly limited in the present invention. No.
  • the low heat-generating cements of the first and second inventions are made of commercially available powders of slag, fly ash, pozzolan, limestone, silica, etc. within a range that does not impair the purpose. It may be added.
  • the first invention is composed mainly of C a O, S i 0 z , A 1 2 0 3, C a O Bruno S i 0 2 (molar ratio), A l z 0 3 ⁇ weight, etc. of the specific invention der of Se e n t composition of the amorphous mainly is, the second invention, a 1 Ri by the case of the composition 2 03 ⁇ amount 2 wt% more range or in Complex meth
  • the invention relates to the so-called improved cement composition, which is a mixture of a powder composition and a stimulating material.
  • cement compositions satisfactorily satisfy the conditions required for a massive concrete.
  • the emergence of such cement compositions has made a significant contribution to the construction industry, which uses cement as an important construction material.
  • the above cement composition When the cured body produced heating (9 0 O 'near C), ⁇ O La be sampled Na wells (C a O ⁇ S i 0 2) because it was that generates, normally port Le preparative run-in Better heat resistance than cured products made from docement. Therefore, the Ca0 content of the cement composition of the present invention is not more than about 20% by weight lower than that of general Portland cement.
  • 1 ⁇ Se main emission C 0 2 amount of gas released in the process of manufacturing the bets composition is not less, 2 GRC (woven ⁇ strong co down click rie g) is, C of conventional or al Se e n t Degradation based on a0 has been a problem, but has the side effect of being useful as a GRC cement.
  • the raw materials used are as follows.
  • the pellets were dried, the pellets were calcined at 100,000 for 3 hours. Subsequently, the mixture was melted for 1750 minutes in an electric furnace and melted for 30 minutes. Then, the melt was poured into ice water, rapidly cooled, and immediately taken out. In Table 1 and Experiment No. 4, the melt was allowed to cool in air.
  • the obtained quenched product was pulverized with an iron pole mill to produce a powder having a specific surface area of 500 ⁇ 10 Oo! Zg.
  • the amorphous ratio of each powder was measured by XRD (X-ray diffraction) and a microscope, and expressed as “Glass ratio”.
  • the compressive strength and heat of hydration were measured according to Japanese Industrial Standards (JIS ).
  • JIS Japanese Industrial Standards
  • the compressive strength is determined by kneading 52 parts by weight of the powder, 100 parts by weight of standard sand and 338 parts by weight of water according to JISR 5201 “Physical Testing Method for Cement”.
  • Table 1 was measured.
  • the setting test was also performed on a base in accordance with the above-mentioned JISR5201.
  • the heat of hydration is obtained by adding 50 parts by weight of water to 100 parts by weight of the powder.
  • the paste was kneaded for 3 minutes and the obtained paste was measured according to JISR5203 “Method of measuring heat of hydration of cement (heat of dissolution)”.
  • Table 1 also shows the hydration heat of compressive strength and the estimated heat of hydration when the compressive strength is fixed (300 kgf / cii).
  • the present invention is Experiment Nos. 3 to 6.

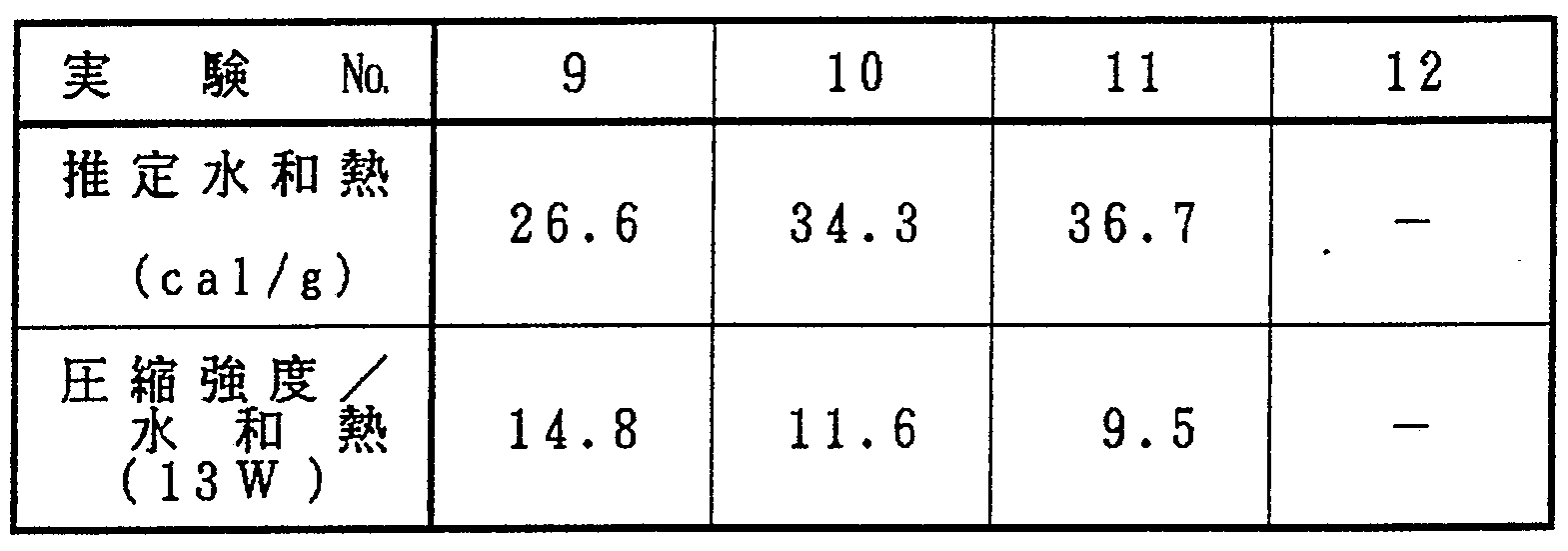

  • the present invention is an experiment 9 to 11.
  • a medium heat bolt land cement (Nippon Cement Co., Ltd., specific surface area: 340 (/ g)) and a normal port used as a stimulating material
  • the land cement was also measured, and the results are shown in Tables 5 and 6.
  • the present invention relates to Experiments ⁇ 13 to 16 and 18 to 20.
  • Example 7 Using the raw materials described in Example 1, various quenched products shown in Table 7 were produced and powdered to a specific surface area of 450 ci. Shattered. Each of the obtained powders was mixed with 90% by weight and 10% by weight of the ordinary bolt land cement used in Example 3 to produce a cement composition.
  • the properties of the cement composition were measured in accordance with Example 1, and the results are shown in Table 7.
  • the present invention is the experiments # ⁇ 2427 and 30.
  • the characteristic test was performed as follows when the water / cement composition was changed.
  • Example 2 the quenched material (Ca OZS i 0 2 (molar ratio) 1.20, A 120 31.0 .0% by weight) obtained in the experiment ⁇ ( ⁇ 11) was pulverized.
  • a powder having a specific surface area of 352 d / g was produced by mixing the powder with the ordinary portland cement used in Example 3 by 80% by weight and 20% by weight.
  • % Of the cement composition, and the properties of the cement composition were measured according to Example 1. The results are shown in Table 8. Are experiments ⁇ 31 to 32.
  • Cement compositions were manufactured using the following industrial raw materials (chemical compositions are listed in Table 9) and their properties were examined.
  • Example 2 flux and against the mixed material of the experiment No. 1 1 (B 2 03) was added at the ratio (outer part) shown in Table 12 and the melting temperature was set to 1500 ° C, except that the powder composition (Ca OZS i 0 2 (Mol ratio) 1
  • a 20 A 1 z 03 content of 10.0% by weight and a specific surface area of 500 0 ⁇ 10 ( ⁇ no g) were produced.
  • a cement composition was obtained by mixing the powder composition and the ordinary volatile land cement used in Example 3 at a ratio of 90% by weight and 10% by weight. The properties of the cement composition were measured in accordance with the measurement method of Example 1, and the melting points of the mixed raw materials containing the flux were also measured. The results are shown in Table 12.
  • the flux (B 2 03) is that you do not have a what we affect the characteristics of the cell e n t composition was found.
  • 03 Power 5 1: 4 1: 8 ( .. C a 0 / S i 0 2 ( molar ratio) 1 3 3 A 1 z 03 8 wt%) was mixed with earthenware pots by ing the ratio, Roh I Polyvinyl alcohol was added as a binder, and ethanol was added as a solvent, mixed and formed into a pellet.
  • Calcination was performed at 100'C for 30 minutes. Then, it was melted at 100 ° C for 30 minutes using an electric furnace equipped with a lantern-opening-type heat generator, and then the melt was poured into ice water and quenched.
  • the obtained quenched product was pulverized with an iron ball mill to a Brain specific surface area of 400 OciSZg to obtain a powder composition (specific gravity of 2.96). When this powder composition was subjected to an XRD test, no crystal was observed.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Ceramic Engineering (AREA)
  • Materials Engineering (AREA)
  • Structural Engineering (AREA)
  • Organic Chemistry (AREA)
  • Curing Cements, Concrete, And Artificial Stone (AREA)

Description

明 細 書 発明の名称
低発熱型セ メ ン ト 組成物 技術分野
本発明 は、 特定範囲の C a O — S i 0 2 - A 1 2 0 3 系組成、 かつ主に非晶質か ら な る 低発熱型セ メ ン ト 組 成物、 および該組成物を主と する 組成物に刺激材を混 合 した新規な る低発熱型セ メ ン ト 組成物に関す る。
背景技術
ダム、 大橋梁の フ ー チ ング、 高層建築の基礎、 L N G タ ン ク や原子力発電所の基礎な ど、 マ ツ シブ ( mas- si ve) な コ ン ク リ ー ト 建築工事で は、 コ ン ク リ ー ト を 打設 し た さ いセ メ ン 卜 の水和熱が硬化コ ン ク リ ー ト に 畜熱す る 。 そ の結果、 硬化 した コ ン ク リ ー ト は内部の 温度が高 く な り 、 そ の表面付近は外気温に近い低い温 度と な る 。 そ の両者間の温度の差が熱膨張率の差と し て現れ、 ひび割れが発生す る 。
そ の欠点を解消する た めに、 発熱量の少ないセ メ ン ト ゃ、 そ の製造方法な どが研究さ れて い る 。 た と え ば、 ポ ル ト ラ ン ド セ メ ン ト に舍ま れる鉱物の構成割合を変 更 し た り ( た と え ば、 水和熱の小さ い けい酸二石灰を 主成分 と す る ) 、 あ る い はセ メ ン ト の粒子分布を変更 し た り 、 又は現場的に はモ ルタ ルやコ ン ク リ ー ト を混 練する と き水ノセ メ ン ト を小さ く する方法な どであ る
( セ メ ン ト協会主催、 第 2 4 9 回コ ン ク リ ー ト 講習会 テキ ス ト 、 P P 3 5 〜 4 3 ( 1 9 9 0 ) ) 。
本願発明に関連した C a O — S i 02 - A 1 2 03 系組成物 と して ス ラ グが、 ま た その ス ラ グ と セ メ ン ト とを配合した混合セ メ ン ト も知 られてい る。
関連する 代表的な文献の 1 つは、 セ メ ン ト 技術年報、 1 1 卷、 P P 1 2 5 〜 ; 1 3 3 ( 1 9 5 7 ) であ る 。 こ の文献に は、 試料と してセ メ ン ト メ ーカ ーが、 市販の ス ラ グ と ボル ト ラ ン ド セ メ ン ト を 3 0 〜 7 0 : 7 0 〜 3 0 (重量比) に配合 した各種の混合セ メ ン ト (高炉 セ メ ン ト ) を製造 し、 こ れを用いてモルタ ルをつ く り 、 そ の硬化体における材令 9 0 日 の圧縮強度 ( ff n ) / 水和熱 ( H n ) を測定 した と こ ろ、 5 . 0 〜 6 . 8 で あ つ た と記載さ れて い る 。 そ の結果、 こ の混合セ メ ン ト は必ずし も低発熱型ではな く 、 も し水和熱を中庸熱 セ メ ン ト と同程度に したいな ら ば、 ス ラ グの配合量を 5 0 〜 6 0 %に した混合セ メ ン ト が適当であ る と結論 ずけている。
こ の文献に示されたス ラ グは一般的な も の であ り 、 その組成は C a 0 3 8 . 7 〜 4 1 . 9 %、 S i 02 3 1 . 8 〜 3 4 . 3 % ( C a O / S i 02 ( モ ル比) - 1 . 2 1 〜 1 . 4 1 ) 、 A 1 2 03 1 4 . 4 〜 1 9 . 2 % . その他 M g O な どの不純物数%を舍む。
も う 一つの文献は、 セ メ ン ト 技術年報、 6 卷、 p p 4 9 〜 5 6 ( 1 9 5 2 ) の記載であ る 。 すなわ ち、 原 料を溶融 して急冷 し、 組成の異な る 多数の C a 0 — S i 0 z - A 1 2 03 系組成物を合成 した の.ち、 比表面 積 3 1 0 O ciiZ g 前後に粉砕 してス ラ グ粉末を製造す る。 次いでそれ ら ス ラ グ粉末と ボ ル ト ラ ン ド セ メ ン ト
(刺激材) と を重量比で 0 . 8 : 0 . 2 の割合に配合 した混合セ メ ン ト を製造する。 そ の混合セ メ ン ト を用 い て 、 砂 混合セ メ ン ト = 1 、 水 Z混合セ メ ン ト = 0 . 4 5 の モ ル タ ル混練物を製造 した の ち 、 直径 l ciE、 高 さ 2 cmに成形 してモ ル タ ル硬化体をつ く り 、 材令 1 週 と 4 週におけ る 圧縮強度の測定結果を示 してい る。 そ の結論と して、 比較的高い圧縮強度を発現す る ス ラ グ の組成は、 C a 0 4 7 〜 5 2 %、 S i 02 3 3 〜 3 7 % ( C a 0 / S i 0 z ( モ ル比) = 1 . 3 6 〜 1 . 6 9 ) 、 A 1 2 0 3 1 4 〜 : 1 8 %の範囲が最適で あ る と 説明 さ れて い る 。 なお こ の文献に は水和熱の記載はな い 。
低発熱型の セ メ ン ト と して代表的な中庸熱ポ ル ト ラ ン ド セ メ ン ト は、 材令 1 週およ び 1 3 週におけ る圧縮 強度が 1 0 0 〜 2 0 0 kg / cii、 3 0 0 〜 5 0 0 kg / ciS と低 く 、 水和熱のそれ らが 5 0 〜 7 0 c a l / g 、 8 0 〜 9 5 c a 1 / g と相 当高い。 材令 1 3 週の圧縮強 度 /水和熱は 3 . 1 〜 6 . 3 で あ る 。
したがっ て、 こ の セ メ ン ト を使用 した前記用途のェ 事は、 コ ン ク リ ー ト 混練物を打設 し硬化さ せた の ち散 水 し冷却する か、 あ る い は該混練物を部分的に打設 し た状態で長期間放置し、 硬化 した コ ン ク リ ー ト 内の熱 を放散させ降温させ、 次いで隣接部分を新たな コ ン ク リ ー ト混線物で打ち継いで行 く 方法が採用 されてい る。 それゆえ散水冷却作業工程を要する か、 あ る い は自然 放冷によ り ェ期が著し く 長期化する など、 それぞれに 欠点を有 していた。
さ ら に、 ボル ト ラ ン ドセ メ ン ト 一 高炉ス ラ グ粉末 —— フ ラ イ ア ッ シ ュ系混合セ メ ン ト ゃ前記けい酸二石 灰を主とする セ メ ン ト も知 られてい る が、 いずれも圧 縮強度が著 し く 低いため、 それら セ メ ン ト はマ ツ シブ なコ ン ク リ ー ト に は殆ど利用されず、 専 ら特殊条件下 での用途にのみ少量採用 さ れてい る にすぎない。
以上か ら、 従来のセ メ ン ト は、 マ ツ シ ブな コ ン ク リ ー ト の建設工事に採用する にあた り 、 長期材令におけ る圧縮強度および水和熱の両方を満足 しなかっ たため、 それに替る 新たなセ メ ン 卜 の出現が待たれて い た。
発明の開示
上記背景技術か ら、 マ ッ シブな コ ン ク リ ー ト 構造物 を施工する に は、 使用する セ メ ン ト が、 長期間、 低水 和熱であ る こ とおよび適当な圧縮強度を発現する こ と の両方が重要であ る。
一般的な用途に使用 さ れる モ ルタ ル ' コ ン ク リ ー ト の特性の評価 (圧縮強度、 水和熱) は、 材令 1 週あ る い は 4 週で も判断で き る が、 上記の こ と を考盧する と、 マ ツ シブな コ ン ク リ ー ト に使用する セ メ ン ト は 4 週以 下の よ う な短期材令のみで評価する の は適当でない。 しかも前記 2 特性は、 密接に関連 してい るか ら、 それ ら を一つのパ ラ メ 一タ ー と して評価す る のが最適で あ る。
以上か ら、 マ ツ シブな コ ン ク リ ー ト 用 のセ メ ン ト の 評価は、 材令 1 3 週におけ る圧縮強度 Z水和熱によ る 評価が適切で あ る と判断 した。
本発明者 ら は、 上記条件に適応す る素材 と して C a 0 — S i 02 - A 1 2 0 3 系組成物を中心に、 下記の 目的を も っ て鋭意研究 し た。 ·
すなわ ち本願発明の第 1 の 目的は、 C a O — S i 02 - A 1 2 03 系、 特に A 1 2 0 3 舍有量の少ない領域 にお け る主に非晶質か ら な る セ メ ン ト 組成物、 さ ら に 該系に剌激材を組み合わせて改良 し た セ メ ン ト 組成物 を開発す る こ と にあ る 。
第 2 の 目的は、 材令 1 3 週にお ける圧縮強度 /水和 熱が少な く と も 7 . 0 以上であ る セ メ ン ト 組成物を開 発す る こ と にあ る 。
以下に本願発明を詳細に説明する。
本願発明の C a O — S i 0 2 - A 1 2 0 3 系組成物 は水和反応が緩慢で あ り 、 圧縮強度 も水和熱 も長期間 にわた つ て発現 し発熱す る 。 材令 4 週での該組成物は ま だ反応過程に あ り 、 そ の時点の測定値か ら圧縮強度 や水和熱の最高値を推定する こ と は無理であ り 、 ま た 測定値はバラ ツ キが大き く 、 信頼性が feい。 こ のよ う な観点か ら、 本願発明のセ メ ン ト組成物に係る前記 2 特性の評価は、 材令 1 3 週における測定結果を主に し て行な っ た。
本願の第 1 発明は、 主に非晶質の粉末か ら な り 、 C a 0 / S i 02 ( モ ル比) が 0 . 8 〜 ; I . 5 、 A 1 2 03 力く 1 . 0 〜 : L 0 . 0 重量%であ る C a O — S i 02 - A 1 2 03 系の低発熱型セ メ ン ト 組成物であ る。
化学組成の点から見れば、 こ の種のセ メ ン ト 組成物 の一部は、 それ自体実験室的に合成さ れ公知であ る。 しかし、 こ の公知の組成物は、 材令 4 週の圧縮強度が 著 し く 低 く 、 実用性な し (水和熱も無視さ れた ) 、 と してマ ツ シブなコ ンク リ ー ト への適用の可否も検討さ れずに、 不明のま ま、 現在に至っ てい る。
ま た混合セ メ ン ト (高炉セ メ ン ト ) の素材と して用 い られる C a O — S i 02 - A 1 2 03 系を主とする 高炉ス ラ グは、 高炉の操業や銑鉄の純度を良 く する た め、 A l 2 03 含有量が 1 4 〜 1 8 重量%に調整さ れ ており 、 A l z 0 a 1 4 重量%以下は製造されていな い。
しか しながら、 発明者 らが C a 0 — S i 02 - A 1 2 03 系組成物について種々 の角度か ら研究 した結果、 適当に粉砕された特定領璩の組成物 (つま り 第 1 発明 と して示 した組成物) が、 マ ツ シブな コ ンク リ ー ト を 製造する ために要求さ れる材令 1 3 週におけ る 水和熱 も低 く 、 適度な圧縮強度も発現 して、 圧縮強度 水和 熱の条件に適合 して い る こ と を突き止め た。 こ の点に 第 1 発明の特徴があ る。 .
そ して、 前記用途に対 し、 セ メ ン ト 組成物がセ メ ン ト と して十分実用性を有 して い る こ と を確認 した。 材令 1 3 週における圧縮強度 /水和熱は、 従来の ス ラ グが 5 . 0 〜 6 . 8 であ る のに対 し、 本願発明のセ メ ン ト 組成物は 7 . 0 〜 1 5 であ り 、 相当高 く 、 産業 上十分に利用で き る。 望ま しいの は 8 . 0 以上、 よ り 望ま し く は 1 0 . 0 以上であ る。
該セ メ ン ト 組成物に含ま れる 非晶質の割合 (以下、 ガ ラ ス化率 と言 う ) は、 6 0 %以上、 好ま し く は 8 0 %以上で あ る 。
非晶質以外の部分に は各種の鉱物が舍ま れて い る。 そ の鉱物は、 使用 さ れた原料中の不純物あ る い は製造 条件 (溶融条件や冷却速度な ど) のバラ ツ キ に よ り 生 成 した も のであ る。 主な鉱物は ワ ラ ス ト ナ イ ト ( C a 0 · S i 0 2 ) 、 ラ ンキ ナ イ ト ( 3 C a O ' 2 S i O けい酸二石灰 ( 2 C a O ' S i 0 2 ) 、 ゲ一 レ ナ イ ト ( 2 C a 0 · A 1 0 2 03 · S Ϊ 0 2 ) な どで あ る 。 こ れ ら鉱物は、 水和を しな いか、 ま た は水和反応が極 端に緩慢な の で、 殆 ど水和熱を高め る よ う な悪影響は な い。 つま り 圧縮強度/水和熱を低下させ る こ と はな い。
次に化学組成について説明す る 。 セ メ ン ト組成物は実質的に C a O、 S i 02 及び A 1 2 03 の 3 化合物か ら な り 、 その他は前述した原料、 製造工程などか ら不可避的に混入 した不純物であ る。
C a 0 / S i 02 ( モル比) が 1 . 5 を超え る と、 溶融温度が高 く なる と共に、 原料溶融物を氷水中に投 入し急冷して も結晶質の割合の多いセ メ ン ト組成物が でき、 そ の た め圧縮強度が低 く 、 かつ水和熱が高 く な り 好ま し く ない。 一方 0 . 8 未満にする と、 溶融温度 および非晶質化条件への影響はほ とんどないが、 セ メ ン ト組成物の水和反応が極端に遅 く な り 、 圧縮強度も 殆ど発現せず、 圧縮強度/水和熱も小さ く な る ので好 ま し く ない。 好ま しい範囲は 0 . 9 〜 : I . 4 、 よ り 好 ま し く は 1 . 0 〜 1 . 3 であ る。
A 1 2 03 含有量は、 少ない方が水和熱と な り 好ま しい反面、 原料の溶融温度は上昇 し、 非晶質の割合お よび初期強度が低下する傾向を示す。 それゆえセ メ ン ト組成物を利用する上で、 初期強度が極端に低すぎる と 1 3 週での強度の発現も低 く 、 結果と して圧縮強度 水和熱も小さ く かつ長期間型枠が脱型でき な い ので 好ま し く ない。 こ の こ とか ら A 1 2 03 含有量は少な く と も 1 . 0 重量%以上必要であ る 。 ま た、 A l 2 03 が 1 0 . 0 %を超え る と、 非晶質の割合も圧縮強度も 極端に低下する ので好ま し く な い。 水和熱を抑制する ために、 その含有量を 1 0 . 0 重量%以下、 適当な初 期強度を発現させる ために 1 . 0 重量%以上含有させ る こ と が肝要で あ る 。 好ま しい A l 2 03 含有量は 2 . 0 〜 8 . 0 重量%、 最 も好ま し い の は 3 . 0 〜 6 . 0 重量%であ る 。
セ メ ン ト 組成物の細かさ は 3 0 0 O ciiZ g 以上であ る。 細か く な る ほど圧縮強度は向上す る 傾向にあ る。 しか し水和熱への影響は意外 と小さ い。 それゆえ、 セ メ ン ト 組成物の使用 目 的に よ っ て は、 細かい も のが好 ま し い場合も あ る が、 あま り 細か く する と製造コ ス ト が高 く な り 経済的に不利であ る。 望ま しい細かさ は 4 O O O l O O O O oiZ g であ る。
次に、 上記セ メ ン ト 組成物の製造方法を説明す る。 C a O用原料 (例、 石灰石) 、 S i 02 用原料 (例、 けい石) 及び A 1 2 03 用原料 (例、 ア ル ミ ナ ) の各 粉末を前述 し た化学的比率 · 組成にな る よ う に混合す る。 こ の場合、 A l 2 03 用原料は、 C a O用原料お よび S i 0 z 用原料に十分な量の A 1 2 03 が舍有さ れて いれば、 必ず し も用 いな く て も よ い。 得 られた混 合原料を慣用 の溶融炉 (例、 電気炉) に投入 し、 十分 に溶融 ( 1 3 5 O 'C以上) し た の ち、 溶融物を氷水中 に投入 して急冷 し、 直ち に取 り 出す。 引 き続き 常用 の 粉砕手段 (例、 ボール ミ ル) で所望の細かさ に粉碎す る こ と に よ り 、 第 1 発明の低発熱型セ メ ン ト 組成物が 製造さ れる。
次に本願の第 2 発明を説明す る 。
第 2 発明 は、 C a O Z S i 02 ( モ ル比) が 0 . 8 〜 1 . 5 及び A l 2 03 が 1 . 0 〜 1 2 . 0 重量%未 満、 かつ主に非晶質物からな る C a O — S i 02 — A 1 z 03 系の粉末組成物と、 剌激材とを、 それぞれ 7 0 重量%以上、 3 0 重量%以下混合 してな る低発熱型 セ メ ン ト 組成物であ る。
こ の発明は、 低い水和熱および 1 3 週における圧縮 強度 Z水和熱をほぼ維持する一方、 初期における水和 を速めて凝結時間の短縮、 初期強度の向上な どを狙つ たセ メ ン ト組成物であ る。 具体的には、 第 1 発明のセ メ ン ト組成物の凝結時間 (始発) は 5 時間以上であ つ たが、 第 2 発明で はそれを約 2 時間近 く 短縮する。
つま り 、 第 2 発明のセ メ ン ト 組成物は第 1 発明の改 良であ る。
第 2 発明で使用 さ れる粉末組成物の条件中、 第 1 発 明で説明 した実質的に 3 化合物か ら な る こ と、 不純物、 C a 0 / S i 02 ( モ ル比) の範囲、 非晶質の含有量、 粉末の細かさおよび製造方法は、 第 1 発明で説明 した セ メ ン ト組成物 と同 じであ る ので、 こ こ で は A l 2 03 含有量について述べる。
第 2 発明の粉末組成物の A 1 2 03 含有量は、 第 1 発明のセ メ ン ト 組成物よ り 多 く 1 2 重量%未満ま での も のが使用可能である。
A 1 z 03 含有量が 1 2 重量%以上にな る と水和熱 が大き く な り 、 つま り は圧縮強度ノ水和熱が低 く な る ので好ま し く ない。 1 . 0 重量%以下が好ま し く な い 理由は第 1 発明の場合 と同 じであ る 。 好ま し い含有量 は 2 〜 1 0 重量%、 よ り 好ま し く は 3 〜 8 重量%であ る。 .
剌激材 と して は、 ポル ト ラ ン ド系セ メ ン ト 、 石 こ う 類、 ア ルカ リ 金属化合物、 ア ルカ リ 土類金属化合物に 属する も の の中か ら 1 種又は 2 種以上を併用す る こ と がで き る。
具体的に は、 ポル ト ラ ン ド系セ メ ン ト と して普通 · 早強 ' 中庸熱ボル ト ラ ン ド セ メ ン ト およびク リ ン 力 一、 混合セ メ ン ト (高炉セ メ ン ト 、 フ ラ イ ア ッ シ ュ セ メ ン ト な ど) な どが、 石こ う 類と して二水 · 半水 · 無水石 こ う が、 ア ル力 リ 金属化合物と して水酸化ナ ト リ ゥ ム 、 炭酸ナ ト リ ウ ム 、 水酸化カ リ ウ ム な どが、 ア ルカ リ 土 類金属化合物 と して水酸化カ ル シ ウ ム 、 酸化カ ル シ ゥ ム な どが挙げ ら れる。 好ま しい剌激材は普通ポル ト ラ ン ド セ メ ン ト で あ る 。
粉末組成物 と剌激材 と の混合割合 (内割) において、 剌激材の割合が 3 0 重量%を超え る と水和熱が大き く な り 、 つま り は圧縮強度 /水和熱が低 く な る ので好ま し く な い。 好ま し い剌激材の割合は 0 . 1 〜 1 5 重量 %で あ る 。 なお剌激材と して石 こ う 類を用 い る 場合の 混合割合は、 S 0 3 換算値で 0 . 1 〜 5 . 0 重量%が 好ま しい。
粉末組成物と刺激材 と の混合は、 慣用 の混合方法に し たがっ て行なえ ばよ く 、 本願発明で は特に限定 しな い。
第 1 発明および第 2 発明の低発熱型セ メ ン ト は、 目 的を損わない範囲において市販のス ラ グ、 .フ ラ イ ア ッ シュ、 ポゾラ ン、 石灰石、 けい石などの粉末を添加 し て も よ い。
上記二つ の セ メ ン ト 組成物のま と め、 およびそ の効 果は次の とお り であ る。
第 1 発明は C a O、 S i 0 z 、 A 1 2 03 を主成分 と し、 C a Oノ S i 02 ( モ ル比) 、 A l z 03 舍有 量な どを特定 した非晶質を主とする セ メ ン ト 組成物の 発明であ り 、 第 2 発明は、 該組成物の場合よ り A 1 2 03 舍有量が 2 重量%多い範囲ま で舍めた粉末組成物 と剌激材とを混合してな る、 いわゆる前者の改良型の セ メ ン ト組成物に係る発明であ る。
それ ら セ メ ン ト組成物は、 従来水硬性が低い と して 無視さ れて き た領域の C a O — S i O z - A 1 2 03 系組成物を、 マ ツ シブな コ ン ク リ ー ト へ の利用 目的の も とに、 長期的立場にた っ て圧縮強度と水和熱に着目 し、 特に材令 1 3 週における圧縮強度ノ水和熱の観点 よ り 開発さ れた新たなセ メ ン ト であ る。
こ れ ら セ メ ン ト組成物はマ ッ シブな コ ン ク リ 一 卜 に 求め られる諸条件を十分に満た して いる。 かかる セ メ ン ト 組成物の出現は、 セ メ ン ト を重要な建設資材と し て使用す る建設業界への貢献が非常に大き い。
ま た本願発明に関連 して、 上記セ メ ン ト 組成物よ り 製造 した硬化体を加熱 ( 9 0 O 'C 付近) する と、 ゥ ォ ラ ス ト ナ イ ト ( C a O · S i 0 2)が生成す る た め、 通 常 の ポ ル ト ラ ン ド セ メ ン ト で製造 した硬化体よ り も耐 熱性が勝る。 そ の う え、 本願発明のセ メ ン ト 組成物の C a 0含有量が、 一般の ポ ル ト ラ ン ド セ メ ン ト の そ れ よ り 約 2 0 重量% も少な い こ と は、 ①該セ メ ン ト 組成 物の製造過程で放出さ れる C 0 2 ガス量が少な い、 ② G R C (織維捕強コ ン ク リ ー ト ) は、 従来か ら セ メ ン ト の C a 0 に基づ く 劣化が問題であ つ たが、 そ の G R C用セ メ ン ト と して有用であ る と い う 副次的効果を奏 する 。
以下、 本願発明を実施例に基づいて説明す る。
発明を実施す る た め の最良の形態
実施例 1
C a 0 / S i 0 z ( モ ル比) の異な る種 々 の粉末を 製造 し、 下記 3 特性を測定 した。
使用原料は次の とお り であ る。
• C a 0 用原料 : 白辰化学研究所製 「炭酸カ ル シ ゥ ム 」 純度 9 9 . 8 重量%比表面積 4 0 3 0 erf ノ g
• S i 0 2 用原料 : 日 窒工業社製 「 ハ イ シ リ カ F S 一 1 」 純度 9 9 . 6 重量%平均粒子径 4 . 2 m
秦 A l z 0 3 用原料 : 昭和電工社製 「細粒ア ル ミ ナ し — 4 5 - 11 」 純度 9 9 . 9 重量%平均粒子柽 3 . 0 μ m.
ま ず上記 C a 0 用原料 と して S i 0 2 用原料 と を用 い て 、 表 1 に示す C a O Z S i O z ( モ ル比) の割合 にな る よ う に混合 した。 得られた各混合物に、 A 1 2 03 含有量が 8 . 0 重量%にな る よ う に A.l z 03 用 原料を混合 した。 次いでバイ ンダー と してポ リ ブチル ア ル コ ー ル及び溶媒と してエ チ ルア ル コ ー ルを添加 し て混合したの ち、 直径 5 〜 1 0 纖 の ペ レ ツ ト をつ く つ
7 0
そのペ レ ッ ト を乾燥したの ち、 1 0 0 0 て 、 3 時間 仮焼した。 続いて電気炉で 1 7 5 0 て、 3 0 分溶融後、 溶融物を氷水中に投入して急冷し、 直ちに取り 出 した。 なお表 1 、 実験 No.4 は、 溶融物を空気中で放冷 した。
得 られた急冷物を鉄製ポール ミ ルで粉砕し比表面積 5 0 0 0 ± 1 0 O o!Z g の粉末を製造 した。
各粉末の非晶質の割合は X R D ( X線回折) 及び顕 微鏡によ り 測定 し、 「ガラ ス化率」 と して表示 し、 圧 縮強度及び水和熱は日本工業規格 ( J I S ) で測定 し た。 圧縮強度は、 J I S R 5 2 0 1 「 セ メ ン ト の 物理試験方法」 に準 じ該粉末 5 2 0 重量部、 標準砂 1 0 4 0 重量部および水 3 3 8 重量部を混練してモ ルタ ル混繚物 (水ノセ メ ン ト 組成物 = 0 . 6 5 ) をつ く り 、 寸法 4 X 4 X 1 6 cmに成形し、 得 られた供試体を表 1 に示す材令に応 じて測定 した。
凝結試験も上記 J I S R 5 2 0 1 に従い、 ベー ス ト によ り 測定 した。
水和熱は、 該粉末 1 0 0 重量部に水 5 0 重量部を加 え 3 分間混練 し、 得 られた ペー ス ト を J I S R 5 2 0 3 「 セ メ ン ト の水和熱測定方法 (溶解熱方法) 」 に準 じて測定 した。
各測定結果は表 1 に併記 した。 さ ら に圧縮強度ノ水 和熱、 および圧縮強度を一定 ( 3 0 0 kg f / cii ) に し た と き の推定水和熱を表 2 に併記 した。 本発明は実験 No. 3 〜 6 であ る 。
表 1
Figure imgf000017_0001
水和熱(cal/g) 凝結時間(時-分)
実験 No.
1 W 4 W 13 W 始 発 終 結
1
2
3 18.0 24.7 29.4 5-48 9-12
4 18.6 22.8 33.0 5-54 9-16
5 21.5 33.6 35.9 5-37 9-58
6 30.8 40.5 45.6 5-39 9-46
7
8 55.1 70.4 81.4 2-46 5-21 表 2
Figure imgf000018_0001
実施例 2
A 1 z 03 舍有量の異なる種々 の粉末を製造 し、 そ れら の特性を調ベた。
C a 0用原料と S i 02 用原料とを混合する さ い、 C a 0 / S i 0 2 ( モ ル比) を 1 . 2 0 で一定に し、 かつ A 1 2 0 a 用原料を表 3 に示す割合にな る よ う に 混合 した以外は、 実施例 1 の手順に したがっ て該粉末 を製造 し、 測定し、 得 られた結果を表 3 および表 4 に 併記 した。
本発明は実験 Νοι 9 〜 1 1 であ る 。
表 3
Figure imgf000018_0002
水和熱(cal/g) 凝結時間(時-分)
実験 No.
1 W 4 W 13 W 始 発 終 結
9 17.8 24.8 29.1 5-42 9-11
1 0 18.6 31.8 37.9 5-48 9-15
1 1 21.5 33.6 38.9 5-39 9-07
1 2 一 j ―
Figure imgf000019_0001
実施例 3
剌激材の影響を下記の実験によ つ て確認 した。
粉末組成物は、 実施例 1 、 実験 No. 5 の製造過程で得 た急冷物の一部を比表面積 4 6 6 O ciS / g に粉砕 し た も の を選択 し た。 こ の粉末の C a O Z S i O z ( モ ル 比) を 1 . 2 0 、 Α 1 2 Ο 3 含有量は 8 . 0 重量%で あ る。
刺激材 と して下記の も のを使用 した。
' 普通ポノレ ト ラ ン ド セ メ ン ト 日 本セ メ ン ト 社製
3 2 5 0 ci / g
, 水酸化カ ル シ ウ ム 奥多摩工業社製 消石灰超特 号 1 2 0 0 0 of / g
• 無水石 こ う 関東化学社製の特級試薬硫酸カ ル シ ゥ ム を 6 0 0 ΐ、 1 時間加熱処理後、 粉砕 し た も の 1 0 0 0 0 cin / g
- 炭酸ナ ト リ ウ ム 関東化学社製 特級試薬炭酸ナ ト リ ウ ム粉末
上記粉末組成物 と刺激材 と を表 5 に示す割合 ( 内割) で、 混合機に よ っ て十分に混合 してセ メ ン ト 組成物を 製造 し、 実施例 1 の要領に準 じて各特性を測定 し、 得 た結果を表 5 、 表 6 に併記した。 なお無水石こ う の混 合割合は S 0 3 換算値、 炭酸ナ ト リ ウ ム は N a 2 0換 算値である。
比較例と し て、 中庸熱ボ ル ト ラ ン ド セ メ ン ト ( 日本 セ メ ン ト社製、 比表面積 3 4 2 0 ( / g ) および剌激 材と して用いた普通ポ ル ト ラ ン ド セ メ ン ト も測定し、 結果を表 5 、 表 6 に併記 した。 本発明は実験 Να 1 3 〜 1 6 、 1 8 〜 2 0 であ る。
表 5 剌 激 材 強度(kgf/cm2) 実験 Ν(χ
(¾) 1 W 4 W 13 W
1 3 5 93 312 420
1 4 10 93 333 530
蟹 ポ ftトラン Fセメント
1 5 20 106 336 559
1 6 30 127 372 571
1 7 40 159 408 588
1 8 TR ί匕 ft シゥ ム 5 90 325 415
1 9 無 水 石 こ う 5 91 309 400
2 0 炭 酸 ナ ト リ ウ ム 1 129 323 396
2 1 Φ ϋ ポル トラ :/ F セメ ン ト 198 335 493
2 2 普 通 す: ft ト ラ :/ F セ メ ン ト 245 407 j 476 表 5 (続き )
Figure imgf000021_0001
表 6
Figure imgf000021_0002
実施例 4
粉末組成物の C a O Z S i 0 2 ( モ ル比) 及び A l 0 3 含有量に対す る剌激材の影響を調べた。
実施例 1 に記載 した各原料を用 いて表 7 に示す各種 急冷物を製造 し比表面積 4 5 0 0 土 1 0 0 ciSノ g に粉 碎 した。 得た各粉末と、 実施例 3 で用いた普通ボ ル ト ラ ン ドセ メ ン ト とを 9 0 重量%、 1 0 重量%の割合に 混合 してセ メ ン ト組成物を製造 した。
そ のセ メ ン ト組成物について実施例 1 に準じて各特 性を測定 し、 結果を表 7 に併記 した。 本発明は実験 Να 2 4 2 7 およ び 3 0 で あ る 。
Figure imgf000022_0002
実験 凝結時間 (時一分)
No. 始 発 終 結 (
Figure imgf000022_0001
2 3
2 4 3-51 5-12 40.1 7.5
2 5 3-57 5-21 43.6 7.9
2 6 3-43 44.7 10.8
2 7 3-47 5-17 45.5 9.9
2 8 3-59 5-30 53.7 6.3
2 9 4-10 2.6
3 0 3-51 5-07 53.6 8.0 実施例 5
水 /セ メ ン ト 組成物を変えた場合の特性試験を下記 要領で行な っ た。
実施例 2 、 実験 Ν(λ 1 1 における 製造過程で得 られた 急冷物 ( C a O Z S i 0 2 ( モ ル比) 1 . 2 0 、 A 1 2 0 3 1 0 . 0 重量% ) を粉碎 して比表面積 3 5 2 0 d / g の粉末を製造 した。 そ の粉末 と、 実施例 3 で用 い た普通ポ ル ト ラ ン ド セ メ ン ト と を 8 0 重量%、 2 0 重 量% の割合に混合 して セ メ ン ト 組成物を得た。 そ の セ メ ン ト 組成物について実施例 1 に準 じて各特性を測定 し、 結果を表 8 に掲載 した。 本発明は実験 Να 3 1 〜 3 2 で あ る 。
表 8
Figure imgf000023_0001
実施例 6
下記の工業用原料 (化学組成を表 9 に記載 し た ) を 用 いて セ メ ン ト 組成物を製造 し、 各特性を調べた。
A : 高炉水滓ス ラ グ 住友金属社製 比表面積 3 8 0 0 of / g
B : 石灰石 奥多摩工業社製 比表面積 2 0 0 0 oi
/ g C : けい石 埼玉県御堂産 比表面積 3 0 0 0 αδ/ g D : 頁岩 埼玉県秩父産 比表面積 2 0 0 0 ci/ g E : もみがら の灰 比表面積 1 0 0 0 0. of Z g
F : バ ン土頁岩 比表面積 3 0 0 0 dlZ g 上記原料を組み合わせて表 1 0 の よ う に混合 したの ち、 実施例 1 の手順に し た が っ て C a 0ノ S i 02 ( モ ル比) が 1 . 2 0 A 1 2 03 含有量が 1 0. 0 重量%の粉末組成物 3 種類を製造した。 それ ら粉末と 実施例 3 で用いた普通ポル ト ラ ン ド セ メ ン ト とを 9 0 重量%、 1 0 重量%の割合に混合してセ メ ン ト組成物 を得た。 それ ら セ メ ン ト 組成物について実施例 1 の測 定方法に準 じて各特性を測定し、 得 られた結果を表 1 1 に掲載した (なお粉末組成物の比表面積も同表に示 した) 。 本発明は実験 No. 3 3 3 5 であ る。
Figure imgf000024_0001
表 1 0
Figure imgf000025_0001
表 1 1
Figure imgf000025_0002
Figure imgf000025_0003
実施例 7
非晶質を舍む粉末を製造する 過程で得 られる混合原 料に融剤を添加 した場合、 混合原料の融点に影響す る か否かを調べた。
実施例 2 、 実験 No. 1 1 の混合原料に対 して融剤 ( B 2 03 ) を表 1 2 に示す割合 (外割) で加えた点および 溶融温度を 1 5 0 0 ΐ に し た点以外は、 実施例 1 に し たがっ て粉末組成物 ( C a O Z S i 02 ( モ ル比) 1
2 0 A 1 z 03 含有量が 1 0 . 0 重量%、 比表面積 5 0 0 0 ± 1 0 Ο αδノ g ) を製造した。 それ ら粉末組 成物と、 実施例 3 で用いた普通ボル ト ラ ン ド セ メ ン ト とを 9 0 重量%、 1 0 重量%の割合に混合 したセ メ ン ト組成物を得た。 そ の セ メ ン ト 組成物について実施例 1 の測定方法に準 じて各特性を測定する と共に、 融剤 を舍む混合原料の融点 も測定し、 それら の結果を表 1 2 に併載した。
そ の結果、 融剤 ( B 2 03 ) はセ メ ン ト組成物の特 性になん ら影響を及ぼさ ない こ とが判明 した。
表 1 2
Figure imgf000026_0001
水 和 熱 凝 結 時 間 推 定 圧縮強度 実験 (cal/g) (時一分) 水和熱 ノ水和熱 o .
1 W 4 W 13 W 始発 終結 (cal/g) ( 13 W )
3 6 31.8 , 48.8 59.1 3-42 6-11 46.8 9.7
3 7 32.5 47.5 59.7 3-46 6-17 46.3 9.7
3 8 32.4 48.3 57.8 4-01 6-32 47.2 9.8 実施例 8
以下のよ う に して製造さ れた粉末組成物 と剌激材 と を混合 して得 られたセ メ ン ト 組成物をペー ス ト に した と き の特性を調べた。
白辰化学研究社製 「炭酸カ ル シ ウ ム 」 、 日 窒工業社 製 「ハ イ シ リ カ F 5 」 および昭和電工社製 「細粒ア ル ミ ナ A— 4 2 0 」 を重量比で C a O : S i 0 E : A 1 z
03 力 5 1 : 4 1 : 8 ( C a 0 / S i 02 ( モ ル比) = 1 . 3 3 . A 1 z 03 8 重量% ) の割合に な る よ う に混合 し、 ノ ィ ンダ一 と してポ リ ビニールア ルコ ール と、 溶媒 と してエ タ ノ ールを加えて混合 し成形 し ペ レ ッ ト と した。
こ の ペ レ ツ ト を 1 0 0 て で 2 4 時間乾燥 した の ち、
1 0 0 0 'C で 3 0 分間仮焼 した。 その後、 ラ ンタ ン ク 口 マ イ ド発熱体を具備 した電気炉を用いて 1 Ί 0 O 'C で 3 0 分間溶融 し たの ち、 溶融物を氷水中に投入 して 急冷 した。
得 られた急冷物を、 鉄製ボール ミ ルで ブ レ ー ン比表 面積 4 0 0 O ciS Z g に粉砕 して、 粉末組成物 (比重 2 . 9 6 ) を得た。 こ の粉末組成物を X R D検査 した と こ ろ、 結晶質は全 く 認め られなかっ た。
次に、 こ の粉末組成物 9 0 重量部に、 表 1 3 に示す 剌激材 1 0 重量部を添加 し、 十分に混合 して、 3 種類 の セ メ ン ト 組成物 (試料) を製造 した。 刺激材に は実 施例 3 で用 いた普通ポ ル ト ラ ン ド セ メ ン ト 、 無水石 こ う および水酸化カ ル シ ムであ る。
得 られたセ メ ン ト 1 0 0 重量部、 水道水 5 0 重量部 を加え、 3 分間混練し ペース ト をつ く っ た.。 そ の一部 を、 寸法 2 X 2 X 8 cmに成形 した強度試験用供試体を 作製し、 材令に応じて圧縮強度を測定した。 残部は前 記 J I S R 5 2 0 3 に準拠して、 各材令における 水和熱をそれぞれ測定 した。 結果を表 1 3 に記載した < 本発明は実験 No. 3 9 〜 4 1 であ る。 なお、 中庸熱ポ ル ト ラ ン ド セ メ ン ト ( 日本セ メ ン ト 社製、 3 2 5 0 c / g ) について も同様の試験を行な っ た。
表 1 3
Figure imgf000028_0001
実験 水和熱 (cal/g) 圧縮強度
水和熱
No. 1 W 4 W 13 W ( 13 W )
3 9 31.0 41.8 50.6 11.1
4 0 28.5 35.0 39.1 11.0 1 21.5 28.9 33.5 11.3
4 2 55.1 70.4 81.4 6.8

Claims

請求の範囲
1 . C a 0 / S i 02 ( モ ル比) が 0 . 8 〜 1 . 5 、 A 1 2 03 含有量が 1 . 0 〜 1 0 . 0 重量%、 かつ主 に非晶質か ら な る低発熱型セ メ ン ト 組成物
2 . 非晶質の割合が 8 0 重量%以上であ る請求の範囲 第 1 項の低発熱型セ メ ン ト 組成物
3 . C a 0 / S i 02 ( モ ノレ比) が 0 . 9 〜 : I . 4 で あ る請求の範囲第 1 項の低発熱型セ メ ン ト 組成物
4 . C a 0 / S i 02 ( モ ル比) が 1 . 0 〜 : L . 3 で あ る 請求の範囲第 1 項の低発熱型セ メ ン ト 組成物
5 . A 1 2 03 含有量が 2 . 0 〜 8 . 0 重量%であ る 請求の範囲第 1 項の低発熱型セ メ ン ト 組成物
6 . A 1 2 03 含有量が 3 . 0 〜 6 . 0 重量%であ る 請求の範囲第 1 項の低発熱型セ メ ン ト 組成物
7 . 細かさ が 3 0 0 0 c m 2 / g 以上であ る 請求の範 囲第 1 項の低発熱型セ メ ン ト 組成物
8 . 細かさ が 4 0 0 0 〜 1 0 0 0 0 c m 2 / g 以上で あ る請求の範囲第 1 項の低発熱型 セ メ ン ト 組成物
9 . 材令 1 3 週におけ る圧縮強度 /水和熱が 7 . 0 以 上であ る請求の範囲第 1 項の低発熱型セ メ ン ト 組成物
10. 材令 1 3 週におけ る 圧縮強度ノ水和熱が 8 . 0 以 上であ る 請求の範囲第 1 項の低発熱型セ メ ン ト 組成物
11. 酸化ホ ウ 素が含ま れて い る 請求の範囲第 1 項の低 発熱型セ メ ン ト 組成物
12. C a 0 / S i 02 ( モ ル比) 力 0 . 8 〜 1 . 5 、 A 1 Z 03 含有量が 1 . 0 〜 1 2 . 0重量%未満、 か つ主に非晶質か ら な る粉末組成物 7 0 重量%以上、 お よび剌激材 3 0 重量%以下よ り なる低発熱型セ メ ン ト 組成物
13. 粉末組成物の非晶質が 8 0 重量%以上であ る請求 の範囲第 12項の低発熱型セメ ン ト組成物
14. 粉末組成物の C a O Z S i 0 z ( モ ル比) が 0 . 9 〜 1 . 4 であ る請求の範囲第 12項の低発熱型セ メ ン ト組成物
15. 粉末組成物の C a O / S i 02 ( モ ル比) が 1 . 0 〜 1 . 3 であ る請求の範囲第 12項の低発熱型セ メ ン ト組成物
16. 粉末組成物の A 1 2 03 含有量が 2 〜 1 0 重量% であ る請求の範囲第 12項の低発熱型セ メ ン ト組成物
17. 粉未組成物の A 1 2 03 含有量が 3 〜 8 重量%で あ る請求の範囲第 12項の低発熱型セメ ン ト組成物
18. 粉末組成物の細かさ が 3 0 0 0 c m2 以上で あ る請求の範囲第 12項の低発熱型セメ ン ト 組成物
19. 粉末組成物の細かさ が 4 0 0 0 〜 1 0 0 0 0 c m 2 Z g以上であ る請求の範囲第 12項の低発熱型セ メ ン ト 組成物
20. 剌激材がボ ル ト ラ ン ド系セ メ ン ト 、 石こ う 類、 ァ ル カ び 金属化合物、 ア ルカ リ 土類金属化合物のいずれ かであ る請求の範囲第 12項の低発熱型セ メ ン ト 組成物
21. 剌激材が普通ポル ト ラ ン ドセ メ ン ト であ る請求の 範囲第 12項の低発熱型セ メ ン ト 組成物
22. 粉末組成物 と剌激材の混合割合 (内割) が 8 5 〜 9 9 . 9 重量%、 0 . 1 〜 : L 5 重量%である請求の範 囲第 12項の低発熱型セ メ ン ト 組成物
23. 材令 1 3 週における圧縮強度 //水和熱が 7 . 0 以 上であ る請求の範囲第 12項の低発熱型セ メ ン ト 組成物
24. 材令 1 3 週におけ る圧縮強度 Z水和熱が 8 . 0 以 上であ る請求の範囲第 12項の低発熱型セ メ ン ト 組成物
25. 粉末組成物に酸化ホ ウ素が含ま れて い る請求の範 囲第 12項の低発熱型セ メ ン ト 組成物
PCT/JP1992/000430 1971-04-09 1992-04-07 Composition de ciment a faible developpement de chaleur Ceased WO1992018434A1 (fr)

Priority Applications (6)

Application Number Priority Date Filing Date Title
DE69227582T DE69227582T2 (de) 1991-04-09 1992-04-07 Bauzementzusammensetzung mit geringer abbindewärme
KR1019960705434A KR960016061B1 (ko) 1991-04-09 1992-04-07 저발열형 시멘트 조성물
JP50751992A JP3178836B2 (ja) 1991-04-09 1992-04-07 低発熱型セメント組成物
KR1019930703028A KR970001242B1 (ko) 1991-04-09 1992-04-07 저발열형 시멘트 조성물
EP92908048A EP0579831B1 (en) 1991-04-09 1992-04-07 Low heat building cement composition
US08/452,644 US5547505A (en) 1971-04-09 1995-05-25 Compositions for low heat cements

Applications Claiming Priority (4)

Application Number Priority Date Filing Date Title
JP3/161975 1991-04-09
JP16197591 1991-04-09
JP32942391 1991-10-11
JP3/329423 1991-10-11

Publications (1)

Publication Number Publication Date
WO1992018434A1 true WO1992018434A1 (fr) 1992-10-29

Family

ID=26487917

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP1992/000430 Ceased WO1992018434A1 (fr) 1971-04-09 1992-04-07 Composition de ciment a faible developpement de chaleur

Country Status (8)

Country Link
US (1) US5547505A (ja)
EP (1) EP0579831B1 (ja)
JP (1) JP3178836B2 (ja)
KR (2) KR970001242B1 (ja)
CN (1) CN1033020C (ja)
AU (1) AU1545292A (ja)
DE (1) DE69227582T2 (ja)
WO (1) WO1992018434A1 (ja)

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2010189226A (ja) * 2009-02-19 2010-09-02 Taiheiyo Cement Corp 水硬性組成物
JP2012236722A (ja) * 2011-05-10 2012-12-06 Sumitomo Osaka Cement Co Ltd 籾殻灰を用いたセメントの製造方法
JP2023018126A (ja) * 2019-04-26 2023-02-07 太平洋セメント株式会社 セメント組成物

Families Citing this family (23)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
AUPO612097A0 (en) 1997-04-10 1997-05-08 James Hardie Research Pty Limited Building products
MXPA02008921A (es) 2000-03-14 2004-10-15 James Hardie Res Pty Ltd Materiales de construccion de fibras-cemento, con aditivos de baja densidad.
US20030159618A1 (en) * 2002-01-03 2003-08-28 Primus Carolyn M. Dental material
HUP0303345A3 (en) * 2001-03-02 2004-05-28 James Hardie Int Finance Bv A method and apparatus for forming a laminated sheet material by spattering
US20030164119A1 (en) * 2002-03-04 2003-09-04 Basil Naji Additive for dewaterable slurry and slurry incorporating same
RU2278835C2 (ru) * 2001-09-13 2006-06-27 Вопфингер Штайн- Унд Калькверке Шмид Унд Ко. Гидравлическое связующее
US7993570B2 (en) 2002-10-07 2011-08-09 James Hardie Technology Limited Durable medium-density fibre cement composite
US7998571B2 (en) 2004-07-09 2011-08-16 James Hardie Technology Limited Composite cement article incorporating a powder coating and methods of making same
US7373982B2 (en) * 2006-03-21 2008-05-20 Halliburton Energy Services, Inc. Cements for use across formations containing gas hydrates
US8240385B2 (en) 2006-03-21 2012-08-14 Halliburton Energy Services Inc. Low heat of hydration cement compositions and methods of using same
US8993462B2 (en) 2006-04-12 2015-03-31 James Hardie Technology Limited Surface sealed reinforced building element
WO2008114877A1 (ja) * 2007-03-16 2008-09-25 Denki Kagaku Kogyo Kabushiki Kaisha 低放射化水硬性組成物、低放射化セメント、及びそれらの製造方法
CN101475326B (zh) * 2007-04-18 2012-05-30 天津城市建设学院 干法脱硫粉煤灰制备低热水泥的技术
EP2168930A4 (en) * 2007-05-10 2011-11-30 Cementos Portland Vaderrivas S A GLASS MATERIAL HAVING CEMENTITIOUS PROPERTIES AND METHOD OF MANUFACTURING THE SAME
US8209927B2 (en) 2007-12-20 2012-07-03 James Hardie Technology Limited Structural fiber cement building materials
US7927417B2 (en) * 2008-02-04 2011-04-19 Capitol Aggregates, Ltd. Cementitious composition and apparatus and method for manufacturing the same
JP6033787B2 (ja) * 2011-11-21 2016-11-30 デンカ株式会社 超速硬性クリンカー、それを用いたセメント組成物、及びその製造方法
AR090065A1 (es) * 2012-02-07 2014-10-15 Massachusetts Inst Technology Composicion de cemento hidratado
US9487691B2 (en) * 2013-05-07 2016-11-08 Halliburton Energy Services, Inc. Pozzolan for use in a cement composition having a low heat of hydration
CN103664220B (zh) * 2013-11-26 2014-11-19 王棚 一种高强轻质保温混凝土切块及其制备方法
CN105330180B (zh) * 2015-11-19 2018-05-18 中国建筑材料科学研究总院 早强型低热硅酸盐水泥及其制备方法
CN105541142B (zh) * 2015-12-18 2017-10-13 淮安市水泥厂有限公司 一种垃圾灰用作水泥配料的处理方法
EP4230584A3 (en) * 2016-01-19 2023-12-13 Solidia Technologies, Inc. Novel cement chemistries

Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPS5820758A (ja) * 1981-07-27 1983-02-07 太平洋セメント株式会社 ランキナイトを主要構成鉱物として含む合成原料の製造方法
JPS597660B2 (ja) * 1974-11-26 1984-02-20 ジ アソウシエイテツド ポ−トランド シメント マニユフアクチユアラ−ズ リミテツド セメント組成物の製造方法

Family Cites Families (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3501324A (en) * 1966-07-15 1970-03-17 Osaka Packing Manufacturing aqueous slurry of hydrous calcium silicate and products thereof
BE766032A (en) * 1971-04-20 1971-09-16 Trief Leon Recovery of fly-ash from coal-fired power stations
BE824788R (fr) * 1975-01-24 1975-05-15 Procede de valorisation des residus du charbon et en particulier des cendres de centrales electriques
JPS53139632A (en) * 1977-05-12 1978-12-06 Nippon Steel Corp Globular hard artificial sand
GB1556788A (en) * 1978-05-23 1979-11-28 Smidth & Co As F L Manufacture of cementitious material
SU698936A1 (ru) * 1978-06-30 1979-11-25 Государственный Ордена Трудового Красного Знамени Всесоюзный Проектный И Научно-Исследовательский Институт Цементной Промышленности В жущее
EP0019338B1 (fr) * 1979-05-14 1982-09-08 Eurofours Sociéte Anonyme Procédé de préparation de laitiers artificiels, laitiers artificiels ainsi obtenus et leur utilisation
JPH02120161A (ja) * 1988-10-31 1990-05-08 Isuzu Motors Ltd 車載型車両向き変え装置のロック装置

Patent Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPS597660B2 (ja) * 1974-11-26 1984-02-20 ジ アソウシエイテツド ポ−トランド シメント マニユフアクチユアラ−ズ リミテツド セメント組成物の製造方法
JPS5820758A (ja) * 1981-07-27 1983-02-07 太平洋セメント株式会社 ランキナイトを主要構成鉱物として含む合成原料の製造方法

Non-Patent Citations (1)

* Cited by examiner, † Cited by third party
Title
See also references of EP0579831A4 *

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2010189226A (ja) * 2009-02-19 2010-09-02 Taiheiyo Cement Corp 水硬性組成物
JP2012236722A (ja) * 2011-05-10 2012-12-06 Sumitomo Osaka Cement Co Ltd 籾殻灰を用いたセメントの製造方法
JP2023018126A (ja) * 2019-04-26 2023-02-07 太平洋セメント株式会社 セメント組成物

Also Published As

Publication number Publication date
CN1033020C (zh) 1996-10-16
JP3178836B2 (ja) 2001-06-25
EP0579831B1 (en) 1998-11-11
KR970001242B1 (ko) 1997-02-04
AU1545292A (en) 1992-11-17
EP0579831A4 (ja) 1994-08-31
US5547505A (en) 1996-08-20
DE69227582D1 (de) 1998-12-17
DE69227582T2 (de) 1999-05-12
KR960016061B1 (ko) 1996-11-27
EP0579831A1 (en) 1994-01-26
CN1070387A (zh) 1993-03-31

Similar Documents

Publication Publication Date Title
JP3178836B2 (ja) 低発熱型セメント組成物
JP5730325B2 (ja) 化学的耐性を有する建築用化学製品の製造のための無機バインダー系
JPWO1992018434A1 (ja) 低発熱型セメント組成物
AU2019339182B2 (en) Inorganic binder system comprising blast furnace slag and solid alkali metal silicate
JP2011136885A (ja) 低温用速硬材及びこれを含むセメント含有材料
JP2017014350A (ja) 地盤改良材および地盤改良方法
EP2878585B1 (en) Method for the manufacturing of cementitious C-S-H seeds
JP4434330B2 (ja) セメント
US7867333B2 (en) Mortar compositions with base on ultra-fine clinker, refined sand and chemical additives
JP5135127B2 (ja) カルシウムアルミネート
JP2018104213A (ja) セメント組成物及びその製造方法、並びに地盤改良方法
JPH06115998A (ja) 水硬性組成物の製造方法
JPH03265549A (ja) セメント混和材およびそれを用いたセメント組成物
JP2004352596A (ja) 水硬性材料の製造方法および水硬性建築材料
KR20180015644A (ko) 비정질 칼슘 알루미네이트를 포함하는 조성물 및 관련 제조 방법
JPH11292578A (ja) ビーライトスラグ
JP6756150B2 (ja) 環境負荷低減クリンカー、セメント組成物及びその製造方法、並びに地盤改良方法
JP4075967B2 (ja) セメント混和材及びセメント組成物
JPH0625015B2 (ja) アルミナセメント組成物
SU1698218A1 (ru) Сырьева смесь дл изготовлени стеновых строительных изделий
JPH05238819A (ja) スピネル質超微粉およびその製造方法
JP2006111485A (ja) セメント用凝結促進剤及びセメント組成物
KR850000492B1 (ko) 내화 수경성 바인더의 제조방법
JPH05155648A (ja) セメント組成物
BARATA et al. IBRACON Materials journal

Legal Events

Date Code Title Description
AK Designated states

Kind code of ref document: A1

Designated state(s): AU BR CA JP KR NO US

AL Designated countries for regional patents

Kind code of ref document: A1

Designated state(s): AT BE CH DE DK ES FR GB GR IT LU MC NL SE

DFPE Request for preliminary examination filed prior to expiration of 19th month from priority date (pct application filed before 20040101)
ENP Entry into the national phase

Ref country code: US

Ref document number: 1993 119177

Date of ref document: 19930922

Kind code of ref document: A

Format of ref document f/p: F

WWE Wipo information: entry into national phase

Ref document number: 1992908048

Country of ref document: EP

WWP Wipo information: published in national office

Ref document number: 1992908048

Country of ref document: EP

NENP Non-entry into the national phase

Ref country code: CA

WWG Wipo information: grant in national office

Ref document number: 1992908048

Country of ref document: EP
