WO2001034546A2 - Omega chain modified 15-hydroxyeicosatetraenoic acid derivatives and methods of their use for the treatment of dry eye - Google Patents

Abstract

Omega chain modified 15-HETE derivatives and methods of their use for treating dry eye are disclosed.

Description

Omega Chain Modified 15-Hydroxyeicosatetraenoic Acid Derivatives and Methods of Their Use for the Treatment of Dry Eye

The present invention is directed to compositions containing certain 15-

hydroxyeicosatetraenoic acid derivatives and methods for their use in treating dry eye.

Background of the Invention

Dry eye, also known generically as keratoconjunctivitis sicca, is a common

ophthalmological disorder affecting millions of Americans each year (Schein et. al,

Prevalence of dry eye among the elderly. American J. Ophthalmology, 124:723-738, (1997)). The condition is particularly widespread among post-menopausal women

due to hormonal changes following the cessation of fertility. Dry eye may afflict an

individual with varying severity. In mild cases, a patient may experience burning, a

feeling of dryness, and persistent irritation such as is often caused by small bodies

lodging between the eye lid and the eye surface. In severe cases, vision may be

substantially impaired. Other diseases, such as Sjogren's disease and cicatricial

pemphigoid manifest dry eye complications.

Although it appears that dry eye may result from a number of unrelated

pathogenic causes, all presentations of the complication share a common effect, that is

the breakdown of the pre-ocular tear film, which results in dehydration of the exposed

outer surface and many of the symptoms outlined above (Lemp, Report of the Nation

Eye Institute/Industry Workshop on Clinical Trials in Dry Eyes, The CLAO Journal. volume 21, number 4, pages 221-231 (1995)). Four events have been identified which

singly or in combination are believed to result in the dry eye condition: a) decreased

tear production or increased tear evaporation; b) decreased conjunctival goblet-cell

density; c) increased corneal desquamation; and d) destabilization of the cornea-tear

interface (Gilbard, Dry eye: pharmacological approaches, effects, and progress. The

CLAO Journal, (22:141-145 (1996)). Another major problem is the decreased mucin

production by the conjunctival cells and/or corneal epithelial cells of mucin, which

protects and lubricates the ocular surface (Gipson and Inatomi, Mucin genes

expressed by ocular surface epithelium. Progress in Retinal and Eye Research, 16:81-

98 (1997)).

Practitioners have taken several approaches to the treatment of dry eye. One

common approach has been to supplement and stabilize the ocular tear film using so-called artificial tears instilled throughout the day. Another approach has been the

use of ocular inserts that provide a tear substitute or to stimulate endogenous tear production.

Examples of the tear substitution approach include the use of buffered,

isotonic saline solutions, aqueous solutions containing water soluble polymers that

render the solutions more viscous and thus less easily shed by the eye. Tear

reconstitution is also attempted by providing one or more components of the tear film

such as phospholipids and oils. Examples of these treatment approaches are disclosed

in United States Patent Nos. 4,131,651 (Shah et al.), 4,370,325 (Packman), 4,409,205

(Shively), 4,744,980 and 4,883,658 (Holly), 4,914,088 (Glonek), 5,075,104 (Gressel

et al.) and 5,294,607 (Glonek et al.). United States Patents directed to the use of ocular inserts in the treatment of dry eye include 3,991,759 (Urquhart). Other semi-solid therapy has included the

administration of carrageenans (5,403,841, Lang) which gel upon contact with

naturally occurring tear film.

Another recent approach involves the provision of lubricating substances in

lieu of artificial tears. United States Patent No. 4,818,537 (Guo) discloses the use of a

lubricating, liposome-based composition.

Aside from the above efforts, which are directed primarily to the alleviation of

symptoms associated with dry eye, methods and compositions directed to treatment of

the dry eye condition have also been pursued. For example, United States Patent No.

5,041,434 (Lubkin) discloses the use of sex steroids, such as conjugated estrogens, to

treat dry eye condition in post-menopausal women; United States Patent No.

5,290,572 (MacKeen) discloses the use of finely divided calcium ion compositions to

stimulate preocular tear film; and United States Patent No. 4,966,773 (Gressel et al.) discloses the use of microfine particles of one or more retinoids for ocular tissue

normalization.

Although these approaches have met with some success, problems in the

treatment of dry eye nevertheless remain. The use of tear substitutes, while

temporarily effective, generally requires repeated application over the course of a

patient's waking hours. It is not uncommon for a patient to have to apply artificial

tear solution ten to twenty times over the course of the day. Such an undertaking is

not only cumbersome and time consuming, but is also potentially very expensive.

Transient symptoms of dry eye associated with refractive surgery have been reported

to last in some cases from six weeks to six months or more following surgery. The use of ocular inserts is also problematic. Aside from cost, they are often unwieldy and uncomfortable. Further, as foreign bodies introduced in the eye, they

can be a source of contamination leading to infections. In situations where the insert

does not itself produce and deliver a tear film, artificial tears must still be delivered on

a regular and frequent basis.

In view of the foregoing, there is a clear need for an effective treatment for dry

eye that is capable of alleviating symptoms, as well as treating the underlying physical

and physiological deficiencies of dry eye, and that is both convenient and inexpensive

to administer. Mucins are proteins which are heavily glycosylated with glucosamine-based

moieties. Mucins provide protective and lubricating effects to epithelial cells,

especially those of mucosal membranes. Mucins have been shown to be secreted by

vesicles and discharged on the surface of the conjuctival epithelium of human eyes (Greiner et al., Mucus Secretory Vesicles in Conjunctival Epithelial Cells of Wearers

of Contact Lenses, Archives of Ophthalmology, volume 98, pages 1843-1846 (1980);

and Dilly et al., Surface Changes in the Anaesthetic Conjunctiva in Man, with Special

Reference to the Production of Mucus from a Non-Goblet-Cell Source, British Journal

of Ophthalmology, volume 65, pages 833-842 (1981)). A number of human-derived

mucins which reside in the apical and subapical corneal epithelium have been

discovered and cloned (Watanabe et al., Human Corneal and Conjuctival Epithelia

Produce a Mucin-Like Glycoprotein for the Apical Surface, Investigative

Ophthalmology and Visual Science, volume 36, number 2, pages 337-344 (1995)).

Recently, Watanabe discovered a new mucin which is secreted via the cornea apical

and subapical cells as well as the conjunctival epithelium of the human eye (Watanabe et al., IOVS, volume 36, number 2, pages 337-344 (1995)). These mucins provide

lubrication, and additionally attract and hold moisture and sebacious material for

lubrication and the corneal refraction of light.

Mucins are also produced and secreted in other parts of the body including

lung airway passages, and more specifically from goblet cells interspersed among

tracheal/bronchial epithelial cells. Certain arachidonic acid metabolites have been

shown to stimulate mucin production in these cells. Yanni reported the increased

secretion of mucosal glycoproteins in rat lung by hydroxyeicosatetraenoic acid

("HETE") derivatives (Yanni et al, Effect of Intravenously Administered Lipoxygenase

Metabolites on Rat Trachael Mucous Gel Layer Thickness, International Archives of

Allergy And Applied Immunology, volume 90, pages 307-309 (1989)). Similarly,

Marom has reported the production of mucosal glycoproteins in human lung by HETE derivatives (Marom et al., Human Airway Monohydroxy- eicosatetraenoic Acid

Generation and Mucus Release, Journal of Clinical Investi ation, volume 72, pages

122-127 (1983)). Nowhere in the art, however, has the use of HETE derivatives been

proposed to stimulate mucin production in ocular tissues as a treatment for dry eye.

The conventional treatment for dry eye, as discussed above, includes

administration of artificial tears to the eye several times a day. Other agents claimed

for increasing ocular mucin and/or tear production include vasoactive intestinal

polypeptide (Dartt et. al., Vasoactive intestinal peptide-stimulated glycocongjugate

secretion from conjunctival goblet cells. Experimental Eye Research, 63:27-34,

(1996)) , gefarnate (Nakmura et. al, Gefarnate stimulates secretion of mucin-like

glycoproteins by corneal epithelium in vitro and protects corneal epithelium from

dessication in vivo. Experimental Eye Research, 65:569-574 (1997)), and the use of liposomes (U.S. Patent No. 4,818,537), androgens (U.S. Patent No. 5,620,921), melanocycte stimulating hormones (U.S. Patent No. 4,868,154), and

phosphodiesterase inhibitors (U.S. Patent No. 4,753,945), retinoids (U.S. Patent No.

5,455,265). However, many of these compounds or treatments suffer from a lack of

specificity, efficacy and potency and none of these agents have been marketed so far

as therapeutically useful products to treat dry eye and related ocular surface diseases.

Of particular relevance to the present invention is the claimed use of

hydroxyeicosatetraenoic acid derivatives to treat dry eye (U.S. Patent No. 5,696,166).

Thus, there remains a need for an efficacious therapy for the treatment of dry eye and

related diseases.

Summary of the Invention

The present invention is directed to compositions and methods for the

treatment of dry eye and other disorders requiring the wetting of the eye, including

symptoms of dry eye associated with refractive surgery such as LASD surgery. More

specifically, the present invention discloses derivatives of (5Z,8Z,11Z,13E)-15-

hydroxyeicosa-5,8,l l,14-tetraenoic acid (15-HΕTΕ) in which the ω-chain is modified

as to inhibit metabolic oxidation at C-15, and methods using the same for treating dry

eye type disorders. The compositions are preferably administered topically to the eye. Detailed Description of the Invention

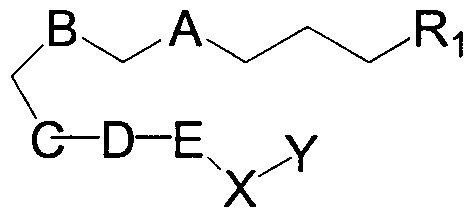

The ω-chain modified 15-HETE derivatives of the present invention are those

of formula I:

wherein:

R¹ is CO₂R, CONR²R³, CH₂OR⁴, CH₂NR⁵R⁶, CH₂N₃, CH₂Hal, CH₂NO₂, CH₂SR²⁰, COSR²¹, or 2,3,4,5-tetrazol-l-yl, where:

R is H or a pharmaceutically acceptable cation, or CO R forms a pharmaceutically acceptable ester moiety;

NR²R³, NR⁵R⁶ are the same or different and comprise a free or functionally modified amino group;

OR⁴ comprises a free or functionally modified hydroxy group;

Hal is F, Cl, Br, or I;

SR²⁰ comprises a free or functionally modified thiol group;

R²¹ is H or a pharmaceutically acceptable cation, or COSR²¹ forms a pharmaceutically acceptable thioester moiety;

A, B, C, D are the same or different and are Cι-C₅ alkyl, C₂-C₅ alkenyl, Cι.₅ cyclopropyl, C₂-C₅ alkynyl, or a C₃-C₅ allenyl group;

E is

where OR⁷ comprises a free or functionally modified hydroxy group;

X = (CH₂)_m or (CH₂)_mO, where m = 1-6; and

Y = a phenyl ring optionally substituted with alkyl, halo, trihalomethyl, acyl, or a free or functionally modified hydroxy, amino, or thiol group; or X-Y = (CH₂)_pY'; where p = 0-6; and

wherein:

W = CH₂, O, S(O)_q, NR⁸, CH₂CH₂, CH=CH, CH₂O, CH₂S(O)_q, CH=N, or CH₂NR⁸; where q = 0-2, and R⁸ = H, alkyl, or acyl;

Z = H, alkyl, acyl, halo, trihalomethyl, or a free or functionally modified amino, thiol, or hydroxy group; and

— = single or double bond;

or X-Y = cyclohexyl.

To the best of our knowledge none of the compounds of the present invention

have been previously reported in the literature.

Included within the scope of the present invention are the individual

enantiomers of the title compounds, as well as their racemic and non-racemic

mixtures. The individual enantiomers can be enantioselectively synthesized from the

appropriate enantiomerically pure or enriched starting material by means such as those

described below. Alternatively, they may be enantioselectively synthesized from

racemic/non-racemic or achiral starting materials. (Asymmetric Synthesis; J. D.

Morrison and J. W. Scott, Eds.; Academic Press Publishers: New York, 1983-1985,

volumes 1-5; Principles of Asymmetric Synthesis; R.E. Gawley and J. Aube, Eds.; Elsevier Publishers: Amsterdam, 1996). They may also be isolated from racemic and

non-racemic mixtures by a number of known methods, e.g. by purification of a sample

by chiral HPLC (A Practical Guide to Chiral Separations by HPLC; G. Subramanian,

Ed.; VCH Publishers: New York, 1994; Chiral Separations by HPLC; A.M.

Krstulovic, Ed.; Ellis Horwood Ltd. Publishers, 1989), or by enanfioselective

hydrolysis of a carboxylic acid ester sample by an enzyme (Ohno, M.; Otsuka, M.

Organic Reactions, volume 37, page 1 (1989)). Those skilled in the art will appreciate

that racemic and non-racemic mixtures may be obtained by several means, including

without limitation, nonenantioselective synthesis, partial resolution, or even mixing

samples having different enantiomeric ratios. Departures may be made from such

details within the scope of the accompanying claims without departing from the

principles of the invention and without sacrificing its advantages. Also included

within the scope of the present invention are the individual isomers substantially free of their respective enantiomers.

As used herein, the terms "pharmaceutically acceptable cationic salt"/

"pharmaceutically acceptable ester moiety/pharmaceutically acceptable thioester

moiety" means any cationic salt/ester/thioester moiety that would be suitable for

therapeutic administration to a patient by any conventional means without significant

deleterious health consequences; and "ophthalmically acceptable cationic

salt'V'ophthalmically acceptable ester/ophthalmically acceptable thioester moiety"

means any pharmaceutically acceptable cationic salt/ester/thioester moiety that would

be suitable for ophthalmic application, i.e. non-toxic and non-irritating. Wavy line

attachments indicate that the configuration may be either alpha (α) or beta (β). Hatched lines indicate the α configuration. A solid triangular line indicates the β configuration.

The term "free hydroxy group" means an OH. The term "functionally

modified hydroxy group" means an OH which has been functionalized to form: an

ether, in which an alkyl, aryl, cycloalkyl, heterocycloalkyl, alkenyl, cycloalkenyl,

heterocycloalkenyl, alkynyl, or heteroaryl group is substituted for the hydrogen; an

ester, in which an acyl group is substituted for the hydrogen; a carbamate, in which an

aminocarbonyl group is substituted for the hydrogen; or a carbonate, in which an

aryloxy-, heteroaryloxy-, alkoxy-, cycloalkoxy-, heterocycloalkoxy-, alkenyloxy-, cycloalkenyloxy-, heterocycloalkenyloxy-, or alkynyloxycarbonyl group is substituted

for the hydrogen. Preferred moieties include OH, OCH₂C(O)CH₃,OCH₂C(O)C₂H₅,

OCH₃, OCH₂CH₃, OC(O)CH₃, and OC(O)C₂H₅.

The term "free amino group" means an NH₂. The term "functionally modified

amino group" means an NH₂ which has been functionalized to form: an aryloxy-, heteroaryloxy-, alkoxy-, cycloalkoxy-, heterocycloalkoxy-, alkenyl-, cycloalkenyl-,

heterocycloalkenyl-, alkynyl, or hydroxyamino group, where the appropriate group is

substituted for one of the hydrogens; an aryl-, heteroaryl-, alkyl-, cycloalkyl-,

heterocycloalkyl-, alkenyl-, cycloalkenyl-, heterocycloalkenyl-, or alkynylamino

group, where the appropriate group is substituted for one or both of the hydrogens; an

amide, in which an acyl group is substituted for one of the hydrogens; a carbamate, in

which an an aryloxy-, heteroaryloxy-, alkoxy-, cycloalkoxy-, heterocycloalkoxy-,

alkenyl-, cycloalkenyl-, heterocycloalkenyl-, or alkynylcarbonyl group is substituted

for one of the hydrogens; or a urea, in which an aminocarbonyl group is substituted

for one of the hydrogens. Combinations of these substitution patterns, for example an NH₂ in which one of the hydrogens is replaced by an alkyl group and the other

hydrogen is replaced by an alkoxycarbonyl group, also fall under the definition of a

functionally modified amino group and are included within the scope of the present

invention. Preferred moieties include NH₂, NHCH₃, NHC₂H₅, N(CH₃)₂,

NHC(O)CH₃, NHOH, and NH(OCH₃).

The term "free thiol group" means an SH. The term "functionally modified

thiol group" means an SH which has been functionalized to form: a thioether, where

an alkyl, aryl, cycloalkyl, heterocycloalkyl, alkenyl, cycloalkenyl, heterocycloalkenyl,

alkynyl, or heteroaryl group is substituted for the hydrogen; or a thioester, in which an

acyl group is substituted for the hydrogen. Preferred moieities include SH,

SC(O)CH₃, SCH₃, SC₂H₅, SCH₂C(O)C₂H₅, and SCH₂C(O)CH₃.

The term "acyl" represents a group that is linked by a carbon atom that has a double bond to an oxygen atom and a single bond to another carbon atom.

The term "alkyl" includes straight or branched chain aliphatic hydrocarbon

groups that are saturated and have 1 to 15 carbon atoms. The alkyl groups may be

interrupted by one or more heteroatoms, such as oxygen, nitrogen, or sulfur, and may

be substituted with other groups, such as halogen, hydroxyl, aryl, cycloalkyl, aryloxy,

or alkoxy. Preferred straight or branched alkyl groups include methyl, ethyl, propyl,

isopropyl, butyl and t-butyl.

The term "cycloalkyl" includes straight or branched chain, saturated or

unsaturated aliphatic hydrocarbon groups which connect to form one or more rings,

which can be fused or isolated. The rings may be substituted with other groups, such

as halogen, hydroxyl, aryl, aryloxy, alkoxy, or lower alkyl. Preferred cycloalkyl

groups include cyclopropyl, cyclobutyl, cyclopentyl and cyclohexyl. The term " - C₅ cyclopropyl" means an alkyl chain of 1 to 5 carbon atoms

containing a cyclopropyl group wherein the cyclopropyl group may start, be contained

in or terminate the alkyl chain.

The term "heterocycloalkyl" refers to cycloalkyl rings that contain at least one

heteroatom such as O, S, or N in the ring, and can be fused or isolated. The rings may

be substituted with other groups, such as halogen, hydroxyl, aryl, aryloxy, alkoxy, or

lower alkyl. Preferred heterocycloalkyl groups include pyrrolidinyl, tetrahydrofuranyl, piperazinyl, and tetrahydropyranyl.

The term "alkenyl" includes straight or branched chain hydrocarbon groups

having 1 to 15 carbon atoms with at least one carbon-carbon double bond, the chain

being optionally interrupted by one or more heteroatoms. The chain hydrogens may be substituted with other groups, such as halogen. Preferred straight or branched

alkeny groups include, allyl, 1-butenyl, l-methyl-2-propenyl and 4-pentenyl.

The term "cycloalkenyl" includes straight or branched chain, saturated or

unsaturated aliphatic hydrocarbon groups which connect to form one or more non-

aromatic rings containing a carbon-carbon double bond, which can be fused or

isolated. The rings may be substituted with other groups, such as halogen, hydroxyl,

alkoxy, or lower alkyl. Preferred cycloalkenyl groups include cyclopentenyl and

cyclohexenyl.

The term "heterocycloalkenyl" refers to cycloalkenyl rings which contain one

or more heteroatoms such as O, N, or S in the ring, and can be fused or isolated. . The

rings may be substituted with other groups, such as halogen, hydroxyl, aryl, aryloxy,

alkoxy, or lower alkyl. Preferred heterocycloalkenyl groups include pyrrolidinyl,

dihydropyranyl, and dihydrofuranyl. The term "carbonyl group" represents a carbon atom double bonded to an

oxygen atom, wherein the carbon atom has two free valencies.

The term "aminocarbonyl" represents a free or functionally modified amino

group bonded from its nitrogen atom to the carbon atom of a carbonyl group, the

carbonyl group itself being bonded to another atom through its carbon atom.

The term "lower alkyl" represents alkyl groups containing one to six carbons

(C,-C₆).

The term "halogen" represents fiuoro, chloro, bromo, or iodo.

The term "aryl" refers to carbon-based rings which are aromatic. The rings

may be isolated, such as phenyl, or fused, such as naphthyl. The ring hydrogens may be substituted with other groups, such as lower alkyl, halogen, free or functionalized

hydroxy, trihalomethyl, etc. Preferred aryl groups include phenyl, 3-

(trifluoromethyl)phenyl, 3-chlorophenyl, and 4-fluorophenyl.

The term "heteroaryl" refers to aromatic hydrocarbon rings which contain at least one heteroatom such as O, S, or N in the ring. Heteroaryl rings may be isolated,

with 5 to 6 ring atoms, or fused, with 8 to 10 atoms. The heteroaryl ring(s) hydrogens

or heteroatoms with open valency may be substituted with other groups, such as lower alkyl or halogen. Examples of heteroaryl groups include imidazole, pyridine, indole,

quinoline, furan, thiophene, pyrrole, tetrahydroquinoline, dihydrobenzofuran, and

dihydrobenzindole.

The terms "aryloxy", "heteroaryloxy", "alkoxy", "cycloalkoxy",

"heterocycloalkoxy", "alkenyloxy", "cycloalkenyloxy", "heterocycloalkenyloxy", and

"alkynyloxy" represent an aryl, heteroaryl, alkyl, cycloalkyl, heterocycloalkyl, alkenyl, cycloalkenyl, heterocycloalkenyl, or alkynyl group attached through an oxygen

linkage.

The terms "alkoxycarbonyl", "aryloxycarbonyl", "heteroaryloxycarbonyl",

"cycloalkoxycarbonyl", "heterocycloalkoxycarbonyl", "alkenyloxycarbonyl",

"cycloalkenyloxycarbonyl", "heterocycloalkenyloxycarbonyl", and

"alkynyloxycarbonyl" represent an alkoxy, aryloxy, heteroaryloxy, cycloalkoxy,

heterocycloalkoxy, alkenyloxy, cycloalkenyloxy, heterocycloalkenyloxy, or

alkynyloxy group bonded from its oxygen atom to the carbon of a carbonyl group, the

carbonyl group itself being bonded to another atom through its carbon atom.

Preferred compounds of the present invention include those of formula I,

wherein:

R¹ is CO₂R, where R is H or an ophthalmically acceptable cationic salt, or CO₂R forms an ophthalmically acceptable ester moiety;

A, B, C, D are the same or different and are CH CH₂, CH=CH, C≡C, or

v

E is

or where R⁷ is H or CH₃;

X is CH₂CH₂ or CH₂O; and

Y phenyl, optionally substituted with halo, trifluoromethyl, or a free or functionalized hydroxy group; or

X-Y = cyclohexyl; or

X-Y = Y¹,

Among the especially preferred of the foregoing are compounds 1-4, whose

preparations are detailed in the following examples 1-4:

2

(5Z,11 Z,13£)-(15RS)-15-hydroxy-16-phenoxy- (5Z,11Z)-(15RS)-15-hydroxy-16-phenoxy- 17,18,19,20-tetranoreicosa-5,11,13-t enoic acid 17,18,19,20-tetranoreicosa-5,11 -dien-13-ynoic acid

(5Z,11Z,13E)-(15RS)-15-cyclohexyl-15-hydroxy-

(52,112)-(15RS)-15-cyclohexyl-15-hydroxy- 16,17,18,19,20-pentanoreicosa- 6,17,18,19,20-pentanoreicosa- 5,11,13-trienoic acid

5,11 -dien-13-ynoic acid

Example 1 :

Synthesis of 1

(5Z.11Z, 13EH15RS1-15-hvdroxy- 16-phenoxy- 17.18, 19.20-tetranoreicosa-5, 11,13-

trienoic acid (1)

Treatment of phenol with potassium carbonate and bromoacetaldehyde di ethyl

acetal provides phenoxyacetaldehyde diethyl acetal. Treatment with aqueous HC1

followed by addition of the intermediate aldehyde to a -78 °C solution of ethynyl

lithium affords alkyne 5. Treatment of 1-hexyne (6) with «-BuLi and

paraformaldehyde affords an intermediate propargyl alcohol, which is treated

sequentially with KH/l,3-diaminopropane and I /morpholine to afford iodoalkyne 7.

Reduction of 7 with dipotassium azodicarboxylate/acetic acid in methanol provides

the cis-vinyX iodide 8. Palladium-catalyzed coupling of 8 and propargyl alcohol 5

gives enynediol 9. Reduction of 9 with LiAlH₄ yields diol 10, which is oxidized to

aldehyde 11 using catalytic 2,2,6,6-tetramethylpiperidinoxyl free radical (TEMPO)

and stoichiometric N-chlorosuccinimide (ΝCS). Wittig condensation of 11 with (4-

carboxybutyl)triphenylphosphonium bromide in the presence of potassium t-butoxide

(KOBu') affords 1.

Example 2:

Synthesis of 2

(5Z.l lZ)-α5RS)-15-hvdroxy-16-phenoxy-17.18.19.20-tetranoreicosa-5.11-dien-13-

ynoic acid (2)

Oxidation of diol 9 with catalytic TEMPO/stoichiometric NCS provides

aldehyde 12, which is condensed with 4-(carboxybutyl)triphenylphosphonium

bromide in the presence of KOBu' to afford 2.

Example 3:

Synthesis of 3

(5Z.l lZ)-ri5RS)-15-cvclohexyl-15-hvdroxy-16.17.18.19.20-pentanoreicosa-5.11-

dien-13-ynoic acid (3)

Addition of cyclohexanecarboxaldehyde to a -78 °C solution of ethynyllithium

provides alkynol 13, which is coupled with vinyl iodide 8 under Sonogashira

conditions [catalytic PdCl (PPh₃)₂, catalytic Cul, Et NH) to give enyne 14. Oxidation

of 14 with catalytic TEMPO/stoichiometric NCS yields aldehyde 15, which is

condensed with 4-(carboxybutyl)triphenylphosphonium bromide in the presence of

KOBu' to afford 3.

Example 4:

Synthesis of 4

(5Z, 11 Z, 13E)-( 15RS)- 15-cyclohexyl- 15-hydroxyeicosa-5 ,11,13-trienoic acid (4)

Reduction of enyne 14 with LiAlH affords diene 16, which is oxidized to

aldehyde 17 using catalytic TΕMPO/stoichiometric NCS. Wittig condensation of 17

with 4-(carboxybutyl)triphenylphosphonium bromide in the presence of KOBu'

affords 4.

The compounds of the present invention may be contained in various types of

pharmaceutical compositions, in accordance with formulation techniques known to

those skilled in the art. Preferably, these compounds will be formulated in solutions

for topical ophthalmic administration. The level of peroxy compounds in the HΕTΕ

derivative raw materials that are used to prepare the pharmaceutical formulations of the present invention may have an impact on the HΕTΕ derivative's biological

activity. Although the precise relationship has not been defined, it is preferable to use

HΕTΕ derivative raw material supplies containing peroxy compounds at levels no

greater than about 0.3 ppm. Methods for determining peroxy levels are known in the

art (e.g., European Pharmacopoeia 1997 3^rd Ed., Method 2.5.5 - Peroxide Value).

The ophthalmic compositions of the present invention will include one or

more compounds of the present invention in a pharmaceutically acceptable vehicle.

Various types of vehicles may be used. Aqueous solutions are generally preferred,

based on ease of formulation, biological compatibility, as well as a patient's ability to

easily administer such compositions by means of instilling one to two drops of the

solutions in the affected eyes. However, the compounds of the present invention may

also be readily incorporated into other types of compositions, such as suspensions,

viscous or semi- viscous gels, or other types of solid or semi-solid compositions. Suspensions may be preferred for those compounds of the present invention which are

less soluble in water. The ophthalmic compositions of the present invention may also

include various other ingredients, such as buffers, preservatives, co-solvents and viscosity building agents.

An appropriate buffer system (e.g., sodium phosphate, sodium acetate or

sodium borate) may be added to prevent pH drift under storage conditions.

Antioxidants may be added to compositions of the present invention to protect

the active ingredients from oxidation during storage. Examples of such antioxidants

include vitamin E and analogs thereof, ascorbic acid and butylated hydroxytoluene (BHT).

Ophthalmic products are typically packaged in multidose form. Preservatives

are thus required to prevent microbial contamination during use. Suitable preservatives include: benzalkonium chloride, thimerosal, chlorobutanol, methyl

paraben, propyl paraben, phenylethyl alcohol, edetate disodium, sorbic acid,

polyquaternium-1, or other agents known to those skilled in the art. Such

preservatives are typically employed at a level of from 0.001 to 1.0% weight/volume ("% w/v").

In general, the doses used for the above described purposes will vary, but will

be in an effective amount to increase mucin production in the eye and thus eliminate

or improve dry eye conditions. As used herein, the term "pharmaceutically effective

amount" refers to an amount which improves the dry eye condition in a human

patient. When the compositions are dosed topically, they will generally be in a

concentration range of from 0.001 to about 1.0% w/v, with 1-2 drops administered 1-4 times per day. As used herein, the term "pharmaceutically acceptable canier" refers to any vehicle which, when formulated, is safe, and provides the appropriate delivery for the

desired route of administration of an effective amount of at least one compound of the

present invention.

In one embodiment, the ophthalmic compositions of the present invention will

contain ethanol in addition to a compound of formula (I). As used herein, "an

effective concentration of ethanol" refers to a concentration that enhances the

biological efficacy of the formula (I) compositions in vivo. In general, the

concentration of ethanol necessary for the enhancement of the compounds of formula (I) is believed to be somewhat proportional to the concentration of the formula (I)

compound(s) administered. If a relatively high concentration of formula (I)

compound(s), e.g., above 0.01% w/v, is administered, the concentration of ethanol in

such compositions may be proportionally less than analogous compositions containing

lower concentrations of formula (I) compounds. In general, however, the ethanol concentration contained in the ophthalmic compositions of the present invention will

range from about 0.001-2% w/v. Compositions containing formula (I) concentrations

of about 0.00001-0.02% w/v preferably will contain ethanol in a concentration of

about 0.005-0.2% w/v, and most preferably, about 0.02-0.10% w/v. An example of a

topically administrable ophthalmic formulation according to this embodiment of the

present invention is provided below. Example 5

The above composition is prepared by the following method. The batch quantities of polyoxyl 40 stearate, boric acid, sodium chloride, disodium edetate, and

polyquaternium- 1 are weighed and dissolved by stirring in 90% of the batch quantity

of purified water. The pH is adjusted to 7.5 ± 0.1 with NaOH and or HCl. Under

yellow light or reduced lighting, the batch quantity of a compound of formula (I) as a

stock solution in ethanol and the additional quantity of ethanol necessary for the batch

are measured and added. Purified water is added to q.s. to 100%. The mixture is

stirred for five minutes to homogenize and then filtered through a sterilizing filter

membrane into a sterile recipient.

Preferably, the above process is performed using glass, plastic or other non-

metallic containers or containers lined with such materials.

The invention has been described by reference to certain preferred

embodiments; however, it should be understood that it may be embodied in other specific forms or variations thereof without departing from its spirit or essential

characteristics. The embodiments described above are therefore considered to be

illustrative in all respects and not restrictive, the scope of the invention being

indicated by the appended claims rather than by the foregoing description.

Claims

WHAT IS CLAIMED IS:

1. A composition for the treatment of dry eye and other disorders requiring the

wetting of the eye in mammals comprising a pharmaceutically acceptable carrier and a

pharmaceutically effective amount of one or more compounds of the following

formula I:

wherein:

R¹ is CO₂R, CONR²R³, CH₂OR⁴, CH₂NR⁵R⁶, CH₂N₃, CH₂Hal, CH₂NO₂, CH₂SR²⁰, COSR²¹, or 2,3,4,5-tetrazol-l-yl, where:

R is H or a pharmaceutically acceptable cation, or CO R forms a pharmaceutically acceptable ester moiety;

NR²R³, NR⁵R⁶ are the same or different and comprise a free or functionally modified amino group;

OR⁴ comprises a free or functionally modified hydroxy group;

Hal is F, Cl, Br, or I;

SR²⁰ comprises a free or functionally modified thiol group; R²¹ is H or a pharmaceutically acceptable cation, or COSR² pharmaceutically acceptable thioester moiety;

A, B, C, D are the same or different and are C₁-C₅ alkyl, C₂-C₅ alkenyl, Cι_₅ cyclopropyl, C₂-C₅ alkynyl, or a C₃-C₅ allenyl group;

E is

or

where OR⁷ comprises a free or functionally modified hydroxy group;

X = (CH₂)_m or (CH₂)_mO, where m = 1-6; and Y = a phenyl ring optionally substituted with alkyl, halo, trihalomethyl, acyl, or a free or functionally modified hydroxy, amino, or thiol group; or

X-Y = (CH₂)_PY¹; where p - 0-6; and

wherein:

W = CH₂, O, S(O)_q, NR⁸, CH₂CH₂, CH=CH, CH₂O, CH₂S(O)_q, CH=N, or CH₂NR⁸; where q = 0-2, and R⁸ = H, alkyl, or acyl;

Z = H, alkyl, acyl, halo, trihalomethyl, or a free or functionally modified amino, thiol, or hydroxy group; and

— = single or double bond;

or X-Y = cyclohexyl.

2. The composition of Claim 1, wherein:

R¹ is CO₂R, where R is H or an ophthalmically acceptable cationic salt, or CO₂R forms an ophthalmically acceptable ester moiety;

A, B, C, D are the same or different and are CH₂CH₂, CH=CH, C≡C, or

E is

where R⁷ is H or CH₃;

X is CH₂CH₂ or CH₂O; and

Y phenyl, optionally substituted with halo, trifluoromethyl, or a free or functionalized hydroxy group; or

X-Y = cyclohexyl; or

X-Y = Y\

The composition of Claim 2, wherein the compound is:

4. The composition of Claim 2, wherein the compound is:

5. The composition of Claim 2, wherein the compound is:

6. The composition of Claim 2, wherein the compound is:

7. The composition of Claim 1 wherein the compound is selected from the group

consisting of:

and

8. The composition of Claim 1 wherein the composition is suitable for topical

administration to the eye.

9. A method for the treatment of dry eye and other disorders requiring the wetting

of the eye in mammals comprising administering to an affected eye, a

pharmaceutically effective amount of one or more compounds according to formula I:

wherein:

R¹ is CO₂R, CONR²R³, CH₂OR⁴, CH₂NR⁵R⁶, CH₂N₃, CH₂Hal, CH₂NO₂, CH₂SR²⁰, COSR²¹, or 2,3,4,5-tetrazol-l-yl, where:

R is H or a pharmaceutically acceptable cation, or CO₂R forms a pharmaceutically acceptable ester moiety;

NR²R³, NR⁵R⁶ are the same or different and comprise a free or functionally modified amino group;

OR⁴ comprises a free or functionally modified hydroxy group;

Hal is F, Cl, Br, or I;

SR²⁰ comprises a free or functionally modified thiol group;

R²¹ is H or a pharmaceutically acceptable cation, or COSR²¹ forms a pharmaceutically acceptable thioester moiety;

A, B, C, D are the same or different and are Cι-C₅ alkyl, C₂-C₅ alkenyl, C₁-₅ cyclopropyl, C₂-C₅ alkynyl, or a C₃-C₅ allenyl group;

E is

where OR⁷ comprises a free or functionally modified hydroxy group;

X = (CH₂)_m or (CH₂)_mO, where m = 1 -6; and

Y = a phenyl ring optionally substituted with alkyl, halo, trihalomethyl, acyl, or a free or functionally modified hydroxy, amino, or thiol group; or

X-Y = (CH₂)_PY¹ ; where p = 0-6; and

wherein:

W = CH₂, O, S(O)_q, NR⁸, CH₂CH₂, CH=CH, CH₂O, CH₂S(O)_q, CH=N, or CH₂NR⁸; where q = 0-2, and R = H, alkyl, or acyl;

Z = H, alkyl, acyl, halo, trihalomethyl, or a free or functionally modified amino, thiol, or hydroxy group; and

— = single or double bond;

or X-Y = cyclohexyl.

10. The method of Claim 9, wherein the mammal is a human and the compound is

administered topically.

11. The method of Claim 9, wherein for the compound of formula I:

R¹ is CO R, where R is H or an ophthalmically acceptable cationic salt, or CO₂R forms an ophthalmically acceptable ester moiety;

A, B, C, D are the same or different and are CH₂CH₂, CH=CH, C≡C, or

E is

where R⁷ is H or CH₃;

X is CH₂CH₂ or CH₂O; and

Y phenyl, optionally substituted with halo, trifluoromethyl, or a free or functionalized hydroxy group; or

X-Y = cyclohexyl; or

X-Y = Y\

12. The method of Claim 11, wherein the compound is:

/^~Λ ⁼W ^C°^2H

\=^ /"-OPh

OH

13. The method of Claim 11 , wherein the compound is:

14. The method of Claim 11 , wherein the compound is:

15. The method of Claim 11 , wherein the compound is :

16. The method of Claim 9, wherein the compound is selected from the group

consisting of:

and

17. The method of Claim 9 wherein the dry eye and other disorders requiring the

wetting of the eye is symptoms of dry eye associated with refractive surgery.

18. A compound of formula I :

I wherein:

R¹ is CO₂R, CONR²R³, CH₂OR⁴, CH₂NR⁵R⁶, CH₂N₃, CH₂Hal, CH₂NO₂, CH₂SR²⁰, COSR²¹, or 2,3,4,5-tetrazol-l-yl, where:

R is H or a pharmaceutically acceptable cation, or CO₂R forms a pharmaceutically acceptable ester moiety;

NR²R³, NR⁵R⁶ are the same or different and comprise a free or functionally modified amino group;

OR⁴ comprises a free or functionally modified hydroxy group;

Hal is F, Cl, Br, or I;

SR²⁰ comprises a free or functionally modified thiol group;

R²¹ is H or a pharmaceutically acceptable cation, or COSR²¹ forms a pharmaceutically acceptable thioester moiety;

A, B, C, D are the same or different and are C1-C₅ alkyl, C₂-C₅ alkenyl, C1.₅ cyclopropyl, C₂-C₅ alkynyl, or a C₃-C₅ allenyl group;

E is

or

where OR⁷ comprises a free or functionally modified hydroxy group;

X = (CH₂)_m or (CH₂)_mO, where m = 1-6; and

Y = a phenyl ring optionally substituted with alkyl, halo, trihalomethyl, acyl, or a free or functionally modified hydroxy, amino, or thiol group; or X-Y = (CH₂)_PY¹; where p = 0-6; and

wherein:

W = CH₂, O, S(O)_q, NR⁸, CH₂CH₂, CH=CH, CH₂O, CH₂S(O)_q, CH=N, or CH₂NR⁸; where q = 0-2, and R⁸ = H, alkyl, or acyl;

Z = H, alkyl, acyl, halo, trihalomethyl, or a free or functionally modified amino, thiol, or hydroxy group; and

— = single or double bond;

or X-Y = cyclohexyl.

19. The compound of Claim 18, wherein:

R¹ is CO R, where R is H or an ophthalmically acceptable cationic salt, or CO₂R forms an ophthalmically acceptable ester moiety;

A, B, C, D are the same or different and are CH₂CH₂, CH=CH, C≡C, or

C Y

E is

or where R⁷ is H or CH₃;

X is CH₂CH₂ or CH₂O; and Y phenyl, optionally substituted with halo, trifluoromethyl, or a free or functionalized hydroxy group; or

X-Y = cyclohexyl; or

20. The compound of Claim 18, wherein the compound is selected from the group

consisting of:

and

21. The compound of Claim 18, wherein the compound is selected from the group consisting of:

and
