WO2002017972A2 - Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene) - Google Patents

Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene) Download PDF

Info

Publication number
WO2002017972A2
WO2002017972A2 PCT/GB2001/003889 GB0103889W WO0217972A2 WO 2002017972 A2 WO2002017972 A2 WO 2002017972A2 GB 0103889 W GB0103889 W GB 0103889W WO 0217972 A2 WO0217972 A2 WO 0217972A2
Authority
WO
WIPO (PCT)
Prior art keywords
stabiliser
independently selected
och
polymer
poly
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/GB2001/003889
Other languages
French (fr)
Other versions
WO2002017972A3 (en
Inventor
Qi Wang
Sandor Nagy
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Occidental Chemical Corp
Original Assignee
Occidental Chemical Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority to SK240-2003A priority Critical patent/SK287053B6/en
Priority to AU8420901A priority patent/AU8420901A/en
Priority to CA2420858A priority patent/CA2420858C/en
Priority to EP01963176A priority patent/EP1313802B1/en
Priority to JP2002522945A priority patent/JP2004507583A/en
Priority to MXPA03001519A priority patent/MXPA03001519A/en
Priority to AU2001284209A priority patent/AU2001284209B2/en
Priority to DE60129027T priority patent/DE60129027T2/en
Priority to IL15465301A priority patent/IL154653A0/en
Application filed by Occidental Chemical Corp filed Critical Occidental Chemical Corp
Priority to KR1020037003055A priority patent/KR100743554B1/en
Priority to DK01963176T priority patent/DK1313802T3/en
Publication of WO2002017972A2 publication Critical patent/WO2002017972A2/en
Publication of WO2002017972A3 publication Critical patent/WO2002017972A3/en
Priority to NO20030886A priority patent/NO327962B1/en
Priority to IL154653A priority patent/IL154653A/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61L—METHODS OR APPARATUS FOR STERILISING MATERIALS OR OBJECTS IN GENERAL; DISINFECTION, STERILISATION OR DEODORISATION OF AIR; CHEMICAL ASPECTS OF BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES; MATERIALS FOR BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES
    • A61L2/00—Disinfection or sterilisation of materials or objects, in general; Accessories therefor
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61L—METHODS OR APPARATUS FOR STERILISING MATERIALS OR OBJECTS IN GENERAL; DISINFECTION, STERILISATION OR DEODORISATION OF AIR; CHEMICAL ASPECTS OF BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES; MATERIALS FOR BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES
    • A61L2/00—Disinfection or sterilisation of materials or objects, in general; Accessories therefor
    • A61L2/02—Disinfection or sterilisation of materials or objects, in general; Accessories therefor using physical processes
    • A61L2/08—Radiation
    • A61L2/081—Gamma radiation
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08K—Use of inorganic or non-macromolecular organic substances as compounding ingredients
    • C08K5/00—Use of organic ingredients
    • C08K5/0008—Organic ingredients according to more than one of the "one dot" groups of C08K5/01 - C08K5/59
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08K—Use of inorganic or non-macromolecular organic substances as compounding ingredients
    • C08K5/00—Use of organic ingredients
    • C08K5/04—Oxygen-containing compounds
    • C08K5/10—Esters; Ether-esters
    • C08K5/12—Esters; Ether-esters of cyclic polycarboxylic acids
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
    • C08L27/00—Compositions of homopolymers or copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by a halogen; Compositions of derivatives of such polymers
    • C08L27/02—Compositions of homopolymers or copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by a halogen; Compositions of derivatives of such polymers not modified by chemical after-treatment
    • C08L27/04—Compositions of homopolymers or copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by a halogen; Compositions of derivatives of such polymers not modified by chemical after-treatment containing chlorine atoms
    • C08L27/06—Homopolymers or copolymers of vinyl chloride
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61L—METHODS OR APPARATUS FOR STERILISING MATERIALS OR OBJECTS IN GENERAL; DISINFECTION, STERILISATION OR DEODORISATION OF AIR; CHEMICAL ASPECTS OF BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES; MATERIALS FOR BANDAGES, DRESSINGS, ABSORBENT PADS OR SURGICAL ARTICLES
    • A61L2103/00—Materials or objects being the target of disinfection or sterilisation
    • A61L2103/15—Laboratory, medical or dentistry appliances, e.g. catheters or sharps
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
    • C08L71/00—Compositions of polyethers obtained by reactions forming an ether link in the main chain; Compositions of derivatives of such polymers
    • C08L71/02—Polyalkylene oxides

Definitions

  • THE PRESENT INVENTION relates to the preparation of a sterile article made from a polymer having a halogen-containing repeating unit, where the polymer contains a compound based on a poly(oxyalkylene) (POA).
  • POA poly(oxyalkylene)
  • it relates reducing the yellowing of an article made from polyvinyl chloride (PNC) after exposure to gamma radiation by incorporating compounds based on poly(ethylene glycol) (PEG) and poly(propylene glycol) (PPG) into the PVC.
  • PNC is a versatile thermoplastic that is widely used for making medical articles and for food packaging due to its clarity, gloss, unique versatility, excellent functional performance, inertness to fluids and relatively low cost. Medical devices and food packaging are usually sterilised before they are used. While ethylene oxide sterilisation imposes little or no harmful effects on the physical properties of PVC, radiation sterilisation, such as with gamma rays, can adversely effect the polymer, such as yellowing it.
  • PEG, PEG dibenzoate, and PPG dibenzoate have been used as PVC plasticisers. They are primarily used as alternatives for phthlate plasticisers, such as dioctyl phthalate (DOP). The use of these materials may also improve other properties of PVC.
  • DOP dioctyl phthalate
  • the present invention seeks to provide a method of preparing a sterile article.
  • the invention also seeks to provide a stabiliser for use when preparing a sterile article from a polymer. Additionally, the invention comprises the combination of a stabiliser and a polymer.
  • a method of preparing a sterile article comprising:
  • each T is independently selected from R-, R-CO-, -P(OR) 2 , -Si(OR) 3 , or -Si(OR) 3 , T' is T or A[GOT] n , each A is independently selected from LS-Sn(R) 3-q (SLJ) q , L-0-Sn(R) 3 -q (OLJ) q , (CH 2 ) p S-Sn(R) 3-q (S(CH 2 ) p -J) q , LC0 2 SN(R) 3-q (OLCO-J) q , or LSn(Y) 3-q (LJ) q when n is O, from CO, E, CO-E-CO, Si(R) 2 , Si
  • the method utilises a stabiliser.
  • R' is preferably methyl or phenyl because they increase the lipophilicity of the stabilisers, resulting in better miscibility with the polymers.
  • the A group is preferably CO-E-CO or (CO-E-CO-G) r because the lipophilicity of the materials can be tailored and these materials are easily prepared.
  • the Y group is preferably -SLJ, -SLOR, -S(CH 2 ) P -J, or -S(CH 2 ) P -J, or -S(CH 2 ) P R because they more effective.
  • tin based stabilisers sulphur-containing tin stabilisers are preferred because they are better thermo stabilisers.
  • n is preferably 0 to 1 because these stabilisers can better inhibit the discoloration of the polymers
  • p is preferably 1 to 2 because these stabilisers are readily available
  • q is preferably 1 to 2 because those stabilisers are also better thermal stabilisers
  • r is preferably 2 to 5 because they mix well with PVC.
  • all the T groups are identical as those stabilisers are easier to prepare.
  • the preferred stabilisers include PEG and PPG ethers: R-G-OR, PEG and PPG esters: R-CO-G-OCO-R, tin compounds: (R) q Sn-(MR"-G-OT) 4-q , silicates: (R) 3 -Si-G-Si(R) 3> phosphites: P-(GOT) 3 , phosphates: and OP- (GOT) 3 , phthalates.
  • the stabiliser may have the general formula R-CO-[OCH 2 -R'CH] m -OR.
  • the stabiliser has the general formula R-CO-[OCH 2 -R'CH] m OCO-R.
  • said stabiliser has the general formula ( R ) q Sn-(MR"-OCH 2 -R'CH] m -OT) 4-q, P-[OCH 2 - R'CH) m -OT] 3 ,
  • each R' is independently selected from alkyl from to 2 and aiyl from C 6 to C 12
  • each R is independently selected from R', aralkyl from C 6 to C 12 , and alkaryl from C 6 to C 12
  • M is 0 or S
  • each T is independently selected from R- and R-CO-, -P(R) 2 , -P(OR) 2 , -Si(R) 3 , or -Si(OR) 3
  • m is 1 to 20
  • q is 0 to 3.
  • M is S and R" is (CH 2 ) P CO-.
  • PEG, PPG and their ethers and esters include tri(propylene glycol), poly(propylene glycol), poly(propylene glycol)diglycidl ether, dibutoxpropoxpropyyl adipatge, poly(propylene glycol di(e-ethylhexanoate), poly(propylene glycol) dibenzoate, di(propylene glycol) dibenzoate, poly(ethylene glycol) dibenzoate, and di)ethylene glycol) dibenzoate.
  • tine compounds include dibutyltin bis (diethylene glycol monomethyl ether thioglycolate), dibutyltin bis(triethylene glycol monomethyl ether thioglycolate), dibutyltin bis(diethylene glycol monoethyl ether thioglycolate), dibutyltin bis(h ⁇ ethylene glycol monoethyl ether thioglycolate), dibutyltin bis(dipropylene glycol monoethyl ether thioglycoate), dibutyltin bis(tripropylene glycol monoethyl ether thioglycolate), bis( ⁇ -carbomethoxyethoxyethoxy)tin bis(isooctylthioglycoate), bis( ⁇ -carbomethoxyethoxyethoxy)tin bis(isooctylthioglycoate), bis( ⁇ -carbomethoxyethoxyethoxy)tin bis
  • polypropylene glycol) bistrimethylsily ether examples include polypropylene glycol) bistrimethylsily ether, poly(propylene glycol)
  • bistrimethoxysily ether poly(ethylene glycol) bistrimethylsily ether
  • phosphites include tri(methoxyethoxyethyl) phosphite, tri(ethoxyethoxyethyl) phosphite, tri(methoxypropoxypropyl) phosphite, tri(ethoxypropoxypropyl) phosphite, tri(methoxyethoxyethoxyethyl) phosphite, tri(ethoxyethoxyethoxyethyl) phosphite, tri(methoxypropoxypropbxypropyl) phosphite, and tri(ethoxypropoxypropyl) phosphite.
  • phosphates include tri(methoxypropoxypropyl) phosphate, tri(ethoxypropoxypropyl) phosphate, tri(methoxyethoxyethoxyethyl) phosphate, tri(ethoxyethoxyethoxyethyl) phosphate, tri(methoxypropoxypropyl) phosphate, and tri(ethoxypropoxypropyl) phosphate.

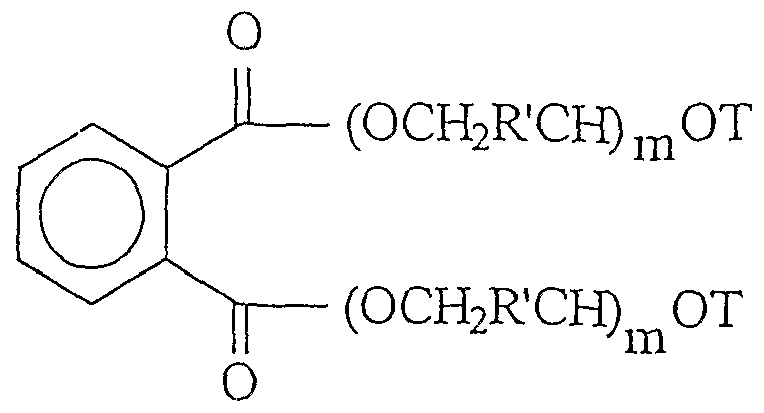

  • phthalates include di(diethylene glycol monomethyl ether) phthalate, di(triethylene glycol monomethyl ether) phthalate, di(diethylene glycol monoethyl ether) phthalate,
  • trimellitates include tri(diethylene glycol monomethyl - ether) trimellitate, di(triethylene glycol monomethyl ether) trimellitate, di(diethylene glycol monoethyl ether) trimellitate, di(triethylene glycol monoethyl ether) trimellitate, di(dipropylene
  • glycol monoethyl ether trimellitate, and di(tripropylene glycol monoethyl ether)
  • trimellitate trimellitate.
  • the preferred stabilizers are ethers and esters of PEG and PPG because many are commercially available.
  • trimellitates include tris(2-methoxyethy!)trimellitates, and tris[2-(2- methoxyethoxy)ethyl]trimellitates;
  • the known phosphorous compounds include tris(2-methoxyethyl)phosphite, tris[2-(2-methoxyethoxy)ethyl]phosphite, tris(2- methoxyethy!phosphate, tris[2-(2-methoxyethoxy)ethyl]phosphate, tris[2-[2-(2-(2-(2-methoxyethoxy)
  • each R' is independently selected from alkyl from C, to C 12 , and aryl from C 6 to C 12 , and R, M, T, m, and q are the same as hereinabove defined, are believed to
  • Stabilizers containing an (CO-E-CO-G) r , (CO-G) r ⁇ (E-G) r , or (Si(R) 2 G) r group are polymers made by reacting a difunctional acid, acid chloride, or anhydride, such as phosgene, adipic acid, malonic anhydride, or dichlorosilane with a PEG or a PPG.
  • the stabilisers used in the methods of the invention are effective against the oxidation of haloginated polymers suchas PVC, poly(vinylidene chloride), chlorinated polyethylene and chlorinated polypropylene.
  • haloginated polymers such as PVC, poly(vinylidene chloride), chlorinated polyethylene and chlorinated polypropylene.
  • the preferred polymer is PVC because PVC is more frequently used in medical applications where it is subjected to gamma radiation.
  • the polymer can be stabilized by the addition of about 0.005 to about 65 phr (parts by weight per 100 part by weight of the polymer) of the stabilizer to the
  • the preferred amount of stabilizer is about 0.2 to about 20 phr.
  • stabilizer can be added to the polymer in a variety of ways, such as by mixing the reactants at the beginning or during polymerisation.
  • the stabiliser is preferably added after at least 70 Wt% of the monomer has polymerised.
  • the stabiliser can be added as a solid or with a solvent as a slurry or a solution.
  • Common organic solvents can be used, such as N-methylpyrrolidone, diglyme, acetamide, acetone, methanol, ethanol, isopropanol, dimethylsulfoxide, or dimethylformamide; water can also be used.
  • Water miscible solvents such as acetone, tefrahydrofuran, and methanol, are preferred for PVC.
  • the stabiliser is a solid, it is preferable to add the stabiliser in a solvent as that achieves a more uniform distribution of the stabiliser in the polymer.
  • the stabiliser can also be added along with shortstop, or during the diying or compounding of the polymer. Vaiious method can be used for compounding, including milling, diy mixing and extrusion.
  • the stabilisers function as antioxidants to inhibit vaiious forms of oxidation.
  • the invention also relates to a method of making a sterile article comprising:
  • M is 0 or S and R" is (CH 2 ) p CO-, CO-(CH 3 ) p CO-,-(CH 2 ) p , or CO(CH 2 ) p -.
  • the compound may be utilised as a stabiliser for a polymer having a halogen-containing repeating unit.
  • the invention comprises a polymer having a halogen- containing repeating unit, where the polymer contains about 0.005 to about 65 phr (as herein defined) of the compound as described.
  • the polymer is poly(vinyl chloride).
  • irradiated piece was again divided into two pieces and one of these pieces was oven aged at 50°C for 48 hours. All of the samples were measured for yellowness index with a Macbeth 2020 Plus Color Eye Spectrometer, as described by the Hunter equations (see “The Measurement of Appearance” by Richard S. Hunter, John Wiley & Sons, New York, 1975). The following table gives the stabilizers used and the results.

Landscapes

  • Health & Medical Sciences (AREA)
  • Chemical & Material Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Medicinal Chemistry (AREA)
  • Polymers & Plastics (AREA)
  • Organic Chemistry (AREA)
  • Animal Behavior & Ethology (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Epidemiology (AREA)
  • General Health & Medical Sciences (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Compositions Of Macromolecular Compounds (AREA)
  • Apparatus For Disinfection Or Sterilisation (AREA)
  • Polyesters Or Polycarbonates (AREA)
  • Silicon Polymers (AREA)
  • Treatments For Attaching Organic Compounds To Fibrous Goods (AREA)
  • Materials For Medical Uses (AREA)
  • Treatments Of Macromolecular Shaped Articles (AREA)

Abstract

A method of preparing a sterile article is disclosed. A polymer having a halogen-containing repeating unit is prepared that contains about 0.005 to about 65 phr of a stabiliser having the general formula TGOT', where each T is independently selected from R-, R-CO-, -P(R)2, -P(OR)2, Si(R)3, or -Si(OR)3, T' is T or A[GOT]n, each A is independently selected from LS-Sn(R)3-q(OLJ)q,(CH2)pS-Sn(R)3-q(S(CH2)p-J)q, LCO2Sn(R)3-q(OLCO-J)q, or LSn(Y)3-q(LJ)q when n is O, from CO, E, CO-E-CO, Si(R)2, Si(OR)2, (Si(R)2G)r, (CO-E-CO-G)r, (CO-G)r, or (E-G)r when n is 1, and from P, PO and trimellitate when n is 2, Y is -SLJ, -SLJ, -SLOR, -OLJ, -OLR, -S(CH2)p, each R is independently selected from R', aralkyl from C6 to C12, and aryl from C6 to C12, E is alkylene from C1 to C12, m is 1 to 20, n is 0 to 2, p is 0 to 10, q is 0 to 3 and r is 1 to 20. An article is made from the polymer and the article is sterilised with ionising radiation. Also disclosed are novel stabilisers for use in this method.

Description

PREPARING STERILE ARTICLES FROM POLYMERS CONTAINING A STABILISER BASED ON A POLY(OXYALKYLENE)
THE PRESENT INVENTION relates to the preparation of a sterile article made from a polymer having a halogen-containing repeating unit, where the polymer contains a compound based on a poly(oxyalkylene) (POA). In particular, it relates reducing the yellowing of an article made from polyvinyl chloride (PNC) after exposure to gamma radiation by incorporating compounds based on poly(ethylene glycol) (PEG) and poly(propylene glycol) (PPG) into the PVC.
PNC is a versatile thermoplastic that is widely used for making medical articles and for food packaging due to its clarity, gloss, unique versatility, excellent functional performance, inertness to fluids and relatively low cost. Medical devices and food packaging are usually sterilised before they are used. While ethylene oxide sterilisation imposes little or no harmful effects on the physical properties of PVC, radiation sterilisation, such as with gamma rays, can adversely effect the polymer, such as yellowing it.
PEG, PEG dibenzoate, and PPG dibenzoate have been used as PVC plasticisers. They are primarily used as alternatives for phthlate plasticisers, such as dioctyl phthalate (DOP). The use of these materials may also improve other properties of PVC. (J.H. Lee, K.O Kim, Y.M. Ju J. Biomed. Mater. Res (Appl. Biomater) 48, pages 328 to 334 (1999); W.D. Arendt, J. Lang J. Winvyl & Additive Technology, 4(3), pages 184 to 188 (1998); W.D. Arendt Plat. Eng 35(9), pages 46 to 49 (1979); W.D. Arendt Plast. Eng. 25, pages 410 to 412 (1979).
The present invention seeks to provide a method of preparing a sterile article. The invention also seeks to provide a stabiliser for use when preparing a sterile article from a polymer. Additionally, the invention comprises the combination of a stabiliser and a polymer.
According to a first aspect of this invention there is provided a method of preparing a sterile article comprising:
(A) preparing a polymer having a halogen-containing repeating unit, where said polymer contains about 0.005 to about 65 phr (as defined herein) of a stabiliser having the general formula TGOT', where each T is independently selected from R-, R-CO-, -P(OR)2, -Si(OR)3, or -Si(OR)3, T' is T or A[GOT]n, each A is independently selected from LS-Sn(R)3-q(SLJ)q, L-0-Sn(R)3 -q (OLJ)q, (CH2)pS-Sn(R)3-q(S(CH2)p-J)q, LC02SN(R)3-q(OLCO-J)q, or LSn(Y)3-q(LJ)q when n is O, from CO, E, CO-E-CO, Si(R)2, Si(OR)2, (Si(R)2G)r, (CO-E-CO-G)r, or (E-G)r when n is 1, and from P, PO, and trimellitate when n is 2, Y is - SLJ, -SLOR, - OLJ, -OLR, -S(CH2)P-J, -S(CH2)PR, OLCO-J, or OLCOOR, G is (0-CH2-R'CH)m, J is 0-(CH2CR'HO)T, L is CO(CH2)p, each R is independently selected from R\ aralkyl from C6 to C12, and alkaryl from C6 to Cι2, each R' is independently selected from hydrogen, alkyl from to Cι2, and aiyl from C6 to C12, E is alkylene from to Cι2, aralkylene from C6 to C12, alkaiylene from C6 to C12, arylene from C6 to Cι2, m is 1 to 20, n is 0 to 2, p is 0 to 10, q is 0 to 3 and r is 1 to 20;
(B) making said article from said polymer; and
(C) sterilising said article with ionising radiation.
It is to be appreciated that the method utilises a stabiliser. With regard to the stabiliser it is to be understood that the ethers (T = R. R' = R) are preferred and R is preferably alkyl from to C8 as those stabilisers are more effective. R' is preferably methyl or phenyl because they increase the lipophilicity of the stabilisers, resulting in better miscibility with the polymers. The A group is preferably CO-E-CO or (CO-E-CO-G)r because the lipophilicity of the materials can be tailored and these materials are easily prepared. The Y group is preferably -SLJ, -SLOR, -S(CH2)P-J, or -S(CH2)P-J, or -S(CH2)PR because they more effective. Of the tin based stabilisers, sulphur-containing tin stabilisers are preferred because they are better thermo stabilisers. Finally, m is preferably 2 to 5 as smaller values may be less effective and greater values may not be compatible with PVC, resulting in a hazy appearance, n is preferably 0 to 1 because these stabilisers can better inhibit the discoloration of the polymers, p is preferably 1 to 2 because these stabilisers are readily available, q is preferably 1 to 2 because those stabilisers are also better thermal stabilisers, and r is preferably 2 to 5 because they mix well with PVC. Preferably, all the T groups are identical as those stabilisers are easier to prepare. The preferred stabilisers include PEG and PPG ethers: R-G-OR, PEG and PPG esters: R-CO-G-OCO-R, tin compounds: (R)qSn-(MR"-G-OT)4-q, silicates: (R)3-Si-G-Si(R)3> phosphites: P-(GOT)3, phosphates: and OP- (GOT)3, phthalates. In certain embodiments of the invention the stabiliser may have the general formula R-CO-[OCH2-R'CH]m -OR.
In alternative embodiment of the invention the stabiliser has the general formula R-CO-[OCH2-R'CH]mOCO-R.
In a further embodiment of the invention said stabiliser has the general formula ( R )qSn-(MR"-OCH2 -R'CH]m -OT)4-q, P-[OCH2 - R'CH)m -OT]3,
Figure imgf000005_0001
where each R' is independently selected from alkyl from to 2 and aiyl from C6 to C12, each R is independently selected from R', aralkyl from C6 to C12, and alkaryl from C6 to C12, M is 0 or S, each T is independently selected from R- and R-CO-, -P(R)2, -P(OR)2, -Si(R)3, or -Si(OR)3, m is 1 to 20, and q is 0 to 3. In such an embodiment it is preferred that M is S and R" is (CH2)P CO-.
Examples of PEG, PPG and their ethers and esters include tri(propylene glycol), poly(propylene glycol), poly(propylene glycol)diglycidl ether, dibutoxpropoxpropyyl adipatge, poly(propylene glycol di(e-ethylhexanoate), poly(propylene glycol) dibenzoate, di(propylene glycol) dibenzoate, poly(ethylene glycol) dibenzoate, and di)ethylene glycol) dibenzoate. Examples of tine compounds include dibutyltin bis (diethylene glycol monomethyl ether thioglycolate), dibutyltin bis(triethylene glycol monomethyl ether thioglycolate), dibutyltin bis(diethylene glycol monoethyl ether thioglycolate), dibutyltin bis(hϊethylene glycol monoethyl ether thioglycolate), dibutyltin bis(dipropylene glycol monoethyl ether thioglycoate), dibutyltin bis(tripropylene glycol monoethyl ether thioglycolate), bis(β-carbomethoxyethoxyethoxy)tin bis(isooctylthioglycoate), bis(β
carboethoxyethoxyethoxy)tin bis(isooctylthioglycoate) , and bis(β-
carboethoxyethoxyethoxyethoxy)tin bis(isooctylthioglycoate). Examples of silicates
include polypropylene glycol) bistrimethylsily ether, poly(propylene glycol)
bistrimethoxysily ether, poly(ethylene glycol) bistrimethylsily ether, and
poly(ethylene glycol) bistrimethoxysily ether. Examples of phosphites include tri(methoxyethoxyethyl) phosphite, tri(ethoxyethoxyethyl) phosphite, tri(methoxypropoxypropyl) phosphite, tri(ethoxypropoxypropyl) phosphite, tri(methoxyethoxyethoxyethyl) phosphite, tri(ethoxyethoxyethoxyethyl) phosphite, tri(methoxypropoxypropbxypropyl) phosphite, and tri(ethoxypropoxypropoxypropyl) phosphite. Examples of phosphates include tri(methoxypropoxypropyl) phosphate, tri(ethoxypropoxypropyl) phosphate, tri(methoxyethoxyethoxyethyl) phosphate, tri(ethoxyethoxyethoxyethyl) phosphate, tri(methoxypropoxypropoxypropyl) phosphate, and tri(ethoxypropoxypropoxypropyl) phosphate. Examples of phthalates include di(diethylene glycol monomethyl ether) phthalate, di(triethylene glycol monomethyl ether) phthalate, di(diethylene glycol monoethyl ether) phthalate,
di(triethylene glycol monoethyl ether) phthalate, di(dipropylene glycol monoethyl ether) phthalate, and di(:tripropylene glycol monoethyl ether) phthalate. Examples
of trimellitates include tri(diethylene glycol monomethyl - ether) trimellitate, di(triethylene glycol monomethyl ether) trimellitate, di(diethylene glycol monoethyl ether) trimellitate, di(triethylene glycol monoethyl ether) trimellitate, di(dipropylene
glycol monoethyl ether) trimellitate, and di(tripropylene glycol monoethyl ether)
trimellitate. The preferred stabilizers are ethers and esters of PEG and PPG because many are commercially available.
Polyethylene glycol and polypropylene glycol ethers and esters that are not
commercially available are easily made by, for example, condensing polyethylene glycol or polypropylene glycol with an alcohol (to make an ether) or with an acid
chloride (to make an ester), as is well-known in the art. Of the above compounds, the PEG and PPG ethers, silyl ethers, and esters are well known. Phthalates such as dimethyl glycol phthalate, diethyl glycol phthalate, dibutyl glycol phthalate; di-2-
(2-methoxyethoxy)ethyl phthalate; di-2-(2-ethoxyethoxy)ethyl phthalate; di-2-(2- butoxyethoxy)ethy) phthalate; di-2-(2-hexy!oxyethoxy)ethyi phthalate; bis[2-[2-(2-
ethoxyethoxy)ethoxy]ethyl] phthalate are also known. The known trimellitates include tris(2-methoxyethy!)trimellitates, and tris[2-(2- methoxyethoxy)ethyl]trimellitates; the known phosphorous compounds include tris(2-methoxyethyl)phosphite, tris[2-(2-methoxyethoxy)ethyl]phosphite, tris(2- methoxyethy!)phosphate, tris[2-(2-methoxyethoxy)ethyl]phosphate, tris[2-[2-(2-
methoxyethoxy)ethoxy]ethyl] phosphate. The tin compounds, some of the
phosphites, phosphates, phthalates, and trimellitates are believed to be novel compounds, in particular, compounds having the general formula (R) Sn-(MR"-
OCH2 - R'CH -OT)4..q|--P-[(OCH2 - R'CH)m -OT]3l
0
Figure imgf000008_0001
Figure imgf000009_0001
where each R' is independently selected from alkyl from C, to C12, and aryl from C6 to C12, and R, M, T, m, and q are the same as hereinabove defined, are believed to
be novel. They can be made by, for example, reacting PCI3 with methyl monoethers
of PEG or PPG. Stabilizers containing an (CO-E-CO-G)r, (CO-G)rι (E-G)r, or (Si(R)2G)r group are polymers made by reacting a difunctional acid, acid chloride, or anhydride, such as phosgene, adipic acid, malonic anhydride, or dichlorosilane with a PEG or a PPG.
The stabilisers used in the methods of the invention are effective against the oxidation of haloginated polymers suchas PVC, poly(vinylidene chloride), chlorinated polyethylene and chlorinated polypropylene. The preferred polymer is PVC because PVC is more frequently used in medical applications where it is subjected to gamma radiation.
The polymer can be stabilized by the addition of about 0.005 to about 65 phr (parts by weight per 100 part by weight of the polymer) of the stabilizer to the
polymer. Less stabilizer is less effective and more stabilizer offers little additional
benefit; the preferred amount of stabilizer is about 0.2 to about 20 phr. The
stabilizer can be added to the polymer in a variety of ways, such as by mixing the reactants at the beginning or during polymerisation. The stabiliser is preferably added after at least 70 Wt% of the monomer has polymerised. The stabiliser can be added as a solid or with a solvent as a slurry or a solution. Common organic solvents can be used, such as N-methylpyrrolidone, diglyme, acetamide, acetone, methanol, ethanol, isopropanol, dimethylsulfoxide, or dimethylformamide; water can also be used. Water miscible solvents, such as acetone, tefrahydrofuran, and methanol, are preferred for PVC. If the stabiliser is a solid, it is preferable to add the stabiliser in a solvent as that achieves a more uniform distribution of the stabiliser in the polymer. The stabiliser can also be added along with shortstop, or during the diying or compounding of the polymer. Vaiious method can be used for compounding, including milling, diy mixing and extrusion. The stabilisers function as antioxidants to inhibit vaiious forms of oxidation.
The invention also relates to a method of making a sterile article comprising:
(A) preparing poly(vinyl chloride) that contains about 0.2 to about 20 phi- of a stabiliser having the general formula TGOT', where each T is independently selected from R- and R-CO-, -P(R)2, - P(OR)2, -Si(R)3, or Si(OR)3, T' is T, G is (0-CH2-R'CH)m J is 0- (CH2CR'HO), L is CO(CH2)p, each R is independently selected from alkyl from C\ to C8, each R' is independently selected from methyl or phenyl, E is alkylene from to C6, m is 2 to 5, n is 0 or 1, p is 1 or 2, q is 1 or 2 and r is 2 to 5;
(B) making said article from said poly(vinyl chloride); and
(C) sterilising said article with gamma radiation. In the method of making a sterile article, the various preferred stabilisers as described above may be utilised.
According to a further aspect of this invention there is provided a compound having the general formula (R)qSn-(MR"-OCH2-[R'CH]m -OT)4-q, P- [(OCH2 - R'CH)mOT]3,
Figure imgf000011_0001
where M is 0 or S and R" is (CH2)pCO-, CO-(CH3)pCO-,-(CH2)p, or CO(CH2)p-. The compound may be utilised as a stabiliser for a polymer having a halogen-containing repeating unit.
Thus, additionally, the invention comprises a polymer having a halogen- containing repeating unit, where the polymer contains about 0.005 to about 65 phr (as herein defined) of the compound as described. Preferably the polymer is poly(vinyl chloride). The following examples further illustrate this invention:
EXAMPLES 1 TO 59
To a mixture of 150. OOg PVC (sold by Occidental Chemical Corporation as "Oxy 240" or by Oxy Vinyls as "OV 30"), 0.30 g stearic acid (used as a lubricant), 0.23 g of a zinc and calcium mixed salts of mixed fatty acids (used as a heat stabiliser; sold by Witco as "Mark 152 S"), 97.50 g dioctyl phthalate (used as a plasticiser to increase flexibility), minus the amount of stabiliser used, 15.00 g epoxidised soy bean oil (used as an HC1 scavenger to reduce degradation; sold by Witco as "Drapex 6.8"), was added vaiious amounts of different stabilisers. The
mixture was thoroughly blended and hot milled at 300°F (182°C) for 5 minutes. The
resulting PVC sheet was cut and pressed into a 4"x3"x114" (10x8x0.6 cm) plaque at 330°F (182°C). The plaque was divided into two smaller pieces. One was saved for
comparison and one was subjected to γ radiation at a dose of 50 kGy. The
irradiated piece was again divided into two pieces and one of these pieces was oven aged at 50°C for 48 hours. All of the samples were measured for yellowness index with a Macbeth 2020 Plus Color Eye Spectrometer, as described by the Hunter equations (see "The Measurement of Appearance" by Richard S. Hunter, John Wiley & Sons, New York, 1975). The following table gives the stabilizers used and the results.
Figure imgf000013_0001
Figure imgf000014_0001
Figure imgf000015_0001
Sold by C.P. Hall Company as "PlasthairDBPA"
Sold by Unitex Chemical as "Uniplex 400"
Sold by Velsicol as "Benzoflex 2088"
Sold by Velsicol as "Benzoflex 2870"
Sold by Velsicol as "Benzoflex 2888"
Sold by Velsicol as "Benzoflex 2160"
Sold by Velsicol as "Benzoflex 2860"
As can be observed from the above table, after gamma radiation the polymers that contained a stabilizer had significantly less discoloration than the control samples. The table also shows that a mixture of PEG- and PPG-based
materials was also effective for stabilizing the PVC color after radiation. This
feature makes it possible to tailor a stabilizer for a specific application if certain
physical properties of the PVC are desired.

Claims

CLAIMS:
A method of preparing a sterile article comprising:
(A) preparing a polymer having a halogen-containing repeating unit, where said polymer contains about 0.005 to about 65 phr (as defined herein) of a stabiliser having the general formula TGOT', where each T is independently selected from R-, R-CO-, -P(OR)2, -Si(OR)3, or -Si(OR)3, T' is T or A[GOT]n, each A is independently selected from LS-Sn(R)3-q(SLJ)q, L-0-Sn(R)3 -q (OLJ)q, (CH2)pS-Sn(R)3-q(S(CH2)p-J)q, LC02SN(R)3-q(OLCO-J)q, or LSn(Y)3-q(LJ)q when n is O, from CO, E, CO-E-CO, Si(R)2, Si(OR)2, (Si(R)2G)r, (CO-E-CO-G)r, or (E-G)r when n is 1, and from P, PO, and trimellitate when n is 2, Y is - SLJ, -SLOR, - OLJ, -OLR, -S(CH2)p-J, -S(CH2)PR, OLCO-J, or OLCOOR, G is (0-CH2-R'CH)m, J is 0-(CH2CR'HO)T, L is CO(CH2)p, each R is independently selected from R', aralkyl from C6 to C12, and alkaiyl from C6 to C1 ι each R' is independently selected from hydrogen, - alkyl from to C12> and aryl from C6 to C12, E is alkylene from to Cι2, aralkylene from C6 to C12, alkarylene from C6 to C12, arylene from C6 to 2, m is 1 to 20, n is 0 to 2, p is 0 to 10, q is 0 to 3 and r is 1 to 20;
(B) making said article from said polymer; and
(C) sterilising said article with ionising radiation.
2. A method according to Claim 1 wherein said polymer is poly(vinyl chloride).
3. A method according to Claim 1 or 2 wherein said stabiliser is an ether.
4. A method according to Claim 1, 2 or 3 wherein R is alkyl from Q to C8.
5. A method according to Claim 1, 2 or 3 wherein R' is methyl or phenyl.
6. A method according to any one of the preceding Claims wherein T' is T.
7. A method according to Claim 6 wherein al T's are identical.
8. A method according to any of the preceding Claims wherein m is 2 to 5, n is 0 or 1, p is 1 or 2, q is 1 or 2, or r is 2 to 5.
9. A method according to Claims 1 to 8 wherein said stabiliser has the general fromula R-[OCH2-R'CH]m -OR.
10. A method according to any one of Claims 1 to 8 wherein said stabiliser has the general formula R-CO-[OCH2-R'CH]mOCO-R.
11. A method according to any one of Claims 1 to 8 wherein said stabiliser has the general formula ( R )qSn-(MR"-OCH2 -R'CH]m -OT)4-q, P-[OCH2 - R'CH)m -OT]3,
formula (R)qSn-(MR"-OCH2 - R'CH]m -OT) , P-[(OCH2 - R'CH)m -0T]3
Figure imgf000018_0001
Figure imgf000018_0002
where each R' is independently selected from alkyl from to C12 and aiyl from C6 to Cj2, each R is independently selected from R', aralkyl from C6 to C]2, and alkaiyl from C6 to C[2, M is 0 or S, each T is independently selected from R- and R-CO-, -P(R)2, -P(OR)2, -Si(R)3, or -Si(OR)3, m is 1 to 20, and q is 0 to 3.
12. A method according to Claim 11 wherein M is S and R" is (CH2)P CO-.
13. A method of making a sterile article comprising:
(A) preparing poly(vinyl chloride) that contains about 0.2 to about 20 phr of a stabiliser having the general formula TGOT', where each T is independently selected from R- and R-CO-, -P(R)2, - P(OR)2, -Si(R)3, or Si(OR)3, T' is T, G is (0-CH2-R'CH)m J is 0- (CΗ2CRΗO), L is CO(CH2)p, each R is independently selected from alkyl from to C8, each R' is independently selected from methyl or phenyl, E is alkylene from to C6, m is 2 to 5, n is O or 1, p is 1 or 2, q is 1 or 2 and r is 2 to 5;
(B) making said article from said poly(vinyl chloride); and
(C) sterilising said article with gamma radiation.
14. A method according to Claim 13 wherein said stabiliser has the general formula R-[OCH2-R'CH]m -OR.
15. A method according to Claim 13 wherein said stabiliser has the general formula R-CO-[OCH2-R'CH]2 -OCO-R.
16. A method according to Claim 13 wherein said stabiliser has the general formula (R)qSn-(MR"-OCH2 -[R'CH]m -OT)4-q, P-[(OCH2 - R'CH)m - OT]3,
0
Figure imgf000020_0001
where M is 0 or S and R" is (CH2)pCO-, C0-(CH3)pC0-, -(CH2)p, or CO(CH2)p-.
17. A method according to Claim 16 wherein M is S and R" is (CH2)P CO-
18. A compound having the general formula (R)qSn-(MR"-OCH2-[R'CH]r OT)4-q, P-[(OCH2 - R'CH)mOT]3,
O
Figure imgf000021_0001
where M is O or S and R" is (CH2)pCO-, CO-(CH3)pCO-,-(CH2)p, or CO(CH2)p-.
19. A polymer having a halogen-containing repeating unit, where said polymer contains about 0.005 to about 65 phr (as herein defined) of a compound according to Claim 18.
20. A polymer according to Claim 19 wherein said polymer is poly(vinyl chloride).
PCT/GB2001/003889 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene) Ceased WO2002017972A2 (en)

Priority Applications (13)

Application Number Priority Date Filing Date Title
IL15465301A IL154653A0 (en) 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly (oxyalkylene)
CA2420858A CA2420858C (en) 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)
EP01963176A EP1313802B1 (en) 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)
JP2002522945A JP2004507583A (en) 2000-09-01 2001-08-30 Method for producing a sterilized product from a polymer containing a poly (oxyalkylene) -based stabilizer
MXPA03001519A MXPA03001519A (en) 2000-09-01 2001-08-30 PREPARE STERILE ARTICLES OF POLYMERS THAT CONTAIN A STABILIZER BASED ON A POLY (OXIALQUYLENE).
AU2001284209A AU2001284209B2 (en) 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)
DE60129027T DE60129027T2 (en) 2000-09-01 2001-08-30 PREPARATION OF STERILE ARTICLES FROM POLYMERS THAT CONTAIN A POLY (OXYALKYLENE) BASED STABILIZER
SK240-2003A SK287053B6 (en) 2000-09-01 2001-08-30 A process for preparing sterile products from poly (oxyalkylene) -based stabilizer-containing polymers
KR1020037003055A KR100743554B1 (en) 2000-09-01 2001-08-30 Process for preparing sterile products from polymers containing stabilizers based on poly (oxyalkylene)
AU8420901A AU8420901A (en) 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)
DK01963176T DK1313802T3 (en) 2000-09-01 2001-08-30 Preparation of sterile articles from polymers containing a poly (oxyalkylene) stabilizer
NO20030886A NO327962B1 (en) 2000-09-01 2003-02-25 Method of making a sterile article.
IL154653A IL154653A (en) 2000-09-01 2003-02-27 Preparation of sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
US09/654,359 2000-09-01
US09/654,359 US6348517B1 (en) 2000-09-01 2000-09-01 Preparing sterile articles from polymers containing a stabilizer based on a poly(oxyalkylene)

Publications (2)

Publication Number Publication Date
WO2002017972A2 true WO2002017972A2 (en) 2002-03-07
WO2002017972A3 WO2002017972A3 (en) 2002-09-06

Family

ID=24624537

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/GB2001/003889 Ceased WO2002017972A2 (en) 2000-09-01 2001-08-30 Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)

Country Status (18)

Country Link
US (2) US6348517B1 (en)
EP (2) EP1818361B1 (en)
JP (1) JP2004507583A (en)
KR (1) KR100743554B1 (en)
CN (2) CN101775030B (en)
AT (1) ATE365187T1 (en)
AU (2) AU8420901A (en)
CA (1) CA2420858C (en)
CZ (1) CZ304395B6 (en)
DE (1) DE60129027T2 (en)
DK (2) DK1818361T3 (en)
ES (2) ES2432362T3 (en)
IL (2) IL154653A0 (en)
MX (1) MXPA03001519A (en)
NO (1) NO327962B1 (en)
PT (2) PT1818361E (en)
SK (1) SK287053B6 (en)
WO (1) WO2002017972A2 (en)

Families Citing this family (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US7282527B2 (en) * 2003-08-19 2007-10-16 Crompton Corporation Stabilization system for halogen-containing polymers
WO2008032583A1 (en) * 2006-09-11 2008-03-20 Kaneka Corporation Resin composition for medical use, resin pellets and part for medical use
TWI689538B (en) 2018-11-12 2020-04-01 南亞塑膠工業股份有限公司 Stabilizer for use in halogen-containing polymer and its use thereof
FR3107278A1 (en) * 2020-02-14 2021-08-20 Arkema France Bituminous composition containing an epoxidized oil

Family Cites Families (32)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB1326387A (en) * 1969-08-16 1973-08-08 Toho Chem Ind Co Ltd Lubricating composition for synthetic fibres
US3976616A (en) * 1972-06-13 1976-08-24 Ciba-Geigy Corporation Bis(phosphate) plasticizers and plasticized compositions
DE2656927C2 (en) * 1976-12-16 1983-03-03 Akzo Gmbh, 5600 Wuppertal Lubricant made from polyalkylene oxides for the shaping processing of plastics
EP0000976B1 (en) * 1977-07-26 1982-05-19 The Malaysian Rubber Producers' Research Association A method of forming graft copolymers by attaching pre-polymerised side chains to an unsaturated natural or synthetic rubber backbone, and the resulting graft copolymers
US4159681A (en) * 1977-10-03 1979-07-03 Vandament Daniel D Reinforced, light-weight pallet
SU956459A1 (en) * 1978-03-21 1982-09-07 Уфимский Нефтяной Институт Process for producing plasticizer
JPS5661448A (en) * 1979-10-25 1981-05-26 Mitsubishi Plastics Ind Ltd Vinyl resin composition having good gamma radiation resistance
FR2491871A1 (en) * 1980-10-10 1982-04-16 Ato Chimie IMPROVEMENT IN STERILIZATION OF OBJECTS IN HALOGENO-VINYL POLYMERS BY IONIZING RADIATION, AND RESINS FOR THEIR PRODUCTION
US4478961A (en) * 1981-11-18 1984-10-23 Toyo Boseki Kabushika Kaisha Polyvinyl chloride composition
JPS59109548A (en) * 1982-12-16 1984-06-25 Sanyo Chem Ind Ltd Polymer composition
US4569953A (en) * 1984-02-28 1986-02-11 Minnesota Mining And Manufacturing Company Photoactivated polymerization of vinyl monomers by polysilanes
US4710532A (en) * 1985-03-13 1987-12-01 Morflex Chemical Company, Inc. Medical article and method
JPS6153237A (en) * 1984-08-24 1986-03-17 Human Ind Corp Modification of polyhydroxyl compound
US4686148A (en) * 1985-07-15 1987-08-11 W. R. Grace & Co., Cryovac Div. Vinylidene chloride composition and film made therefrom
US4698111A (en) * 1985-07-15 1987-10-06 W. R. Grace & Co., Cryovac Div. Vinylidene chloride composition and film made therefrom
NZ217159A (en) * 1985-08-26 1989-04-26 Goodrich Co B F Clear polyvinyl chloride compositions
US5011660A (en) * 1987-04-10 1991-04-30 Huls America Inc. Method of sterilizing medical grade film
PH25823A (en) * 1987-07-22 1991-11-05 Sherex Chem Anti-stat for polyvinyl chloride polymers
US4906681A (en) * 1987-07-22 1990-03-06 Sherex Chemical Company, Inc. Anti-stat for polyvinyl chloride polymers
JPS6443551A (en) * 1987-08-10 1989-02-15 Sekisui Chemical Co Ltd Antistatic plasticizer
JPS6466257A (en) * 1987-09-07 1989-03-13 Nitto Kasei Co Ltd One-pack stabilizer for halogen-containing resin
FR2625506B1 (en) * 1987-12-31 1992-02-21 Bp Chimie Sa METHOD AND APPARATUS FOR THE MANUFACTURE OF CONTROLLED POLYMERS USING A REGULATION SYSTEM INCLUDING AN INFRARED SPECTROPHOTOMETER
US5077331A (en) * 1988-01-15 1991-12-31 Lonza Inc. Polyvinyl chloride lubricant
JPH04356441A (en) * 1991-06-03 1992-12-10 Satoru Matsumoto Complex ester of ether-ester
US5830937A (en) * 1992-02-04 1998-11-03 Congoleum Corporation Coating and wearlayer compositions for surface coverings
JPH0657131A (en) * 1992-08-14 1994-03-01 Mitsubishi Petrochem Co Ltd Thermoplastic resin composition
EP0600696A1 (en) * 1992-11-30 1994-06-08 Shin-Etsu Chemical Co., Ltd. Process for preparing vinyl chloride polymers
JPH07292235A (en) * 1994-04-20 1995-11-07 Sanyo Chem Ind Ltd Low-temperature plasticizer
US5948838A (en) * 1996-03-06 1999-09-07 Mitsubishi Engineering-Plastics Corp. Polycarbonate resin composition
US5710199A (en) * 1996-06-19 1998-01-20 Hubert; James F. Automotive additives and sealants containing waste powder prime
US5686147A (en) * 1996-11-18 1997-11-11 The Goodyear Tire & Rubber Company Plastisol composition
JPH1121205A (en) * 1997-07-03 1999-01-26 Mitsui Chem Inc Vinyl chloride resin composition for molding

Also Published As

Publication number Publication date
US20020055584A1 (en) 2002-05-09
AU8420901A (en) 2002-03-13
CN100558803C (en) 2009-11-11
WO2002017972A3 (en) 2002-09-06
IL154653A0 (en) 2003-09-17
PT1818361E (en) 2013-10-30
EP1313802B1 (en) 2007-06-20
ES2288981T3 (en) 2008-02-01
DE60129027T2 (en) 2007-09-27
US6451904B1 (en) 2002-09-17
AU2001284209B2 (en) 2007-10-11
EP1313802A2 (en) 2003-05-28
NO20030886L (en) 2003-02-25
CZ2003575A3 (en) 2003-06-18
EP1818361B1 (en) 2013-07-24
JP2004507583A (en) 2004-03-11
KR100743554B1 (en) 2007-07-27
ATE365187T1 (en) 2007-07-15
CZ304395B6 (en) 2014-04-16
SK2402003A3 (en) 2003-09-11
CN101775030A (en) 2010-07-14
IL154653A (en) 2007-06-03
PT1313802E (en) 2007-09-06
KR20030045048A (en) 2003-06-09
MXPA03001519A (en) 2003-06-30
CN101775030B (en) 2014-07-02
DK1313802T3 (en) 2007-10-15
SK287053B6 (en) 2009-10-07
ES2432362T3 (en) 2013-12-03
CA2420858A1 (en) 2002-03-07
DK1818361T3 (en) 2013-10-28
EP1818361A3 (en) 2012-07-11
NO327962B1 (en) 2009-10-26
CN1449426A (en) 2003-10-15
EP1818361A2 (en) 2007-08-15
US6348517B1 (en) 2002-02-19
CA2420858C (en) 2010-11-30
NO20030886D0 (en) 2003-02-25
DE60129027D1 (en) 2007-08-02

Similar Documents

Publication Publication Date Title
US4808649A (en) Beta-ketoester substituted diorganopolysiloxanes and PVC stabilzers comprised thereof
US20070027240A1 (en) Diethyleneglycol ester based plasticizer composition and polyvinyl chloride resin using the same
KR101419062B1 (en) New plasticizer for polyvinylchloride resin
WO2013034464A1 (en) Anti yellowing composition
CA2420858C (en) Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)
CN1240760C (en) Blend of organophosphorus flame retardant, lactone stabilizer, and phosphate compatilizer
AU2001284209A1 (en) Preparing sterile articles from polymers containing a stabiliser based on a poly(oxyalkylene)
CA1079950A (en) Liquid stabilizers
EP1169380B1 (en) Stabilization of polymers after exposure to oxidation
US3525710A (en) Orthoester stabilized polyvinyl-chloride resins
US4937365A (en) Alpha-mercaptoester substituted diorganopolysiloxanes
US4139523A (en) Stabilization of polyphosphazene vulcanizates with a metal complex
EP0540270A1 (en) Cellulose ester resin stabilizer and cellulose ester resin compositions stabilized therewith
CA1118991A (en) Liquid, solvent-free, non-toxic stabilizers and vinyl chloride resin compositions containing same
WO2002017973A2 (en) Preparing sterile articles from certain polymers
US4107137A (en) Phenolic antioxidants for synthetic polymers
US3067165A (en) Heat stable polymeric compositions
US3344110A (en) Polyvinyl chloride stabilized by silazanes
EP0333979A1 (en) Halophenyl ester flame retardants for polyphenylene ether resins
JPH0742372B2 (en) Paste-like crosslinking agent composition for vinyl chloride

Legal Events

Date Code Title Description
AK Designated states

Kind code of ref document: A2

Designated state(s): AE AG AL AM AT AU AZ BA BB BG BR BY BZ CA CH CN CO CR CU CZ DE DK DM DZ EC EE ES FI GB GD GE GH GM HR HU ID IL IN IS JP KE KG KP KR KZ LC LK LR LS LT LU LV MA MD MG MK MN MW MX MZ NO NZ PH PL PT RO RU SD SE SG SI SK SL TJ TM TR TT TZ UA UG UZ VN YU ZA ZW

AL Designated countries for regional patents

Kind code of ref document: A2

Designated state(s): GH GM KE LS MW MZ SD SL SZ TZ UG ZW AM AZ BY KG KZ MD RU TJ TM AT BE CH CY DE DK ES FI FR GB GR IE IT LU MC NL PT SE TR BF BJ CF CG CI CM GA GN GQ GW ML MR NE SN TD TG

121 Ep: the epo has been informed by wipo that ep was designated in this application
DFPE Request for preliminary examination filed prior to expiration of 19th month from priority date (pct application filed before 20040101)
WWE Wipo information: entry into national phase

Ref document number: PA/a/2003/001519

Country of ref document: MX

WWE Wipo information: entry into national phase

Ref document number: 2001963176

Country of ref document: EP

WWE Wipo information: entry into national phase

Ref document number: 154653

Country of ref document: IL

Ref document number: 2402003

Country of ref document: SK

Ref document number: PV2003-575

Country of ref document: CZ

WWE Wipo information: entry into national phase

Ref document number: 1020037003055

Country of ref document: KR

Ref document number: 018148751

Country of ref document: CN

Ref document number: 2001284209

Country of ref document: AU

Ref document number: 2420858

Country of ref document: CA

WWE Wipo information: entry into national phase

Ref document number: 2002522945

Country of ref document: JP

Ref document number: 287/DELNP/2003

Country of ref document: IN

WWP Wipo information: published in national office

Ref document number: 2001963176

Country of ref document: EP

WWP Wipo information: published in national office

Ref document number: 1020037003055

Country of ref document: KR

WWP Wipo information: published in national office

Ref document number: PV2003-575

Country of ref document: CZ

REG Reference to national code

Ref country code: DE

Ref legal event code: 8642

WWG Wipo information: grant in national office

Ref document number: 2001963176

Country of ref document: EP
