WO2004024706A2 - Taxane derivatives functionalized at the 14- position and a process for the preparation thereof - Google Patents

Taxane derivatives functionalized at the 14- position and a process for the preparation thereof Download PDF

Info

Publication number
WO2004024706A2
WO2004024706A2 PCT/EP2003/009866 EP0309866W WO2004024706A2 WO 2004024706 A2 WO2004024706 A2 WO 2004024706A2 EP 0309866 W EP0309866 W EP 0309866W WO 2004024706 A2 WO2004024706 A2 WO 2004024706A2
Authority
WO
WIPO (PCT)
Prior art keywords
group
formula
mmol
compounds
hydrogen
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/EP2003/009866
Other languages
French (fr)
Other versions
WO2004024706A3 (en
Inventor
Gabriele Fontana
Ezio Bombardelli
Arturo Battaglia
Eleonora Baldelli
Andrea Guerrini
Maria Luisa Gelmi
Giacomo Carenzi
Donato Pocar
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Indena SpA
Original Assignee
Indena SpA
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Priority to SI200331276T priority Critical patent/SI1537093T1/en
Priority to JP2004535440A priority patent/JP4690039B2/en
Priority to DK03747971T priority patent/DK1537093T3/en
Priority to EP03747971A priority patent/EP1537093B1/en
Priority to CA2498277A priority patent/CA2498277C/en
Priority to AU2003267049A priority patent/AU2003267049B8/en
Priority to US10/527,164 priority patent/US7498452B2/en
Priority to DE60321577T priority patent/DE60321577D1/en
Application filed by Indena SpA filed Critical Indena SpA
Publication of WO2004024706A2 publication Critical patent/WO2004024706A2/en
Publication of WO2004024706A3 publication Critical patent/WO2004024706A3/en
Priority to IL167336A priority patent/IL167336A/en
Anticipated expiration legal-status Critical
Priority to NO20051774A priority patent/NO332250B1/en
Priority to IL197815A priority patent/IL197815A/en
Priority to NO20110782A priority patent/NO332367B1/en
Priority to NO20110781A priority patent/NO332366B1/en
Priority to IL214431A priority patent/IL214431A/en
Priority to IL214432A priority patent/IL214432A/en
Priority to IL214430A priority patent/IL214430A0/en
Ceased legal-status Critical Current

Links

Classifications

    • CCHEMISTRY; METALLURGY
    • C07ORGANIC CHEMISTRY
    • C07DHETEROCYCLIC COMPOUNDS
    • C07D305/00Heterocyclic compounds containing four-membered rings having one oxygen atom as the only ring hetero atoms
    • C07D305/14Heterocyclic compounds containing four-membered rings having one oxygen atom as the only ring hetero atoms condensed with carbocyclic rings or ring systems
    • AHUMAN NECESSITIES
    • A61MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61PSPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P35/00Antineoplastic agents
    • YGENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y02TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
    • Y02PCLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
    • Y02P20/00Technologies relating to chemical industry
    • Y02P20/50Improvements relating to the production of bulk chemicals
    • Y02P20/55Design of synthesis routes, e.g. reducing the use of auxiliary or protecting groups

Definitions

  • the present invention relates to novel 13 -ketobaccatin III and taxane derivatives and to the processes for the preparation thereof.
  • TECHNOLOGICAL BACKGROUND WO 94/22856 discloses 14-hydroxy-taxanes having improved antitumor properties compared with conventional taxanes.
  • One of said 14-hydroxy derivatives referred to as IDN 5109, is at present under advanced clinical development.
  • Said 14-hydroxylated derivatives can be easily prepared from natural 14-hydroxybaccatin. It has now been found that IDN 5109 analogues bearing different sobstituents than the hydroxy group at the 14- position have surprising biological activity, as they are effective not only against taxane-resistant tumors but also against MDR cell lines.
  • the derivatives of the invention can be obtained by enolization of 13- ketobaccatin III and treatment with suitable electrophiles which can be converted into the desired group. Subsequent reduction of the C13 carbonyl and esterif ⁇ cation with isoserine chains afford the compounds of the invention, as defined below..
  • 13 -ketobaccatin III is a very interesting compound as a key intermediate to 12,13-isotaxanes (Wicnienski et al., US 5,821,363), to novel taxanes modified at the 13- position (Menichincheri et al., WO9614308) and at the C and D ring (Dubois et al., Tetrahedr. Lett. 2000, 41, 3331-3334; Uoto et al., Chem. Pharm. Bull. 1997, 45(12), 2093-2095).
  • 7-Protected 13 -ketobaccatin III is an important intermediate in the studies on total synthesis of taxol and analogues (Nicolaou et al., J. Am. Chem. Soc. 1995, 117, 624-633; Nicolaou et al. 1995, 117, 2409-2420; Nicolaou et al., US 5,504,222).
  • Some modifications of 7- ⁇ rotected 13- ketobaccatin III have also been reported, such as formation of hydrazones and oximes (Menichincheri et al., WO9614308; Meninchincheri et al, Med. Chem. Res.
  • the invention relates to a process for the
  • R 2 is hydrogen or acyl
  • R 3 is C 1 -C 4 alkoxycarbonyl or, taken together with R , forms a carbonyl, thiocarbonyl, SO, S0 2 group
  • R 4 is hydrogen or, taken together with R 3 or R 8 , forms the groups specified in the respective definitions of R 3 and R 8
  • R 5 is hydrogen or an alcohol-protecting group
  • R 6 is aryl, substituted aryl, heteroaryl, with the proviso that it is different from phenyl when X is -0-R 3 ;
  • R is hydrogen, C 1 -C 4 alkyl, C1-C 4 alkoxycarbonyl or, taken together with R 4 , forms a carbonyl group;
  • RQ is an acyl or hydroxyaminoacyl group.
  • the compounds of formula III can be prepared from compounds of formula II, in turn obtainable by conversion of 13 -ketobaccatin III derivatives of formula I:
  • Ri is an alcohol-protecting group
  • R 2 is an acyl group or an alcohol-protecting group
  • Ts is p-toluenesulfonyl
  • R 3 is C1-C 4 alkoxycarbonyl or, taken together with R 4 , forms a carbonyl, thiocarbonyl, SO, S0 2 group
  • R 4 is hydrogen or, taken together with R 3 or R 8 , forms the groups specified in the respective definitions of R 3 and R 8
  • R 5 is hydrogen or an alcohol-protecting group
  • R 6 is aryl, substituted aryl, heteroaryl
  • R 7 is a C 1 -C 4 alkyl,
  • the compounds of formula III are useful for the treatment of neoplasias of various origin, in particular of tumors of such organs as ovary, breast, lung, colon, brain, as well as for the treatment of leukemias and melanoma.
  • an acyl group is preferably a straight or branched C 2 -C 6 aliphatic acyl group, or a benzoyl group optionally substituted with one or more C1-C 4 alkyl groups, C 1 -C 4 alkoxy groups, halogens; aryl is preferably phenyl; substituted aryl is preferably phenyl substituted with one or more C1-C 4 alkyl groups, C1-C 4 alkoxy groups, halogens; heteroaryl is preferably 2-, 3- or 4-pyridyl, 2- or 3- furyl, 2- or 3- thenoyl; arylalkyl is preferably benzyl; a hydroxyaminoacyl group is preferably a ⁇ -isobutylisoserine or phenylisoserine residue substituted at the amino group with benzoyl or C 1 -C 4 alkoxycarbonyl groups.
  • R 8 can be obtained from suitable 13 -ketobaccatin III protected derivatives of formula I through a process which is shown in the following scheme and involves: a) treatment with bases to form an enolate of formula IV, wherein M is an alkali metal; b) treatment of enolate IV with a suitable electrophile which can be converted to an E group to give a compound of formula II.
  • Formation of enolate in step a) can be easily obtained by treatment of protected 13 -ketobaccatin III with a base such as potassium t-butoxide, potassium bis(trimethylsilyl)amide, lithium diisopropyl amine in inert solvents such as tetrahydrofuran or diethyl ether, also in admixture with hexamethylphosphoramide (HMPA) or l,3-dimethyl-3,4,5,6-tetrahydro-2[lH]- pyrimidinone (DMPU).
  • HMPA hexamethylphosphoramide
  • DMPU l,3-dimethyl-3,4,5,6-tetrahydro-2[lH]- pyrimidinone
  • the reaction is suitably carried out in a range of temperatures from -40 to -78°C.
  • Particularly preferred protective groups are silyl ethers, acetals, ethers, carbonates and carbamates.
  • 2- position can be prepared according to the method by Ojima et al. (J. Am. Chem. Soc. 2000, 122, 5343-5353).
  • Ri is usually tert-butoxycarbonyl (Boc), triethylsilyl (TES) or 2-mefhoxypropane (MOP), and R 2 is usually acetyl, but other equivalent groups can be conveniently used to prepare similar compounds.
  • enolate IV is treated in situ with electrophiles such as oxaziridines (e.g. N-benzenesulfonyl phenyl oxaziridine, N-benzenesulfonyl m-nitrophenyl oxaziridine and camphorsulfonyloxaziridine), diazadicarboxylates (e.g. di-tert-butyl diazadicarboxylate and dibenzyl diazadicarboxylate), p-toluenesulfonylazide, t-butoxycarbonylazide, aldehydes (e.g.
  • the quenching conditions of the reaction may be modulated to direct the reaction mainly to only one of the products.
  • the tosylazido derivative can be recovered from the crude product by extraction with polar aprotic solvents such as dichloromethane or ethyl acetate.
  • the diazo derivative is obtained upon stirring the reaction crude in polar aprotic solvents for reasonably long times, optionally under heating.
  • the azido derivative is obtained by treating the reaction crude with protic agents, such as mixtures of acetic acid in THF with DMPU or HMPA, immediately after addition of the azide donor.
  • diastereoselection of the reaction is such that the E group is introduced mainly in 14 ⁇ configuration.
  • enolate IV can be treated with silylating (e.g. tri-i-propyl silyl chloride), acylating (e.g. di-tert-butylpyrocarbonate), alkylating (e.g. dimethyl sulfate or methyl iodide) or phosphorylating agents thereby obtaining enol derivatives of formula V V wherein
  • silylating e.g. tri-i-propyl silyl chloride
  • acylating e.g. di-tert-butylpyrocarbonate
  • alkylating e.g. dimethyl sulfate or methyl iodide
  • phosphorylating agents e.g. dimethyl sulfate or methyl iodide
  • Rio is acyl, alkyl, trialkylsilyl or phosphate
  • Ri, R 2 and R 6 are as defined above.
  • Compounds V can also be easily obtained by enolization of ketone of formula II with particularly weak bases such as triethylamine or pyridine in aprotic solvents such as methylene chloride, toluene or mixtures thereof.
  • Compounds V can afford compounds of formula II by treatment with electrophiles in suitable conditions.
  • the groups introduced at the 14- position with the procedure described above can be further transformed to obtain other 13 -ketobaccatin III derivatives functionalized at the 14- position.
  • Compounds of formula II wherein E is -OH or -NH 2 can be treated with carbonating (e.g. carbonyldiimidazole, phosgene or triphosgene), thiocarbonating (e.g. thiocarbonyl diimidazole, thiophosgene) or sulforylating agents (e.g. sulforyl chloride or thionyl chloride), to obtain compounds of formula II wherein E is -OR 3 or -NHR 3 .
  • the reaction can be conveniently carried out in chlorinated solvents in the presence of a base (e.g. pyridine or triethylamine) in a range of temperatures from -40°C to 70°C.
  • a base e.g. pyridine or triethylamine
  • compounds of formula II wherein E is -OH or -NH 2 can be alkylated with such agents as alkyl halides or benzyl halides in the presence of weak bases.
  • X is -0-R 3 , -N 3 , -NH-R 3 , -CH 2 -R 8 ;
  • Y and Z are hydrogen or, when X is -CH 2 -R 8 , are taken together to form a double bond; and the other groups are defined as above; b) esterif ⁇ cation at the 13- position with derivatives of acids of formula IX to give compounds of formula VIII
  • Reduction of C13 ketone of step a) is carried out with suitable hydrides such as sodium borohydride, lithium borohydride, tetrabutyl ammonium borohydride, tetraethylammonium borohydride, sodium triacetoxy borohydride.
  • suitable hydrides such as sodium borohydride, lithium borohydride, tetrabutyl ammonium borohydride, tetraethylammonium borohydride, sodium triacetoxy borohydride.
  • the reaction can be carried out in a stoichiometric amount of reducing agent, although an excess is usually preferred.
  • the reaction is carried out in alcohols, ethers, mixtures of alcohols and ethers or inert solvents, at temperatures ranging from -50 to 0°C.
  • step b) Esterification of step b) is usually carried out by action of carboxylic acids, or the corresponding salts, of formula IX
  • R 1 1 and R 13 which can be the same or different, are C ⁇ -C 6 alkyl, aryl, or heteroaryl; R12 is C ⁇ -C 6 alkyl, aryl, heteroaryl or C 1 -C 4 alkoxy; in the presence of condensing agents such as carbodiimides (e.g. dicyclohexylcarbodiimide or ethyl dimethylaminopropyl carbodiimide).
  • condensing agents such as carbodiimides (e.g. dicyclohexylcarbodiimide or ethyl dimethylaminopropyl carbodiimide).
  • carbodiimides e.g. dicyclohexylcarbodiimide or ethyl dimethylaminopropyl carbodiimide.
  • Other known methods for the esterification at the 13- position of 7-protected baccatin III can also be successfully used.
  • the most preferred carboxylic acid is the N-_5 c-isobutylisoserine derivative of formula X
  • C7 deprotection is preferably effected before opening the oxazolidine.
  • reaction mixture is diluted with 3 ml of Et 2 0 and extracted with 2 ml of NH 4 C1 aqueous saturated solution.
  • the organic phases are washed three times with H 2 0, dried, filtered and concentrated under reduced pressure.
  • a catalytic amount of palladium on charcoal is added to a solution of 0.052 g (0.05 mmol) 13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)- ⁇ - isobutylisoserinoy_]-14 ⁇ -azido-7-TES-baccatin III in 2.0 ml of MeOH, then gas hydrogen is bubbled therein. After 18 hours at room temperature, the reaction mixture is filtered through celite bed, and the solid is washed with 6 ml of ethyl acetate. The resulting organic phases are heated to 45°C for 20 minutes and subsequently evaporated under reduced pressure.
  • reaction is quenched by addition of 6 ml of a NH C1 aqueous saturated solution and extracted three times with 8 ml of AcOEt.
  • the organic phases are washed three times with a CuS0 4 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure.
  • the resulting reaction crude is dissolved in 3.5 ml of dichloromethane, then added, at 0°C, with 1.15 ml of a 0.1 M acetyl chloride solution in MeOH.
  • the reaction is quenched by addition of 5 ml of a NH 4 C1 aqueous saturated solution and extracted with 8 ml of AcOEt.
  • the organic phases are dried, filtered, and evaporated under reduced pressure.
  • reaction is quenched by addition of 6 ml of a NH 4 C1 aqueous saturated solution and extracted three times with 7 ml of AcOEt.
  • the organic phases are washed three times with a CuS0 4 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure.
  • the resulting reaction crude is dissolved in 3 ml of dichloromethane, then added with 0.82 ml of a 0.1 M solution of acetyl chloride in MeOH, at 0°C.
  • reaction is quenched by addition of 7 ml of a NH 4 C1 aqueous saturated solution and extracted with 8 ml of AcOEt.
  • the organic phases are dried, filtered, and evaporated under reduced pressure.
  • 14,1-thiocarbamate in 2.7 ml of acetonitrile and 2.7 ml of pyridine is added, at 0°C, with 1.1 mL hydrofluoric acid-pyridine. After half an hour temperature is raised to 25°C. After two hours, the reaction is quenched by addition of 6 ml of a NH 4 C1 aqueous saturated solution and extracted three times with 11 ml of AcOEt. The organic phases are washed three times with a CUSO 4 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure.
  • 7-TES-14-(Boc)-triazenyl-13-ketobaccatin III (0.06 g, 0.52 mmol), of potassium tert-butoxide are suspended at -75°C, under nitrogen stream and strong stirring, in 1.5 mL of anhydrous THF. After 10 minutes a solution of 0.13 g (0.19 mmol) of 7-TES-13-ketobaccatin III in 1.0 ml of THF and 0.7 ml of DMPU is added in 3 minutes at the same temperature. After 15 min, 0.06 g (0.41 mmol) of terBoc-azide dissolved in 1 ml of THF is added in two minutes at -70°C.
  • 13-Ketobaccatin III 13,14-triisopropylsilyl enolether
  • a solution of 0.07 g (0.10 mmol) of 7-TES- 13 -ketobaccatin III in 2 ml of anhydrous THF is added with 0.25 mL (0.25 mmol) of a potassium tert- butoxide solution 1.0 M solution, under stirring and nitrogen stream, at -75°C. After 12 minutes, 0.04 mL (0.17 mmol) of triisopropylsilyl chloride is added very slowly with a syringe at the same temperature.
  • N-Boc-N,0-(2,4-dimethoxybenzylidene)- ⁇ -isobutylisoserine sodium salt (72 mg, 0.168 mmol) is dissolved in water (5 mL) and added with CH 2 C1 2 (3 mL).
  • An NaHSO ⁇ aqueous solution (2M, 0.15 mL) is dropped therein to adjust pH to 3.0.
  • the organic phase is separated and the aqueous phase is extracted with CH 2 C1 2 (2 mL).
  • the combined organic extracts are washed with water (5 mL) and with a NaCl saturated solution (5 mL), dried over Na 2 SO ⁇ and evaporated to obtain the free acid (68 mg, 100%) as a white solid.
  • the reaction mixture is heated at 70°C for 3 hours, then left to cool and kept at room temperature until complete precipitation of DCU.
  • the precipitate is filtered (DCU) and washed with toluene (2 x 3 mL), then the filtrate is washed with saturated NaHC0 3 (5 mL), then with 0.4 M HCl (10 mL) to remove DMAP and finally with saturated NaHC0 3 (5 mL).
  • the organic phase is dried over a 2 SO ⁇ and evaporated to dryness.
  • the residue is purified by column chromatography (20 ⁇ 30% AcOEt in cyclohexane) to obtain a first fraction containing the title product (88 mg, 56%).
  • Example 36 13-Carbethoxy-7-TES-13,14-dehydro-baccatin
  • a solution of 13-keto-7-TES-baccatin (150 mg, 0.21 mmol) in anhydrous THF (5 mL) and DMPU (1 mL) under stirring is cooled to -70°C under nitrogen.
  • Potassium tert-butoxide (0.54 mL, 1M in THF, 0.54 mmol) is dropped therein and the mixture is kept under stirring at -65°C for 45 minutes, then added with ClCOOEt (31L, 0.31 mmol), checking the reaction by TLC: after 2h30min, acetic acid (0.05 mL, 40% in THF) is dropped in the mixture, which is left to warm at room temperature.
  • 13-carbobenzyloxy-7-TES-13,14-dehydro-baccatin III A solution of 13-keto-7-TES-baccatin III (150 mg, 0.21 mmol) in anhydrous THF (5 mL) and DMPU (1 mL) under stirring is cooled to -70°C under nitrogen.
  • Method A a solution of 14-hydroxy-13-keto-7-TES-baccatin III (300 mg, 0.42 mmol) in anhydrous CH 2 C1 2 (3 mL) is dropped into a solution of S0 2 C1 2 (0.1 mL, 1.26 mmol) and triethylamine (0.35 mL, 2.52 mmol) in Anhydrous CH2C12 (6 mL) at 0°C.
  • the reaction mixture is kept under stirring for 20 minutes, then poured into ice-water (10 mL) and the separated organic phase is washed with water (10 mL), dried (Na 2 S0 4 ) and evaporated.
  • the mixture is stirred for 3 hours at -60°C then treated with a 10% glacial acetic acid solution in anhydrous THF (2 ml).
  • the mixture is left to warm at room temperature, then extracted with DCM (2 x 10 ml).
  • the combined organic phases are washed with water, brine, and dried over Na 2 S0 .
  • the crude product is used for the subsequent step without further purification.

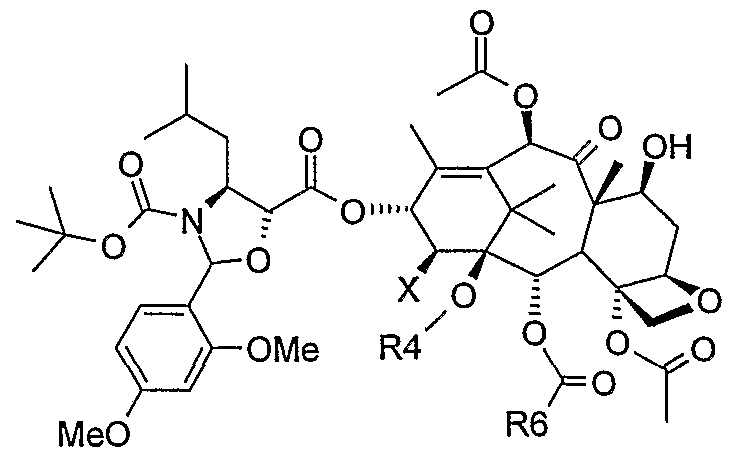

  • the product is obtained from 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)- ⁇ -isobutylisoserinoyl]-14 ⁇ -hydroxy-2-debenzoyl-2- - methoxybenzoyl-7-TES-baccatin III 1, 14-carbonate following the same procedure as described in Example 35.

Landscapes

  • Organic Chemistry (AREA)
  • Chemical & Material Sciences (AREA)
  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • General Chemical & Material Sciences (AREA)
  • Pharmacology & Pharmacy (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Animal Behavior & Ethology (AREA)
  • Medicinal Chemistry (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Epoxy Compounds (AREA)
  • Plural Heterocyclic Compounds (AREA)
  • Heterocyclic Carbon Compounds Containing A Hetero Ring Having Oxygen Or Sulfur (AREA)
  • Heterocyclic Carbon Compounds Containing A Hetero Ring Having Nitrogen And Oxygen As The Only Ring Hetero Atoms (AREA)
  • Crystals, And After-Treatments Of Crystals (AREA)

Abstract

A general process for the functionalization at the 14- position of 13-ketobaccatin derivatives of formula I to give derivatives of formula II wherein the substituents are as defined in the disclosure. The conversion of compounds of formula II in compounds of formula III, wherein the substituents are as defined in the disclosure, is also described.

Description

TAXANE DERIVATIVES FUNCTIONALIZED AT THE 14- POSITION AND A PROCESS FOR THE PREPARATION THEREOF
DISCLOSURE
The present invention relates to novel 13 -ketobaccatin III and taxane derivatives and to the processes for the preparation thereof. TECHNOLOGICAL BACKGROUND WO 94/22856 discloses 14-hydroxy-taxanes having improved antitumor properties compared with conventional taxanes. One of said 14-hydroxy derivatives, referred to as IDN 5109, is at present under advanced clinical development. Said 14-hydroxylated derivatives can be easily prepared from natural 14-hydroxybaccatin. It has now been found that IDN 5109 analogues bearing different sobstituents than the hydroxy group at the 14- position have surprising biological activity, as they are effective not only against taxane-resistant tumors but also against MDR cell lines.
The derivatives of the invention can be obtained by enolization of 13- ketobaccatin III and treatment with suitable electrophiles which can be converted into the desired group. Subsequent reduction of the C13 carbonyl and esterifϊcation with isoserine chains afford the compounds of the invention, as defined below..
7-Protected 13 -ketobaccatin III is a very interesting compound as a key intermediate to 12,13-isotaxanes (Wicnienski et al., US 5,821,363), to novel taxanes modified at the 13- position (Menichincheri et al., WO9614308) and at the C and D ring (Dubois et al., Tetrahedr. Lett. 2000, 41, 3331-3334; Uoto et al., Chem. Pharm. Bull. 1997, 45(12), 2093-2095). 7-Protected 13 -ketobaccatin III is an important intermediate in the studies on total synthesis of taxol and analogues (Nicolaou et al., J. Am. Chem. Soc. 1995, 117, 624-633; Nicolaou et al. 1995, 117, 2409-2420; Nicolaou et al., US 5,504,222). Some modifications of 7-ρrotected 13- ketobaccatin III have also been reported, such as formation of hydrazones and oximes (Menichincheri et al., WO9614308; Meninchincheri et al, Med. Chem. Res. (1996), 6(4), 264-292), direct treatment with oxidizing agents (Bombardelli et al, WO0212215; Harriman et al, Tetrahedr. Lett. 1995, 36(49), 8909-8912; or with reducing agents (Marder et al, Tetrahedr. 1995, 51(7), 1985-1994). Reactions of 13,14-enolization have not been described insofar, while rearrangement reactions in bases have been disclosed (Pinciroli et al., Tetrahedr. Lett. 1996, 37(52), 9365- 9368; Yu and Liu, Tetrahedr. Lett. 1997, 38(23), 4133-4136). According to a further aspect, the invention relates to a process for the
13, 14 enolization of 13 -ketobaccatin III to give intermediates sufficiently stable for further elaboration.
DETAILED DISCLOSURE OF THE INVENTION The compounds of the invention have the following general formula III
Figure imgf000004_0001
wherein
X is -N3, -NH2, -NH-R3, =CH-R8, or -0-R3 when R6 is different from phenyl, R2 is hydrogen or acyl; R3 is C1-C4 alkoxycarbonyl or, taken together with R , forms a carbonyl, thiocarbonyl, SO, S02 group; R4 is hydrogen or, taken together with R3 or R8, forms the groups specified in the respective definitions of R3 and R8; R5 is hydrogen or an alcohol-protecting group; R6 is aryl, substituted aryl, heteroaryl, with the proviso that it is different from phenyl when X is -0-R3;
R« is hydrogen, C1-C4 alkyl, C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl group;
RQ is an acyl or hydroxyaminoacyl group. The compounds of formula III can be prepared from compounds of formula II, in turn obtainable by conversion of 13 -ketobaccatin III derivatives of formula I:
Figure imgf000005_0001
I II
In formulae I and II, Ri is an alcohol-protecting group; R2 is an acyl group or an alcohol-protecting group; E is -OH, -0-R3, =N2, -N3, -NH2, -NH-R3, -NH-NH2, -NH-N=N-Ts,
Figure imgf000005_0002
-N(C02R7)NHC02R7, =CH-R8; Ts is p-toluenesulfonyl; R3 is C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl, thiocarbonyl, SO, S02 group; R4 is hydrogen or, taken together with R3 or R8, forms the groups specified in the respective definitions of R3 and R8; R5 is hydrogen or an alcohol-protecting group; R6 is aryl, substituted aryl, heteroaryl; R7 is a C1-C4 alkyl, aryl or arylalkyl group, R8 is hydrogen, C1-C4 alkyl, C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl group.
The compounds of formula III are useful for the treatment of neoplasias of various origin, in particular of tumors of such organs as ovary, breast, lung, colon, brain, as well as for the treatment of leukemias and melanoma.
In compounds of formulae I, II and III, an acyl group is preferably a straight or branched C2-C6 aliphatic acyl group, or a benzoyl group optionally substituted with one or more C1-C4 alkyl groups, C1-C4 alkoxy groups, halogens; aryl is preferably phenyl; substituted aryl is preferably phenyl substituted with one or more C1-C4 alkyl groups, C1-C4 alkoxy groups, halogens; heteroaryl is preferably 2-, 3- or 4-pyridyl, 2- or 3- furyl, 2- or 3- thenoyl; arylalkyl is preferably benzyl; a hydroxyaminoacyl group is preferably a β-isobutylisoserine or phenylisoserine residue substituted at the amino group with benzoyl or C1-C4 alkoxycarbonyl groups. According to the present invention, compounds of formula II wherein E is -OH, =N2, -N3, -NH-N=N-Ts, -NH-N=N-_3oc, -N(C02R7)NHC02R7, =CH-
R8, can be obtained from suitable 13 -ketobaccatin III protected derivatives of formula I through a process which is shown in the following scheme and involves: a) treatment with bases to form an enolate of formula IV, wherein M is an alkali metal; b) treatment of enolate IV with a suitable electrophile which can be converted to an E group to give a compound of formula II. Scheme
Figure imgf000007_0001
I IV II
Formation of enolate in step a) can be easily obtained by treatment of protected 13 -ketobaccatin III with a base such as potassium t-butoxide, potassium bis(trimethylsilyl)amide, lithium diisopropyl amine in inert solvents such as tetrahydrofuran or diethyl ether, also in admixture with hexamethylphosphoramide (HMPA) or l,3-dimethyl-3,4,5,6-tetrahydro-2[lH]- pyrimidinone (DMPU). The reaction is suitably carried out in a range of temperatures from -40 to -78°C. Particularly preferred protective groups are silyl ethers, acetals, ethers, carbonates and carbamates.
Starting 13 -ketobaccatin III (formula I) is easily obtainable from the appropriate protected baccatin by reaction with conventional oxidizers, as described in literature. 7-Protected 13 -ketobaccatin III having different benzoate groups at the
2- position can be prepared according to the method by Ojima et al. (J. Am. Chem. Soc. 2000, 122, 5343-5353).
In the reported examples, Ri is usually tert-butoxycarbonyl (Boc), triethylsilyl (TES) or 2-mefhoxypropane (MOP), and R2 is usually acetyl, but other equivalent groups can be conveniently used to prepare similar compounds.
According to the scheme above, in step b) enolate IV is treated in situ with electrophiles such as oxaziridines (e.g. N-benzenesulfonyl phenyl oxaziridine, N-benzenesulfonyl m-nitrophenyl oxaziridine and camphorsulfonyloxaziridine), diazadicarboxylates (e.g. di-tert-butyl diazadicarboxylate and dibenzyl diazadicarboxylate), p-toluenesulfonylazide, t-butoxycarbonylazide, aldehydes (e.g. acetaldehyde, ethylglyoxylate) to give 13-ketobaccatine III of formula II wherein E is -OH, -NH-N=N-Ts, -NH-N=N- Boc, -N(C02R7)NHC02R7, =CH-R8.
When p-toluenesulfonylazide is used as the electrophile, the product wherein E is NH-N=N-Ts (or the N=N-NHTs tautomer) is obtained, besides decomposition products wherein E is N3 or N2. The quenching conditions of the reaction may be modulated to direct the reaction mainly to only one of the products. Thus, the tosylazido derivative can be recovered from the crude product by extraction with polar aprotic solvents such as dichloromethane or ethyl acetate. The diazo derivative is obtained upon stirring the reaction crude in polar aprotic solvents for reasonably long times, optionally under heating. The azido derivative is obtained by treating the reaction crude with protic agents, such as mixtures of acetic acid in THF with DMPU or HMPA, immediately after addition of the azide donor.
When ethyl glyoxylate is used as the electrophile, crotonic condensation with concomitant closure of the carbethoxy group at the CI hydroxyl group takes place, to give an α,β-unsaturated γ-lactone.
In all cases, diastereoselection of the reaction is such that the E group is introduced mainly in 14β configuration.
Alternatively, enolate IV can be treated with silylating (e.g. tri-i-propyl silyl chloride), acylating (e.g. di-tert-butylpyrocarbonate), alkylating (e.g. dimethyl sulfate or methyl iodide) or phosphorylating agents thereby obtaining enol derivatives of formula V
Figure imgf000009_0001
V wherein
Rio is acyl, alkyl, trialkylsilyl or phosphate, and Ri, R2 and R6 are as defined above. Compounds V can also be easily obtained by enolization of ketone of formula II with particularly weak bases such as triethylamine or pyridine in aprotic solvents such as methylene chloride, toluene or mixtures thereof.
Compounds V can afford compounds of formula II by treatment with electrophiles in suitable conditions. The groups introduced at the 14- position with the procedure described above can be further transformed to obtain other 13 -ketobaccatin III derivatives functionalized at the 14- position.
Thus, compounds of formula II wherein E is -N(C02R7)NHC02R7 can be converted in the corresponding hydrazino derivatives (wherein E is -NH- NH2) by decarboxylation according to conventional methods.
Compounds of formula II wherein E is -N are easily reduced to amine (E = NH2) by means of reductive systems such as triphenylphosphine in aqueous medium or H2-Pd/C in a suitable solvent.
Compounds of formula II wherein E is -OH or -NH2 can be treated with carbonating (e.g. carbonyldiimidazole, phosgene or triphosgene), thiocarbonating (e.g. thiocarbonyl diimidazole, thiophosgene) or sulforylating agents (e.g. sulforyl chloride or thionyl chloride), to obtain compounds of formula II wherein E is -OR3 or -NHR3. The reaction can be conveniently carried out in chlorinated solvents in the presence of a base (e.g. pyridine or triethylamine) in a range of temperatures from -40°C to 70°C.
Alternatively, compounds of formula II wherein E is -OH or -NH2 can be alkylated with such agents as alkyl halides or benzyl halides in the presence of weak bases.
Compounds of formula II are key intermediates for the synthesis of compounds of formula III of the invention. In particular, compounds III are obtainable from compounds of formula II wherein E is -0-R3, -N , -NH-R3, =CH-R8, and Ri, R4, R6 are as defined above;
Figure imgf000010_0001
II III through a process which comprises: a) reduction of the C13 carbonyl to give compounds of formula VII
Figure imgf000010_0002
VII wherein
X is -0-R3, -N3, -NH-R3, -CH2-R8;
Y and Z are hydrogen or, when X is -CH2-R8, are taken together to form a double bond; and the other groups are defined as above; b) esterifϊcation at the 13- position with derivatives of acids of formula IX to give compounds of formula VIII
Figure imgf000011_0001
VIII wherein
R , R5, R6, R9 are as defined above; X is -O-R3, -N3, -NH-R3, =CH-R8; c) optional cleavage of the protective groups.
Reduction of C13 ketone of step a) is carried out with suitable hydrides such as sodium borohydride, lithium borohydride, tetrabutyl ammonium borohydride, tetraethylammonium borohydride, sodium triacetoxy borohydride. The reaction can be carried out in a stoichiometric amount of reducing agent, although an excess is usually preferred. Depending on the used reducing agent, the reaction is carried out in alcohols, ethers, mixtures of alcohols and ethers or inert solvents, at temperatures ranging from -50 to 0°C.
C13 Esterification of step b) is usually carried out by action of carboxylic acids, or the corresponding salts, of formula IX
R11 o
OH
R12 N^
R13 y*
IX wherein
R11 and R13, which can be the same or different, are Cι-C6 alkyl, aryl, or heteroaryl; R12 is Cι-C6 alkyl, aryl, heteroaryl or C1-C4 alkoxy; in the presence of condensing agents such as carbodiimides (e.g. dicyclohexylcarbodiimide or ethyl dimethylaminopropyl carbodiimide). Other known methods for the esterification at the 13- position of 7-protected baccatin III can also be successfully used.
Protective groups in step c) are removed under the conditions described in literature for the concerned protective group.
The most preferred carboxylic acid is the N-_5 c-isobutylisoserine derivative of formula X
Figure imgf000012_0001
X In this case, coupling with compounds of formula VII under the conditions illustrated in the examples yields compounds of formula XI
Figure imgf000012_0002
XI which by selective deprotection at the 7- position afford compounds of formula XII
Figure imgf000012_0003
XII which are subjected to opening of the oxazolidine ring, to yield compounds of formula XIII
Figure imgf000013_0001
XIII wherein X, R3, R4, and R6 are as defined above.
In case C13 esterification is carried out with the carboxylic acid of formula X, C7 deprotection is preferably effected before opening the oxazolidine.
Derivative of formula XI wherein X is -N3 is particularly interesting, in that it is an useful intermediate for the preparation of compounds of formula XIV
Figure imgf000013_0002
XIV wherein
R3 is hydrogen, acyl, alkyl or, taken together with R4, forms a C=0, C=S, SO, S02 group; R4 is hydrogen or, taken together with R3, forms a C=0, C=S, SO,
S02 group; according to an alternative preparation process to that described above, comprising: a) reduction of the 14-azido group to give compounds of formula XV
Figure imgf000014_0001
XV b) optional treatment with an acylating or alkylating agent to give compounds of formula XVI
Figure imgf000014_0002
XVI c) cleavage of the C7 protective group and opening of the oxazolidine to give compounds of formula XIV.
In the formulae XIV, XV and XVI, R3, R4, R5 and R6 have the same meanings as defined above. For the envisaged therapeutical uses, compounds of formula III will be administered in the form of suitable pharmaceutical formulations, mainly through the parenteral route and at dosages in principle similar to those already used for some time in clinical practice with commercially available taxane derivatives (Paclitaxel and Docetaxel, for example). The following examples illustrate the invention in greater detail.
Example 1
7-Boc-13-ketobaccatin III A solution of 13 -ketobaccatin III (1.10 g, 1.9 mmol) in CH2C12 (0.5 mL) at 20°C is added with carbon tetrachloride (14 ml). Partial precipitation of the baccatin derivative takes place. Subsequently, 1-methylimidazole (23 μL, 0.28 mmol) and di-tert-butyl-dicarbonate (1.03 g, 4.7 mmol) are added, under stirring and argon stream. After 8 hours, further 1-methyl-imidazole (16.0 μL, 0.20 mmol) is added. The solution is left at 25°C for 24 hours, then solvent is evaporated off under reduced pressure. The oily residue is dissolved in a 1 :1 acetone/water mixture (10 mL) and left at 20°C for about 16 hours. The precipitate is filtered, washed with n-pentane and dried to give 1.12 g of of the title product. Chromatography of mother liquors affords a further 0.12 g of product (Si02, «-hexane/EtOAc, 1.5: 1.0). 1.24 g of product are thereby obtained (1.81 mmol, 95%). [α]D 20 = -35.6° (c 1.05, CHC13); IR (CDCI3, cm-1): 3483, 1731, 1676, 1371, 1274; 1H-NMR (CDC13, 400 MHz): δ = 1.20 (s, 3H, Me), 1.22 (s, 3H, Me), 1.47 (s, 9H, 3 Me), 1.76 (s, 3H, Me), 1.91 (m, IH, Hβ-6, J] = 10.4 Hz, J2 = 14.8 Hz, J3 = 2.0 Hz), 1.92 (b, IH, OH), 2.17 (s, 3H, Me), 2.19 (s, 3H, Me), 2.20 (s, 3H, Me), 2.64 (m, IH, Hα- 6, J} = 7.2 Hz, J2 = 14.8 Hz, J3 = 9.5 Hz), 2.66 (d, IH, H-14, J = 19.6 Hz), 2.94 (d, IH, H-14, J = 19.6 Hz), 4.02 (d, IH, H-3, J = 6.8 Hz), 4.09 (d, IH, H-20, J = 9.0 Hz), 4.32 (d, IH, H-20, J = 9.0 Hz), 4.94 (d, IH, H-5, Jl = 9.5 Hz, J2 = 2.0 Hz), 5.39 (m, IH, H-7, Jj= 10.4 Hz, J2 = 7.2 Hz), 5.67 (d, IH, H-2, J = 6.8 Hz), 6.57 (s, IH, H-10), 7.44-7.50 (m, 2H, arom), 7.61-7.64 (m IH, arom), 8.30 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): β = 10.7, 14.0, 18.4, 21.0, 21.9, 27.9, 33.1, 33.6, 42.7, 46.7, 57.3, 72.8, 74.7, 76.3, 76.5, 77.4, 78.7, 80.5, 83.4, 84.0, 128.9, 129.0, 130.3, 134.3, 141.0, 152.4, 152.5, 167.0, 168.3, 170.3, 198.4, 200.5. Anal. Calc. C36H44O13: C. 63.15; H. 6.48. Found : C. 63.39; H 6.60. Example 2
7-TES-13-ketobaccatin III 13 -Ketobaccatin III (5 g, 8.5 mmol), triethyl silyl chloride (3.6 mL, 21.4 mmol, 2.5 eq) and N-methylimidazole (2.73 mL, 34.3 mmol, 4 eq) are dissolved in anhydrous methylene chloride (25 mL). The solution is left under stirring for 1.5 h at room temperature, then quenched by carefully pouring it in a 2M NaHS04 solution (25 mL). The aqueous phase is repeatedly extracted with DCM (2x10 mL) and the combined organic phases are washed with brine (2x20 mL). The organic phase is dried over sodium sulfate and the solvent is evaporated off to give 4.7 g of the title product which is used directly in the subsequent step without further purification. M.p.: 212°C. TLC: cHex-AcOEt 1 : 1, Rf=0.57. 1H-NMR (200 MHz, CDC13): δ 0.58-0.66 (m, 6H, Si-CH2), 0.90- 0.98 (t, 7=8.4, 9H, CH2CH3), 1.21 (s, 3H, 17-Me), 1.27 (s, 3H, 16,-Me), 1.69 (s, 3H, 19-Me), 1.83-1.96 (m, IH, 6-H), 2.20 (s, 3H, 18-Me), 2.21 (s, 3H, 10- OAc), 2.25 (s, 3H, 4-OAc), 2.48-2.65 (m, IH, 6-H), 2.81 (ABq, 2H, 14-H), 3.93 (d, J=6.6, IH, 3-H), 4.25 (ABq, 2H, 20-H), 4.51 (dd, J=10.6, 7.0, IH, 7- H), 4.94 (d, .7=7.7, IH, 5-H), 5.72 (d, J= 7.0, IH, 2-H), 6.61 (s, IH, 10-H), 7.52 (t, J-6.2, 2H, Bz), 7.64 (t, J=6.2, IH, Bz), 8.10 (dd, J=7.4, 1.1, 2H, Bz). Example 3
14β-azido-7-Boc-13-ketobaccatin III
A solution of 7-Boc-13-ketobaccatin III (0.149 g, 0.22 mmol) in THF (1.8 mL) and DMPU (0.8 mL) is added in 2 minutes to a suspension of potassium tert-butoxide (0.064 g, 0.568 mmol) in anhydrous THF (1.5 mL) at -75°C, under nitrogen stream and strong stirring. After 15 min, 0.063 g (0.33 mmol) of tosylazide dissolved in 0.7 ml of THF are added in two minutes at - 75°C. After two hours, temperature has raised to -50°C, the reaction is quenched by addition n of 0.057 mL (1.00 mmol) of glacial acetic acid. Temperature is slowly raised to 20°C and after 19 hours the reaction mixture is diluted with 15 ml of Et20 and extracted with 10 ml of a NH C1 aqueous saturated solution. The organic phases are washed three times with water, dried, filtered and evaporated under reduced pressure. Chromatography of the residue (Si02, n-hexane/EtOAc, 1.7:1.0) affords 0.080 g (0.10 mmol, 50%) of the title product. IR (KBr, cm"1): 2976, 2935, 2122, 1731, 1272; 1H-NMR (CDC13, 400 MHz): δ = 1.01 (s, 3H, Me), 1.22 (s, 3H, Me), 1.47 (s, 9H, 3Me), 1.81 (s, 3H, Me), 1.96 (m, IH, Hβ-6, J; = 2.0 Hz, J2 = 10.8 Hz, J3 = 14.0 Hz), 2.19 (s, 3H, Me), 2.20 (s, 3H, Me), 2.24 (s, 3H, Me), 2.62 (m, IH, H -6, Jj = 7.2 Hz, J2 = 9.6 Hz, J3 = 14.0 Hz), 3.11 (s, 1 H, OH), 3.98 (d, IH, H-3, 6.8 Hz), 4.24 (d, IH, H-20, J= 8.4 Hz), 4.26 (s, IH, H-14), 4.33 (d, IH, H-20, J = 8.4 Hz), 4.93 (d, IH, H-5, J1 = 2.0 Hz, J2 = 9.6 Hz), 5.37 (m, IH, H-7, J}= 10.8 Hz, J2 = 7.2 Hz), 5.81 (d, IH, H-2, J = 6.8 Hz), 6.56 (s, IH, H-10), 7.48- 7.52 (m, 2H, arom), 7.60-7.66 (m IH, arom), 8.02-8.05 (d, 2H, arom); 13C-NMR (CDCI3, 100 MHz): 10.8, 14.4, 19.2, 20.9, 21.9, 27.9, 33.5, 33.7, 43.3, 45.8, 54.0, 57.2, 65.4, 72.5, 74.4, 75.5, 75.8, 76.1, 81.0, 83.5, 83.7, 129.1, 129.2, 130.0, 134.1, 138.8, 152.5, 153.8, 165.4, 168.2, 170.0, 196.6, 199.8. Anal. Calc C36H43N3θ13: C, 59.58; H, 5.97. Found : C, 59.81; H, 5.85. MS mz 725.1 (M+ calc C36H43N3O13 725.7), 687.1, 670.0. Example 4
14-diazo-7-Boc-13-ketobaccatin III and 14-β-(l-p- toluenesulfonyl)triazenyl-7-Boc-13-ketobaccatin III
A solution of 7-Boc- 13 -ketobaccatin III (0.03 g, 0.04 mmol) in THF (0.7 mL) and HMPA (0.2 mL) is added in 2 minutes to a suspension of potassium tert-butoxide (0.013 g, 0.04 mmol) in anhydrous THF (0.7 mL) at - 75°C, under nitrogen stream and strong stirring. After 15 min, 0.013 g (0.07 mmol) of tosylazide dissolved in 0.2 ml of THF are added in two minutes at - 75°C. After two hours, and after temperature has raised to -50°C, the reaction is quenched by addition of 5.0 ml of a NH4CI saturated solution. Temperature is slowly raised to 20°C and the reaction mixture is diluted with 3.0 ml of Et20 and extracted with 6.0 ml of a NH4CI aqueous saturated solution. The organic phases are washed three times with water, dried, filtered and evaporated under reduced pressure. Chromatography of the residue (Si02, n- hexane/EtOAc, 1.7: 1.0) affords 0.080 g (0.10 mmol, 45%) of 7-Boc-14-diazo- 13 -ketobaccatin III and 14β-(l- -toluenesulfonyl)triazenyl-7-Boc-13- ketobaccatin III (0.025 g, 0.028 mmol, 13%) as a 3: 1 mixture of tautomers. 14-diazo-7- oc-13-ketobaccatin III: IR (KBr, cm"1): 3500-3100, 2982,
2935, 2095, 1734, 1656, 1633, 1272; 1H-NMR (CDC13, 400 MHz): δ = 1.23 (s, 3H, Me), 1.31 (s, 3H, Me), 1.48 (s, 9H, 3Me), 1.77 (s, 3H, Me), 1.92 (m, IH, Hβ-6, Jj = 1.5 Hz, J2 = 10.8 Hz, J3 = 14.0 Hz), 2.18 (s, 3H, Me), 2.19 (s, 3H, Me), 2.22 (s, 3H, Me), 2.63 (m, IH, H -6, _/, = 6.8 Hz, J2 = 8.0 Hz, J3 = 14.0 Hz), 4.04 (d, IH, H-3, 6.4 Hz), 4.08 (d, IH, H-20, J= 8.4 Hz), 4.36 (d, IH, H- 20, J= 8.4 Hz), 4.95 (d, IH, H-5, Jj = 1.5 Hz, J2 = 8.0 Hz), 5.41 (m, IH, H-7, Jj = 10.8 Hz, J2 = 6.8 Hz), 5.85 (d, IH, H-2, J = 7.2 Hz), 6.50 (s, IH, H-10), 7.48-7.54 (m, 2H, arom), 7.62-7.68 (m IH, arom), 8.40-8.80 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 11.1, 14.4, 18.7, 21.0, 27.9, 32.9, 33.5, 43.0, 46.1, 56.6, 65.4, 73.7, 74.5, 76.2, 76.3, 79.5, 80.4, 83.5, 84.0, 128.3, 129.1,130.4, 134.5, 141.1, 145.7, 152.5, 167.3, 168.3, 170.4, 184.1, 200.9. Anal. Calc. C36H42N20i3: C, 60.84; H, 5.96. Found : C, 60.71 ; H, 5.95. MS mz 710.2 (M+ calcd for
Figure imgf000018_0001
710.7), 687.1, 670.0.
14-β-(l -p-toluenesulfonyl)triazenyl-7 -Roc- 13 -ketobaccatin III: 1H-NMR (CDCI3, 400 MHz, 21°C): δ = 1.26 (s, 3H, Me), 1.29 (s, 3H, Me), 1.43 (s, 9H, 3Me, minor), 1.46 (b, 9H, 3Me, major), 1.54 (s, 3H, Me), 1.67 (s, 3H, Me), 1.85 (m, IH, Hβ-6, J, = 1.5 Hz, J2 = 10.0 Hz, J3 = 14.0 Hz), 2.05- 2.18 (b, 9H, 3Me), 2.86 (m, IH, Hα-6, J} = 7.0 Hz, J2 = 8.0 Hz, J3 = 14.0 Hz), 3.98 (d,lH, H-3, J = 11.0 Hz, minor), 4.10 (d, IH, H-3, J = 10.8 Hz, major), 4.39 (d, IH, H-20, = 8.4 Hz), 4.61 (d, IH, H-20, J = 8.4 Hz), 4.87 (s, IH), 4.95 (d, IH, H-5, Jj = 1.5 Hz, J2 = 8.0 Hz), 5.34 (s, IH), 5.51 (m, IH, H-7, Jr 10.8 Hz, J2 = 7.0 Hz), 5.78-5.88 (m, IH, H-2, major, J = 10.8 Hz and IH, H-2, minor), 6.42-6.46 (b, IH, H-10, major), 6.46-6.50 (b, IH, H-10, minor), 7.28- 7.32 (m, 2H, arom), 7.48-7.54 (m, 2H, arom), 7.62-7.68 (m IH, arom), 7.79- 7.82 (m, 2H, arom), 8.26-8.30 (d, 2H, arom). Example 5
14β-amino-7-Boc-13-ketobaccatin III A solution of 0.04 g (0.05 mmol) of 14β-azido-7-Boc- 13 -ketobaccatin
III in 1.5 ml of 7:3 acetonitrile-water is added with 0.013 g (0.05 mmol) of triphenylphosphine. After two hours the reaction mixture is concentrated under reduced pressure. Chromatography of the residue (Si02, n- hexane/EtOAc, 1.4: 1.0) yields 0.024 g (0.03 mmol, 71%) of the title product. IR (KBr, cm"1): 3500-3100, 3053, 2960, 1726, 1478, 1434, 1090; 1H-NMR (CDC13, 400 MHz): 0.89 (s, 3H, Me), 1.25 (s, 3H, Me), 1.48 (s, 9H, 3Me), 1.84 (s, 3H, Me), 1.98 (m, IH, HB-6, Jj = 2.1 Hz, J2 = 10.8 Hz, J3 = 14.4 Hz), 2.14 (s, 3H, Me), 2.19 (s, 3H, Me), 2.22 (s, 3H, Me), 2.61 (m, IH, Hα-6, J; = 7.0 Hz, J2 = 9.6 Hz, J3 = 14.4 Hz), 3.58 (s, 1 H, C14-H), 4.01 (d, IH, H-3, 6.4 Hz), 4.26 (d, IH, H-20, J = 8.4 Hz), 4.33 (d, IH, H-20, J = 8.4 Hz), 4.94 (d, IH, H-5, Jl = 2.1 Hz, J2 = 9.6 Hz), 5.40 (m, IH, H-7, Jr 10.8 Hz, J2 = 7.2 Hz), 5.86 (d, IH, H-2, J = 6.8 Hz), 6.55 (s, IH, H-10), 7.44-7.50 (m, 2H, arom), 7.58-7.63 (m IH, arom), 7.8-8.15 (d, 2H, arom); Anal. Calc C36H45N013: C. 61.79; H. 6.48. Found : C, 61.89; H, 6.42. Example 6
14β-azido-7-TES-13-ketobaccatin III
A solution of 1.40 g (2.0 mmol) of 7-TES- 13 -ketobaccatin III in 7.5 ml of THF and 3.7 ml of DMPU, under nitrogen stream, is added with 5.2 ml of a 1.0 M solution of potassium tert-butoxide in THF at -78°C in two minutes and under strong stirring. After 10 min, 0.70 g (3.6 mmol) of tosylazide dissolved in 5.8 ml of THF is added very slowly at the same temperature. The reaction is quenched after 1 hour 30 minutes by addition of 0.5 mL (9.2 mmol) of acetic acid. Temperature spontaneously reaches room temperature. After 24 hours, the reaction mixture is diluted with 50 ml of Et20 and extracted with 50 ml of a NH C1 aqueous saturated solution. The resulting organic phases are washed three times with H20, dried, filtered and concentrated under reduced pressure. Chromatography of the residue (Si02, «-hexane/EtOAc/Et20, 1.8:0.7:0.4) affords 1.12 g (1.5 mmol, 76%) of the title product. IR (KBr, cm"1): 3600- 3100, 2956, 2878, 2117, 1730, 1370, 1238; ^-NMR (CDC13, 400 MHz): δ = 0.59 (m, 6H, 3 CH2), 0.93 (m, 9H, 3Me), 1.00 (s, 3H, Me), 1.27 (s, 3H, Me), 1.72 (s, 3H, Me), 1.91 (m, IH, Hβ-6, Jj = 2.2 Hz, J2 = 10.7 Hz, J3 = 14.2 Hz), 2.19 (s, 3H, Me), 2.22 (s, 3H, Me), 2.25 (s, 3H, Me), 2.54 (m, IH, Hα-6, J} = 6.7 Hz, J2 = 9.7 Hz, J3 = 14.2 Hz), 3.09 (s, 1 H, OH), 3.86 (d, IH, H-3, J = 6.7 Hz), 4.24 (d, IH, H-20, J - 8.6 Hz), 4.25 (s, IH, CHN3), 4.33 (d, IH, H-20, J - 8.6 Hz), 4.46 (m, IH, H-7, ./,= 10.7 Hz, J2 = 6.1 Hz), 4.92 (d, IH, H-5, Jj = 2.0 Hz, J2 = 9.5 Hz), 5.82 (d, IH, H-2, J = 6.9 Hz), 6.53 (s, IH, H-10), 7.47- 7.53 (m, 2H, arom), 7.60-7.65 (m IH, arom), 8.02-8.04 (d, 2H, arom); 13C- NMR (CDCI3, 100 MHz): 5.6, 7.2, 10.1, 14.4, 19.4, 21.2, 22.1, 34.0, 37.4, 43.4, 45.7, 59.6, 65.5, 72.5, 72.8, 75.5, 75.6, 76.3, 81.3, 84.0, 129.0, 129.2, 129.9, 134.0, 138.2, 155.4, 165.3, 169.0, 169.9, 196.5, 199.5. Anal. Calc. C37H49N31Si: C, 60.06; H, 6.68. Found : C, 59.87; H, 6.79. MS (mz) 740.0 (M+ calc. C37H49N30ιιSi 739.9), 700.2, 621.0, 242.3. Example 7
14-diazo-7-TES-13-ketobaccatin III and R-(l-p- toluenesulfonyl)triazenyl-7-TES-13-ketobaccatin III
A solution of 0.22 g (0.32 mmol) of 7-TES-13-ketobaccatin III in 3.5 ml of THF and 0.6 ml of DMPU is slowly added, under strong stirring, with 0.8 ml of a 1.0 M solution of potassium tert-butoxide in THF at -78°C. After 15 min 0.11 g (0.58 mmol) of tosylazide dissolved in 0.9 ml of THF is added with a syringe at -70°C. Temperature is brought to -50°C in 20 minutes. The reaction is quenched after 1 hour by addition of 4 ml of a NH4C1 aqueous saturated solution. Temperature is brought to 20°C, the reaction mixture is diluted with 3 ml of Et20 and extracted with 2 ml of NH4C1 aqueous saturated solution. The organic phases are washed three times with H20, dried, filtered and concentrated under reduced pressure. Chromatography of the residue (Si02, ra-hexane/EtOAc, 2.1:1.0) affords 0.092 g (0.13 mmol, 40%) of 7-TES- 13-keto-14-diazo-baccatin III and 0.062 g (0.07 mmol, 23%) of 7-TES-13- keto-14β-(l-p-toluenesulfonyl)triazenyl-baccatin III as a tautomeric mixture.
14-diazo-7-TES-13-ketobaccatin III: IR (KBr, cm"1): 3600-3100, 2956, 2881, 2098, 1727, 1629, 1370, 1270; 1H-NMR (CDC13, 400 MHz): δ = 0.57 (m, 6H, 3 CH2), 0.91 (m, 9H, 3Me), 1.26 (s, 3H, Me), 1.28 (s, 3H, Me), 1.65 (s, 3H, Me), 1.85 (m, IH, Hβ-6, J, = 2.2 Hz, J2 = 10.7 Hz, J3 = 14.2 Hz), 2.16 (s, 3H, Me), 2.20 (s, 3H, Me), 2.21 (s, 3H, Me), 2.53 (m, IH, Hα-6, J; = 6.7 Hz, J2 = 9.7 Hz, J3 = 14.2 Hz), 3.89 (d, IH, H-3, J = 6.8 Hz), 4.07 (d, IH, H- 20, J= 8.2 Hz), 4.33 (d, IH, H-20, J- 8.2 Hz), 4.47 (m, IH, H-7, J}= 10.5 Hz, J2 = 6.7 Hz), 4.92 (d, IH, H-5, J} = 2.2 Hz, J2 = 9.7 Hz), 5.84 (d, IH, H-2, J=
7.2 Hz), 6.50 (s, IH, H-10), 7.42-7.50 (m, 2H, arom), 7.59-7.62 (m IH, arom), 8.10-8.20 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 5.7, 7.2, 10.4, 14.4, 18.9, 21.2, 22.0, 33.1, 37.4, 43.0, 45.9, 59.1, 69.6, 72.3, 74.0, 76.0, 76.5, 79.5, 80.6, 84.2, 127.7, 128.3, 129.0, 130.2, 130.4, 134.3, 140.4, 146.4, 167.0, 168.9, 170.3, 183.9, 200.6. Anal. Calc C37H48N21Si: C, 61.31 ; H, 6.67. Found : C, 61.39; H, 6.75.
14β-(l-p-toluenesulfonyl)triazenyl-7-TES- 13 -ketobaccatin III: IR (KBr, cm"1): 3600-3100, 2957, 1728, 1625, 1615; 1H-NMR (CDC13, 400 MHz, 60°C) relevant resonances at: δ = 0.57-0.64 (m, 6H, 3 CH2), 0.90-0.96 (m, 9H, 3Me), 1.34 (s, 3H, Me), 1.44 (s, 3H, Me), 1.45 (s, 3H, Me), 1.89 (m, IH, Hβ-6, J1 =
3.3 Hz, J2 = 10.8 Hz, J3 = 13.9 Hz), 2.06-2.10 (b, 3H, Me), 2.10-2.14 (b, 3H, Me), 2.16-2.18 (b, 3H, Me), 2.39-2.44 (b, 3H, Me), 2.58 (m, IH, Hα-6, Jj = 6.3 Hz, J2 = 9.5 Hz, J3 = 13.9 Hz), 3.80-4.02 (b, IH, H-3), 4.35 (d, IH, H-20, J= 8.8 Hz), 4.62 (d, IH, H-20, J= 8.8 Hz), 4.78 (m, IH, H-7, Jj= 10.8 Hz, J2 = 6.3 Hz), 4.80 (s, IH, H-14), 4.94 (d, IH, H-5, J, = 3.3 Hz, J2 = 9.5 Hz), 5.12-5.30 (b, IH, NH), 5.80 (d, IH, H-2, J = 10.8 Hz), 6.66-6.70 (b, IH, H- 10), 7.24-7.30 (m, 2H, arom),7.46-7.50 (m, 2H, arom), 7.58-7.60 (m IH, arom), 7.78-7.82 (d, 2H, arom), 8.24-8.28 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz) relevant resonances of the major tautomer at: 5.8 (3 CH2, minor), 6.1 (3 CH2, major), 7.04 (3 Me, minor), 7.1 (3 Me, major), 9.1, 20.8, 21.7, 21.8, 25.4, 26.5, 37.5, 42.7, 71.5, 74.7, 74.8, 78.3, 79.2, 84.3, 126.6, 127.5, 128.5, 128.9, 129.3, 129.7, 130.0, 130.7 (2 CH), 133.7, 164.7, 168.5, 170.7, 202.2, 203.8.
Example 8
14β-azido-7-TES-baccatin III
A solution of 0.46 g (0.63 mmol) of 14β-azido-7-TES-13-ketobaccatin III in 0.7 ml of THF and 12 ml of ethanol is added with 0.47 g (12.5 mmol) of sodium borohydride in small portions at -40°C and under strong stirring. Temperature spontaneously raises to -28°C. After 4 days, the reaction is quenched by addition of 2 ml of acetic acid and extracted three times with 15 ml of ethyl acetate. The organic phases are dried, filtered and evaporated under reduced pressure. Chromatography of the crude (Si02, n-hexane/EtOAc, 2.1 : 1.0) affords 0.33 g (0.44 mmol, 70%) of the title product. IR (KBr, cm"1): 3600-3300, 2956, 2881, 2112, 1728, 1371, 1233; 1H-NMR (CDC13, 400 MHz): δ = 0.59 (m, 6H, 3 CH2), 0.93 (m, 9H, 3Me), 0.98 (s, 3H, Me), 1.24 (s, 3H, Me), 1.71 (s, 3H, Me), 1.90 (m, IH, Hβ-6, Jj = 2.1 Hz, J2 = 10.7 Hz, J3 = 14.2 Hz), 2.18 (s, 3H, Me), 2.20 (m, 3H, Me), 2.34 (s, 3H, Me), 2.53 (m, IH, Hα-6, J; = 6.6 Hz, J2 = 9.7 Hz, J3 = 14.2 Hz), 2.82 (b, IH, OH), 3.00 (s, 1 H, OH), 3.82 (d, IH, H-3, J = 7.1 Hz), 3.98 (d, IH, CHN3, J= 7.3 Hz), 4.23 (d, IH, H- 20, J= 8.4 Hz), 4.33 (d, IH, H-20, J= 8.4 Hz), 4.46 (m, IH, H-7, _= 10.4 Hz, J2 = 6.5 Hz), 4.80 (m, IH, C13-H), 4.97 (d, IH, H-5, Jj = 1.9 Hz, J2 = 9.5 Hz), 5.82 (d, IH, H-2, / = 7.1 Hz), 6.41 (s, IH, H-10), 7.44-7.50 (m, 2H, arom), 7.58-7.62 (m IH, arom), 8.07-8.1 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 5.7, 7.2, 10.4, 15.2, 21.3, 22.1, 22.8, 26.6, 30.1, 37.5, 43.3, 46.8, 59.0, 68.8, 72.5, 74.6, 75.4, 75.7, 76.6, 76.9, 81.3, 84.3, 128.8, 129.4, 130.1, 133.8, 134.3, 140.9, 165.8, 169.4, 170.4, 201.4. Anal. Calc. C37H5iN30ιιSi: C, 59.90; H, 6.93. Found : C, 60.16; H, 6.89. Example 9
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 14β-azido-7-TES-baccatin III A solution of 0.074 g (0.18 mmol) of N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserine acid in 5 ml of toluene, cooled to 0°C, is added under nitrogen stream and stirring, with 0.08 g (0.11 mmol) of 7- TES-14β-azido-baccatin III, 0.04 g (0.18 mmol) of dicyclohexylcarbodiimide (DCC), 0.01 g (0.12 mmol) of dimethylaminopyridine (DMAP), and 0.003 g (0.02 mmol) of jσ-toluenesulfonic acid (PTSA). After 1 hour a 70°C the reaction mixture is cooled and filtered and the solid is washed three times with dichloromethane; the combined organic phases are subsequently evaporated under reduced pressure. Chromatography of the reaction crude (Si02, n- hexane/EtOAc, 2.2:1.0) affords 0.089. g (0.08 mmol, 72%) of the title product. IR (KBr, cm"1): 3491, 2957, 2111, 1731, 1614, 1508, 1368; 1H-NMR (CDC13, 400 MHz) relevant resonances at: δ = 0.59 (m, 6H, 3 CH2), 0.93 (m, 9H, 3Me), 1.71 (s, 3H, Me), 1.91 (m, IH, Hβ-6, J, = 2.0 Hz, J2 = 11.2 Hz, J3 = 14.0 Hz), 2.11 (s, 3H, Me), 2.19 (s, 3H, Me), 2.33 (s, 3H, Me), 2.52 (m, IH, Hα-6, J, = 6.8 Hz, J2 = 9.6 Hz, J3 = 14.0 Hz), 3.83 (d, IH, H-3), 3.83 (s, 3H, OMe), 3.87 (s, 3H, OMe), 4.04 (d, IH, H-14, J = 8.8 Hz), 4.24 (d, IH, H-20, J = 8.0 Hz), 4.32 (d, IH, H-20), 4.94 (m, IH, H-5), 5.88 (d, IH, H-2, J = 7.6 Hz), 6.25 (d, IH, H-13, J= 8.8 Hz), 7.44-7.50 (m, 2H, arom), 7.58-7.62 (m IH, arom), 8.07- 8.1 (d, 2H, arom). Anal. Calc. C58H8oN4017Si: C, 61.47; H, 7.11. Found : C, 60.89; H, 7.34.
Example 10 13-(N-Boc-β-isobutylisoserinoyl)-14β-azido-baccatin III
A solution of 0.080 g (0.07 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]- 14β-azido-7-TES-baccatin III in 2 ml of acetonitrile and 2 ml of pyridine is added, at 0°C, with 0.8 mL (0.1 mL/10 mg of substrate) of hydrofluoric acid-pyridine. After half an hour, the temperature is brought to 25°C. After three hours the reaction is quenched by addition of 4 ml of a NH4C1 saturated solution and extracted three times with 8 ml of AcOEt. The organic phases are washed three times with a CUSO4 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure. The resulting reaction crude (dissolved in 1.5 ml of dichloromethane) is added at 0°C with 0.7 ml of a 0.1 M solution of acetyl chloride in MeOH. After three hours the reaction is quenched by addition of 3 ml of a NH4C1 aqueous saturated solution. The organic phases are dried, filtered, and evaporated under reduced pressure. Chromatography (Si02, n- hexane/EtOAc, 1.0: 1.2) yields 0.04 g (0.05 mmol, 70%) of the title product. IR (KBr, cm"1): 3461, 2110, 1734, 1636, 1373, 1242, 1048; 1H-NMR (CDC13, 400 MHz): δ = 0.97 (t, 6H, 2Me), 1.19 (s, 3H, Me), 1.20 (s, 3H, Me), 1.38-1.4 (br s., 11H), 1.68-1.74 (m, IH, H-5'), 1.71 (s, 3H, Me), 1.88 (s, 3H, Me), 1.91 (m, IH, Hβ-6, Ji = 2.3 Hz, J2 = 10.7 Hz, J3 = 14.8 Hz), 2.24 (s, 3H, Me), 2.43 (s, 3H, Me), 2.46-2.52 (b, IH, OH), 2.57 (m, IH, Hα-6, J} = 6.6 Hz, J2 = 9.6 Hz, J3 = 14.9 Hz), 3.76 (d, IH, H-3, J = 7.1 Hz), 3.85 (d, IH, OH), 4.04 (d, IH, H-14, J = 8.8 Hz), 4.08 (m, IH, H-3'), 4.26 (d, IH, H-20, J = 8.8 Hz), 4.35 (d, IH, H-20), 4.39 (m, IH, H-7), 4.72 (d, IH, H-2'), 4.98 (m, IH, H-5, J, = 2.3 Hz, J2 = 9.6 Hz), 5.88 (d, IH, H-2, J - 7.1 Hz), 6.07 (d, IH, H- 13, / = 8.8 Hz), 6.28 (s, IH, H-10), 7.44-7.50 (m, 2H, arom), 7.58-7.62 (m IH, arom), 8.07-8.1 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 10.0, 15.3, 21.3, 22.3, 22.7, 23.6, 23.7, 25.1, 27.1, 28.6, 35.9, 40.8, 43.5, 45.3, 52.0, 59.0, 65.5, 72.3, 74.1, 74.8, 75.5, 76.5, 77.2, 77.6, 80.5, 81.6, 84.5, 128.9, 129.1, 130.1, 133.9, 134.9, 139.1, 156.2, 165.7, 170.0, 171.1, 173.4, 202.9. Anal. Calc. CsgHsgNOnSi: C, 62.70; H, 7.34. Found : C, 62.36; H, 7.49. Example 11
14β-amino-7-TES-13-ketobaccatin III
A solution of 0.08 g (0.11 mmol) of 14β-azido-7-TES- 13 -ketobaccatin III in 3.2 ml of an acetonitrile/water 9/1 mixed solution is added with 0.03 g (0.12 mmol) of triphenylphosphine. The reaction is cooled at 5°C, and after 18 hours is evaporated under reduced pressure. Chromatography of the residue (Si02, «-hexane/EtOAc/Et20, 1.8:0.7:0.3) affords 0.07 g (0.11 mmol, 97%) of the title product: IR (KBr, cm"1): 3500-3100, 3053, 1730, 1438, 1239, 1063; 1H-NMR (CDC13, 400 MHz): δ = 0.58 (m, 6H, 3 CH2), 0.84 (s, 3H, Me), 0.93 (m, 9H, 3Me), 1.27 (s, 3H, Me), 1.73 (s, 3H, Me), 1.90 (m, IH, Hβ-6, Jj = 2.0 Hz, J2 = 11.2 Hz, J3 = 14.0 Hz), 2.12 (s, 3H, Me), 2.19 (m, 3H, Me), 2.21 (s, 3H, Me), 2.52 (m, IH, Hα-6, J} = 6.4 Hz, J2 = 9.2 Hz, J3 = 14.0 Hz), 3.57 (s, IH, H-14), 3.84 (d, IH, H-3, .7 = 6.8 Hz), 4.24 (d, IH, H-20, J = 8.8 Hz), 4.30 (d, IH, H-20, J - 8.8 Hz), 4.47 (m, IH, H-7, Jf= 10.4 Hz, J2 = 6.4 Hz), 4.89 (d, IH, H-5, Jj = 2 Hz, J2 = 9.6 Hz), 5.86 (d, IH, H-2, J = 6.8 Hz), 6.50 (s, IH, H-10), 7.43-7.45 (m, 2H, arom), 7.61-7.66 (m IH, arom), 7.99-8.01 (d, 2H, arom); Anal. Calcl. C43H58N4θ15Si: C, 59.30; H, 6.71. Found : C, 60.3; H, 7.19.
Example 12
14β-Amino-7-TES-13-ketobaccatin III 14,1-carbamate A solution of 0.18 g (0.26 mmol) of 14β-amino-7-TES- 13 -ketobaccatin
III in 6 mL of CH2C12 at -78°C is added with 0.13 mL (0.26 mmol) of a 1.93 M solution of phosgene in toluene and 0.04 mL (0.51 mmol) of pyridine under stirring. After 1 hour the reaction mixture is quenched by addition of 5 ml of water and extracted with 10 ml of dichloromethane; the organic phases are washed three times with brine, dried, filtered, and evaporated under reduced pressure. Chromatography (Si02, n-hexane/EtOAc/Et20, 1.8:0.7:0.3) affords 0.16 g (0.22 mmol, 86%) of the title product. IR (KBr, cm"1): 3342, 2955, 1731, 1452, 1238, 1090; 1H-NMR (CDC13, 400 MHz): δ = 0.60 (m, 6H, 3 CH2), 0.93 (m, 9H, 3Me), 1.14 (s, 3H, Me), 1.34 (s, 3H, Me), 1.73 (s, 3H, Me), 1.92 (m, IH, HB-6, J} = 2.4 Hz, J2 = 10.8 Hz, J3 = 14.0 Hz), 2.15 (s, 3H, Me), 2.20 (m, 3H, Me), 2.22 (s, 3H, Me), 2.52 (m, IH, Hα-6, J} = 6.6 Hz, J2 = 9.7 Hz, J3 = 14.0 Hz), 3.83 (d, IH, H-3, J = 6.8 Hz), 4.17 (s, IH, H-14), 4.23 (d, IH, H-20, J = 8.8 Hz), 4.32 (d, IH, H-20, J = 8.8 Hz), 4.46 (m, IH, H-7, Jf= 10.7 Hz, J2 = 6.5 Hz), 4.90 (d, IH, H-5, J, =1.9 Hz, J2 = 9.5 Hz), 6.02 (s, IH, N-H), 6.06 (d, IH, H-2, J= 6.9 Hz), 6.48 (s, IH, H-10), 7.42-7.45 (m, 2H, arom), 7.58-7.61 (m IH, arom), 7.96-7.98 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 5.7, 7.2, 10.4, 14.2, 19.8 21.1, 22.1, 30.1, 32.9, 37.3, 42.6, 45.4, 59.2, 59.3, 69.7, 72.3, 74.9, 76.3, 80.9, 84.2, 86.2, 128.4, 129.0, 129.9, 134.2, 138.9, 151.1, 155.7, 164.6, 168.9, 170.1, 195.6, 199.3. Anal. Calc. C39H51N012Si: C, 62.13; H, 6.82. Found : C, 60.16; H, 6.89. Example 13 14β-amino-7-TES-baccatin III 14,1-carbamate A solution of 0.07 g (0.1 mmol) of 14β-amino-7-TES-13-ketobaccatin
III 14,1-carbamate in 4 ml of ethanol at -40°C is added, under stirring, with 0.056 g (1.49 mmol) of sodium borohydride. Temperature is brought to -18°C then, after 4 hours, a further 0.04 g (1.0 mmol) of sodium borohydride is added. After 18 hours, the reaction mixture is quenched by addition of 2 ml of acetic acid and extracted with 10 ml of ethyl acetate. The organic phases are dried, filtered, and evaporated under reduced pressure. 1H-NMR spectrum of the residue shows the presence of 14β-amino-7-TES-baccatin III 14, 1- carbamate and of its 13B epimer in an α/β=62/38 ratio. Chromatography of the mixture (Si02, dichloromethane/EtOAc, 1.0:0.9) yields 0.04 g (0.06 mmol, 62%) of the title product. 1H-NMR (CDC13, 400 MHz): δ = 0.58 (m, 6H, 3 CH2), 0.93 (m, 9H, 3Me), 1.08 (s, 3H, Me), 1.26 (s, 3H, Me), 1.70 (s, 3H, Me), 1.88 (m, IH, Hβ-6, Jj = 2.0 Hz, J2 = 10.0 Hz, J3 = 13.2 Hz), 2.15 (s, 3H, Me), 2.17 (m, 3H, Me), 2.19 (s, 3H, Me), 2.52 (m, IH, Hα-6, J = 7.2 Hz, J2 = 9.6 Hz, J3 = 14.0 Hz), 3.66 (b, IH, OH), 3.75 (d, IH, H-3, J = 7.2 Hz), 3.98 (d, IH, H-14 J = 6.0 Hz), 4.15 (d, IH, H-20, J = 8.4 Hz), 4.23 (d, IH, H-20, J = 8.4 Hz), 4.44 (m, IH, H-7, J}= 10.0 Hz, J2 = 6.0 Hz), 4.66 (m, IH, H-13), 4.93 (d, IH, H-5, J} =2.0 Hz, J2 = 8 Hz), 5.98 (d, IH, H-2, J = 7.2 Hz), 6.42 (s, IH, H-10), 7.41-7.45 (m, 2H, arom), 7.58-7.61 (m IH, arom), 7.98-8.01 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 5.7, 7.2, 10.6, 15.1, 21.3, 22.1, 22.6, 26.2, 30.1, 37.4, 42.2, 46.5, 58.9, 61.1, 71.1, 72.3, 73.4, 75.4, 80.7, 84.3, 88.9, 128.8, 128.9, 129.9, 132.5, 134.0, 143.1, 158.2, 165.3, 169.2, 170.3, 201.3. Anal. Calc. C^HsgNOnSi: C, 61.97; H, 7.07. Found : C, 62.3; H, 6.93. Example 14
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 14β-amino-7-TES-baccatin III 14,1-carbamate
A solution of 0.124 g (0.30 mmol) of N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserine in 6 ml of toluene, cooled at 0°C, is added with 0.102 g (0.14 mmol) of 7-TES-14β-amino-baccatin III 14,1- carbamate, 0.06 g (0.30 mmol) of dicyclohexylcarbodiimide (DCC), 0.02 g (0.15 mmol) of dimethylaminopyridine (DMAP), and 0.005 g (0.03 mmol) of j_>-toluenesulfonic acid (PTSA), under stirring and nitrogen stream. After 2 hours at 70°C, a further 0.045 g (0.11 mmol) of N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserine and 0.022 g (0.11 mmol) of DCC are added. After a further 3 hours, the reaction is cooled and filtered. The solid is washed three times with dichloromethane; the combined organic phases are subsequently concentrated under reduced pressure. Chromatography of the reaction mixture (Si02, n-hexane/Et0Ac/CH2Cl2, 1.0:0.6:0.6) yields 0.136 g (0.12 mmol, 86%) of the title product. IR (KBr, cm"1): 3435, 2956, 1735, 1454, 1369, 1235; !H-NMR (CDC13, 400 MHz) relevant resonances: δ = 0.58 (m, 6H, 3 CH2), 0.93 (m, 9H, 3Me), 1.75 (s, 3H, Me), 2.19 (s, 3H, Me), 2.26 (s, 3H, Me), 2.52 (m, IH, Hα-6, J; = 6.4 Hz, J2 = 10.0 Hz, J3 = 14.4 Hz), 3.87 (s, 3H, OMe), 3.88 (s, 3H, OMe), 4.22 (d, IH, H-20, J= 7.6 Hz), 4.26 (d, IH, H-20), 4.90 (m, IH, H-5, J= 7.2 Hz), 6.05 (d, IH, H-2, J= 7.2 Hz), 7.40-7.44 (m, 2H, arom), 7.56-7.60 (m IH, arom), 7.98-7.99 (d, 2H, arom). Anal. Calc. C59H80N28Si: C, 62.53; H, 7.11. Found : C, 63.3; H, 6.99. Example 15
13-(N-Boc-β-isobutylisoserinoyl)-14β-amino-baccatin III 14,1- carbamate
A solution of 0.114 g (0.10 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-14β-amino-7-TES-baccatin III 14,1-carbamate in 1.6 ml of dichloromethane is added, at 0°C, with 1.02 ml of a 0.01 M acetyl chloride solution in methanol. After 24 hours at 5°C, the reaction mixture is quenched by addition of 7 ml of a NH4C1 aqueous saturated solution and extracted with 10 ml of AcOEt. The combined organic phases are subsequently dried and concentrated under reduced pressure. The chromatographic purification (SiO2, n-hexane/EtOAc/Et20 1 :0.7:0.3) affords 0.06 g (0.061 mmol, 66%) of the title compound. 1H-NMR (CDC13, 400 MHz): δ = 0.97 (t, 6H, 2Me), 1.25-1.31 (b, 8H, 2Me and 2H of H-4'), 1.37 (s, 9H, 3Me), 1.69-1.72 (s, 4H, Me, H-5*), 1.78-1.96 (m, 4H, Hβ-6, Me), 2.25 (s, 3H, Me), 2.33 (s, 3H, Me), 2.55 (m, IH, Hα-6), 3.05 (d, IH, OH, J = 6.4 Hz ), 3.76 (d, IH, H-3, J = 7.2 Hz), 4.15 - 4.22 (m, 3H, H-14, H-2*, H3'), 4.28 (d, IH, H- 20), 4.35 (d, IH, H-20), 4.38 (m, IH, H-7), 4.73 (d, IH, N'-H, J= 9.6 Hz), 4.94 (m, IH, H-5, J; = 0.8 Hz, J2 = 7.6 Hz), 6.02 (d, IH, H-2, J = 1.6 Hz), 6.11 (d, IH, H-13, J= 6.8 Hz, J = 1.6 Hz), 6.26 (s, IH, H-10), 7.42-7.45 (m, 2H, arom), 7.54-7.58 (m IH, arom), 8.02-8.1 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz) relevant resonances: 10.2, 15.4, 21.2, 21.8, 22.9, 23.4, 23.8, 25.0, 26.3, 28.7, 30.1, 35.8, 41.8, 42.5, 44.9, 51.8, 57.8, 58.8, 71.2, 72.1, 73.0, 75.3, 76.4, 81.2, 81.7, 84.4, 128.7, 128.9, 130.0, 134.0, 134.1, 140.1, 156.4, 164.9, 173.5, 202.5; Anal. Calc. C44H58N2016: C, 60.68; H, 6.71. Found : C, 61.2; H, 6.99. Example 16
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 7-TES-14β-amino-baccatm III
A catalytic amount of palladium on charcoal is added to a solution of 0.052 g (0.05 mmol) 13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β- isobutylisoserinoy_]-14β-azido-7-TES-baccatin III in 2.0 ml of MeOH, then gas hydrogen is bubbled therein. After 18 hours at room temperature, the reaction mixture is filtered through celite bed, and the solid is washed with 6 ml of ethyl acetate. The resulting organic phases are heated to 45°C for 20 minutes and subsequently evaporated under reduced pressure.
Chromatography of the residue (Si02, n-hexane/Et0Ac/CH2Cl2 0.7:0.3: 1.0) yields 0.72 g (0.064 mmol, 70%) of the title product. IR (KBr, cm"1): 3449,
2957, 1726, 1617, 1368, 1237, 1105; 1H-NMR (CDC13, 400 MHz) relevant resonances at δ = 0.58 (m, 6H, 3 CH2), 0.94 (m, 9H, 3Me), 1.07 (m, 10H), 1.72 (s, 3H, Me), 2.12 (s, 3H, Me), 2.18 (s, 3H, Me), 2.30 (s, 3H, Me), 2.51
(m, IH, Hα-6), 3.35 (d, IH, J = 8.8 Hz), 3.83 (s, 3H, OMe), 3.88 (s, 3H,
OMe), 4.26 (m, 2H, 2H-20), 4.53 (m, 3H), 4.93 (d, IH, H-5), 5.85 (d, IH, H-2,
J = 7.2 Hz), 6.06 (d, IH, H-13), 6.45-6.51 (m, 3H), 6.59 (s, IH, H-10), 7.42-
7.45 (m, 2H, arom), 7.54-7.60 (m IH, arom), 8.00-8.02 (d, 2H, arom). Anal. Calc. C58H82N2017Si: C, 62.91 ; H, 7.46. Found : C, 63.4; H, 6.87.
Example 17
13-(N-Boc-β-isobutylisoserinoyl)-14β-amino-baccatin III A solution of 0.107 g (0.09 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-7-TES-14β-amino-baccatin III in 2.7 ml of acetonitrile and 2.7 ml of pyridine is added, at 0°C, with 10.7 mL (0.1 mL/10 mg of substrate) hydrofluoric acid-pyridine. After half an hour the temperature is brought to 25°C. After three hours, the reaction is quenched by addition of 6 ml of a NH C1 aqueous saturated solution and extracted three times with 8 ml of AcOEt. The organic phases are washed three times with a CuS04 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure. The resulting reaction crude is dissolved in 3.5 ml of dichloromethane, then added, at 0°C, with 1.15 ml of a 0.1 M acetyl chloride solution in MeOH. After three hours, the reaction is quenched by addition of 5 ml of a NH4C1 aqueous saturated solution and extracted with 8 ml of AcOEt. The organic phases are dried, filtered, and evaporated under reduced pressure. Chromatography (Si02, n-hexane/EtOAc, 1.0: 1.2) yields 0.05 g (0.06 mmol, 70%) of the title product. 1H-NMR (CDC13, 400 MHz): δ = 1.00 (m, 6H, 2Me), 1.14 (s, 3H, Me), 1.19 (s, 3H, Me), 1.32 (s, 9H, 3Me), 1.62-1.78 (s, 4H, Me, H-5*), 1.84-1.94 (m, 4H, Hβ-6, Me), 2.24 (s, 3H, Me), 2.39 (s, 3H, Me), 2.55 (m, IH, Hα-6, J, = 6.4 Hz, J2 = 9.6 Hz, J3 = 14.8 Hz), 3.09 (b, IH, OH), 3.35 (d, IH, J = 9.2 Hz), 3.74 (d, IH, J = 7.2 Hz), 4.18 - 4.33 (m, 4H, H-2', H3', 2H-20), 4.41 (m, IH, H-7), 4.70 (d, IH, N'-H, J = 9.6 Hz), 4.95 (m, IH, H-5, J} = 2 Hz, J2 = 9.6 Hz), 5.81 (d, IH, H-2, J = 7.6 Hz), 5.90 (d, IH, H-13, J = 9.2 Hz, J = 1.2 Hz), 6.27 (s, IH, H-10), 7.42-7.46 (m, 2H, arom), 7.52- 7.61 (m IH, arom), 8.0-8.06 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): 10.1, 15.3, 21.3, 22.3, 23.0, 23.7, 24.4, 25.1, 26.8, 28.6, 30.1, 35.8, 42.2, 43.3, 45.0, 51.4, 53.5, 58.7, 72.3, 72.9, 75.1, 75.3, 75.7, 80.6, 81.5, 84.5, 128.8, 129.8, 130.0, 133.4, 135.0, 138.8, 156.1, 165.6, 169.8, 171.4, 203.3, MS (mz) (M+ calc. C43H6o 2015 844.4), 845.4, 789.5, Anal. Calc. C43H6oN2015: C, 61.12; H, 7.16. Found : C, 62.3; H, 6.99. Example 18
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 7-TES-14β-t-butoxycarbamoyl-baccatin III 14,1-carbamate
A solution of 0.11 g (0.10 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-7-TES-14β-amino-baccatin III in 3 ml of dichloromethane is added with 0.04 g (0.20 mmol) of BOC20, 0.03 mL (0.21 mmol) of triethylamine and 0.006 g (0.05 mmol) of dimethylaminopyridine, at room temperature. After 3 hours the reaction is quenched by addition of 4 ml of a NH4C1 aqueous saturated solution and extracted three times with 6 ml of dichloromethane. The organic phases are dried, filtered, and evaporated under reduced pressure. Chromatography (Si02, n- hexane/EtOAc/CHCl3, 8.0:3.0:5.0) affords 0.09 g (0.06 mmol, 69%) of the title product. IR (KBr, cm"1): 3450, 2961, 1803, 1733, 1370, 1239, 1089; 1H-NMR (CDCI3, 400 MHz) relevant resonances at δ = 0.59 (m, 6H, 3 CH2), 0.94 (m, 9H, 3Me), 1.37 (s, 9H), 1.72 (s, 3H, Me), 2.19 (s, 3H, Me), 2.23 (s, 3H, Me), 2.46 (s, 3H, Me), 2.52 (m, IH, Hα-6), 3.82 (s, 3H, OMe), 3.88 (s, 3H, OMe), 4.18 (d, IH, H-20, J= 8 Hz), 4.24 (d, IH, H-20, J= 8 Hz), 4.56 (m, 3H), 4.76 (d, IH, J= 7.2 Hz), 4.93 (d, IH, H-5), 6.01 (d, IH, H-2, J= 7.2 Hz), 6.36(s, IH, H-10), 6.42 (d, IH), 6.47-6.51 (m, 3H), 7.32-7.42 (m, 2H, arom), 7.51-7.58 (m IH, arom), 7.92- 7.98 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz) relevant resonances: 5.7, 7.2, 10.7, 15.5, 21.2, 22.2, 22.4, 22.9, 23.7, 26.7, 28.1, 28.6, 37.4, 42.1, 43.7, 46.3, 55.5, 55.7, 58.7, 59.8, 71.3, 72.1, 74.1, 74.7, 76.2, 80.2, 84.4, 84.8, 104.5, 128.5, 129.0, 129.9, 133.9, 134.1, 139.5, 150.4, 151.2, 159.2, 164.6, 171.0, 200.7; Anal. Calc. C64H94N2019Si: C, 62.8; H, 7.74. Found : C, 61.3; H, 6.64. Example 19
13-(N-Boc-β-isobutylisoserinoyI)-14β-t-butoxycarbamoyl-baccatin III 14,1-carbamate
A solution of 0.08 g (0.07 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-7-TES-14β-t-butoxycarbamoyl- baccatin III 14, 1-carbamate in 2.1 ml of acetonitrile and 2.1 ml of pyridine is added, at 0°C, with 0.8 mL (0.1 mL/10 mg of substrate) of hydrofluoric acid- pyridine. After half an hour temperature is brought to 25°C. After three hours, the reaction is quenched by addition of 6 ml of a NH4C1 aqueous saturated solution and extracted three times with 7 ml of AcOEt. The organic phases are washed three times with a CuS04 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure. The resulting reaction crude is dissolved in 3 ml of dichloromethane, then added with 0.82 ml of a 0.1 M solution of acetyl chloride in MeOH, at 0°C. After three hours the reaction is quenched by addition of 7 ml of a NH4C1 aqueous saturated solution and extracted with 8 ml of AcOEt. The organic phases are dried, filtered, and evaporated under reduced pressure. Chromatography of the resulting mixture (Si02, n-hexane/EtOAc, 1.0:1.2) yields 0.03 g (0.06 mmol, 46%) of the title product. IR (KBr, cm"1): 3450, 2961, 1803, 1733, 1506, 1370, 1239, 1089, 732; 1H-NMR (CDC13, 400 MHz) relevant resonances at δ = 0.98 (m, 6H, 2Me), 1.28 (s, 3H, Me), 1.31(s, 3H, Me), 1.38 (s, 9H, 3Me), 1.43 (s, 9H, 3Me), 1.66 (m, IH, H-5'), 1.72 (s, 3H, Me), 1.91 (m, 4H, Hβ-6, Me), 2.25 (s, 3H, Me), 2.53 (m, 4H, Me, Hα-6), 3.82 (d, IH, H-3, J = 7.2 Hz), 3.95 (b, IH, OH), 4.07 (m, IH, H-3'), 4.25 (m, 3H, 2H-20, H-2'), 4.42 (m, H, H-7), 4.74 (d, IH, H-14, J = 7.6 Hz), 4.89 (d, IH, N-H, J = 8.8 Hz), 4.96 (m, IH, H-5, J2 = 7.6 Hz), 6.01 (d, IH, H-2, J = 7.2 Hz), 6.26 (m, 2H, H-10, H-13), 7.38-7.42 (m, 2H, arom), 7.54-7.58 (m IH, arom), 7.95-7.97 (d, 2H, arom); 13C-NMR (CDCI3, 100 MHz): 10.2, 16.0, 21.2, 22.6, 23.3, 23.5, 25.3, 27.0, 28.1, 28.7, 35.9, 42.0, 45.2, 51.6, 58.9, 59.5, 71.2, 72.1, 74.2, 75.3, 76.3, 80.7, 84.6, 85.4, 128.4, 129.0, 129.9, 133.3, 134.0, 141.4, 150.2, 155.9, 164.4, 169.5, 171.0, 171.2, 172.1, 202.5; Anal. Calc. C48H68N27: C, 61.00; H, 7.25. Found : C, 61.3; H, 6.64. Example 20
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 7-TES-14β-amino-baccatin III 14,1-thiocarbamate
A solution of 0.171 g (0.15 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-7-TES-14β-amino-baccatin III in 7 ml of acetonitrile is added, at room temperature, with 0.14 g (0.61 mmol) of di- 2-pyridyl-thionocarbonate. After two hours, the reaction mixture is quenched by addition of 4 ml of water and extracted three times with 6 ml of dichloromethane. The organic phases are dried, filtered, and evaporated under reduced pressure. Chromatography of the residue (Si02, «-hexane/EtOAc/CH2Cl2, 7.0:5.0:8.0) affords 0.13 g (0.11 mmol, 69%) of the title product. IR (KBr, cm"1): 3446, 2958, 1732, 1694, 1595, 1278, 1167; 1H-NMR (CDC13, 400 MHz, 55°C) relevant resonances at: δ = 0.60 (m, 6H, 2 CH3), 0.95 (m, 9H, 3Me), 1.08 (m, 6 H), 1.18- 1.48 (m, 18H), 1.73 (s, 3 H, Me), 2.13 (s, 3H, Me), 2.19 (s, 3H, Me), 2.23 (s, 3H, Me), 2.51 (m, IH, Hα-6, J, = 6.6 Hz, J2 = 9.7 Hz, J3 = 14.3 Hz), 3.78 (d, IH, H- 14, J} = 7.4Hz), 3.82 (s, 3H, OMe), 3.87 (s, 3H, OMe), 4.23-4.29 (m, 3H, H-3, 2H-20, J= 7.2 Hz), 4.44 (m, 2H, H-7, H-3*), 4.90 (m, IH, H-5, J= 9.8 Hz), 6.09 (d, IH, H-13, J = 7.1 Hz), 6.13 (d, IH, H-2, J = 7.2 Hz), 6.48 (m, 4H, arom), 7.37-7.41 (m, 2H, arom), 7.54-7.57 (m IH, arom), 7.96-7.98 (d, 2H, arom); 13C- NMR (CDCI3, 100 MHz): 5.69, 7.17, 10.7, 15.0, 21.1, 22.3, 22.6, 22.8, 25.7, 26.2, 28.5, 37.3, 42.7, 46.4, 55.6, 55.7, 58.8, 62.8, 70.6, 72.1, 74.6, 75.7, 76.2, 80.7, 84.3, 86.9, 98.7, 104.3, 128.8, 128.8, 129.1, 129.9, 133.8, 134.7, 137.9, 159.0, 161.6, 164.8, 169.2, 169.9, 171.5, 187.9, 200.4; Anal. Calc. C60H84N2O17SSi: C, 61.83; H, 7.26. Found : C, 61.2; H, 7.3. Example 21
13-(N-Boc-β-isobutylisoserinoyl)-14β-ammo-baccatin III 14,1- thiocarbamate
A solution of 0.11 g (0.10 mmol) of 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-7-TES-14β-amino-baccatin III
14,1-thiocarbamate in 2.7 ml of acetonitrile and 2.7 ml of pyridine is added, at 0°C, with 1.1 mL hydrofluoric acid-pyridine. After half an hour temperature is raised to 25°C. After two hours, the reaction is quenched by addition of 6 ml of a NH4C1 aqueous saturated solution and extracted three times with 11 ml of AcOEt. The organic phases are washed three times with a CUSO4 aqueous saturated solution, dried, filtered, and evaporated under reduced pressure. The resulting reaction crude (dissolved in 4 ml of dichloromethane) is added, at 0°C, with 1.2 ml of a 0.1 M solution of acetyl chloride in MeOH. After three hours the reaction is quenched by addition of 7 ml of a NH4CI aqueous saturated solution and extracted with 8 ml of AcOEt. The organic phases are dried, filtered, and evaporated under reduced pressure. Chromatography of the residue (Si02, EtOAc/w-hexane, 1.4:1) yields 0.03 g (0.05 mmol, 62%) of the title product. IR (KBr, cm"1): 3343, 2960, 1735, 1686, 1514, 1239, 1088, 733; 1H-NMR (CDC13, 400 MHz): δ = 0.99 (m, 6H, 2Me), 1.29 (s, 3H, Me), 1.41(s, 9H, 3Me), 1.73 (s, 3H, Me), 1.74-1.94 (m, 10H, Hβ-6, H-5', H-4', 2Me), 2.24 (s, 3H, Me), 2.31 (s, 3H, Me), 2.48 (m, IH, H -6, J, = 6.4 Hz, J2 = 9.0 Hz, J3 = 15.0 Hz), 3.72 (d, IH, H-3, J= 7.2 Hz), 4.10 - 4.18 (m, 2H, H-2', H3'), 4.28 (m, 2H, H-20), 4.36 (m, 2H, H-7, H-20), 4.78 (d, IH, N'-H, J = 9.2 Hz), 4.94 (m, IH, H-5, J, = 2.4 Hz, J2 = 9.6 Hz), 6.09 (d, 2H, H-2, H-13, J = 7.6 Hz), 6.26 (s, IH, H-10), 7.40-7.45 (m, 2H, arom), 7.49-7.52 (m IH, arom), 7.99-8.01 (d, 2H, arom), 9.33 (s, IH, NH); 13C-NMR (CDC13, 100 MHz): 10.2, 15.3, 21.2, 21.9, 23.1, 23.7, 25.0, 26.2, 28.7, 35.9, 41.6, 42.7, 45.3, 52.0, 58.9, 62.0, 70.7, 72.0, 72.8, 75.3, 76.4, 76.7, 81.2, 82.1, 84.4, 94.8, 128.8, 129.8, 130.0, 133.9, 134.1, 139.9, 156.2, 164.8, 169.5, 171.0, 173.5, 202.3; Anal. Calc. C44H58N2015S: C, 59.58; H, 6.59. Found : C, 61.3; H, 6.64. Example 22
7-TES-14-(Boc)-triazenyl-13-ketobaccatin III (0.06 g, 0.52 mmol), of potassium tert-butoxide are suspended at -75°C, under nitrogen stream and strong stirring, in 1.5 mL of anhydrous THF. After 10 minutes a solution of 0.13 g (0.19 mmol) of 7-TES-13-ketobaccatin III in 1.0 ml of THF and 0.7 ml of DMPU is added in 3 minutes at the same temperature. After 15 min, 0.06 g (0.41 mmol) of terBoc-azide dissolved in 1 ml of THF is added in two minutes at -70°C. After two hours, and after temperature has raised to -50°C, the reaction is quenched by addition of 5.0 ml of a NH4C1 saturated aqueous solution. Temperature is slowly raised to 20°C and the reaction mixture is diluted with 3.0 ml of Et20 and extracted with 6.0 ml of a NH4CI aqueous saturated solution. The organic phases are washed three times with water, dried, filtered and evaporated under reduced pressure. Chromatography of the residue (Si02, «-hexane/EtOAc, 2.3 : 1.0) affords 0.022 g (0.26 mmol, 50%) of the title product. IR (KBr, cm"1): 3500-3100, 2962, 1731, 1374, 1238; 1H-NMR (CDC13, 400 MHz): 1H-NMR (CDC13, 400 MHz): relevant resonances δ = 0.58 (m, 6H, 3CH2), 0.91 (m, 9H, 3Me), 1.11 (s, 3H, Me), 1.31 (s, 3H, Me), 1.55 (s, 9H, 3Me), 1.71 (s, 3H, Me), 1.88 (m, IH, Hβ- 6), 2.20 (s, 3H, Me), 2.21 (s, 3H, Me), 2.22 (s, 3H, Me), 2.52 (m, IH, Hα-6), 3.91 (d, IH, H-3), 4.23 (s, 2H, 2H-20), 4.47 (m, 2H, H-7, H-14), 4.92 (d, IH, H-5), 5.80 (d, IH, CH2), 6.54 (s, IH, H-10), 6.89 (S, IH), 7.38-7.60 (m, 4H, arom), 7.96-7.99 (m, 2H, arom); 13C-NMR (CDC13, 100 MHz): δ = 5.5, 7.0, 10.0, 14.3, 19.2, 21.0, 22.0, 28.3, 33.8, 37.3, 43.1, 45.1, 59.3, 72.5, 73.5, 73.9, 75.6, 76.4, 76.7, 80.8, 83.3, 84.0, 128.9, 129.0, 129.2, 130.3, 130.4, 133.7, 138.6, 150.4, 152.1, 165.7, 169.2, 171.0, 194.7, 200.3; MS (mz) (M+ calc. C42H59N3θ13Si 841.4), 842.4, 714, 652, 574; Anal. Calc. C42H59N3013Si: C, 59.91; H, 7.06. Found: C, 58.9; H, 6.57. Example 23
14-[N,N'-u»M'-(benzyloxycarbonyl)hydrazmo]-7-Boc-13-ketobaccatin III 0.16 g (1.47 mmol) of potassium tert-butoxide are suspended, under nitrogen stream and strong stirring, in 3.0 ml of anhydrous THF at -72°C. The mixture is added, in two minutes and at the same temperature, with 0.37 g (0.54 mmol) of 7-Boc-13-ketobaccatin III in 2.5 ml of THF and 1.8 ml of DMPU. After 15 minutes, 0.32 g (1.19 mmol) di-tert-benzyl-azodicarboxylate dissolved in 3.0 ml of THF and 0.2 ml of DMPU are slowly added at -68°C. Temperature is raised -50°C, and after 8 hours the reaction mixture is quenched by addition of 2 mL (0.03 mmol) of acetic acid diluted with 10 ml of ethyl ether and extracted with 10 ml of a NH4Cl aqueous saturated solution. The organic phases are washed three times with water, dried, filtered and evaporated under reduced pressure. Chromatography of the residue (Si02, n- hexane/EtOAc, 1.3:5.0) affords 0.30 g (0.29 mmol, 55%) of the title product. 1H-NMR (CDC13, 400 MHz): δ - 0.86 (s, 3H, Me), 1.23 (s, 3H, Me), 1.47 (s, 9H, 3Me), 1.82 (s, 3H, Me), 1.97 (m, IH, Hβ-6, Jj = 2.5 Hz, J2 = 10.9 Hz, J3 = 14.3 Hz), 2.13 (s, 3H, Me), 2.18 (s, 3H, Me), 2.19 (s, 3H, Me), 2.59 (m, IH, Hα-6, J} = 7.2 Hz, J2 = 9.5 Hz, J3 = 14.3 Hz), 4.14 (d, IH, H-3, 6.2 Hz), 4.24 (d, IH, H-20, J = 8.6 Hz), 4.37 (d, IH, H-20, J = 8.6 Hz), 4.90 (s, IH, H-14), 4.92 (d, IH, H-5, Jl = 2.5 Hz, J2 = 9.5 Hz), 4.99 (d, IH, CH2, J = 12.5 Hz), 5.06 (d, IH, CH2, J = 12.5 Hz), 5.12 (d, IH, CH2, J = 12.5 Hz), 5.18 (d, IH, CH2, J = 12.5 Hz), 5.41 (m, IH, H-7, Jj = 10.8 Hz, J2 = 6.9 Hz), 5.62 (s, IH), 5.97 (d, IH, H-2, J = 6.2 Hz), 6.56 (s, IH, H-10), 6.89 (s, IH), 7.15-7.30 (m, 10H, arom), 7.34-7.40 (m, 2H, arom), 7.50-7.55 (m IH, arom), 8.25 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): δ = 10.9, 14.4, 20.1, 21.0, 22.0, 27.9, 33.6, 43.5, 45.9, 57.2, 66.1, 68.8, 69.5, 73.6, 74.4, 75.2, 75.8, 76.8, 80.9, 83.3, 84.2, 127.5, 128.3, 128.5, 128.6, 128.7, 128.8, 128.9, 129.2, 131.1, 133.6, 135.0, 135.3, 138.4, 152.6, 153.3, 157.0, 158.0, 166.2, 168.4, 171.7, 196.4, 200.2; Anal. Calc. C52H58N2017: C, 63.53; H, 5.95. Found : C, 62.5; H, 6.02. Example 24
14-[N,N'-bis-(Boc)hydrazino]-7-Boc-13-ketobaccatin III 0.16 g of potassium tert-butoxide (1.47 mmol) are suspended, under nitrogen stream and strong stirring, in 3.0 ml of anhydrous THF at -72°C. The mixture is added, in two minutes and at the same temperature, with 0.37 g (0.54 mmol) of 7-Boc- 13 -ketobaccatin III in 2.5 ml of THF and 1.8 ml of DMPU. After 15 minutes, 0.27 g (1.19 mmol) di-tert-butyl azodicarboxylate dissolved in 3.0 ml of THF and 0.2 ml of DMPU are slowly added at -68°C. After 1 hour the reaction is quenched by addition of 2 mL (0.03 mmol) of acetic acid diluted with 10 ml of ethyl ether and extracted with a NH4C1 aqueous saturated solution. The organic phases are washed three times with water, dried, filtered and evaporated under reduced pressure. Chromatography of the residue (Si02, rø-hexane/EtOAc, 1.3:5.0) affords 0.35 g (0.37 mmol, 70%) of the title product. 1H-NMR (CDC13, 400 MHz): δ = 1.00 (s, 3H, Me), 1.26 (s, 3H, Me), 1.35 (s, 9H, 3Me), 1.40 (s, 9H, 3Me), 1.46 (s, 9H, 3Me), 1.82 (s, 3H, Me), 1.97 (m, IH, Hβ-6, J; = 2.6 Hz, J2 = 10.7 Hz, J3 = 14.3 Hz), 2.17 (s, 3H, Me), 2.18 (s, 3H, Me), 2.21 (s, 3H, Me), 2.59 (m, IH, Hα-6, J7 = 7.0 Hz, J2 = 9.7 Hz, J3 = 14.3 Hz), 4.15 (d, IH, H-3, 6.3 Hz), 4.23 (d, IH, H- 20, J = 8.4 Hz), 4.35 (d, IH, H-20, J = 8.4 Hz), 4.90 (d, IH, H-5, J, = 2.2 Hz, J2 = 9.7 Hz), 5.14 (s, IH, H-14), 5.41 (m, IH, H-7, J, = 10.7 Hz, J2 = 6.9 Hz), 5.58 (s, IH), 5.97 (d, IH, H-2, J = 6.4 Hz), 6.53 (s, IH, H-10), 6.58 (s, IH), 7.38-7.42 (m, 2H, arom), 7.50-7.55 (m IH, arom), 8.29 (d, 2H, arom); 13C- NMR (CDC13, 100 MHz): δ = 10.9, 14.3, 20.1, 21.0, 21.9, 27.9, 28.1, 28.2, 33.7, 34.6, 43.6, 45.9, 57.3, 65.1, 73.4, 74.5, 75.0, 76.1, 76.8, 80.9, 82.7, 83.2, 83.3, 84.2, 128.4, 129.4, 131.2, 133.3, 138.5, 152.6, 153.2, 155.8, 157.3, 166.2, 168.4, 171.7, 196.9, 200.4; Anal. Calc. C46H62N2019: C, 58.34; H, 6.60. Found : C, 60.3; H, 6.64. Example 25
13-Ketobaccatin III 13,14-triisopropylsilyl enolether A solution of 0.07 g (0.10 mmol) of 7-TES- 13 -ketobaccatin III in 2 ml of anhydrous THF is added with 0.25 mL (0.25 mmol) of a potassium tert- butoxide solution 1.0 M solution, under stirring and nitrogen stream, at -75°C. After 12 minutes, 0.04 mL (0.17 mmol) of triisopropylsilyl chloride is added very slowly with a syringe at the same temperature. After 45 minutes, the reaction is quenched by addition of 7 ml of a NH4C1 aqueous saturated solution and extracted three times with 15.0 ml of Et20. The organic phases are washed four times with water, dried, filtered and evaporated under reduced pressure. Chromatography of the residue (Si02, n- hexane/EtOAc/Et20, 1.8:0.7:0.5) affords 0.035 g (0.04 mmol, 43%) of the title compound. IR (KBr, cm"1): 3474, 2948, 1725, 1369, 1239, 1108, 732; 1H-NMR (CDC13, 400 MHz): δ = 0.58 (m, 6H, 3 CH2), 0.92 (m, 9H, 3Me), 1.05 (s, 3H, Me), 1.14 (m, 18 H, 6Me), 1.25 (s, 3H, Me), 1.70 (s, 3H, Me), 1.88 (m, IH, Hβ-6, J7 = 1.2 Hz, J2 = 11.2 Hz, J3 = 14 Hz), 2.10 (s, 3H, Me), 2.19 (m, 3H, Me), 2.23 (s, 3H, Me), 2.50 (m, IH, Hα-6, J; = 1.2 Hz, J2 = 9.5 Hz, J3 = 14.0 Hz), 3.74 (d, IH, H-3, J = 7.6 Hz), 4.16 (d, IH, H-20, = 8.4 Hz), 4.27 (d, IH, H-20, J = 8.4 Hz), 4.46 (m, IH, H-7, Jj = 6.4 Hz, J2 = 11.2 Hz), 4.82 (s, IH, H- 14), 4.94 (d, IH, H-5, J} =1.2 Hz, J2 = 8 Hz), 5.76 (d, IH, H-2, J = 7.2 Hz), 6.40 (s, IH, H-10), 7.43-7.47 (m, 2H, arom), 7.57-7.60 (m IH, arom), 8.07-8.09 (d, 2H, arom); 13C-NMR (CDC13, 100 MHz): δ = 5.71, 7.2, 10.7, 13.0, 14.2, 18.1,18.4, 18.5, 19.8, 21.4, 22.3, 28.5, 30.1, 37.5, 41.0, 45.6, 58.4, 72.2, 74.2, 76.2, 75.5, 80.8, 81.9, 84.4, 110.6, 128.7, 129.7, 130.2, 133.6, 134.7, 137.8, 153.5, 166.7, 169.3, 170.0, 201.7. MS (mz) (M+ calc. C47H72θιoSi2 854.5), 855.5, 795.5, 735.5, 673.4; Anal. Calc. C47H72O10Si2: C, 66.16; H, 8.51. Found : C, 67.5; H, 8.64. Example 26 7-TES-13-ketobaccatin III 13,14-diethylphosphoenolate
A solution of 7-TES-13-ketobaccatin III (258 mg, M.W.=698 g/mol, 0.37 mmol) in anhydrous THF (7.5 ml) is added drop by drop with a 0.5M solution of KHMDS (1.7 ml, 0.85 mmol, 2.3 eq.) in toluene, under nitrogen and at -78°C. After stirring at -78°C for 1 hour, diethylchlorophosphosfate (80 μl, M.W.=172.55 g/mol, 0.55 mmol, 1.2 g/ml, 1.5 eq.) is added thereto. The mixture is left under stirring at -78°C for 30 minutes, at 0°C for 1.5 hours and at room temperature overnight, then added with water (15 ml) and extracted with AcOEt (3 x 15 ml). The crude (300 mg) is purified by flash silica gel chromatography (AcOEt: hexane 1 : 1) to obtain the desired product (150 mg, M.W =834 g/mol, 0.18 mmol) in a 48% yield. TLC (AcOEt: hexane 1 : 1) Rf = 0.26 Example 27 7-Boc-13-ketobaccatin III 13,14-Boc-enol ester
A solution of 13 -ketobaccatin III (0.525 g, 0.9 mmol) and DMAP (9 mg, 70 mmol) in methylene chloride (5.0 mL) is added with Boc anhydride (0.236 g, 1.10 mmol) under stirring. The solution is left under stirring at room temperature overnight. The solvent is removed under reduced pressure and the oily residue is dissolved in 50% aqueous acetone (10 mL) and left under stirring for 1 hour. The solution is extracted with methylene chloride and the combined organic phases are dried over sodium sulfate and then evaporated. The residue is chromatographed on silica to give 0.36 g of the title product (0.52 mmol, 58%), 80 mg of unreacted product and 50 mg of 7-Boc-13- ketobaccatin III.
[α]D 20 = -35.6° (c 1.05, CHC13); IR (CDC13, cm"1): 3483, 1731, 1676, 1371, 1274; 1H-NMR (CDC13, 400 MHz): δ = 1.20 (s, 3H, Me), 1.22 (s, 3H, Me), 1.47 (s, 9H, 3Me), 1.76 (s, 3H, Me), 1.91 (m, IH, H?-6, Jj = 10.4 Hz, J2 = 14.8 Hz, J3 = 2.0 Hz), 1.92 (b, IH, OH), 2.17 (s, 3H, Me), 2.19 (s, 3H, Me), 2.20 (s, 3H, Me), 2.64 (m, IH, H?-6, Jj = 7.2 Hz, J2 = 14.8 Hz, J3 = 9.5 Hz), 2.66 (d, IH, H-14, J = 19.6 Hz), 2.94 (d, IH, H-14, J = 19.6 Hz), 4.02 (d, IH, H-3, J = 6.8 Hz), 4.09 (d, IH, H-20, J = 9.0 Hz), 4.32 (d, IH, H-20, J = 9.0 Hz), 4.94 (d, IH, H-5, J, = 9.5 Hz, J2 = 2.0 Hz), 5.39 (m, IH, H-7, J}= 10.4 Hz, J2 = 7.2 Hz), 5.67 (d, IH, H-2, J = 6.8 Hz), 6.57 (s, IH, H-10), 7.44-7.50 (m, 2H, arom), 7.61-7.64 (m IH, arom), 8.30 (d, 2H, arom); 13C-NMR (CDClj, 100 MHz): δ = 10.7, 14.0, 18.4, 21.0, 21.9, 27.9, 33.1, 33.6, 42.7, 46.7, 57.3, 72.8, 74.7, 76.3, 76.5, 77.4, 78.7, 80.5, 83.4, 84.0, 128.9, 129.0, 130.3, 134.3, 141.0, 152.4, 152.5, 167.0, 168.3, 170.3, 198.4, 200.5. Anal. Calcd for C^H^O^: C. 63.15; H. 6.48. Found : C. 63.39; H. 6.60. Example 28
7-TES-13-keto-14-(N,N'-bis-(benzyloxycarbonyl)hydrazino)- baccatin III A solution of 13-keto-7-TES-baccatin III (450 mg, 0.64 mmol) in anhydrous THF (12 mL) and DMPU (2.5 mL) under stirring is cooled to -70°C under nitrogen, then added drop by drop with potassium tert-butoxide (1.61 mL, 1M in THF, 1.61 mmol). The solution is stirred at -65°C for 45 minutes, then added with dibenzylazadicarboxylate (276 mg, 90%, 0.82 mmol), checking the reaction by TLC: after 2 hours the conversion is still uncompleted, therefore further dibenzylazadicarboxylate (69 mg, 0.20 mmol) is added. After lh the reaction is treated with acetic acid (0.15 mL, 40% in THF) and left to warm at room temperature, then diluted with a NaCl aqueous saturated solution (10 mL) and extracted with AcOEt (2 x 10 mL). The organic phase is washed with a NaCl aqueous saturated solution (10 mL), dried (Na2SO^) and evaporated. The residue is purified by column chromatography (silica, l-»2% AcOEt in CH2C12) to obtain the title product (451 mg, 70%) and 13-keto-7-TES-baccatin III (45 mg, 10%). Rf = 0.6 (silica, 50% AcOEt in cyclohexane); m.p. 181-182°C (Et20/EtP); 1H-NMR (200 MHz, CDCI3) δ 8.29 (d, J = 7.0 Hz, 2 H, Bz), 7.19-7.55 (m, 13 H, Bz, Ar),
6.87 (s, 1 H, NH), 6.53 (s, IH, 10-H), 5.99 (d, J= 6.6 Hz, 1 H, 2-H), 5.63 (s, 1 H, 14-H), 5.16 (d, J = 3.3 Hz, 2 H, CH2Ph), 5.04 (d, J = 4.8 Hz, 2 H, CH2Ph),
4.88 (d, J= 4.0 Hz, 1 H, 5-H), 4.51 (dd, J = 6.6, 4.0 Hz, 1 H, 7-H), 4.32 (Abq, 2 H, 20-H), 4.01 (d, J= 6.6 Hz, 1 H, 3-H), 2.42-2.61 (m, 1 H, 6-H), 2.23 (s, 3 H, 4-OAc), 2.22 (s, 3 H, 10-OAc), 2.15 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6- H), 1.74 (s, 3 H, 19-Me), 1.29 (s, 3 H, 16-Me), 1.28 (s, 3 H, 17-Me), 0.90-0.98 (t, J= 8.7 Hz, 9 H, Si(CH2CH5)3), 0.58-0.66 (m, 6 H, Si(CH2CH3)3); 13C-NMR (300 MHz, CDClj) δ 200.1, 196.7, 171.9, 169.3, 166.3, 158.1, 157.1, 138.0, 135.5, 135.2, 133.6, 131.3, 129.5, 129.0, 128.9, 128.7, 128.5, 127.7, 84.6, 81.3, 75.8, 75.3, 74.0, 72.5, 69.6, 68.9, 66.3, 59.6, 46.0, 43.7, 37.6, 34.8, 22.2, 21.1, 20.2, 14.2, 10.2, 7.1, 5.6. Example 29 7-TES-13-keto-14-hydrazino-baccatin III
A solution of 13-keto-7-TES-14-(NN'-bw-(benzyloxycarbonyl)- hydrazino)-baccatin (564 mg, 0.55 mmol) in AcOEt (45 mL) is hydrogenated with 10% Pd/C as catalyst (557 mg) for 45 minutes. The catalyst is filtered off through Celite, then the solvent is evaporated off under reduced pressure without heating to obtain the title product (386 mg, 96%). This compound is unstable in various conditions (chromatographic column) and solvents (CDC13). Ry = 0.2 (silica, 5% AcOEt in CH2C12); 1H-ΝMR (200 MHz, CDC13) δ 8.21 (d, J= 7.3 Hz, 2 H, Bz), 7.41-7.61 (m, 3 H, Bz), 6.54 (s, IH, 10-H), 5.85 (d, J= 6.6 Hz, 1 H, 2-H), 5.37 (s, 1 H), 5.18 (s, 1 H), 4.92 (d, J= 8.1 Hz, 1 H, H-5), 4.51 (dd, J= 6.6, 4.1 Hz, 1 H, H-7), 4.29 (s, 2 H, H-20), 3.92 (d, J= 7.0 Hz, 1 H, H-3), 2.47-2.62 (m, 1 H, H-6), 2.25 (s, 3 H, 4-OAc), 2.23 (s, 3 H, 10-OAc), 2.06 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.74 (s, 3 H, 19-Me), 1.31 (s, 3 H, 16-Me), 1.28 (s, 3 H, 17-Me), 0.90-0.98 (t, J= 8.7 Hz, 9 H, Si(CH2CH3)3), 0.58-0.66 (m, 6 H, Si(CH2CH )3). Example 30
7-TES-13-keto-baccatin III [14,l-d]-3,4-dehydrofuran-2-one A solution of 13-keto-7-TES-baccatin (600 mg, 0.86 mmol) in anhydrous THF (20 mL) under stirring is cooled to -70°C under nitrogen, then added drop by drop with potassium tert-butoxide (2.16 mL, 1M in THF, 2.16 mmol) and stirred at -65°C for 45 minutes. Ethyl glyoxylate (0.36 mL, 50% in toluene, 1.29 mmol) is then added checking the reaction by TLC: after 2 hours the conversion is still uncompleted, therefore further dibenzylazadicarboxylate (0.12 mL, 0.43 mmol) is added. After lh the reaction is treated with anhydrous citric acid (290 mg) and left to warm at room temperature, then immediately purified by column chromatography (silica, 10- 20% AcOEt in cyclohexane) to obtain the title product (503 mg, 79%) as a yellow solid. R/= 0.55 (silica, 50% AcOEt in cyclohexane); m.p. 252-253°C (Et20/Etp); 1H-NMR (200 MHz, CDC13) δ 7.97 (d, J= 8.4 Hz, 2 H, Bz), 7.43-7.62 (m, 3 H, Bz), 6.87 (s, 1 H, 21- H), 6.66 (s, IH, 10-H), 6.16 (d, J= 6.9 Hz, 1 H, 2-H), 4.88 (d, J= 8.8 Hz, 1 H, 5-H), 4.50 (dd, J= 6.6, 3.6 Hz, 1 H, 7-H), 4.13-4.24 (Abq, 2H, 20-H), 3.98 (d, J = 6.9 Hz, 1 H, 3-H), 2.49-2.64 (m, 1 H, 6-H), 2.39 (s, 3 H, 4-OAc), 2.27 (s, 3 H, 10-OAc), 2.14 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.75 (s, 3 H, 19-Me), 1.45 (s, 3 H, 16-Me), 1.27 (s, 3 H, 17-Me), 0.91-0.99 (t, J = 8.4 Hz, 9 H, Si(CH2CH3)3), 0.56-0.68 (m, 6 H, Si(CH2CH3)3); 13C (300 MHz, CDC13) δ 199.4, 182.9, 171.0, 169.5, 165.2, 158.7, 156.3, 143.1, 134.7, 130.5, 129.4, 128.7, 127.4, 94.3, 84.4, 77.3, 77.1, 76.4, 72.8, 68.6, 60.8, 47.3, 45.2, 32.9, 22.3, 21.4, 20.8, 14.6, 10.3, 7.4, 5.3; [a]2Q D +72 (c 1, CHC13). Example 31
7-TES-13,14-dehydro-baccatin III [14,l-d]-furan-2-one A solution of 13-keto-7-TES-baccatin [14,l-d]-3,4-dehydrofuran-2-one derivative (90 mg, 0.12 mmol) in AcOEt (10 mL) is hydrogenated with 10% Pd/C as the catalyst (90 mg) for 45 minutes. The catalyst is filtered off through Celite, then the solvent is evaporated off and the residue is purified through a column (silica, 20-»50% AcOEt in cyclohexane) to obtain the title product (67 mg, 75%) as a white solid. Rf = 0.2 (silica, 50% AcOEt in cyclohexane); m.p. 235-236°C (EtOAc/hexane); 1H-NMR (200 MHz, CDC13) δ 8.01 (d, J = 6.9 Hz, 2 H, Bz), 7.44-7.62 (m, 3 H, Bz), 6.43 (s, IH, 10-H), 6.10 (d, J = 6.6 Hz, 1 H, 2-H), 4.98 (ά, J = 5.9 Hz, 1 H, 5-H), 4.44 (dd, J = 6.6, 3.6 Hz, 1 H, 7-H), 4.1 '-4. ,39 (Abq, 2H, 20-H), 3.76 (d, J = 7.0 Hz, 1 H, 3- H), 3.13-3.41 (Abq, 2 H, 21-H), 2.49-2.64 (m, 1 H, 6-H), 2.23 (s, 3 H, 4- OAc), 2.22 (s, 3 H, 10-OAc), 2.20 (s, 3 H; 18-Me), 1.84- 1.98 (m, 1 H, 6-H), 1.74 (s, 3 H, 19-Me), 1.27 (s, 3 H, 16-Me), 1.16 (s, 3 H, 17-Me), 0.90-0.98 (t, J = 8.1 Hz, 9 H, Si(CH2CH3)3), 0.56-0.68 (m, 6 H, Si(CH2CH3)3); 13C (300 MHz, CDC13) δ 201.5, 175.0, 170.1, 169.6, 164.9, 148.7, 136.8, 134.9, 133.8, 129.6, 128.8, 128.7, 102.2, 92.4, 84.1, 80.8, 76.1, 75.9, 72.2, 70.4, 58.4, 45.0, 39.6, 37.3, 32.0, 28.1, 21.3, 20.9, 19.6, 13.5, 10.0, 6.7, 5.3. Example 32
7-TES-baccatin [14,l-d]-3,4-dehydrofuran-2-one A solution of Bu^NBH^ (180 mg, 0.7 mmol) in MeOH (10 mL) under stirring is cooled to -30°C, then dropped into a solution of 7-TES-13-keto- baccatin [14,l-d]-3,4-dehydrofuran-2-one (200 mg, 0.28 mmol) in THF (1 mL). After 30 minutes the reaction mixture is treated with citric acid (180 mg) and left to warm at room temperature. After addition of water (10 mL), the mixture is extracted with AcOEt (2 x 10 mL) and the organic phase is washed with water (5 mL), dried over Na2SO^ and evaporated. The residue is purified by silica gel chromatography (20-»30% AcOEt in cyclohexane) to obtain 7- TES-13,14-dehydro-baccatin [14,l-d]-furan-2-one (103 mg, 52%) and the title product (52 mg, 26%) as white solids.
R = 0.15 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 8.02 (d, J = 6.9 Hz, 2 H, Bz), 7.40-7.63 (m, 3 H, Bz), 6.47 (s, 1 H, 21-H), 6.25 (s, IH, 10-H), 6.12 (d, J= 8.1 Hz, 1 H, 2-H), 5.14 (m, 1 H, 13-H), 4.92 (d, J = 8.1 Hz, 1 H, 5-H), 4.55 (dd, = 7.0, 3.6 Hz, 1 H, 7-H), 4.15-4.30 (Abq, 2H, 20-H), 4.07 (d, J= 8.0 Hz, 1 H, 3-H), 2.49-2.56 (m, 1 H, 6-H), 2.28 (s, 3 H, 4-OAc), 2.22 (s, 3 H, 10-OAc), 2.13 (s, 3 H; 18-Me), 1.84-1.97 (m, 1 H, 6-H), 1.80 (s, 3 H, 19-Me), 1.35 (s, 3 H, 16-Me), 1.27 (s, 3 H, 17-Me), 0.90-0.99 (t, J= 8.1 Hz, 9 H, Si(CH2CH3)3), 0.58-0.65 (m, 6 H, Si(CH2CH3)3).
Example 33
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 7-TES-baccatin [14,l-d]-3,4-dehydrofuran-2-one
Preparation of N-Boc-N, 0-(2,4-dimethoxybenzylidene)-β- isobutylisoserine
N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserine sodium salt (72 mg, 0.168 mmol) is dissolved in water (5 mL) and added with CH2C12 (3 mL). An NaHSO^ aqueous solution (2M, 0.15 mL) is dropped therein to adjust pH to 3.0. After stirring for some minutes, the organic phase is separated and the aqueous phase is extracted with CH2C12 (2 mL). The combined organic extracts are washed with water (5 mL) and with a NaCl saturated solution (5 mL), dried over Na2SO^ and evaporated to obtain the free acid (68 mg, 100%) as a white solid.
Esterification
7-TES-13,14-dehydro-baccatin [14,l-d]-furan-2-one (100 mg, 0.14 mmol) is suspended in toluene (4 mL) and added drop by drop with N-Boc- N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserine (68 mg, 0.168 mmol) dissolved in CH2C12 (2 mL), then with N,N-dimethylaminopyridine (DMAP) (7 mg) and dicyclohexylcarbodiimide (DCC) (35 mg, 0.168 mmol). The reaction mixture is heated at 70°C for 3 hours, then left to cool and kept at room temperature until complete precipitation of DCU. The precipitate is filtered (DCU) and washed with toluene (2 x 3 mL), then the filtrate is washed with saturated NaHC03 (5 mL), then with 0.4 M HCl (10 mL) to remove DMAP and finally with saturated NaHC03 (5 mL). The organic phase is dried over a2SO^ and evaporated to dryness. The residue is purified by column chromatography (20→30% AcOEt in cyclohexane) to obtain a first fraction containing the title product (88 mg, 56%). R = 0.55 (silica, 20% AcOEt in cyclohexane); m.p. 150- 153°C (iPR20/EtP);lH-NMR (200 MHz, CDC13) δ 7.97 (d, J= 7.0 Hz, 2 H, Bz), 7.42-7.60 (m, 3 H, Bz), 7.19-7.25 (m, IH, ), 6.68 (s, IH, 10-H), 6.46-6.54 (m, 2 H, ), 6.03 (s, 1 H, ), 5.98 (d, J= 5.1 Hz, 1 H, 2-H), 5.81 (s, IH, ), 5.05-5.13 (m, 1 H, 4.91 (d, J= 7.0 Hz, 1 H, 5-H), 4.42 (m, 1 H, 7-H), 4.28 (s, 2H, 20-H), 3.95 (d, J = 5.5 Hz, 1 H, 3-H), 3.89 (s, 3 H, O-Me), 3.85 (s, 3 H, O-Me), 2.81 (s, 1 H, 13-H), 2.49-2.64 (m, 1 H, 6-H), 2.34 (s, 3 H, 4-OAc), 2.22 (s, 3 H, 10-OAc), 2.08 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.69 (s, 3 H, 19-Me), 1.27 (s, 3 H, 16-Me), 1.24 (s, 3 H, 17-Me), 1.03-1.13 (, 9 H, N-Boc), 0.90-0.97 (t, J= 7.7 Hz, 9 H, Si(CH2CH3)3), 0.54-0.62 (m, 6 H, Si(CH2CH3)3); 13C (300 MHz, CDC13) δ 203.5, 170.6, 170.2, 168.8, 164.5, 161.7, 159.1, 155.7, 139.0, 138.5, 133.9, 130.0, 129.6, 129.0, 128.7, 128.3, 127.8, 118.8, 104.3, 98.6, 90.0, 87.0, 84.3, 81.3, 80.8, 79.5, 75.0, 73.6, 72.9, 72.1, 67.7, 60.1, 58.9, 56.9, 55.4, 50.9, 50.1, 45.4, 43.7, 39.3, 38.3, 37.4, 29.7, 29.1, 28.2, 26.9, 25.5, 22.8, 22.6, 22.5, 21.1, 19.8, 15.9, 9.5, 6.8, 5.6; [α]20 D +44 (c 0.25, CHC13). Example 34
13-[N-Boc-N,0-(2,4-dimethoxybenzyIidene)-β-isobutylisoserinoyl]- baccatin [14,l-d]-3,4-dehydrofuran-2-one
A solution of 13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β- isobutylisoserinoyl]-7-TES-baccatin [14,l-d]-3,4-dehydrofuran-2-one (63 mg, 0.056 mmol) in acetonitrile (3 mL) and pyridine (3 mL) is stirred in polyethylene container and cooled to 0°C. A solution of HF-pyridine (0.4 mL) is slowly added thereto, then the mixture is left to warm at room temperature and kept under stirring for 24 hours, then poured in cold water (10 mL) and extracted with CH2C12 (2 x 5 mL). The organic phase is washed with 2M NaHS04 to pH 2, then with 5% NaHC03 (5 mL) and finally with a NaCl saturated solution (5 mL). The mixture is dried over Na2S0 and the solvent is evaporated off. The residue is purified by column chromatography (25-»35% AcOEt in cyclohexane) to obtain the title product (45 mg, 80%) as a white solid. R7 = 0.3 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 7.95 (d, J = 7.5 Hz, 2 H, Bz), 7.43-7.59 (m, 3 H, Bz), 7.22-7.27 (m, IH, ), 6.66 (s, IH, 21-H), 6.51-6.54 (m, 2 H, ), 5.99 (d, J = 5.5 Hz, 1 H, 2-H), 5.84 (s, 1 H, ), 5.57 (s, IH, 10-H), 5.05-5.13 (m, 1 H,), 4.90 (d, J = 7.0 Hz, 1 H, 5-H), 4.70(=), 4.42 (m, 1 H, 7-H), 4.30-4.32 (ABq, 2H, 20-H), 3.89 (s, 3 H, O-Me), 3.86 (d, J = 5.5 Hz, 1 H, 3-H), 3.84 (s, 3 H, O-Me), 3.03 (s, 1 H, 13- H), 2.49-2.64 (m, 1 H, 6-H), 2.34 (s, 3 H, 4-OAc), 2.27 (s, 3 H, 10-OAc), 1.88 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.69 (s, 3 H, 19-Me), 1.27 (s, 3 H, 16-Me), 1.25 (s, 3 H, 17-Me), 1.07-1.12 (9 H, N-Boc). 13C (300 MHz, CDC13) δ 205.6, 172.2, 171.2, 170.1, 169.0, 164.9, 162.1, 159.4, 155.6, 153.5, 139.2, 137.6, 134.3, 130.3, 129.3, 129.1, 128.5, 127.9, 119.0, 114.2, 104.6, 98.9, 90.5, 87.2, 84.7, 81.6, 81.2, 79.8, 76.8, 72.0, 68.3, 59.2, 58.4, 57.5, 55.9, 55.8, 44.0, 39.4, 38.1, 35.8, 30.0, 29.3, 28.5, 25.8, 23.2, 22.9, 22.8, 21.3, 20.8, 16.3, 9.5; [αJ20 D +82 (c 0.9, CHC13). Example 35
13-(N-Boc-β-isobutylisoser_noyl)-baccatin [14,l-d]-3,4- dehydrofuran-2-one
A solution of 13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β- isobutylisoserinoylj-baccatin [14,l-d]-3,4-dehydrofuran-2-one derivative (44 mg, 0.04 mmol) in CH2C12 (4 mL) under stirring is cooled to 0°C. A solution of acetyl chloride in methanol (0.01 M, 0.7 mL) is dropped into the mixture, which is left to warm at room temperature, checking the reaction by TLC: after 18 hours the starting product is still partly present, therefore a further amount of acetyl chloride solution (0.3 mL) is added. After 3 hours a NH C1 saturated solution (4 mL) is added and the organic phase is dried over Na2S04 and evaporated. The residue is purified by column chromatography (25-»35% AcOEt in cyclohexane) to obtain the title product (30 mg, 85%) as a white solid. Rf = 0.2 (silica, 50% AcOEt in cyclohexane); m.p. 149-154°C (CH2Cl2/iPR20); 1H-NMR (200 MHz, CDC13) δ 7.95 (d, J = 7.4 Hz, 2 H, Bz), 7.42-7.60 (m, 3 H, Bz), 6.16 (s, IH, 21-H), 5.99 (d, J = 5.5 Hz, 1 H, 2-H), 5.57 (s, IH, 10-H), 4.90 (dd, .7 =3.7, 6.2 Hz, 1 H, 5-H), 4.77 (d, J= 10.2 Hz, 1 H, NH), 4.30-4.47 (m, 4 H, 2'-H, 7-H, 20-H, 3'-H), 3.81 (d, J = 5.5 Hz, 1 H, 3- H, 3.00 (s, 1 H, 13-H), 2.49-2.61 (m, 1 H, 6-H), 2.45 (s, 3 H, 4-OAc), 2.27 (s, 3 H, 10-OAc), 1.84-1.97 (m, 1 H, 6-H), 1.83 (s, 3 H; 18-Me), 1.69 (s, 3 H, 19- Me), 1.44 (s, 9 H, N-Boc), 1.27 (s, 3 H, 16-Me), 1.24 (s, 3 H, 17-Me), 1.01- 1.07 (m, 8 H, ); 13C (300 MHz, CDC13) d 205.4, 172.0, 171.6, 171.3, 170.0, 164.8, 156.1, 154.8, 139.7, 136.3, 134.0, 130.3, 128.9, 128.4, 115.5, 90.1,
84.6, 81.2, 81.0, 77.8, 76.7, 73.3, 71.9, 68.1, 58.3, 57.4, 51.2, 42.3, 39.1, 38.1,
35.7, 29.9, 29.1, 28.5, 25.0, 23.4, 23.3, 22.4, 21.2, 20.6, 16.4, 9.3.
Example 36 13-Carbethoxy-7-TES-13,14-dehydro-baccatin A solution of 13-keto-7-TES-baccatin (150 mg, 0.21 mmol) in anhydrous THF (5 mL) and DMPU (1 mL) under stirring is cooled to -70°C under nitrogen. Potassium tert-butoxide (0.54 mL, 1M in THF, 0.54 mmol) is dropped therein and the mixture is kept under stirring at -65°C for 45 minutes, then added with ClCOOEt (31L, 0.31 mmol), checking the reaction by TLC: after 2h30min, acetic acid (0.05 mL, 40% in THF) is dropped in the mixture, which is left to warm at room temperature. After dilution with a NaCl saturated solution (5 mL), the reaction mixture is extracted with AcOEt (2 x 5 mL) and the organic phase is washed with a NaCl saturated solution (5 mL), dried (Na24) and evaporated. The residue is purified by chromatography on silica (l->5% AcOEt in CH2C12) to obtain the title product (136 mg, 82%).
Rf = 0.55 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 8.09 (d, J= 7.0 Hz, 2 H, Bz), 7.45-7.62 (m, 3 H, Bz, ), 6.45 (s, IH, 10- H), 5.83 (d, J = 7.4 Hz, 1 H, 2-H), 5.38 (s, 1 H, 14-H), 4.98 (d, J= 8.4 Hz, 1 H, 5-H), 4.46 (dd, J = 6.9, 3.7 Hz, 1 H, 7-H), 4.16-4.35 (m, 4 H, 20-H, COOCiY2CH3,), 3.76 (d, J= 5.5 Hz, 1 H, 3-H), 2.47-2.62 (m, 1 H, 6-H), 2.28 (s, 3 H, 4-OAc), 2.20 (s, 3 H, 10-OAc), 2.04 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6- H), 1.72 (s, 3 H, 19-Me), 1.46 (s, 3 H, 16-Me), 1.37 (s, 3 H, 17-Me), 1.33 (m, 3 H, COOC_ 2CH3), 0.90-0.98 (t, J = 8.7 Hz, 9 H, Si(CH2CH3)3), 0.57-0.65 (m, 6 H, Si(CH2CH3)3); 13C-NMR (300 MHz, CDC13) δ 201.5, 170.3, 169.3, 166.5, 153.0, 151.2, 136.9, 134.6, 133.7, 130.0, 129.3, 128.6, 119.1, 84.0, 80.6, 80.5, 75.3, 73.0, 72.2, 65.3, 58.3, 44.8, 41.0, 37.2, 27.6, 21.7, 21.0, 18.9, 14.2, 13.5, 10.0, 6.8, 5.3. Example 37
13-carbobenzyloxy-7-TES-13,14-dehydro-baccatin III A solution of 13-keto-7-TES-baccatin III (150 mg, 0.21 mmol) in anhydrous THF (5 mL) and DMPU (1 mL) under stirring is cooled to -70°C under nitrogen. Potassium tert-butoxide (0.54 mL, 1M in THF, 0.54 mmol) is dropped in the mixture, which is kept under stirring at -65°C for 45 minutes, then added with ClCOOCH2Ph (49μL, 0.31 mmol), checking the reaction by TLC: after 2h30 min acetic acid (0.05 mL, 40% in THF) is dropped into the reaction, which is left to warm at room temperature. After dilution with a NaCl saturated solution (5 mL), the reaction mixture is extracted with AcOEt (2 x 5 mL) and the organic phase is washed with a NaCl saturated solution (5 mL), dried (Na2S04) and evaporated. The residue is purified by chromatography on silica (l-»3% AcOEt in CH2C12) to obtain the title product (117 mg, 67%).
R = 0.6 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 8.09 (d, J = 7.0 Hz, 2 H, Bz), 7.37-7.62 (m, 8 H, Bz, Ar,), 6.44 (s, IH, 10-H), 5.83 (d, J= 7.4 Hz, 1 H, 2-H), 5.39 (s, 1 H, 14-H), 5.25 (s, 2 H, CH2), 4.97 (d, J = 8.0 Hz, 1 H, 5-H), 4.45 (dd, J= 7.0, 3.7 Hz, 1 H, 7-H), 4.15-4.30 (Abq, 2H, 20- H), 3.74 (d, J= 7.4 Hz, 1 H, 3-H), 2.47-2.62 (m, 1 H, 6-H), 2.25 (s, 3 H, 4-OAc), 2.20 (s, 3 H, 10-OAc), 2.01 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.72 (s, 3 H, 19-Me), 1.44 (s, 3 H, 16-Me), 1.28 (s, 3 H, 17-Me), 0.90-0.98 (t, J= 8.7 Hz, 9 H, Si(CH2CH3)3), 0.57-0.65 (m, 6 H, Si(C_ 2CH3)3); 13C-NMR (300 MHz, CDC13) δ 201.5, 170.3, 169.3, 166.5, 153.0, 151.3, 137.0, 134.5, 133.7, 130.1, 129.3, 129.0, 128.8, 128.7, 128.6, 119.1, 84.0, 80.6, 80.5, 76.3, 75.3, 73.0, 72.2, 70.7, 58.3, 44.8, 41.0, 37.2, 27.7, 21.7, 21.0, 18.9, 13.5, 10.0, 6.8, 5.3.
Example 38
14-__ydroxy-13-keto-7-TES-baccatin III 1,14-suIfite
A solution of 14-hydroxy-13-keto-7-TES-baccatin (300 mg, 0.42 mmol) in Anhydrous CH2C12 (3 mL) is dropped into a solution of SOCl2 (0.092 mL, 1.26 mmol) and triethylamine (0.35 mL, 2.52 mmol) in anhydrous CH2C12 (6 mL) at 0°C. The reaction mixture is kept under stirring for 20 minutes, then poured into ice- water (10 mL) and the separated organic phase is washed with water (10 mL), dried (Na2S04) and evaporated. The residue is purified by silica chromatography (10—>20% AcOEt in cyclohexane) to obtain the two sulfite isomers A (86 mg, 27%) and B (201 mg, 63%) as yellow solids.
Isomer A- Rf = 0.65 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 8.09 (d, J = 7.0 Hz, 2 H, Bz), 7.44-7.65 (m, 3 H, Bz), 6.59 (s, IH, 10-H), 6.16 (d, J = 6.2 Hz, 1 H, 2-H), 5.16 (s, 1 H, 14-H), 4.92 (d, J = 8.4 Hz, 1 H, 5-H), 4.50 (dd, J = 6.6, 3.6 Hz, 1 H, 7-H), 4.12-4.38 (Abq, 2H, 20-H), 3.99 (d, J = 6.6 Hz, 1 H, 3-H), 2.49-2.64 (m, 1 H, 6-H), 2.25 (s, 3 H, 4-OAc), 2.23 (s, 3 H, 10-OAc), 2.19 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.71 (s, 3 H, 19-Me), 1.39 (s, 3 H, 16-Me), 1.15 (s, 3 H, 17-Me), 0.91-0.99 (t, J= 8.7 Hz, 9 H, Si(CH2Ci_r 3)3), 0.58-0.66 (m, 6 H, Si(CH2CH3)3); MS: 760 M/Z.
Isomer B- Rf= 0.60 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 8.03 (d, J = 7.3 Hz, 2 H, Bz), 7.49-7.68 (m, 3 H, Bz), 6.55 (s,
IH, 10-H), 6.13 (d, J = 6.9 Hz, 1 H, 2-H), 4.92 (d, J = 8.4 Hz, 1 H, 5-H), 4.90
(s, 1 H, 14-H), 4.50 (dd, j = 6.3, 4.0 Hz, 1 H, 7-H), 4.12-4.37 (Abq, 2H, 20-
H), 3.91 (d, J = 6.6 Hz, 1 H, 3-H), 2.49-2.64 (m, 1 H, 6-H), 2.26 (s, 3 H, 4- OAc), 2.25 (s, 3 H, 10-OAc), 2.21 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.75 (s, 3 H, 19-Me), 1.35 (s, 6 H, 16,17-Me), 0.91-0.99 (t, J = 8.7 Hz, 9 H, Si(CH2CH3)3), 0.58-0.66 (m, 6 H, Si(C_Y2CH2)3); MS: 760 M/Z. Example 39 14-hydroxy-13-keto-7-TES-baccatin III 1,14-sulfate
Method A: a solution of 14-hydroxy-13-keto-7-TES-baccatin III (300 mg, 0.42 mmol) in anhydrous CH2C12 (3 mL) is dropped into a solution of S02C12 (0.1 mL, 1.26 mmol) and triethylamine (0.35 mL, 2.52 mmol) in Anhydrous CH2C12 (6 mL) at 0°C. The reaction mixture is kept under stirring for 20 minutes, then poured into ice-water (10 mL) and the separated organic phase is washed with water (10 mL), dried (Na2S04) and evaporated. The residue is purified by chromatography on silica (10- 20% AcOEt in cyclohexane) to obtain the title product (145 mg, 45%) and a less polar product (53 mg) as yellow solids. Method B: a solution of 14-hydroxy-13-keto-7-TES-baccatin III 1,14- sulfite (isomer B) (91 mg, 0.12 mmol) in CC14 (2 mL) and CH3CN (2 mL) is cooled to 0°C, then added in sequence with RuCl (1 mg), NaI0 (38 mg, 0.18 mmol) and finally water (3 mL): the reaction mixture becomes dark and is stirred for 15 minutes, then poured into ethyl ether (10 mL) and the two phases are separated. The aqueous phase is extracted with ethyl ether (5 mL) and the combined organic phases are dried (Na24) and evaporated to obtain the title product (90 mg, 97%).
Rf = 0.65 (silica, 50% AcOEt in cyclohexane); 1H-NMR (200 MHz, CDC13) δ 8.09 (d, J = 7.0 Hz, 2 H, Bz), 7.46-7.65 (m, 3 H, Bz), 6.59 (s, IH, 10-H), 6.18 (d, J = 6.6 Hz, 1 H, 2-H), 5.10 (s, 1 H, 14-H), 4.92 (d, J= 7.6 Hz, 1 H, 5-H), 4.47 (dd, J = 6.9, 3.7 Hz, 1 H, 7-H), 4.08-4.38 (Abq, 2H, 20-H), 3.88 (d, J = 6.6 Hz, 1 H, 3-H), 2.49-2.64 (m, 1 H, 6-H), 2.31 (s, 3 H, 4-OAc), 2.27 (s, 3 H, 10-OAc), 2.24 (s, 3 H; 18-Me), 1.84-1.98 (m, 1 H, 6-H), 1.70 (s, 3 H, 19-Me), 1.44 (s, 3 H, 16-Me), 1.36 (s, 3 H, 17-Me), 0.91-0.99 (t, J = 8.4 Hz, 9 H, Si(CH2CH3)3), 0.58-0.66 (m, 6 H, Si(CH" 2CH3)3). Example 40
14β-hydroxy-2-debenzoyl-2- -methoxybenzoyl-7-TES-13- ketobaccatin III
A solution 1M in THF of t-BuOK (2.5 ml, 0.86 mmol) cooled to -50°C is dropped into a solution of 2-debenzoyl-2-w-methoxybenzoyl-7-TES-13- ketobaccatin III (670 mg, 0.96 mmol) in anhydrous THF (9 ml) and DMPU (2 ml), cooled at -50°C. The solution is kept under stirring at -60°C for 45 minutes, then added drop by drop with a solution of (±)-camphorsulfonyl- oxaziridine (440 mg, 2 mmol) in anhydrous THF (2 ml). The mixture is stirred for 3 hours at -60°C then treated with a 10% glacial acetic acid solution in anhydrous THF (2 ml). The mixture is left to warm at room temperature, then extracted with DCM (2 x 10 ml). The combined organic phases are washed with water, brine, and dried over Na2S0 . The crude product is used for the subsequent step without further purification. 1H-NMR (200 MHz, CDC13) δ 0.58-0.66 (m, 6H, Si-CH2); 0.91-0.99 (t, J=8.7, 9H, CH2CH3); 1.24 (s, 3H, 17- Me); 1.28 (s, 3H, 16,-Me); 1.75 (s, 3H, 19-Me); 1.83-2.05 (m, IH, 6-H); 2.14 (s, 3H, 18-Me); 2.24 (s, 3H, 10-OAc); 2.26 (s, 3H, 4-OAc); 2.46-2.61 (m, IH, 6-H); 3.64 (s, IH, 1-OH) 3.73 (d, =1.8, IH, 14-OH); 3.87 (d, 7 =6.9, IH, 3- H); 4.14 (d, 7=1.8, IH, 14-H); 4.31 (s, 2H, 20-H); 4.49 (dd, 7 =10.7, 6.6, IH, 7-H); 4.93 (d, 7=7.3, IH, 5-H); 5.89 (d, 7= 7.0, IH, 2-H); 6.53 (s, IH, 10-H); 7.54 (2', 1 H, m), 7.13 (4', 1 H, dd, 7.9, 3.0), 7.36 (5', 1 H, t, 7.9 Hz), 7.61 (6', I H, d 7.9), 3.85 (OMe, 3 H, s). Example 41
14β-hydroxy-2-debenzoyl-2-/w-methoxybenzoyl-7-TES-13- ketobaccatin III 1,14-carbonate
A solution of 14β-hydroxy-2-debenzoyl-2- -methoxybenzoyl-7-TES- 13 -ketobaccatin III (12.2 g) in anhydrous DCM (50 ml) and pyridine (16 ml) is dropped into a 20% phosgene solution in DCM (45 mL, 5 eq) at -10°C. After 2 hours, a 5% NaHC0 aqueous solution (100 ml) is dropped therein. The aqueous phase is back-extracted with DCM (3 x 50 ml). The combined organic phases are dried over sodium sulfate and evaporated. The reaction product crude is purified by flash chromatography (silica gel, DCM- AcOEt=50: l) to give the desired compound in 95% yield. 1H-NMR (200 MHz, CDC13) δ 0.58-0.66 (m, 6H, Si-CH2); 0.91-0.99 (t, 7 =8.7, 9H, CH2CH3); 1.21 (s, 3H, 17-Me); 1.39 (s, 3H, 16,-Me); 1.75 (s, 3H, 19-Me); 1.86-2.13 (m, IH, 6-H); 2.22 (s, 3H, 18-Me); 2.25 (s, 3H, 10-OAc); 2.26 (s, 3H, 4-OAc); 2.48- 2.63 (m, IH, 6-H); 3.83 (d, 7=7.0, IH, 3-H); 4.30 (ABq, 2H, 20-H); 4.49 (dd, 7 =11.0, 7.0, IH, 7-H); 4.81 (s, IH, 14-H); 4.93 (d, 7 =7.3, IH, 5-H); 6.15 (d, 7 = 7.0, IH, 2-H); 6.54 (s, IH, 10-H); 7.54 (2', 1 H, m), 7.13 (4', 1 H, dd, 7.9, 3.0), 7.36 (5', 1 H, t, 7.9 Hz), 7.61 (6', 1 H, d 7.9), 3.85 (OMe, 3 H, s). Example 42
14β-hydroxy-2-debenzoyl-2-wϊ-methoxybenzoyl-7-TES-baccatm III 1,14-carbonate
A suspension of tetraethylammonium borohydride (12 eq) in absolute methanol (10 ml) is cooled to -50°C and added to a solution of 14β-hydroxy- 2-debenzoyl-2-τw-methoxybenzoyl-7-TES-13-ketobaccatin III 1,14-carbonate (0.5 g, 0.6 mmol) in methanol (10 ml). After disappearance of the starting material (8 h), the reaction is treated with citric acid, then extracted with ethyl acetate. The combined organic phases are dried over sodium sulfate and evaporated. The resulting crude is purified by chromatography to give the desired compound in a 60% yield. 1H-NMR (200 MHz, CDC13) δ 0.58-0.66 (m, 6H, Si-CH2); 0.91-0.99 (t, 7 = 8.7, 9H, CH2CH3); 1.16 (s, 3H, 17-Me); 1.28 (s, 3H, 16,-Me); 1.74 (s, 3H, 19-Me); 1.85-2.14 (m, IH, 6-H); 2.06 (s, 3H, 18-Me); 2.21 (s, 3H, 10-OAc); 2.33 (s, 3H, 4-OAc); 2.47-2.65 (m, IH, 6- H); 3.74 (d, 7 = 7.4, IH, 3-H); 4.12-4.35 (m, 2H, 20-H); 4.49 (dd, 7 = 10.3, 6.6, IH, 7-H); 4.82 (d, IH, 14-H); 4.99 (d, 7 = 7.3, IH, 5-H); 5.00-5.03 (m, IH, 13-H); 6.11 (d, 7 = 7.4, IH, 2-H); 6.45 (s, IH, 10-H), 7.54 (2', 1 H, m), 7.13 (41, 1 H, dd, 7.9, 3.0), 7.36 (5', 1 H, t, 7.9 Hz), 7.61 (6', 1 H, d 7.9), 3.85 (OMe, 3 H, s).
Example 43
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 14β-hydroxy-2-debenzoyl-2-m-methoxybenzoyl-7-TES-baccatin III 1,14- carbonate The product is obtained from 14β-hydroxy-2-debenzoyl-2-/w- methoxybenzoyl-7-TES-baccatin III 1, 14-carbonate following the same procedure as described in Example 33. 1H-NMR: (CDC13, 300 MHz) δ 6.17, (H2, d, 8.5 Hz), 3.78, (H3, d, 8.3Hz), 4.95, (H5, dd, 9.5, 1.1 Hz), 2.54, (H6α, m), 1.90, (H6β, m), 3.96, (H7, d, 6.7 Hz), 6.51, (H10, s), 6.49, (H13, m), 4.87, (H14, d, 6.8 Hz), 1.40, (H16, s), 1.35, (H17, s), 2.18, (H18, s ), 1.76, (H19, s), 4.29, (H20α, AB System, 22.6, 8.3 Hz), 6.51, (H2', m), 7.29, (H3*, m), 1.65, (H4'5 m), 1.88, (H5\ m), 1.12, (H6', d, 6.3 Hz), 1.12, (H7*, d, 6.3 Hz), 2.34, (4 Ac, s), 2.24, (10 Ac, s), 1.40, (Boc, s), 8.06, 6.51, (2,4diMeOPhCH, m), 3.91, (MeO Ph, s), 3.86, (MeO Ph, s), 2.81, (OH, br s), 1.56, (OH, br s), 0.97, (CH3Tes, t, 8.1), 0.62, (CH2Tes, q, 8.1 Hz), 7.54 (2', 1 H, m), 7.13 (4*, 1 H, dd, 7.9, 3.0), 7.36 (5', 1 H, t, 7.9 Hz), 7.61 (6', 1 H, d 7.9), 3.85 (OMe, 3 H, s). Example 44
13-[N-Boc-N,0-(2,4-dimethoxybenzylidene)-β-isobutylisoserinoyl]- 14β-hydroxy-2-debenzoyI-2-/«-methoxybenzoylbaccatin III 1,14-carbonate The product is obtained from 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-14β-hydroxy-2-debenzoyl-2-w- methoxybenzoyl-7-TES-baccatin III 1,14-carbonate following the same procedure as described in Example 34. 1H-NMR: (CDC13, 300 MHz) δ 6.16 (H2, d 7.5 Hz), 3.78 (H3, d 7.4 Hz), 4.98 (H5, dd 9.5, 2.2 Hz), 2.59 (H6α, ddd 15.0, 9.8, 6.4 Hz), 1.94 (H6β, ddd 14.9, 11.4, 2.7 Hz), 4.48 (H7, dd 10.9, 6.5 Hz), 6.34 (H10, s), 6.52 (H13, m ), 4.87 (H14, d 6.7 Hz), 1.40 (H16, s), 1.33 (H17, s), 2.05 (HI 8, s), 1.76 (H19, s), 4.33 (H20α, d 8.3), 4.27 (H20β, d 8.3 Hz), 6.53 (H2', m), 7.29 (H3r, m), 1.65-1.88 (H4',m), 1.77 (H5*, m), 1.11 (H6\ d 6.2 Hz), 1.11 (H7', d 6.2 Hz), 2.30(4 Ac, s), 2.34(10 Ac,s), 1.40 (Boc, s), 6.51-6.57(2,4 diMeOPhCH, m), 3.91(MeO Ph, s), 3.86(MeO Ph, s), 2.81(OH, br s) 7.54 ( , 1 H, m), 7.13 (4', 1 H, dd, 7.9, 3.0), 7.36 (5', 1 H, t, 7.9 Hz), 7.61 (6', 1 H, d 7.9), 3.85 (OMe, 3 H, s). Example 45
13-(N-Boc-β-isobutylisoserinoyl)-14β-hydroxy-2-debenzoyl-2-/«- methoxybenzoylbaccatin III 1,14-carbonate
The product is obtained from 13-[N-Boc-N,0-(2,4- dimethoxybenzylidene)-β-isobutylisoserinoyl]-14β-hydroxy-2-debenzoyl-2- - methoxybenzoyl-7-TES-baccatin III 1, 14-carbonate following the same procedure as described in Example 35. 1H-NMR (200 MHz, CDC13) δ 6.09 (2, 1 H, d, 7.3 Hz), 3.68 (3, 1 H, d, 7.4 Hz), 4.93 (5, 1 H, dd, 9.7, 2.5 Hz), 2.52 (6α, 1 H, ddd, 14.8, 9.8, 6.9 Hz), 1.86 (6β, 1 H, m), 4.37 (7, 1 H, m), 6.25 (10, 1 H, s), 6.44 (13, 1 H, d, broad, 6.9 Hz), 4.83 (14, 1 H, d, 6.9 Hz), 1.26 (16, 3 H, s), 1.33 (17, 3 H, s), 1.88 (18, 3 H, d, 1.6 Hz), 1.70 (19, 3 H, s), 4.32 (20a, 1 H, d, 8.3 Hz), 4.20 (20b, 1 H, d, 8.3 Hz), 2.46 (4-C02CH3, 3 H, s), 2.23 (10- C02CH3, 3 H, s), 4.30 ( , 1 H, dd, 6.4, 3.2 Hz), 4.08 (3', 1 H, m), 1.21 (4'a, 1 H, m), 1.43 (4'b, 1 H, m), 1.68 (5', 1 H, m), 0.96 (6'a, 3 H, d, 6.3 Hz), 0.95 (6'b, 3 H, d, 6.3 Hz), 1.34 (Boc, 9 H, s), 4.73 (NH, 1 H, d, 9.8. Hz), 7.54 (2", 1 H, m), 7.13 (4", 1 H, dd, 7.9, 3.0), 7.36 (5", 1 H, t, 7.9 Hz), 7.61 (6", 1 H, d 7.9), 3.85 (OMe, 3 H, s).

Claims

1. Compounds of formula III
Figure imgf000055_0001
wherein
X is -N3, -NH2, -NH-R3, =CH-R8, or -0-R3 when R6 is different from phenyl, R2 is hydrogen or acyl;
R3 is C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl, thiocarbonyl, SO, S02 group;
R is hydrogen or, taken together with R3 or R8, forms the groups specified in the respective definitions of R3 and R8; R5 is hydrogen or an alcohol-protecting group; R6 is aryl, substituted aryl, heteroaryl, with the proviso that it is different from phenyl when X = OR3;
R8 is hydrogen, C C4 alkyl, C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl group; R9 is an acyl or hydroxyaminoacyl group.
2. A process for the preparation of compounds of formula III from compounds of formula II
Figure imgf000055_0002
wherein
E is -N3, -NH-R3, =CH-R8 or -0-R3 when R6 is different from phenyl, and R2, R5, R4 and R6 are as defined in claim 1, which process comprises: a) reduction of the C13 carbonyl to give compounds of formula VII
Figure imgf000056_0001
VII wherein
X is -0-R3, -N3, -NH-R3, -CH2-R8;
Y and Z are hydrogen or, when X is -CH2-R8, are taken together to form a double bond; and the other groups are defined as above; b) esterification at the 13- position with derivatives of acids of formula
IX to give compounds of formula VIII
Figure imgf000056_0002
VIII wherein
R4, R5, R6, R9 and X are as defined above; c) optional cleavage of the protective groups.
3. A process for the preparation of compounds of formula II from compounds of formula I,
Figure imgf000057_0001
IV II wherein
Ri is an alcohol-protecting group;
R2 is an acyl group or an alcohol-protecting group;
E is -OH, -0-R3, =N2, -N3, -NH22, -NH-R3, -NH-NH2, -NH-N=N- Ts, -NH-N=N-_3oc, -N(C02R7)NHC02R7, =CH-R8;
Ts is p-toluenesulfonyl;
R3 is C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl, thiocarbonyl, SO, S02 group;
R4 is hydrogen or, taken together with R3 or R8, forms the groups specified in the respective definitions of R3 and R8;
R5 is hydrogen or an alcohol-protecting group;
R6 is aryl, substituted aryl, heteroaryl;
R7 is a C1-C4 alkyl, aryl or arylalkyl group,
R8 is hydrogen, C1-C alkyl, C1-C4 alkoxycarbonyl or, taken together with R , forms a carbonyl group, which process comprises: a) treating the 7-protected 13 -ketobaccatin of formula I with bases to form an enolate intermediate of formula IV; b) quenching the enolate IV with a suitable electrophile which can be converted to an E group or with an acylating, alkylating or silylating agent to give compounds of formula V
Figure imgf000058_0001
V wherein R10 is an alkyl, acyl or silyl group, which can then be converted into compounds II.
4. A process for the preparation of compounds of formula XIV starting from compounds of formula XIII
Figure imgf000058_0002
XIII XIV wherein
R2 is an acyl group or an alcohol-protecting group;
R3 is hydrogen, acyl, alkyl or, taken together with R4, forms a C=0,
C=S, SO, S02 group; R is hydrogen or, taken together with R3, forms a C=0, C=S, SO, S02 group;
R5 is hydrogen or an alcohol-protecting group; R6 is aryl, substituted aryl, heteroaryl; comprising: a) selective reduction of the azido group to amino group; b) optional treatment with alkylating or acylating agents; c) cleavage of the C7 protective group; d) opening of the oxazolidine.
5. Compounds of formula II
Figure imgf000059_0001
II wherein
E, R2, R4, R5 and R6 are as defined in claim 3.
6. Compounds of formula IV, V
Figure imgf000059_0002
IV V wherein
M is an alkali metal;
Rio is an acyl, alkyl, silyl or phospho group;
Ri, R2, R6 are defined as in claim 3.
7. Compounds of formula VII
Figure imgf000060_0001
VII wherein
R2, R , R5, R6, X, Z and Y are as defined in claim 2.
8. Compounds of formula XI and XII
Figure imgf000060_0002
XII
Figure imgf000060_0003
XI wherein X is -N3, -NH-R3, =CH-R8, or -0-R3 when R6 is different from phenyl;
R3 is an alkoxycarbonyl or, taken together with R4, forms a carbonyl, thiocarbonyl, SO, S02 group; R4 is hydrogen or, taken together with R3 or R8, forms the groups specified in the respective definitions of R3 and R8; R6 is aryl, substituted aryl or heteroaryl; R5 is hydrogen or an alcohol-protecting group; R8 is hydrogen, C1-C4 alkyl, C1-C4 alkoxycarbonyl or, taken together with R4, forms a carbonyl group.
PCT/EP2003/009866 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14- position and a process for the preparation thereof Ceased WO2004024706A2 (en)

Priority Applications (16)

Application Number Priority Date Filing Date Title
JP2004535440A JP4690039B2 (en) 2002-09-10 2003-09-05 Taxane derivative functionalized at position 14 and process for its production
DK03747971T DK1537093T3 (en) 2002-09-10 2003-09-05 Taxane derivatives which are functionalized in the 14-position, and a process for their preparation
EP03747971A EP1537093B1 (en) 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14- position and a process for the preparation thereof
CA2498277A CA2498277C (en) 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14- position and a process for the preparation thereof
AU2003267049A AU2003267049B8 (en) 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14- position and a process for the preparation thereof
SI200331276T SI1537093T1 (en) 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14- position and a process for the preparation thereof
US10/527,164 US7498452B2 (en) 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14-position and a process for the preparation thereof
DE60321577T DE60321577D1 (en) 2002-09-10 2003-09-05 METHOD FOR THE PRODUCTION THEREOF
IL167336A IL167336A (en) 2002-09-10 2005-03-09 Taxane derivatives functionalized at the 14-position and a process for the preparation thereof
NO20051774A NO332250B1 (en) 2002-09-10 2005-04-11 Taxane derivatives functionalized at the 14th position and a process for their preparation
IL197815A IL197815A (en) 2002-09-10 2009-03-26 Taxane derivatives functionalized at the 14-position and a process for the preparation thereof
NO20110781A NO332366B1 (en) 2002-09-10 2011-05-30 Taxane derivatives functionalized at the 14th position and a process for their preparation
NO20110782A NO332367B1 (en) 2002-09-10 2011-05-30 Taxane derivatives functionalized at the 14th position
IL214431A IL214431A (en) 2002-09-10 2011-08-03 Taxane derivatives functionalized at the 14-position
IL214432A IL214432A (en) 2002-09-10 2011-08-03 Process for the preparation of taxane derivatives functionalized at the 14-position
IL214430A IL214430A0 (en) 2002-09-10 2011-08-03 Taxane derivatives functionalized at the 14-position and a process for the preparation thereof

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
ITMI2002A001921 2002-09-10
IT001921A ITMI20021921A1 (en) 2002-09-10 2002-09-10 FUNCTIONALIZATION OF POSITION 14 OF TASSANIC NUCLEI AND SUMMARY OF NEW ANTI-TUMOR DERIVATIVES.

Publications (2)

Publication Number Publication Date
WO2004024706A2 true WO2004024706A2 (en) 2004-03-25
WO2004024706A3 WO2004024706A3 (en) 2004-07-08

Family

ID=31986024

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/EP2003/009866 Ceased WO2004024706A2 (en) 2002-09-10 2003-09-05 Taxane derivatives functionalized at the 14- position and a process for the preparation thereof

Country Status (20)

Country Link
US (1) US7498452B2 (en)
EP (6) EP2298754B9 (en)
JP (2) JP4690039B2 (en)
KR (1) KR101096918B1 (en)
CN (1) CN1681799A (en)
AT (1) ATE398113T1 (en)
AU (1) AU2003267049B8 (en)
CA (1) CA2498277C (en)
DE (1) DE60321577D1 (en)
DK (4) DK2077264T3 (en)
ES (4) ES2432024T3 (en)
IL (5) IL167336A (en)
IT (1) ITMI20021921A1 (en)
NO (3) NO332250B1 (en)
PL (4) PL402333A1 (en)
PT (4) PT2264019E (en)
RU (1) RU2320652C2 (en)
SG (1) SG164282A1 (en)
SI (4) SI1537093T1 (en)
WO (1) WO2004024706A2 (en)

Families Citing this family (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
ITMI20012185A1 (en) * 2001-10-19 2003-04-19 Indena Spa PROCEDURE FOR THE PREPARATION OF 14BETA-HYDROXY-BACCATIN III-1,14-CARBONATE
CN107056767B (en) * 2015-12-04 2022-07-15 江苏恩华络康药物研发有限公司 Process and intermediates for the preparation of water-soluble taxane derivatives

Family Cites Families (12)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US5504222A (en) 1993-08-20 1996-04-02 The Scripps Research Institute Transformations of taxol
FR2696464B1 (en) * 1992-10-05 1994-11-10 Rhone Poulenc Rorer Sa New esterification process for baccatin III and 10-deacetyl baccatin III.
IL108444A0 (en) * 1993-01-29 1994-04-12 Univ Florida State C2 taxane derivatives and pharmaceutical compositions containing them
US5475011A (en) * 1993-03-26 1995-12-12 The Research Foundation Of State University Of New York Anti-tumor compounds, pharmaceutical compositions, methods for preparation thereof and for treatment
IL127598A (en) * 1994-01-28 2003-04-10 Upjohn Co Process for preparing isotaxol analogs
US5719177A (en) 1994-11-04 1998-02-17 Pharmacia S.P.A. Taxane derivatives
IT1275936B1 (en) * 1995-03-17 1997-10-24 Indena Spa DERIVATIVES OF 10-DEACETYLBACCATIN III AND OF 10-DEACETYL-14B- HYDROXYBACCATIN III THEIR METHOD OF PREPARATION AND FORMULATIONS
US5811452A (en) * 1997-01-08 1998-09-22 The Research Foundation Of State University Of New York Taxoid reversal agents for drug-resistance in cancer chemotherapy and pharmaceutical compositions thereof
ITMI991483A1 (en) * 1999-07-06 2001-01-06 Indena Spa TAXANIC DERIVATIVES AND PROCEDURES FOR THEIR PREPARATION
KR100922146B1 (en) * 2000-08-04 2009-10-19 센서즈 포 메드슨 앤드 사이언스 인코포레이티드 Analyte Detection in Aqueous Environment
IT1318678B1 (en) * 2000-08-10 2003-08-27 Indena Spa PROCEDURE FOR THE PREPARATION OF BACCATIN DERIVATIVES III.
ITMI20012186A1 (en) * 2001-10-19 2003-04-19 Indena Spa PROCEDURE FOR THE PREPARATION OF 14-BETA-HYDROXY-BACCATIN III-1,14-CARBONATE

Also Published As

Publication number Publication date
CN1681799A (en) 2005-10-12
EP1980557A3 (en) 2008-12-31
IL214430A0 (en) 2011-09-27
IL167336A (en) 2009-11-18
EP2077264A3 (en) 2009-09-16
PT2264019E (en) 2013-10-28
EP2264019A1 (en) 2010-12-22
ITMI20021921A1 (en) 2004-03-11
DK2264019T3 (en) 2013-10-28
ES2433580T3 (en) 2013-12-11
RU2005106361A (en) 2005-10-10
IL214432A (en) 2014-05-28
PT2298754E (en) 2013-11-07
SG164282A1 (en) 2010-09-29
ES2307965T3 (en) 2008-12-01
EP2298754B1 (en) 2013-08-07
KR101096918B1 (en) 2011-12-22
NO20110782L (en) 2005-05-10
EP1537093A2 (en) 2005-06-08
ES2432024T3 (en) 2013-11-29
DK1537093T3 (en) 2008-10-27
AU2003267049B8 (en) 2010-03-04
NO332366B1 (en) 2012-09-03
PL402333A1 (en) 2013-04-02
JP2010270145A (en) 2010-12-02
PL402323A1 (en) 2013-04-02
ATE398113T1 (en) 2008-07-15
SI2298754T1 (en) 2013-11-29
EP2281820A3 (en) 2011-05-04
IL197815A (en) 2013-02-28
ES2398324T3 (en) 2013-03-15
EP2264019B1 (en) 2013-07-24
CA2498277C (en) 2011-07-05
US7498452B2 (en) 2009-03-03
SI2264019T1 (en) 2013-10-30
WO2004024706A3 (en) 2004-07-08
RU2320652C2 (en) 2008-03-27
NO20110781L (en) 2005-05-10
EP2281820A2 (en) 2011-02-09
NO332367B1 (en) 2012-09-03
PL375625A1 (en) 2005-12-12
EP1537093B1 (en) 2008-06-11
JP4690039B2 (en) 2011-06-01
AU2003267049A1 (en) 2004-04-30
DK2077264T3 (en) 2013-03-04
DE60321577D1 (en) 2008-07-24
IL214432A0 (en) 2011-09-27
AU2003267049B2 (en) 2010-02-11
IL214431A (en) 2014-05-28
PL402332A1 (en) 2013-04-02
DK2298754T3 (en) 2013-11-04
US20060122258A1 (en) 2006-06-08
IL214431A0 (en) 2011-09-27
EP2077264B1 (en) 2012-11-14
SI1537093T1 (en) 2008-10-31
EP1980557A2 (en) 2008-10-15
EP2298754B9 (en) 2013-12-18
EP2077264A2 (en) 2009-07-08
EP2298754A1 (en) 2011-03-23
PT2077264E (en) 2013-01-29
SI2077264T1 (en) 2013-03-29
NO20051774L (en) 2005-05-10
NO332250B1 (en) 2012-08-06
CA2498277A1 (en) 2004-03-25
JP2006503030A (en) 2006-01-26
PT1537093E (en) 2008-09-02
KR20050035540A (en) 2005-04-18

Similar Documents

Publication Publication Date Title
CA2192373A1 (en) Deacetoxytaxol derivative
EP2298754B1 (en) Preparation of taxane derivatives
RU2291866C2 (en) Method for preparing 14-beta-hydroxybaccatin iii-1,14-carbonate
AU2002328918A1 (en) A process for the preparation of the 14beta-hydroxy-baccatin III-1, 14-carbonate
HK1069170B (en) A process for the preparation of the 14beta-hydroxy-baccatin iii-1, 14-carbonate

Legal Events

Date Code Title Description
AK Designated states

Kind code of ref document: A2

Designated state(s): AE AG AL AM AT AU AZ BA BB BG BR BY BZ CA CH CN CO CR CU CZ DE DK DM DZ EC EE ES FI GB GD GE GH GM HR HU ID IL IN IS JP KE KG KP KR KZ LC LK LR LS LT LU LV MA MD MG MK MN MW MX MZ NI NO NZ OM PG PH PL PT RO RU SC SD SE SG SK SL SY TJ TM TN TR TT TZ UA UG US UZ VC VN YU ZA ZM ZW

AL Designated countries for regional patents

Kind code of ref document: A2

Designated state(s): GH GM KE LS MW MZ SD SL SZ TZ UG ZM ZW AM AZ BY KG KZ MD RU TJ TM AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IT LU MC NL PT RO SE SI SK TR BF BJ CF CG CI CM GA GN GQ GW ML MR NE SN TD TG

121 Ep: the epo has been informed by wipo that ep was designated in this application
WWE Wipo information: entry into national phase

Ref document number: 2003747971

Country of ref document: EP

WWE Wipo information: entry into national phase

Ref document number: 876/DELNP/2005

Country of ref document: IN

WWE Wipo information: entry into national phase

Ref document number: 1020057003994

Country of ref document: KR

ENP Entry into the national phase

Ref document number: 2005106361

Country of ref document: RU

Kind code of ref document: A

WWE Wipo information: entry into national phase

Ref document number: 2498277

Country of ref document: CA

Ref document number: 167336

Country of ref document: IL

Ref document number: 2004535440

Country of ref document: JP

Ref document number: 20038213389

Country of ref document: CN

Ref document number: 2003267049

Country of ref document: AU

Ref document number: 375625

Country of ref document: PL

WWP Wipo information: published in national office

Ref document number: 1020057003994

Country of ref document: KR

WWP Wipo information: published in national office

Ref document number: 2003747971

Country of ref document: EP

ENP Entry into the national phase

Ref document number: 2006122258

Country of ref document: US

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: 10527164

Country of ref document: US

WWP Wipo information: published in national office

Ref document number: 10527164

Country of ref document: US

WWG Wipo information: grant in national office

Ref document number: 2003747971

Country of ref document: EP

WWE Wipo information: entry into national phase

Ref document number: 214430

Country of ref document: IL

Ref document number: 214432

Country of ref document: IL

Ref document number: 214431

Country of ref document: IL
