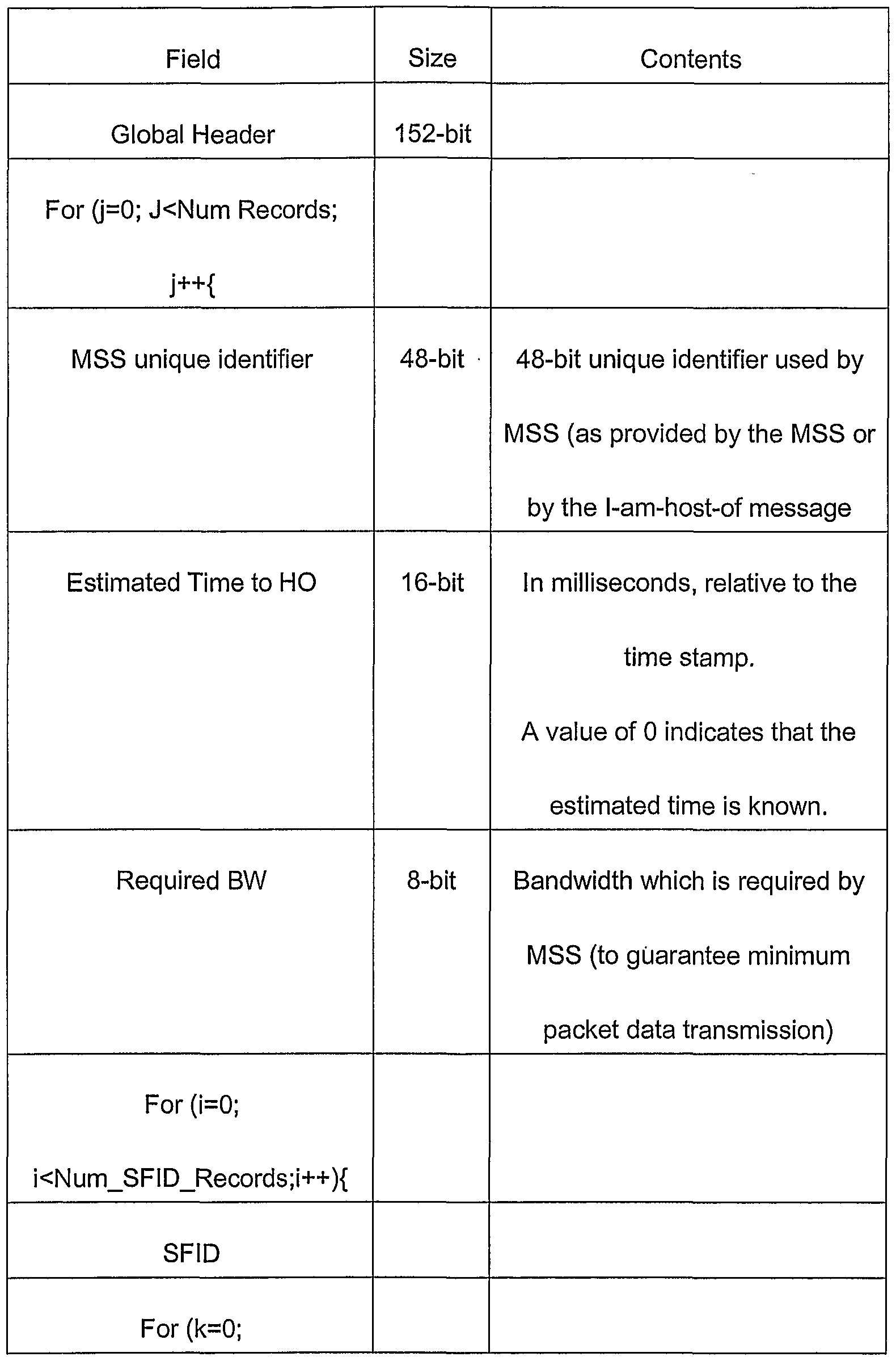

  • the serving base station 22 then transmits a handover request pre-
  • notification message (HO-pre-notification) to notify target base stations 23 and 24 (BS #2).
  • the handover request pre-notification message (HO-pre-notification) includes
  • the QoS-associated information may be the same information as a service
  • the serving base station 22 selects one base station appropriate for the
  • the present invention may also be used in any wireless communication
  • manufacture refers to code or logic implemented in hardware logic (e.g.,
  • FPGA Field Programmable Gate Array
  • ASIC Integrated Circuit
  • computer readable medium e.g., magnetic storage
  • a medium e.g., hard disk drives, floppy disks, tape, etc.
  • optical storage CD-ROMs, optical disks, etc.
  • volatile and non-volatile memory devices e.g., EEPROMs, ROMs,
  • PROMs PROMs, RAMs, DRAMs, SRAMs, firmware, programmable logic, etc.).
  • the article of manufacture in which the code is implemented may comprise a
  • transmission media such as a network transmission line, wireless transmission media,
  • manufacture may comprise any information bearing medium known in the art.

Landscapes

  • Engineering & Computer Science (AREA)
  • Computer Networks & Wireless Communication (AREA)
  • Signal Processing (AREA)
  • Quality & Reliability (AREA)
  • Mobile Radio Communication Systems (AREA)
  • Data Exchanges In Wide-Area Networks (AREA)
  • Small-Scale Networks (AREA)
  • Circuits Of Receivers In General (AREA)

Abstract

The present invention is related to transmitting quality of service (QoS) information of a target base station (13) for admitted service flows during a handover operation. The invention comprises providing a service to a mobile station (11) from a serving base station (12) and receiving at the serving base station (12) a handover request (S107) from the mobile station (11). The serving base station (12) then provides a handover notification (S108) to a target base station (13), wherein the handover notification comprises a QoS parameter associated with the service. The serving base station (12) then receives from the target base station (13) a handover notification response (S109), wherein the handover notification response comprises service level prediction information that is determined in response to the QoS parameter associated with the service. Finally, the serving base station (12) provides a handover response (S110) to the mobile station (11), the handover response comprising the service level prediction information.

Description

MOBILE BROADBAND WIRELESS ACCESS SYSTEM FOR TRANSFERRING SERVICE INFORMATION DURING HANDOVER
Technical Field
[0001] The present invention relates to a mobile broadband wireless access
system for transferring service information during a handover operation, and more
particularly, to transmitting quality of service (QoS) information to a target base station for
admitted service flows during the handover operation.
Background Art
[0002] Generally, a handover operation can be performed in a broadband wireless
access system according to a request by a mobile subscriber station (MSS) or a base
station (BS). In performing the handover operation from a current serving base station to
one of a plurality of target base stations, the mobile subscriber station must provide quality
of service (QoS) information for a service flow admitted in the current mobile subscriber
station to the respective target base stations.
[0003] The QoS information provided to the target base stations includes a
required bandwidth and a required service class name for the admitted service of the
current mobile subscriber station. However, the target base stations are unable to
sufficiently guarantee the QoS of a specific service with the QoS information only. In case a plurality of service flows are admitted in the mobile subscriber station, information
indicating which one of the plurality of admitted service flows will be guaranteed is not
provided.
[0004] For example, it is assumed that a mobile subscriber station receives both a
real-time moving picture download service and a fixed speed service, such as a Voice
Over Internet Protocol (VoIP), from a current serving base station. While the mobile
subscriber station is receiving the services, if a situation needing handover occurs, the
information about the required bandwidth and the service class name for one QoS
guarantee is delivered to target base stations. However, specific handover quality
information for maintaining a quality of service for each admitted service is not delivered to
the target base stations. Hence, it is difficult to decide which one of the respective
admitted service flows will be guaranteed for its QoS. Moreover, it is difficult for the target
base station to predict the estimated QoS level for each of the services.
Disclosure of Invention
[0005] The present invention is directed to transmitting quality of service (QoS)
information to a target base station for admitted service flows during a handover operation.
[0006] Additional features and advantages of the invention will be set forth in the
description which follows, and in part will be apparent from the description, or may be
learned by practice of the invention. The objectives and other advantages of the invention will be realized and attained by the structure particularly pointed out in the written
description and claims hereof as well as the appended drawings.
[0007] To achieve these and other advantages and in accordance with the
purpose of the present invention, as embodied and broadly described, the present
invention is embodied in a method of receiving quality of service (QoS) information in a
mobile station associated with a handover operation in a wireless communication system,
the method comprising receiving at least one service from a serving base station, scanning
at least one target base station to perform the handover operation, requesting a handover
request with the serving base station, and receiving a handover response comprising
service level prediction information from the serving base station, wherein the service level
prediction information is determined by the at least one target base station in response to a
QoS parameter associated with the at least one service received from the serving base
station.
[0008] Preferably, the QoS parameter comprises at least one of latency
information, reserved traffic rate, tolerable traffic rate and sustained traffic rate. The
service level prediction information comprises at least one of (1) no service flow available
for the mobile station, (2) all service flow available, (3) some service flow available, and (4)
no service level prediction available. Moreover, the handover response further comprises
a recommended target base station to where the mobile station should handover.
Preferably, the mobile station determines the at least one target base station to handover
to. [0009] In one aspect of the present invention, the method further comprises
requesting the at least one service from the serving base station, and receiving a service
approval message from the serving base station. Preferably, the service approval
message comprises at least one of a QoS parameter value for the at least one service
requested and an indication as to the possibility of activating the at least one service
requested.
[0010] In one embodiment of the invention, a method of providing quality of
service (QoS) information associated with a handover operation in a wireless
communication system, comprises providing at least one service to a mobile station from a
serving base station, receiving at the serving base station a handover request from the
mobile station, providing a handover notification to at least one target base station,
wherein the handover notification comprises a QoS parameter associated with the at least
one service, receiving from the at least one target base station a handover notification
response, wherein the handover notification response comprises service level prediction
information that is determined in response to the QoS parameter associated with the at
least one service, and providing a handover response to the mobile station, the handover
response comprising the service level prediction information.
[0011] Preferably, the QoS parameter comprises at least one of latency
information, reserved traffic rate, tolerable traffic rate and sustained traffic rate. The
service level prediction information comprises at least one of (1) no service flow available
for a mobile station, (2) all service flow available, (3) some service flow available, and (4)
no service level prediction available. Moreover, the handover response further comprises a recommended target base station to where the mobile station should handover.
Preferably, the mobile station determines the at least one target base station to handover
to.
[0012] In one aspect of the present invention, the method further comprises
receiving a service request for at least one service from the mobile station, checking for
the presence of radio resources available for the at least one service requested, allocating
a radio resource to the mobile station having requested the at least one service if radio
resources are available, and transmitting a service approval message to the mobile station. [0013] Preferably, the service approval message comprises at least one of a QoS
parameter value for the at least one service requested and an indication as to the
possibility of activating the at least one service requested. Furthermore, the serving base
station transmits information regarding at least one admitted service flow to the target base
station allowing a QoS parameter value for the at least one admitted service flow to be
periodically provided to the target base station. [0014] In another aspect of the present invention, the method further comprises
providing a handover confirmation to the at least one target base station, receiving at the
serving base station a handover indication from the mobile station, and discontinuing
communication between the serving base station and the mobile station.
[0015] In another embodiment, the present invention is embodied in a mobile
station for receiving quality of service (QoS) information associated with a handover
operation in a wireless communication system, the mobile station comprising means for
receiving at least one service from a serving base station, means for scanning at least one target base station to perform the handover operation, and means for requesting a
handover request with the serving base station, wherein the means for receiving the at
least one service receives a handover response comprising service level prediction
information from the serving base station, wherein the service level prediction information
is determined by the at least one target base station in response to a QoS parameter
associated with the at least one service received from the serving base station. [0016] Preferably, the QoS parameter comprises at least one of latency
information, reserved traffic rate, tolerable traffic rate and sustained traffic rate. The
service level prediction information comprises at least one of (1) no service flow available
for the mobile station, (2) all service flow available, (3) some service flow available, and (4)
no service level prediction available. Moreover, the handover response further comprises
a recommended target base station to where the mobile station should handover.
Preferably, the mobile station determines the at least one target base station to handover
to. [0017] In one aspect of the present invention, the means for requesting the
handover request requests the at least one service from the serving base station, and the
means for receiving the at least one service receives a service approval message from the
serving base station. Preferably, the service approval message comprises at least one of
a QoS parameter value for the at least one service requested and an indication as to the
possibility of activating the at least one service requested.
[0018] In one embodiment of the invention, a network for providing quality of
service (QoS) information associated with a handover operation in a wireless communication system, comprises means for providing at least one service to a
mobile station from a serving base station and means for receiving at the serving base
station a handover request from the mobile station, wherein the means for providing the at
least one service provides a handover notification to at least one target base station,
wherein the handover notification comprises a QoS parameter associated with the at least
one service, wherein the means for receiving the handover request receives from the at
least one target base station a handover notification response, wherein the handover
notification response comprising service level prediction information that is determined in
response to the QoS parameter associated with the at least one service, wherein the
means for providing at least one service provides a handover response to the mobile
station, the handover response comprising the service level prediction information.
[0019] Preferably, the QoS parameter comprises at least one of latency
information, reserved traffic rate, tolerable traffic rate and sustained traffic rate. The
service level prediction information comprises at least one of (1) no service flow available
for a mobile station, (2) all service flow available, (3) some service flow available, and (4)
no service level prediction available. Moreover, the handover response further comprises
a recommended target base station to where the mobile station should handover.
Preferably, the mobile station determines the at least one target base station to handover
to. [0020] In one aspect of the present invention, the apparatus further comprises
means for receiving a service request for at least one service from the mobile station,
means for checking the presence of radio resources available for the at least one service requested and allocating a radio resource to the mobile station having requested the
at least one service if radio resources are available, and means for transmitting a service
approval message to the mobile station. r00211 Preferably, the service approval message comprises at least one of a QoS
parameter value for the at least one service requested and an indication as to the
possibility of activating the at least one service requested. Furthermore, the serving base
station transmits information regarding at least one admitted service flow to the target base
station allowing a QoS parameter value for the at least one admitted service flow to be
periodically provided to the target base station. f 00221 In another aspect of the present invention, the network further comprises
means for providing a handover confirmation to the at least one target base station, means
for receiving at the serving base station a handover indication from the mobile station, and
means for discontinuing communication between the serving base station and the mobile
station. IO0231 It is to be understood that both the foregoing general description and the
following detailed description of the present invention are exemplary and explanatory and
are intended to provide further explanation of the invention as claimed.
Brief Description of Drawings
[00241 The accompanying drawings, which are included to provide a further
understanding of the invention and are incorporated in and constitute a part of this application, illustrate embodiment(s) of the invention and together with the
description serve to explain the principle of the invention.
[0025] FIG. 1 is a flowchart for transferring quality of service information in
accordance with one embodiment of the present invention.
[0026] FIG. 2 is a flowchart for transferring quality of service information during
handover in accordance with one embodiment of the present invention.
Best Mode for Carrying Out the Invention
[0027] The present invention relates to transmitting quality of service (QoS)
information to a target base station for admitted service flows during handover in a
broadband wireless access system.
[0028] Referring to FIG. 1 , in one embodiment of the present invention, a mobile
subscriber station (MSS) 11 transmits a service request message to a serving base station
(BS #1 ) 12 to receive a specific application service (step S101 ). The service request
message comprises information of a service flow to be activated and/or desired QoS
parameters to receive the service.
[0029] The serving base station 12 having received the service request message
checks for the presence of radio resources available for the service requested by the
mobile subscriber station 11 (step S102). If radio resources are available, the serving
base station 12 allocates a radio resource to the mobile subscriber station 11 having
requested the service (step S103). Thereafter, information indicating whether the serving base station 12 is capable of performing the service flow requested by the mobile
subscriber station 11 is transmitted via a service approval message to the mobile
subscriber station 11 (step S104). The service approval message includes QoS parameter
values for the service flow requested by the mobile subscriber station 11 and an indication
as to the possibility of activating the requested service flow.
[0030] Once providing an application service to the mobile subscriber station 11
(step S105), the serving base station 12 transmits information regarding admitted service
flows to target base stations (BS #2) 13 (step S106). In doing so, the QoS parameter
values for the service flows can be periodically provided to the target base stations 13. [0031] While the service flow is admitted in the above-explained manner, if the
mobile subscriber station 11 transmits a handover request message (for example,
MOB_MSSHO_REQ) (step S107), the serving base station 12 transmits a handover pre-
notification message (HO-pre-notification) to the target base stations 13 (step S108). The
handover pre-notification message (HO-pre-notification) may include required information
for maintaining the respective admitted service flows. Preferably, the required information
for maintaining the respective admitted service flow includes a service flow identifier
(SFID), a service class name, QoS parameters corresponding to each service flow, and
specific values corresponding to the QoS parameters, respectively. For example, the QoS
parameters may be maximum latency, minimum reserved traffic rate, minimum tolerable
traffic rate, maximum sustained traffic rate, etc.
[0032] Each of the target base stations 13 having received the handover pre-
notification message (HO-pre-notification) decides whether it is capable of admitting a new mobile subscriber station 11. The decision is then transmitted to the serving base
station 12 via a handover pre-notification response message (HO-pre-notification-
response) (step S109). The handover pre-notification response message (HO-pre-
notification-response) may include information indicating estimated service levels of the
admitted service flows which can be provided to the current mobile subscriber station 11
from the target base stations 13.
[0033] Subsequently, the serving base station 12 having received the handover
pre-notification response messages (HO-pre-notification-response) from the target stations
13, respectively transmits the information regarding the service levels that can be provided
by the target base stations 13 to the mobile subscriber station 11 (step S110).
[0034] Referring to FIG. 2, in another embodiment of the present invention, there
exists a plurality of target base stations from which a mobile subscriber station (MSS) 21
can choose to perform a handover operation with. Preferably, once the mobile subscriber
station 21 is provided with an application service, as described in steps S101-S105 of FIG.
1 , for example, the mobile subscriber station 21 scans neighbor base stations 22, 23, 24
(step S201 ). If the mobile subscribe station 21 decides to perform handover, the mobile
subscriber station 21 transmits a handover request message (MOB_MSSHO_REQ) to a
serving base station 22 (BS #1) (step S202).
[0035] The serving base station 22 then transmits a handover request pre-
notification message (HO-pre-notification) to notify target base stations 23 and 24 (BS #2
and BS #3, respectively) that there exists the mobile subscriber station 21 requesting the
handover (steps S203 and S204). [0036] For example, Table 1 and Table 2 show configurations for handover
request pre-notification messages (HO-pre-notification).
[0037] [Table 1]
Figure imgf000014_0001
Figure imgf000015_0001
Table 2]
Figure imgf000015_0002
k<Num_QoS_Records;k++){
Required QoS
Field Size Variable QoS parameter definition encodings that in combination define an Admitted QoS
ParamterSet specific to the SFID
}
}
}
Security field TBD A means to authenticate this message
[0039] In the present invention, parameters associated with a QoS corresponding
to each admitted service flow and values corresponding to the parameters are transmitted
using the handover request pre-notification message (HO-pre-notification) transmitted
during handover from the serving base station 22 to the target base stations 23 and 44. In
other words, the handover request pre-notification message (HO-pre-notification) includes
the QoS parameters and the values corresponding to the parameters.
[0040] Each of the target base stations 23 and 24 having received the handover
request pre-notification message (HO-pre-notification) transmits a handover pre-
notification response message (HO-pre-notification-response) to the serving base station 22 (steps S205 and S206). Preferably, the handover pre-notification response
message (HO-pre-notification-response) includes QoS-associated information.
[0041] The QoS-associated information transmitted via the handover pre-
notification response message (HO-pre-notification-response) preferably includes
information regarding the presence of service estimation and information indicating
estimated service levels of the admitted service flows which can be provided to the current
mobile subscriber station 21 from each of the target base stations 23 and 24.
[0042] The QoS-associated information may be the same information as a service
level prediction information that the serving base station 22 transfers to the mobile
subscriber station 21 via a handover response message. Preferably, it is possible to divide
the information to indicate "all service flows available," "several service flows available,"
"no service flows available," and the like.
[0043] One exemplary configuration of the handover pre-notification response
message (HO-pre-notification-response) is shown in Table 3.
[0044] [Table 3]
Figure imgf000017_0001
Figure imgf000018_0001
[0045] The serving base station 22 selects one base station appropriate for the
handover execution from the target base stations 23 and 24. The serving base station 22
then transmits a handover confirmation message (HO-confirm) to the selected target base
station. In this case, the selected base station is the target base station 24 (step S207).
The serving base station 22 recommends the target base station 24 as the selected base
station to the mobile subscriber station 21 via a handover response message
(MOB_HO_RSP) (step S208). [0046] One exemplary configuration of the handover response message
(MOB_HO_RSP) is shown in Table 4.
[0047] [Table 4]
Figure imgf000019_0001
several Service Flows authorized for the MSS.
2 = For each authorized Service Flow, a MAC connection can be established with
QoS specified by the Authorized QoS parameter Set.
3 = No service level prediction available.
}
}
[0048] The mobile subscriber station 21 may follow the recommendation received
from the serving base station 22 and decide to execute the handover to the recommended
target base station 24; however, the mobile subscriber station 21 may also choose not to
follow the recommendation of the serving base station 22 and decide to execute the
handover to a different target base station or not execute the handover at all. If handover
is executed to the recommended target base station 24, the mobile subscriber station 21
transmits a handover indication message (MOBJHOJndication) to the serving base
station 22 (step S209). The serving base station 22 then recognizes the mobile subscriber
station 21 executing the handover to the target base station 24 and releases a connection
for the mobile subscriber station 21 (step S210). The mobile subscriber station 21 then
performs a ranging process with the target base station 24 to set a new serving base
station to the target base station 24 (step S211). [0049] The embodiments of the present invention explain that the handover
is executed according to a request made by the mobile subscriber station 21. However,
transmission of QoS information for the respective admitted service flows is applicable to a
case where the handover is executed upon a request made by a base station. Accordingly,
the present invention can sustain the QoS for each of the admitted service flows in
handover.
[0050] Although the present invention is described in the context of mobile
communication, the present invention may also be used in any wireless communication
systems using mobile devices, such as PDAs and laptop computers equipped with
wireless communication capabilities. Moreover, the use of certain terms to describe the
present invention should not limit the scope of the present invention to certain type of
wireless communication system, such as UMTS. The present invention is also applicable
to other wireless communication systems using different air interfaces and/or physical
layers, for example, TDMA, CDMA, FDMA, WCDMA, etc. [0051] The preferred embodiments may be implemented as a method, apparatus
or article of manufacture using standard programming and/or engineering techniques to
produce software, firmware, hardware, or any combination thereof. The term "article of
manufacture" as used herein refers to code or logic implemented in hardware logic (e.g.,
an integrated circuit chip, Field Programmable Gate Array (FPGA), Application Specific
Integrated Circuit (ASIC), etc.) or a computer readable medium (e.g., magnetic storage
medium (e.g., hard disk drives, floppy disks, tape, etc.), optical storage (CD-ROMs, optical disks, etc.), volatile and non-volatile memory devices (e.g., EEPROMs, ROMs,
PROMs, RAMs, DRAMs, SRAMs, firmware, programmable logic, etc.).
[0052] Code in the computer readable medium is accessed and executed by a
processor. The code in which preferred embodiments are implemented may further be
accessible through a transmission media or from a file server over a network. In such
cases, the article of manufacture in which the code is implemented may comprise a
transmission media, such as a network transmission line, wireless transmission media,
signals propagating through space, radio waves, infrared signals, etc. Of course, those
skilled in the art will recognize that many modifications may be made to this configuration
without departing from the scope of the present invention, and that the article of
manufacture may comprise any information bearing medium known in the art.
[0053] It will be apparent to those skilled in the art that various modifications and
variations can be made in the present invention. Thus, it is intended that the present
invention covers the modifications and variations of this invention provided they come
within the scope of the appended claims and their equivalents.

Claims

What is claimed is:
1. A method of receiving quality of service (QoS) information in a mobile
station associated with a handover operation in a wireless communication system, the
method comprising: receiving at least one service from a serving base station; scanning at least one target base station to perform the handover operation; requesting a handover request with the serving base station; and receiving a handover response comprising service level prediction information from
the serving base station, wherein the service level prediction information is determined by
the at least one target base station in response to a QoS parameter associated with the at
least one service received from the serving base station.
2. The method of claim 1 , wherein the QoS parameter comprises at least one
of latency information, reserved traffic rate, tolerable traffic rate and sustained traffic rate.
3. The method of claim 1 , wherein the service level prediction information
comprises at least one of (1 ) no service flow available for the mobile station, (2) all service
flow available, (3) some service flow available, and (4) no service level prediction available.
4. The method of claim 1 , wherein the handover response further comprises a
recommended target base station to where the mobile station should handover.
5. The method of claim 1 , wherein the mobile station determines the at least
one target base station to handover to.
6. The method of claim 1 , further comprising requesting the at least one
service from the serving base station.
7. The method of claim 6, further comprising receiving a service approval
message from the serving base station.
8. The method of claim 7, wherein the service approval message comprises at
least one of: a QoS parameter value for the at least one service requested; and an indication as to the possibility of activating the at least one service requested.
9. A method of providing quality of service (QoS) information associated with a
handover operation in a wireless communication system, the method comprising: providing at least one service to a mobile station from a serving base station; receiving at the serving base station a handover request from the mobile station; providing a handover notification to at least one target base station, wherein the
handover notification comprises a QoS parameter associated with the at least one service; receiving from the at least one target base station a handover notification response,
wherein the handover notification response comprises service level prediction information
that is determined in response to the QoS parameter associated with the at least one
service; and providing a handover response to the mobile station, the handover response
comprising the service level prediction information.
10. The method of claim 9, wherein the QoS parameter comprises at least one
of latency information, reserved traffic rate, tolerable traffic rate and sustained traffic rate.
11. The method of claim 9, wherein the service level prediction information
comprises at least one of (1 ) no service flow available for a mobile station, (2) all service
flow available, (3) some service flow available, and (4) no service level prediction available.
2. The method of claim 9, wherein the handover response further comprises a
recommended target base station to where the mobile station should handover.
13. The method of claim 9, wherein the mobile station determines the at least
one target base station to handover to.
14. The method of claim 9, further comprising: receiving a service request for at least one service from the mobile station; checking for the presence of radio resources available for the at least one service
requested; allocating a radio resource to the mobile station having requested the at least one
service if radio resources are available; and transmitting a service approval message to the mobile station.
15. The method of claim 13, wherein the service approval message comprises
at least one of: a QoS parameter value for the at least one service requested; and an indication as to the possibility of activating the at least one service requested.
16. The method of claim 9, wherein the serving base station transmits
information regarding at least one admitted service flow to the at least one target base
station allowing a QoS parameter value for the at least one admitted service flow to be
periodically provided to the at least one target base station.
17. The method of claim 9, further comprising: providing a handover confirmation to the at least one target base station; receiving at the serving base station a handover indication from the mobile station;
and discontinuing communication between the serving base station and the mobile
station.
18. A mobile station for receiving quality of service (QoS) information
associated with a handover operation in a wireless communication system, the mobile
station comprising: means for receiving at least one service from a serving base station; means for scanning at least one target base station to perform the handover
operation; and means for requesting a handover request with the serving base station; wherein the means for receiving the at least one service receives a handover
response, the handover response comprising service level prediction information from the
serving base station, wherein the service level prediction information is determined by the
at least one target base station in response to a QoS parameter associated with the at
least one service received from the serving base station.
19. The mobile station of claim 18, wherein the QoS parameter comprises at
least one of latency information, reserved traffic rate, tolerable traffic rate and sustained
traffic rate.
20. The mobile station of claim 18, wherein the service level prediction
information comprises at least one of (1 ) no service flow available for the mobile station,
(2) all service flow available, (3) some service flow available, and (4) no service level
prediction available.
21. The mobile station of claim 18, wherein the handover response further
comprises a recommended target base station to where the mobile station should
handover.
22. The mobile station of claim 18, wherein the mobile station determines the at
least one target base station to handover to.
23. The mobile station of claim 18, wherein the means for requesting the
handover request requests the at least one service from the serving base station.
24. The mobile station of claim 23, wherein the means for receiving the at least
one service receives a service approval message from the serving base station.
25. The mobile station of claim 24, wherein the service approval message
comprises at least one of: a QoS parameter value for the at least one service requested; and an indication as to the possibility of activating the at least one service requested.
26. A network for providing quality of service (QoS) information associated with
a handover operation in a wireless communication system, the network comprising: means for providing at least one service to a mobile station from a serving base
station; and means for receiving at the serving base station a handover request from the mobile
station; wherein the means for providing the at least one service provides a handover
notification to at least one target base station, wherein the handover notification comprises
a QoS parameter associated with the at least one service; wherein the means for receiving the handover request receives from the at least
one target base station a handover notification response, the handover notification
response comprising service level prediction information that is determined in response to
the QoS parameter associated with the at least one service; wherein the means for providing the at least one service provides a handover
response to the mobile station, the handover response comprising the service level
prediction information.
27. The network of claim 26, wherein the QoS parameter comprises at least
one of latency information, reserved traffic rate, tolerable traffic rate and sustained traffic
rate.
28. The network of claim 26, wherein the service level prediction information
comprises at least one of (1 ) no service flow available for a mobile station, (2) all service
flow available, (3) some service flow available, and (4) no service level prediction available.
29. The network of claim 26, wherein the handover response further comprises
a recommended target base station to where the mobile station should handover.
30. The network of claim 26, wherein the mobile station determines the at least
one target base station to handover to.
31. The network of claim 26, further comprising: means for receiving a service request for at least one service from the mobile
station; means for checking the presence of radio resources available for the at least one
service requested and allocating a radio resource to the mobile station having requested
the at least one service if radio resources are available; and means for transmitting a service approval message to the mobile station.
32. The apparatus of claim 31 , wherein the service approval message
comprises at least one of: a QoS parameter value for the at least one service requested; and an indication as to the possibility of activating the at least one service requested.
33. The apparatus of claim 26, wherein the serving base station transmits
information regarding at least one admitted service flow to the at least one target base
station allowing a QoS parameter value for the at least one admitted service flow to be
periodically provided to the at least one target base station.
34. The apparatus of claim 26, further comprising: means for providing a handover confirmation to the at least one target base station; means for receiving at the serving base station a handover indication from the
mobile station; and means for discontinuing communication between the serving base station and the
mobile station.
PCT/KR2005/000612 2004-03-05 2005-03-04 Mobile broadband wireless access system for transferring service information during handover Ceased WO2005084146A2 (en)

Priority Applications (9)

Application Number Priority Date Filing Date Title
AU2005220123A AU2005220123B2 (en) 2004-03-05 2005-03-04 Mobile broadband wireless access system for transferring service information during handover
DE200560022684 DE602005022684D1 (en) 2004-03-05 2005-03-04 MOBILE BROADBAND WIRELESS ACCESS SYSTEM FOR TRANSFERRING SERVICE INFORMATION DURING THE SUBMISSION
BRPI0508141-6A BRPI0508141A (en) 2004-03-05 2005-03-04 wireless mobile broadband access system for transferring service information during connection transients
CN200580007135XA CN1930903B (en) 2004-03-05 2005-03-04 Mobile broadband wireless access system for transmitting service information during handover
JP2007501714A JP4750101B2 (en) 2004-03-05 2005-03-04 Broadband mobile radio access system for transmitting service information during handover
AT05721908T ATE476848T1 (en) 2004-03-05 2005-03-04 MOBILE BROADBAND WIRELESS ACCESS SYSTEM FOR TRANSFERRING SERVICE INFORMATION DURING FORWARDING
CA 2558377 CA2558377A1 (en) 2004-03-05 2005-03-04 Mobile broadband wireless access system for transferring service information during handover
EP20050721908 EP1723821B1 (en) 2004-03-05 2005-03-04 Mobile broadband wireless access system for transferring service information during handover
IL177931A IL177931A (en) 2004-03-05 2006-09-07 Mobile broadband wireless access system for transferring service information during handover

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
KR20040015128A KR101084113B1 (en) 2004-03-05 2004-03-05 Service Information Delivery Method Applied to Handover of Mobile Communication
KR10-2004-0015128 2004-03-05

Publications (2)

Publication Number Publication Date
WO2005084146A2 true WO2005084146A2 (en) 2005-09-15
WO2005084146A3 WO2005084146A3 (en) 2006-02-16

Family

ID=34918711

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/KR2005/000612 Ceased WO2005084146A2 (en) 2004-03-05 2005-03-04 Mobile broadband wireless access system for transferring service information during handover

Country Status (12)

Country Link
US (2) US7873359B2 (en)
EP (2) EP2031923B1 (en)
JP (2) JP4750101B2 (en)
KR (1) KR101084113B1 (en)
CN (2) CN101448295B (en)
AT (2) ATE476848T1 (en)
AU (1) AU2005220123B2 (en)
BR (1) BRPI0508141A (en)
CA (2) CA2558377A1 (en)
DE (2) DE602005022684D1 (en)
IL (1) IL177931A (en)
WO (1) WO2005084146A2 (en)

Cited By (31)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2007107123A1 (en) * 2006-03-22 2007-09-27 Huawei Technologies Co., Ltd. Processing method and communication device for dynamic service flow and network-side service flow
FR2900529A1 (en) * 2006-04-26 2007-11-02 France Telecom MANAGING RADIO RESOURCES IN A RADIO TELECOMMUNICATIONS NETWORK
CN100403718C (en) * 2005-11-24 2008-07-16 华为技术有限公司 Method and device for recovering service flow identifier in WiMAX network
JP2009509466A (en) * 2005-09-19 2009-03-05 クゥアルコム・インコーポレイテッド Providing movement indications to resource requesters
EP2040421A1 (en) * 2007-09-19 2009-03-25 Nokia Siemens Networks Oy Methods, apparatuses, system and related computer program product for large capacity data stream handovers
WO2009056749A1 (en) * 2007-10-26 2009-05-07 France Telecom Access node switching method
JP2009267840A (en) * 2008-04-25 2009-11-12 Kyocera Corp Radio communication system, radio base station, and radio communication method
WO2010088291A1 (en) * 2009-01-27 2010-08-05 Qualcomm Incorporated Methods and systems for combining service flow addition/change with handover in wimax systems
EP2019560A4 (en) * 2006-05-18 2011-04-20 Huawei Tech Co Ltd METHOD, SYSTEM AND DEVICE PROVIDING QUALITY OF SERVICE (QOS) OF PACKET TRAFFIC
US7962142B2 (en) 2003-01-31 2011-06-14 Qualcomm Incorporated Methods and apparatus for the utilization of core based nodes for state transfer
RU2437232C2 (en) * 2006-05-11 2011-12-20 Самсунг Электроникс Ко., Лтд. Method and device to guarantee quality of data transfer service
JP2013017220A (en) * 2012-09-14 2013-01-24 Kyocera Corp Communication control method and wireless base station
US8509799B2 (en) 2005-09-19 2013-08-13 Qualcomm Incorporated Provision of QoS treatment based upon multiple requests
US8588777B2 (en) 1998-09-22 2013-11-19 Qualcomm Incorporated Method and apparatus for robust handoff in wireless communication systems
US8615241B2 (en) 2010-04-09 2013-12-24 Qualcomm Incorporated Methods and apparatus for facilitating robust forward handover in long term evolution (LTE) communication systems
US8630266B2 (en) 2006-02-14 2014-01-14 Samsung Electronics Co., Ltd. Data stream transmitting and receiving method and apparatus for guaranteeing QoS
EP2187672A4 (en) * 2007-08-16 2014-01-22 Ntt Docomo Inc TRANSFER CONTROL METHOD, WIRELESS BASE STATION, AND MOBILE STATION
US20140185435A1 (en) * 2013-01-02 2014-07-03 Samsung Electronics Co., Ltd. Apparatus and method for supporting mobility of mobile station in wireless communication system
US8774808B2 (en) 2009-07-29 2014-07-08 Kyocera Corporation Radio base station and communication control method
US8830818B2 (en) 2007-06-07 2014-09-09 Qualcomm Incorporated Forward handover under radio link failure
US8886180B2 (en) 2003-01-31 2014-11-11 Qualcomm Incorporated Enhanced techniques for using core based nodes for state transfer
US8983468B2 (en) 2005-12-22 2015-03-17 Qualcomm Incorporated Communications methods and apparatus using physical attachment point identifiers
US8982778B2 (en) 2005-09-19 2015-03-17 Qualcomm Incorporated Packet routing in a wireless communications environment
US9066344B2 (en) 2005-09-19 2015-06-23 Qualcomm Incorporated State synchronization of access routers
US9078084B2 (en) 2005-12-22 2015-07-07 Qualcomm Incorporated Method and apparatus for end node assisted neighbor discovery
US9083355B2 (en) 2006-02-24 2015-07-14 Qualcomm Incorporated Method and apparatus for end node assisted neighbor discovery
US9094173B2 (en) 2007-06-25 2015-07-28 Qualcomm Incorporated Recovery from handoff error due to false detection of handoff completion signal at access terminal
US9155008B2 (en) 2007-03-26 2015-10-06 Qualcomm Incorporated Apparatus and method of performing a handoff in a communication network
US9736752B2 (en) 2005-12-22 2017-08-15 Qualcomm Incorporated Communications methods and apparatus using physical attachment point identifiers which support dual communications links
EP3603188A1 (en) * 2017-03-23 2020-02-05 Fraunhofer Gesellschaft zur Förderung der angewandten Forschung E.V. Preemptive handover preparation and tracking/paging area handling and intelligent route selection in a cellular network
EP4064757A1 (en) * 2021-03-22 2022-09-28 Robert Bosch GmbH Handover-service preparation via pre-announcement

Families Citing this family (105)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US9130810B2 (en) 2000-09-13 2015-09-08 Qualcomm Incorporated OFDM communications methods and apparatus
US7295509B2 (en) 2000-09-13 2007-11-13 Qualcomm, Incorporated Signaling method in an OFDM multiple access system
KR101084113B1 (en) 2004-03-05 2011-11-17 엘지전자 주식회사 Service Information Delivery Method Applied to Handover of Mobile Communication
US9137822B2 (en) 2004-07-21 2015-09-15 Qualcomm Incorporated Efficient signaling over access channel
US9148256B2 (en) 2004-07-21 2015-09-29 Qualcomm Incorporated Performance based rank prediction for MIMO design
US9246560B2 (en) 2005-03-10 2016-01-26 Qualcomm Incorporated Systems and methods for beamforming and rate control in a multi-input multi-output communication systems
US9154211B2 (en) 2005-03-11 2015-10-06 Qualcomm Incorporated Systems and methods for beamforming feedback in multi antenna communication systems
US8446892B2 (en) 2005-03-16 2013-05-21 Qualcomm Incorporated Channel structures for a quasi-orthogonal multiple-access communication system
US9143305B2 (en) 2005-03-17 2015-09-22 Qualcomm Incorporated Pilot signal transmission for an orthogonal frequency division wireless communication system
US9461859B2 (en) 2005-03-17 2016-10-04 Qualcomm Incorporated Pilot signal transmission for an orthogonal frequency division wireless communication system
US9520972B2 (en) 2005-03-17 2016-12-13 Qualcomm Incorporated Pilot signal transmission for an orthogonal frequency division wireless communication system
WO2006101368A1 (en) * 2005-03-24 2006-09-28 Lg Electronics Inc. Method of executing handover in broadband wireless access system
US9184870B2 (en) 2005-04-01 2015-11-10 Qualcomm Incorporated Systems and methods for control channel signaling
US9036538B2 (en) 2005-04-19 2015-05-19 Qualcomm Incorporated Frequency hopping design for single carrier FDMA systems
US9408220B2 (en) 2005-04-19 2016-08-02 Qualcomm Incorporated Channel quality reporting for adaptive sectorization
US8879511B2 (en) 2005-10-27 2014-11-04 Qualcomm Incorporated Assignment acknowledgement for a wireless communication system
US8565194B2 (en) 2005-10-27 2013-10-22 Qualcomm Incorporated Puncturing signaling channel for a wireless communication system
US8611284B2 (en) 2005-05-31 2013-12-17 Qualcomm Incorporated Use of supplemental assignments to decrement resources
US8462859B2 (en) 2005-06-01 2013-06-11 Qualcomm Incorporated Sphere decoding apparatus
JP4914832B2 (en) * 2005-06-10 2012-04-11 株式会社日立製作所 Wireless communication system, apparatus, and method
US9179319B2 (en) 2005-06-16 2015-11-03 Qualcomm Incorporated Adaptive sectorization in cellular systems
US8599945B2 (en) 2005-06-16 2013-12-03 Qualcomm Incorporated Robust rank prediction for a MIMO system
US8885628B2 (en) 2005-08-08 2014-11-11 Qualcomm Incorporated Code division multiplexing in a single-carrier frequency division multiple access system
US20070041457A1 (en) 2005-08-22 2007-02-22 Tamer Kadous Method and apparatus for providing antenna diversity in a wireless communication system
US9209956B2 (en) 2005-08-22 2015-12-08 Qualcomm Incorporated Segment sensitive scheduling
US8644292B2 (en) 2005-08-24 2014-02-04 Qualcomm Incorporated Varied transmission time intervals for wireless communication system
US9136974B2 (en) 2005-08-30 2015-09-15 Qualcomm Incorporated Precoding and SDMA support
US8045512B2 (en) 2005-10-27 2011-10-25 Qualcomm Incorporated Scalable frequency band operation in wireless communication systems
US8693405B2 (en) 2005-10-27 2014-04-08 Qualcomm Incorporated SDMA resource management
US9088384B2 (en) 2005-10-27 2015-07-21 Qualcomm Incorporated Pilot symbol transmission in wireless communication systems
US9210651B2 (en) 2005-10-27 2015-12-08 Qualcomm Incorporated Method and apparatus for bootstraping information in a communication system
US8477684B2 (en) 2005-10-27 2013-07-02 Qualcomm Incorporated Acknowledgement of control messages in a wireless communication system
US8582509B2 (en) 2005-10-27 2013-11-12 Qualcomm Incorporated Scalable frequency band operation in wireless communication systems
US9225488B2 (en) 2005-10-27 2015-12-29 Qualcomm Incorporated Shared signaling channel
US9172453B2 (en) 2005-10-27 2015-10-27 Qualcomm Incorporated Method and apparatus for pre-coding frequency division duplexing system
US9225416B2 (en) 2005-10-27 2015-12-29 Qualcomm Incorporated Varied signaling channels for a reverse link in a wireless communication system
US9144060B2 (en) 2005-10-27 2015-09-22 Qualcomm Incorporated Resource allocation for shared signaling channels
US8582548B2 (en) 2005-11-18 2013-11-12 Qualcomm Incorporated Frequency division multiple access schemes for wireless communication
US20100015986A1 (en) * 2005-11-28 2010-01-21 Kyocera Corporation Radio Base Station, Radio Communication Terminal, Radio Communication System and Radio Communication Method
WO2007069695A1 (en) * 2005-12-15 2007-06-21 Matsushita Electric Industrial Co., Ltd. Radio communication device, band setting system
US8831607B2 (en) * 2006-01-05 2014-09-09 Qualcomm Incorporated Reverse link other sector communication
CN101395947B (en) * 2006-03-01 2012-11-14 日本电气株式会社 Mobile communication system, base station, mobile device, notifying method, program, and recording medium
US8737984B2 (en) * 2006-03-13 2014-05-27 Apple Inc. WiMAX intra-ASN service flow ID mobility
EP1838053A1 (en) * 2006-03-24 2007-09-26 Orange SA Telecommunications system and method
KR101206181B1 (en) * 2006-08-17 2012-11-28 엘지전자 주식회사 Connection method for wireless communication and random access connection method
JP4848890B2 (en) 2006-08-23 2011-12-28 日本電気株式会社 Mobile communication system and method, and base station used therefor
US20080107091A1 (en) * 2006-11-07 2008-05-08 Motorola, Inc. Broadcast efficiency in a multihop network
TWI345926B (en) * 2006-11-30 2011-07-21 Inst Information Industry Wireless network handover apparatus, method, application program, and computer readable medium for dynamic handover
US8737349B2 (en) * 2006-12-01 2014-05-27 Sigram Schindler Beteiligungsgesellschaft Mbh Handover process and information support for communication transfer between telecommunication networks
JP5018068B2 (en) 2006-12-20 2012-09-05 日本電気株式会社 Mobile communication system, handover control method, radio base station, mobile station, and program
US20080161000A1 (en) * 2006-12-28 2008-07-03 Nokia Corporation Apparatus, method and computer program product providing faster handover in mobile wimax system
US7899024B2 (en) * 2007-02-28 2011-03-01 Intel Corporation Method and apparatus to support VoIP calls in an IEEE 802.16 interface
EP1976185B1 (en) * 2007-03-27 2019-05-01 Nokia Solutions and Networks GmbH & Co. KG Operating network entities in a communication system comprising a management network with agent and management levels
US7787418B2 (en) * 2007-06-08 2010-08-31 Intel Corporation Apparatus and method to support VoIP calls for mobile subscriber stations
US20090005047A1 (en) * 2007-06-29 2009-01-01 Vivek Gupta Media independent vertical handovers
US9648493B2 (en) 2007-11-16 2017-05-09 Qualcomm Incorporated Using identifiers to establish communication
US20090132674A1 (en) * 2007-11-16 2009-05-21 Qualcomm Incorporated Resolving node identifier confusion
CN101442734B (en) 2007-11-23 2010-12-29 中兴通讯股份有限公司 Optimization method for multi-traffic operation in WiMAX system
KR100960116B1 (en) * 2007-12-13 2010-05-27 한국전자통신연구원 Handover method in mobile communication network, mobile communication terminal and wireless network system using same
WO2009103233A1 (en) * 2008-02-18 2009-08-27 华为技术有限公司 Method and apparatus for assisting registering a data path in a switching procedure
CN101516114B (en) * 2008-02-18 2011-07-20 华为技术有限公司 Method and device for assisting data channel registration in switching process
EP2274931B1 (en) 2008-04-04 2012-08-01 Nokia Siemens Networks OY Action times for handover of mobile stations
KR101453458B1 (en) * 2008-04-11 2014-10-21 삼성전자주식회사 Apparatus and method for reducing handover disconnection time through negotiation of expected handover time in broadband wireless communication system
RU2011101716A (en) * 2008-06-19 2012-07-27 Квэлкомм Инкорпорейтед (US) RESOLUTION OF UNCERTAINTY OF THE NODE IDENTIFIED BY THE ACCESS TERMINAL
US9094880B2 (en) * 2008-06-19 2015-07-28 Qualcomm Incorporated Access terminal assisted node identifier confusion resolution using a time gap
JP4894826B2 (en) 2008-07-14 2012-03-14 ソニー株式会社 COMMUNICATION DEVICE, COMMUNICATION SYSTEM, NOTIFICATION METHOD, AND PROGRAM
US8743858B2 (en) 2008-07-15 2014-06-03 Qualcomm Incorporated Wireless communication systems with femto cells
US8989138B2 (en) * 2008-07-15 2015-03-24 Qualcomm Incorporated Wireless communication systems with femto nodes
US8542650B2 (en) * 2008-07-28 2013-09-24 Qualcomm Incorporated Methods and systems for concurrent data and signaling methodology for WiMAX handover
CN101656991B (en) * 2008-08-18 2013-03-20 华为技术有限公司 Method and equipment for switching terminal in message transmitting process
JP4507021B2 (en) * 2008-12-18 2010-07-21 日本電気株式会社 Wireless communication system, base station, wireless communication method, program
US9002356B2 (en) * 2009-05-04 2015-04-07 Qualcomm Incorporated Access mode-based access control
WO2010146468A2 (en) 2009-06-16 2010-12-23 Research In Motion Limited Method for accessing a service unavailable through a network cell
US10341910B2 (en) * 2009-06-16 2019-07-02 Blackberry Limited Method for accessing a service unavailable through a network cell
WO2010146464A1 (en) 2009-06-16 2010-12-23 Research In Motion Limited Method for accessing a service unavailable through a network cell
EP3952450B1 (en) 2009-06-16 2024-04-24 Malikie Innovations Limited Method for accessing a service unavailable through a network cell
US8914027B2 (en) 2009-06-25 2014-12-16 Htc Corporation Method of initiating handover pre-preparation and related communication device
KR101173403B1 (en) * 2010-03-12 2012-08-10 주식회사 케이티 The call maintenance method using service flow management during handover in mVoIP network
KR101735102B1 (en) * 2010-04-14 2017-05-25 삼성전자주식회사 Method and appatus for providing application service in mobile communication system
CN101883373A (en) * 2010-07-05 2010-11-10 深圳市华讯方舟科技有限公司 Mobile broadband communication system capable of transmitting multimedia information at high speed and method thereof
CN103190197B (en) * 2010-08-27 2016-08-10 诺基亚技术有限公司 Method and device for convenient service quality control
JP5557789B2 (en) * 2011-04-08 2014-07-23 株式会社日立製作所 Wireless communication method and system, base station
CN103024836B (en) * 2011-09-20 2018-03-02 中兴通讯股份有限公司 Acceptance controlling method and device in cell switch process
KR102121526B1 (en) * 2012-07-23 2020-06-10 삼성전자주식회사 Apparatus and method for scheduling data in a cloud cell communication system
JPWO2014054610A1 (en) * 2012-10-02 2016-08-25 シャープ株式会社 Mobile communication system, first base station apparatus, mobile station apparatus, and communication method for mobile communication system
CN103857014B (en) * 2012-12-07 2018-05-11 华为技术有限公司 A kind of service establishing method of multimode user equipment, device and system
US9337908B2 (en) * 2013-06-13 2016-05-10 Nokia Technologies Oy Space-time channel sounding in wireless network
TW201526680A (en) * 2013-11-01 2015-07-01 Innovative Sonic Corp Method and apparatus for improving device-to-device (D2D) discovery in a wireless communication system
US9838948B2 (en) * 2014-07-29 2017-12-05 Aruba Networks, Inc. Deep packet inspection (DPI) aware client steering and load balancing in wireless local area network (WLAN) infrastructure
DK3216269T3 (en) * 2014-11-05 2018-04-16 Ericsson Telefon Ab L M APPLICATION OF A MODEL FOR PREDICTING THE QUALITY OF SERVICE IN A TARGET TRACT FOR A HANDLE
CN107820282B (en) * 2016-09-12 2020-11-13 中国移动通信有限公司研究院 Cell switching method, base station and user equipment
EP4274373A3 (en) 2016-10-17 2024-01-17 Sk Telecom Co., Ltd. Base station device and qos control method in wireless section
KR20190086492A (en) * 2016-11-25 2019-07-22 광동 오포 모바일 텔레커뮤니케이션즈 코포레이션 리미티드 Data transmission methods and devices
CN108401223B (en) * 2017-02-08 2021-02-19 大唐移动通信设备有限公司 Cell switching method and device
CN110476459B (en) * 2017-03-24 2022-12-06 瑞典爱立信有限公司 QoS flow inactivity counter
CN108632909B (en) * 2017-03-24 2019-08-23 电信科学技术研究院 A kind of QoS treating method and apparatus
WO2018202545A1 (en) 2017-05-05 2018-11-08 Sony Corporation Communications device, infrastructure equipment, wireless communications network and methods
US10080175B1 (en) * 2017-05-24 2018-09-18 T-Mobile Usa, Inc. Pre-steering traffic within a telecommunications network
WO2018219352A1 (en) * 2017-06-02 2018-12-06 Fg Innovation Ip Company Limited Methods, devices, and systems for service-driven mobility management
CN109392004B (en) * 2017-08-11 2021-09-21 华为技术有限公司 Communication method, base station, terminal equipment and system
WO2020069742A1 (en) * 2018-10-04 2020-04-09 Huawei Technologies Co., Ltd. Network node and client device for quality-of-service change management
US11044656B2 (en) * 2018-10-05 2021-06-22 Comcast Cable Communications, Llc Systems and methods for call management
US12022331B2 (en) 2019-03-25 2024-06-25 Lg Electronics Inc. Indication of serving cell communication quality to target cell during mobility
GB2604685A (en) * 2020-10-30 2022-09-14 Samsung Electronics Co Ltd Improvements in and relating to Self-Organised Networks (SONs)
WO2023069001A1 (en) * 2021-10-21 2023-04-27 Telefonaktiebolaget Lm Ericsson (Publ) Reconfiguration procedure in a wireless communication network

Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US6134434A (en) 1997-12-08 2000-10-17 Qualcomm Incorporated System and method for providing service negotiation in a communications network
EP1324628A1 (en) 2001-12-13 2003-07-02 Sony International (Europe) GmbH Adaptive quality-of-service reservation and pre-allocation for mobile systems
WO2003092316A1 (en) 2002-04-26 2003-11-06 Nokia Corporation Proactive seamless service provisioning in mobile networks through transferring of application context

Family Cites Families (20)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
GB9226707D0 (en) * 1992-12-22 1993-02-17 Ncr Int Inc Wireless local area network system with mobile station handover
CA2188330C (en) 1995-12-12 2001-04-24 Michael D. Bamburak A method for selecting a wireless communications service provider in a multi-service provider environment
US5784695A (en) 1996-05-14 1998-07-21 Trw Inc. Method and apparatus for handover control in a satellite based telecommunications system
KR100658293B1 (en) 1998-04-03 2006-12-14 텔레폰악티에볼라겟엘엠에릭슨(펍) Flexible Wireless Access and Resource Allocation in Universal Mobile Phone Systems
US6801775B1 (en) * 1999-06-23 2004-10-05 At&T Wireless Services, Inc. Establishing a communication channel in a wireless network
US6501952B1 (en) * 1999-06-29 2002-12-31 Lucent Technologies Inc. Apparatus, method and system for mobile wireless communication hand-off utilizing directed call pick-up with barge-in
KR100314216B1 (en) * 1999-09-02 2001-11-22 박종섭 Method for checking calling channel and a vocoder of base station controller in a mobile communication system
US6771964B1 (en) * 1999-09-24 2004-08-03 Nokia Networks Handover between wireless telecommunication networks/systems
EP1154663B1 (en) 2000-05-09 2008-09-24 Lucent Technologies Inc. Improved quality of service control in a mobile telecommunications network
JP2002232573A (en) * 2001-01-31 2002-08-16 Nec Corp Mobile communication terminal, mobile communication system and service providing device
US6876857B1 (en) * 2001-07-20 2005-04-05 Cisco Technology, Inc. System and method for performing admission control functions in a data network
GB0120033D0 (en) 2001-08-16 2001-10-10 Fujitsu Ltd Cell selection
KR100863827B1 (en) 2002-01-14 2008-10-15 엘지전자 주식회사 Digital Television and Virus Scanning / Cleaning Methods
US7532596B2 (en) 2002-04-26 2009-05-12 Nokia Corporation Optimized information transfer associated with relocation of an IP session in a mobile communications system
US6993334B2 (en) * 2002-04-30 2006-01-31 Qualcomm Inc. Idle handoff with neighbor list channel replacement
AU2004303041B2 (en) * 2003-09-04 2008-07-24 Samsung Electronics Co., Ltd. System and method for selecting a serving base station according to a drop of a mobile subscriber station in a broadband wireless access communication system
KR100689508B1 (en) 2003-09-04 2007-03-02 삼성전자주식회사 How to Perform Handover in a Communication System
KR20050066632A (en) 2003-12-26 2005-06-30 한국전자통신연구원 System and method for resource allocation of mobile communication network
KR101084113B1 (en) 2004-03-05 2011-11-17 엘지전자 주식회사 Service Information Delivery Method Applied to Handover of Mobile Communication
US7369856B2 (en) * 2004-11-24 2008-05-06 Intel Corporation Method and system to support fast hand-over of mobile subscriber stations in broadband wireless networks

Patent Citations (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US6134434A (en) 1997-12-08 2000-10-17 Qualcomm Incorporated System and method for providing service negotiation in a communications network
EP1324628A1 (en) 2001-12-13 2003-07-02 Sony International (Europe) GmbH Adaptive quality-of-service reservation and pre-allocation for mobile systems
WO2003092316A1 (en) 2002-04-26 2003-11-06 Nokia Corporation Proactive seamless service provisioning in mobile networks through transferring of application context

Cited By (46)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US8588777B2 (en) 1998-09-22 2013-11-19 Qualcomm Incorporated Method and apparatus for robust handoff in wireless communication systems
US8886180B2 (en) 2003-01-31 2014-11-11 Qualcomm Incorporated Enhanced techniques for using core based nodes for state transfer
US7962142B2 (en) 2003-01-31 2011-06-14 Qualcomm Incorporated Methods and apparatus for the utilization of core based nodes for state transfer
US11129062B2 (en) 2004-08-04 2021-09-21 Qualcomm Incorporated Enhanced techniques for using core based nodes for state transfer
US8982835B2 (en) 2005-09-19 2015-03-17 Qualcomm Incorporated Provision of a move indication to a resource requester
JP2009509466A (en) * 2005-09-19 2009-03-05 クゥアルコム・インコーポレイテッド Providing movement indications to resource requesters
US9313784B2 (en) 2005-09-19 2016-04-12 Qualcomm Incorporated State synchronization of access routers
US9066344B2 (en) 2005-09-19 2015-06-23 Qualcomm Incorporated State synchronization of access routers
US8982778B2 (en) 2005-09-19 2015-03-17 Qualcomm Incorporated Packet routing in a wireless communications environment
US8509799B2 (en) 2005-09-19 2013-08-13 Qualcomm Incorporated Provision of QoS treatment based upon multiple requests
CN100403718C (en) * 2005-11-24 2008-07-16 华为技术有限公司 Method and device for recovering service flow identifier in WiMAX network
US9736752B2 (en) 2005-12-22 2017-08-15 Qualcomm Incorporated Communications methods and apparatus using physical attachment point identifiers which support dual communications links
US8983468B2 (en) 2005-12-22 2015-03-17 Qualcomm Incorporated Communications methods and apparatus using physical attachment point identifiers
US9078084B2 (en) 2005-12-22 2015-07-07 Qualcomm Incorporated Method and apparatus for end node assisted neighbor discovery
US8630266B2 (en) 2006-02-14 2014-01-14 Samsung Electronics Co., Ltd. Data stream transmitting and receiving method and apparatus for guaranteeing QoS
US9083355B2 (en) 2006-02-24 2015-07-14 Qualcomm Incorporated Method and apparatus for end node assisted neighbor discovery
US8254317B2 (en) 2006-03-22 2012-08-28 Huawei Technologies Co., Ltd. Method for processing dynamic service flows and network-side service flows and a communication apparatus
WO2007107123A1 (en) * 2006-03-22 2007-09-27 Huawei Technologies Co., Ltd. Processing method and communication device for dynamic service flow and network-side service flow
WO2007125229A1 (en) * 2006-04-26 2007-11-08 France Telecom Radio resource management in a radio telecommunication network
FR2900529A1 (en) * 2006-04-26 2007-11-02 France Telecom MANAGING RADIO RESOURCES IN A RADIO TELECOMMUNICATIONS NETWORK
US8738017B2 (en) 2006-04-26 2014-05-27 France Telecom Radio resource management in a radio telecommunication network
RU2437232C2 (en) * 2006-05-11 2011-12-20 Самсунг Электроникс Ко., Лтд. Method and device to guarantee quality of data transfer service
US8379595B2 (en) 2006-05-11 2013-02-19 Samsung Electronics Co., Ltd. Method and apparatus for securing quality of service of data communication
EP2019560A4 (en) * 2006-05-18 2011-04-20 Huawei Tech Co Ltd METHOD, SYSTEM AND DEVICE PROVIDING QUALITY OF SERVICE (QOS) OF PACKET TRAFFIC
US9155008B2 (en) 2007-03-26 2015-10-06 Qualcomm Incorporated Apparatus and method of performing a handoff in a communication network
US8830818B2 (en) 2007-06-07 2014-09-09 Qualcomm Incorporated Forward handover under radio link failure
US9094173B2 (en) 2007-06-25 2015-07-28 Qualcomm Incorporated Recovery from handoff error due to false detection of handoff completion signal at access terminal
EP2187672A4 (en) * 2007-08-16 2014-01-22 Ntt Docomo Inc TRANSFER CONTROL METHOD, WIRELESS BASE STATION, AND MOBILE STATION
EP2040421A1 (en) * 2007-09-19 2009-03-25 Nokia Siemens Networks Oy Methods, apparatuses, system and related computer program product for large capacity data stream handovers
WO2009056749A1 (en) * 2007-10-26 2009-05-07 France Telecom Access node switching method
JP2009267840A (en) * 2008-04-25 2009-11-12 Kyocera Corp Radio communication system, radio base station, and radio communication method
WO2010088291A1 (en) * 2009-01-27 2010-08-05 Qualcomm Incorporated Methods and systems for combining service flow addition/change with handover in wimax systems
US8774808B2 (en) 2009-07-29 2014-07-08 Kyocera Corporation Radio base station and communication control method
US8615241B2 (en) 2010-04-09 2013-12-24 Qualcomm Incorporated Methods and apparatus for facilitating robust forward handover in long term evolution (LTE) communication systems
US9131410B2 (en) 2010-04-09 2015-09-08 Qualcomm Incorporated Methods and apparatus for facilitating robust forward handover in long term evolution (LTE) communication systems
JP2013017220A (en) * 2012-09-14 2013-01-24 Kyocera Corp Communication control method and wireless base station
CN104904252B (en) * 2013-01-02 2020-02-28 三星电子株式会社 Apparatus and method for supporting mobility of mobile station in wireless communication system
US10455474B2 (en) 2013-01-02 2019-10-22 Samsung Electronics Co., Ltd. Apparatus and method for supporting mobility of mobile station in wireless communication system
CN104904252A (en) * 2013-01-02 2015-09-09 三星电子株式会社 Apparatus and method for supporting mobility of mobile station in wireless communication system
US20140185435A1 (en) * 2013-01-02 2014-07-03 Samsung Electronics Co., Ltd. Apparatus and method for supporting mobility of mobile station in wireless communication system
EP3603188A1 (en) * 2017-03-23 2020-02-05 Fraunhofer Gesellschaft zur Förderung der angewandten Forschung E.V. Preemptive handover preparation and tracking/paging area handling and intelligent route selection in a cellular network
US11751106B2 (en) 2017-03-23 2023-09-05 Fraunhofer-Gesellschaft Zur Foerderung Der Angewandten Forschung E.V. Preemptive handover preparation and tracking/paging area handling and intelligent route selection in a cellular network
US12143866B2 (en) 2017-03-23 2024-11-12 Fraunhofer-Gesellschaft Zur Foerderung Der Angewandten Forschung E.V. Preemptive handover preparation and tracking/paging area handling and intelligent route selection in a cellular network
EP3603188B1 (en) * 2017-03-23 2025-06-25 Fraunhofer-Gesellschaft zur Förderung der angewandten Forschung e.V. Preemptive handover preparation and tracking/paging area handling and intelligent route selection in a cellular network
EP4593464A3 (en) * 2017-03-23 2025-08-13 Fraunhofer-Gesellschaft zur Förderung der angewandten Forschung e.V. Preemptive handover preparation and tracking/paging area handling and intelligent route selection in a cellular network
EP4064757A1 (en) * 2021-03-22 2022-09-28 Robert Bosch GmbH Handover-service preparation via pre-announcement

Also Published As

Publication number Publication date
ATE476848T1 (en) 2010-08-15
EP1723821A2 (en) 2006-11-22
JP2007527177A (en) 2007-09-20
DE602005025549D1 (en) 2011-02-03
US20050239465A1 (en) 2005-10-27
KR20050089627A (en) 2005-09-08
EP2031923A3 (en) 2009-09-09
CN1930903A (en) 2007-03-14
EP2031923A2 (en) 2009-03-04
EP2031923B1 (en) 2010-12-22
JP4750101B2 (en) 2011-08-17
IL177931A0 (en) 2011-08-01
KR101084113B1 (en) 2011-11-17
AU2005220123A1 (en) 2005-09-15
US7769384B2 (en) 2010-08-03
US7873359B2 (en) 2011-01-18
CA2558377A1 (en) 2005-09-15
JP2009077427A (en) 2009-04-09
CN101448295B (en) 2012-05-23
US20070291699A1 (en) 2007-12-20
IL177931A (en) 2011-11-30
EP1723821B1 (en) 2010-08-04
CA2698556A1 (en) 2005-09-15
CN101448295A (en) 2009-06-03
WO2005084146A3 (en) 2006-02-16
ATE493002T1 (en) 2011-01-15
AU2005220123B2 (en) 2009-07-30
BRPI0508141A (en) 2007-07-24
CN1930903B (en) 2010-10-13
JP4850890B2 (en) 2012-01-11
DE602005022684D1 (en) 2010-09-16

Similar Documents

Publication Publication Date Title
AU2005220123B2 (en) Mobile broadband wireless access system for transferring service information during handover
US7558283B2 (en) Method, apparatus and computer program product providing quality of service support in a wireless communications system
JP4756043B2 (en) Handover method between frequency allocation in broadband wireless access system
CN100459775C (en) Service Priority in Multi-Cell Networks
JP5524338B2 (en) Receive information on radio access technology capabilities of mobile stations
JP2005518725A (en) Apparatus and method for starting a broadcast service by a terminal in a mobile communication system
CN1524393A (en) Method for controlling packet switched traffic in a digital cellular communication system
US20060133318A1 (en) System and method for monitoring quality of service in a broadband wireless network
US6452940B1 (en) Mobile station migration from D-AMPS packet system to edge/GPRS packet system in an integrated wireless network
CN116097789A (en) Methods, apparatus and computer program products for wireless communication
US8059598B2 (en) Wireless communication system and method for managing service flow identifier in the same
US8625417B2 (en) Wireless roaming with QoS and dynamic call capacity management
CN119343954A (en) Method, device and computer program
CN101516122B (en) Neighboring area information sending method and devices therefor
US20040013100A1 (en) Systems and methods for the assignment of a plurality of processors to a plurality of data servers
CN114270931B (en) Authorization methods for network slicing
WO2023071634A1 (en) Communication method and apparatus
WO2021093086A1 (en) Communication method for requesting packet data network connection information
WO2009109796A2 (en) Method, apparatus and computer program product for enabling a virtual handoff in a wireless communication system

Legal Events

Date Code Title Description
AK Designated states

Kind code of ref document: A2

Designated state(s): AE AG AL AM AT AU AZ BA BB BG BR BW BY BZ CA CH CN CO CR CU CZ DE DK DM DZ EC EE EG ES FI GB GD GE GH GM HR HU ID IL IN IS JP KE KG KP KZ LC LK LR LS LT LU LV MA MD MG MK MN MW MX MZ NA NI NO NZ OM PG PH PL PT RO RU SC SD SE SG SK SL SM SY TJ TM TN TR TT TZ UA UG US UZ VC VN YU ZA ZM ZW

AL Designated countries for regional patents

Kind code of ref document: A2

Designated state(s): BW GH GM KE LS MW MZ NA SD SL SZ TZ UG ZM ZW AM AZ BY KG KZ MD RU TJ TM AT BE BG CH CY CZ DE DK EE ES FI FR GB GR HU IE IS IT LT LU MC NL PL PT RO SE SI SK TR BF BJ CF CG CI CM GA GN GQ GW ML MR NE SN TD TG

WWE Wipo information: entry into national phase

Ref document number: 2558377

Country of ref document: CA

WWE Wipo information: entry into national phase

Ref document number: 2007501714

Country of ref document: JP

Ref document number: 2005220123

Country of ref document: AU

WWE Wipo information: entry into national phase

Ref document number: 200580007135.X

Country of ref document: CN

NENP Non-entry into the national phase

Ref country code: DE

WWW Wipo information: withdrawn in national office

Ref document number: DE

WWE Wipo information: entry into national phase

Ref document number: 177931

Country of ref document: IL

WWE Wipo information: entry into national phase

Ref document number: 2005721908

Country of ref document: EP

ENP Entry into the national phase

Ref document number: 2005220123

Country of ref document: AU

Date of ref document: 20050304

Kind code of ref document: A

WWP Wipo information: published in national office

Ref document number: 2005220123

Country of ref document: AU

WWE Wipo information: entry into national phase

Ref document number: 1200601625

Country of ref document: VN

121 Ep: the epo has been informed by wipo that ep was designated in this application
WWP Wipo information: published in national office

Ref document number: 2005721908

Country of ref document: EP

ENP Entry into the national phase

Ref document number: PI0508141

Country of ref document: BR
