WO2008014239A2 - Greaseproof paper - Google Patents

Greaseproof paper Download PDF

Info

Publication number
WO2008014239A2
WO2008014239A2 PCT/US2007/074185 US2007074185W WO2008014239A2 WO 2008014239 A2 WO2008014239 A2 WO 2008014239A2 US 2007074185 W US2007074185 W US 2007074185W WO 2008014239 A2 WO2008014239 A2 WO 2008014239A2
Authority
WO
WIPO (PCT)
Prior art keywords
group
fluorine
atom
monomer
carbon atoms
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/US2007/074185
Other languages
French (fr)
Other versions
WO2008014239A3 (en
Inventor
Peter Chesire Hupfield
Tetsuya Masutani
Ikuo Yamamoto
Shinichi Minami
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Daikin Industries Ltd
Dow Silicones Corp
Original Assignee
Daikin Industries Ltd
Dow Corning Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Daikin Industries Ltd, Dow Corning Corp filed Critical Daikin Industries Ltd
Priority to CN200780033946.6A priority Critical patent/CN101517018B/en
Priority to JP2009521944A priority patent/JP2009544867A/en
Priority to AT07813265T priority patent/ATE540091T1/en
Priority to EP20070813265 priority patent/EP2046903B1/en
Priority to US12/375,086 priority patent/US8022156B2/en
Publication of WO2008014239A2 publication Critical patent/WO2008014239A2/en
Publication of WO2008014239A3 publication Critical patent/WO2008014239A3/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C09—DYES; PAINTS; POLISHES; NATURAL RESINS; ADHESIVES; COMPOSITIONS NOT OTHERWISE PROVIDED FOR; APPLICATIONS OF MATERIALS NOT OTHERWISE PROVIDED FOR
    • C09D—COATING COMPOSITIONS, e.g. PAINTS, VARNISHES OR LACQUERS; FILLING PASTES; CHEMICAL PAINT OR INK REMOVERS; INKS; CORRECTING FLUIDS; WOODSTAINS; PASTES OR SOLIDS FOR COLOURING OR PRINTING; USE OF MATERIALS THEREFOR
    • C09D133/00—Coating compositions based on homopolymers or copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by only one carboxyl radical, or of salts, anhydrides, esters, amides, imides, or nitriles thereof; Coating compositions based on derivatives of such polymers
    • C09D133/04—Homopolymers or copolymers of esters
    • C09D133/14—Homopolymers or copolymers of esters of esters containing halogen, nitrogen, sulfur or oxygen atoms in addition to the carboxy oxygen
    • C09D133/16—Homopolymers or copolymers of esters containing halogen atoms
    • C—CHEMISTRY; METALLURGY
    • C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08F—MACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F283/00—Macromolecular compounds obtained by polymerising monomers on to polymers provided for in subclass C08G
    • C08F283/12—Macromolecular compounds obtained by polymerising monomers on to polymers provided for in subclass C08G on to polysiloxanes
    • C08F283/122—Macromolecular compounds obtained by polymerising monomers on to polymers provided for in subclass C08G on to polysiloxanes on to saturated polysiloxanes containing hydrolysable groups, e.g. alkoxy-, thio-, hydroxy-
    • D—TEXTILES; PAPER
    • D21—PAPER-MAKING; PRODUCTION OF CELLULOSE
    • D21H—PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED BY SUBCLASSES D21C OR D21D; IMPREGNATING OR COATING OF PAPER; TREATMENT OF FINISHED PAPER NOT COVERED BY CLASS B31 OR SUBCLASS D21G; PAPER NOT OTHERWISE PROVIDED FOR
    • D21H17/00—Non-fibrous material added to the pulp, characterised by its constitution; Paper-impregnating material characterised by its constitution
    • D21H17/20—Macromolecular organic compounds
    • D21H17/33—Synthetic macromolecular compounds
    • D21H17/46—Synthetic macromolecular compounds obtained otherwise than by reactions only involving carbon-to-carbon unsaturated bonds
    • D21H17/59—Synthetic macromolecular compounds obtained otherwise than by reactions only involving carbon-to-carbon unsaturated bonds obtained by reactions forming in the main chain of the macromolecule a linkage containing silicon
    • D—TEXTILES; PAPER
    • D21—PAPER-MAKING; PRODUCTION OF CELLULOSE
    • D21H—PULP COMPOSITIONS; PREPARATION THEREOF NOT COVERED BY SUBCLASSES D21C OR D21D; IMPREGNATING OR COATING OF PAPER; TREATMENT OF FINISHED PAPER NOT COVERED BY CLASS B31 OR SUBCLASS D21G; PAPER NOT OTHERWISE PROVIDED FOR
    • D21H21/00—Non-fibrous material added to the pulp, characterised by its function, form or properties; Paper-impregnating or coating material, characterised by its function, form or properties
    • D21H21/14—Non-fibrous material added to the pulp, characterised by its function, form or properties; Paper-impregnating or coating material, characterised by its function, form or properties characterised by function or properties in or on the paper
    • D21H21/16—Sizing or water-repelling agents
    • Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
    • Y10—TECHNICAL SUBJECTS COVERED BY FORMER USPC
    • Y10T—TECHNICAL SUBJECTS COVERED BY FORMER US CLASSIFICATION
    • Y10T428/00—Stock material or miscellaneous articles
    • Y10T428/31504—Composite [nonstructural laminate]
    • Y10T428/31652—Of asbestos
    • Y10T428/31663—As siloxane, silicone or silane

Definitions

  • This invention relates to greaseproof paper, that is paper that has been rendered oleophobic.
  • Greaseproof paper is widely used in food processing, particularly in baking of cakes and biscuits, and in packaging of oily or fatty foods such as hamburgers, sandwiches and chips (French fries).
  • Fluorine-containing polymers have been used to impart oleophobicity to paper.
  • finishing agents for textiles, leather, paper and mineral substrates which are aqueous dispersions of a copolymer of a perfluoroalkyl acrylate or methacrylate, an alkyl acrylate or methacrylate and an aminoalkyl acrylate or methacrylate.
  • FR-A-2766216 describes additives for treating paper based materials against grease and fat, for use with foodstuffs, consisting of aqueous emulsions of i) fluorinated compounds and ii) two of the following: a) a dispersing agent; b) a lubricant; c) a soap; d) an impermeability agent; e) and an emulsifying agent.
  • Greaseproof paper comprises paper rendered oleophobic by treatment with a fluorine-containing polymer, characterised in that the fluorine-containing polymer comprises repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula: wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX 1 X 2 group (wherein X 1 and X 2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted pheny
  • the invention includes a method of rendering paper oleophobic, wherein the paper is treated with a fluorine-containing polymer as defined above.
  • the invention also includes a novel fluorine-containing polymer comprising repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula: wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX 1 X 2 group (wherein X 1 and X 2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cyclo
  • the novel polymer is useful in rendering paper oleophobic and also for imparting oleophobicity and oil repellency to fabrics without imparting a harsh feel to the fabric surface.
  • the paper which is treated according to the invention can be conventional paper from cellulosic fibres such as wood pulp or recycled pulp consisting mainly of cellulosic fibres.
  • the paper can alternatively be formed from polymer fibres, for example polyolefin fibres.
  • the fluorine-containing polymer used in the present invention can in general be prepared by polymerizing the fluorine-containing monomer (A) in the presence of the mercapto group-containing silicone (B).
  • the mercapto group-containing silicone (B) acts as a chain transfer agent in the polymerization reaction and is an organopolysiloxane having a mercapto-functional organic group present in the molecule.
  • Organopolysiloxanes are well known and are often designated by the general formula R n Si0( 4 _ n y 2 , where the organopolysiloxanes may comprise any number of "M" (mono functional) siloxy units (R 3 SiO 05 ), "D" (difunctional) siloxy units (R 2 SiO), “T” (trifunctional) siloxy units (RSiOi 5 ), or "Q" siloxy units (SiO 2 ) where R is independently a monovalent organic group. These siloxy units can be combined in various manners to form cyclic, linear, or branched structures. The chemical and physical properties of the resulting polymeric structures can vary.
  • organopolysiloxanes can be volatile or low viscosity fluids, high viscosity fluids/gums, elastomers or rubbers, and resins.
  • R is independently a monovalent organic group, alternatively R is a hydrocarbon group containing 1 to 30 carbons, alternatively R is an alkyl group containing 1 to 30 carbon atoms, or alternatively R is methyl.
  • the organopolysiloxanes useful as component (B) in the present invention are characterized by having at least one of the R groups in the formula R n Si0 (4 _ n y 2 be a mercapto-functional group, or alternatively at least one of the R groups be a mercapto- functional group and one of the R groups be an organofunctional group, or alternatively one of the R groups be an organofunctional group also containing a mercapto group.
  • organofunctional group means an organic group containing any number of carbon atoms, but the group contains at least one atom other than carbon and hydrogen and sulfur.
  • the organofunctional group and mercapto-functional group may each be present on any siloxy unit having an R substituent, that is, they may be present on any M, D, or T unit.
  • the organofunctional groups and mercapto-functional groups are each present as a substituent on a D siloxy unit.
  • organofunctional groups include, amines, amides, sulfonamides, quaternaries, ethers, epoxy, phenols, esters, carboxyls, ketones, halogen substituted alkyls and aryls group.
  • the organofunctional group is an amino-functional organic group.
  • the mercapto-functional organic group is designated in the formulae herein as
  • R s and is illustrated by groups having the formula; -R 1 SR 2 , wherein each RI and R 2 is as defined above.
  • the mercapto-functional group is illustrated by the following formulae; CH 2 CH 2 CH 2 SH, -CH 2 CHCH 3 SH, -CH 2 CH 2 CH 2 CH 2 SH,
  • the mercapto functional group is -CH 2 CH 2 CH 2 SH.
  • the amino-functional organic group is designated in the formulas herein as R N and is illustrated by groups having the formula; -R 1 NHR 2 , -R 1 NR 2 2 , or -R 1 NHR 1 NHR 2 , wherein each R 1 is independently a divalent hydrocarbon group having at least 2 carbon atoms, and R 2 is hydrogen or an alkyl group.
  • R 1 is typically an alkylene group having from 2 to 20 carbon atoms.
  • R 1 is illustrated by groups such as; - CH 2 CH 2 -, -CH 2 CH 2 CH 2 -, -CH 2 CHCH 3 -, -CH 2 CH 2 CH 2 CH 2 -, -CH 2 CH(CH 3 )CH 2 - , -CH 2 CH 2 CH 2 CH 2 CH 2 -, -CH 2 CH 2 CH 2 CH 2 CH 2 CH 2 -, - CH 2 CH 2 CH(CH 2 CH 3 )CH 2 CH 2 CH 2 -, -CH 2 CH 2 CH 2 CH 2 CH 2 CH 2 CH 2 -, and
  • R 2 is an alkyl group, it is typically methyl.
  • suitable amino-functional hydrocarbon groups are;
  • the amino functional group is -CH 2 CH 2 CH 2 NH 2
  • the mercapto functional organopolysiloxane can for example comprise siloxy units having the average formula
  • R 2 SiO a (RR N SiO) b (RR s SiO) c
  • a is 0-4000, alternatively 0 to 1000, alternatively 0 to 400
  • b is 1-1000, alternatively 1 to 100, alternatively 1 to 50
  • c is 1- 1000, alternatively 1 to 100, alternatively 1 to 50
  • R is independently a monovalent organic group, for example R is a hydrocarbon group containing 1- 30 carbon atoms, for example a monovalent alkyl group containing 1 - 12 carbons such as a methyl group;
  • R N is a monovalent amino functional organic group as defined above
  • R s is a monovalent mercapto functional organic group as defined above.
  • Such an organopolysiloxane an amino-mercapto functional organopolysiloxane terpolymer
  • the alkyl group can be a linear or branched alkyl, containing 1 - 30 carbons, for example the alkyl group can be a long chain alkyl group of 4-20, particularly 8-20, carbon atoms such as stearyl.
  • the organopolysiloxane can be terminated with a trimethylsilyl group.
  • the amino-mercapto functional organopolysiloxane terpolymer can in a first embodiment generally be represented by the following average formula for example;
  • a is 0-4000, alternatively 0 to 1000, alternatively 0 to 400, b is 1-1000, alternatively 1 to 100, alternatively 1 to 50, c is 1- 1000, alternatively 1 to 100, alternatively 1 to 50; and R' is H, an alkyl group having 1 to 40 carbon atoms, or Me 3 Si.
  • the amino-mercapto functional organopolysiloxane terpolymers of the first embodiment can be prepared by any technique known in the art for preparation of organopolysiloxane terpolymers containing amino and/or mercapto functional groups.
  • the organopolysiloxane terpolymers are prepared via a condensation polymerization reaction of an amino functional alkoxy silane, a mercapto functional silane monomer, and organopolysiloxane having alkoxy or silanol termination as illustrated by the following general reaction scheme.
  • Condensation organopolysiloxanes are well known in the art and are typically catalyzed by the addition of a strong base, such as an alkaline metal hydroxide, or a tin compound. Alternatively co-polymerisation of functionalized cyclosiloxanes could be used.
  • the mercapto functional organopolysiloxane may in particular comprise siloxy units having the average formula;
  • a is 0-4000, alternatively 1 to 1000, alternatively 1 to 400
  • b is 1-1000, alternatively 1 to 100, alternatively 1 to 50
  • c is 1- 1000, alternatively 1 to 100, alternatively 1 to 50;
  • R is independently a monovalent organic group, such as a hydrocarbon containing 1- 30 carbon atoms, for example R is a monovalent alkyl group containing 1 - 12 carbons such as a methyl group; R N is a monovalent amino functional organic group as defined above, R s is a monovalent mercapto functional organic group as defined above.
  • the fluorine-containing monomer (A) is a compound of the formula: wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX 1 X 2 group (wherein X 1 and X 2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH 2 CH 2 N(R 1
  • X may be an linear or branched alkyl group having 2 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX 1 X 2 group (wherein X 1 and X 2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group.
  • the Rf group is preferably a perfluoroalkyl group.
  • the carbon number of the Rf group is from 1 to 21, for example, from 1 to 6, particularly
  • Y is preferably an aliphatic group having 1 to 10 carbon atoms, an aromatic group or cycloaliphatic group having 6 to 10 carbon atoms, a -
  • R 1 is an alkyl group having 1 to 4 carbon atoms.
  • Y 1 is a hydrogen atom or an acetyl group.
  • the aliphatic group is preferably an alkylene group (particularly the carbon number is from 1 to 4, for example, 1 or 2.).
  • the aromatic group and cycloaliphatic group may be substituted or unsubstituted.

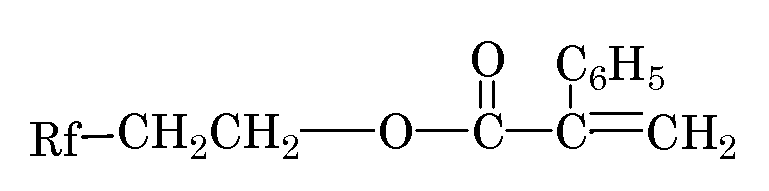

  • fluorine-containing monomer (A) examples are those of the formulae:
  • Rf is a linear or branched fluoroalkyl group having, for example, 1 to 6 carbon atoms.
  • fluoroalkyl ester monomer (A) include:
  • the fluorine-containing polymer may be a homopolymer formed from one fluorine-containing monomer (A), modified by being polymerised in the presence of the mercapto group-containing silicone (B).
  • the fluorine-containing polymer may alternatively be a copolymer formed from at least two monomers.
  • the copolymer may have repeating units derived from at least two fluorine-containing monomers (A), or may have, in addition to the repeating units derived from the fluorine-containing monomer (A), repeating units derived from an olefinically unsaturated fluorine-free monomer (C) and optionally the crosslinkable monomer.
  • the fluorine-free monomer (C) may be an acrylate or methacrylate ester having an alkyl group.
  • the number of carbon atoms of the alkyl group may be from 1 to 30, for example, from 6 to 30, e.g., from 10 to 30.
  • fluorine-free monomer (C) may be an acrylate of the general formula:
  • CH 2 CA 1 COOA 2
  • a 1 is a hydrogen atom, a methyl group, or a halogen atom (for example, a chlorine atom, a bromine atom and a iodine atom) other than a fluorine atom
  • the fluorine-free monomer (C) can be another type of compound having one carbon-carbon double bond.
  • fluorine-free monomer (C) examples include, for example, ethylene, vinyl acetate, vinyl propionate, vinyl halide such as vinyl chloride, vinylidene halide such as vinylidene chloride, acrylonitrile, methacrylonitrile, styrene, ethylene, a vinyl alkyl ether, isoprene, polyethyleneglycol (meth)acrylate, polypropyleneglycol (meth)acrylate, methoxypolyethyleneglycol (meth)acrylate, methoxypolypropyleneglycol (meth)acrylate, vinyl alkyl ether and isoprene.
  • the fluorine-free monomer (C) is not limited to these examples.
  • the fluorine-free monomer (C) can be a monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group.
  • the monomer (C) can for example comprise an acrylate of the general formula:
  • a 1 is a hydrogen atom, a methyl group or a halogen atom other than a fluorine atom
  • a 3 is a hydrocarbon group having 1 to 30 carbon atoms substituted by an acid phosphate ester, phosphonic acid or acid phosphonate ester group.
  • Fluorine-containing polymers comprising repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula: wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX 1 X 2 group (wherein X 1 and X 2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to
  • the monomer (C) can be present in acid or salt form.
  • the fluorine-containing polymer may contain repeating units derived from a crosslinkable monomer.
  • the crosslinkable monomer can be a fluorine-free vinyl monomer having at least two reactive groups and/or carbon-carbon atoms.
  • the crosslinkable monomer may be a compound having at least two carbon-carbon double bonds, or a compound having at least one carbon-carbon double bond and at least one reactive group.
  • the reactive group include a hydroxyl group, an epoxy group, a chloromethyl group, a blocked isocyanate group, an amino group and a carboxyl group.
  • the crosslinkable monomer include diacetoneacrylamide,
  • fluorine-containing polymer used in the invention can for example be prepared by reacting the fluorine-containing monomer (A) and the mercapto-functional organopolysiloxane (B) and optionally a fluorine-free monomer (C) in a free radical polymerisation reaction.
  • the process may be conducted in the presence of a polar organic solvent.
  • the polar organic solvent can be one or more alcohol, ketone or ester solvents selected from butanol, t-butanol, isopropanol, butoxyethanol, methyl isobutyl ketone, methyl ethyl ketone, butyl acetate or ethyl actetate and/or an aromatic hydrocarbon such as xylene, toluene or trimethylbenzene or a blend of one or more of these.
  • the initiator for the free radical polymerisation reaction can be any compound known in the art for initiating free radical reactions, such as organic peroxides or azo compounds. Representative, non-limiting examples are; azo compounds such as azobisisobutyronitrile or azoisovaleronitrile (AIVN), peroxides such as benzoyl peroxide.
  • the polymerisation temperature typically ranges 50-120°C.
  • the polymeric reaction product can be obtained using the technique of emulsion polymerisation, where all the components are polymerised in the presence of water, surfactants and polymerisation initiator.
  • the fluorine-containing polymer can contain various ratios of the fluorine- containing monomer (A), the mercapto organopolysiloxane (B) and the optional fluorine-free monomer (C), as controlled by the amount of each components (A), (B), and optional (C) are added to the reaction.
  • the fluorine-containing polymer may for example contain 5 to 95% by weight of the fluorine- containing monomer (A), 0.1 to 95%by weight of the mercapto organopolysiloxane (B), and 0 to 70% by weight of olefinically unsaturated fluorine-free co-monomers (C).
  • the fluorine-containing polymer may for example comprise 5 to 95 wt. % of fluorine-containing monomer (A), 0.1 to 95 wt % of the mercapto organopolysiloxane (B),
  • a fluorosilicone product having a high proportion of mercapto organopolysiloxane may provide greater substantivity to fibrous substrates such as paper.
  • a polymeric product having a high proportion of fluorine-containing monomer may provide maximum hydrophobicity and oleophobicity.
  • the fluorine-containing polymer reaction product is generally obtained as a solution. It can be isolated by evaporation of the solvent. For application as an oil repellent, the fluorosilicone reaction product is generally required in liquid form and the solution obtained by reaction can often be diluted to a solution suitable for application to paper. Alternatively the fluorine-containing polymer reaction product can be dissolved in a different solvent for application to paper, for example in a polar organic solvent of higher boiling point.
  • the fluorine-containing polymer reaction product can alternatively be emulsified by mixing with water and an emulsifying agent, such as a cationic surfactant and/or a nonionic or anionic surfactant.
  • the fluorine-containing polymer reaction product can be isolated before emulsification or the polymerisation product solution can be emulsified without isolation of the polymer, optionally with removal of solvent. If the polymeric product is obtained by emulsion polymerisation, the emulsion is generally used, diluted as required, without isolating the polymeric product.
  • the fluorine-containing polymer can be applied to paper according to the invention by coating it on pre-formed paper, or the fluorine-containing polymer can be applied as a size during the papermaking process. If it is applied as a size, it is applied at any stage after the papermaking fibres have been deposited on a wire and drained, and before the final drying step.
  • the paper may for example be subjected to an initial drying and pressing step before the fluorine-containing polymer is applied as a size.
  • the fluorine-containing polymer is applied as a size, it is preferably applied from aqueous emulsion, although application from polar organic solvent solution is an alternative.
  • the fluorine-containing polymer is applied on pre-formed paper, it can be applied from aqueous emulsion or from polar organic solvent solution.
  • Paper rendered oleophobic according to the invention can be used in all the applications for which greaseproof paper is conventionally used, for example in food processing, including baking, and in packaging of foods, including oily or fatty foods.
  • the greaseproofness of paper was measured according to the procedure of TAPPI UM-557. One drop of each of test oils indicated in Table 1 was placed on paper, and the penetration of the oil into the paper was observed 15 seconds later. The maximum of the greaseproofness degrees of a test oil which did not penetrate paper was taken as greaseproofness.
  • a mixture liquid prepared by previously mixing CH 2 C(CH 3 )COOCH 2 CH 2 OP(O)(OH) 2 (2.6 g), diethanol amine (2.25 g) and pure water (25 g) was added to the flask and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2-amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
  • n-Dodecyl mercaptan (0.69 g) was added. The atmosphere of the flask was replaced with nitrogen, and then vinyl chloride (33 g) was injected. Further, 2,2'- azobis(2-amidinopropane) dihydrochloride (1.12 g) was added and the reaction was conducted at 6O°C for 5 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
  • a base paper to be coated with a polymer liquid was prepared in the following manner.
  • An aqueous solution of a polyamide-polyamine-epichlorohydrin reaction product having a solid content of 1% (WS-570 manufactured by Nippon PMC) (0.88 g) was added to a 1.75% aqueous dispersion (250 g) of a mixture of 90 parts of bleached kraft pulp of broad- leaved trees and 10 parts of bleached kraft pulp of needle- leaved trees, which was beaten to have a freeness of 500 cc (Canadian Freeness), with stirring the aqueous dispersion, and then further stirred for 2 minutes.
  • the resultant pulp slurry was subjected to a paper manufacture using a handmade paper machine described in JIS P8209.
  • the hand-made paper machine had been modified to give a paper size of 25 cm x 25 cm.
  • a wet paper was sandwiched between filter papers, pressed at a pressure of 3.5 kg/cm to sufficiently absorb off water, and dried in a drum dryer at 115°C for 70 seconds to give a base paper.
  • the basis weight of the base paper was 70g/m 2 .
  • aqueous solution of starch was prepared by adding a starch (2- hydoroxyethyl starch ether) (PENFORD R GUM 290 manufactured by Penford Corporation) (10 g) to water (90 g) to give a mixture. The mixture was heated to and maintained at about 80-90°C for about 30 minutes and then cooled to give a 10% aqueous solution of starch.
  • a starch (2- hydoroxyethyl starch ether) (PENFORD R GUM 290 manufactured by Penford Corporation) (10 g)
  • PPFORD R GUM 290 manufactured by Penford Corporation
  • the base paper was immersed in the diluted emulsion, squeezed with a squeezing machine at a squeeze pressure of 0.1 kg/cm, and dried in a drum dryer at 115°C for 70 seconds.
  • the grease proofness of this grease-proof paper was evaluated. The results are shown in Table 2.
  • Each of the waterproof and grease-proof emulsions prepared in Preparative Examples 1 to 4 and Comparative Preparative Examples 1 to 4 was diluted with water.
  • the starch solution was diluted with water and mixed with the diluted emulsion so that the waterproof and grease-proof agent had a desired concentration shown in Table 3 and the starch had a solid content of 5%.
  • Examples 5 to 8 and Comparative Examples 5 to 8 used the waterproof and grease-proof emulsions prepared in Preparative Examples 1 to 4 and Comparative Preparative Examples 1 to 4 respectively.
  • the base paper was immersed in the diluted liquid, squeezed with a squeezing machine at a squeeze pressure of 0.1 kg/cm, and dried in a drum dryer at 115°C for 70 seconds. The grease proofness of this grease-proof paper was evaluated. The results are shown in Table 3.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Organic Chemistry (AREA)
  • Health & Medical Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • Polymers & Plastics (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Materials Engineering (AREA)
  • Wood Science & Technology (AREA)
  • Paper (AREA)
  • Addition Polymer Or Copolymer, Post-Treatments, Or Chemical Modifications (AREA)

Abstract

A greaseproof paper is provided for use in food processing and/or packaging of foods in which paper has been rendered oleophobic by treatment with a fluorine-containing polymer. The fluorine-containing polymer may be prepared by polymerizing a fluorine-containing monomer in the presence of a mercapto group-containing organopolysiloxane. The fluorine-containing polymer may be applied to paper by coating onto pre-formed paper, or by applying the polymer as a size during a papermaking process.

Description

GREASEPROOF PAPER
This invention relates to greaseproof paper, that is paper that has been rendered oleophobic. Greaseproof paper is widely used in food processing, particularly in baking of cakes and biscuits, and in packaging of oily or fatty foods such as hamburgers, sandwiches and chips (French fries).
Fluorine-containing polymers have been used to impart oleophobicity to paper. For example, US-A-5247008 describes finishing agents for textiles, leather, paper and mineral substrates which are aqueous dispersions of a copolymer of a perfluoroalkyl acrylate or methacrylate, an alkyl acrylate or methacrylate and an aminoalkyl acrylate or methacrylate.
FR-A-2766216 describes additives for treating paper based materials against grease and fat, for use with foodstuffs, consisting of aqueous emulsions of i) fluorinated compounds and ii) two of the following: a) a dispersing agent; b) a lubricant; c) a soap; d) an impermeability agent; e) and an emulsifying agent.
Greaseproof paper according to the present invention comprises paper rendered oleophobic by treatment with a fluorine-containing polymer, characterised in that the fluorine-containing polymer comprises repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula:
Figure imgf000002_0001
wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH2 CH2 N(R1 )SO2 - group (wherein R1 is an alkyl group having 1 to 4 carbon atoms) Or-CH2 CH(OY1 )CH2 - group (wherein Y1 is a hydrogen atom or an acetyl group), and Rf is a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, wherein the fluorine-containing polymer comprises an organopolysiloxane moiety derived from (B) a mercapto group-containing organopolysiloxane.
The invention includes a method of rendering paper oleophobic, wherein the paper is treated with a fluorine-containing polymer as defined above.
The invention also includes a novel fluorine-containing polymer comprising repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula:
Figure imgf000003_0001
wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH2 CH2 N(R1 )SO2 - group (wherein R1 is an alkyl group having 1 to 4 carbon atoms) Or-CH2 CH(OY1 )CH2 - group (wherein Y1 is a hydrogen atom or an acetyl group), and Rf is a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, wherein the fluorine-containing polymer comprises an organopolysiloxane moiety derived from (B) a mercapto group-containing organopolysiloxane, and also comprises repeating units derived from an olefinically unsaturated monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group. The novel polymer is useful in rendering paper oleophobic and also for imparting oleophobicity and oil repellency to fabrics without imparting a harsh feel to the fabric surface. The paper which is treated according to the invention can be conventional paper from cellulosic fibres such as wood pulp or recycled pulp consisting mainly of cellulosic fibres. The paper can alternatively be formed from polymer fibres, for example polyolefin fibres. The fluorine-containing polymer used in the present invention can in general be prepared by polymerizing the fluorine-containing monomer (A) in the presence of the mercapto group-containing silicone (B).
The mercapto group-containing silicone (B) acts as a chain transfer agent in the polymerization reaction and is an organopolysiloxane having a mercapto-functional organic group present in the molecule.
Organopolysiloxanes are well known and are often designated by the general formula RnSi0(4_ny2, where the organopolysiloxanes may comprise any number of "M" (mono functional) siloxy units (R3SiO05), "D" (difunctional) siloxy units (R2SiO), "T" (trifunctional) siloxy units (RSiOi 5), or "Q" siloxy units (SiO2) where R is independently a monovalent organic group. These siloxy units can be combined in various manners to form cyclic, linear, or branched structures. The chemical and physical properties of the resulting polymeric structures can vary. For example organopolysiloxanes can be volatile or low viscosity fluids, high viscosity fluids/gums, elastomers or rubbers, and resins. R is independently a monovalent organic group, alternatively R is a hydrocarbon group containing 1 to 30 carbons, alternatively R is an alkyl group containing 1 to 30 carbon atoms, or alternatively R is methyl.
The organopolysiloxanes useful as component (B) in the present invention are characterized by having at least one of the R groups in the formula RnSi0(4_ny2 be a mercapto-functional group, or alternatively at least one of the R groups be a mercapto- functional group and one of the R groups be an organofunctional group, or alternatively one of the R groups be an organofunctional group also containing a mercapto group. As used herein, "organofunctional group" means an organic group containing any number of carbon atoms, but the group contains at least one atom other than carbon and hydrogen and sulfur. The organofunctional group and mercapto-functional group may each be present on any siloxy unit having an R substituent, that is, they may be present on any M, D, or T unit. Typically, the organofunctional groups and mercapto-functional groups are each present as a substituent on a D siloxy unit.
Representative examples of such organofunctional groups include, amines, amides, sulfonamides, quaternaries, ethers, epoxy, phenols, esters, carboxyls, ketones, halogen substituted alkyls and aryls group. In many preferred organopolysiloxanes, the organofunctional group is an amino-functional organic group.
The mercapto-functional organic group is designated in the formulae herein as
Rs and is illustrated by groups having the formula; -R1SR2, wherein each RI and R2 is as defined above. The mercapto-functional group is illustrated by the following formulae; CH2CH2CH2SH, -CH2CHCH3SH, -CH2CH2CH2CH2SH,
-CH2CH2CH2CH2CH2SH5 -CH2CH2CH2CH2CH2CH2SH,
-CH2CH2SCH3. Typically, the mercapto functional group is -CH2CH2CH2SH.
When the organofunctional group is an amino-functional organic group, the amino-functional organic group is designated in the formulas herein as RN and is illustrated by groups having the formula; -R1NHR2 , -R1NR2 2 , or -R1NHR1NHR2, wherein each R1 is independently a divalent hydrocarbon group having at least 2 carbon atoms, and R2 is hydrogen or an alkyl group. Each R1 is typically an alkylene group having from 2 to 20 carbon atoms. R1 is illustrated by groups such as; - CH2CH2-, -CH2CH2CH2-, -CH2CHCH3-, -CH2CH2CH2CH2-, -CH2CH(CH3)CH2- , -CH2CH2CH2CH2CH2-, -CH2CH2CH2CH2CH2CH2-, - CH2CH2CH(CH2CH3)CH2CH2CH2-, -CH2CH2CH2CH2CH2CH2CH2CH2-, and
-CH2CH2CH2CH2CH2CH2CH2CH2CH2CH2-. The alkyl groups R2 are as illustrated above for R. When R2 is an alkyl group, it is typically methyl. Some examples of suitable amino-functional hydrocarbon groups are;
-CH2CH2NH2,
-CH2CH2CH2NH2, -CH2CHCH3NH, -CH2CH2CH2CH2NH2, -CH2CH2CH2CH2CH2NH25 -CH2CH2CH2CH2CH2CH2NH2, -CH2CH2NHCH3, -CH2CH2CH2NHCH3, -CH2(CH3)CHCH2NHCH3, -CH2CH2CH2CH2NHCH3 , -CH2CH2NHCH2CH2NH2,
-CH2CH2CH2NHCH2CH2CH2NH25 -CH2CH2CH2CH2NHCH2CH2CH2CH2NH2, -CH2CH2NHCH2CH2NHCH3 , -CH2CH2CH2NHCH2CH2CH2NHCH3 , -CH2CH2CH2CH2NHCH2CH2CH2CH2NHCH3, and
-CH2CH2NHCH2CH2NHCH2CH2CH2CH3. Typically, the amino functional group is -CH2CH2CH2NH2
The mercapto functional organopolysiloxane can for example comprise siloxy units having the average formula;
(R2SiO)a(RRNSiO)b(RRsSiO)c where; a is 0-4000, alternatively 0 to 1000, alternatively 0 to 400, b is 1-1000, alternatively 1 to 100, alternatively 1 to 50, c is 1- 1000, alternatively 1 to 100, alternatively 1 to 50; R is independently a monovalent organic group, for example R is a hydrocarbon group containing 1- 30 carbon atoms, for example a monovalent alkyl group containing 1 - 12 carbons such as a methyl group;
RN is a monovalent amino functional organic group as defined above, Rs is a monovalent mercapto functional organic group as defined above. Such an organopolysiloxane (an amino-mercapto functional organopolysiloxane terpolymer) may be terminated with a hydrogen atom (resulting in a silanol group on the terminal siloxy unit of the terpolymer), or with an alkyl group containing 1 - 30 carbon atoms (resulting in an alkoxy group on the terminal siloxy unit of the terpolymer). When an alkyl group is used, the alkyl group can be a linear or branched alkyl, containing 1 - 30 carbons, for example the alkyl group can be a long chain alkyl group of 4-20, particularly 8-20, carbon atoms such as stearyl. Alternatively the organopolysiloxane can be terminated with a trimethylsilyl group. The amino-mercapto functional organopolysiloxane terpolymer can in a first embodiment generally be represented by the following average formula for example;
Figure imgf000007_0001
where; a is 0-4000, alternatively 0 to 1000, alternatively 0 to 400, b is 1-1000, alternatively 1 to 100, alternatively 1 to 50, c is 1- 1000, alternatively 1 to 100, alternatively 1 to 50; and R' is H, an alkyl group having 1 to 40 carbon atoms, or Me3Si. The amino-mercapto functional organopolysiloxane terpolymers of the first embodiment can be prepared by any technique known in the art for preparation of organopolysiloxane terpolymers containing amino and/or mercapto functional groups. Typically, the organopolysiloxane terpolymers are prepared via a condensation polymerization reaction of an amino functional alkoxy silane, a mercapto functional silane monomer, and organopolysiloxane having alkoxy or silanol termination as illustrated by the following general reaction scheme.
Figure imgf000007_0002
( )2
Condensation organopolysiloxanes are well known in the art and are typically catalyzed by the addition of a strong base, such as an alkaline metal hydroxide, or a tin compound. Alternatively co-polymerisation of functionalized cyclosiloxanes could be used. The mercapto functional organopolysiloxane may in particular comprise siloxy units having the average formula;
R3Si0(R2Si0)a(RRNSi0)b(RRsSi0)cSiR3 where; a is 0-4000, alternatively 1 to 1000, alternatively 1 to 400, b is 1-1000, alternatively 1 to 100, alternatively 1 to 50, c is 1- 1000, alternatively 1 to 100, alternatively 1 to 50;
R is independently a monovalent organic group, such as a hydrocarbon containing 1- 30 carbon atoms, for example R is a monovalent alkyl group containing 1 - 12 carbons such as a methyl group; RN is a monovalent amino functional organic group as defined above, Rs is a monovalent mercapto functional organic group as defined above.
The fluorine-containing monomer (A) is a compound of the formula:
Figure imgf000008_0001
wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH2 CH2 N(R1 )SU2 - group (wherein R1 is an alkyl group having 1 to 4 carbon atoms) or -CH2 CH(OY1 )CH2 - group (wherein Y1 is a hydrogen atom or an acetyl group), and Rf is a linear or branched fluoroalkyl group having 1 to 21 carbon atoms. The fluorine-containing polymer can in general be prepared by polymerizing the monomer (A) in the presence of (B) a mercapto group-containing silicone to give the polymer.
The alpha-position of the fluorine-containing monomer may be substituted with a halogen atom or the like. Accordingly, in the formula (I), X may be an linear or branched alkyl group having 2 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group.
In the formula (I), the Rf group is preferably a perfluoroalkyl group. The carbon number of the Rf group is from 1 to 21, for example, from 1 to 6, particularly
Figure imgf000009_0001
from 1 to 4.
Y is preferably an aliphatic group having 1 to 10 carbon atoms, an aromatic group or cycloaliphatic group having 6 to 10 carbon atoms, a -
CH2CH2N(R1)Sθ2- group (R1 is an alkyl group having 1 to 4 carbon atoms.) or a - CH2CH(OY1)CH2- group (Y1 is a hydrogen atom or an acetyl group. ). The aliphatic group is preferably an alkylene group (particularly the carbon number is from 1 to 4, for example, 1 or 2.). The aromatic group and cycloaliphatic group may be substituted or unsubstituted.
Examples of fluorine-containing monomer (A) are those of the formulae:
Figure imgf000010_0001
Figure imgf000011_0001
Figure imgf000011_0002
wherein Rf is a linear or branched fluoroalkyl group having, for example, 1 to 6 carbon atoms.
Representative non- limiting examples of the fluoroalkyl ester monomer (A) include:
CF3(CF2)7(CH2)2OCOCH=CH2
CF3(CF2)7(CH2)2OCOC(CH3)=CH2
CF3(CF2)7(CH2)IOOCOCH=CH2 CF3(CF2)7(CH2)10OCOC(CH3)=CH2
CF3(CF2)6CH2OCOCH=CH2
CF3(CF2)8CH2OCOCH=CH2
(CF3)2CF(CF2)6(CH2)2OCOCH=CH2
(CF3)2CF(CF2)8(CH2)2OCOCH=CH2 (CF3)2CF(CF2)10(CH2)2OCOCH=CH2
(CF3)2CF(CF2)6(CH2)2OCOC(CH3)=CH2
(CF3)2CF(CF2)8(CH2)2OCOC(CH3)=CH2
(CF3)2CF(CF2)10(CH2)2OCOC(CH3)=CH2
CF3(CF2)9(CH2)2OCOCH=CH2 CF3(CF2)9(CH2)2OCOC(CH3)=CH2
CF3(CF2)11(CH2)2OCOCH=CH2
CF3(CF2)11 (CH2)2OCOC(CH3)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOCH=CH2
CF3(CF2)7SO2N(C2H5)(CH2)2OCOCH=CH2 (CF3)2CF(CF2)8CH2CH(OCOCH3)CH2OCOC(CH3)=CH2
(CF3)2CF(CF2)6CH2CH(OH)CH2OCOCH=CH2
C8F17-O-Ph-CH2OCOCH=CH2 (where Ph represents 1 ,4-phenylene)
C5F11-O-Ph-CH2OCOC(CH3)=CH2 C8F17-O-Ph-COOCH2CH(OH)CH2OCOC(CH3)=CH2
(CF3)2CFOCOC(CH3)=CH2
(CF3)2CF(CH2)2OCOC(CH3)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOC(F)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOC(C1)=CH2 CF3(CF2)7SO2N(CH3)(CH2)2OCOC(Br)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOC(I)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOC(CF3)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOC(CN)=CH2
CF3(CF2)7SO2N(CH3)(CH2)2OCOC(C6H5)=CH2 CF3(CF2)7 (CH2)2OCOC(F)=CH2
CF3(CF2)7(CH2)2OCOC(C1)=CH2
CF3(CF2)7 (CH2)2OCOC(Br)=CH2
CF3(CF2)7 (CH2)2OCOC(I)=CH2
CF3(CF2)7 (C7 H2)2OCOC(CF3)=CH2 CF3(CF2)7 (CH2)2OCOC(CN)=CH2
CF3(CF2)7 (CH2)2OCOC(C6H5)=CH2
The fluorine-containing polymer may be a homopolymer formed from one fluorine-containing monomer (A), modified by being polymerised in the presence of the mercapto group-containing silicone (B). The fluorine-containing polymer may alternatively be a copolymer formed from at least two monomers. The copolymer may have repeating units derived from at least two fluorine-containing monomers (A), or may have, in addition to the repeating units derived from the fluorine-containing monomer (A), repeating units derived from an olefinically unsaturated fluorine-free monomer (C) and optionally the crosslinkable monomer. The fluorine-free monomer (C) may be an acrylate or methacrylate ester having an alkyl group. The number of carbon atoms of the alkyl group may be from 1 to 30, for example, from 6 to 30, e.g., from 10 to 30. For example, fluorine-free monomer (C) may be an acrylate of the general formula:
CH2=CA1COOA2 wherein A1 is a hydrogen atom, a methyl group, or a halogen atom (for example, a chlorine atom, a bromine atom and a iodine atom) other than a fluorine atom, and A2 is an alkyl group represented by CnH2n+I (n = 1 to 30). Alternatively or additionally, the fluorine-free monomer (C) can be another type of compound having one carbon-carbon double bond. Preferable examples of the fluorine-free monomer (C) include, for example, ethylene, vinyl acetate, vinyl propionate, vinyl halide such as vinyl chloride, vinylidene halide such as vinylidene chloride, acrylonitrile, methacrylonitrile, styrene, ethylene, a vinyl alkyl ether, isoprene, polyethyleneglycol (meth)acrylate, polypropyleneglycol (meth)acrylate, methoxypolyethyleneglycol (meth)acrylate, methoxypolypropyleneglycol (meth)acrylate, vinyl alkyl ether and isoprene. The fluorine-free monomer (C) is not limited to these examples.
According to one aspect of the invention, the fluorine-free monomer (C) can be a monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group. We have found that the presence of an acid phosphate ester, phosphonic acid or acid phosphonate ester group in the polymer may improve the hydrophobicity of the fluorine-containing polymer and/or the adhesion to and retention of the fluorine-containing polymer by the paper. The monomer (C) can for example comprise an acrylate of the general formula:
CH2=CA1COOA3 wherein A1 is a hydrogen atom, a methyl group or a halogen atom other than a fluorine atom, and A3 is a hydrocarbon group having 1 to 30 carbon atoms substituted by an acid phosphate ester, phosphonic acid or acid phosphonate ester group. Fluorine-containing polymers comprising repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula:
Figure imgf000014_0001
wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group, Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH2 CH2 N(R1 )SU2 - group (wherein R1 is an alkyl group having 1 to 4 carbon atoms) or -CH2 CH(OY1 )CH2 - group (wherein Y1 is a hydrogen atom or an acetyl group), Rf is a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, wherein the fluorine-containing polymer comprises an organopolysiloxane moiety derived from (B) a mercapto group-containing organopolysiloxane, and also comprises repeating units derived from an olefinically unsaturated monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group, are novel polymers and may have advantages in imparting oleophobicity and oil repellency to fabrics without imparting a harsh feel to the fabric surface in addition to being useful in rendering paper oleophobic.
Examples of monomers (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group include: CH2=C(CH3)COOCH2 CH2OP(O)(OH)2 CH2=C(CH3)COOCH2 CH2P(O)(OH)2
CH2=C(CH3)COOCH2 CH2OP(O)(OH)(OR*)
CH2=C(CH3)COOCH2 CH2P(O)(OH)(OR*) where R* is a alkyl group having 1 to 30, for example 1 to 4 carbon atoms such as methyl. The monomer (C) can be present in acid or salt form. The fluorine-containing polymer may contain repeating units derived from a crosslinkable monomer. The crosslinkable monomer can be a fluorine-free vinyl monomer having at least two reactive groups and/or carbon-carbon atoms. Thus the crosslinkable monomer may be a compound having at least two carbon-carbon double bonds, or a compound having at least one carbon-carbon double bond and at least one reactive group. Examples of the reactive group include a hydroxyl group, an epoxy group, a chloromethyl group, a blocked isocyanate group, an amino group and a carboxyl group. Examples of the crosslinkable monomer include diacetoneacrylamide,
(meth)acrylamide, N-methylolacrylamide, hydroxymethyl (meth)acrylate, hydroxyethyl (meth)acrylate, 3-chloro-2-hydroxypropyl (meth)acrylate, N,N- dimethylaminoethyl (meth)acrylate, N,N-diethylaminoethyl (meth)acrylate, butadiene, chloroprene and glycidyl (meth)acrylate The fluorine-containing polymer used in the invention can for example be prepared by reacting the fluorine-containing monomer (A) and the mercapto-functional organopolysiloxane (B) and optionally a fluorine-free monomer (C) in a free radical polymerisation reaction. The process may be conducted in the presence of a polar organic solvent. The polar organic solvent can be one or more alcohol, ketone or ester solvents selected from butanol, t-butanol, isopropanol, butoxyethanol, methyl isobutyl ketone, methyl ethyl ketone, butyl acetate or ethyl actetate and/or an aromatic hydrocarbon such as xylene, toluene or trimethylbenzene or a blend of one or more of these.
The initiator for the free radical polymerisation reaction can be any compound known in the art for initiating free radical reactions, such as organic peroxides or azo compounds. Representative, non-limiting examples are; azo compounds such as azobisisobutyronitrile or azoisovaleronitrile (AIVN), peroxides such as benzoyl peroxide. The polymerisation temperature typically ranges 50-120°C. Alternatively the polymeric reaction product can be obtained using the technique of emulsion polymerisation, where all the components are polymerised in the presence of water, surfactants and polymerisation initiator.
The fluorine-containing polymer can contain various ratios of the fluorine- containing monomer (A), the mercapto organopolysiloxane (B) and the optional fluorine-free monomer (C), as controlled by the amount of each components (A), (B), and optional (C) are added to the reaction. The fluorine-containing polymer may for example contain 5 to 95% by weight of the fluorine- containing monomer (A), 0.1 to 95%by weight of the mercapto organopolysiloxane (B), and 0 to 70% by weight of olefinically unsaturated fluorine-free co-monomers (C). When the fluorine-containing polymer contains a monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group, the fluorine-containing polymer may for example comprise 5 to 95 wt. % of fluorine-containing monomer (A), 0.1 to 95 wt % of the mercapto organopolysiloxane (B),
0.1 to 70 wt. % of the monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group and
0 to 70 wt % of an olefinically unsaturated fluorine-free and phosphorus-free monomer
(C"). A fluorosilicone product having a high proportion of mercapto organopolysiloxane may provide greater substantivity to fibrous substrates such as paper. A polymeric product having a high proportion of fluorine-containing monomer may provide maximum hydrophobicity and oleophobicity.
The fluorine-containing polymer reaction product is generally obtained as a solution. It can be isolated by evaporation of the solvent. For application as an oil repellent, the fluorosilicone reaction product is generally required in liquid form and the solution obtained by reaction can often be diluted to a solution suitable for application to paper. Alternatively the fluorine-containing polymer reaction product can be dissolved in a different solvent for application to paper, for example in a polar organic solvent of higher boiling point. The fluorine-containing polymer reaction product can alternatively be emulsified by mixing with water and an emulsifying agent, such as a cationic surfactant and/or a nonionic or anionic surfactant. The fluorine-containing polymer reaction product can be isolated before emulsification or the polymerisation product solution can be emulsified without isolation of the polymer, optionally with removal of solvent. If the polymeric product is obtained by emulsion polymerisation, the emulsion is generally used, diluted as required, without isolating the polymeric product.
The fluorine-containing polymer can be applied to paper according to the invention by coating it on pre-formed paper, or the fluorine-containing polymer can be applied as a size during the papermaking process. If it is applied as a size, it is applied at any stage after the papermaking fibres have been deposited on a wire and drained, and before the final drying step. The paper may for example be subjected to an initial drying and pressing step before the fluorine-containing polymer is applied as a size. When the fluorine-containing polymer is applied as a size, it is preferably applied from aqueous emulsion, although application from polar organic solvent solution is an alternative. When the fluorine-containing polymer is applied on pre-formed paper, it can be applied from aqueous emulsion or from polar organic solvent solution.
Paper rendered oleophobic according to the invention can be used in all the applications for which greaseproof paper is conventionally used, for example in food processing, including baking, and in packaging of foods, including oily or fatty foods.
EXAMPLES
Hereinafter, the present invention will be described in more detail by way of Examples which are illustrative only, and should not be construed as limiting the scope of the present invention in any way. Throughout Examples, "parts" and "%" are "parts by weight" and "% by weight", unless otherwise specified. The testing method used is as follows. Greaseproofness
The greaseproofness of paper was measured according to the procedure of TAPPI UM-557. One drop of each of test oils indicated in Table 1 was placed on paper, and the penetration of the oil into the paper was observed 15 seconds later. The maximum of the greaseproofness degrees of a test oil which did not penetrate paper was taken as greaseproofness.
Figure imgf000018_0002
Polymers were prepared as follows:
Preparative Example 1
Into a 300 cc flask, CF3CF2-(CF2CF2)n-CH2CH2θCOCCl=CH2 (n=1.0) (33 g), stearyl acrylate (18 g), N-methylol acrylamide (1.1 g), 3-chloro-2-hydroxypropyl methacrylate (0.53 g), 2.5 g of an aminomercapto siloxane of the general formula
Figure imgf000018_0001
(prepared according to the procedures outlined in PCT Application No. US06/017703), pure water (66.1 g), tripropylene glycol (14.4 g), acetic acid (0.11 g), polyoxyalkyl ether (0.7 g), polyoxyethylene sorbitan monolaurate (2.8 g) and stearyltrimethyl ammonium chloride (2.1 g) were charged and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2-amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
Preparative Example 2
Into a 1 L autoclave, CF3CF2-(CF2CF2)n-CH2CH2θCOCCl=CH2 (n=1.0) (87.2 g), stearyl acrylate (11.3 g), N-methylol acrylamide (2.8 g), 3-chloro-2-hydroxypropyl methacrylate (0.67 g), the aminomercapto siloxane of Example 1 (30.4 g), pure water (236 g), tripropylene glycol (36.6 g), acetic acid (0.67 g), dialkyldimethyl ammonium chloride (3.0 g), sorbitan monopalmitate (2.1 g), polyoxyethylene oleyl ether (2.1 g) and polyoxyethylene polyoxypropylene cetyl ether (6.4 g) were charged and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then vinyl chloride (33 g) was injected. Further, 2,2'-azobis(2-amidinopropane) dihydrochloride (1.12 g) was added and the reaction was conducted at 6O°C for 5 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
Preparative Example 3
Into a 300 cc flask, CF3CF2-(CF2CF2)n-CH2CH2OCOCCl=CH2 (n=1.0) (33 g), stearyl acrylate (18 g), N-methylol acrylamide (1.1 g), 3-chloro-2-hydroxypropyl methacrylate (0.53 g), the aminomercapto siloxane of Example 1 (2.5 g), pure water (66.1 g), tripropylene glycol (14.4 g), acetic acid (0.11 g), polyoxyalkyl ether (0.7 g), polyoxyethylene sorbitan monolaurate (2.8 g) and stearyltrimethyl ammonium chloride (2.1 g) were charged. A mixture liquid prepared by previously mixing CH2=C(CH3)COOCH2CH2OP(O)(OH)2 (2.6 g), diethanol amine (2.25 g) and pure water (25 g) was added to the flask and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2-amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
Preparative Example 4
Into a 300 cc flask, CF3CF2-(CF2CF2)n-CH2CH2θCOCCl=CH2 (n=1.0) (33 g), stearyl acrylate (18 g), N-methylol acrylamide (1.1 g), 3-chloro-2-hydroxypropyl methacrylate (0.53 g), CH2=C(CH3)COOCH2CH2OP(O)(OH)2 (0.52 g), the aminomercapto siloxane of Example 1 (2.5 g), pure water (66.1 g), tripropylene glycol (14.4 g), acetic acid (0.11 g), polyoxyalkyl ether (0.7 g), polyoxyethylene sorbitan monolaurate (2.8 g) and stearyltrimethyl ammonium chloride (2.1 g) were charged and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2-amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
Comparative Preparative Example 1
Into a 300 cc flask, CF3CF2-(CF2CF2)n-CH2CH2OCOCCl=CH2 (n=1.0) (33 g), stearyl acrylate (18 g), N-methylol acrylamide (1.1 g), 3-chloro-2-hydroxypropyl methacrylate (0.53 g), n-dodecyl mercaptan (0.04 g), pure water (66.1 g), tripropylene glycol (14.4 g), acetic acid (0.11 g), polyoxyalkyl ether (0.7 g), polyoxyethylene sorbitan monolaurate (2.8 g) and stearyltrimethyl ammonium chloride (2.1 g) were charged and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2- amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%. Comparative Preparative Example 2
Into a 1 L autoclave, CF3CF2-(CF2CF2)n-CH2CH2θCOCCl=CH2 (n=1.0) (87.2 g), stearyl acrylate (11.3 g), N-methylol acrylamide (2.8 g), 3-chloro-2-hydroxypropyl methacrylate (0.67 g), pure water (236 g), tripropylene glycol (36.6 g), acetic acid (0.67 g), dialkyldimethyl ammonium chloride (3.0 g), sorbitan monopalmitate (2.1 g), polyoxy ethylene oleyl ether (2.1 g) and polyoxy ethylene polyoxypropylene cetyl ether (6.4 g) were charged and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. n-Dodecyl mercaptan (0.69 g) was added. The atmosphere of the flask was replaced with nitrogen, and then vinyl chloride (33 g) was injected. Further, 2,2'- azobis(2-amidinopropane) dihydrochloride (1.12 g) was added and the reaction was conducted at 6O°C for 5 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
Comparative Preparative Example 3
Into a 300 cc flask, CF3CF2-(CF2CF2)n-CH2CH2OCOCCl=CH2 (n=1.0) (33 g), stearyl acrylate (18 g), N-methylol acrylamide (1.1 g), 3-chloro-2-hydroxypropyl methacrylate (0.53 g), n-dodecyl mercaptan (0.04 g), pure water (66.1 g), tripropylene glycol (14.4 g), acetic acid (0.11 g), polyoxyalkyl ether (0.7 g), polyoxyethylene sorbitan monolaurate (2.8 g) and stearyltrimethyl ammonium chloride (2.1 g) were charged. A mixture liquid prepared by previously mixing
CH2=C(CH3)COOCH2CH2OP(O)(OH)2 (2.6 g), diethanol amine (2.25 g) and pure water (25 g) was added to the flask and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2-amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%. Comparative Preparative Example 4
Into a 300 cc flask, CF3CF2-(CF2CF2)n-CH2CH2OCOCCl=CH2 (n=1.0) (33 g), stearyl acrylate (18 g), N-methylol acrylamide (1.1 g), 3-chloro-2-hydroxypropyl methacrylate (0.53 g), CH2=C(CH3)COOCH2CH2OP(O)(OH)2 (0.52 g), n-dodecyl mercaptan (0.04 g), pure water (66.1 g), tripropylene glycol (14.4 g), acetic acid (0.11 g), polyoxyalkyl ether (0.7 g), polyoxy ethylene sorbitan monolaurate (2.8 g) and stearyltrimethyl ammonium chloride (2.1 g) were charged and emulsified by ultrasonic wave at 6O°C for 15 minutes with stirring. The atmosphere of the flask was replaced with nitrogen, and then 2,2'-azobis(2-amidinopropane) dihydrochloride (0.3 g) was added and the reaction was conducted at 6O°C for 3 hours to give a polymer dispersion. Pure water was added to the polymer dispersion to give an aqueous dispersion of polymer having a solid content of 30%.
A base paper to be coated with a polymer liquid was prepared in the following manner. An aqueous solution of a polyamide-polyamine-epichlorohydrin reaction product having a solid content of 1% (WS-570 manufactured by Nippon PMC) (0.88 g) was added to a 1.75% aqueous dispersion (250 g) of a mixture of 90 parts of bleached kraft pulp of broad- leaved trees and 10 parts of bleached kraft pulp of needle- leaved trees, which was beaten to have a freeness of 500 cc (Canadian Freeness), with stirring the aqueous dispersion, and then further stirred for 2 minutes.
The resultant pulp slurry was subjected to a paper manufacture using a handmade paper machine described in JIS P8209. The hand-made paper machine had been modified to give a paper size of 25 cm x 25 cm.
A wet paper was sandwiched between filter papers, pressed at a pressure of 3.5 kg/cm to sufficiently absorb off water, and dried in a drum dryer at 115°C for 70 seconds to give a base paper. The basis weight of the base paper was 70g/m2.
An aqueous solution of starch was prepared by adding a starch (2- hydoroxyethyl starch ether) (PENFORD R GUM 290 manufactured by Penford Corporation) (10 g) to water (90 g) to give a mixture. The mixture was heated to and maintained at about 80-90°C for about 30 minutes and then cooled to give a 10% aqueous solution of starch.
Examples 1 to 4 and Comparative Examples 1 to 4 External addition without auxiliary substance (starch) Each of the waterproof and grease-proof emulsions prepared in Preparative
Examples 1 to 4 and Comparative Preparative Examples 1 to 4 was diluted with water to give a desired solid concentration shown in Table 2.
The base paper was immersed in the diluted emulsion, squeezed with a squeezing machine at a squeeze pressure of 0.1 kg/cm, and dried in a drum dryer at 115°C for 70 seconds. The grease proofness of this grease-proof paper was evaluated. The results are shown in Table 2.
Figure imgf000023_0001
Examples 5 to 8 and Comparative Example 5 to 8 External addition with auxiliary substance (starch)
Each of the waterproof and grease-proof emulsions prepared in Preparative Examples 1 to 4 and Comparative Preparative Examples 1 to 4 was diluted with water. The starch solution was diluted with water and mixed with the diluted emulsion so that the waterproof and grease-proof agent had a desired concentration shown in Table 3 and the starch had a solid content of 5%. Examples 5 to 8 and Comparative Examples 5 to 8 used the waterproof and grease-proof emulsions prepared in Preparative Examples 1 to 4 and Comparative Preparative Examples 1 to 4 respectively. The base paper was immersed in the diluted liquid, squeezed with a squeezing machine at a squeeze pressure of 0.1 kg/cm, and dried in a drum dryer at 115°C for 70 seconds. The grease proofness of this grease-proof paper was evaluated. The results are shown in Table 3.
Figure imgf000024_0001

Claims

1. Paper rendered oleophobic by treatment with a fluorine-containing polymer, characterised in that the fluorine-containing polymer comprises repeating units derived from:
(A) a fluorine-containing monomer of the formula:
Figure imgf000025_0001
wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group,
Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH2 CH2 N(R1 )SU2 - group (wherein R1 is an alkyl group having 1 to 4 carbon atoms) or
-CH2 CH(OY1 )CH2 - group (wherein Y1 is a hydrogen atom or an acetyl group), and
Rf is a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, wherein the fluorine-containing polymer comprises an organopolysiloxane moiety derived from (B) a mercapto group-containing organopolysiloxane.
2. Paper according to Claim 1, wherein the Rf group in the fluorine-containing monomer (A) has 1 to 4 carbon atoms.
3. Paper according to Claim 1 or Claim 2, wherein the Rf group in the fluorine- containing monomer (A) is a perfluoroalkyl group.
4. Paper according to any of Claims 1 to 3, wherein the fluorine-containing polymer also comprises repeating units derived from an olefinically unsaturated fluorine-free monomer (C), and optionally a crosslinkable monomer.
5. Paper according to Claim 4, wherein the fluorine-free monomer (C) comprises an acrylate of the general formula:
CH2=CA1COOA2 wherein A1 is a hydrogen atom, a methyl group or a halogen atom other than a fluorine atom, and A is a hydrocarbon group having 1 to 30 carbon atoms.
6. Paper according to Claim 4 or Claim 5, wherein the fluorine-free monomer (C) comprises a monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group.
7. Paper according to Claim 6, wherein the monomer (C) comprises an acrylate of the general formula:
CH2=CA1COOA3 wherein A1 is a hydrogen atom, a methyl group or a halogen atom other than a fluorine atom, and
A3 is a hydrocarbon group having 1 to 30 carbon atoms substituted by an acid phosphate ester, phosphonic acid or acid phosphonate ester group.
8. Paper according to any of Claims 1 to 7 wherein the mercapto functional organopolysiloxane comprises siloxane units having the average formula;
Figure imgf000026_0001
where; a is 0-4000, b is 1-1000, c is 1- 1000,
R is independently a monovalent organic group, RN is a monovalent amino functional organic group, and R is a monovalent mercapto functional organic group.
9. Paper according to Claim 8 wherein the mercapto functional organopolysiloxane has the average formula;
Figure imgf000027_0001
where a is 0-4000, b is 1- 1000c is 1- 1000, and R' is H, an alkyl group having 1 to 40 carbon atoms, or MesSi.
10. Paper according to any of Claims 1 to 9 wherein the fluorine-containing polymer comprises 5 to 95 wt.% of fluorine-containing monomer (A),
0.1 to 95 wt % of the mercapto organopolysiloxane (B), and
0 to 70 wt % of an olefinically unsaturated fluorine-free monomer (C).
11. A fluorine-containing polymer comprising repeating units derived from: (A) a monomer which comprises a fluorine-containing monomer of the formula:
Figure imgf000027_0002
wherein X is a hydrogen atom, an linear or branched alkyl group having 1 to 21 carbon atoms, a fluorine atom, a chlorine atom, a bromine atom, a iodide atom, a CFX1 X2 group (wherein X1 and X2 is a hydrogen atom, a fluorine atom, a chlorine atom, a bromine atom or a iodide atom.), a cyano group, a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, a substituted or unsubstituted benzyl group, or a substituted or unsubstituted phenyl group,
Y is an aliphatic group having 1 to 10 carbon atoms, an aromatic or cycloaliphatic group having 6 to 10 carbon atoms, a -CH2 CH2 N(R1 )SO2 - group (wherein R1 is an alkyl group having 1 to 4 carbon atoms) or
-CH2 CH(OY1 )CH2 - group (wherein Y1 is a hydrogen atom or an acetyl group), and Rf is a linear or branched fluoroalkyl group having 1 to 21 carbon atoms, wherein the fluorine-containing polymer comprises an organopolysiloxane moiety derived from (B) a mercapto group-containing organopolysiloxane, and also comprises repeating units derived from an olefinically unsaturated monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group.
12. A polymer according to Claim 11, wherein the Rf group in the fluorine- containing monomer (A) has 1 to 4 carbon atoms.
13. A polymer according to Claim 11 or Claim 12, wherein the Rf group in the fluorine-containing monomer (A) is a perfluoroalkyl group.
14. A polymer according to any of Claims 11 to 13, wherein the monomer (C) comprises an acrylate of the general formula:
CH2=CA1COOA3 wherein A1 is a hydrogen atom, a methyl group or a halogen atom other than a fluorine atom, and
A3 is a hydrocarbon group having 1 to 30 carbon atoms substituted by an acid phosphate ester, phosphonic acid or acid phosphonate ester group.
15. A polymer according to any of Claims 13 to 16, wherein the fluorine-containing polymer also comprises repeating units derived from an olefinically unsaturated fluorine-free and phosphorus-free monomer (C"), and optionally a crosslinkable monomer.
16. A polymer according to any of Claims 11 to 15 wherein the mercapto functional organopolysiloxane comprises siloxane units having the average formula;
(R2SiO)a(RRNSiO)b(RRsSiO)c where; a is 0-4000, b is 1-1000, c is 1- 1000, R is independently a monovalent organic group,
RN is a monovalent amino functional organic group, and
Rs is a monovalent mercapto functional organic group.
17. A polymer according to any of Claims 11 to 16 wherein the fluorine-containing polymer comprises
5 to 95 wt. % of fluorine-containing monomer (A), 0.1 to 95 wt % of the mercapto organopolysiloxane (B),
0.1 to 70 wt. % of the monomer (C) containing an acid phosphate ester, phosphonic acid or acid phosphonate ester group and
0 to 70 wt % of an olefinically unsaturated fluorine-free and phosphorus-free monomer (C").
18. A method of rendering paper oleophobic, wherein the paper is treated with a fluorine-containing polymer as defined in any of Claims 1 to 10.
19. A method according to Claim 18, wherein the fluorine-containing polymer is applied from a solution in a polar organic solvent.
20. A method according to Claim 18, wherein the fluorine-containing polymer is applied from an aqueous emulsion.
21. A method according to any of Claims 18 to 20, wherein the fluorine-containing polymer is coated on pre-formed paper.
22. A method according to any of Claims 18 to 20, wherein the fluorine-containing polymer is applied as a size during the papermaking process.
PCT/US2007/074185 2006-07-27 2007-07-24 Greaseproof paper Ceased WO2008014239A2 (en)

Priority Applications (5)

Application Number Priority Date Filing Date Title
CN200780033946.6A CN101517018B (en) 2006-07-27 2007-07-24 Greaseproof paper
JP2009521944A JP2009544867A (en) 2006-07-27 2007-07-24 Greaseproof paper
AT07813265T ATE540091T1 (en) 2006-07-27 2007-07-24 GREASE-PROOF PAPER
EP20070813265 EP2046903B1 (en) 2006-07-27 2007-07-24 Greaseproof paper
US12/375,086 US8022156B2 (en) 2006-07-27 2007-07-24 Greaseproof paper

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
US83362006P 2006-07-27 2006-07-27
US60/833,620 2006-07-27

Publications (2)

Publication Number Publication Date
WO2008014239A2 true WO2008014239A2 (en) 2008-01-31
WO2008014239A3 WO2008014239A3 (en) 2008-03-20

Family

ID=38657638

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/US2007/074185 Ceased WO2008014239A2 (en) 2006-07-27 2007-07-24 Greaseproof paper

Country Status (6)

Country Link
US (1) US8022156B2 (en)
EP (1) EP2046903B1 (en)
JP (1) JP2009544867A (en)
CN (1) CN101517018B (en)
AT (1) ATE540091T1 (en)
WO (1) WO2008014239A2 (en)

Cited By (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2009119423A1 (en) * 2008-03-28 2009-10-01 Daikin Industries, Ltd. Polymer for leather treatment and leather treatment agent
WO2010030041A1 (en) * 2008-09-15 2010-03-18 Daikin Industries, Ltd. Fluorosilicones and surface treatment agent
WO2010044479A1 (en) * 2008-10-13 2010-04-22 Daikin Industries, Ltd. Fluorine- and silicon-containing treatment agent for concretes
JP2012503029A (en) * 2008-09-15 2012-02-02 ダイキン工業株式会社 Aqueous polymer dispersion composition and surface treatment agent
US12391831B2 (en) 2017-07-25 2025-08-19 Daikin Industries, Ltd. Fluorine-containing polymer, mold release agent composition and mold release method

Families Citing this family (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US20090084512A1 (en) * 2007-10-02 2009-04-02 Moffett Robert H Process to produce substrate resistant to alkaline starch
EP2574565A1 (en) * 2011-09-30 2013-04-03 Papier-Mettler Inhaber Michael Mettler e.K. Bag, in particular baking bag, made of glassine or fluoride coated fibre paper
CN103881030B (en) * 2012-12-19 2016-05-18 张家港市国泰华荣化工新材料有限公司 A kind of preparation method of fluorine-containing amino silicon oil emulsion
WO2016099952A1 (en) * 2014-12-18 2016-06-23 3M Innovative Properties Company Fluorinated polymers comprising phosphonic moieties
JP6671680B2 (en) * 2015-03-02 2020-03-25 東京応化工業株式会社 Block copolymer, method for producing block copolymer, and method for producing structure including phase-separated structure
EP3816346B1 (en) * 2018-06-29 2024-04-03 Osaka University Method for producing paper
CN108976816B (en) * 2018-07-06 2021-05-07 福建拓烯新材料科技有限公司 Addition type liquid fluorosilicone rubber composition and preparation method thereof
KR102647150B1 (en) * 2019-01-31 2024-03-14 다이킨 고교 가부시키가이샤 Brother Lee
CN111607158A (en) * 2020-06-01 2020-09-01 广东高博尔新材料有限公司 Environment-friendly paper master batch, preparation method thereof and environment-friendly paper
US20220297916A1 (en) * 2020-10-08 2022-09-22 Polymeric Film & Bags, Inc. Food wrap
EP4491647A4 (en) 2022-03-10 2025-07-02 Beijing Mapu New Mat Co Ltd Copolymer, treatment agent and manufacturing process therefor and use thereof

Family Cites Families (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE4201604A1 (en) * 1992-01-22 1993-07-29 Bayer Ag FLUORINE COPOLYMERISATE AND AQUEOUS DISPERSIONS MADE THEREOF
FR2766216A1 (en) * 1997-07-17 1999-01-22 Faci France Sarl Additives for making paper greaseproof materials
WO2004108855A1 (en) * 2003-06-09 2004-12-16 Daikin Industries, Ltd. Silicon-containing fluorochemical surface-treating agent

Cited By (5)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2009119423A1 (en) * 2008-03-28 2009-10-01 Daikin Industries, Ltd. Polymer for leather treatment and leather treatment agent
WO2010030041A1 (en) * 2008-09-15 2010-03-18 Daikin Industries, Ltd. Fluorosilicones and surface treatment agent
JP2012503029A (en) * 2008-09-15 2012-02-02 ダイキン工業株式会社 Aqueous polymer dispersion composition and surface treatment agent
WO2010044479A1 (en) * 2008-10-13 2010-04-22 Daikin Industries, Ltd. Fluorine- and silicon-containing treatment agent for concretes
US12391831B2 (en) 2017-07-25 2025-08-19 Daikin Industries, Ltd. Fluorine-containing polymer, mold release agent composition and mold release method

Also Published As

Publication number Publication date
EP2046903B1 (en) 2012-01-04
ATE540091T1 (en) 2012-01-15
CN101517018A (en) 2009-08-26
US8022156B2 (en) 2011-09-20
EP2046903A2 (en) 2009-04-15
JP2009544867A (en) 2009-12-17
WO2008014239A3 (en) 2008-03-20
CN101517018B (en) 2014-01-08
US20100018659A1 (en) 2010-01-28

Similar Documents

Publication Publication Date Title
EP2046903B1 (en) Greaseproof paper
TWI422634B (en) Aqueous polymer dispersion composition and surface treatment agent
EP2331595B1 (en) Fluorosilicone polymers and surface treatment agent
EP2240525B1 (en) Fluorosilicones and fluorine- and silicon-containing surface treatment agent
EP2265758B1 (en) Dispersion of fluorosilicones and fluorine- and silicon-containing surface treatment agent
US8461254B2 (en) Fluorosilicones and fluorine- and silicon-containing surface treatment agent
EP2501850B1 (en) Fluoropolymers and treatment agent
WO2010030041A1 (en) Fluorosilicones and surface treatment agent
JP2000508693A (en) Oil, water and solvent resistant paper with fluorochemical copolymer treatment
JPH0859751A (en) Oil and water repellent papers, a process for their production, and novel fluorine-containing copolymers for this purpose
EP2501851A1 (en) Fluoropolymers and surface treatment agent
MX2007014071A (en) Fluorosilicones and fluorine- and silicon-containing surface treatment agent.

Legal Events

Date Code Title Description
WWE Wipo information: entry into national phase

Ref document number: 200780033946.6

Country of ref document: CN

121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 07813265

Country of ref document: EP

Kind code of ref document: A2

WWE Wipo information: entry into national phase

Ref document number: 2009521944

Country of ref document: JP

NENP Non-entry into the national phase

Ref country code: DE

WWE Wipo information: entry into national phase

Ref document number: 2007813265

Country of ref document: EP

NENP Non-entry into the national phase

Ref country code: RU

WWE Wipo information: entry into national phase

Ref document number: 12375086

Country of ref document: US
