WO2008034391A1 - Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation - Google Patents

Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation Download PDF

Info

Publication number
WO2008034391A1
WO2008034391A1 PCT/CZ2007/000087 CZ2007000087W WO2008034391A1 WO 2008034391 A1 WO2008034391 A1 WO 2008034391A1 CZ 2007000087 W CZ2007000087 W CZ 2007000087W WO 2008034391 A1 WO2008034391 A1 WO 2008034391A1
Authority
WO
WIPO (PCT)
Prior art keywords
copolymer
groups
polymeric
hpma
polymeric drug
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/CZ2007/000087
Other languages
French (fr)
Inventor
Tomas Etrych
Petr Chytil
Karel Ulbrich
Tomas Mrkvan
Blanka Rihova
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Zentiva KS
Original Assignee
Zentiva KS
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Zentiva KS filed Critical Zentiva KS
Priority to EA200900453A priority Critical patent/EA017073B1/en
Priority to UAA200903818A priority patent/UA97812C2/en
Priority to EP07801128.5A priority patent/EP2063914B1/en
Priority to US12/441,619 priority patent/US8603990B2/en
Publication of WO2008034391A1 publication Critical patent/WO2008034391A1/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K47/00—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient
    • A61K47/50—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates
    • A61K47/51—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates the non-active ingredient being a modifying agent
    • A61K47/56—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates the non-active ingredient being a modifying agent the modifying agent being an organic macromolecular compound, e.g. an oligomeric, polymeric or dendrimeric molecule
    • A61K47/58—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates the non-active ingredient being a modifying agent the modifying agent being an organic macromolecular compound, e.g. an oligomeric, polymeric or dendrimeric molecule obtained by reactions only involving carbon-to-carbon unsaturated bonds, e.g. poly[meth]acrylate, polyacrylamide, polystyrene, polyvinylpyrrolidone, polyvinylalcohol or polystyrene sulfonic acid resin
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61K—PREPARATIONS FOR MEDICAL, DENTAL OR TOILETRY PURPOSES
    • A61K47/00—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient
    • A61K47/50—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates
    • A61K47/51—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates the non-active ingredient being a modifying agent
    • A61K47/62—Medicinal preparations characterised by the non-active ingredients used, e.g. carriers or inert additives; Targeting or modifying agents chemically bound to the active ingredient the non-active ingredient being chemically bound to the active ingredient, e.g. polymer-drug conjugates the non-active ingredient being a modifying agent the modifying agent being a protein, peptide or polyamino acid
    • A61K47/65—Peptidic linkers, binders or spacers, e.g. peptidic enzyme-labile linkers
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
    • A61P35/00—Antineoplastic agents

Definitions

  • This invention concerns macromolecular water-soluble polymeric carriers of cancerostatics that allow for targeted transport of cytostatics, especially doxorubicin (DOX), into solid tumors and ensure the elimination of the polymer from the body.
  • cytostatics especially doxorubicin (DOX)
  • DOX doxorubicin
  • macromolecular substances especially synthetic polymers, may accumulate in solid tumors due to the EPR (enhanced permeability and retention) effect [Maeda 2000, 2001]. If a cancerostatic is bound to a macromolecular carrier, this fact may be used for its targeted accumulation in the tumor. A great number of systems that are based on this principle have been developed. Polymeric micelles are one of them.
  • micellic hydrophobic core by physical (hydrophobic interactions, ionic bonds) or covalent bonds [Kataoka 2001, Yokoyama 1999, Bae 2003, Yoo 2002, Bronich 1999].
  • the drug is to be released from the micelle the chemical bond needs to be broken and, at the same time, the hydrophobic interactions in the micellic core disintegrated. This is especially true for hydrophobic drugs.
  • the macromolecules are dissolved in the aqueous environment on a molecular basis and the molecule usually takes the shape of a random coil. The drug is then in contact with a hydrophilic polymer and to be released it does not have to overcome the barrier of hydrophobic interactions.
  • Polymeric conjugates of cancerostatics with soluble polymers have been prepared and studied in which the drug with an anticancer effect was bound to the polymer by a non-cleavable covalent bond, hydrolytically unstable ionic bond or by a covalent bond susceptible to enzymatic or simple chemical hydrolysis.
  • Such systems are capable of releasing the cancerostatic from the carrier in its active form either in the tumor or, more specifically, directly in the tumor cell.
  • a significant group of such drugs is formed by polymeric drugs based on copolymers of N-(2-hydroxypropyl)methacrylamide (HPMA), a number of which is actively targeted to tumors through a directing structure attached to the polymer (antibodies, hormones) [Duncan 1985, Rihova 2000, Kopecek 2001, 2000]. However, their synthesis is rather complicated. References quote much information on the preparation and studies of properties of polymers carrying a cancerostatic attached to the polymer by a bond susceptible to hydrolysis in an aqueous environment. [Kratz 1999].
  • HPMA N-(2-hydroxypropyl)methacrylamide
  • HPMA copolymers carrying the doxorubicin cancerostatic bound to the polymeric chain by a hydrolytically cleavable hydrazone bond [Etrych 2002, Ulbrich 2004a, Ulbrich 2004b, Ulbrich - patents].
  • This bond is relatively stable in the bloodstream environment (during the transport in the body) and hydrolytically unstable in a slightly acid environment of a living cell. The rate of hydrolysis of this bond controls the rate of drug release and whence the concentration of the active substance at the site of required effect.
  • polymers including HPMA copolymers
  • a molecular weight high above the exclusion limit need to be used (Seymour 1995, Noguchi 1998). Therefore, it is convenient for the molecular weight of the polymeric carrier to be high enough but, at the same time, to ensure for the degradation of the polymer after the active component is released into fragments that can be excluded from the body by, e.g. glomerular filtration.
  • This invention suggests and demonstrates the efficiency of a macromolecular polymeric drug with a defined and biodegradable carrier skeleton that allows for the transport of the cytostatic into the tumor as well as subsequent exclusion of the polymeric carrier from the body.
  • the essence of the polymeric drug according to this invention lies in the fact that the doxorubicin cancerostatic, attached to the polymeric chains by spacers containing pH-sensitive hydrolytically cleavable hydrazone bonds, is bound to a water-soluble polymeric carrier prepared on the basis of a HPMA copolymer.
  • spacers may be formed by single amino acids, oligopeptides or by any other structures that enable their termination by a hydrazide group.
  • the structure of the polymeric drug is selected to consist of the main polymeric chain formed by a HPMA copolymer carrying doxorubicin bound by a hydrazone bond through a spacer to which other chains of a HPMA homopolymer or copolymer also carrying doxorubicin bound via a hydrazone bond are grafted.
  • the drugs according to this invention are characterized by the fact that the polymeric grafts are attached to the main chain either by a bond stable in the body or by bonds cleavable in the body, preferably by bonds cleavable in the targeted tumor cell, e.g. by an enzymatically cleavable oligopeptide sequence or by a reductively cleavable disulfide bond.
  • the molecular weight of the main chain is selected below the exclusion limit of the body, preferably ranging from 10,000 to 50,000 g/mol; molecular weights of the polymeric grafts range from 5,000 to 50,000 g/mol.
  • Enzymatically degradable oligopeptide sequences preferably contain the GlyLeuGly, GlyPheGly, GlyPheLeuGly or GlyLeuPheGly oligopeptide sequences, the reductively cleavable bonds contain disulfide structures of various composition.
  • the molecular weights of the polymeric grafts and of the main chain are selected so that both the main chain alone before bonding the grafts and the separate grafts are excludable from the body, preferably by glomerular filtration.
  • the molecular weight of the grafted polymer is then high, exceeding the exclusion limit of the body and ensuring an extended circulation time and sufficient EPR effect, as well as capture in the tissue of solid tumors.
  • the molecular weights of the new grafted conjugates of doxorubicin may not only be controlled by the molecular weight of the basic polymer and the grafts but also by the ratio of the number of grafts per one main chain.
  • the molecular weight of such a grafted polymer preferably ranges from 50,000 to 400,000 g/mol; the content of doxorubicin both in the main chain and in the grafts ranges from 1 to 25 % by weight (0.3 to 8 mol %).
  • the polymeric drug according to this invention should be administered primarily intravenously (injection or infusion) but it may also be administered intratumorally or intraperitoneally.
  • the polymer with a chemically bound cytostatic is stable during circulation in the bloodstream; the hydrazone bond between doxorubicin and the polymer is relatively stable under the physiological conditions of the bloodstream (pH 7.4).
  • the molecularly solved conjugate penetrates to each tumor cell by pinocytosis and as a result of the decrease in pH from the outer pH 7,4 to the intracellular pH 5 to 6 the hydrazone bond should be hydrolyzed and the cytostatic released in the target cell which should activate its cytotoxic effect.
  • the polymeric conjugates according to this invention are synthesized in several steps; a detailed final structure of a conjugate significantly depends on the selected synthetic approach.
  • the basic monomers are synthesized: HPMA, methacryloylated derivatives of amino acids and oligopeptides terminated with the 4-nitrophenoxy (ONp) or thiazolidine-2-thione (TT) group, methacryloylated derivatives of amino acids and oligopeptides terminated with the hydrazide (NHNH 2 ) group, or terminated with the hydrazide group protected by t.-butyloxycarbonyl group (Boc), or terminated with doxorubicin, bound via a hydrazone bond and methacryloylated macromonomers prepared by methacryloylation of HPMA of a semitelechelic copolymer terminated with the primary amino group (NH 2 ).
  • polymeric precursors are synthesized, i.e. random HPMA copolymers serving as the main chain and semitelechelic polymers with terminal reactive groups serving for grafting of the main polymeric chain.
  • the main polymeric chain carrying functional groups along it such as 4-nitrophenoxy, thiazolidine-2-thione groups, hydrazide groups, primary amino groups, sulfhydryl (SH) groups or dithiopyridyl (PDS) groups, may be prepared either by radical copolymerization of the above functional monomers with HPMA or by polymeranalogous transformation of the basic copolymer carrying the functional groups.
  • the basic copolymer is a copolymer of HPMA and methacryloylated hydrazides of amino acids or oligopeptides, the essence of which is the content of 70 to 98 mol % HPMA and 2 to 30 % mol units with functional groups.
  • the below structural schemes introduce two abbreviations for spacers in the side copolymer chains: i) SPi is the aminoacyl in methacryloyl(aminoacyl)- hydrazides and methacryloyl(aminoacyl)amines, e.g.
  • SP 2 is a combined acyl in methacryloyl(aminoacyl)hydrazides and methacryloyl(aminoacyl)amines derived from an enzymatically degradable oligopeptide sequence preferably containing oligopeptide sequences GlyLeuGly, GlyPheGly, GlyPheLeuGly or GlyLeuPheGly.
  • the following random copolymers with monomelic units as described above may be prepared by copolymerizations or polymeanalogous reactions:
  • copolymers carry reactive 4-nitrophenoxy or acylthiazolidine-2-thione groups along the chain.
  • copolymers carry reactive hydrazide or primary amino groups along the chain.
  • Copolymer 2c was prepared by a polymeranalogous reaction using Copolymer Ia and Ib.
  • a random copolymer carrying reactive hydrazide or primary amino groups along its chain was prepared in the reaction of 4-nitrophenyl ester (Copolymer Ia) or acylthiazolidine-2-thione groups (Copolymer Ib) with an excess of hydrazine hydrate, ethylene diamine, butylene diamine or hexamethylene diamine.
  • a polymeranalogous reaction of copolymers Ia and Ib with 2-(2-pyridyldithio)ethylamine (generally, any bifunctional agent with a primary amino or hydrazide group and pyridyldisulfide group, such as PDEA, 2-(2-pyridyldithio)ethylhydrazine, 4-(2- pyridyldithio)butylamine) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated biodegradable oligopeptide (e.g. GlyPheLeuGly) terminated by the 2-(2-pyridyldithio)ethylamide group.
  • PDEA 2-(2-pyridyldithio)ethylamine
  • Copolymer 4a structural scheme A polymeranalogous reaction of copolymers 2b and 2c with 2-imino-thiolate (ITH) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated oligopeptide (e.g. GlyPheLeuGly) terminated by the 4-sulfanylbutaneimideamide group.
  • ITH 2-imino-thiolate
  • Copolymer 4c structural scheme A polymeranalogous reaction of copolymers 3b and 3c with dithiothreitol (DTT) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated oligopeptide (e.g. GlyPheLeuGly) terminated by the 3-sulfanylpropaneamide (Copolymer 4d) or 2- sulfanylethylamine group (Copolymer 4e).
  • DTT dithiothreitol
  • Semitelechelic copolymers are characterized by the content of 85 to 99 mol % HPMA, 1 to 15 % mol units of methacryloylated Boc-protected hydrazides of amino acids or oligopeptides and by a reactive group situated at the end of the polymeric chain.
  • polymers were prepared by radical copolymerization carried out in the presence of a chain transfer agent [sulfanylpropionic acid (SPA) or cysteamine], under initiation by the 3,3'-azo-bis(4-cyanoisovaleric acid) (ABIA) azoinitiator or by the 3,3'-[4,4'-azobis(4-cyano-4-methyl-l-oxo-butane-4,l-diyl)]bis(thiazolidine- 2-thione) (ABIA-TT) reactive azoinitiator.
  • SPA 3,3'-azo-bis(4-cyanoisovaleric acid)
  • ABST 3,3'-[4,4'-azobis(4-cyano-4-methyl-l-oxo-butane-4,l-diyl)]bis(thiazolidine- 2-thione)
  • This group of polymers includes semitelechelic copolymers containing terminal reactive N- succinimidyl ester or acylthiazolidine-2-thione groups.
  • HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group was prepared by radical HPMA polymerization carried out in the presence of the SPA transfer agent. The copolymer is terminated by an N-succinimidyl ester group. (Graft Ib).
  • HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group and terminal acylthiazolidine-2-thione group was prepared by radical copolymerization of respective monomers under initiation by ABIA-TT.
  • a copolymer with a terminal N-succinimidyl ester group was prepared analogously under initiation by ABIA and with subsequent activation of the terminal carboxyl group by N-hydroxysuccinimide (Graft Ic).
  • a biodegradable oligopeptide e.g. GlyPhe LeuGly-OSu
  • Graft 2a structural scheme An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group terminated by an amino acid was prepared in a reaction of terminal activated carboxyl groups of Grafts Ib and Ic in the excess of hydrazine hydrate, ethylene diamine, butylene diamine or hexamethylene diamine (Graft 2b).
  • Graft 3a structural scheme An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group terminated by the N-[3-(2-pyridyldithio)propionyl]amide group was prepared in a reaction of the terminal reactive groups of grafts 2a and 2b with SPDP (Graft 3b).
  • These semitelechelic copolymers contain terminal reactive sulfhydryl groups.
  • HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group was prepared in a reaction of grafts 2a and 2b with ITH.
  • the polymeric chain of this copolymer terminates with the 4-sulfanylbutaneimideamide or 4- sulfanylbutaneimidohydrazide group (Graft 4a).
  • the polymeric carrier is a grafted macromolecular polymer without the drug bound to it, prepared by a grafting reaction of a semitelechelic copolymer to the basic copolymer, as shown in the examples section.
  • the above-mentioned copolymers whose hydrazide group is protected by the Boc group (t.-butyloxycarbonyl) are predominantly used for the reactions.
  • the protective group is removed from the hydrazide group and the conjugate is bound to doxorubicin via a hydrazone bond in a reaction in methanol under catalyzed by the acetic acid.
  • the final polymeric drug (the conjugate) is purified by precipitation and, if needed, by column chromatography as shown in the examples section.
  • the subject of this patent involves polymeric conjugates of doxorubicin whose detailed structures are shown in the scheme section and whose synthesis is described in the examples section. With regard to the type of the groups reacting in the basic polymers and semitelechelic grafts the polymeric conjugates are further divided into 5 basic groups. The following conjugates were prepared:
  • conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a non-degradable bond.
  • Copolymers carrying hydrazide or primary amino groups along their main chain and semitelechelic copolymers with the terminal N-succinimidyl ester or acylthiazolidine-2-thione groups were used for the preparation of these polymeric conjugates.
  • Conjugate Ia was prepared by the reaction of the hydrazide groups of Copolymer 2a with the acylthiazolidine-2-thione groups of Graft Ia, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugate Ib was prepared by the reaction of the hydrazide groups of Copolymer 2a with the thiazolidine-2-thione or N-succinimidyl groups of Graft Ib or Ic, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugate Ic was prepared by the reaction of the hydrazide groups of Copolymer 2a with the N- succinimidyl ester groups of Graft Id, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugate Id was prepared by the reaction of the hydrazide or primary amino groups of Copolymer 2b or 2c with the acylthiazolidine-2-thione or N-succinimidyl ester groups of Graft Ib or Ic, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a biodegradable bond - an enzymatically cleavable oligopeptide sequence.
  • Copolymers carrying 4-nitrophenoxy or thiazolidine-2-thione groups along their main chain and semitelechelic copolymers with terminal hydrazide or primary amino groups were used for the preparation of these polymeric conjugates.
  • Conjugate 2 was prepared by the reaction of the acylthiazolidine-2-thione or 4-nitrophenyl ester groups of Copolymer Ia or Ib with the hydrazide or primary amino groups of Graft 2a or 2b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugates 3 These conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a biodegradable bond - disulfide bridges reductively cleavable in the target cells cytoplasm. Copolymers carrying reactive dithiopyridyl groups along their main chain and semitelechelic copolymers with terminal sulfhydryl groups were used for the preparation of these polymeric conjugates.
  • Conjugate 3a was prepared by the reaction of the dithiopyridyl groups of Copolymer 3a or 3b with the sulfhydryl groups of Graft 4a or 4b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugate 3b was prepared by the reaction of the dithiopyridyl groups of Copolymer 3c with the sulfhydryl groups of Graft 4a or 4b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a biodegradable bond - disulfide bridges reductively cleavable in the target cells cytoplasm.

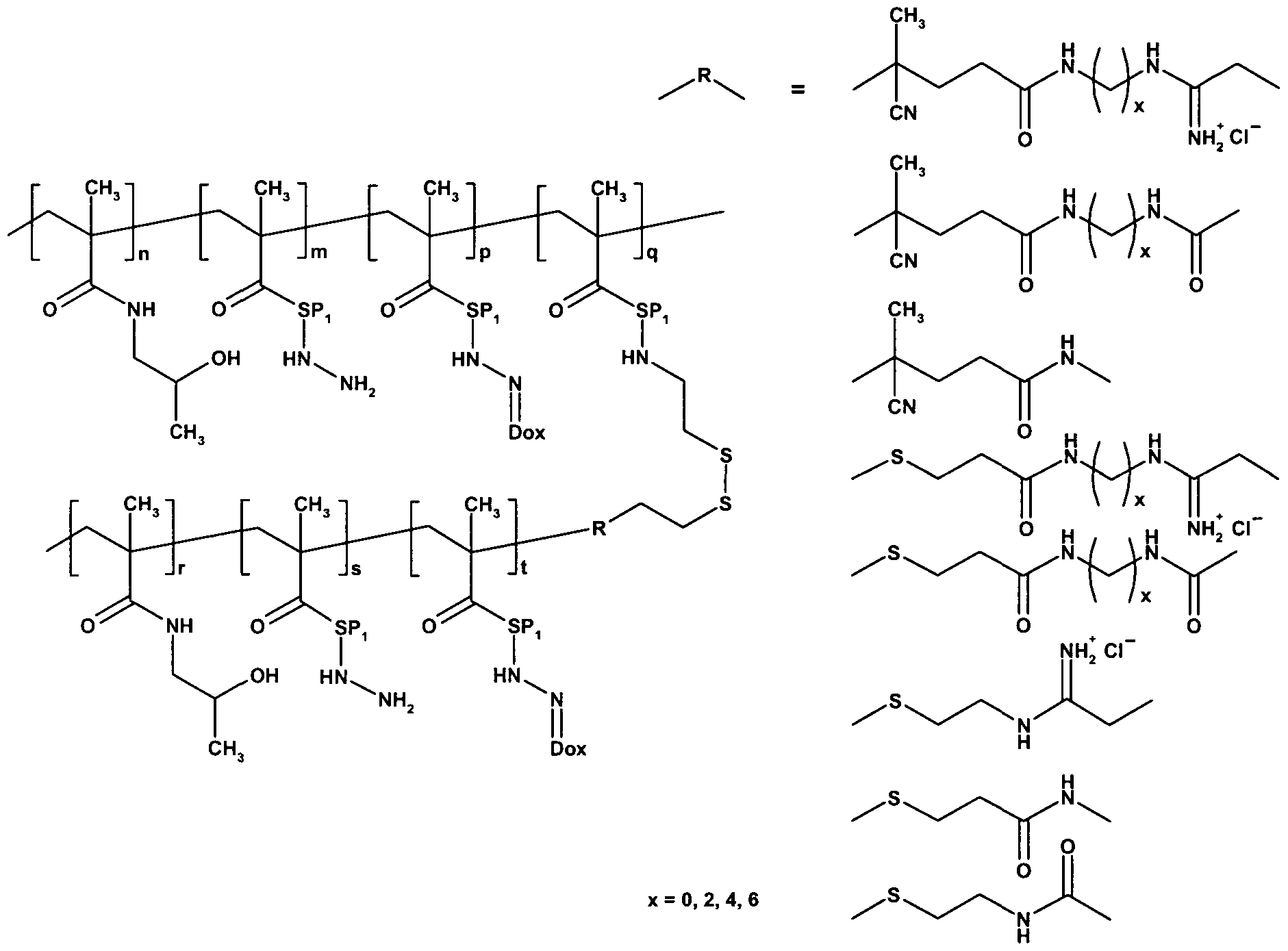

  • Copolymers carrying sulfhydryl groups along their main chain and semitelechelic copolymers with terminal reactive dithiopyridyl groups were used for the preparation of these polymeric conjugates.
  • Conjugate 4a was prepared by the reaction of the sulfhydryl groups of Copolymer 4a or 4b with the dithiopyridyl groups of Graft 3a or 3b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugate 4b was prepared by the reaction of the sulfhydryl groups of Copolymer 4c or 4d with the dithiopyridyl groups of Graft 3a or 3b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • Conjugate 4c was prepared by the reaction of the sulfhydryl groups of Copolymer 4e with the dithiopyridyl groups of Graft 3a or 3b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
  • conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bo ⁇ nd to the main chain by a biodegradable bond - enzymatically cleavable oligopeptide sequence.
  • They were prepared by radical terpolymerization of HPMA with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and methacryloylated macromonomers prepared by methacryloylation of HPMA of a semitelechelic copolymer terminated by a primary amino group (Macromonomers, Fig. 32).
  • the macromonomers were prepared in the reaction of the hydrazide or primary amino groups of Grafts 2a and 2b with methacryloylated derivatives of biodegradable oligopeptides terminated by the 4-nitrophenoxy or thiazolidine-2-thione group.
  • Fig. 1 shows a graph of release rate of DOX from grafted polymeric conjugates and the linear polymeric conjugate in pH 5 buffer (intracellular environment model).
  • Fig. 2 shows a graph of release rate of DOX from grafted polymeric conjugates and the linear polymeric conjugate in pH 7.4 buffer (bloodstream model).
  • Fig. 3 shows the time dependence of molecular weight of polymeric conjugates during their degradation -
  • A) degradation of Conjugate Id using the cathepsine B lysosomal enzyme [c(cathepsine B) 5.10 "7 mol/1];
  • B) degradation of Conjugate 3a using glutathione [c(glutathione) 3.10 ⁇ 3 mol/l].
  • Fig. 4 shows a graph of survival rate of B/6 mice inoculated with the EL 4 mouse lymphoma treated by DOX grafted conjugates after intravenous administration of one dose of 15 mg/kg of DOX equivalent in a therapeutic mode of drug administration.
  • Example 1 Synthesis of monomers and the ABIA-TT initiator 3,3 '-[4,4'-Azobis(4-cyano-4-methyl-l-oxo-butane-4,l-diyl)]bis(thiazolidine-2-thione) (ABIA- TT) was prepared according to a previously described method [Subr 2006]
  • HPMA was prepared according to a previously described method [Ulbrich a kol. 2000].
  • the product was chromatographically pure.
  • 6-(Methacryloylamino)hexanoyl-N ⁇ -(/ert. -butyloxycarbonyl)hydrazine (MA-AH- ⁇ H ⁇ H-Boc) was prepared according to a previously described method [Ulbrich 2004a]
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-GLFG-MA methacryloylated macromonomer was prepared by the reaction of the terminal hydrazide or primary amino groups of semitelechelic copolymers (Grafts 2a and 2b) with 4-nitrophenoxy or thiazolidine-2-thione groups of methacryloylated derivatives of biodegradable oligopeptides.
  • Example 2 Synthesis of a polymeric precursor - Copolymer Ib - a copolymer of HPMA with MA-GFLG-TT
  • the PoIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-TT) copolymer was prepared by solution radical copolymerization of HPMA, MA-AH-NHNH-Boc and MA-GFLG-TT in DMSO at 60 0 C. 465 mg (3.25 mmol) of HPMA, 44.5 mg (0.14 mmol) of MA-AH-NHNH-Boc, 100 mg (0.18 mmol) of MA-GFLG-TT (12.5 % by w. of monomers) and 98.3 mg (0.60 mmol) of ABIN (2 % by w.) were dissolved in 3.8 ml of DMSO.
  • the poly(HPMA-co-MA-AH-NHNH 2 ) copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH 2 in methanol at 60 °C according to a previously described method [Etrych patent] .
  • Example 4 Synthesis of a polymeric precursor - Copolymer 2c - a copolymer of
  • POIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-NH 2 ) The POIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-NH 2 ) copolymer was prepared by polymer-analogous reaction of the PoIy(HPMA-Co-MA-AH-NHNH-BoC-CO-MA-GFLG-TT) copolymer with an excess of ethylene diamine (EDA).
  • EDA ethylene diamine
  • TT groups were dissolved in 6 ml of methanol. 70 ⁇ l of EDA (1.05 mmol) were added to the vigorously stirred yellowish solution. After 30 minutes the discolored solution was precipitated into 120 ml of a mixture of acetone : diethyl ether 3 : 1, precipitated again from methanol into the same mixture and filtered off. The polymer was dried to constant weight.
  • Example 5 Synthesis of a polymeric precursor - Copolymer 3a - a copolymer of PoIy(HPMA-CO-MA-AH-NHNH 2 -Co-MA-AH-PDS)
  • the PoIy(HPMA-Co-MA-AH-NHNH 2 -Co-MA-AH-PDS) copolymer was prepared by polymer- analogous reaction of the PoIy(HPMA-Co-MA-AH-NHNH 2 ) copolymer with the SPDP bifunctional agent. 400 mg of the poly(HPMA-co-MA- AH-NHNH 2 ) polymer (0.17 mmol Of NHNH 2 groups) were dissolved in 7 ml of methanol and a solution of 30 mg of SPDP (0.094 mmol) in 1 ml of methanol was added to the vigorously stirred solution.
  • the poly(HPMA-co-MA-AH-NHNH-Boc-co-MA-AH-PDS) copolymer was prepared by polymeranalogous reaction of the poly(HPMA-co- MA-AH-NHNH-Boc-co-MA-AH-TT) copolymer with the PDEA bifunctional agent.
  • the polymeric fraction was captured, concentrated in a vacuum rotary evaporator to 6 ml and the copolymer isolated by precipitation into 80 ml of a mixture of acetone : diethyl ether 1:3 The product was dried to constant weight.
  • Example 7 Synthesis of a polymeric precursor - Copolymer 4b - a copolymer of
  • PoIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-SH) The PoIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-SH) copolymer was prepared by polymer-analogous reaction of the PoIy(HPMA-Co-MA-AH-NHNH-BoC-Co-MA-GFLG-NH 2 ) copolymer with ITH in a phosphate buffer.
  • the PoIy(HPMA-Co-MA-AH-NHNH 2 -CO-MA-AH-SH) copolymer was prepared by reduction of PDS groups of the poly(HPMA-co-MA-AH-NHNH 2 -co-MA-AH-PDS) copolymer by means of DTT in distilled water.
  • Example 9 Synthesis of a semitelechelic polymeric precursor - Graft Ib - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-TT
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-TT semitelechelic copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH-Boc in DMSO at 60 0 C under initiation by the ABIA-TT initiator. 367 mg (2.57 mmol) of HPMA, 70 mg (0.224 mmol) of MA-AH-NHNH-Boc (14 % by w. of monomers) were dissolved in 2.7 ml of DMSO and the solution was placed in a polymerization ampoule in which 140 mg (0.290 mmol) of ABIA-TT (4 % by w.) were previously weighed.
  • the solution in the ampoule was aerated with nitrogen for 15 minutes, the ampoule was sealed and placed in a thermostat heated to 60 0 C.
  • the initiator was dissolved after 3 minutes at 60 0 C.
  • the reaction mixture was precipitated into 80 ml of a mixture of acetone : diethyl ether 2: 1.
  • the polymer was dissolved in 4 ml of methanol and precipitated again into 60 ml of the same precipitation mixture.
  • the precipitated copolymer was filtered off on the S4 fritted glass and dried to constant weight.
  • Example 10 Synthesis of a semitelechelic polymeric precursor - Graft Ic - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-OSu
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-OSu semitelechelic copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH-Boc in ethanol at 50 0 C under initiation by the ABIA initiator, followed by activation of terminal carboxyl groups to N- succinimidyl ester. 3.33 g (23.2 mmol) of HPMA, 674 mg ( 2.16 mmol) of MA-AH-NHNH-Boc (12 % by w.
  • Example 11 Synthesis of a semitelechelic polymeric precursor (synthesis with SPA transfer) - Graft 1 c - a copolymer of poly(HPMA-co-MA-AH- ⁇ H ⁇ H-Boc)-OSu
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-OSu semitelechelic copolymer was prepared by precipitation radical copolymerization of HPMA and MA-AH-NHNH-Boc in acetone at 50 0 C in the presence of the ABIN initiator and SPA as transfer agent.
  • the terminal carboxyl groups were transformed by reaction with DCC and N-hydroxysuccinimide to N- succinimidyl ester.
  • the reaction mixture was stirred for 3.5 hours at 4°C and for 3 hours at room temperature.
  • the polymer was isolated by precipitation into 50 ml of acetone and filtered off on the S4 fritted glass. After being dried to constant weight the sample was stored under argon at -18 0 C.
  • Example 12 Synthesis of a semitelechelic polymeric precursor - Graft Id - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-GFLG-OSu
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-GFLG-OSu semitelechelic copolymer was prepared though a double step synthesis.
  • the N-succinimidyl ester of the poly(HPM ⁇ -co- MA-AH- ⁇ H ⁇ H-Boc)-OSu copolymer reacted with the amino group of the GFLG oligopeptide.
  • the terminal carboxyl groups of the prepared poly(HPMA-co-MA-AH-NHNH- Boc) -GFLG-COOH copolymer were transformed to N-succinimidyl ester by reaction with DCC and N-hydroxysuccinimide.
  • DCC dicyclohexylcarbodiimide
  • N-hydroxysuccinimide 0.138 mmol
  • the reaction mixture was stirred for 4 hours at 4°C and for 3 hours at room temperature.
  • the polymer was isolated by precipitation into 50 ml of acetone and filtered off on the S4 fritted glass. After being dried to constant weight the sample was stored under argon at -18 0 C.
  • Example 13 Synthesis of a semitelechelic polymeric precursor (synthesis with cysteamine transfer) - Graft 2a - a copolymer OfPoIy(HPMA-Co-MA-AH-NHNH-BOc)-NH 2
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-NH 2 semitelechelic copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH-Boc in methanol at 50 0 C in the presence of the ABIN initiator and cysteamine as transfer agent.
  • Example 14 Synthesis of a semitelechelic polymeric precursor - Graft 2b - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-NH 2
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-NH 2 semitelechelic copolymer was prepared by polymer-analogous reaction of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT copolymer with ethylene diamine in methanol. 450 mg of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT polymer (0.041 mmol of TT groups) were dissolved in 6 ml of methanol. 30 ⁇ l of EDA (0.45 mmol) were added to the vigorously stirred yellowish solution. After 30 minutes the discolored solution was precipitated into 120 ml of a mixture of acetone : diethyl ether 3 : 1, precipitated again from methanol into the same mixture and filtered off. The polymer was dried to constant weight.
  • Example 15 Synthesis of a semitelechelic polymeric precursor - Graft 3a - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-PDS
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-PDS semitelechelic copolymer was prepared by polymer-analogous reaction of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT copolymer with the PDEA bifunctional agent in DMSO . 10 mg of PDEA.HC1 (0.045 mmol) were dissolved in 0.5 ml of DMSO and 7.3 ⁇ l of diisopropylethylamine (0.045 mmol) were added under intensive stirring.
  • Example 16 Synthesis of a semitelechelic polymeric precursor - Graft 3b - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-PDS
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-PDS semitelechelic copolymer was prepared by polymer-analogous reaction of the poly(HPMA-co-MA-AH-NHNH-Boc)-NH 2 copolymer with the SPDP bifunctional agent in methanol.
  • the polymeric fraction was captured, concentrated in a vacuum rotary evaporator to 8 ml and the copolymer isolated by precipitation into 100 ml of ethyl acetate. The product was dried to constant weight.
  • Example 17 Synthesis of a semitelechelic polymeric precursor - Graft 4a - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-SH
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-SH semitelechelic copolymer was prepared by polymer-analogous reaction of the (HPMA-co-MA-AH-NHNH-Boc)-NH 2 copolymer with ITH in phosphate buffer. 250 mg of the PoIy(HPMA-CO-MA-AH-NHNH-BoC)-NH 2 (0.021 mmol of NH 2 groups) copolymer were dissolved in 5 ml of phosphate buffer (0.05 M phosphate buffer with 0.1 M NaCl, pH 7.4).
  • Example 18 Synthesis of a semitelechelic polymeric precursor - Graft 4b - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-SH
  • the poly(HPMA-co-MA-AH-NHNH-Boc)-SH semitelechelic copolymer was prepared by reduction of PDS groups of the poly(HPMA-co-MA-AH-NHNH-Boc)-PDS copolymer with the help of DTT in distilled water.
  • 300 mg of the poly(HPMA-co-MA-AH-NHNH 2 )-PDS copolymer (0.022 mmol of PDS groups) were dissolved in 5 ml of distilled water.
  • 20 mg of DTT (0.13 mmol) were dissolved in 1 ml of distilled water and this solution added to the copolymer solution under intensive stirring at room temperature.
  • the reaction mixture was diluted to 15 ml by distilled water and the copolymer purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection.
  • the polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer.
  • TFA trifluoracetic acid
  • the grafted copolymer was dissolved in 4 ml of methanol, precipitated again to the ethyl acetate : diethyl ether mixture, filtered and dried to constant weight.
  • 220 mg of the grafted copolymer were dissolved in 6 ml of a mixture of TFA : triisopropylsilane : water 95 : 2.5 : 2.5.
  • the mixture was repeatedly evaporated with methanol (in 5 -fold excess) in a vacuum evaporator using a water aspirator vacuum until crystals were formed.
  • the copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer.
  • DOX DOX to the grafted copolymer 200 mg of copolymer were dissolved in 2 ml of methanol and the solution was poured in a thermo-regulated cell where 20 mg of DOX.HC1 (0.034 mmol) were placed. The non-homogenous suspension was stirred in dark at 25 °C and after 1 minute 100 ⁇ l of acetic acid were added.
  • the polymeric fraction was captured, concentrated to 3 ml in a vacuum rotary evaporator and the copolymer was isolated by precipitation into 30 ml of ethyl acetate.
  • the product was dried to constant weight.
  • TFA trifluoracetic acid
  • the grafted copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer. The removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19.
  • the grafted copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer. The removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19.
  • the poly(HPMA-co-MA-AH-NHNH 2 -co-MA-AH-NHN DOX-co-MA-GFLG-NH-)-g ⁇ aft-
  • the polymer was precipitated again from methanol into the same mixture, filtered off on the S4 fritted glass and dried to constant weight.
  • the removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19.
  • the amount of DOX was calculated from the areas of peaks of free and bound DOX (UV-VIS detection at 488 nm). After incubation of the conjugates (5 mg/ml concentration) in the physiologic environment at 36 °C (phosphate buffer, pH 7.4), only a small amount of the drug is released (up to 8 %/24 hours) (Figure 33); on the contrary, the release rate of DOX from the grafted polymeric conjugates, and hence the activation rate of the cytotoxic drug, is considerable in the slightly acidic environment at pH 5.0 ( Figure 35). At pH 7.4 and pH 5 the rates of drug release from the grafted polymeric conjugates are fully comparable with those detected for the hydrazone conjugates prepared from linear copolymers only [Etrych patent].
  • Example 25 Degradation of grafted polymeric conjugates by glutathione or cathepsine B into degradation products excludable from the body
  • the degradation experiments were carried in a phosphate buffer (0,1 M phosphate buffer containing 0.05 M NaCl, pH 6) in the presence of cathepsine B or glutathione in the role of degradation agents, i.e. in the environment modeling intracellular environment (cytoplasm, endosome and secondary lysosome).
  • the grafted polymeric conjugates were dissolved in the phosphate buffer in concentration of 50 mg/ml and immediately before the solutions were placed in a thermostat (37° C) a stock solution of cathepsine B or glutathione was added to the solutions so that the final concentration of these agents in the incubation medium was 5.10 "7 mol/1 and 3.10 " mol/1 for cathepsine and glutathione, respectively.
  • aliquot parts 200 ⁇ l were sampled from the incubation solutions.
  • the samples were desalinated in the PD-10 columns and lyophilized.
  • the molecular weight of the degradation products was measured using the Shimadzu SIL-HT liquid chromatograph fitted with a differential refractometer (Shimadzu RID-IOA) and multiangle light dispersion detector (DAWN EOS, Wyatt Technology, USA). The analysis was carried out in a SuperoseTM6 column (300 x 10 mm) (Amersham Bioscience).
  • conjugates containing the GlyPheLeuGly enzymatically degradable sequences were degraded in the course of 24 hours by cathepsine B to degradation products whose molecular weight was below the renal filtration limit (Fig. 37).
  • a solution containing glutathione (3.10 3 mol/1) rapid degradation of the grafted conjugates containing disulfide bridges was detected.
  • These grafted conjugates were degraded after 24 hours into polymeric degradation products with a molecular weight below the renal filtration limit ( ⁇ 25,000 g/mol).
  • Example 26 Example of in vitro biological activity of grafted conjugates of doxorubicin during incubation with the cells of various tumor lines
  • Example 27 Example of in vivo biological activity of grafted conjugates of doxorubicin in mice inoculated by T cellular lymphoma EL4
  • the in vivo experiments involved a model of mouse T cellular lymphoma EL4, the experimental animals were mice (males) of the B/6 species that were subcutaneously implanted with 10 5 tumor cells on day 0.
  • the conjugates were applied intravenously in a dose of 1 x 15 mg/kg of DOX equivalent.
  • This single application was carried out on the ninth day after the tumor cells transplantation, i.e. at a time when the tumor was palpable, about approx. 400 mm 3 in size.
  • all experimental groups showed significantly slowed growth of tumors compared with controls.
  • Both grafted conjugates (Conjugate Id and Conjugate 3a) showed a very significant anticancer effect.
  • Table 1 Survival of B/6 mice inoculated with mouse lymphoma EL 4 (day 0, 10 s cells, s.c.) treated with DOX grafted conjugates after intravenous application of one dose of 15 mg/kg DOX equivalent in a therapeutic mode of drug administration (day 9).
  • the linear conjugate is a control ,,classic" soluble ungrafted conjugate.
  • the days mean particular days of animal death, LTS means surviving animals without a palpable tumor.
  • EPR enhanced permeability and retention

Landscapes

  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Chemical & Material Sciences (AREA)
  • Medicinal Chemistry (AREA)
  • Pharmacology & Pharmacy (AREA)
  • Animal Behavior & Ethology (AREA)
  • Epidemiology (AREA)
  • Bioinformatics & Cheminformatics (AREA)
  • Engineering & Computer Science (AREA)
  • Proteomics, Peptides & Aminoacids (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • General Chemical & Material Sciences (AREA)
  • Nuclear Medicine, Radiotherapy & Molecular Imaging (AREA)
  • Organic Chemistry (AREA)
  • Medicinal Preparation (AREA)
  • Pharmaceuticals Containing Other Organic And Inorganic Compounds (AREA)
  • Addition Polymer Or Copolymer, Post-Treatments, Or Chemical Modifications (AREA)
  • Medicines That Contain Protein Lipid Enzymes And Other Medicines (AREA)

Abstract

A polymeric drug, in which a cancerostatic connected via spacers containing hydrolytically cleavable hydrazone bonds is bound to a water-soluble polymeric carrier prepared on the basis of a N-(2-hydroxypropyl)methacrylamide copolymer, wherein the structure of the polymeric drug consists of the main chain of N-(2-hydroxypropyl)methacrylamide carrying the cancerostatic and another chain of N-(2-hydroxypropyl)methacrylamide - a graft, which may also carry a cancerostatic, said grafts being bound to the main chain by a bond that is stable in the body and/or by a bond cleavable in the body, especially by an oligopeptide spacer selected from the series of GlyLeuGly, GlyPheGly, GlyPheLeuGly and GlyLeuPheGly, and a method of its preparation.

Description

Grafted Macromolecular Conjugates of Doxorubicin with Anticancer Activity and Method of Their Preparation
Technical Field
This invention concerns macromolecular water-soluble polymeric carriers of cancerostatics that allow for targeted transport of cytostatics, especially doxorubicin (DOX), into solid tumors and ensure the elimination of the polymer from the body. The effect of the conjugate of a polymeric carrier and a cancerostatic drug is focused on targeted therapy of tumor diseases in human medicine.
Background Art
The latest trends of drug development are focused on such drug forms that enable targeted therapy of a biologically active substance, preferentially at the site of the required therapeutic effect. Target effect drugs are primarily utilized in such areas where side effects of the active component may potentially cause damage to any healthy parts of the body. This danger is most relevant in cytostatic therapy. Polymeric substances, especially water-soluble polymers, used as drug carriers offer an important possibility of solving the problem. The attachment of a cytostatic to a water- soluble polymer through a chemical bond enables significant increase in solubility of insoluble or slightly soluble drugs, substantially decreasing their toxicity. The high molecular weight of polymers protects the drug from a quick elimination from the body by glomerular filtration enabling an extended circulation in the blood, as well as greater biological efficiency of the drug. Besides, macromolecular substances, especially synthetic polymers, may accumulate in solid tumors due to the EPR (enhanced permeability and retention) effect [Maeda 2000, 2001]. If a cancerostatic is bound to a macromolecular carrier, this fact may be used for its targeted accumulation in the tumor. A great number of systems that are based on this principle have been developed. Polymeric micelles are one of them. They represent a carrier system which is structurally different from soluble polymers developed to achieve tumor specific transport of cytostatics to solid tumors, they also take advantage of the EPR effect of firm tumors to increase accumulation of the macromolecular drug in the tumor but they are usually prepared by arranging amphiphilic diblock copolymers into macromolecular micellic formations creating colloid solutions. In the micelles, the drug is usually bound to the micellic hydrophobic core by physical (hydrophobic interactions, ionic bonds) or covalent bonds [Kataoka 2001, Yokoyama 1999, Bae 2003, Yoo 2002, Bronich 1999]. If the drug is to be released from the micelle the chemical bond needs to be broken and, at the same time, the hydrophobic interactions in the micellic core disintegrated. This is especially true for hydrophobic drugs. On the other hand, in soluble systems that accumulate in solids tumors the macromolecules are dissolved in the aqueous environment on a molecular basis and the molecule usually takes the shape of a random coil. The drug is then in contact with a hydrophilic polymer and to be released it does not have to overcome the barrier of hydrophobic interactions. Polymeric conjugates of cancerostatics with soluble polymers have been prepared and studied in which the drug with an anticancer effect was bound to the polymer by a non-cleavable covalent bond, hydrolytically unstable ionic bond or by a covalent bond susceptible to enzymatic or simple chemical hydrolysis. Such systems are capable of releasing the cancerostatic from the carrier in its active form either in the tumor or, more specifically, directly in the tumor cell. A significant group of such drugs is formed by polymeric drugs based on copolymers of N-(2-hydroxypropyl)methacrylamide (HPMA), a number of which is actively targeted to tumors through a directing structure attached to the polymer (antibodies, hormones) [Duncan 1985, Rihova 2000, Kopecek 2001, 2000]. However, their synthesis is rather complicated. References quote much information on the preparation and studies of properties of polymers carrying a cancerostatic attached to the polymer by a bond susceptible to hydrolysis in an aqueous environment. [Kratz 1999]. A significant role among them is also played by HPMA copolymers carrying the doxorubicin cancerostatic bound to the polymeric chain by a hydrolytically cleavable hydrazone bond [Etrych 2002, Ulbrich 2004a, Ulbrich 2004b, Ulbrich - patents]. This bond is relatively stable in the bloodstream environment (during the transport in the body) and hydrolytically unstable in a slightly acid environment of a living cell. The rate of hydrolysis of this bond controls the rate of drug release and whence the concentration of the active substance at the site of required effect. Both in vitro and in vivo tests in mice revealed that these polymeric cancerostatics showed significantly higher anticancer effect against a number of tumor lines in comparison with a free drug and in a number of cases their application resulted in a total cure of tested animals even in a therapeutic mode of administration [Rihova 2001, Etrych 2001]. The major problem associated with the application of HPMA copolymers is their non- cleavable carbon chain; therefore the area of molecular weights that can be used for the preparation of the polymeric carrier is limited to molecular weights smaller than 40,000 to 50,000, i.e. below the exclusion limit of the body. Polymers of a higher molecular weight cannot be effectively and sufficiently eliminated from the body and their application would lead to their excessive accumulation in the body. To achieve an efficient EPR effect, i.e. significant accumulation in tumors, polymers, including HPMA copolymers, with a molecular weight high above the exclusion limit need to be used (Seymour 1995, Noguchi 1998). Therefore, it is convenient for the molecular weight of the polymeric carrier to be high enough but, at the same time, to ensure for the degradation of the polymer after the active component is released into fragments that can be excluded from the body by, e.g. glomerular filtration. This invention suggests and demonstrates the efficiency of a macromolecular polymeric drug with a defined and biodegradable carrier skeleton that allows for the transport of the cytostatic into the tumor as well as subsequent exclusion of the polymeric carrier from the body.
Disclosure of Invention
The essence of the polymeric drug according to this invention lies in the fact that the doxorubicin cancerostatic, attached to the polymeric chains by spacers containing pH-sensitive hydrolytically cleavable hydrazone bonds, is bound to a water-soluble polymeric carrier prepared on the basis of a HPMA copolymer. Such spacers may be formed by single amino acids, oligopeptides or by any other structures that enable their termination by a hydrazide group. The structure of the polymeric drug is selected to consist of the main polymeric chain formed by a HPMA copolymer carrying doxorubicin bound by a hydrazone bond through a spacer to which other chains of a HPMA homopolymer or copolymer also carrying doxorubicin bound via a hydrazone bond are grafted. The drugs according to this invention are characterized by the fact that the polymeric grafts are attached to the main chain either by a bond stable in the body or by bonds cleavable in the body, preferably by bonds cleavable in the targeted tumor cell, e.g. by an enzymatically cleavable oligopeptide sequence or by a reductively cleavable disulfide bond. The molecular weight of the main chain is selected below the exclusion limit of the body, preferably ranging from 10,000 to 50,000 g/mol; molecular weights of the polymeric grafts range from 5,000 to 50,000 g/mol. Enzymatically degradable oligopeptide sequences preferably contain the GlyLeuGly, GlyPheGly, GlyPheLeuGly or GlyLeuPheGly oligopeptide sequences, the reductively cleavable bonds contain disulfide structures of various composition. The molecular weights of the polymeric grafts and of the main chain are selected so that both the main chain alone before bonding the grafts and the separate grafts are excludable from the body, preferably by glomerular filtration. The molecular weight of the grafted polymer is then high, exceeding the exclusion limit of the body and ensuring an extended circulation time and sufficient EPR effect, as well as capture in the tissue of solid tumors. The molecular weights of the new grafted conjugates of doxorubicin may not only be controlled by the molecular weight of the basic polymer and the grafts but also by the ratio of the number of grafts per one main chain. The molecular weight of such a grafted polymer preferably ranges from 50,000 to 400,000 g/mol; the content of doxorubicin both in the main chain and in the grafts ranges from 1 to 25 % by weight (0.3 to 8 mol %).
The polymeric drug according to this invention should be administered primarily intravenously (injection or infusion) but it may also be administered intratumorally or intraperitoneally. The polymer with a chemically bound cytostatic is stable during circulation in the bloodstream; the hydrazone bond between doxorubicin and the polymer is relatively stable under the physiological conditions of the bloodstream (pH 7.4). After extravasation and capture in solid tumors due to the EPR effect the molecularly solved conjugate penetrates to each tumor cell by pinocytosis and as a result of the decrease in pH from the outer pH 7,4 to the intracellular pH 5 to 6 the hydrazone bond should be hydrolyzed and the cytostatic released in the target cell which should activate its cytotoxic effect. In the slightly acid reductive environment of the cell (references quote concentrations of glutathione in the living cells cytoplasm ranging from 1 to 5 mmol) hydrolysis- controlled release of the drug and reduction of disulfide bonds should occur, as well as disintegration of the macromolecular grafted polymer to the original polymeric fragments excludable from the body. Similar degradation of the carrier should occur in a carrier containing grafts bound by enzymatically cleavable oligopeptide sequences. This degradation of the polymeric skeleton should be caused by the action of lysosomal cellular enzymes. Objectivity of the mechanism of action of polymeric drugs according to his invention as suggested above is demonstrated by experiments involving model release of doxorubicin from the polymeric chain as well as polymer degradation experiments carried out in the physiological environment modeling the situation in a living cell. The results of such tests, including anticancer activity tests, are given in the examples section of this application. Synthesis and Structures Of Polymeric Conjugates
The polymeric conjugates according to this invention are synthesized in several steps; a detailed final structure of a conjugate significantly depends on the selected synthetic approach. In the first synthetic step the basic monomers are synthesized: HPMA, methacryloylated derivatives of amino acids and oligopeptides terminated with the 4-nitrophenoxy (ONp) or thiazolidine-2-thione (TT) group, methacryloylated derivatives of amino acids and oligopeptides terminated with the hydrazide (NHNH2) group, or terminated with the hydrazide group protected by t.-butyloxycarbonyl group (Boc), or terminated with doxorubicin, bound via a hydrazone bond and methacryloylated macromonomers prepared by methacryloylation of HPMA of a semitelechelic copolymer terminated with the primary amino group (NH2). In the second step polymeric precursors are synthesized, i.e. random HPMA copolymers serving as the main chain and semitelechelic polymers with terminal reactive groups serving for grafting of the main polymeric chain. The main polymeric chain carrying functional groups along it, such as 4-nitrophenoxy, thiazolidine-2-thione groups, hydrazide groups, primary amino groups, sulfhydryl (SH) groups or dithiopyridyl (PDS) groups, may be prepared either by radical copolymerization of the above functional monomers with HPMA or by polymeranalogous transformation of the basic copolymer carrying the functional groups.
The basic copolymer is a copolymer of HPMA and methacryloylated hydrazides of amino acids or oligopeptides, the essence of which is the content of 70 to 98 mol % HPMA and 2 to 30 % mol units with functional groups. The below structural schemes introduce two abbreviations for spacers in the side copolymer chains: i) SPi is the aminoacyl in methacryloyl(aminoacyl)- hydrazides and methacryloyl(aminoacyl)amines, e.g. glycyl, glycylglycyl, β-alanyl, 6- aminohexanoyl (AH), 4-aminobenzoyl, or a combined acyl derived from oligopeptides such as GlyPheGly, GlyLeuGly, GlyLeuPheGly or GlyPheLeuGly; ii) SP2 is a combined acyl in methacryloyl(aminoacyl)hydrazides and methacryloyl(aminoacyl)amines derived from an enzymatically degradable oligopeptide sequence preferably containing oligopeptide sequences GlyLeuGly, GlyPheGly, GlyPheLeuGly or GlyLeuPheGly. The following random copolymers with monomelic units as described above may be prepared by copolymerizations or polymeanalogous reactions:
Copolymers 1:
These copolymers carry reactive 4-nitrophenoxy or acylthiazolidine-2-thione groups along the chain.
Radical copolymerization resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated with a Boc-protected hydrazide group and with a methacryloylated biodegradable oligopeptide (e.g. GlyPheLeuGly) terminated by the
4-nitrophenoxy (Copolymer Ia) or thiazolidine-2-thione groups (Copolymer Ib).
Figure imgf000007_0001
Copolymer Ia, Ib structural scheme
Copolymers 2:
These copolymers carry reactive hydrazide or primary amino groups along the chain.
Radical copolymerization of HPMA with methacryloylated amino acids or oligopeptides terminated by a hydrazide group resulted in the preparation of Copolymer 2a.
Figure imgf000008_0001
Copolymer 2a structural scheme
Radical copolymerization resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated biodegradable oligopeptide (e.g. GlyPheLeuGly) terminated by a hydrazide group (Copolymer 2b)
Figure imgf000008_0002
Copolymer 2b structural scheme
Copolymer 2c was prepared by a polymeranalogous reaction using Copolymer Ia and Ib. A random copolymer carrying reactive hydrazide or primary amino groups along its chain was prepared in the reaction of 4-nitrophenyl ester (Copolymer Ia) or acylthiazolidine-2-thione groups (Copolymer Ib) with an excess of hydrazine hydrate, ethylene diamine, butylene diamine or hexamethylene diamine.
6
Figure imgf000009_0001
Copolymer 2c structural scheme
Copolymers 3:
These random copolymers carry reactive dithiopyridyl groups along the chain.
After the protective group was removed a polymeranalogous reaction of copolymer 2a and N- succinimidyl-[3-(2-pyridyldithio)]propionate (SPDP) (generally, any bifunctional agent with an activated carboxyl group and pyridyldisulfide group, such as SPDP, 4-succinimidyloxycarbonyl- α-methyl-α-(2-pyridyldithio)toluene, N-succinimidyl-[4-(2-pyridyldithio)]butyrate, N-(2- sulfosuccinimidyl-[3-(2-pyridyldithio)]propionate) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a hydrazide group and with methacryloylated amino acids or oligopeptides terminated by N-[3-(2- pyridyldithio)propionyl]ethylamide group. (Copolymer 3a)
Figure imgf000010_0001
Copolymer 3a structural scheme
A polymeranalogous reaction of copolymers 2b and 2c with N-succinimidyl-[3-(2- pyridyldithio)]propionate (SPDP) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated biodegradable oligopeptide (e.g. GlyPheLeuGly) terminated by the N-[3-(2-pyridyldithio)propionyl]ethylamide group. (Copolymer 3b)
Figure imgf000011_0001
Copolymer 3b structural scheme
A polymeranalogous reaction of copolymers Ia and Ib with 2-(2-pyridyldithio)ethylamine (PDEA) (generally, any bifunctional agent with a primary amino or hydrazide group and pyridyldisulfide group, such as PDEA, 2-(2-pyridyldithio)ethylhydrazine, 4-(2- pyridyldithio)butylamine) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated biodegradable oligopeptide (e.g. GlyPheLeuGly) terminated by the 2-(2-pyridyldithio)ethylamide group. (Copolymer 3c).
Figure imgf000012_0001
Copolymer 3c structural scheme
Copolymers 4:
These random copolymers carry reactive sulfhydryl groups along the chain. After the protective group was removed a polymer-analogous reaction of copolymer 2a and 2- imino-thiolate (ITH) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a hydrazide group and with methacryloylated amino acids or oligopeptides terminated by the 4-sulfanylbutaneimidohydrazide group. (Copolymer 4a)
Figure imgf000012_0002
Copolymer 4a structural scheme A polymeranalogous reaction of copolymers 2b and 2c with 2-imino-thiolate (ITH) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated oligopeptide (e.g. GlyPheLeuGly) terminated by the 4-sulfanylbutaneimideamide group. (Copolymer 4b)
6
Figure imgf000013_0001
Copolymer 4b structural scheme
A polymeranalogous reaction of copolymers 3a with dithiothreitol (DTT) resulted in the preparation of the HPMA terpolymer HPMA with methacryloylated amino acids or oligopeptides terminated by a hydrazide group and with methacryloylated amino acids or oligopeptides terminated by the 3-sulfanylpropanohydrazide group (Copolymer 4c).
Figure imgf000013_0002
Copolymer 4c structural scheme A polymeranalogous reaction of copolymers 3b and 3c with dithiothreitol (DTT) resulted in the preparation of the HPMA terpolymer with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and with a methacryloylated oligopeptide (e.g. GlyPheLeuGly) terminated by the 3-sulfanylpropaneamide (Copolymer 4d) or 2- sulfanylethylamine group (Copolymer 4e).
Figure imgf000014_0001
Copolymer 4d, 4e structural scheme
Semitelechelic copolymers are characterized by the content of 85 to 99 mol % HPMA, 1 to 15 % mol units of methacryloylated Boc-protected hydrazides of amino acids or oligopeptides and by a reactive group situated at the end of the polymeric chain. These polymers were prepared by radical copolymerization carried out in the presence of a chain transfer agent [sulfanylpropionic acid (SPA) or cysteamine], under initiation by the 3,3'-azo-bis(4-cyanoisovaleric acid) (ABIA) azoinitiator or by the 3,3'-[4,4'-azobis(4-cyano-4-methyl-l-oxo-butane-4,l-diyl)]bis(thiazolidine- 2-thione) (ABIA-TT) reactive azoinitiator. The following semitelechelic copolymers were prepared as grafts for the preparation of grafted copolymers by copolymerization and modification of the terminal functional groups:
Figure imgf000015_0001
Structural scheme of ABIA-TT
Grafts 1:
This group of polymers includes semitelechelic copolymers containing terminal reactive N- succinimidyl ester or acylthiazolidine-2-thione groups.
Radical polymerization of HPMA initiated by the ABIA-TT initiator resulted in the preparation of the HPMA homopolymer with a terminal reactive acylthiazolidine-2-thione group (Graft Ia).
Figure imgf000015_0002
Graft Ia structural scheme
An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group was prepared by radical HPMA polymerization carried out in the presence of the SPA transfer agent. The copolymer is terminated by an N-succinimidyl ester group. (Graft Ib).
Figure imgf000016_0001
Graft Ib structural scheme
An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group and terminal acylthiazolidine-2-thione group was prepared by radical copolymerization of respective monomers under initiation by ABIA-TT. A copolymer with a terminal N-succinimidyl ester group was prepared analogously under initiation by ABIA and with subsequent activation of the terminal carboxyl group by N-hydroxysuccinimide (Graft Ic).
Figure imgf000016_0002
Graft Ic structural scheme
An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group and with a terminal N-succinimidyl ester of a biodegradable oligopeptide (e.g. GlyPhe LeuGly-OSu), generally SP2, (Graft Id) was prepared by radical HPMA copolymerization with relevant monomers initiated by ABIA, followed by activation of the terminal carboxyl group by N-hydroxysuccinimide.
Figure imgf000017_0001
Graft Id structural scheme
Grafts 2:
These semitelechelic copolymers contain terminal reactive hydrazide or primary amino groups. An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group was prepared by radical copolymerization carried out in the presence of cysteamine. This copolymer terminates by a primary amino group. (Graft 2a)
Figure imgf000017_0002
Graft 2a structural scheme An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group terminated by an amino acid was prepared in a reaction of terminal activated carboxyl groups of Grafts Ib and Ic in the excess of hydrazine hydrate, ethylene diamine, butylene diamine or hexamethylene diamine (Graft 2b).
Figure imgf000018_0001
Graft 2b structural scheme
Grafts 3:
These semitelechelic copolymers contain terminal reactive dithiopyridyl groups. An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group terminated by the 2-(2-pyridyldithio)ethylamide group was prepared in a reaction of the terminal reactive groups of grafts Ib and Ic with PDEA. (Graft 3a).
Figure imgf000018_0002
Graft 3a structural scheme An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group terminated by the N-[3-(2-pyridyldithio)propionyl]amide group was prepared in a reaction of the terminal reactive groups of grafts 2a and 2b with SPDP (Graft 3b).
4, 6
Figure imgf000019_0001
Graft 3b structural scheme
Grafts 4:
These semitelechelic copolymers contain terminal reactive sulfhydryl groups.
An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group was prepared in a reaction of grafts 2a and 2b with ITH. The polymeric chain of this copolymer terminates with the 4-sulfanylbutaneimideamide or 4- sulfanylbutaneimidohydrazide group (Graft 4a).
4, 6
Figure imgf000020_0001
Graft 4a structural scheme
An HPMA copolymer with methacryloylated amino acids or oligopeptides terminated by a Boc- protected hydrazide group was prepared in a reaction of grafts 3a and 3b with DTT. The chain of this copolymer terminates with the 3-sulfanylpropanohydrazide, 3-sulfanylpropaneamide or 2- sulfanylethylamine groups (Graft 4b).
Graft 4b structural scheme Polymeric carrier and polymeric conjugate. The polymeric carrier is a grafted macromolecular polymer without the drug bound to it, prepared by a grafting reaction of a semitelechelic copolymer to the basic copolymer, as shown in the examples section. The above-mentioned copolymers whose hydrazide group is protected by the Boc group (t.-butyloxycarbonyl) are predominantly used for the reactions. In the last stage of conjugate synthesis the protective group is removed from the hydrazide group and the conjugate is bound to doxorubicin via a hydrazone bond in a reaction in methanol under catalyzed by the acetic acid. The final polymeric drug (the conjugate) is purified by precipitation and, if needed, by column chromatography as shown in the examples section.
The subject of this patent involves polymeric conjugates of doxorubicin whose detailed structures are shown in the scheme section and whose synthesis is described in the examples section. With regard to the type of the groups reacting in the basic polymers and semitelechelic grafts the polymeric conjugates are further divided into 5 basic groups. The following conjugates were prepared:
Conjugates 1
These conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a non-degradable bond. Copolymers carrying hydrazide or primary amino groups along their main chain and semitelechelic copolymers with the terminal N-succinimidyl ester or acylthiazolidine-2-thione groups were used for the preparation of these polymeric conjugates.
Conjugate Ia was prepared by the reaction of the hydrazide groups of Copolymer 2a with the acylthiazolidine-2-thione groups of Graft Ia, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000022_0001
Conjugate Ia structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350).
Conjugate Ib was prepared by the reaction of the hydrazide groups of Copolymer 2a with the thiazolidine-2-thione or N-succinimidyl groups of Graft Ib or Ic, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000023_0001
Conjugate Ib structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, ? = 1 - 20).
Conjugate Ic was prepared by the reaction of the hydrazide groups of Copolymer 2a with the N- succinimidyl ester groups of Graft Id, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000024_0001
Conjugate Ic structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 - 20).
Conjugate Id was prepared by the reaction of the hydrazide or primary amino groups of Copolymer 2b or 2c with the acylthiazolidine-2-thione or N-succinimidyl ester groups of Graft Ib or Ic, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
6
Figure imgf000025_0001
Conjugate Id structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 - 20).
Conjugates 2
These conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a biodegradable bond - an enzymatically cleavable oligopeptide sequence. Copolymers carrying 4-nitrophenoxy or thiazolidine-2-thione groups along their main chain and semitelechelic copolymers with terminal hydrazide or primary amino groups were used for the preparation of these polymeric conjugates.
Conjugate 2 was prepared by the reaction of the acylthiazolidine-2-thione or 4-nitrophenyl ester groups of Copolymer Ia or Ib with the hydrazide or primary amino groups of Graft 2a or 2b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
6
Figure imgf000026_0001
Conjugate 2 structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = l - 20).
Conjugates 3 These conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a biodegradable bond - disulfide bridges reductively cleavable in the target cells cytoplasm. Copolymers carrying reactive dithiopyridyl groups along their main chain and semitelechelic copolymers with terminal sulfhydryl groups were used for the preparation of these polymeric conjugates.
Conjugate 3a was prepared by the reaction of the dithiopyridyl groups of Copolymer 3a or 3b with the sulfhydryl groups of Graft 4a or 4b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000027_0001
Conjugate 3 structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 - 20).
Conjugate 3b was prepared by the reaction of the dithiopyridyl groups of Copolymer 3c with the sulfhydryl groups of Graft 4a or 4b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000028_0001
Conjugate 3b structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 20).
Conjugates 4
These conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bound to the main chain by a biodegradable bond - disulfide bridges reductively cleavable in the target cells cytoplasm. Copolymers carrying sulfhydryl groups along their main chain and semitelechelic copolymers with terminal reactive dithiopyridyl groups were used for the preparation of these polymeric conjugates.
Conjugate 4a was prepared by the reaction of the sulfhydryl groups of Copolymer 4a or 4b with the dithiopyridyl groups of Graft 3a or 3b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000029_0001
Conjugate 4a structural scheme (π = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 20).
Conjugate 4b was prepared by the reaction of the sulfhydryl groups of Copolymer 4c or 4d with the dithiopyridyl groups of Graft 3a or 3b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
4, 6
Figure imgf000030_0001
Figure imgf000030_0002
4, 6
Conjugate 4b structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 20).
Conjugate 4c was prepared by the reaction of the sulfhydryl groups of Copolymer 4e with the dithiopyridyl groups of Graft 3a or 3b, followed by deprotection of the hydrazide groups and linking DOX to the polymer.
Figure imgf000030_0003
Conjugate 4c structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 - 20). Conjugates 5
These conjugates carry DOX bound to the polymer via a hydrazone bond; the grafts are bo^nd to the main chain by a biodegradable bond - enzymatically cleavable oligopeptide sequence. They were prepared by radical terpolymerization of HPMA with methacryloylated amino acids or oligopeptides terminated by a Boc-protected hydrazide group and methacryloylated macromonomers prepared by methacryloylation of HPMA of a semitelechelic copolymer terminated by a primary amino group (Macromonomers, Fig. 32). The macromonomers were prepared in the reaction of the hydrazide or primary amino groups of Grafts 2a and 2b with methacryloylated derivatives of biodegradable oligopeptides terminated by the 4-nitrophenoxy or thiazolidine-2-thione group.
Figure imgf000031_0001
x = 0, 2, 4, 6 Structural scheme of macromonomers (r = 34 - 350, s = 1 - 70).
6
Figure imgf000032_0001
Conjugate 5 structural scheme (n = 40 - 335, m = 0 - 85, p = 1 - 20, q = 1 - 10, r = 34 - 350, s = 0 - 50, t = 1 - 20).
Brief Description of Drawings
Fig. 1 shows a graph of release rate of DOX from grafted polymeric conjugates and the linear polymeric conjugate in pH 5 buffer (intracellular environment model).
Fig. 2 shows a graph of release rate of DOX from grafted polymeric conjugates and the linear polymeric conjugate in pH 7.4 buffer (bloodstream model).
Fig. 3 shows the time dependence of molecular weight of polymeric conjugates during their degradation - A) degradation of Conjugate Id using the cathepsine B lysosomal enzyme [c(cathepsine B) = 5.10"7 mol/1]; B) degradation of Conjugate 3a using glutathione [c(glutathione) = 3.10~3 mol/l].
Fig. 4 shows a graph of survival rate of B/6 mice inoculated with the EL 4 mouse lymphoma treated by DOX grafted conjugates after intravenous administration of one dose of 15 mg/kg of DOX equivalent in a therapeutic mode of drug administration. Examples of synthetic procedures of intermediate products and conjugates according to the invention
Example 1: Synthesis of monomers and the ABIA-TT initiator 3,3 '-[4,4'-Azobis(4-cyano-4-methyl-l-oxo-butane-4,l-diyl)]bis(thiazolidine-2-thione) (ABIA- TT) was prepared according to a previously described method [Subr 2006]
HPMA was prepared according to a previously described method [Ulbrich a kol. 2000]. Elementary analysis: data counted: 58.8 % C, 9.16 % H, 9.79 % N; data found: 58.98 % C, 9.18 % H, 9.82 % N. The product was chromatographically pure. 6-(Methacryloylamino)hexanoyl-NΛ-(/ert. -butyloxycarbonyl)hydrazine (MA-AH-ΝHΝH-Boc) was prepared according to a previously described method [Ulbrich 2004a]
6-(Methacryloylamino)hexanoylhydrazine (N1-(6-hydrazino-6-oxohexyl)-2-methylacrylamide) (MA-AH-NHNH2) was prepared according to a previously described method [Ulbrich patents, Etrych patent]. MA-GFLG-TT or MA-GFLG-ONp
4-Nitrophenyl ester of N-methacryloylglycyl-DL-fenylalanylleucyl glycine (MA-GFLG-OΝp) was prepared according to a previously described method [Rejmanova 1977]
Thiazolidine-2-thione of N-methacryloylglycyl-DL-fenylalanylleucylglycine (MA-GFLG-TT) was prepared according to a previously described method [Subr patent]
6-(Methacryloylamino)hexanoylhydrazine-Doxorubicin (MA-AH-NHN=DOX)
6-(Methacryloylamino)hexanoylhydrazine (40 mg, 0.188 mmol) was dissolved in 6 ml of methanol at room temperature. The solution was poured into a reaction vessel in which doxorubicin. HCl (115 mg, 0.198 mmol) was placed and the suspension was stirred vigorously. 310 μl of acetic acid was added to the suspension and the reaction mixture stirred at room temperature for 24 hours. The reaction process was monitored by TLC — Silicagel 60 F254 plates (methanol:chloroform:acetic acid 2:8:1, Rf(DOX) = 0.75, Rf(MA-AH-NHN=DOX)= 0.9). 100 mg of copolymer 1 was then added to the homogenous reaction mixture (to bind the residual free DOX) and the reaction mixture was stirred at room temperature for another 4 hours. The product was purified from polymeric and low-molecular impurities by means of gel chromatography in a column (30 cm x 3 cm) filled with Sephadex LH-20 in methanol. The filtrate was concentrated to 2 ml and the product precipitated into 30 ml of diethyl ether. The product was sucked off, washed with a small amount of diethyl ether, and vacuum dried to constant weight. The yield was 110 mg of product (79 %) with the melting point of 172 to 175 0C. TLC (methanol:chloroform:acetic acid 2:8:1): one stain at Rf= 0.9. MALDI-TOF MS: 762 (M+Na).
The poly(HPMA-co-MA-AH-NHNH-Boc)-GLFG-MA methacryloylated macromonomer was prepared by the reaction of the terminal hydrazide or primary amino groups of semitelechelic copolymers (Grafts 2a and 2b) with 4-nitrophenoxy or thiazolidine-2-thione groups of methacryloylated derivatives of biodegradable oligopeptides.
200 mg of the Graft 2a copolymer (0.0125 mmol of NH2 groups) was dissolved in 2 ml of methanol and a solution of 7.7 mg of MA-GFLG-TT (0.0137 mol, 110% in respect of NH2 groups) in 1 ml of methanol was added at room temperature under intensive stirring. After 2 hours the reaction mixture was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex LH-20 in methanol under RI detection. The polymeric fraction was captured, concentrated to 3 ml in a vacuum rotary evaporator and the macromonomer was isolated by precipitation into 30 ml of ethyl acetate. The product was dried to constant weight.
Example 2: Synthesis of a polymeric precursor - Copolymer Ib - a copolymer of HPMA with MA-GFLG-TT
The PoIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-TT) copolymer was prepared by solution radical copolymerization of HPMA, MA-AH-NHNH-Boc and MA-GFLG-TT in DMSO at 60 0C. 465 mg (3.25 mmol) of HPMA, 44.5 mg (0.14 mmol) of MA-AH-NHNH-Boc, 100 mg (0.18 mmol) of MA-GFLG-TT (12.5 % by w. of monomers) and 98.3 mg (0.60 mmol) of ABIN (2 % by w.) were dissolved in 3.8 ml of DMSO. The ampoule with the polymerization mixture solution was bubbled with nitrogen for 10 minutes, then placed in a thermostat heated to 60 0C for 6 hours. Subsequently, the reaction mixture was precipitated into 80 ml of a mixture of acetone : diethyl ether 3 : 1 and centrifuged. The polymer was precipitated from methanol into the same mixture, filtered off on the S4 fritted glass and dried to constant weight. Example 3: Synthesis of a polymeric precursor - Copolymer 2a - a copolymer of HPMA with MA-AH-NHNH2
The poly(HPMA-co-MA-AH-NHNH2) copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH2 in methanol at 60 °C according to a previously described method [Etrych patent] .
Example 4: Synthesis of a polymeric precursor - Copolymer 2c - a copolymer of
POIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-NH2) The POIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-NH2) copolymer was prepared by polymer-analogous reaction of the PoIy(HPMA-Co-MA-AH-NHNH-BoC-CO-MA-GFLG-TT) copolymer with an excess of ethylene diamine (EDA).
410 mg of the poly(HPMA-co-MA-AH-NHNH-Boc-co-MA-GFLG-TT) polymer (0.10 mmol of
TT groups) were dissolved in 6 ml of methanol. 70 μl of EDA (1.05 mmol) were added to the vigorously stirred yellowish solution. After 30 minutes the discolored solution was precipitated into 120 ml of a mixture of acetone : diethyl ether 3 : 1, precipitated again from methanol into the same mixture and filtered off. The polymer was dried to constant weight.
Example 5: Synthesis of a polymeric precursor - Copolymer 3a - a copolymer of PoIy(HPMA-CO-MA-AH-NHNH2-Co-MA-AH-PDS)
The PoIy(HPMA-Co-MA-AH-NHNH2-Co-MA-AH-PDS) copolymer was prepared by polymer- analogous reaction of the PoIy(HPMA-Co-MA-AH-NHNH2) copolymer with the SPDP bifunctional agent. 400 mg of the poly(HPMA-co-MA- AH-NHNH2) polymer (0.17 mmol Of NHNH2 groups) were dissolved in 7 ml of methanol and a solution of 30 mg of SPDP (0.094 mmol) in 1 ml of methanol was added to the vigorously stirred solution. After 2 hours the reaction mixture was diluted to 15 ml by methanol and the copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex LH-20 in methanol under RI detection. The polymeric fraction was captured, concentrated in a vacuum rotary evaporator to 8 ml and the copolymer was isolated by precipitation into 100 ml of ethyl acetate. The polymer was dried to constant weight. Example 6: Synthesis of a polymeric precursor - Copolymer 3c - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc-co-MA-AH-PDS)
The poly(HPMA-co-MA-AH-NHNH-Boc-co-MA-AH-PDS) copolymer was prepared by polymeranalogous reaction of the poly(HPMA-co- MA-AH-NHNH-Boc-co-MA-AH-TT) copolymer with the PDEA bifunctional agent.
20 mg of PDEA.HC1 (0.089 mmol) were dissolved in 1 ml of DMSO and 14.5 μl of diisopropylethylamine (0.089 mmol) were added under intensive stirring. After 5 minutes a solution of 300 mg of the poly(HPMA-co- MA-AH-NHNH-Boc-co-MA-AH-TT) polymer (0.073 mmol of TT groups) in 4 ml of DMSO was added to this solution under intensive stirring at room temperature. After 2 hours the reaction mixture was diluted to 15 ml by methanol and the copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex LH-20 in methanol under RI detection. The polymeric fraction was captured, concentrated in a vacuum rotary evaporator to 6 ml and the copolymer isolated by precipitation into 80 ml of a mixture of acetone : diethyl ether 1:3 The product was dried to constant weight.
Example 7: Synthesis of a polymeric precursor - Copolymer 4b - a copolymer of
PoIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-SH) The PoIy(HPMA-CO-MA-AH-NHNH-BoC-Co-MA-GFLG-SH) copolymer was prepared by polymer-analogous reaction of the PoIy(HPMA-Co-MA-AH-NHNH-BoC-Co-MA-GFLG-NH2) copolymer with ITH in a phosphate buffer.
350 mg of the PoIy(HPMA-Co-MA-AH-NHNH-BoC-Co-MA-GFLG-NH2) copolymer (0.11 mmol Of NH2 groups) were dissolved in 7 ml of phosphate buffer (0.05 M phosphate buffer with 0.1 M NaCl, pH 7.4). 80 mg of ITH (0.58 mmol) were dissolved in 1 ml of distilled water and this solution was added to the copolymer solution under intensive stirring at room temperature. After 30 minutes the reaction mixture was diluted to 20 ml by distilled water and the copolymer purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer. Example 8: Synthesis of a polymeric precursor - Copolymer 4c - a copolymer of
PoIy(HPMA-Co-MA-AH-NHNH2-CO-MA-AH-SH)
The PoIy(HPMA-Co-MA-AH-NHNH2-CO-MA-AH-SH) copolymer was prepared by reduction of PDS groups of the poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-PDS) copolymer by means of DTT in distilled water.
300 mg of the poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-PDS) copolymer (0.075 mmol of PDS groups) were dissolved in 5 ml of distilled water. 40 mg of DTT (0.26 mmol) were dissolved in 1 ml of distilled water and this solution added to the copolymer solution under intensive stirring at room temperature. After 20 minutes the reaction mixture was diluted to 15 ml by distilled water and the copolymer purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer.
Example 9: Synthesis of a semitelechelic polymeric precursor - Graft Ib - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-TT
The poly(HPMA-co-MA-AH-NHNH-Boc)-TT semitelechelic copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH-Boc in DMSO at 60 0C under initiation by the ABIA-TT initiator. 367 mg (2.57 mmol) of HPMA, 70 mg (0.224 mmol) of MA-AH-NHNH-Boc (14 % by w. of monomers) were dissolved in 2.7 ml of DMSO and the solution was placed in a polymerization ampoule in which 140 mg (0.290 mmol) of ABIA-TT (4 % by w.) were previously weighed. The solution in the ampoule was aerated with nitrogen for 15 minutes, the ampoule was sealed and placed in a thermostat heated to 600C. The initiator was dissolved after 3 minutes at 600C. After 6 hours the reaction mixture was precipitated into 80 ml of a mixture of acetone : diethyl ether 2: 1. The polymer was dissolved in 4 ml of methanol and precipitated again into 60 ml of the same precipitation mixture. The precipitated copolymer was filtered off on the S4 fritted glass and dried to constant weight.
Example 10: Synthesis of a semitelechelic polymeric precursor - Graft Ic - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-OSu The poly(HPMA-co-MA-AH-NHNH-Boc)-OSu semitelechelic copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH-Boc in ethanol at 500C under initiation by the ABIA initiator, followed by activation of terminal carboxyl groups to N- succinimidyl ester. 3.33 g (23.2 mmol) of HPMA, 674 mg ( 2.16 mmol) of MA-AH-NHNH-Boc (12 % by w. of monomers) and 600 mg (2.14 mmol) ABIA (1.8 % by w.) were dissolved in 35 ml of ethanol. The solution was placed in a polymerization ampoule and aerated with nitrogen for 15 minutes. The ampoule was then sealed and placed in a thermostat heated to 50 0C. After 21 hours the reaction mixture was precipitated into 700 ml of acetone and centrifuged. The copolymer was precipitated again from methanol into the same precipitator, filtered off on the S4 fritted glass and dried to constant weight. In the second step, 400 mg of polymer (0.027 mmol of COOH) were dissolved in 1.75 ml of DMF. 27.5 mg of dicyclohexylcarbodiimide (DCC) (0.133 mmol) and 15.4 mg of N- hydroxysuccinimide (0.133 mmol) were dissolved in 0.2 ml of DMF and added to the stirred copolymer solution cooled to 4 0C (with water-ice mixture). The reaction mixture was stirred for 1.5 hours at 4°C and for 2 hours at room temperature. The polymer was precipitated into 50 ml of acetone and filtered off on the S4 fritted glass. After being dried to constant weight the sample was stored under argon at -180C.
Example 11: Synthesis of a semitelechelic polymeric precursor (synthesis with SPA transfer) - Graft 1 c - a copolymer of poly(HPMA-co-MA-AH-ΝHΝH-Boc)-OSu
The poly(HPMA-co-MA-AH-NHNH-Boc)-OSu semitelechelic copolymer was prepared by precipitation radical copolymerization of HPMA and MA-AH-NHNH-Boc in acetone at 50 0C in the presence of the ABIN initiator and SPA as transfer agent. In the second step, the terminal carboxyl groups were transformed by reaction with DCC and N-hydroxysuccinimide to N- succinimidyl ester.
438 mg (3.07 mmol) of HPMA, 76 mg (0.36 mmol) of MA-AH-ΝHΝH-Boc, 4.6 mg (0.028 mmol) of ABIΝ and 6 mg (0.057 mmol) of SPA were dissolved in 3.86 ml of acetone and the solution was placed in a polymerization ampoule The solution in the ampoule was aerated with nitrogen for 10 minutes, the ampoule then sealed and placed in a thermostat heated to 50 0C for 19 hours. The separated polymer was filtered off, dissolved in 2 ml of methanol and fractionated in a column filled with Sephadex LH-60 using methanol as the eluent. When the oligomeric fraction was separated the polymer solution was vacuum concentrated and precipitated into a 10-fold excess of a mixture of acetone and diethyl ether (1:1). The polymer was filtered off on the S4 fritted glass and dried to constant weight. In the second step, 340 mg of polymer (0.028 mmol of COOH) were dissolved in 1.6 ml of DMF. 28.5 mg of dicyclohexylcarbodiimide (DCC) (0.138 mmol) and 15.9 mg of N-hydroxysuccinimide (0.138 mmol) were dissolved in 0.2 ml of DMF and added to the stirred copolymer solution cooled to 4°C. The reaction mixture was stirred for 3.5 hours at 4°C and for 3 hours at room temperature. The polymer was isolated by precipitation into 50 ml of acetone and filtered off on the S4 fritted glass. After being dried to constant weight the sample was stored under argon at -180C.
Example 12: Synthesis of a semitelechelic polymeric precursor - Graft Id - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-GFLG-OSu
The poly(HPMA-co-MA-AH-NHNH-Boc)-GFLG-OSu semitelechelic copolymer was prepared though a double step synthesis. In the first step, the N-succinimidyl ester of the poly(HPM\-co- MA-AH-ΝHΝH-Boc)-OSu copolymer reacted with the amino group of the GFLG oligopeptide. In the second step, the terminal carboxyl groups of the prepared poly(HPMA-co-MA-AH-NHNH- Boc) -GFLG-COOH copolymer were transformed to N-succinimidyl ester by reaction with DCC and N-hydroxysuccinimide. 300 mg of the poly(HPMA-co-MA-AH-ΝHΝH-Boc)-OSu copolymer (0.025 mmol of OSu groups) were dissolved in 2 ml of DMF. A solution of 14 mg of the GFLG oligopeptide (0.036 mmol) in 0.2 ml DMF was then added to the solution. The reaction mixture was stirred for 3.5 hours at room temperature. The polymer was isolated by precipitation into 40 ml of acetone and filtered off on the S4 fritted glass. After being dried to constant weight the sample was stored under argon at -18 0C. In the second step, 320 mg of polymer (0.027 mmol of COOH) were dissolved in 1.6 ml of DMF. 28.5 mg of dicyclohexylcarbodiimide (DCC) (0.138 mmol) and 15.9 mg of N-hydroxysuccinimide (0.138 mmol) were dissolved in 0.2 ml of DMF and added to the stirred copolymer solution cooled to 4°C. The reaction mixture was stirred for 4 hours at 4°C and for 3 hours at room temperature. The polymer was isolated by precipitation into 50 ml of acetone and filtered off on the S4 fritted glass. After being dried to constant weight the sample was stored under argon at -180C. Example 13: Synthesis of a semitelechelic polymeric precursor (synthesis with cysteamine transfer) - Graft 2a - a copolymer OfPoIy(HPMA-Co-MA-AH-NHNH-BOc)-NH2 The poly(HPMA-co-MA-AH-NHNH-Boc)-NH2 semitelechelic copolymer was prepared by solution radical copolymerization of HPMA and MA-AH-NHNH-Boc in methanol at 50 0C in the presence of the ABIN initiator and cysteamine as transfer agent.
385 mg (2.69 mmol) of HPMA, 76 mg (0.36 mmol) of MA-AH-NHNH-Boc, 1.55 mg (0.0095 mmol) of ABIN and 2.8 mg (0.036 mmol) of cysteamine were dissolved in 4 ml of methanol and the solution was placed in a polymerization ampoule. The solution in the ampoule was aerated with nitrogen for 10 minutes, the ampoule then sealed and placed in a thermostat heated to 50 0C for 24 hours. The polymer was isolated by precipitation into 60 ml of a mixture of acetone and diethyl ether (2:1). The copolymer was filtered off on the S4 fritted glass and precipitated again from methanol (3 ml) into 40 ml of the same precipitation mixture. The polymer was filtered off on the S4 fritted glass and dried to constant weight.
Example 14: Synthesis of a semitelechelic polymeric precursor - Graft 2b - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-NH2
The poly(HPMA-co-MA-AH-NHNH-Boc)-NH2 semitelechelic copolymer was prepared by polymer-analogous reaction of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT copolymer with ethylene diamine in methanol. 450 mg of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT polymer (0.041 mmol of TT groups) were dissolved in 6 ml of methanol. 30 μl of EDA (0.45 mmol) were added to the vigorously stirred yellowish solution. After 30 minutes the discolored solution was precipitated into 120 ml of a mixture of acetone : diethyl ether 3 : 1, precipitated again from methanol into the same mixture and filtered off. The polymer was dried to constant weight.
Example 15: Synthesis of a semitelechelic polymeric precursor - Graft 3a - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-PDS
The poly(HPMA-co-MA-AH-NHNH-Boc)-PDS semitelechelic copolymer was prepared by polymer-analogous reaction of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT copolymer with the PDEA bifunctional agent in DMSO . 10 mg of PDEA.HC1 (0.045 mmol) were dissolved in 0.5 ml of DMSO and 7.3 μl of diisopropylethylamine (0.045 mmol) were added under intensive stirring. After 5 minutes a solution of 400 mg of the poly(HPMA-co- MA-AH-NHNH-Boc)-TT copolymer (0.036 mmol of TT groups) in 5 ml of DMSO was added to this solution under intensive stirring at room temperature. After 2 hours the reaction mixture was diluted to 15 ml by methanol and the copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex LH-20 in methanol (RI detection). The polymeric fraction was captured, concentrated in a vacuum rotary evaporator to 6 ml and the copolymer isolated by precipitation into 80 ml of a mixture of acetone : diethyl ether 3:1. The product was dried to constant weight.
Example 16: Synthesis of a semitelechelic polymeric precursor - Graft 3b - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-PDS
The poly(HPMA-co-MA-AH-NHNH-Boc)-PDS semitelechelic copolymer was prepared by polymer-analogous reaction of the poly(HPMA-co-MA-AH-NHNH-Boc)-NH2 copolymer with the SPDP bifunctional agent in methanol.
300 mg of the poly(HPMA-co-MA-AH-NHNH-Boc)-NH2 polymer (0.025 mmol of NHNH2 groups) were dissolved in 4 ml of methanol and a solution of 11 mg of SPDP (0.035 mmol) in 1 ml was added to the intensively stirred solution. After 2 hours the reaction mixture was diluted with methanol to 15 ml and the copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex LH-20 in methanol under RI detection.
The polymeric fraction was captured, concentrated in a vacuum rotary evaporator to 8 ml and the copolymer isolated by precipitation into 100 ml of ethyl acetate. The product was dried to constant weight.
Example 17: Synthesis of a semitelechelic polymeric precursor - Graft 4a - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-SH
The poly(HPMA-co-MA-AH-NHNH-Boc)-SH semitelechelic copolymer was prepared by polymer-analogous reaction of the (HPMA-co-MA-AH-NHNH-Boc)-NH2 copolymer with ITH in phosphate buffer. 250 mg of the PoIy(HPMA-CO-MA-AH-NHNH-BoC)-NH2 (0.021 mmol of NH2 groups) copolymer were dissolved in 5 ml of phosphate buffer (0.05 M phosphate buffer with 0.1 M NaCl, pH 7.4). 16 mg of ITH (0.116 mmol) were dissolved in 0.5 ml of distilled water and this solution was added to the copolymer solution under intensive stirring at room temperature. After 25 minutes the reaction mixture was diluted to 15 ml by distilled water and the copolymer purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer.
Example 18: Synthesis of a semitelechelic polymeric precursor - Graft 4b - a copolymer of poly(HPMA-co-MA-AH-NHNH-Boc)-SH
The poly(HPMA-co-MA-AH-NHNH-Boc)-SH semitelechelic copolymer was prepared by reduction of PDS groups of the poly(HPMA-co-MA-AH-NHNH-Boc)-PDS copolymer with the help of DTT in distilled water. 300 mg of the poly(HPMA-co-MA-AH-NHNH2)-PDS copolymer (0.022 mmol of PDS groups) were dissolved in 5 ml of distilled water. 20 mg of DTT (0.13 mmol) were dissolved in 1 ml of distilled water and this solution added to the copolymer solution under intensive stirring at room temperature. After 20 minutes the reaction mixture was diluted to 15 ml by distilled water and the copolymer purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer.
Example 19: Synthesis of a polymeric conjugate - Conjugate Id - a copolymer of poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX-co-MA-GFLG-NH-)-graft-[(GFLG)- POIy(HPMA-CO-MA-AH-NHNH2-Co-MA-AH-NHN=DOX)]
The poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-GFLG-NH-)-graft-
[(GFLG)-POIy(HPMA-Co-MA-AH-NHNH2-Co-MA-AH-NHN=DOX)] polymeric conjugate was prepared by reaction of the amino groups of the poly(HPMA-co-MA-AH-NHNH-Boc-co-MA- GFLG-NH2) copolymer with the TT groups of the poly(HPMA-co-MA-AH-NHNH-Boc)-TT copolymer, followed by protection of the hydrazide groups by trifluoracetic acid (TFA) and binding of DOX in methanol catalyzed by acetic acid. 180 mg Of PoIy(HPMA-Co-MA-AH-NHNH-BoC)-TT (0.015 mmol of TT) were dissolved in 3 ml of DMSO and added at room temperature to a stirred solution of 70 mg of poly(HPMA-co-MA- AH-NHNH-BOC-CO-MA-GFLG-NH2) (0.017 mmol of NH2) in 2 ml of DMSO. After 2.5 hours of the room temperature reaction the solution was precipitated to 50 ml of a mixture of ethyl acetate : diethyl ether 3 : 1 and filtered off on the S4 fritted glass. The grafted copolymer was dissolved in 4 ml of methanol, precipitated again to the ethyl acetate : diethyl ether mixture, filtered and dried to constant weight. When removing the protective Boc groups 220 mg of the grafted copolymer were dissolved in 6 ml of a mixture of TFA : triisopropylsilane : water 95 : 2.5 : 2.5. After 15 minutes the mixture was repeatedly evaporated with methanol (in 5 -fold excess) in a vacuum evaporator using a water aspirator vacuum until crystals were formed. The product was dissolved in water and the water solution pH was increased to pH = 7-8. The copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer. When binding DOX to the grafted copolymer 200 mg of copolymer were dissolved in 2 ml of methanol and the solution was poured in a thermo-regulated cell where 20 mg of DOX.HC1 (0.034 mmol) were placed. The non-homogenous suspension was stirred in dark at 25 °C and after 1 minute 100 μl of acetic acid were added. The suspension gradually dissolved and after 23 hours of reaction the polymeric product was purified from low-molecular impurities and any residual free drug by means of gel chromatography in a column filled with Sephadex LH-20 in methanol. The polymeric fraction was captured, concentrated to 3 ml in a vacuum rotary evaporator and the copolymer was isolated by precipitation into 30 ml of ethyl acetate. The product was dried to constant weight.
Example 20: Synthesis of a polymeric conjugate - Conjugate 2 - a copolymer of poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-GFLG-NH-)-graft-[(GFLG)- poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX)]
The poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-GFLG-NH-)-graft-
[(GFLG)-PoIy(HPMA-Co-MA-AH-NHNH2-MA-AH-NHN=DOX)] polymeric conjugate was prepared by reaction of the ONp groups of the poly(HPMA-co-MA-AH-NHNH-Boc-co-MA- GFLG-ONp) copolymer with the hydrazide groups of the poly(HPMA-co-MA-AH-NHNH-Boc)- NHNH2 copolymer, followed by protection of the hydrazide groups by trifluoracetic acid (TFA) and binding of DOX in methanol catalyzed by acetic acid.
250 mg of PoIy(HPMA-CO-MA-AH-NHNH-BoC)-NHNH2 (0.019 mmol of TT) were dissolved in
4 ml of DMSO and added at room temperature to a stirred solution of 90 mg of poly(HPMA-co- MA-AH-NHNH-Boc-co-MA-GFLG-ONp) (0.021 mmol Of NH2) in 2.5 ml of DMSO. After 3 hours of the room temperature reaction the solution was precipitated into 50 ml of a mixture of acetone : diethyl ether 3 : 1 and filtered off on the S4 fritted glass. The grafted copolymer was dissolved in 5 ml of methanol, precipitated again to the ethyl acetate : diethyl ether mixture, filtered and dried to constant weight. The removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19.
Example 21: Synthesis of a polymeric conjugate - Conjugate 3a - a copolymer of poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-AH-SS-)-graft-[(SS)- poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX)] The poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-AH-SS-)-graft-[(SS)- poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX)] polymeric conjugate was prepared by reaction of the PDS groups of the poly(HPMA-co-MA- AH-NHNH2-Co-MA- AH-PDS) copolymer with the sulfhydryl groups of the poly(HPMA-co-MA-AH-NHNH-Boc)-SH copolymer, followed by protection of the hydrazide groups by trifluoracetic acid (TFA) and binding of DOX in methanol catalyzed by acetic acid.
330 mg of poly(HPMA-co-MA- AH-NHNH-Boc)-SH (0.021 mmol of SH groups) were dissolved in 7 ml of phosphate buffer (0.05 M phosphate buffer with 0.1 M NaCl, 0.01 M ethylenediaminetetraacetic acid (EDTA), pH 7.4) and added at room temperature to a stirred solution of 108 mg Of PoIy(HPMA-Co-MA-AH-NHNH2-CO-MA-AH-PDS) (0.025 mmol of PDS groups) in 2.5 ml of the same buffer. After 3 hours of the room temperature reaction the grafted copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer. The removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19. Example 22: Synthesis of a polymeric conjugate - Conjugate 3a - a copolymer of poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-AH-SS-)-graft-[(SS)- poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX)] The poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-AH-SS-)-g^aft-[(SS)- poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX)] polymeric conjugate was prepared by reaction of the SH groups of the poly(HPMA-co-MA-AH-NHNH-Boc-co-MA-AH-SH) with the PDS groups of the poly(HPMA-co-MA-AH-NHNH-Boc)-PDS copolymer, followed by protection of the hydrazide groups by trifluoracetic acid (TFA) and binding of DOX in methanol catalyzed by acetic acid.
280 mg of poly(HPMA-co-MA- AH-NHNH-Boc)-PDS (0.019 mmol of PDS groups) were dissolved in 6 ml of phosphate buffer (0.05 M phosphate buffer with 0.1 M NaCl, 0.01 M ethylenediaminetetraacetic acid (EDTA), pH 7.4) and added at room temperature to a stirred solution of 95 mg of poly(HPMA-co-MA-AH-NHNH-Boc-co-MA-AH-SH) (0.024 mmol of SH groups) in 2.5 ml of the same buffer. After 3 hours of the room temperature reaction the grafted copolymer was purified from low-molecular impurities by means of gel chromatography in a column filled with Sephadex G-25 in distilled water under RI detection. The polymeric fraction was captured and lyophilized in the Lyovac GT-2 lyophilizer. The removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19.
Example 23: Synthesis of a polymeric conjugate - Conjugate 5 - a copolymer of poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-GFLG-NH-)-graft-[(GFLG)- poly(HPMA-co-MA-AH-NHNH2-MA-AH-NHN=DOX)] The poly(HPMA-co-MA-AH-NHNH2-co-MA-AH-NHN=DOX-co-MA-GFLG-NH-)-g^aft-
[(GFLG)-PoIy(HPMA-Co-MA-AH-NHNH2-MA-AH-NHN=DOX)] polymeric conjugate was prepared by solution radical copolymerization of HPMA, MA-AH-NHNH2 and poly(HPMA-co-
MA-AH-NHNH-Boc)-GLFG-MA in methanol at 60 °C.
465 mg (3.25 mmol) of HPMA, 44.5 mg (0.20 mmol) OfMA-AH-NHNH2, 950 mg (0.076 mmol) of poly(HPMA-co-MA-AH-NHNH-Boc)-GLFG-MA and 98,3 mg (0.60 mmol) of ABIN were dissolved in 9 ml of methanol. The ampoule with the polymerization mixture solution was aerated with nitrogen for 10 minutes, then sealed and placed in a thermostat heated to 60°C for 24 hours. The reaction mixture was then precipitated into 100 ml of a mixture of acetone : diethyl ether 3 : 1 and centrifuged. The polymer was precipitated again from methanol into the same mixture, filtered off on the S4 fritted glass and dried to constant weight. The removal of the protective Boc groups, as well as the binding of the drug to the grafted copolymer was carried out analogously as in Example 19.
Example 24: Release of doxorubicin from grafted polymeric conjugates
The amounts of doxorubicin released from grafted polymeric conjugates after their incubation in a phosphate buffer with pH 5.0 (0.1 M phosphate buffer containing 0.05 M NaCl), modeling the intracellular environment, and in a phosphate buffer with pH 7.4, modeling the bloodstream environment, were measured. The amount of released DOX in the incubation solution was determined by means of HPLC (Shimadzu). In predetermined intervals, 50 μl of the incubation solution were sampled and analyzed in a TSKGeI G 3000x1 column, isocratic flow 0.5 ml/min of the mobile phase composed of a mixture of methanol: acetate buffer of pH 6.5 (80 : 20 % by vol.). The amount of DOX was calculated from the areas of peaks of free and bound DOX (UV-VIS detection at 488 nm). After incubation of the conjugates (5 mg/ml concentration) in the physiologic environment at 36 °C (phosphate buffer, pH 7.4), only a small amount of the drug is released (up to 8 %/24 hours) (Figure 33); on the contrary, the release rate of DOX from the grafted polymeric conjugates, and hence the activation rate of the cytotoxic drug, is considerable in the slightly acidic environment at pH 5.0 (Figure 35). At pH 7.4 and pH 5 the rates of drug release from the grafted polymeric conjugates are fully comparable with those detected for the hydrazone conjugates prepared from linear copolymers only [Etrych patent].
Example 25: Degradation of grafted polymeric conjugates by glutathione or cathepsine B into degradation products excludable from the body
The degradation experiments were carried in a phosphate buffer (0,1 M phosphate buffer containing 0.05 M NaCl, pH 6) in the presence of cathepsine B or glutathione in the role of degradation agents, i.e. in the environment modeling intracellular environment (cytoplasm, endosome and secondary lysosome). The grafted polymeric conjugates were dissolved in the phosphate buffer in concentration of 50 mg/ml and immediately before the solutions were placed in a thermostat (37° C) a stock solution of cathepsine B or glutathione was added to the solutions so that the final concentration of these agents in the incubation medium was 5.10"7 mol/1 and 3.10" mol/1 for cathepsine and glutathione, respectively. In predetermined intervals aliquot parts (200 μl) were sampled from the incubation solutions. The samples were desalinated in the PD-10 columns and lyophilized. The molecular weight of the degradation products was measured using the Shimadzu SIL-HT liquid chromatograph fitted with a differential refractometer (Shimadzu RID-IOA) and multiangle light dispersion detector (DAWN EOS, Wyatt Technology, USA). The analysis was carried out in a Superose™6 column (300 x 10 mm) (Amersham Bioscience). 0.3 M acetate buffer (CH3COONaZCH3COOH; pH = 6.5; 0.5 g/1 NaN3) with a flow rate of 0.5 ml/min was used as the mobile phase. The molecular weight and polydispersity of the copolymer was calculated using the Astra software. (Wyatt Technology, USA).
The conjugates containing the GlyPheLeuGly enzymatically degradable sequences (Conjugate Id) were degraded in the course of 24 hours by cathepsine B to degradation products whose molecular weight was below the renal filtration limit (Fig. 37). In a solution containing glutathione (3.103 mol/1) rapid degradation of the grafted conjugates containing disulfide bridges was detected. These grafted conjugates were degraded after 24 hours into polymeric degradation products with a molecular weight below the renal filtration limit (~ 25,000 g/mol).
Example 26. Example of in vitro biological activity of grafted conjugates of doxorubicin during incubation with the cells of various tumor lines
Table 1: Cytotoxicity of grafted polymers, comparison with Hydrazone
Figure imgf000047_0001
Figure imgf000048_0001
Both types of Dox grafted conjugates (those with grafts attaches by an enzymatically cleavable bond and with a reductively cleavable bond) were tested in vitro using a scale of tumor lines of both mouse (EL 4; 38C13; 3T3; BCLl) and human origin (SW 620). It was found out that the IC5Q value of the conjugates in all the tested lines was 5-10 times lower than that of free unmodified doxorubicin. All the tested lines are very sensitive to the conjugates but it depends on their origin. The most sensitive one was the line of mouse B cellular lymphoma 38C13. The lines of human colorectal carcinoma and mouse fibrosarcoma were less sensitive, followed by the line of mouse B leukemia. Mouse T cellular lymphoma was the least sensitive one.
Example 27. Example of in vivo biological activity of grafted conjugates of doxorubicin in mice inoculated by T cellular lymphoma EL4
The in vivo experiments involved a model of mouse T cellular lymphoma EL4, the experimental animals were mice (males) of the B/6 species that were subcutaneously implanted with 105 tumor cells on day 0. The conjugates were applied intravenously in a dose of 1 x 15 mg/kg of DOX equivalent. This single application was carried out on the ninth day after the tumor cells transplantation, i.e. at a time when the tumor was palpable, about approx. 400 mm3 in size. As early as on the third day after the first application all experimental groups showed significantly slowed growth of tumors compared with controls. Both grafted conjugates (Conjugate Id and Conjugate 3a) showed a very significant anticancer effect. In both cases the tumor growth was suppressed and in most testing animals the tumor faded out. After the application of Conjugate 3a (SS bridge) 100% of mice were surviving on the 70th day of tumor cells application, which was the end of the experiment. In case of Conjugate Id 88 % of the laboratory animals survived to the 70th day when the experiment was ended. In both experimental groups treated with samples of grafted conjugates significant recession of the tumor was obvious after the conjugates were administered, no weight decrease as a sign of toxicity was observed. In control treatment with a linear soluble conjugate five mice of eight were cured. All of these control animals died; the shortest and longest survival intervals were 28 days and 35 days, respectively. Examples of the in vivo test results are shown in Fig. 4 and table 1 (LTS - long term survivors).
Figure imgf000049_0001
Table 1. Survival of B/6 mice inoculated with mouse lymphoma EL 4 (day 0, 10s cells, s.c.) treated with DOX grafted conjugates after intravenous application of one dose of 15 mg/kg DOX equivalent in a therapeutic mode of drug administration (day 9). The linear conjugate is a control ,,classic" soluble ungrafted conjugate. The days mean particular days of animal death, LTS means surviving animals without a palpable tumor.
References:
Bae, Y. S.; Fukushima, S.; Harada, A.; Kataoka, K. pH responsive drug-loaded polymeric micelles: Intracellular drug release correlated with in vitro cytotoxicity on human small cell lung cancer SBC-3. 2003. Salt Lake City, Utah, U.S.A. Winter Symposium and 11th International Symposium on Recent Advances in Drug Delivery Systems. 2003.
Bronich, T. K.; Nehls, A.; Eisenberg, A.; Kabanov, V. A.; Kabanov, A. V. Colloids Surf. B 1999, 16, 243-251.
R. Duncan, J.B. Lloyd, J. Kopecek, P. Rejmanova, J. Strohalm, K. Ulbrich, B. Rihova, V. Chytry: Synthetic Polymeric Drugs (1985). Czech. PV 0095/85, Australia 589587, Canada 130053, Denmark 164485, Europe 0187547, US 5,037,883, Japan 000137/86
Etrych, T., Jelinkova, M., Rihova, B. and Ulbrich K., New HPMA copolymers containing doxorubicin bound via pH sensitive linkage. Synthesis, in vitro and in vivo biological properties. J. Controlled Release 73, 89-102 (2001).
T. Etrych, P. Chytil, M. Jelinkova, B. Rihova, K. Ulbrich, Synthesis of HPMA Copolymers Containing Doxorubicin Bound via a Hydrazone Linkage. Effect of Spacer on Drug Release and in vitro Cytotoxicity. Macromolecular Biosci. 2, 43-52 (2002)
Etrych T., Chytil P., Pechar M., Studenovsky M., Rihova B., Ulbrich K.: Method of Preparation of Polymeric Conjugates of Doxorubicin with pH-controlled Drug Release, CZ PV 2005-558
Kataoka, K.; Harada, A.; Nagasaki, Y. Adv. Drug Delivery Rev. 2001, 47, 113-131. Kopecek J., Kopeckova P., Minko T., Lu Z., HPMA Copolymer-Anticancer Drug Conjugates: Design, Activity and Mechanism of Action. Europ. J. Pharm. Biopharm. 50, 61 - 81 (2000)
Kopecek, J., Kopeckova, P., Minko, T., Lu, Z.R., Peterson, CM. (2001) "Water soluble polymers in tumor targeted delivery". J. Controlled Release 74, 165-173.
F. Kratz, U. Beyer, M.T. Schutte, Drug-polymer conjugates containing acid-cleavable bonds, Crit. Rev. Ther. Drug Carrier Syst. 16 (1999) 245-288. Maeda, H., J. Wu, T. Sawa, Y. Matsumura, and K. Hori. 2000. Tumor vascular permeability and the EPR effect in macromolecular therapeutics: a review. J Control Release 65:271-284.
Maeda, H. 2001. The enhanced permeability and retention (EPR) effect in tumor vasculature: the key role of tumor-selective macromolecular drug targeting. Adv Enzyme Regul 41:189-207.
Y. Noguchi, J. Wu, R. Duncan, J. Strohalm, K. Ulbrich, T. Akaike, H. Maeda, Jpn. J. Cancer Res. 89, 307-314 (1998)
P. Rejmanova, J. Labsky, J. Kopecek, Aminolyses of Monomelic and Polymeric 4-nitrophenyl Esters of N-Methacroylamino Acids, Makromol. Chem. 178, 2159 -2168 (1977)
B. Rihova, M. Jelinkova, J. Strohalm, V. Subr, D. Plocova, O. Hovorka, M. Novak, D. Plundrova, Y. Germano, K. Ulbrich, Polymeric Drugs Based on Conjugates of Synthetic and Natural Macromolecules II. Anti-cancer Activity of antibody or (Fab')2-targeted Conjugates and Combined Therapy with Immunomodulators. J. Controlled ReI. 64, 241-261 (2000)
L.W. Seymour, Y. Miyamoto, H. Maeda, M. Brereton, J. Strohalm, K. Ulbrich, R. Duncan, Europ. J. Cancer 31 A, 766 - 770 (1995)
V.Subr, K.Ulbrich, B.Rihova, Reactive polymers and copolymers based on N-(2- hydroxypropyl)methacrylamide, a method of their preparation and their use for synthesis of polymer drugs, for modification of biologically active proteins and for gene transport systems, PV 1950/03
V.Subr, C.Konak, R.Laga, K.Ulbrich, Coating of DNA/poly(L-lysine) complexes by covalent attachment of poly[ N-(2-hydroxyρropyl)methacrylamide], Biomacromolecules 7, 122-130 (2006)
K. Ulbrich, V. Subr, J. Strohalm, D. Plocova, M. Jelinkova, B. Rihova, Polymeric Drugs Based on Conjugates of Synthetic and Natural Macromolecules I. Synthesis and Physico-chemical Characterisation. J. Controlled ReI. 64, 63-79 (2000) K. Ulbrich, T. Etrych, P. Chytil, M. Jelinkova, B. Rihova, Antibody-Targeted Polymer- Doxorubicin Conjugates with pH-Controlled Activation, J. Drug Targeting 12(8) (2004) 477- 489]. (A)
K. Ulbrich, V. Subr, Polymeric Anticancer Drugs with pH-Controlled Activation, Adv. Drug Delivery Rev. 56/7, 1025-1052 (2004) (B)
K. Ulbrich, T. Etrych, B. Rihova, M. Jelinkova, M. Kovar: pH-sensitive Polymeric Conjugates of an Anthracycline Cancerostatic for Targeted Therapy. CZ 293787, CZ 293886
Yokoyama, M.; Okano, T.; Sakurai, Y.; Fukushima, S.; Okamoto, K.; Kataoka, K. J. Drug Targeting 1999, 7, 171-186.
Yoo, H. S.; Lee, E. A.; Park, T. G. J. Controlled Release 2002, 82, 17-27.

Claims

CLAIM S
1. A polymeric drug in which a cancerostatic connected via spacers containing hydrolytically cleavable hydrazone bonds is bound to a water-soluble polymeric carrier prepared on the basis of a N-(2-hydroxypropyl)methacrylamide copolymer, characterized in that the structure of the polymeric drug consists of a main chain of N- (2-hydroxypropyl)methacrylamide carrying the cancerostatic and another chain of N- (2-hydroxypropyl)methacrylamide - a graft, which may also carry a cancerostatic, said grafts being bound to the main chain by a bond which is stable in the body and/or by a bond cleavable in the body.
2. The polymeric drug according to claim 1, characterized in that the grafts are bound to the main chain by a bond cleavable in a tumor cell, enzymatically and/or reductively.
3. The polymeric drug according to claim 2, characterized in that the grafts are bound to the main chain by an oligopeptide sequence and/or a disulfide bond.
4. The polymeric drug according to claim 3, characterized in that the grafts are bound to the main chain by an oligopeptide spacer selected from the series of GlyLeuGly,
GlyPheGly, GlyPheLeuGly and GlyLeuPheGly.
5. The polymeric drug according to claims 1-4, characterized in that the molecular weights of the main chain and the grafts are selected so that both the main chain before bonding of the grafts and the grafts themselves are excludable from the body after degradation, while the total molecular weight of the grafted polymer exceeds the exclusion limit of the body.
6. The polymeric drug according to claims 1-5, characterized in that the molecular weight of the grafted polymer ranges from 50,000 to 400,000 g/mol and the cancerostatic content ranges from 1 to 25% by weight.
7. The polymeric drug according to claims 1-6, characterized in that doxorubicin is selected as the cancerostatic.
8. The polymeric drug according to claim 7, characterized by structure Ia
Figure imgf000054_0001
Ia wherein n ranges from 40 to 335, m from 0 to 85, p from 1 to 20, q from 1 to 10 and r from 34 to 350; SPi is an aminoacyl, especially glycyl, glycylglycyl, β-alanyl, 6-aminohexanoyl (AH) or 4-aminobenzoyl and/or a combined acyl derived from the oligopeptides GlyPheGly, GlyLeuGly, GlyLeuPheGly or GlyPheLeuGly.
9. The polymeric drug according to claim 7, characterized by structure Ib
Figure imgf000055_0001
Ib wherein s ranges from 0 to 50 and t from 1 to 20 and the other symbols are as defined above.
10. The polymeric drug according to claim 7, characterized by structure Ic
Figure imgf000056_0001
Ic wherein SP2 is a combined acyl derived from an enzymatically degradable oligopeptide sequence of the GlyPheGly, GlyLeuGly, GlyLeuPheGly or GlyPheLeuGly type and the other symbols are as defined above.
11. The polymeric drug according to claim 7, characterized by structure Id
6
Figure imgf000057_0001
Id wherein the symbols are as defined above.
12. The polymeric drug according to claim 7, characterized by structure 2
4, 6
Figure imgf000058_0001
2
wherein the symbols are as defined above.
13. The polymeric drug according to claim 7, characterized by structure 3 a
Figure imgf000059_0001
3a wherein the symbols are as defined above.
14. The polymeric drug according to claim 7, characterized by structure 3b
Figure imgf000060_0001
3b wherein the symbols are as defined above.
15. The polymeric drug according to claim 7, characterized by structure 4a
Figure imgf000061_0001
4, 6
Figure imgf000061_0002
4, 6
4a wherein the symbols are as defined above.
16. The polymeric drug according to claim 7, characterized by structure 4b
4, 6
Figure imgf000062_0001
4, 6
Figure imgf000062_0002
4b wherein the symbols are as defined above.
17. The polymeric drug according to claim 7, characterized by structure 4c
Figure imgf000063_0001
4c wherein the symbols are as defined above.
18. The polymeric drug according to claim 7, characterized by structure 5
Figure imgf000063_0002
x = 0, 2, 4, 6
19. A pharmaceutical composition containing, as the active component, a substance according to any of the preceding claims, designed for the treatment of tumors.
20. The pharmaceutical composition according to claim 19, designed for the treatment of solid tumors.
21. The pharmaceutical composition according to claim 19, designed for the treatment of some types of lymphoma and leukemia.
22. A method of preparation of a polymeric drug according to any of the preceding claims, characterized in that it consists of the following steps: a. preparation of the basic monomelic units, which are N-(2- hydroxypropyl)methacrylamide and other methacryloylated derivatives of amino acids or oligopeptides terminated with reactive 4-nitrophenoxy or thiazolidinethione groups; or terminated with a hydrazine group protected by a butyloxycarboxyl group; or terminated with a cancerostatic; or methacryloylated macromonomers prepared by metacryloylation of a semitelechelic copolymer of N-(2-hydroxypropyl)methacrylamide terminated by a primary amino group; b. synthesis of polymeric precursors, i.e. (a) the basic chain carrying the functional 4-nitrofenoxy, thiazolidine-2-thione, hydrazide, primary amino, sulfhydryl (SH) or dithiopyridyl (PDS) groups, either by polymerization of the basic monomers carrying said groups or by modification of the functional groups in a polymeranalogous reaction, and (b) grafts terminated with a reactive group, prepared by radical polymerization of the basic monomelic units, or by radical copolymerization carried out in the presence of a transfer agent or initiated by the ABIA-TT initiator with subsequent modification of the terminal groups; c. reaction of the functional groups of the basic chain and the reactive groups of the graft resulting in formation of a polymeric carrier, or a final polymeric conjugate, if monomelic units with a cancerostatic content were used for the preparation of polymers; d. optional removal of the Boc group that protects the hydrazide groups and their subsequent reaction with the cancerostatic.
23. The method according to claim 22 for the preparation of a polymeric drug of formula Ia; Ib; Ic or Id, characterized in that the basic chain in the reaction according to point c. carries hydrazide or primary amino groups in its structure, while the grafts are terminated with N-succinimidyl ester or acylthiazolidine-2-thione groups.
24. The method according to claim 22 for the preparation of a polymeric drug of formula 2, characterized in that the basic chain in the reaction according to point c. carries reactive 4-nitrophenoxy or thiazolidine-2-thione groups in its structure, while the grafts are terminated with terminal hydrazide or primary amino groups.
25. The method according to claim 22 for the preparation of a polymeric drug of formula 3 a or 3b, characterized in that the basic chain in the reaction according to point c. carries reactive dithiopyridyl groups in its structure, while the grafts are terminated with a sulfhydryl group.
26. The method according to claim 22 for the preparation of a polymeric drug of formula 4a; 4b or 4c, characterized by the fact that the basic chain in the reaction according to point c. carries sulfhydryl groups in its structure, while the grafts are terminated with a dithiopyridyl group.
27. The method according to claim 22 for the preparation of a polymeric drug of formula 5, characterized by radical terpolymerization of N-(2- hydroxypropyl)methacrylamide with methacryloylated amino acids or oligopeptides terminated with the t.-butyloxycarbonyl hydrazine group and macromonomers prepared by methacryloylation of N-(2-hydroxypropyl)methacrylamide of a semitelechelic copolymer terminated by an amino group, of the following formula:
Figure imgf000066_0001
x = 0, 2, 4, 6
wherein the symbols are as defined above.
PCT/CZ2007/000087 2006-09-18 2007-09-18 Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation Ceased WO2008034391A1 (en)

Priority Applications (4)

Application Number Priority Date Filing Date Title
EA200900453A EA017073B1 (en) 2006-09-18 2007-09-18 Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation
UAA200903818A UA97812C2 (en) 2006-09-18 2007-09-18 A polymeric drug, in which a cancerostatic connected via spacers containing hydrolytically cleavable hydrazone bonds
EP07801128.5A EP2063914B1 (en) 2006-09-18 2007-09-18 Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation
US12/441,619 US8603990B2 (en) 2006-09-18 2007-09-18 Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
CZ20060592A CZ2006592A3 (en) 2006-09-18 2006-09-18 Polymeric medicament and process for preparing thereof
CZPV2006-592 2006-09-18

Publications (1)

Publication Number Publication Date
WO2008034391A1 true WO2008034391A1 (en) 2008-03-27

Family

ID=38982478

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/CZ2007/000087 Ceased WO2008034391A1 (en) 2006-09-18 2007-09-18 Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation

Country Status (6)

Country Link
US (1) US8603990B2 (en)
EP (1) EP2063914B1 (en)
CZ (1) CZ2006592A3 (en)
EA (1) EA017073B1 (en)
UA (1) UA97812C2 (en)
WO (1) WO2008034391A1 (en)

Cited By (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2010042638A3 (en) * 2008-10-07 2010-05-27 Young Bok Lee Hpma - docetaxel or gemcitabine conjugates and uses therefore
WO2010045896A3 (en) * 2008-10-23 2010-08-12 Zentiva, K.S. Polymeric composition with synergistic effect in treatment of tumour diseases
WO2010091650A1 (en) * 2009-02-13 2010-08-19 Zentiva, K.S. Polymeric conjugates of paclitaxel and docetaxel with ph-controlled releasing of the cancerostatic agent
US8664177B2 (en) 2011-02-11 2014-03-04 The Regents Of The University Of Michigan Peptide compositions and methods for treating patients
US8846110B2 (en) 2009-10-13 2014-09-30 Rexahn Pharmaceuticals, Inc. Polymeric systems for the delivery of anticancer drugs
CN105963706A (en) * 2016-04-15 2016-09-28 四川大学 Branched polyHPMA copolymer-DOX conjugate, and preparation method and application thereof
WO2017177991A1 (en) * 2016-04-11 2017-10-19 Ustav Makromolekularni Chemie Av Cr, V.V.I. Block copolymer for overcoming drug resistance of tumours to chemotherapy, its polymer-drug conjugate, pharmaceutical composition containing them, method of preparation and use thereof
WO2021121446A1 (en) * 2019-12-17 2021-06-24 Ustav Makromolekularni Chemie Av Cr, V.V.I. Copolymer with hydrolytic release of cancerostatic agent cytarabine, method of its preparation and use thereof

Families Citing this family (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CZ302830B6 (en) * 2009-12-15 2011-11-30 Ústav makromolekulární chemie AV CR, v.v.i. High-molecular polymeric carriers of medicaments derived from dendrimers and conjugates thereof with medicaments for treating especially solid tumors
EP2716633B1 (en) * 2011-05-26 2017-05-17 Xuanzhu Pharma Co., Ltd. Quinazoline derivative as tyrosine-kinase inhibitor, preparation method therefor and application thereof
CN103936945B (en) * 2013-01-23 2017-02-08 中国科学院化学研究所 Efficient anti-tumor targeting drug carrier and preparation method thereof
CN106995516B (en) * 2016-01-22 2019-08-02 北京化工大学 The nanometer medicine-carried system and preparation method thereof of tumour-specific enrichment
CN112940248B (en) * 2021-02-04 2023-07-18 西安交通大学 A pH-responsive metal coordination polyprodrug nanoparticle and its preparation method
CN113908289B (en) * 2021-10-09 2023-07-25 北京化工大学 Antitumor multi-element drug-carrying system with precisely regulated and controlled drug proportion and preparation method thereof

Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2005007798A2 (en) * 2003-07-16 2005-01-27 Ústav makromolekulární chemie AVCR Hydroxypropyl methacrylamide polymers and copolymers comprising reactive thiazoline-2-thione
EP1782833A2 (en) * 2001-12-20 2007-05-09 Zentiva, A.S. pH-sensitive polymeric conjugates of an anthracycline cancerostatic drug for targeted therapy

Family Cites Families (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
DE69432867T2 (en) * 1993-11-18 2004-04-22 Sirtex Medical Ltd., Burswood PREPARATION WITH CONTROLLED RELEASE
US6060518A (en) * 1996-08-16 2000-05-09 Supratek Pharma Inc. Polymer compositions for chemotherapy and methods of treatment using the same
US7279318B1 (en) * 1999-06-09 2007-10-09 Hybrid Systems Limited Modification of biological elements
CZ297827B6 (en) * 2005-09-05 2007-04-04 Zentiva, A. S. Process for preparing doxorubicin polymeric conjugates with pH-controlled release of a medicament

Patent Citations (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP1782833A2 (en) * 2001-12-20 2007-05-09 Zentiva, A.S. pH-sensitive polymeric conjugates of an anthracycline cancerostatic drug for targeted therapy
WO2005007798A2 (en) * 2003-07-16 2005-01-27 Ústav makromolekulární chemie AVCR Hydroxypropyl methacrylamide polymers and copolymers comprising reactive thiazoline-2-thione

Non-Patent Citations (9)

* Cited by examiner, † Cited by third party
Title
CARTLIDGE S A ET AL: "Soluble, crosslinked N-(2-hydroxypropyl)methacrylamide copolymers as potential drug carriers. 1. Pinocytosis by rat visceral yolk sacs and rat intestine cultured in vitro. Effect of molecular weight on uptake and intracellular degradation", JOURNAL OF CONTROLLED RELEASE 1986 NETHERLANDS, vol. 3, no. 1, 1986, pages 55 - 66, XP002467297, ISSN: 0168-3659 *
CARTLIDGE S A ET AL: "Soluble, crosslinked N-(2-hydroxypropyl)methacrylamide copolymers as potential drug carriers. 2. Effect of molecular weight on blood clearance and body distribution in the rat after intravenous administration. Distribution of unfractionated copolymer after intraperitoneal, subcutaneous or oral admin", JOURNAL OF CONTROLLED RELEASE 1987 NETHERLANDS, vol. 4, no. 4, 1987, pages 253 - 264, XP002467296, ISSN: 0168-3659 *
CEGNAR M ET AL: "Nanoscale polymer carriers to deliver chemotherapeutic agents to tumours", EXPERT OPINION ON BIOLOGICAL THERAPY 2005 UNITED KINGDOM, vol. 5, no. 12, 2005, pages 1557 - 1569, XP008088074, ISSN: 1471-2598 *
DUNCAN RUTH: "The dawning era of polymer therapeutics.", NATURE REVIEWS. DRUG DISCOVERY MAY 2003, vol. 2, no. 5, May 2003 (2003-05-01), pages 347 - 360, XP002467298, ISSN: 1474-1776 *
DVORAK M ET AL: "High-molecular weight HPMA copolymer-adriamycin conjugates", JOURNAL OF CONTROLLED RELEASE, ELSEVIER, AMSTERDAM, NL, vol. 60, no. 2-3, 5 August 1999 (1999-08-05), pages 321 - 332, XP004362945, ISSN: 0168-3659 *
ETRYCH ET AL: "Synthesis of HPMA Copolymers Containing Doxorubicin Bound via a Hydrazone Linkage. Effect of Spacer on Drug Release and in vitro Cytotoxicity", MACROMOLECULAR BIOSCIENCE, vol. 2, 2002, pages 43 - 52, XP008076237 *
KOPECEK ET AL: "Polymers containing enzymatically degradable bonds, 4. Preliminary experiments in vivo", MAKROMOLEKULARE CHEMIE, vol. 182, no. 11, November 1981 (1981-11-01), pages 2941 - 2949, XP008088088 *
LU Z-R ET AL: "FUNCTIONALIZED SEMITELECHELIC POLY-ÄN-(2-HYDROXYPROPYL)METHACRYLAMIDEÜ FOR PROTEIN MODIFICATION", BIOCONJUGATE CHEMISTRY, ACS, WASHINGTON, DC, US, vol. 9, no. 6, November 1998 (1998-11-01), pages 793 - 804, XP008054938, ISSN: 1043-1802 *
REJMANOVA ET AL: "Polymers containing enzymatically degradable bonds, 8. Degradation of oligopeptide sequences in N-(2-hydroxypropyl)methacrylamide copolymers by bovine spleen cathepsin B", MAKROMOLEKULARE CHEMIE, vol. 184, no. 11, November 1983 (1983-11-01), pages 2009 - 2020, XP008088087 *

Cited By (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2010042638A3 (en) * 2008-10-07 2010-05-27 Young Bok Lee Hpma - docetaxel or gemcitabine conjugates and uses therefore
US9434610B2 (en) 2008-10-07 2016-09-06 Rexahn Pharmaceuticals, Inc. HPMA—docetaxel conjugates and uses therefore
WO2010045896A3 (en) * 2008-10-23 2010-08-12 Zentiva, K.S. Polymeric composition with synergistic effect in treatment of tumour diseases
WO2010091650A1 (en) * 2009-02-13 2010-08-19 Zentiva, K.S. Polymeric conjugates of paclitaxel and docetaxel with ph-controlled releasing of the cancerostatic agent
US8846110B2 (en) 2009-10-13 2014-09-30 Rexahn Pharmaceuticals, Inc. Polymeric systems for the delivery of anticancer drugs
EP2488207A4 (en) * 2009-10-13 2015-06-10 Rexahn Pharmaceuticals Inc POLYMERIC SYSTEMS FOR ADMINISTERING ANTICANCER AGENTS
US8664177B2 (en) 2011-02-11 2014-03-04 The Regents Of The University Of Michigan Peptide compositions and methods for treating patients
US9062093B2 (en) 2011-02-11 2015-06-23 The Regents Of The University Of Michigan Peptide compositions and methods for treating patients
WO2017177991A1 (en) * 2016-04-11 2017-10-19 Ustav Makromolekularni Chemie Av Cr, V.V.I. Block copolymer for overcoming drug resistance of tumours to chemotherapy, its polymer-drug conjugate, pharmaceutical composition containing them, method of preparation and use thereof
CN105963706A (en) * 2016-04-15 2016-09-28 四川大学 Branched polyHPMA copolymer-DOX conjugate, and preparation method and application thereof
WO2021121446A1 (en) * 2019-12-17 2021-06-24 Ustav Makromolekularni Chemie Av Cr, V.V.I. Copolymer with hydrolytic release of cancerostatic agent cytarabine, method of its preparation and use thereof

Also Published As

Publication number Publication date
US20090306004A1 (en) 2009-12-10
EP2063914A1 (en) 2009-06-03
US8603990B2 (en) 2013-12-10
EA200900453A1 (en) 2009-10-30
CZ298945B6 (en) 2008-03-19
EP2063914B1 (en) 2018-12-26
CZ2006592A3 (en) 2008-03-19
UA97812C2 (en) 2012-03-26
EA017073B1 (en) 2012-09-28

Similar Documents

Publication Publication Date Title
EP2063914B1 (en) Grafted macromolecular conjugates of doxorubicin with anticancer activity and method of their preparation
Chytil et al. Properties of HPMA copolymer–doxorubicin conjugates with pH-controlled activation: effect of polymer chain modification
Etrych et al. New HPMA copolymers containing doxorubicin bound via pH-sensitive linkage: synthesis and preliminary in vitro and in vivo biological properties
JP5781084B2 (en) Dendritic high molecular weight polymer drug carriers and their conjugates with drugs, particularly for the treatment of solid tumors
US20190358341A1 (en) Biocompatible and hydrophilic polymer conjugate for targeted delivery of an agent
EP1463529B9 (en) Ph-sensitive polymeric conjugates of an anthracycline cancerostatic drug for targeted therapy
Etrych et al. Comparison of the pharmacological and biological properties of HPMA copolymer-pirarubicin conjugates: A single-chain copolymer conjugate and its biodegradable tandem-diblock copolymer conjugate
CZ303072B6 (en) Paclitaxel and docetaxel polymeric conjugates with pH controlled release of cancerostatic
WO2007110003A2 (en) Micellar carriers for drugs with anti-cancer activity
Chytil et al. Structural design and synthesis of polymer prodrugs
EP3442594A1 (en) Block copolymer for overcoming drug resistance of tumours to chemotherapy, its polymer-drug conjugate, pharmaceutical composition containing them, method of preparation and use thereof
CZ2003605A3 (en) pH sensitive polymeric conjugates of anthracycline cancerostatic for targeted therapy

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 07801128

Country of ref document: EP

Kind code of ref document: A1

DPE1 Request for preliminary examination filed after expiration of 19th month from priority date (pct application filed from 20040101)
WWE Wipo information: entry into national phase

Ref document number: 2007801128

Country of ref document: EP

NENP Non-entry into the national phase

Ref country code: DE

WWE Wipo information: entry into national phase

Ref document number: 200900453

Country of ref document: EA

WWE Wipo information: entry into national phase

Ref document number: A200903818

Country of ref document: UA

WWE Wipo information: entry into national phase

Ref document number: 12441619

Country of ref document: US
