WO2010123792A1

WO2010123792A1 - Preparation of c-pyrazine-methylamines

Info

Publication number: WO2010123792A1
Application number: PCT/US2010/031547
Authority: WO
Inventors: Yunyu Mao; Kristen Michelle Mulvihill; Josef A. Rechka; Paula A. Tavares-Greco
Original assignee: OSI Pharmaceuticals LLC
Current assignee: OSI Pharmaceuticals LLC
Priority date: 2009-04-20
Filing date: 2010-04-19
Publication date: 2010-10-28
Anticipated expiration: 2011-10-20
Also published as: KR20120020099A; US20120041202A1; JP2012524119A; MX2011011025A; US20130261306A1; US8513415B2; EP2421837A1; CN102405214A; CA2752826A1; BRPI1016245A2

Abstract

A process for preparing a compound of formula (I) or a salt thereof: (I) wherein R1 is H or optionally substituted aryl or heteroaryl; comprising reacting 2,3- dichloropyrazine with a suitable diaryl imine followed by hydrolysis.

Description

PREPARATION OF C-PYRAZINE-METHYLAMINES

BACKGROUND

This application claims priority of US Appl. No. 61/170911, filed 20 April 2009, which is incorporated herein by reference in its entirety.

The present invention relates to a process for the preparation of C-pyrazine- methylamine compounds, and their conversion to l,3-substituted-imidazo[l,5-α]pyrazines.

US 2006/0235031 discloses the preparation of C-pyrazine-methylamine compounds, which is different from the process of preparation according to the present invention. The process described in the above-identified application while suitable for the synthesis of small quantities is not ideal for large scale manufacture. Furthermore, the stability of the intermediates from the process in the above-identified publication also needs to be improved. See also US 7232911.

There is desire for alternative and improved processes for the preparation of C- pyrazine-methylamine compounds, and their conversion to l,3-substituted-imidazo[l,5- α]pyrazines with improved scalability, selectivity, efficiency, safety, reduced contamination, and cost.

SUMMARY

The present invention relates to a process for the preparation of C-pyrazine- methylamine compounds. In some aspects, the invention relates to a process for preparing C- pyrazin-2-ylmethylamine compounds of formula (I) or salts thereof:

wherein Rl is H or a substituent such as CN, a carboxylate, or an optionally substituted aryl or a heteroaryl group, by reaction of an appropriate arylimine with a dihalopyrazine, followed by hydrolysis. Another aspect of the invention relates to a process for preparing 1,3- substituted imidazo[l,5-α]pyrazine compounds from a compound of formula I. DETAILED DESCRIPTION

In some aspects of the invention, there is provided a process for preparing a compound of formula (I) or a salt thereof:

I wherein Rl is H, CN, a carboxylate, or optionally substituted aryl or heteroaryl; comprising reacting a 2,3-dihalopyrazine such as 2,3-dichloropyrazine with a suitable diaryl imine followed by hydrolysis.

In some aspects of the invention, Rl is aryl or heteroaryl, either of which is optionally substituted, such as by aryl, heteroaryl, Ci-Cioalkyl, Co-Cioalkoxy, halo, or cyano.

In some aspects, the process provides compounds of formula I wherein Rl is aryl or heteroaryl;

In some embodiments, in Step (a) the diaryl imine is prepared by Reaction A:

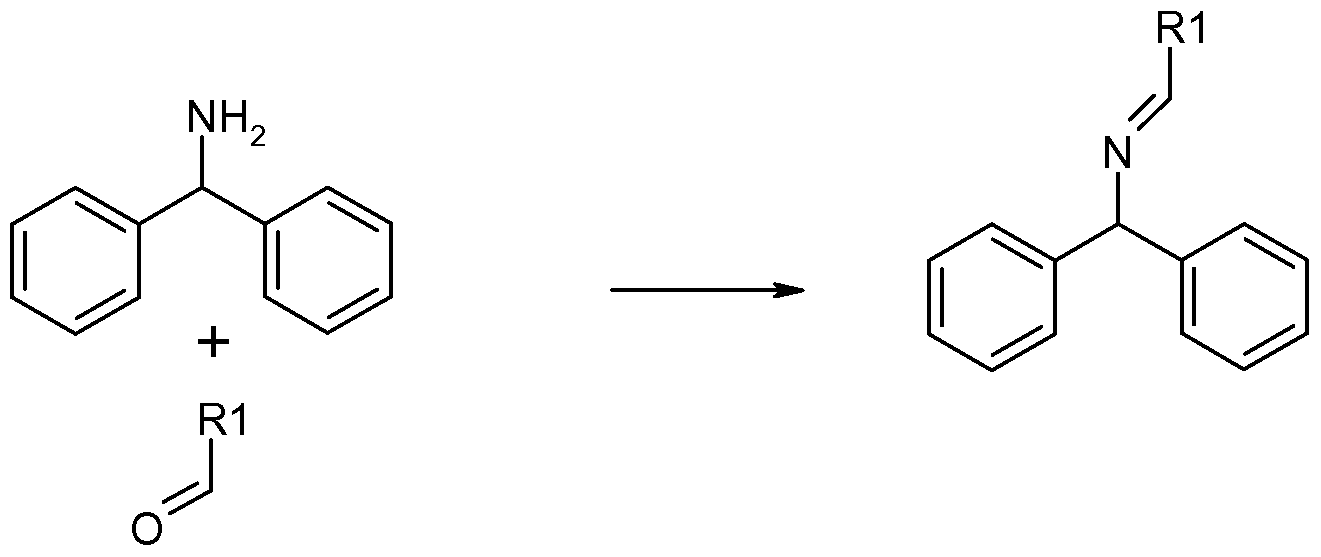

or by Reaction B:

In some embodiments, in Step (b) the diaryl imine product of (a) and the 2,3- dichloropyrazine are reacted together in the presence of base; and in some embodiments in Step (c) the product of (b) is hydrolyzed to obtain the compound of formula I. In some embodiments, Reaction B is used to prepare the diaryl imine.

In some embodiments, Rl is an aryl group selected from phenyl, 4-chlorophenyl, A- fluorophenyl, 4-bromophenyl, 3-nitrophenyl, 2-methoxyphenyl, 2-methylphenyl, 3- methyphenyl, 4-methylphenyl, 4-ethylphenyl, 2-methyl-3-methoxyphenyl, 2,4-dibromophenyl, 3,5-difluorophenyl, 3,5-dimethylphenyl, 2,4,6-trichlorophenyl, 4-methoxyphenyl, naphthyl, 2- chloronaphthyl, 2,4-dimethoxyphenyl, 4-(trifluoromethyl)phenyl, or, 2-iodo-4-methylphenyl; and the aryl group is optionally substituted with one or more independent substituents selected from Ci-Cioalkyl, halo, cyano, hydroxy, or phenyl.

In some embodiments, Rl is a heteroaryl group selected from 2-, 3- or 4-pyridinyl, pyrazinyl, 2-, A-, or 5-pyrimidinyl, pyridazinyl, triazolyl, tetrazolyl, imidazolyl, 2- or 3-thienyl, 2- or 3-furyl, pyrrolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, oxadiazolyl, thiadiazolyl, quinolyl, isoquinolyl, benzimidazolyl, benzotriazolyl, benzofuranyl, or benzothienyl; and the heteroaryl group is optionally substituted with one or more independent substituents selected from Ci-Cioalkyl, halo, cyano, hydroxy, or phenyl. In some embodiments, Rl is 2-phenylquinoline.

In some embodiments, at least about 0.5 mol of formula I is obtained in an overall yield for the process of at least about 50%.

In some embodiments, the reaction solvent for (a) comprises THF or 1,4-dioxane.

In some embodiments according to Reaction B of Step (a), a diphenylmethylamine and an aryl aldehyde can be treated in a suitable solvent at a suitable reaction temperature. Suitable solvents include ethers such as THF, glyme, and the like, CH3CN, chlorinated solvents such as

CH₂Cl₂ or CHCI3, and esters such as EtOAc and the like, and mixtures thereof. Preferred solvents include THF and EtOAc. The reaction can be carried out at about 0 ⁰C to about 120

⁰C, preferably, about 25 ⁰C to about 80 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

In some embodiments, Reaction A is carried out in the presence of an organic base and a Lewis acid. In some embodiments, the organic base in Reaction A comprises Et₃N or NMM. In some embodiments, the Lewis acid comprises TiCl₄. Suitable solvents include ethers such as THF, glyme, and the like, CH3CN; and chlorinated solvents such as CH₂Cl₂ or CHCI3 and mixtures thereof. Preferred solvents include THF and 1,4-dioxane. The reaction can be carried out at about -78 ° C to about 120 ⁰C, preferably, about -78 ° C to about 20 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

In some embodiments, the reaction (b) of the diaryl imine with 2,3-dichloropyrazine is carried out in the presence of a metal hexamethyl disilazide, a metal amide, a metal hydride, a hindered alkoxide such as a tert-butoxide or tert-pentoxide, a metal carbonate or an organic base such as DBU.

In some embodiments of reaction Step (b), 2,3-dichloropyrazine and a (diphenylmethylidene)methanamine compound can be treated with a base in a suitable solvent at a suitable reaction temperature. Suitable solvents for use in the reaction include ethers such as THF, glyme, 1,4-dioxane and the like, and mixtures thereof. Preferred solvents include THF. Suitable bases include HMDS sodium salt or potassium tert-butoxide. The reaction can be carried out at about -78 ⁰C to about 50 ⁰C, preferably about -20 ⁰C to about 25 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

In a typical preparation according to Step (c), a l-(3-chloropyrazin-2-yl)-JV- (diphenylmethylidene)methanamine compound is treated with an acid, in a suitable solvent at a suitable reaction temperature. Suitable acids include HCl, sulfuric acid, or TFA. Suitable solvents for use in the reaction include ethers such as THF, glyme, and the like, esters such as EtOAc and the like, CH₃CN, chlorinated solvents such as CH₂Cl₂ or CHCl₃, toluene, or HCl in MeOH. If desired, mixtures of these solvents can be used. Preferred solvents include CH₂Cl₂, EtOAc, THF and toluene. The reaction can be carried out at about -40 ⁰C to about 60 ⁰C, preferably, about 0 ⁰C to about 40 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

In some embodiments, in Step (a) the diaryl imine is prepared by Reaction C:

wherein R₂ is Ci-Cioalkyl; (b) the diaryl imine product of (a) and the 2,3- dichloropyrazine are reacted together in the presence of base; and (c) the product of (b) is hydrolyzed to obtain the compound of formula I wherein Rl is H.

In some embodiments, R₂ is selected from methyl, ethyl, n-propyl, isopropyl, n-butyl, sec-butyl, isobutyl, te/t-butyl, n-pentyl, isopentyl, n-hexyl, n-heptyl, isooctyl, nonyl, decyl, any of which can be substituted by one or more independent substituents selected from Ci-Cioalkyl, halo, cyano, hydroxy, or phenyl. In some embodiments, R₂ is methyl.

In some embodiments, at least about 0.5 mol of formula I is obtained in an overall yield for the process of at least about 50%. In some embodiments, Reaction C is carried out in the presence of DIEA or Et₃N.

In some embodiments, the base for (b) comprises potassium carbonate or cesium carbonate.

In some embodiments, (c) is carried out in the presence of potassium hydroxide, sodium hydroxide, or lithium hydroxide. In some embodiments, (c) is carried out in the presence of HCl, TFA, acetic acid, or sulfuric acid.

In some embodiments, an advantage of this process is that (3-chloropyrazin-2- yl)methanamine can be made without resorting to the formation of halomethyl pyrazine which is lacrymatory and difficult to form selectively.

In some embodiments of Reaction C, benzophenone can be reacted with a glycine alkyl ester in a suitable solvent at a suitable reaction temperature in the presence of a base. Suitable solvents for use in the reaction included THF, glyme, and the like, propionitrile, acetonitrile, nonpolar solvents such as toluene, and chlorinated solvents such as CH₂Cl₂ or CHCI3, or solvent mixtures. A preferred solvent is toluene. The reaction can be carried out at about -20

⁰C to about 120 ⁰C, preferably about 20 ⁰C to about 120 ⁰C. Bases such as DIEA or Et₃N can be used. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used. In some embodiments, the resulting glycine benzophenone imine compound can be reacted with 2,3-dichloropyrazine in a suitable solvent at a suitable temperature. Suitable solvents for use in the above process include THF, glyme, and the like, DMF, DMSO, propionitrile, Et₃N, nonpolar solvents such as toluene, and chlorinated solvents such as CH2CI2 or CHCI3, or solvent mixtures. A preferred solvent is DMF. The reaction can be carried out at about -20 ⁰C to about 130 ⁰C, preferably, about 20 ⁰C to about 130 ⁰C. Bases such as potassium carbonate, cesium carbonate, DBU, or other bases can be used. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used. In some embodiments, the resulting alkyl 2-(3-chloropyrazin-2-yl)-2-

(diphenylmethylideneamino)acetate compound can be hydrolyzed in a suitable acid and/or a suitable base at a suitable reaction temperature. Suitable acids for use in the above process include HCl, TFA, acetic acid, and sulfuric acid. A preferred acid is HCl. Suitable bases include potassium hydroxide, sodium hydroxide, and lithium hydroxide. A preferred base is sodium hydroxide. Suitable solvents include water; nonpolar solvents such as toluene, alcohols, ethers such as THF, and chlorinated solvents such as CH₂Cl₂ or CHCI3, or solvent mixtures. A preferred solvent is toluene. The reaction can be carried out at about -20 ° C to about 80 ⁰C, preferably, about 20 ⁰C to about 50 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

In some embodiments, the process further comprises reacting the compound of formula I according to the reactions:

I wherein R₃ is Ci-Cioalkyl, C₃-Ci₂cycloalkyl, aryl, or heteroaryl, any of which is optionally substituted by one or more independent substituents selected from halo, oxo, cyano, hydroxy, and Ci-Cioalkyl; and R₄ is hydroxy, alkoxy, chloro, or imidazole. In some embodiments, the process further comprises the reactions:

In some embodiments of the preparation of a compound of Formula (IV), a compound of formula (I) and a compound of Formula (III) are reacted under suitable amide coupling conditions. Suitable conditions include treating compounds of Formula (I) and (III) (when R₄ =OH) with coupling reagents such as DCC or EDC in conjunction with DMAP, HOBt, HOAt and the like. Suitable solvents include ethers such as tetrahydrofuran THF, glyme, and the like, DMF, DMSO, CH₃CN, EtOAc, or halogenated solvents such as CHCl₃ or CH₂Cl₂, and solvent mixtures. Preferred solvents include CH₂Cl₂ and DMF. The process can be carried out at about 0° C to about 80 ⁰C, preferably about room temperature (rt). The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

In some embodiments, compounds of Formula (I) and (III) (where R₄ = Cl, Br, I) can be reacted with bases such as Et₃N or DIEA or the like optionally in conjunction with DMAP or the like. Suitable solvents include ethers such as THF, glyme, and the like, DMF, CH₃CN, EtOAc, halogenated solvents such as CH₂Cl₂ or CHCl₃, or mixtures thereof. A preferred solvent is CH₂Cl₂. The process can be carried out at about -20 ⁰C to about 40 ⁰C, preferably about 0 ⁰C to about 25 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used. In some embodiments, substantially equimolar amounts of compounds of Formula (I) and (III) (where R₄ = Cl, Br, I) and base and substoichiometric amounts of DMAP can be used. Other suitable reaction conditions for the conversion of a compound of Formula (I) to a compound of Formula (IV) can be found in Larock, R. C. Comprehensive Organic Transformations, 2^nd ed.; Wiley and Sons: New York, 1999, pp 1941-1949.

In some embodiments of the preparation of a compound of formula (V), an intermediate of Formula (IV) can be treated with POCI₃, with or without a suitable solvent at a suitable reaction temperature. Suitable solvents include ethers such as THF, glyme, DMF, EtOAc, and the like, CH3CN, and chlorinated solvents such as CH₂Cl₂ or CHCI3, or mixtures of solvents. Preferred solvents include CH₃CN, DMF, and CH₂Cl₂. The above process can be carried out at about 0 ⁰C. to about 120 ⁰C, preferably about 20 ⁰C to about 95 ⁰C. The reaction can be carried out at about atmospheric pressure although higher or lower pressures can be used. In some embodiments, approximately equimolar amounts of reactants can be used although higher or lower amounts can be used.

All processes of preparation, as described above, are supplemented by synthetic methods known in the art of organic chemistry, or modifications and derivatizations that are familiar to those of ordinary skill in the art. The starting materials used herein are commercially available or may be prepared by routine methods known in the art.

Examples

Example 1 : Λ/-[bis(4-methoxyphenyl)methylidene]-l-(2-phenylquinolin-7-yl)methanamine

C-(2-Phenylquinolin-7-yl)methylamine (170mg, 0.73 mmol) and 4,4'- dimethoxybenzophenone (176 mg, 0.73 mmol) were added to a flask under nitrogen. THF (4 mL) and triethylamine (0.30 mL, 2.2 mmol) were then added. The mixture was cooled to -78 0C and titanium tetrachloride (0.080 mL, 0.73 mmol) was added. The reaction mixture was allowed to warm to room temperature. After stirring for 30 minutes the mixture was cooled to -78 ⁰C and triethylamine (2 mL) was added followed by water (3 mL). The mixture was warmed to room temperature and DCM was added. The organic solution was washed with water, dried over sodium sulfate, filtered, and concentrated to dryness in vacuo. The resultant yellow oil was purified by silica gel chromatography (eluted with DCM/ heptane 2:1). A light yellow solid (0.247 g, yield 74%) was obtained. ¹H NMR (400 MHz, CDCl₃) δ ppm 3.83 (s, 3H), 3.87 (s, 3H), 4.83 (s, 2H), 6.83-6.91 (m, 2H), 6.94 - 7.03 (m, 2H), 7.14-7.22 (m, 2H), 7.40-7.58 (m, 4H), 7.65- 7.74 (m, 2H), 7.75- 7.87 (m, 2H), 8.07-8.23 (m, 4H). Reference: N. Sotomayor Tetrahedron, 1994 , 50, 2207

Example 2: C-(3-chloropyrazin-2-yl)-C-(2-phenylquinolin-7-yl)methylamine

N- [bis(4-methoxyphenyl)methylidene] - 1 -(2-phenylquinolin-7-yl)methanamine (100 mg, 0.22 mmol) was added to a flask and protected by nitrogen. THF (2 rnL) was added and a clear solution was obtained. The solution was cooled to -5 ⁰C and then 1.0 M 1,1,1,3,3,3- hexamethyldisilazane, sodium salt in THF (0.26 mL, 0.26 mol) was added. After 20 min, 2,3- dichloropyrazine (36 mg, 0.24 mmol) in THF (1.0 mL) was added. After a further 20 min, 2M HCl (2 mL) was added and the mixture was stirred at room temperature for 10 min. The aqueous mixture was washed with DCM (3x) and then basifϊed to pH 10 with solid potassium carbonate. A white solid precipitated from the aqueous solution and the resulting suspension was extracted with DCM. The organic solution was washed with water, dried over sodium sulfate, filtered, and concentrated in vacuo to give a light yellow oil (67 mg). The yellow oil was further purified by silica gel chromatography (eluted with ethyl acetate/ methanol/ triethylamine, 10:0.5:1) to yield a colorless oil (63 mg, 83% yield).

Example 3: 1,1 -diphenyl-Λ/-((2-phenylquinolin-7-yl)methylene)methanamine

7-Bromo-2-phenyl-quinoline (40.0 g, 0.141 mol) was added to a 1000 mL three-neck round bottom flask (rbf). The flask was degassed and filled with N₂. THF (400 mL) was added. The solid dissolved. The flask was kept in a cooling bath (at -62 ⁰C). The off-white solid crashed out at low temperature. 1.4 M of sec-butyllithium in cyclohexane (125.7 rnL, 0.176 mol) was added within 15 min, and the internal temperature was kept at around -50 ⁰C. After addition was complete, the reaction was stirred at -50 ⁰C (internal temperature) for 5 min. DMF (13.6 mL, 0.176 mol) was added within 10 min and the internal temperature was always kept at around -50 ⁰C and the cooling bath was kept at around at -62 ⁰C. After 35 min, the reaction was quenched by NF^Cl/water (200 mL), and EtOAc (200 mL) was added. The organic layer was washed with water (300 mL x 2) and brine (150 mL), dried over MgSO₄, filtered and concentrated in vacuo. After evaporating to almost dryness, EtOAc (200 mL) was added and heated in a 70 ⁰C oil bath to dissolve the solid. Half of the aminodiphenylmethane (26.2 mL, 0.148 mol) was added and the reaction was stirred at 58 ⁰C (internal temperature) for 5 min. The reaction was seeded and the solid came out of solution slowly. After 5 min, the remaining aminodiphenylmethane was added within 3 min. The oil bath temperature was kept at 70 ⁰C, the internal temperature increased to 67 ⁰C. After 10 min, the reaction mixture was cooled in an ice bath. The off-white solid was collected by vacuum filtration and dried in vacuo at 40-60 ⁰C for 2 hours. The title compound was isolated as an off-white solid (37.42 g, 67% yield).

Example 4: synthesis of (E)-l,l-diphenyl-Λ/-((2-phenylquinolin-7-yl)methylene)methanamine via a different starting material from that of Example 3

2-Phenylquinoline-7-carbaldehyde (85.00 g, 0.364 mol) and EtOAc (255 mL) were added to a rbf and heated in a 70 ⁰C oil bath. Half of aminodiphenylmethane (70.11 g, 0.38261 mol) was added quickly. After 2 min, a light brown solid precipitated. The reaction was exothermic and the reaction temperature increased to 73 ⁰C. The remaining aminodiphenylmethane was then added within 3 min. The reaction temperature decreased to 67 ⁰C slowly. After 30 min, heating was discontinued and the reaction was cooled in an ice bath to about 15 ⁰C. The yellow solid was collected by vacuum filtration and dried in vacuo at 45 ⁰C overnight. The title compound was isolated as a yellow solid (115.77 g, 80% yield). ¹H NMR (400 MHz, CDCl₃) δ ppm 5.69 (s, 1 H), 7.21 - 7.28 (m, 2 H), 7.31 - 7.38 (m, 4 H), 7.43 - 7.50 (m, 5 H), 7.50 - 7.57 (m, 2 H), 7.84 (d, J=8.59 Hz, 1 H), 7.90 (d, J=8.59 Hz, 1 H), 8.13 - 8.19 (m, 2 H), 8.22 (d, J=8.08 Hz, 1 H), 8.26 (dd, J=8.46, 1.64 Hz, 1 H), 8.37 (s, 1 H), 8.65 (s, I H).

Example 5: synthesis of (3-chloropyrazin-2-yl)(2-phenylquinolin-7-yl)methanamine

Benzhydryl-[l-(2-phenyl-quinolin-7-yl)-meth-(E)-ylidene]-amine (12.50 g, 31.4 mmol) was added to a 500 mL rbf fitted with a thermocouple. The flask was degassed and filled with nitrogen. THF (150 mL) was added and the solid dissolved. The mixture was cooled to -5 ⁰C and 1.0 M of HMDS sodium salt in THF (39.2 mL) was added within 5 min. The temperature increased slightly to -3 ⁰C. The blue solution was stirred for 20 min at 0° C and then 2,3- dichloropyrazine (5.61 g, 37.6 mmol) in THF (10 ml) was added within 3 min. The mixture was stirred for 30 min and then quenched with saturated NH₄Cl /water (200 mL). EtOAc (200 mL) was added and the aqueous phase was removed. Toluene can also be used. The organic layer was washed with water (200mLx2) and brine (200 mL). Concentrated HCl (10 mL) and water (200 mL) were added. The phases were separated and the organic layer was extracted with 0.1 M HCl (30 mL). The aqueous was washed with EtOAc (2x) and then saturated K₂CO₃ was used to adjust to pH 10. The aqueous solution was extracted with EtOAc (2x) and the combined organics were dried over Na₂SO₄, filtered, and concentrated in vacuo to a brown oil which solidified upon standing to yield the title compound as a brown solid (9.94 g, 81% yield). ¹H NMR (400 MHz, CDCl₃) δ ppm 2.30 (br s, 2 H), 5.79 (s, 1 H), 7.43 - 7.56 (m, 3 H), 7.62 (dd, J=8.46, 1.89 Hz, 1 H), 7.81 (d, J=8.34 Hz, 1 H), 7.86 (d, J=8.59 Hz, 1 H), 8.07 (d, J=LOl Hz, 1 H), 8.10 - 8.16 (m, 2 H), 8.19 (d, J=8.59 Hz, 1 H), 8.31 (d, J=2.27 Hz, 1 H), 8.60 (d, J=2.53 Hz, 1 H). MS (ES+): m/z= 347.01/349.03 (100/68) [MH⁺].

Example 6: synthesis of HCl salt of (3-chloropyrazin-2-yl)-methylamine

A 500 mL, 1 -necked rbf equipped with a magnetic stirrer, and a Dean-Stark apparatus with a nitrogen inlet was charged with benzophenone (58.0 g, 0.318 mol), glycine methyl ester hydrochloride (20 g, 0.159 mol) and toluene (100 mL). The resulting white suspension was heated to reflux and DIEA (56 mL, 0.318 mol) was added over three hours using a syringe pump. The resulting pale yellow solution was stirred at reflux for an additional Ih. Upon reaction completion, the reaction mixture was cooled to rt. The reaction mixture was then washed with water (50 mL). The layers were separated and the organic solution was washed with water (50 mL) and concentrated in vacuo at 35-40 ⁰C to give (Benzhydrylideneamino)- acetic acid methyl ester (82.59g). In a similar fashion, (benzhydrylideneamino)-acetic acid ethyl ester was prepared.

A 100 mL rbf equipped with a magnetic stirrer, and a nitrogen inlet was charged with benzhydrylidene-amino)-acetic acid ethyl ester (10 g, 36.6 mmol), CS2CO3 (13.27 g, 40.3 mmol) and DMF (50 mL). To the suspension, 2,3-dichloropyrazine (6.13 g, 40.3 mmol) was added. The resulting pale yellow mixture was stirred and heated to 120-125 ⁰C. Alternatively, the reaction can be carried out at about 40-60 ⁰C or about 50 ⁰C. The resulting dark solution was stirred for 3h. Upon reaction completion, the reaction mixture was cooled to rt, diluted with toluene (50 mL), and washed with water (50 mL). The layers were separated and the bottom aqueous layer was extracted with toluene (2 x 30 mL). The combined organic layers were washed with water (2 x 50 mL). The organic layer was concentrated in vacuo at 35-40 ⁰C to remove part of the toluene. This crude material was be hydrolyzed as follows. Alternatively, the method of Example 7 below can be used.

The resultant crude intermediate in toluene was transferred into a 250 mL round bottomed flask equipped with a magnetic stirrer and a nitrogen inlet. Concentrated HCl (37%, 4.0 g, 40.3 mmol) was added and the reaction was allowed to stir at rt for 3h. After the completion of the imine hydrolysis, the reaction mixture was diluted with toluene and the layers were separated. The bottom aqueous layer was washed with toluene (2 x 20 mL).

The resultant aqueous solution was then transferred into a 250 mL round bottomed flask equipped with a magnetic stirrer and a nitrogen inlet. The solution was cooled to 5-10 ⁰C using an ice/water bath and sodium hydroxide (10 N, 7.8 mL, 76.9 mmol) was added and allowed to stir at rt for Ih. After the completion of the ester hydrolysis, the reaction mixture was cooled to 5-10 ⁰C.

Concentrated HCl (37%, 4.0 g, 40.3 mmol, 2.1 eq) was added and the reaction was allowed to stir at rt for 12 h and then at 40-45 ⁰C for 24 hours. After the completion of the decarboxylation, the reaction mixture was assayed by HPLC. Based on the HPLC assay, the yield was 58%. A sample was evaporated in vacuo to yield a brown solid. ¹H NMR (400 MHz, DMSO-(VD₂O) δ ppm 4.33 (s, 2 H), 8.52 (s, 1 H), 8.68 (s, 1 H). MS (ES+): m/z= 143.98/146.02 (100/80) [MH⁺]. Example 7 In an alternative approach for hydrolysis, a 72 L round bottom flask equipped with mechanical stirrer, N₂ inlet/outlet and thermometer was charged with solution of crude pyrazine imine compound such as produced in Example 6 above (~30 L, 29.9 mol) in toluene. Water (12 L,) and concentrated HCl (3.2 L, 32.9 mol) was added and the reaction mixture was stirred at ambient temperature for 3 h (monitored by TLC). The layers were separated and aqueous layer was extracted with toluene (15 L).

The aqueous solution was charged to the same reactor and concentrated HCl (3.2 L, 32.9 mol) was added. The reaction was heated at 60 ⁰C and monitored by TLC. After completion of the reaction (24-30 h) the reaction mixture was cooled to 5 to 10 ⁰C and the pH was adjusted to 10 with 50% aqueous NaOH (7 L) while maintaining the temperature below 10 ⁰C.

To the basic mixture (10 to 15 ⁰C), BoC₂O (7.2 Kg, 32.9 mol) was added and the reaction mixture was warmed to ambient temperature and stirred for 4 h (monitored by TLC). To the batch MTBE (24 L) was added, stirred for 20 min and the organic layer was separated. The aqueous layer was extracted with MTBE (2 x 12 L). The combined organic phases were concentrated under reduced pressure to remove approximately half of MTBE and the resulting organic solution was transferred to a 50 L jacketed reactor equipped with mechanical stirrer, N₂ inlet/outlet and thermometer. The mixture was cooled to between 5 and 10 ⁰C and 20% HCl in 1,4-dioxane (20 L, 109.6 mol) was added slowly while maintaining the internal temperature below 10 ⁰C. The reaction mixture was warmed to ambient temperature and stirred for 4 h. The solids were filtered and washed with MTBE (10 L) and dried in vacuum oven at 40 ⁰C for 6 h to afford the desired compound as a dark brown solid. ¹H NMR (400 MHz, DMSO-J₆): δ 8.82 (br s, 3H), 8.72 (d, J= 2.5 Hz, IH), 8.54 (d, J= 2.3 Hz, IH), 4.22 (s, 2H). 1H NMR (400 MHz or 300 MHz) spectra were recorded on Bruker or Varian instruments at ambient temperature with TMS or the residual solvent peak as the internal standard. The line positions or multiples are given in ppm (δ) and the coupling constants (J) are given as absolute values in Hertz (Hz). The multiplicities in ¹H NMR spectra are abbreviated as follows: s (singlet), d (doublet), t (triplet), q (quartet), quint (quintet), m (multiplet), m_c (centered multiplet), br or broad (broadened), AA'BB'. Flash chromatography was performed with silica gel (400-230 mesh). Mass-directed HPLC purification of compounds was performed on a Waters system composed of the following: 2767 Sample Manager, 2525 Binary Gradient Module, 600 Controller, 2487 Dual λ Absorbance Detector, Micromass ZQ2000 for ionization, Phenomenex Luna 5μ C18(2) 100 A 150 x 21.2mm 5μ column with mobile phases of 0.01% formic acid acetonitrile (A) and 0.01% formic acid in HPLC water (B), a flow rate of 20 mL/min, and a run time of 13 min. LC-MS data was collected on ZQ2, ZQ3, or UPLC-ACQUITY. ZQ2 is an Agilent 1100 HPLC equipped with a Gilson 215 Liquid Handler, Gilson 819 Injection Module, and Waters Micromass ZQ2000 for ionization. ZQ3 is an Agilent 1100 HPLC equipped with an HP Series 1100 auto injector and Waters Micromass ZQ2000 for ionization. Both systems use the Xterra MS C18, 5μ particle size, 4.6 x 50 mm with a mobile phase of acetonitrile (A) and 0.01% formic acid in HPLC water (B). All Waters Micromass ZQ2000 instruments utilized electrospray ionization in positive (ES+) or negative (ES-) mode. The Waters Micromass ZQ2000 instruments from ZQ2 and ZQ3 can also utilize atmospheric pressure chemical ionization in positive (AP+) or negative (AP-) mode. The Waters UPLC-ACQUITY system consists of an ACQUITY sample manager attached to ACQUITY SQ MS and ACQUITY PDA detectors. It uses an ACQUITY UPLC BEH^® C18 2.1x50mm 1.7μm column with a mobile phase of 0.1 % formic acid in water (A) and 0.1% formic acid in acetonitrile (B). UV detection is at 254 nm, and the MS utilizes electrospray ionization in positive mode (ES+). All melting points were determined with a Mel-Temp II apparatus and are uncorrected. Elemental analyses were obtained by Atlantic Microlab, Inc., Norcross, GA.

Definitions and Abbreviations

As used herein, the term "aryl" refers to an all-carbon monocyclic, bicyclic, or poly cyclic groups of 6 to 12 carbon atoms having a completely conjugated pi-electron system. Examples of aryl include, but are not limited to, phenyl, 4-chlorophenyl, 4-fluorophenyl, A- bromophenyl, 3-nitrophenyl, 2-methoxyphenyl, 2-methylphenyl, 3-methyphenyl, A- methylphenyl, 4-ethylphenyl, 2-methyl-3-methoxyphenyl, 2,4-dibromophenyl, 3,5- difluorophenyl, 3,5-dimethylphenyl, 2,4,6-trichlorophenyl, 4-methoxyphenyl, naphthyl, 2- chloronaphthyl, 2,4-dimethoxyphenyl, 4-(trifluoromethyl)phenyl, and 2-iodo-4-methylphenyl.

The terms "heteroaryl" refer to a monocyclic, bicyclic, or polycyclic group of 5 to 12 ring atoms containing one or more ring heteroatoms selected from N, O, and S, the remaining ring atoms being C, and, in addition, having a completely conjugated pi-electron system. Examples of such heteroaryl rings include, but are not limited to, furyl, thienyl, pyrrolyl, pyrazolyl, imidazolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, triazolyl, oxadiazolyl, thiadiazolyl, tetrazolyl, pyridyl, pyridazinyl, pyrimidinyl, pyrazinyl, and triazinyl. The terms "heteroaryl" also include heteroaryl rings with fused carbocyclic ring systems that are partially or fully unsaturated, such as a benzene ring, to form a benzofused heteroaryl. For example, benzimidazole, benzoxazole, benzothiazole, benzofuran, quinoline, isoquinoline, quinoxaline, and the like. Furthermore, the terms "heteroaryl" include fused 5-6, 5-5, 6-6 ring systems, optionally possessing one nitrogen atom at a ring junction. Examples of such hetaryl rings include, but are not limited to, pyrrolopyrimidinyl, imidazo[l,2-α]pyridinyl, imidazo[2,l- δjthiazolyl, imidazo[4,5-δ]pyridine, pyrrolo[2,l_:/][l,2,4]triazinyl, and the like. Heteroaryl groups may be attached to other groups through their carbon atoms or the heteroatom(s), if applicable. For example, pyrrole may be connected at the nitrogen atom or at any of the carbon atoms.

The term "alkyl" means both branched and straight chain alkyl groups. Typical alkyl groups are methyl, ethyl, /? -propyl, isopropyl, n-butyl, sec-butyl, isobutyl, tert-bvXy\, n-pentyl, isopentyl, n-hexyl, n-heptyl, isooctyl, nonyl, decyl, and the like. The term "alkoxy" includes both branched and straight chain terminal alkyl groups attached to a bridging oxygen atom. Typical alkoxy groups include methoxy, ethoxy, n- propoxy, isopropoxy, tert-bvΛoxy and the like.

The term "halo" refers to fluoro, chloro, bromo, or iodo.

Unless otherwise specified, the term "cycloalkyl" refers to a carbon mono-cyclic, bicyclic, or polycyclic aliphatic ring structure, optionally substituted with for example, alkyl, hydroxy, oxo, and halo, such as cyclopropyl, methylcyclopropyl, cyclobutyl, cyclopentyl, 2- hydroxycyclopentyl, cyclohexyl, 4-chlorocyclohexyl, cycloheptyl, cyclooctyl, and the like.

TABLE 1 - Abbreviations

Claims

1. A process for preparing a compound of formula (I) or a salt thereof:

^'

I wherein Rl is H, CN, a carboxylate, or optionally substituted aryl or heteroaryl; comprising reacting 2,3-dichloropyrazine with a suitable diaryl imine followed by hydrolysis.

2. The process of Claim 1, wherein:

Rl is aryl or heteroaryl, either of which is optionally substituted by aryl, heteroaryl, Ci- Cioalkyl, Co-Cioalkoxy, halo, or cyano;

(a) the diaryl imine is prepared by Reaction A:

or by Reaction B:

(b) the diaryl imine product of (a) and the 2,3-dichloropyrazine are reacted together in the presence of base; and

(c) the product of (b) is hydrolyzed to obtain the compound of formula I.

3. The process of Claim 2, wherein Reaction B is used to prepare the diaryl imine.

4. The process of any one of Claims 1-3, wherein Rl is an aryl group selected from phenyl, 4-chlorophenyl, 4-fluorophenyl, 4-bromophenyl, 3-nitrophenyl, 2-methoxyphenyl, 2- methylphenyl, 3-methyphenyl, 4-methylphenyl, 4-ethylphenyl, 2-methyl-3-methoxyphenyl, 2,4 -dibromophenyl, 3,5-difluorophenyl, 3,5-dimethylphenyl, 2,4,6-trichlorophenyl, 4- methoxyphenyl, naphthyl, 2-chloronaphthyl, 2,4-dimethoxyphenyl, 4-(trifluoromethyl)phenyl, or, 2-iodo-4-methylphenyl; and the aryl group is optionally substituted with one or more independent substituents selected from Ci-Cioalkyl, halo, cyano, hydroxy, or phenyl.

5. The process of any one of Claims 1-3, wherein Rl is a heteroaryl group selected from 2-, 3- or 4-pyridinyl, pyrazinyl, 2-, 4-, or 5-pyrimidinyl, pyridazinyl, triazolyl, tetrazolyl, imidazolyl, 2- or 3-thienyl, 2- or 3-furyl, pyrrolyl, oxazolyl, isoxazolyl, thiazolyl, isothiazolyl, oxadiazolyl, thiadiazolyl, quinolyl, isoquinolyl, benzimidazolyl, benzotriazolyl, benzofuranyl, or benzothienyl; and the heteroaryl group is optionally substituted with one or more independent substituents selected from Ci-Cioalkyl, halo, cyano, hydroxy, or phenyl.

6. The process of any one of Claims 1-3, wherein Rl is 2-phenylquinoline.

7. The process of any one of Claims 1-6, in which at least about 0.5 mol of formula I is obtained in an overall yield for the process of at least about 50%.

8. The process of any one of Claims 2-7, wherein the reaction solvent for (a) comprises tetrahydrofuran or 1,4-dioxane.

9. The process of any one of claims Claim 2 or 4-8, wherein Reaction A is used to prepare the diaryl imine and is carried out in the presence of an organic base and a Lewis acid.

10. The process of claim 9, wherein the organic base in Reaction A comprises triethylamine or N-methylmorpholine.

11. The process of Claim 9 or 10, wherein the Lewis acid comprises titanium tetrachloride.

12. The process of any one of Claims 1-11, wherein the reaction of the diaryl imine with 2,3-dichloropyrazine is carried out in the presence of a tert-butoxide or a metal hexamethyldisilazide.

13. The process of Claim 1 wherein:

(a) the diaryl imine is prepared by Reaction C:

wherein R₂ is Ci-Cioalkyl;

(c) the product of (b) is hydrolyzed to obtain the compound of formula I wherein Rl is H.

14. The process of Claim 13 wherein R₂ is selected from methyl, ethyl, n-propyl, isopropyl, n-butyl, sec-butyl, isobutyl, tert-butyl, n-pentyl, isopentyl, n-hexyl, n-heptyl, isooctyl, nonyl, decyl, any of which can be substituted by one or more independent substituents selected from Ci-Cioalkyl, halo, cyano, hydroxy, or phenyl.

15. The process of Claim 13 wherein R₂ is methyl.

16. The process of any one of Claims 13-15, wherein in which at least about 0.5 mol of formula I is obtained in an overall yield for the process of at least about 50%.

17. The process of any one of Claims 13-16, wherein Reaction C is carried out in the presence of triethylamine or ethyldiisopropylamine.

18. The process of any one of Claims 13-17, wherein the base for (b) comprises potassium carbonate or cesium carbonate.

19. The process of any one of Claims 13-18, wherein step (b) is carried out at a temperature of about 40-60 ⁰C.

20. The process of any one of Claims 13-18, wherein (c) is carried out in the presence of potassium hydroxide, sodium hydroxide, or lithium hydroxide.

21. The process of any one of Claims 13-18, wherein (c) is carried out in the presence of hydrochloric acid, trifluoroacetic acid, acetic acid, or sulfuric acid.

22. The process of any one of Claims 1-21, further comprising reacting the compound of formula I according to the reactions:

wherein R₃ is Ci-Cioalkyl, C₃-Ci₂cycloalkyl, aryl, or heteroaryl, any of which is optionally substituted by one or more independent substituents selected from halo, oxo, cyano, hydroxy, and Ci-Cioalkyl; and R₄ is hydroxy, alkoxy, chloro, or imidazole.

23. The process of any one of Claims 1-12 or 22, comprising the reactions:
