  • This disclosure relates to absorbent articles.
  • Absorbent articles such as sanitary napkins, panty liners, etc. have improved basic performance due to many years of technical development, and leaks etc. after absorbing excretion such as menstrual blood compared to before.
  • the research is on further enhancement of functionality, for example, having a feeling of wearing close to underwear, and that the topsheet is smooth even after absorbing excretion such as menstrual blood. Has been done.
  • menstrual menstrual blood may contain components such as endometrium, and the viscosity thereof is high.
  • the top sheet has a sticky feeling. It is preferable that the material is smooth.
  • highly viscous menstrual blood often remains in a lump state on the top sheet, and the user often feels visually uncomfortable. It is preferable not to leave it on the top sheet.
  • Patent Document 1 discloses a lotion composition containing a polypropylene glycol material, an inner surface of a top sheet (clothing side surface), an inner surface of a back sheet (body side surface), an inner surface of the top sheet, and a back sheet.
  • An absorbent article disposed on a base material or the like between the inner surfaces is disclosed.
  • Patent Document 2 discloses an absorbent article in which a lotion composition containing a polypropylene glycol material is applied to the outer surface (surface on the body side) of a top sheet.
  • the present disclosure has no sticky feeling on the top sheet even after absorbing viscous menstrual blood, the top sheet is smooth, and it is possible to visually recognize the replacement time and to prevent leakage. It aims at providing the absorbent article which also reduces a risk.
  • a liquid-permeable top sheet, a liquid-impermeable back sheet, and the top sheet and back sheet formed from a nonwoven fabric or a woven fabric.
  • An absorbent article having an absorbent body between, wherein the absorbent article is in a range where the absorbent article overlaps with the absorbent body in the thickness direction,
  • the first embossed portion that is continuously or discontinuously disposed so as to surround the excretory opening contact area, the outer edge area outside the first embossed section, and the longitudinal direction outside of the excretion opening contact area
  • a second embossed portion disposed in an outer edge region, wherein the first embossed portion and the second embossed portion are formed by embossing the layer including the top sheet and the absorbent body, and the excretory opening contact With top sheet in the region
  • the absorbent article characterized by including the blood slipperiness
  • the absorbent article according to the present disclosure has no sticky feeling on the top sheet even after absorbing highly viscous menstrual blood, the top sheet is smooth, and the replacement time can be visually recognized. Reduce the risk of leakage.
  • FIG. 1 is a front view of a sanitary napkin according to one embodiment of the absorbent article of the present disclosure.
  • FIG. 2 is a front view of a sanitary napkin according to another embodiment of the absorbent article of the present disclosure.
  • FIG. 3 is an electron micrograph of the skin contact surface of the top sheet in a sanitary napkin in which the top sheet contains tri-C2L oil fatty acid glycerides.
  • FIG. 4 is a micrograph of menstrual blood with or without a blood slipping agent.
  • FIG. 5 is a diagram for explaining a method of measuring the surface tension.
  • FIG. 1 is a front view of a sanitary napkin according to one embodiment of the absorbent article of the present disclosure.
  • FIG. 1 is a view observed from the skin contact surface side of the top sheet 2.
  • a sanitary napkin 1 shown in FIG. 1 includes a liquid-permeable top sheet 2, a liquid-impermeable back sheet (not shown), and an absorbent body 3 between the top sheet 2 and the back sheet.
  • the top sheet 2 is formed from a nonwoven fabric.
  • a sanitary napkin 1 shown in FIG. 1 includes an excretory opening contact area 4 that contacts the excretion opening of the wearer and an excretion opening contact area 4 in a range that overlaps the absorbent body 3 in the thickness direction of the sanitary napkin 1.
  • the first embossed portion 5 includes four first embossed portions 5 ′, 5 ′′, 5 ′ ′′, and 5 ′′ ′′, and each independently surrounds the excretory opening contact region 4. Is arranged.
  • the “excretion opening contact area” is an area that comes into contact with the wearer's excretion opening (small labia and the like), and is an embossed portion (first embossment) that is continuously or discontinuously arranged. Part).
  • the position of the excretory opening contact area varies depending on the size or the like of the absorbent article, for example, in the case of an absorbent article having no wing part, the widthwise center part and the longitudinal center part of the absorbent article
  • the inside of the region defined by the embossed portion (first embossed portion) that is continuously or discontinuously arranged so as to surround is the excretory opening contact region.
  • an absorbent article having a wing part it is continuous so as to surround the intersection of the longitudinal direction line passing through the center in the width direction of the absorbent article and the width direction line passing through the center in the longitudinal direction of both wing parts.
  • the inside of the area defined by the embossed portions (first embossed portions) that are arranged continuously or discontinuously is the excretory opening contact area.
  • the first embossed portion 5 and the second embossed portion 7 are formed by squeezing a layer composed of the top sheet 2 and the absorbent body 3.
  • the top sheet 2 in the excretory opening contact area 4 and the second embossed portion 7 each include a predetermined blood slipperiness imparting agent (not shown). .
  • FIG. 1 The effect
  • the menstrual blood having high viscosity first reaches the excretory opening contact area 4 of the sanitary napkin 1. Since the top sheet 2 in the excretory opening contact region 4 includes a blood slipperiness imparting agent, menstrual blood is transferred to the inside of the sanitary napkin 1 together with the blood slipperiness imparting agent, and the absorbent body 3. To move quickly. Therefore, the sanitary napkin 1 quickly transfers the absorbed menstrual blood to the absorber 3.
  • the excretory opening contact area 4 of the top sheet 2 is hardly dyed red by menstrual blood.
  • the wearer goes to the toilet or the like, it is difficult for the wearer to feel discomfort due to coloring, but it may be difficult to grasp the replacement time of the sanitary napkin from the state of the top sheet.
  • menstrual blood moves in the longitudinal direction and the width direction of the absorbent article in the absorbent body 3.
  • menstrual blood that moves in the longitudinal direction of the absorbent article reaches the second embossed portion 7 that is disposed in the outer edge region 6 that is located on the outer side in the longitudinal direction of the excretory opening contact region 4, the second embossed portion 7 is In order to contain the blood slipperiness-imparting agent, menstrual blood is rebounded and pushed back toward the excretory opening contact area 4. Therefore, menstrual blood is less likely to leak.
  • the top sheet 2 in the excretory opening contact area 4 includes a blood slipperiness imparting agent in the entire planar direction, but in another embodiment of the absorbent article of the present disclosure.
  • Part of the top sheet in the planar direction in the excretory opening contact area contains a blood slipperiness imparting agent.
  • the second embossed portion 7 is arranged so as to be curved so as to surround the end portion in the longitudinal direction of the excretory opening contact region 4. Menstrual blood that diffuses in the longitudinal direction of the absorbent article from the longitudinal end of the excretory opening contact area by arranging the second embossed portion so as to surround the longitudinal end of the excretory opening contact area Is efficiently rebounded and pushed back in the direction of the excretory opening contact area, thereby preventing menstrual blood from leaking.
  • the second embossed portion may have a shape such as a substantially U shape, a substantially V shape, a substantially Y shape, a substantially arc shape, and a substantially elliptic arc shape.
  • the non-drug-containing region in which the top sheet 2 is a region that does not contain a blood slipperiness-imparting agent between the excretory opening contact region 4 and the second embossed part 7.
  • the first embossed portion 5 further includes a blood slipperiness imparting agent.
  • a blood slipperiness imparting agent When the first embossed portion contains a blood slipperiness-imparting agent, the following effects are obtained. In general, in a state where the wearer is lying down at bedtime, etc., after menstrual blood reaches the excretory opening contact area of the top sheet, along the skin contact surface, It is known that it may flow out. However, in the sanitary napkin 1 shown in FIG. 1, since the first embossed part 5 surrounding the excretory opening contact region 4 contains a blood slipperiness imparting agent, the blood slipperiness imparting agent present in the first embossed part 5 is not present.
  • the first embossed portion does not include a blood modifying agent.
  • the first embossed portion surrounding the excretory opening contact area may be discontinuously arranged for the purpose of preventing the absorbent article from becoming hard.
  • the sanitary napkin 1 shown in FIG. 1 also has four third embossed portions 8 ′, 8 ′′, 8 ′ ′′ and 8 ′′ ′′ (outside the discontinuous portion 10 of the first embossed portion 5.
  • third embossed portion 8 it may be referred to as “third embossed portion 8”.
  • the third embossed portions 8 ′, 8 ′′, 8 ′ ′′, and 8 ′′ ′′ are disposed outside the discontinuous portion 10 of the first embossed portion 5. Note that the third embossed portion 8 is formed in the outer edge region 6.
  • the third embossed portion 8 further includes a blood slipperiness imparting agent. Therefore, the third embossed portion 8 blocks the menstrual blood that is about to diffuse through the skin contact surface of the top sheet 2 through the discontinuous portion 10 and rebounds to the excretory opening contact region 4.
  • the third embossed portion does not include a blood modifying agent.
  • a total of two second embossed portions 7 are arranged in the outer edge region 6 located on the outer side in the longitudinal direction of the excretory opening contact region 4.
  • one second embossed portion is arranged in the outer edge region located on the outer side in the longitudinal direction of the excretory opening contact region, and can be arranged, for example, behind the wearer who is more likely to leak. .
  • FIG. 2 is a front view of a sanitary napkin according to another embodiment of the absorbent article of the present disclosure.
  • the sanitary napkin 1 shown in FIG. 2 has a point that the first embossed part 5 is continuously arranged so as to surround the excretory opening contact area 4 and a point that does not have the third embossed part. Although it differs from the sanitary napkin 1 shown in FIG. 1, other than that is the same as the sanitary napkin 1 shown in FIG. 1.
  • the first embossed portion 5 is continuously disposed so as to surround the excretory opening contact area 4, or along the skin contact surface of the top sheet 2 or the top sheet 2.
  • the menstrual blood that is about to diffuse outside the excretory opening contact area 4 through the inside of the body is blocked by the first embossed part 5 and rebounds or absorbed into the top sheet 2 in the excretion opening contact area 4. It can be transferred to the body 3.
  • the said action becomes higher when the 1st embossing part 5 contains a blood slipperiness
  • lubricity imparting agent of a 1st embossing part is First, the basis weight of the blood slipperiness-imparting agent of the top sheet in the excretory opening contact area is smaller than, for example, (I) the basis weight of the blood slipperiness-imparting agent included in the first embossed portion is small.
  • the average basis weight of the blood slipperiness imparting agent contained in the embossed part is small, and (II) the blood slipperiness imparting agent contained in the first embossed part by the first embossed part discontinuously containing the blood slippery imparting agent.
  • the average basis weight is small, (III) the first embossed part contains a blood slipperiness-imparting agent on the skin contact surface side, and thus the average basis weight of the blood slipperiness imparting agent contained in the first embossed part is small. Can be mentioned.
  • the average basis weight of the blood slipperiness imparting agent contained in the first embossed part is large, menstrual blood that has reached the excretory opening contact area is less likely to go out of the excretion opening contact area inside the absorber, and as a result This is because the absorption capacity of the absorber may be small.
  • a sanitary napkin 1 shown in FIGS. 1 and 2 includes a liquid-permeable top sheet 2, a liquid-impermeable back sheet, and an absorbent body 3 between the top sheet 2 and the back sheet.
  • the absorbent article further comprises a second sheet between the topsheet and the absorbent body.
  • the 1st embossing part is formed by embossing the layer containing a top sheet, a second sheet, and an absorber.
  • the 2nd embossing part is formed by embossing the layer containing a top sheet, a second sheet, and an absorber.
  • an absorptive article contains the 3rd embossing part, and the 3rd embossing part is formed by embossing a layer containing a top sheet, a second sheet, and an absorber.
  • the top sheet in the excretory opening contact region and the second embossed part each preferably contain about 1 to about 30 g / m 2 , more preferably about the blood slipperiness imparting agent.
  • a basis weight range of from 2 to about 20 g / m 2 , and more preferably from about 3 to about 10 g / m 2 . If the basis weight is less than about 1 g / m 2 , the absorbed menstrual blood remains on the top sheet, the second embossed part rebounds the menstrual blood, and the force to push it back toward the excretory opening contact area is weakened.
  • the basis weight of the blood slipperiness-imparting agent exceeds about 30 g / m 2 , the sticky feeling during wearing tends to increase.
  • the first embossed portion and the optional third embossed portion optionally provide the blood slipperiness agent preferably from about 1 to about 30 g / m 2 , more preferably from about 2 to about 20 g / m 2 , and even more preferably. In the range of about 3 to about 10 g / m 2 . If the basis weight of the blood slipperiness-imparting agent is less than about 1 g / m 2 , menstrual blood that has reached the first embossed portion and the desired third embossed portion may not easily be rebounded to the excretory opening contact area. When the basis weight of the blood slipperiness-imparting agent exceeds about 30 g / m 2 , the sticky feeling during wearing tends to increase.
  • the size of the “excretion opening contact area” varies depending on the size of the absorbent article itself, and the length of the absorbent article in the longitudinal direction, for example, about 50 to about 180 mm, about 80 to about 120 mm, etc. And the width in the width direction of the absorbent article such as about 10 to about 60 mm, about 20 to about 40 mm, etc.
  • the blood slipperiness-imparting agent has a kinematic viscosity of about 0.01 to about 80 mm 2 / s at 40 ° C., so it has a very low viscosity near the wearer's body temperature, and about 0.01 to about 4.0. Since it has a water retention rate of mass%, it has a certain affinity with menstrual blood, and moves into the absorber together with menstrual blood.
  • the blood slipperiness-imparting agent is composed of a hydrophobic part composed of a hydrocarbon part, a hydrophilic group (polar group such as carbonyl group, oxy group, carboxyl group, hydroxyl group) and a hydrophilic bond (carbonyl bond).
  • a hydrophobic part composed of a hydrocarbon part, a hydrophilic group (polar group such as carbonyl group, oxy group, carboxyl group, hydroxyl group) and a hydrophilic bond (carbonyl bond).
  • the blood slipperiness-imparting agent also has an action of sliding menstrual blood. While the hydrophobic part of the blood slipperiness agent plays hydrophilic components (plasma, etc.) in menstrual blood, the hydrophilic part of the blood slipperiness agent attracts hydrophilic components (plasma, etc.) in menstrual blood. Therefore, menstrual blood easily slides into the absorb
  • the blood slipperiness-imparting agent has a water retention of about 0.01 to about 4.0% by mass, and has an excessively high affinity with menstrual blood and mainly hydrophilic components (plasma, etc.). Therefore, it is difficult for a part of menstrual blood to remain on the top sheet.
  • the blood slipperiness agent has a water retention of about 0.01 to about 4.0% by weight, and optionally has an IOB of about 0.00 to about 0.60, so that it has a lipophilicity.
  • the first embossed portion and the desired third embossed portion contain a blood slipperiness-imparting agent, the menstrual blood that has reached there is rebounded to the excretory opening contact area.
  • the blood slipperiness agent has a kinematic viscosity at 40 ° C. of about 0.01 to about 80 mm 2 / s, a water retention of about 0.05 to about 4.0% by weight, Having a weight average molecular weight of less than about 1,000.
  • the blood slipperiness imparting agent has a kinematic viscosity at 40 ° C. of about 0 to about 80 mm 2 / s, preferably about 1 to about 70 mm 2 / s, preferably about 3 to about 60 mm 2. More preferably, it has a kinematic viscosity of about / s, more preferably about 5 to about 50 mm 2 / s, and even more preferably about 7 to about 45 mm 2 / s.
  • the kinematic viscosity is as follows: a) as the molecular weight of the blood slipperiness-imparting agent increases, b) polar groups such as carbonyl group (—CO—), oxy group (—O—), carboxyl group (—COOH), hydroxyl group The higher the ratio of polar bonds such as (—OH), for example, carbonyl bond (—CO—), ester bond (—COO—), carbonate bond (—OCOO—), ether bond (—O—), etc. And c) The IOB described later tends to increase as the IOB increases.
  • the melting point of the blood slipperiness imparting agent is preferably 45 ° C. or less. This is because when the blood slipperiness-imparting agent contains crystals at 40 ° C., the kinematic viscosity tends to increase. In this specification, the kinematic viscosity at 40 ° C. may be simply referred to as “kinematic viscosity”.
  • the kinematic viscosity is measured according to JIS K 2283: 2000 “5. Kinematic Viscosity Test Method” using a Canon Fenceke reverse flow viscometer at a test temperature of 40 ° C.
  • the blood slipperiness imparting agent has a water retention of about 0.01 to about 4.0% by mass, preferably about 0.02 to about 3.5% by mass, More preferably, it has a water content of 0.03 to about 3.0% by weight, more preferably about 0.04 to about 2.5% by weight, and about 0.05 to about 2 More preferably, it has a water retention of 0.0% by mass.
  • water retention means the ratio of water retained by a substance, and can be measured as follows. (1) Place a test tube, a rubber stopper, a substance to be measured, and deionized water in a constant temperature room at 40 ° C. overnight. (2) In the temperature-controlled room, put 5.0 g of the substance to be measured and 5.0 g of deionized water into a 20 mL test tube. (3) In the above-mentioned temperature-controlled room, the mouth of the test tube is plugged with a rubber stopper, rotated once, and allowed to stand for 5 minutes.
  • the affinity between the blood slipperiness-imparting agent and menstrual blood is lowered, and there is a tendency that it is difficult to transfer with menstrual blood that has reached the skin contact surface of the top sheet.
  • the affinity with menstrual blood becomes very high like a surfactant, and the absorbed menstrual blood remains on the skin contact surface of the top sheet. There is a tendency that the skin contact surface of the skin tends to be colored red.
  • the affinity with menstrual blood becomes very high, and the menstrual blood that has reached the second embossed part rebounds and becomes difficult to push back toward the excretory opening contact area. Furthermore, when the water retention value increases, the affinity with menstrual blood becomes very high, and menstrual blood is excreted when the first embossed portion and the desired third embossed portion contain a blood slipperiness-imparting agent. It becomes difficult to bounce back into the mouth contact area.
  • the water retention rate is as follows: a) the smaller the molecular weight of the blood slipping agent, and b) polar groups such as carbonyl group (—CO—), oxy group (—O—), carboxyl group (—COOH), The ratio of a bond having polarity such as a hydroxyl group (—OH), such as a carbonyl bond (—CO—), an ester bond (—COO—), a carbonate bond (—OCOO—), an ether bond (—O—), etc. The higher the value, the greater the value. This is because the blood slipperiness imparting agent is more hydrophilic. Further, the water retention rate tends to increase as the IOB increases, that is, as the inorganic value increases and as the organic value decreases. This is because the blood slipperiness-imparting agent is more hydrophilic.
  • the blood slipperiness imparting agent has a weight average molecular weight of less than about 1,000, and preferably has a weight average molecular weight of less than about 900. This is because when the weight average molecular weight is about 1,000 or more, the blood slipperiness-imparting agent itself is tacky and tends to give the wearer discomfort. In addition, since the viscosity of the blood slipperiness-imparting agent tends to increase as the weight average molecular weight increases, it becomes difficult to lower the viscosity of the blood slipperiness-imparting agent to a viscosity suitable for coating by heating, As a result, the blood slipping agent may have to be diluted with a solvent.
  • the blood slipperiness-imparting agent preferably has a weight average molecular weight of about 100 or more, and more preferably has a weight average molecular weight of about 200 or more.
  • weight-average molecular weight is small, the vapor pressure of the blood slipperiness-imparting agent is increased, and the amount of vaporization is reduced during storage, resulting in a problem that the blood slipperiness-imparting agent smells when worn. Because there is.
  • weight average molecular weight refers to a polydispersed compound (for example, a compound produced by sequential polymerization, a plurality of fatty acids, and an ester produced from a plurality of aliphatic monohydric alcohols).
  • a weight average molecular weight means the value of polystyrene conversion calculated
  • GPC measurement conditions include the following. Model: Hitachi High-Technologies Corporation High-Performance Liquid Chromatogram Lachrom Elite Column: SHODEX KF-801, KF-803 and KF-804 manufactured by Showa Denko K.K. Eluent: THF Flow rate: 1.0 mL / min Driving amount: 100 ⁇ L Detection: RI (differential refractometer)
  • the weight average molecular weight described in the Example of this specification is measured on the said conditions.
  • the blood slipperiness agent may have an IOB of about 0.00 to about 0.60.
  • IOB Inorganic Organic Balance
  • IOB is an index indicating a balance between hydrophilicity and lipophilicity.
  • Oda et al. IOB value calculated by inorganic value / organic value.
  • the inorganic value and the organic value are represented by Fujita Minoru, “Prediction of organic compounds and conceptual diagram of organic compounds”, chemistry area Vol. 11, no. 10 (1957) p. 719-725).
  • Table 1 summarizes the organic and inorganic values of the major groups by Mr. Fujita.
  • the IOB is preferably about 0.00 to about 0.60, more preferably about 0.00 to about 0.50, and about 0.00 to about 0.00. More preferred is 40, and more preferred is from about 0.00 to about 0.30. This is because when the IOB is in the above range, the water holding power and kinematic viscosity easily satisfy the above requirements.
  • the affinity with menstrual blood becomes very high, and menstrual blood that has reached the second embossed portion is less likely to rebound to the excretory opening contact area. Furthermore, when the value of the IOB increases, the affinity with menstrual blood becomes very high. When the first embossed portion and the desired third embossed portion contain a blood slipperiness-imparting agent, menstrual blood is excreted. It becomes difficult to bounce back into the contact area.
  • the blood slipperiness-imparting agent preferably has a melting point of about 45 ° C. or less, and more preferably has a melting point of about 40 ° C. or less. This is because when the blood slipperiness-imparting agent has a melting point of about 45 ° C. or less, the blood slipperiness-imparting agent tends to have a kinematic viscosity in the above range.
  • melting point means a peak top temperature of an endothermic peak when changing from a solid state to a liquid state when measured with a differential scanning calorimeter at a heating rate of 10 ° C./min.
  • the melting point can be measured using, for example, a DSC-60 type DSC measuring apparatus manufactured by Shimadzu Corporation.
  • the blood slipperiness-imparting agent may be liquid at room temperature (about 25 ° C.) or solid as long as it has a melting point of about 45 ° C. or lower, that is, even if the melting point is about 25 ° C. or higher. Alternatively, it may be less than about 25 ° C. and may have a melting point of, for example, about ⁇ 5 ° C., about ⁇ 20 ° C., etc.
  • the blood slipperiness-imparting agent has a lower melting point, but preferably has a low vapor pressure.
  • the blood slipping agent has a vapor pressure of preferably about 0 to about 200 Pa, more preferably about 0 to about 100 Pa at 25 ° C. (1 atm), and about 0 to about 10 Pa. More preferably, it is more preferably from about 0 to about 1 Pa, and even more preferably from about 0.0 to about 0.1 Pa.
  • the vapor pressure is preferably about 0 to about 700 Pa at 1 atm and 40 ° C., and preferably about 0 to about 100 Pa. More preferably, it is more preferably from about 0 to about 10 Pa, even more preferably from about 0 to about 1 Pa, and even more preferably from about 0.0 to about 0.1 Pa. This is because if the blood slipperiness-imparting agent has a high vapor pressure, it may be vaporized during storage, resulting in problems such as a decrease in the amount and odor when worn.
  • the melting point of the blood slipperiness-imparting agent can be selected according to the climate, the length of wearing time, and the like. For example, in an area where the average temperature is about 10 ° C. or less, by adopting a blood slipperiness imparting agent having a melting point of about 10 ° C. or less, menstrual blood is excreted and then cooled by the ambient temperature.
  • the blood slipperiness-imparting agent is easy to function.
  • the melting point of the blood slipperiness imparting agent is preferably higher in the range of about 45 ° C. or less. This is because the blood slipperiness-imparting agent is not easily biased even when worn for a long time, and is not easily affected by sweat, friction at the time of wearing.
  • the skin contact surface of the top sheet is coated with a surfactant for the purpose of changing the surface tension of menstrual blood and the like and quickly absorbing menstrual blood.
  • a topsheet coated with a surfactant has a very high affinity with hydrophilic components (plasma and the like) in menstrual blood, and tends to attract them and rather cause menstrual blood to remain on the topsheet. is there.
  • the blood slipperiness imparting agent is not excessively high in affinity with menstrual blood, and can be rapidly transferred to an absorbent body without remaining menstrual blood on the top sheet.
  • the blood slipperiness imparting agent is preferably the following (i) to (iii), (I) hydrocarbons, (Ii) from (ii-1) a hydrocarbon moiety and (ii-2) a carbonyl group (—CO—) and an oxy group (—O—) inserted between the CC single bonds of the hydrocarbon moiety.
  • the hydrocarbon moiety A compound having one or a plurality of the same or different groups selected from the group consisting of a carboxyl group (—COOH) and a hydroxyl group (—OH), which replaces a hydrogen atom; As well as any combination thereof.
  • hydrocarbon means a compound composed of carbon and hydrogen, and a chain hydrocarbon, for example, a paraffinic hydrocarbon (also referred to as an alkane, which does not include a double bond and a triple bond).
  • a paraffinic hydrocarbon also referred to as an alkane, which does not include a double bond and a triple bond.
  • Olefinic hydrocarbons including one double bond, also referred to as alkene
  • acetylenic hydrocarbons including one triple bond, also referred to as alkyne
  • hydrocarbons containing two or more bonds selected from the above and cyclic hydrocarbons such as aromatic hydrocarbons and alicyclic hydrocarbons.
  • the hydrocarbon is preferably a chain hydrocarbon and an alicyclic hydrocarbon, more preferably a chain hydrocarbon, a paraffinic hydrocarbon, an olefinic hydrocarbon, and two double bonds. More preferred are hydrocarbons (not including triple bonds), and more preferred are paraffinic hydrocarbons.
  • the chain hydrocarbon includes a straight chain hydrocarbon and a branched chain hydrocarbon.
  • each oxy group (—O—) is not adjacent. Therefore, the compounds (ii) and (iii) do not include compounds having a continuous oxy group (so-called peroxides).
  • At least one hydrogen atom in the hydrocarbon moiety is more hydroxyl group (—OH) than in the compound in which at least one hydrogen atom in the hydrocarbon moiety is substituted with a carboxyl group (—COOH).
  • a carboxyl group —COOH
  • IOB is preferred. This is because the carboxyl group binds to a metal or the like in menstrual blood, increases the water retention rate of the blood slipperiness imparting agent, and may exceed a predetermined range. This is the same from the viewpoint of IOB. As shown in Table 1, the carboxyl group binds to menstrual metals and the like, and the inorganic value increases significantly from 150 to 400 or more. Sometimes the value of IOB can be greater than about 0.60.
  • the blood slipperiness imparting agent is more preferably the following (i ′) to (iii ′), (I ′) hydrocarbon, (Ii ′) (ii′-1) a hydrocarbon moiety and (ii′-2) a carbonyl bond (—CO—), an ester bond (—COO) inserted between the C—C single bonds of the hydrocarbon moiety.
  • the blood slipperiness imparting agent is more preferably about 1.8 or less carbonyl bonds (—CO—) and 2 or less ester bonds (—COO—) per 10 carbon atoms in the hydrocarbon moiety.
  • About 1.5 or less carbonate bonds (—OCOO—), about 6 or less ether bonds (—O—), about 0.8 or less carboxyl groups (—COOH), and / or hydroxyl groups (—OH) ) Can be about 1.2 or less.
  • the blood slipperiness imparting agent is more preferably the following (A) to (F), (A) (A1) a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups replacing hydrogen atoms in the chain hydrocarbon moiety, (A2) a chain hydrocarbon moiety, and the chain An ester with a compound having one carboxyl group for substituting a hydrogen atom in the hydrocarbon moiety, (B) (B1) a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups replacing hydrogen atoms in the chain hydrocarbon moiety, (B2) a chain hydrocarbon moiety, and the chain An ether with a compound having one hydroxyl group replacing a hydrogen atom of the hydrocarbon moiety, (C) (C1) a carboxylic acid, a hydroxy acid, an alkoxy acid or an oxo acid containing a chain hydrocarbon moiety and 2 to 4 carboxyl groups replacing a hydrogen atom in the chain hydrocarbon moiety; C2) an ester of a compound having a chain
  • (A) (A1) a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups substituting a hydrogen atom of the chain hydrocarbon moiety, (A2) a chain hydrocarbon moiety, Esters with compounds having one carboxyl group replacing a hydrogen atom of a chain hydrocarbon moiety]
  • (A) (A1) a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups replacing hydrogen atoms in the chain hydrocarbon moiety;
  • (A2) a chain hydrocarbon moiety;
  • Ester with a compound having one carboxyl group that substitutes a hydrogen atom of the hydrocarbon-like moiety hereinafter sometimes referred to as “compound (A)” has the above-mentioned kinematic viscosity, water retention and weight average. All hydroxyl groups may not be esterified as long as they have a molecular weight.
  • (A1) A compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups replacing hydrogen atoms in the chain hydrocarbon moiety (hereinafter sometimes referred to as “compound (A1)”)
  • a chain hydrocarbon tetraol such as an alkanetetraol, such as pentaerythritol
  • a chain hydrocarbon triol such as an alkanetriol, such as glycerine
  • a chain hydrocarbon diol such as an alkanediol, such as, for example, Glycol.
  • Examples of the compound having a chain hydrocarbon moiety and one carboxyl group that replaces a hydrogen atom of the chain hydrocarbon moiety include, for example, one hydrogen atom on a hydrocarbon having one carboxyl group
  • Examples include compounds substituted with (—COOH), for example, fatty acids.
  • Examples of the compound (A) include (a 1 ) an ester of a chain hydrocarbon tetraol and at least one fatty acid, (a 2 ) an ester of a chain hydrocarbon triol and at least one fatty acid, and (a 3 ) Esters of chain hydrocarbon diols with at least one fatty acid.
  • ester of (a 1 ) chain hydrocarbon tetraol and at least one fatty acid examples include the following formula (1): Tetraesters of pentaerythritol and fatty acids of the following formula (2): Triesters of pentaerythritol and fatty acids of the following formula (3): Diester of pentaerythritol and fatty acid of the following formula (4): And monoesters of pentaerythritol and fatty acids. (Wherein R 1 to R 4 are each a chain hydrocarbon)
  • the ester of pentaerythritol and fatty acid has the kinematic viscosity, water retention rate and There is no particular limitation as long as the weight average molecular weight requirement is satisfied, but for example, a saturated fatty acid, for example, a C 2 to C 30 saturated fatty acid, for example, acetic acid (C 2 ) (C 2 represents the number of carbon atoms, R 1 C, R 2 C, R 3 C or R 4 C, the same applies hereinafter), propanoic acid (C 3 ), butanoic acid (C 4 ) and isomers thereof such as 2-methylpropane Acids (C 4 ), pentanoic acid (C 5 ) and isomers thereof such as 2-methylbutanoic acid (C 5 ), 2,2-dimethylpropanoic acid (C 5 ),
  • the fatty acid can also be an unsaturated fatty acid.
  • unsaturated fatty acid include C 3 to C 20 unsaturated fatty acids such as monounsaturated fatty acids such as crotonic acid (C 4 ), myristoleic acid (C 14 ), palmitoleic acid (C 16 ), Oleic acid (C 18 ), elaidic acid (C 18 ), vaccenic acid (C 18 ), gadoleic acid (C 20 ), eicosenoic acid (C 20 ), etc., diunsaturated fatty acids such as linoleic acid (C 18 ), Triunsaturated fatty acids such as eicosadienoic acid (C 20 ), such as linolenic acid such as ⁇ -linolenic acid (C 18 ) and ⁇ -linolenic acid (C 18 ), pinolenic acid (C 18 ), eleostearic acid, For example, ⁇ -eleostearic acid (C 18
  • the ester of pentaerythritol and fatty acid is an ester of pentaerythritol and a fatty acid derived from a saturated fatty acid, that is, an ester of pentaerythritol and a saturated fatty acid, considering the possibility of modification by oxidation or the like. preferable.
  • the ester of pentaerythritol and fatty acid is preferably a diester, triester or tetraester, more preferably a triester or tetraester, from the viewpoint of reducing the value of water retention. More preferably, it is a tetraester.
  • the total number of carbon atoms of the fatty acid constituting the tetraester of pentaerythritol and fatty acid that is, in the formula (1), the total number of carbon atoms of the R 1 C, R 2 C, R 3 C and R 4 C moieties is preferably about 15 (when the total number of carbon atoms is 15, the IOB is 0.60).
  • tetraester of pentaerythritol and fatty acid for example, pentaerythritol, hexanoic acid (C 6 ), heptanoic acid (C 7 ), octanoic acid (C 8 ), for example, 2-ethylhexanoic acid (C 8 ), And tetraesters with nonanoic acid (C 9 ), decanoic acid (C 10 ) and / or dodecanoic acid (C 12 ).
  • the total number of carbon atoms of the fatty acid constituting the triester of pentaerythritol and fatty acid that is, the above-mentioned In the formula (2), the total number of carbon atoms of the R 1 C, R 2 C and R 3 C moieties is preferably about 19 or more (when the total number of carbon atoms is 19, the IOB is 0.58). Becomes).
  • the total number of carbon atoms of the fatty acid constituting the diester of pentaerythritol and fatty acid that is, the above formula ( In 3)
  • the total number of carbon atoms in the R 1 C and R 2 C moieties is preferably about 22 or more (when the total number of carbon atoms is 22, IOB is 0.59).
  • the carbon number of the R 1 C moiety is preferably about 25 or more (when the carbon number is 25, IOB is 0.60).
  • the effects of double bonds, triple bonds, iso branches, and tert branches are not considered (the same applies hereinafter).
  • esters of pentaerythritol and fatty acids examples include Unistar H-408BRS, H-2408BRS-22 (mixed product) and the like (manufactured by NOF Corporation).
  • ester of (a 2 ) chain hydrocarbon triol and at least one fatty acid examples include the following formula (5): Triester of glycerin and fatty acid of the following formula (6): Diesters of glycerin and fatty acids and the following formula (7): (Wherein R 5 to R 7 are each a chain hydrocarbon) Monoester of glycerin and fatty acid.
  • the ester of glycerin and the fatty acid satisfies the requirements for the kinematic viscosity, water retention and weight average molecular weight.
  • the ester of glycerin and fatty acid is preferably a diester or triester, and more preferably a triester, from the viewpoint of reducing the water retention value.
  • the triester of glycerin and a fatty acid is also referred to as a triglyceride.
  • triester of glycerin and octanoic acid C 8
  • triester of glycerin and decanoic acid C 10
  • glycerin and dodecanoic acid C 12
  • triesters of glycerin and 2 or 3 fatty acids and mixtures thereof.
  • Examples of the triesters of glycerin and two or more fatty acids include triesters of glycerin and octanoic acid (C 8 ) and decanoic acid (C 10 ), glycerin, octanoic acid (C 8 ), and decane.
  • Examples thereof include triesters with (C 16 ) and octadecanoic acid (C 18 ).
  • the triester of glycerin and fatty acid is the total number of carbon atoms of fatty acids constituting the triester of glycerin and fatty acid, that is, in formula (5), R 5
  • the total carbon number of the C, R 6 C and R 7 C moieties is preferably about 40 or less.
  • the triester of glycerin and fatty acid is the total number of carbon atoms of the fatty acid constituting the triester of glycerin and fatty acid, that is, the formula (5 ),
  • the total number of carbon atoms in the R 5 C, R 6 C and R 7 C moieties is preferably about 12 or more (when the total number of carbon atoms is 12, IOB is 0.60).
  • the triester of glycerin and a fatty acid is a so-called fat and is a component that can constitute a human body, and thus is preferable from the viewpoint of safety.
  • triesters of glycerin and fatty acids include tricoconut oil fatty acid glyceride, NA36, panacet 800, panacet 800B and panacet 810S, and tri-C2L oil fatty acid glyceride and tri-CL oil fatty acid glyceride (above, manufactured by NOF Corporation). ) And the like.
  • the diester of glycerin and fatty acid is also called diglyceride.
  • diester of glycerin and decanoic acid (C 10 ) diester of glycerin and dodecanoic acid (C 12 ), glycerin and hexadecanoic acid (C 16 ) Examples include diesters, diesters of glycerin and two fatty acids, and mixtures thereof.
  • the total number of carbon atoms of the fatty acid constituting the diester of glycerin and fatty acid that is, in the formula (6) , R 5 C and R 6 C are preferably about 16 or more in total (when the total number of carbons is 16, IOB is 0.58).
  • Monoesters of glycerin and fatty acids are also known as monoglycerides, for example, octadecanoic acid glycerin (C 18) monoesters, docosanoate glycerin (C 22) monoesters, and the like.
  • the carbon number of the fatty acid constituting the monoester of glycerin and fatty acid that is, in the formula (7)
  • the carbon number of the R 5 C moiety is preferably about 19 or more (when the carbon number is 19, the IOB is 0.59).
  • ester of (a 3 ) chain hydrocarbon diol and at least one fatty acid examples include C 2 to C 6 chain hydrocarbon diols such as C 2 to C 6 glycols such as ethylene glycol, propylene glycol, butylene. Examples thereof include monoesters or diesters of glycol, pentylene glycol or hexylene glycol and a fatty acid.
  • ester of the chain hydrocarbon diol and at least one fatty acid for example, the following formula (8): R 8 COOC k H 2k OCOR 9 (8) (Wherein k is an integer from 2 to 6 and R 8 and R 9 are each a chain hydrocarbon) A diester of a C 2 -C 6 glycol with a fatty acid and the following formula (9): R 8 COOC k H 2k OH (9) (Wherein k is an integer from 2 to 6 and R 8 is a chain hydrocarbon) And monoesters of C 2 -C 6 glycols and fatty acids.
  • the fatty acid to be esterified (corresponding to R 8 COOH and R 9 COOH in formula (8) and formula (9)) is C 2 -C 6 glycol.
  • an ester of a fatty acid are not particularly limited as long as the ester satisfies the above requirements of kinematic viscosity, water retention and weight average molecular weight.
  • “(a 1 ) chain hydrocarbon tetraol and at least one fatty acid Fatty acids listed in "Ester with” that is, saturated fatty acids and unsaturated fatty acids, and saturated fatty acids are preferred in consideration of the possibility of modification by oxidation or the like.
  • the carbon number of the R 8 C and R 9 C moieties Is preferably about 6 or more (when the total number of carbon atoms is 6, IOB is 0.60).
  • the carbon number of the R 8 C moiety is about It is preferably 12 or more (when the number of carbon atoms is 12, IOB is 0.57).
  • the ester of a C 2 ⁇ C 6 glycols and fatty acid in view of the potential for degradation by oxidation and the like, derived from saturated fatty acids, esters of C 2 ⁇ C 6 glycols and fatty acid, Nachi Suwa, C 2 An ester of ⁇ C 6 glycol and saturated fatty acid is preferred.
  • an ester of glycol and fatty acid derived from glycol having a large carbon number for example, butylene glycol, pentylene, etc. It is preferably an ester of glycol and fatty acid derived from lenglycol or hexylene glycol.
  • the ester of the C 2 -C 6 glycol and the fatty acid is preferably a diester from the viewpoint of reducing the water retention value. Examples of commercial products of the ester of C 2 -C 6 glycol and fatty acid include Compol BL and Compol BS (manufactured by NOF Corporation).
  • compound (B1) As a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups substituting hydrogen atoms of the chain hydrocarbon moiety (hereinafter sometimes referred to as “compound (B1)”) And those listed as the compound (A1) in “Compound (A)”, for example, pentaerythritol, glycerin, and glycol.
  • Examples of the compound (B2) having a chain hydrocarbon moiety and one hydroxyl group replacing the hydrogen atom of the chain hydrocarbon moiety include: , Compounds in which one hydrogen atom of a hydrocarbon is replaced by one hydroxyl group (—OH), for example, aliphatic monohydric alcohols, for example, saturated aliphatic monohydric alcohols and unsaturated aliphatic monohydric alcohols Is mentioned.
  • saturated aliphatic monohydric alcohol examples include C 1 to C 20 saturated aliphatic monohydric alcohols such as methyl alcohol (C 1 ) (C 1 represents the number of carbon atoms, the same shall apply hereinafter), ethyl alcohol ( C 2 ), propyl alcohol (C 3 ) and isomers thereof such as isopropyl alcohol (C 3 ), butyl alcohol (C 4 ) and isomers thereof such as sec-butyl alcohol (C 4 ) and tert-butyl alcohol (C 4 ), pentyl alcohol (C 5 ), hexyl alcohol (C 6 ), heptyl alcohol (C 7 ), octyl alcohol (C 8 ) and isomers thereof such as 2-ethylhexyl alcohol (C 8 ), nonyl alcohol (C 9), decyl alcohol (C 10), dodecyl alcohol (C 12), tetradecyl alcohol (C 14), Hexadecyl alcohol (C 16), to
  • Examples of the unsaturated aliphatic monohydric alcohol include those obtained by substituting one of the C—C single bonds of the saturated aliphatic monohydric alcohol with a C ⁇ C double bond, such as oleyl alcohol. It is commercially available from Shin Nippon Rika Co., Ltd. under the names of the Jamaica Coal series and the Angelo All series.
  • Examples of the compound (B) include (b 1 ) ethers of chain hydrocarbon tetraol and at least one aliphatic monohydric alcohol, such as monoether, diether, triether and tetraether, preferably diether, triether.
  • Ethers and tetraethers more preferably triethers and tetraethers, and even more preferably tetraethers, ethers of (b 2 ) chain hydrocarbon triols and at least one aliphatic monohydric alcohol, such as monoethers, diethers and Triethers, preferably diethers and triethers, and more preferably triethers, and (b 3 ) ethers of chain hydrocarbon diols with at least one aliphatic monohydric alcohol, such as monoethers and diethers, and preferably Diether It is below.
  • Examples of the ether of the chain hydrocarbon tetraol and at least one aliphatic monohydric alcohol include, for example, the following formulas (10) to (13): (In the formula, R 10 to R 13 are each a chain hydrocarbon.) And tetraethers, triethers, diethers and monoethers of pentaerythritol and aliphatic monohydric alcohols.
  • Examples of the ether of the chain hydrocarbon triol and at least one aliphatic monohydric alcohol include, for example, the following formulas (14) to (16): (Wherein R 14 to R 16 are each a chain hydrocarbon.) And triether, diether and monoether of glycerin and aliphatic monohydric alcohol.
  • Examples of the ether of the chain hydrocarbon diol and at least one aliphatic monohydric alcohol include the following formula (17): R 17 OC n H 2n OR 18 (17) (Wherein n is an integer from 2 to 6 and R 17 and R 18 are each a chain hydrocarbon) A diether of a C 2 -C 6 glycol and an aliphatic monohydric alcohol, and the following formula (18): R 17 OC n H 2n OH (18) (Wherein n is an integer from 2 to 6 and R 17 is a chain hydrocarbon) And monoethers of C 2 -C 6 glycols and aliphatic monohydric alcohols.
  • the tetraether of pentaerythritol and aliphatic monohydric alcohol described above is an aliphatic constituting the tetraether of pentaerythritol and aliphatic monohydric alcohol.
  • the total number of carbon atoms of the monohydric alcohol, that is, in the above formula (10), the total number of carbon atoms of the R 10 , R 11 , R 12 and R 13 portions is preferably about 4 or more (of the above carbon number). If the sum is 4, the IOB is 0.44).
  • the above-mentioned triether of pentaerythritol and aliphatic monohydric alcohol is an aliphatic constituting a triether of pentaerythritol and aliphatic monohydric alcohol.
  • the total number of carbon atoms of the monohydric alcohol, that is, in the above formula (11), the total number of carbon atoms in the R 10 , R 11 and R 12 portions is preferably about 9 or more (the total number of carbon atoms is 9 In this case, the IOB is 0.57).
  • the diether of pentaerythritol and aliphatic monohydric alcohol described above is an aliphatic monovalent constituting a diether of pentaerythritol and aliphatic monohydric alcohol.
  • the total number of carbon atoms of the alcohol that is, the total number of carbon atoms in the R 10 and R 11 moieties in the formula (12) is preferably about 15 or more (when the total number of carbon atoms is 15, IOB becomes 0.60).
  • the monoether of pentaerythritol and aliphatic monohydric alcohol described above is an aliphatic constituting a monoether of pentaerythritol and aliphatic monohydric alcohol.
  • the carbon number of the monohydric alcohol, that is, the carbon number of the R 10 moiety is preferably about 22 or more (when the carbon number is 22, IOB is 0.59).
  • the above-described triether of glycerin and aliphatic monohydric alcohol is an aliphatic constituting the triether of glycerin and aliphatic monohydric alcohol. It is preferable that the total number of carbon atoms of the monohydric alcohol, that is, the total number of carbon atoms in the R 14 , R 15 and R 16 moieties in the formula (14) is about 3 or more (the total number of carbon atoms is 3). In this case, IOB becomes 0.50).
  • the diether of glycerin and aliphatic monohydric alcohol described above is an aliphatic monohydric alcohol constituting the diether of glycerin and aliphatic monohydric alcohol.
  • the total number of carbon atoms that is, the total number of carbon atoms in the R 14 and R 15 moieties in the formula (15) is preferably about 9 or more (when the total number of carbon atoms is 9, the IOB is 0.1. 58).
  • the monoether of glycerin and aliphatic monohydric alcohol described above is an aliphatic monovalent constituting a monoether of glycerin and aliphatic monohydric alcohol.
  • the carbon number of the alcohol, that is, the carbon number of the R 14 portion is preferably about 16 or more (when the carbon number is 16, the IOB is 0.58).
  • R 17 and R 18 moieties
  • the total number of carbons is preferably about 2 or more (when the total number of carbons is 2, IOB is 0.33).
  • the R 17 moieties The number of carbon atoms is preferably about 8 or more (when the number of carbon atoms is 8, IOB is 0.60).
  • Compound (B) can be produced by dehydrating condensation of compound (B1) and compound (B2) in the presence of an acid catalyst.
  • C1 Carboxylic acids, hydroxy acids, alkoxy acids or oxo acids (hereinafter referred to as “compounds”) containing a chain hydrocarbon moiety and 2 to 4 carboxyl groups that replace the hydrogen atoms of the chain hydrocarbon moiety.
  • C1) may be referred to as, for example, a chain hydrocarbon carboxylic acid having 2 to 4 carboxyl groups, such as a chain hydrocarbon dicarboxylic acid such as an alkanedicarboxylic acid such as ethanedioic acid.
  • the compound (C1) includes a chain hydrocarbon hydroxy acid having 2 to 4 carboxyl groups, for example, a chain chain having 2 to 4 carboxyl groups such as malic acid, tartaric acid, citric acid, isocitric acid and the like. Hydrocarbon alkoxy acids such as O-acetylcitric acid and chain hydrocarbon oxoacids having 2 to 4 carboxyl groups are included.
  • C2 Examples of the compound having a chain hydrocarbon moiety and one hydroxyl group substituting a hydrogen atom of the chain hydrocarbon moiety include those listed in the section of “Compound (B)”, for example, An aliphatic monohydric alcohol is mentioned.
  • compound (D) a compound having any one bond selected from the group consisting of a carbonate bond (—OCOO—)
  • compound (D) a compound having any one bond selected from the group consisting of a carbonate bond (—OCOO—)
  • compound (D) aliphatic
  • examples include ethers of monohydric alcohols and aliphatic monohydric alcohols, (d 2 ) dialkyl ketones, esters of (d 3 ) fatty acids and aliphatic monohydric alcohols, and (d 4 ) dialkyl carbonates.
  • the ether As the aliphatic monohydric alcohol constituting the ether (corresponding to R 19 OH and R 20 OH in the formula (19)), the ether has the above-mentioned requirements for kinematic viscosity, water retention and weight average molecular weight. If satisfy
  • dialkylketone As the dialkyl ketone, the following formula (20): R 21 COR 22 (20) (Wherein R 21 and R 22 are each an alkyl group) The compound which has is mentioned.
  • the dialkyl ketone can be obtained by a known method, for example, by oxidizing a secondary alcohol with chromic acid or the like.
  • ester of the fatty acid and the aliphatic monohydric alcohol include the following formula (21): R 23 COOR 24 (21) (Wherein R 23 and R 24 are each a chain hydrocarbon) The compound which has is mentioned.
  • Examples of the fatty acid constituting the ester include, for example, the fatty acids listed in “(a 1 ) ester of chain hydrocarbon tetraol and fatty acid”, that is, Saturated fatty acids and unsaturated fatty acids are mentioned, and saturated fatty acids are preferred in consideration of the possibility of modification by oxidation or the like.
  • Examples of the aliphatic monohydric alcohol constituting the ester include the aliphatic monohydric alcohols listed in the section “Compound (B)”.
  • ester of the fatty acid and the aliphatic monohydric alcohol examples include, for example, an ester of dodecanoic acid (C 12 ) and dodecyl alcohol (C 12 ), tetradecanoic acid (C 14 ), and dodecyl alcohol (C 12 ).
  • ester of the above fatty acids and aliphatic monohydric alcohols examples include Electol WE20 and Electol WE40 (manufactured by NOF Corporation).
  • the dialkyl carbonate can be synthesized by a reaction between phosgene and an alcohol, a reaction between a chlorinated formate and an alcohol or an alcoholate, and a reaction between silver carbonate and an alkyl iodide.
  • (d 1 ) an ether of an aliphatic monohydric alcohol and an aliphatic monohydric alcohol, (d 2 ) a dialkyl ketone, (d 3 ) a fatty acid and an aliphatic monohydric alcohol And (d 4 ) dialkyl carbonates preferably have a weight average molecular weight of about 100 or more, and more preferably about 200 or more.
  • dialkyl ketone when the total number of carbon atoms is about 8, for example, for 5-nonanone, the melting point is about ⁇ 50 ° C., and the vapor pressure is about 230 Pa at 20 ° C.
  • (E) Polyoxy C 3 -C 6 alkylene glycol, or alkyl ester or alkyl ether thereof includes (e 1 ) polyoxy C 3 -C 6 alkylene glycol, (e 2 ) Esters of polyoxy C 3 -C 6 alkylene glycol and at least one fatty acid, (e 3 ) Ethers of polyoxy C 3 -C 6 alkylene glycol and at least one aliphatic monohydric alcohol. This will be described below.
  • the polyoxy C 3 -C 6 alkylene glycol has the following formula (23): HO- (C m H 2m O) n -H (23) (Where m is an integer from 3 to 6) Is represented by
  • n 7
  • Examples of commercially available polyoxy C 3 -C 6 alkylene glycols include Uniol TM PB-500 and PB-700 (above, NOF Corporation).
  • ester of polyoxy C 3 -C 6 alkylene glycol and at least one fatty acid examples include the OH terminal of the polyoxy C 3 -C 6 alkylene glycol described in the section “(e 1 ) polyoxy C 3 -C 6 alkylene glycol”. In which one or both of them are esterified with a fatty acid, that is, monoesters and diesters.
  • fatty acid to be esterified in the ester of polyoxy C 3 -C 6 alkylene glycol and at least one fatty acid are listed in “Ester of (a 1 ) chain hydrocarbon tetraol and at least one fatty acid”.
  • Fatty acid that is, saturated fatty acid or unsaturated fatty acid, and saturated fatty acid is preferable in consideration of possibility of modification by oxidation or the like.
  • Examples of the aliphatic monohydric alcohol to be etherified in the ether of polyoxy C 3 -C 6 alkylene glycol and at least one aliphatic monohydric alcohol include, for example, the aliphatic enumerated in the section of “Compound (B)”. A monohydric alcohol is mentioned.
  • chain hydrocarbon examples include (f 1 ) chain alkanes such as straight chain alkanes and branched chain alkanes.
  • the linear alkane has a carbon number of about 22 or less when the melting point is about 45 ° C. or less, and about 13 or less when the vapor pressure is about 0.01 Pa or less at 1 atm and 25 ° C. That's it.
  • Branched-chain alkanes tend to have lower melting points at the same carbon number than straight-chain alkanes. Therefore, the branched chain alkane can include those having 22 or more carbon atoms even when the melting point is about 45 ° C. or lower.
  • Pearl Ream 6 (NOF Corporation) can be mentioned.
  • Examples of the fibers constituting the nonwoven fabric and the woven fabric as the liquid-permeable top sheet include natural fibers and chemical fibers.
  • Examples of the natural fibers include cellulose such as pulverized pulp and cotton. Examples thereof include regenerated cellulose such as rayon and fibril rayon, semi-synthetic cellulose such as acetate and triacetate, thermoplastic hydrophobic chemical fiber, and thermoplastic hydrophobic chemical fiber subjected to hydrophilic treatment.
  • thermoplastic hydrophobic chemical fiber examples include single fibers such as polyethylene (PE), polypropylene (PP), and polyethylene terephthalate (PET), and fibers made of a graft polymer of PE and PP.
  • nonwoven fabric examples include air-through nonwoven fabric, spunbond nonwoven fabric, point bond nonwoven fabric, spunlace nonwoven fabric, needle punch nonwoven fabric, melt blown nonwoven fabric, and combinations thereof (for example, SMS).
  • the non-woven fabric may be a non-woven fabric having a ridge-groove structure, having a plurality of ridges and a plurality of grooves, manufactured according to the method described in JP 2008-2034 A.
  • the non-woven fabric is a non-woven fabric having a ridge groove structure having a plurality of ridges and a plurality of groove portions manufactured according to the methods described in JP 2011-226101, JP 2011-226011, etc. Also good.
  • the non-woven fabric having the ridge groove structure is a pair of gear rolls having a rotation axis perpendicular to the conveying direction, and a gap between those rotating while meshing a plurality of teeth arranged on each outer peripheral surface of the gear roll, It can be formed by passing a nonwoven fabric to be treated and fluidly treating it. From the nonwoven fabric which has the said groove
  • liquid-impermeable back sheet examples include films containing PE, PP, etc., resin films having air permeability, those obtained by bonding a resin film having air permeability to a nonwoven fabric such as spunbond or spunlace, and composite materials such as SMS.
  • a layer nonwoven fabric etc. are mentioned.
  • a low density polyethylene (LDPE) film having a basis weight of about 15 to about 30 g / m 2 is preferred.
  • the absorbent article can include a second sheet between the liquid-permeable top sheet and the absorbent body.
  • a second sheet between the liquid-permeable top sheet and the absorbent body. The same example as a sex top sheet is given.
  • Constituent elements of the absorbent core include, for example, hydrophilic fibers such as cellulose such as pulverized pulp and cotton, regenerated cellulose such as rayon and fibril rayon, semi-synthetic cellulose such as acetate and triacetate, particulate polymer, and fibrous polymer. , Thermoplastic hydrophobic chemical fibers, hydrophobized thermoplastic hydrophobic chemical fibers, and combinations thereof.
  • a superabsorbent polymer for example, a granular material such as sodium acrylate copolymer may be mentioned.
  • the core wrap is not particularly limited as long as it is liquid permeable and has a barrier property that does not allow the polymer absorber to permeate, and examples thereof include woven fabric and nonwoven fabric.
  • examples of the woven fabric and non-woven fabric include natural fibers, chemical fibers, and tissues.
  • the absorbent body As a second example of the absorbent body, one formed from an absorbent sheet or a polymer sheet can be cited, and the thickness is preferably about 0.3 to about 5.0 mm.
  • the absorbent sheet and polymer sheet can be used without particular limitation as long as they are usually used in absorbent articles such as sanitary napkins.
  • the first embossed portion, the second embossed portion, and the desired third embossed portion can be formed by a method known in the art, for example, a pair of upper and lower embossing rolls, each having a pattern formed thereon.
  • the embossed portion is formed by embossing the top sheet and the absorbent body (or top sheet, second sheet and absorbent body) at a temperature below the melting point of the fiber and a pressure of about 100 to about 1000 N / cm. can do.
  • the top sheet and / or the second embossed portion in the excretory opening contact region is provided on the skin side surface, that is, the skin contact surface, with a blood slipperiness imparting agent. including.
  • the top sheet and / or the second embossed portion in the excretory opening contact area are provided on the skin contact surface and the interior between the skin contact surface and the clothing side surface. Contains a blood lubricity-imparting agent.
  • the top sheet and / or the second embossed portion in the excretory opening contact region has an entire thickness direction thereof, that is, a skin contact surface, a skin contact surface, and A blood slipperiness imparting agent is included in the interior between the clothing side surfaces and the clothing side surface.
  • a blood slipperiness imparting agent is included in the interior between the clothing side surfaces and the clothing side surface.
  • the first embossed portion and / or the desired third embossed portion includes a blood slipperiness imparting agent on the skin contact surface.
  • the first embossed portion and / or the optional third embossed portion are formed on the skin contact surface and the interior between the skin contact surface and the clothing side surface. Contains a sexifier.
  • the first embossed portion and / or the third embossed portion as desired has the entire thickness direction, that is, the skin contact surface, the skin contact surface, and the clothing side.
  • a blood slipping agent is contained in the interior between the surfaces and the clothing side surface.
  • a blood slipperiness-imparting agent in the first embossed part and / or the desired third embossed part and / or on the clothing side surface makes it easier for the menstrual blood that has reached there to rebound to the excretory opening contact area.
  • the blood slipperiness-imparting agent preferably does not block the gaps between the fibers of the nonwoven fabric or woven fabric constituting the top sheet, and the blood slipperiness imparting agent is, for example, on the surface of the nonwoven fabric or woven fabric fibers. It can be attached in the form of droplets or particles, or it can cover the surface of the fibers.
  • the blood slipperiness-imparting agent preferably has a large surface area in order to migrate with absorbed menstrual blood and to repel menstrual blood. The particle size is preferably small.
  • the fibers constituting the non-woven fabric and the woven fabric as the liquid-permeable top sheet have a hydrophilic agent coated on the surface thereof, or the surface thereof is hydrophilized by mixing the fiber raw material and the hydrophilic agent. It is preferable that When the fiber has hydrophilicity, the lipophilic region derived from the blood slipperiness-imparting agent and the hydrophilic region derived from the hydrophilic agent coexist sparsely on the top sheet, and menstrual blood is easily transferred. Because it becomes.
  • the method for applying the blood slipperiness-imparting agent is not particularly limited, and is heated as necessary.
  • a contactless coater such as a spiral coater, curtain coater, spray coater, dip coater, etc. It can be applied to a desired area by a coater or the like.
  • a non-contact coater is preferable from the viewpoint that the droplet-like or particle-like blood slipperiness-imparting agent is uniformly dispersed and that the top sheet is not damaged.
  • the blood slipperiness-imparting agent is applied from the control seam HMA gun as it is when it is liquid at room temperature, or heated to lower the viscosity, and heated so as to be liquefied when it is solid at room temperature. can do. By increasing the air pressure of the control seam HMA gun, a particulate blood slipping agent can be applied.
  • the blood slipperiness-imparting agent can be applied when a top sheet material, for example, a non-woven fabric is manufactured, or can be applied in a manufacturing line for manufacturing an absorbent article. From the viewpoint of suppressing capital investment, it is preferable to apply a blood slipperiness-imparting agent in the production line for absorbent articles, and to prevent the blood slipperiness-imparting agent from dropping and contaminating the line. It is preferable to apply the blood slipperiness imparting agent immediately downstream of the production line, specifically, immediately before the product is enclosed in the individual package.
  • the blood slipperiness-imparting agent can also act as a lubricant. Therefore, the blood slipperiness imparting agent can reduce the friction between the fibers and improve the flexibility of the nonwoven fabric or the entire woven fabric.
  • the absorbent article is one that is intended to absorb menstrual blood, such as a sanitary napkin or a panty liner.
  • the absorbent article of the present disclosure is different from the absorbent article containing a known skin care composition, lotion composition, etc., and does not require components such as an emollient and a fixing agent. It can be applied to the top sheet by itself.
  • Example 1 [Evaluation of rewetting rate and absorber transfer speed] A commercially available sanitary napkin as shown in FIG. 1 was prepared.
  • the sanitary napkin includes a top sheet formed from an air-through nonwoven fabric (composite fiber made of polyester and polyethylene terephthalate, basis weight: 35 g / m 2 ) treated with a hydrophilic agent, and an air-through nonwoven fabric (composite made of polyester and polyethylene terephthalate).
  • Second sheet formed from fibers, basis weight: 30 g / m 2 ), pulp (basis weight: 150 to 450 g / m 2 , more in the center), acrylic superabsorbent polymer (basis weight: 15 g / m 2 ) And an absorbent body containing a tissue as a core wrap, a side sheet treated with a water repellent, and a back sheet made of a polyethylene film.
  • fatty acids manufactured by NOF Corporation C 8 fatty to C 10 are contained in approximately 85:15 weight ratio of triesters of glycerol with fatty acids, the weight average molecular weight: about 480 ⁇ Panasate 800, manufactured by NOF Corporation All fatty acids are octanoic acid (C 8 ), triester of glycerin and fatty acid, weight average molecular weight: about 470
  • Panaceate 800B manufactured by NOF Corporation All fatty acids are 2-ethylhexanoic acid (C 8 ), triester of glycerin and fatty acid, weight average molecular weight: about 470 ⁇ NA36, manufactured by NOF Corporation C 16 fatty acid: fatty acid C 18: (including both saturated and unsaturated fatty acids) fatty acids to C 20 is approximately 5: contained in a weight ratio of 3: 92 Triester of glycerin and fatty acid, weight average molecular weight: about 880
  • C 8 fatty C 10: fatty acid
  • C 12 fatty acid
  • C 14 (including both saturated and unsaturated fatty acids)
  • C 16 is approximately 4 : Triester of glycerin and fatty acid, contained in a weight ratio of 8: 60: 25: 3, weight average molecular weight: 670 -Caprylic acid diglyceride, manufactured by NOF Corporation
  • Fatty acid is octanoic acid, diester of glycerin and fatty acid, weight average molecular weight: 340
  • [Other materials] -NA50 manufactured by NOF Corporation Hydrogen added to NA36 to reduce the ratio of double bonds derived from the unsaturated fatty acid as a raw material Triester of glycerin and fatty acid, weight average molecular weight: about 880
  • PEG 1500 manufactured by NOF Corporation, polyethylene glycol, weight average molecular weight: about 1,500 to about 1,600 -Wilbright cp9, manufactured by NOF Co., Ltd.
  • Nonionic S-6 polyoxyethylene monostearate manufactured by NOF Corporation, about 7 repeating units, weight average molecular weight: about 880 ⁇ Unilube 5TP-300KB Polyoxyethylene polyoxypropylene pentaerythritol ether produced by adding 5 mol of ethylene oxide and 65 mol of propylene oxide to 1 mol of pentaerythritol, weight average molecular weight: 4,130

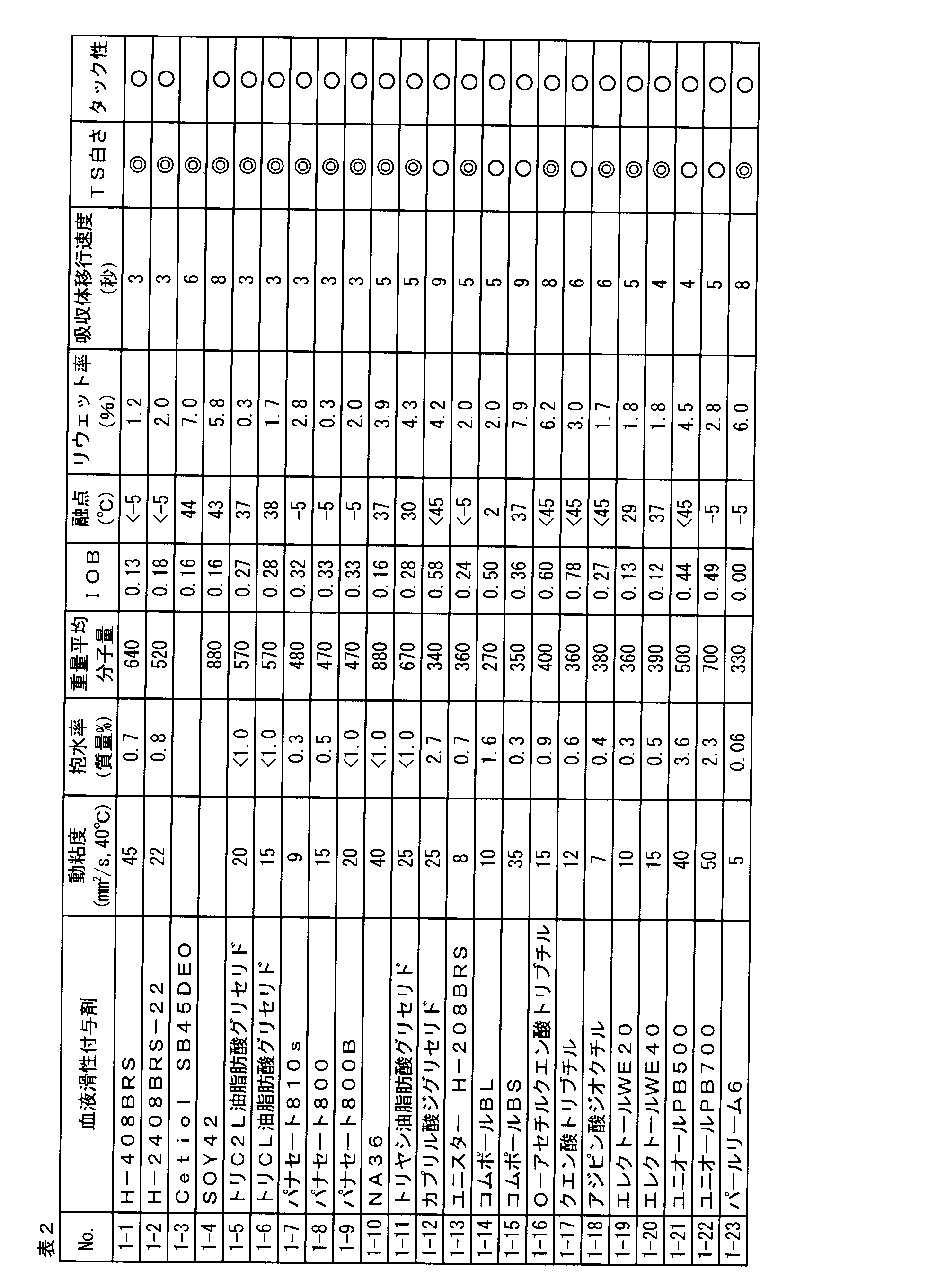

  • Table 2 shows the kinematic viscosity, water retention, weight average molecular weight, IOB and melting point of the sample.
  • ⁇ 45 means that the melting point is less than 45 ° C.
  • the excretory opening contact area of the top sheet of the sanitary napkin and the second embossed part were coated with the above-described blood slipperiness imparting agent.
  • Each blood slipperiness agent is heated as it is when the blood slipperiness agent is liquid at room temperature, and to the melting point + 20 ° C. when the blood slipperiness agent is solid at room temperature, then control
  • lubricity imparting agent was atomized using the seam HMA gun, and it apply
  • FIG. 3 is an electron micrograph of the skin contact surface of the top sheet in a sanitary napkin (No. 1-5) in which the top sheet contains tri-C2L oil fatty acid glycerides. As is apparent from FIG. 3, the tri-C2L oil fatty acid glyceride is in the form of fine particles and is present on the surface of the fiber.
  • Rewetting rate (%) 100 ⁇ (filter paper mass after test ⁇ initial filter paper mass) / 6
  • absorption body transfer rate which is the time for blood to transfer from the top sheet to the absorber, was measured after the second drop of blood.
  • absorption body transfer speed means the time from when blood is introduced into the top sheet until the redness of blood is not seen on the surface and inside of the top sheet.
  • the whiteness of the skin contact surface of the top sheet (TS) after the test of the absorber transition speed was visually evaluated according to the following criteria.
  • tackiness of the skin contact surface of the top sheet was measured at 35 ° C. according to the following criteria. ⁇ : No tackiness ⁇ : Some tackiness is present ⁇ : There is tackiness The results are shown in Table 2 below.
  • the rewet rate was 22.7% and the absorber transfer rate was more than 60 seconds, but the triesters of glycerin and fatty acid were both rewet rates. Is 7.0% or less, and the absorber transfer speed is 8 seconds or less, which indicates that the absorption performance is greatly improved.
  • the excretory opening contact area of the top sheet after absorption of menstrual blood is difficult to be reddish with blood and is uncomfortable.
  • the excretory opening contact area of the top sheet is difficult to be reddish due to menstrual blood, but after the absorber absorbs a large amount of menstrual blood, the second embossed portion
  • Example 2 [Remaining ratio of menstrual blood surface on top sheet having groove structure] The surface residual rate of menstrual blood in the top sheet having a ridge groove structure was evaluated.
  • Top sheet formed from air-through nonwoven fabric (composite fiber made of polyester and polyethylene terephthalate, basis weight: 35 g / m 2 ) treated with a hydrophilic agent, and air-through nonwoven fabric (composite fiber made of polyester and polyethylene terephthalate, basis weight: 30 g) / M 2 ), a pulp (basis weight: 150 to 450 g / m 2 , more in the center), an acrylic superabsorbent polymer (basis weight: 15 g / m 2 ), and a tissue as a core wrap.
  • An absorbent body, a side sheet treated with a water repellent, and a back sheet made of a polyethylene film were prepared.
  • the top sheet is a top sheet having a ridge groove structure manufactured according to the method described in Japanese Patent Application Laid-Open No. 2008-2034.
  • the ridge portion has a thickness of about 1.5 mm and the groove portion has a thickness of about 0. 4 mm, the pitch of the ridge groove structure (width of the ridge portion + width of the groove portion) was about 4 mm, and an opening portion having an opening ratio of about 15% was formed in the groove portion.
  • Unistar H-408BRS (manufactured by NOF Corporation, tetraester of pentaerythritol and fatty acid) is selected as a blood slipperiness-imparting agent, and the skin contact surface ( ⁇ ⁇ ⁇ ) of the top sheet from a control seam HMA gun at room temperature.
  • the groove surface was coated with a basis weight of 5.0 g / m 2 .
  • H-408BRS was in the form of fine particles and adhered to the fiber surface.
  • the back sheet, the absorbent body, the second sheet, and the top sheet were sequentially laminated with the groove surface facing up, whereby a sanitary napkin no. 2-1.
  • the blood slipperiness-imparting agent was changed from Unistar H-408BRS to that shown in Table 3 below. 2-2 to No. 2-40 was produced.
  • the blood slipperiness-imparting agent is a liquid at room temperature
  • the blood slipperiness-imparting agent is a solid at room temperature
  • it is heated to the melting point + 20 ° C., and then a control seam HMA gun is used.
  • the blood slipperiness imparting agent was atomized and applied to the skin contact surface of the top sheet so that the basis weight was approximately 5 g / m 2 .
  • lubricity imparting agent was applied to the substantially whole surface of the skin contact surface of a top sheet, and to both a collar part and a groove part.

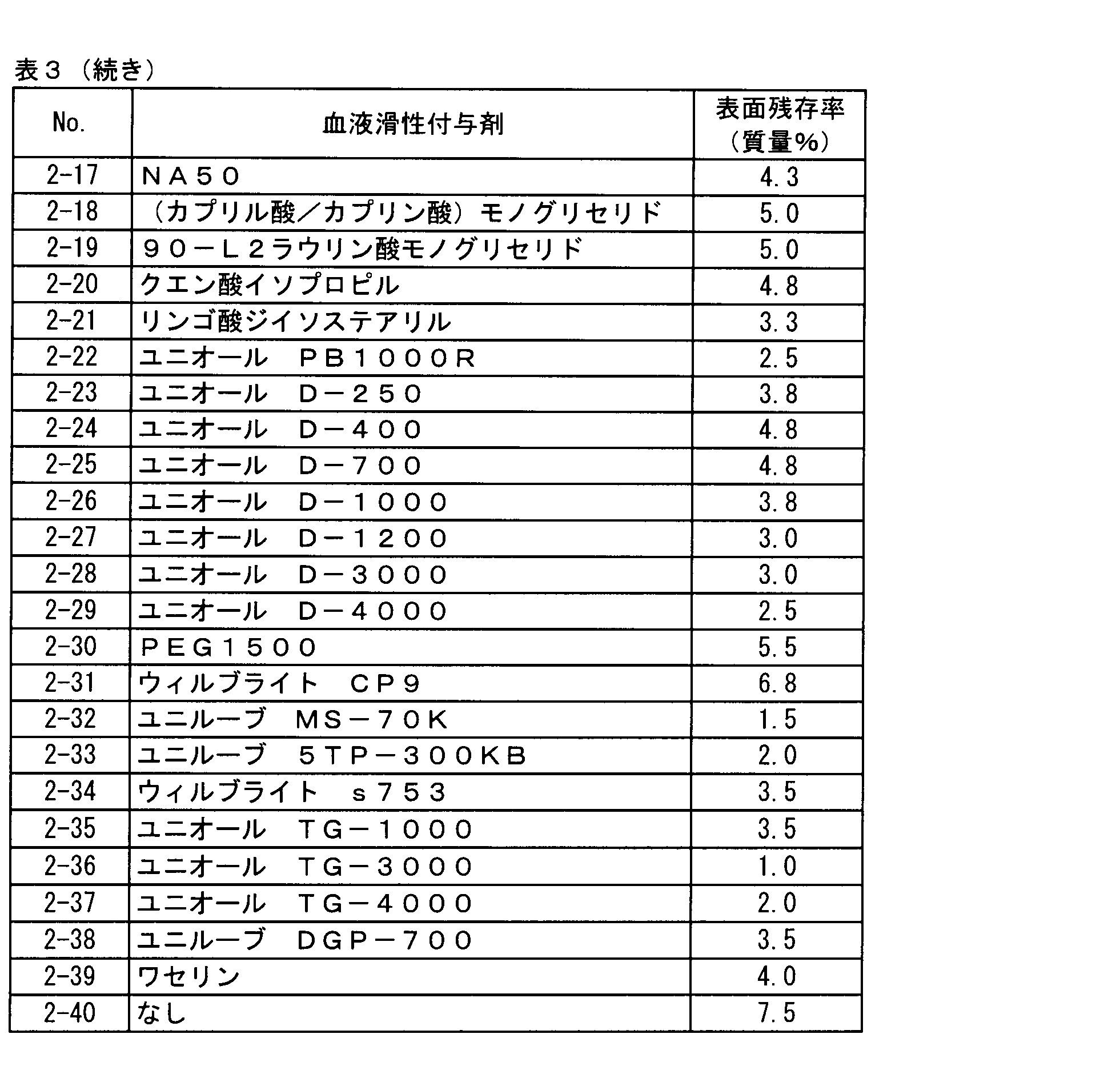

  • Sanitary napkin No. which does not have a blood slipperiness imparting agent.
  • the surface residual rate was 7.5% by mass, but the kinematic viscosity and water retention rate were within the predetermined ranges. 2-1.
  • the surface residual rate was 2.5% by mass or less.
  • Example 3 [Viscosity of blood containing blood slipping agent] The viscosity of blood containing a blood slipping agent was measured using Rheometric Expansion System ARES (Rheometric Scientific, Inc). 2% by mass of panacet 810s was added to equine defibrinated blood, lightly stirred to form a sample, the sample was placed on a parallel plate with a diameter of 50 mm, the gap was 100 ⁇ m, and the viscosity was measured at 37 ⁇ 0.5 ° C. . Because of the parallel plate, the sample did not have a uniform shear rate, but the average shear rate displayed on the instrument was 10 s ⁇ 1 .
  • the viscosity of equine defibrinated blood containing 2% by mass of panacet 810s was 5.9 mPa ⁇ s, while the viscosity of equine defibrinated blood not containing a blood slipperiness agent was 50.4 mPa ⁇ s. Therefore, it can be seen that equine defibrinated blood containing 2% by mass of panacet 810s decreases the viscosity by about 90% compared to the case where no blood slipperiness-imparting agent is contained.
  • blood contains components such as blood cells and has thixotropic properties.
  • the above-mentioned blood slipperiness-imparting agent has an action of lowering the viscosity of blood such as menstrual blood in a low viscosity region. By reducing the viscosity of the blood, the absorbed menstrual blood is easily transferred from the top sheet to the absorber.
  • Example 4 [Micrograph of menstrual blood containing blood slipperiness-imparting agent] A healthy volunteer's menstrual blood is collected on a wrap film for food protection, and a portion of the panacet 810s dispersed in 10 times the mass of phosphate buffered saline is used. It added so that it might become. Menstrual blood was appropriately applied to a slide glass, covered with a cover glass, and the state of red blood cells was observed with an optical microscope. A photomicrograph of menstrual blood containing no blood slipperiness agent is shown in FIG. 4 (a), and a photomicrograph of menstrual blood containing panacet 810s is shown in FIG. 4 (b).
  • FIG. 4 (a) shows that in menstrual blood that does not contain a blood slipperiness agent, red blood cells form aggregates such as remuneration, and FIG. 4 (b) shows menstrual blood containing panacet 810s. Then, it turns out that each red blood cell is stably dispersed. Therefore, it is suggested that the blood slipperiness imparting agent also has a function of stabilizing red blood cells in menstrual blood.
  • Example 5 [Surface tension of blood containing blood slipperiness agent]
  • the surface tension of blood containing a blood slipperiness imparting agent was measured by a pendant drop method using a contact angle meter Drop Master 500 manufactured by Kyowa Interface Science Co., Ltd.
  • the surface tension was measured after adding a predetermined amount of blood slipperiness-imparting agent to sheep defibrinated blood and shaking sufficiently. Although the measurement is automatically performed by the instrument, the surface tension ⁇ is obtained by the following equation (see FIG. 5).
  • the density ⁇ is defined in 5. of “Density Test Method and Density / Mass / Capacity Conversion Table” of JIS K 2249-1995. Based on the vibration density test method, the temperature was measured as shown in Table 4 below. For measurement, DA-505 of Kyoto Electronics Industry Co., Ltd. was used. The results are shown in Table 4 below.
  • the blood slipperiness-imparting agent also has an action of lowering the surface tension of blood.
  • the absorbed blood is not transferred between the fibers of the top sheet, but is quickly transferred to the absorber.
  • the present disclosure relates to the following (J1) to (J10).
  • An absorbent article having a liquid-permeable top sheet, a liquid-impermeable back sheet, and an absorbent body between the top sheet and the back sheet,
  • the top sheet is formed from a nonwoven fabric or a woven fabric, In the range where the absorbent article overlaps with the absorber in the thickness direction, the excretory opening contact area in contact with the excretion opening of the wearer and the continuous or discontinuous so as to surround the excretion opening contact area Having a first embossed portion disposed on the outer edge region outside the first embossed portion,
  • the absorbent article includes a second embossed portion formed by embossing the layer including the top sheet and the absorber, and is disposed in an outer edge region located on the outer side in the longitudinal direction of the excretory opening contact region.
  • the top sheet in the excretory opening contact area and the second embossed part each have a kinematic viscosity of 0.01 to 80 mm 2 / s at 40 ° C. and a water retention of 0.01 to 4.0% by mass.
  • a blood slipperiness agent having a weight average molecular weight of less than 1,000, The said absorbent article characterized by the above-mentioned.
  • the absorbent article further has a second sheet between the top sheet and the absorber, and the first embossed portion is formed by embossing the layer including the top sheet, the second sheet and the absorber, The absorbent article according to any one of J1 to J8.
  • the blood slipperiness-imparting agent comprises the following (i) to (iii), (I) hydrocarbons, (Ii) from (ii-1) a hydrocarbon moiety and (ii-2) a carbonyl group (—CO—) and an oxy group (—O—) inserted between the CC single bonds of the hydrocarbon moiety.
  • —COOH carboxyl group
  • —OH hydroxyl group
  • the blood slipperiness-imparting agent comprises the following (i ′) to (iii ′), (I ′) hydrocarbon, (Ii ′) (ii′-1) a hydrocarbon moiety and (ii′-2) a carbonyl bond (—CO—), an ester bond (—COO) inserted between the C—C single bonds of the hydrocarbon moiety.
  • the above-mentioned blood slipperiness-imparting agent comprises the following (A) to (F), (A) (A1) a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups replacing hydrogen atoms in the chain hydrocarbon moiety, (A2) a chain hydrocarbon moiety, and the chain An ester with a compound having one carboxyl group for substituting a hydrogen atom in the hydrocarbon moiety, (B) (B1) a compound having a chain hydrocarbon moiety and 2 to 4 hydroxyl groups replacing hydrogen atoms in the chain hydrocarbon moiety, (B2) a chain hydrocarbon moiety, and the chain An ether with a compound having one hydroxyl group replacing a hydrogen atom of the hydrocarbon moiety, (C) (C1) a carboxylic acid, a hydroxy acid, an alkoxy acid or an oxo acid containing a chain hydrocarbon moiety and 2 to 4 carboxyl groups replacing a hydrogen atom in the chain hydrocarbon moiety; C2) an ester
  • the blood lubricity-imparting agent comprises (a 1 ) an ester of a chain hydrocarbon tetraol and at least one fatty acid, (a 2 ) an ester of a chain hydrocarbon triol and at least one fatty acid, (a 3 ) chain Ester of linear hydrocarbon diol and at least one fatty acid, (b 1 ) ether of chain hydrocarbon tetraol and at least one aliphatic monohydric alcohol, (b 2 ) chain hydrocarbon triol and at least one fat Ethers with aliphatic monohydric alcohols, (b 3 ) ethers of chain hydrocarbon diols with at least one aliphatic monohydric alcohol, (c 1 ) chain hydrocarbon tetracarboxylic acids having four carboxyl groups, hydroxy acid, alkoxy acid or an oxo acid, at least one ester of an aliphatic monohydric alcohol, (c 2) a chain hydrocarbon bets with 3 carboxyl groups Carboxy

Landscapes

  • Health & Medical Sciences (AREA)
  • Epidemiology (AREA)
  • General Health & Medical Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Veterinary Medicine (AREA)
  • Public Health (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Animal Behavior & Ethology (AREA)
  • Heart & Thoracic Surgery (AREA)
  • Vascular Medicine (AREA)
  • Biomedical Technology (AREA)
  • Chemical & Material Sciences (AREA)
  • Hematology (AREA)
  • Materials Engineering (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Absorbent Articles And Supports Therefor (AREA)
  • Orthopedics, Nursing, And Contraception (AREA)

Description

吸収性物品
 本開示は、吸収性物品に関する。
 吸収性物品、例えば、生理用ナプキン、パンティーライナー等では、長年積み重ねられてきた技術開発により基本的性能が向上し、以前と比較して、経血等の排泄物を吸収した後に、漏れ等が生ずることが少なくなってきており、現在は、さらなる高機能化、例えば、肌着に近い着用感を有すること、経血等の排泄物を吸収した後でもトップシートがサラサラしていること等に関する研究が行われている。
 特に、月経時の経血は、子宮内膜等の成分が含まれることもあって、その粘度が高いが、当該粘度の高い経血を吸収した後であっても、トップシートにべたつき感がなく、サラサラしていること等が好ましい。また、粘度の高い経血は、トップシート上で、塊の状態で残存することが多く、使用者が、視覚的に不快感を覚えることが多く、その観点からも、粘度の高い経血を、トップシート上に残存させないことが好ましい。
 例えば、特許文献1には、ポリプロピレングリコール材料を含むローション組成物を、トップシートの内表面(着衣側の面)、バックシートの内表面(身体側の面)、トップシートの内表面及びバックシートの内表面の間の基材等に配置した吸収性物品が開示されている。
 また、特許文献2には、ポリプロピレングリコール材料を含むローション組成物を、トップシートの外表面(身体側の面)に適用した吸収性物品が開示されている。
特表2010-518918号 特表2011-510801号
 吸収性物品では、経血を吸収した後、トップシートが経血で赤く染まった度合いと、吸収体が吸収した経血の量とに相関が少ない場合がある。特に、トップシートが経血で赤く染まりにくい吸収性物品では、着用者が、吸収体が吸収容量の上限付近まで経血を吸収し、交換時期に近づいていることに気づかない場合がある。
 特許文献1及び2に記載の吸収性物品では、吸収性物品の交換時期を視覚的に認識させるような設計はなされていない。また、交換時期を過ぎて使用してしまった場合に、漏れのリスクを低減させる設計がなされていない。
 従って、本開示は、粘度の高い経血を吸収した後であってもトップシートにべたつき感がなく、トップシートがサラサラしており、そして交換時期を視覚的に認識させることができ且つ漏れのリスクも低減させる吸収性物品を提供することを目的とする。
 本開示者らは、上記課題を解決するために鋭意検討した結果、不織布又は織布から形成された、液透過性のトップシートと、液不透過性のバックシートと、上記トップシート及びバックシートの間の吸収体とを有する吸収性物品であって、上記吸収性物品が、その厚さ方向に上記吸収体と重複する範囲において、着用者の排泄口に接する排泄口当接域と、当該排泄口当接域を囲むように連続的又は非連続的に配置されている第1エンボス部と、第1エンボス部より外側の外縁領域と、上記排泄口当接域の長手方向外側に位置する外縁領域に配置されている第2エンボス部とを有し、第1エンボス部及び第2エンボス部が、上記トップシート及び吸収体を含む層をエンボスすることにより形成され、そして上記排泄口当接域内のトップシートと、第2エンボス部とが、それぞれ、40℃における0.01~80mm2/sの動粘度と、0.01~4.0質量%の抱水率と、1,000未満の重量平均分子量とを有する血液滑性付与剤を含むことを特徴とする吸収性物品を見出した。
 本開示の吸収性物品は、粘度の高い経血を吸収した後であってもトップシートにべたつき感がなく、トップシートがサラサラしており、そして交換時期を視覚的に認識させることができ且つ漏れのリスクも低減させる。
図1は、本開示の吸収性物品の実施形態の1つに従う生理用ナプキンの正面図である。 図2は、本開示の吸収性物品の他の実施形態に従う生理用ナプキンの正面図である。 図3は、トップシートがトリC2L油脂肪酸グリセリドを含む生理用ナプキンにおける、トップシートの肌当接面の電子顕微鏡写真である。 図4は、血液滑性付与剤を含む又は含まない経血の顕微鏡写真である。 図5は、表面張力の測定方法を説明するための図である。
 本開示の吸収性物品について、以下、詳細に説明する。
 図1は、本開示の吸収性物品の実施形態の1つに従う生理用ナプキンの正面図である。図1は、トップシート2の肌当接面側から観察した図である。図1に示される生理用ナプキン1は、液透過性のトップシート2と、液不透過性のバックシート(図示せず)と、トップシート2及びバックシートの間の吸収体3とを有する。図1に示される生理用ナプキン1において、トップシート2は、不織布から形成されている。
 図1に示される生理用ナプキン1は、生理用ナプキン1の厚さ方向に吸収体3と重複する範囲において、着用者の排泄口に接する排泄口当接域4と、排泄口当接域4を囲むように非連続的に配置されている第1エンボス部5と、第1エンボス部5より外側の外縁領域6と、排泄口当接域4の長手方向外側に位置する外縁領域6に配置されている第2エンボス部7とを有する。第1エンボス部5は、4つの第1エンボス部5’,5'’,5''’及び5'''’から成り、そして、それぞれが独立して、排泄口当接域4を囲むように配置されている。
 なお、本明細書では、「排泄口当接域」は、着用者の排泄口(小陰唇等)に当接する領域であり、連続的又は非連続的に配置されているエンボス部(第1エンボス部)により画定される領域を意味する。上記排泄口当接域は、吸収性物品のサイズ等によってもその位置が異なるが、例えば、ウィング部を有しない吸収性物品の場合には、吸収性物品の幅方向中心部且つ長手方向中心部を囲むように連続的又は非連続的に配置されているエンボス部(第1エンボス部)により画定される領域の内側が排泄口当接域である。例えば、ウィング部を有する吸収性物品の場合には、吸収性物品の幅方向の中心を通る長手方向線と、両ウィング部の長手方向中心を通る幅方向線との交点とを囲むように連続的又は非連続的に配置されているエンボス部(第1エンボス部)により画定される領域の内側が排泄口当接域である。
 図1に示される生理用ナプキン1において、第1エンボス部5と、第2エンボス部7とは、トップシート2及び吸収体3から成る層を圧搾することにより形成されている。
 また、図1に示される生理用ナプキン1において、排泄口当接域4内のトップシート2と、第2エンボス部7とが、それぞれ、所定の血液滑性付与剤(図示せず)を含む。
 本開示の吸収性物品の作用を、図1を利用して説明する。
 粘度の高い経血は、最初に、生理用ナプキン1の排泄口当接域4に到達する。排泄口当接域4内のトップシート2は、血液滑性付与剤を含むため、経血は、血液滑性付与剤と一緒になって、生理用ナプキン1の内部に移行し、吸収体3に迅速に移行する。
 従って、生理用ナプキン1は、吸収した経血を吸収体3に迅速に移行させる。
 また、経血は、血液滑性付与剤と一緒になって、生理用ナプキン1の内部に移行するため、トップシート2の排泄口当接域4は、経血で赤く染まりにくい。その結果、着用者は、トイレ等に行った際に、着色による不快感を覚えにくい一方で、トップシートの状態から、生理用ナプキンの交換時期が把握しにくい場合がある。
 吸収体3に吸収された経血の量が多くなると、吸収体3の中で、経血は、吸収性物品の長手方向及び幅方向に移動する。吸収性物品の長手方向に移動する経血が、排泄口当接域4の長手方向外側に位置する外縁領域6に配置されている、第2エンボス部7に到達すると、第2エンボス部7が血液滑性付与剤を含むために、経血を跳ね返し、排泄口当接域4の方向に押し戻す。従って、経血が漏れにくくなる。
 また、第2エンボス部7に到達した一部の経血は、第2エンボス部7の繊維密度が高いため、毛細管現象により、その中に引き込まれる。第2エンボス部7に経血が引き込まれると、着用者は、トップシート2の側から、第2エンボス部7が赤く染まったことを視覚的に認識する。それにより、着用者は、生理用ナプキン1の交換時期を把握する。
 図1に示される生理用ナプキン1では、排泄口当接域4内のトップシート2は、その平面方向全体において血液滑性付与剤を含むが、本開示の吸収性物品の別の実施形態では、排泄口当接域内のトップシートの平面方向の一部が、血液滑性付与剤を含む。
 図1に示される生理用ナプキン1において、第2エンボス部7は、排泄口当接域4の長手方向端部を囲むように湾曲して配置されている。第2エンボス部を排泄口当接域の長手方向端部を囲むように湾曲して配置することにより、排泄口当接域の長手方向端部から、吸収性物品の長手方向に拡散する経血を効率的に跳ね返し、排泄口当接域の方向に押し戻し、経血を漏れにくくする。例えば、第2エンボス部は、略U字型、略V字型、略Y字型、略円弧型、略楕円弧型等の形状を有することができる。
 図1に示される生理用ナプキン1において、トップシート2が、排泄口当接域4と、第2エンボス部7との間に、血液滑性付与剤を含まない領域である、非薬剤含有領域9を有する。排泄口当接域と、第2エンボス部との間に、非薬剤含有領域を有することにより、例えば、吸収体が着用時の蒸れを防止するためにの高吸収性ポリマーを含む場合に、高吸収性ポリマーが湿分を吸収することを阻害しにくくなる。
 図1に示される生理用ナプキン1において、第1エンボス部5が、血液滑性付与剤をさらに含む。第1エンボス部が血液滑性付与剤を含むことにより、以下の作用が得られる。
 一般的に、着用者が、就寝時の横になった状態等では、経血が、トップシートの排泄口当接域に到達した後、肌当接面に沿って、排泄口当接域の外に流れることがあることが知られている。しかし、図1に示される生理用ナプキン1では、排泄口当接域4を囲む第1エンボス部5が血液滑性付与剤を含むため、第1エンボス部5に存在する血液滑性付与剤が、排泄口当接域4の外に流れようとする経血を跳ね返し、経血を排泄口当接域4内に押し戻す。押し戻された経血は、排泄口当接域4の血液滑性付与剤と一緒になって、生理用ナプキン1の内部に移行し、吸収体3に移行する。
 本開示の吸収性物品の別の実施形態では、第1エンボス部が、血液改質剤を含まない。
 図1に示されるように、吸収性物品では、吸収性物品が硬くならないこと等を目的として、排泄口当接域を囲む第1エンボス部を非連続的に配置する場合がある。
 図1に示される生理用ナプキン1はまた、第1エンボス部5の非連続部分10の外側に、4つの第3エンボス部8',8'',8'''及び8''''(以下、「第3エンボス部8」と称する場合がある)をさらに有する。第3エンボス部8',8'',8'''及び8''''は、第1エンボス部5の非連続部分10の外側に配置されている。
 なお、第3エンボス部8は、外縁領域6に形成されている。
 図1に示される生理用ナプキン1において、第3エンボス部8が、血液滑性付与剤をさらに含む。従って、非連続部分10を通って、トップシート2の肌当接面を拡散しようとする経血を、第3エンボス部8がブロックし、排泄口当接域4に跳ね返す。
 本開示の吸収性物品の別の実施形態では、第3エンボス部は、血液改質剤を含まない。
 図1に示される生理用ナプキン1において、第2エンボス部7は、排泄口当接域4の長手方向外側に位置する外縁領域6に計2つ配置されているが、本開示の吸収性物品の別の実施形態では、第2エンボス部は、排泄口当接域の長手方向外側に位置する外縁領域に1つ配置されており、例えば、より漏れやすい着用者の後方に配置することができる。
 図2は、本開示の吸収性物品の他の実施形態に従う生理用ナプキンの正面図である。図2に示される生理用ナプキン1は、第1エンボス部5が、排泄口当接域4を囲むように、連続的に配置されている点と、第3エンボス部を有しない点とが、図1に示される生理用ナプキン1と異なるが、それ以外は、図1に示される生理用ナプキン1と同一である。
 図2に示されるように、第1エンボス部5が排泄口当接域4を囲むように連続的に配置されていることにより、トップシート2の肌当接面に沿って、又はトップシート2の内部を伝わって排泄口当接域4の外に拡散しようとする経血を、第1エンボス部5がブロックし、排泄口当接域4内のトップシート2の中に跳ね返すか、又は吸収体3に移行させることができる。当該作用は、第1エンボス部5が、血液滑性付与剤を含む場合により高くなる。
 なお、図2に示されるように、第1エンボス部が排泄口当接域を囲むように連続的に配置されている場合には、第1エンボス部の血液滑性付与剤の平均坪量が、排泄口当接域内のトップシートの血液滑性付与剤の坪量よりも小さいこと、例えば、(I)第1エンボス部が含む血液滑性付与剤の坪量が均一に小さいことにより第1エンボス部が含む血液滑性付与剤の平均坪量が小さいこと、(II)第1エンボス部が非連続的に血液滑性付与剤を含むことにより第1エンボス部が含む血液滑性付与剤の平均坪量が小さいこと、(III)第1エンボス部が肌当接面側に血液滑性付与剤を含むことにより第1エンボス部が含む血液滑性付与剤の平均坪量が小さいこと等が挙げられる。
 第1エンボス部が含む血液滑性付与剤の平均坪量が大きいと、排泄口当接域に到達した経血が、吸収体内部で、排泄口当接域の外に出にくくなり、結果的に吸収体の吸収容量が小さくなる場合があるからである。
 図1及び図2に示される生理用ナプキン1は、液透過性のトップシート2と、液不透過性のバックシートと、トップシート2及びバックシートの間の吸収体3とを有するが、本開示の吸収性物品の別のいくつかの実施形態では、吸収性物品が、トップシートと吸収体との間にセカンドシートをさらに有する。
 上記実施形態の1つでは、第1エンボス部が、トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成される。
 上記実施形態の1つでは、第2エンボス部が、トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成される。
 上記実施形態の1つでは、吸収性物品が第3エンボス部を含み、そして第3エンボス部が、トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成される。
 本開示の吸収性物品において、排泄口当接域内のトップシートと、第2エンボス部とが、それぞれ、上記血液滑性付与剤を、好ましくは約1~約30g/m2、より好ましくは約2~約20g/m2、そしてさらに好ましくは約3~約10g/m2の坪量の範囲で含む。上記坪量が、約1g/m2を下回ると、吸収した経血がトップシートに残存する、第2エンボス部が経血を跳ね返し、排泄口当接域の方向に押し戻す力が弱くなり、漏れやすくなる傾向があり、そして血液滑性付与剤の坪量が約30g/m2を超えると、着用中のべたべた感が増加する傾向がある。
 第1エンボス部及び所望による第3エンボス部は、所望により、上記血液滑性付与剤を、好ましくは約1~約30g/m2、より好ましくは約2~約20g/m2、そしてさらに好ましくは約3~約10g/m2の範囲で含む。血液滑性付与剤の坪量が、約1g/m2を下回ると、第1エンボス部及び所望による第3エンボス部に到達した経血を、排泄口当接域に跳ね返しにくくなる場合がある。血液滑性付与剤の坪量が約30g/m2を超えると、着用中のべたべた感が増加する傾向がある。
 本明細書において、「排泄口当接域」のサイズは、吸収性物品そのもののサイズ等によって異なるが、例えば、約50~約180mm、約80~約120mm等の吸収性物品の長手方向の長さと、例えば、約10~約60mm、約20~約40mm等の吸収性物品の幅方向の長さとが挙げられるであろう。
 血液滑性付与剤は、40℃において約0.01~約80mm2/sの動粘度を有するため、着用者の体温付近で非常に低粘度であり、そして約0.01~約4.0質量%の抱水率を有するため、経血と一定の親和性を有し、経血と一緒に、吸収体内部に移行する。
 また、血液滑性付与剤が、炭化水素部分からなる疎水性部分と、親水性を有する基(カルボニル基,オキシ基,カルボキシル基,ヒドロキシル基等の極性基)、親水性を有する結合(カルボニル結合,エステル結合,カーボネート結合,エーテル結合等の極性を有する結合)等から成る親水性部分とを有する場合には、血液滑性付与剤が、経血を滑落させる作用をまた有する。
 血液滑性付与剤の疎水性部分が、経血中の親水性成分(血漿等)を弾きつつ、血液滑性付与剤の親水性部分が、経血中の親水性成分(血漿等)を引き寄せるため、経血が容易に吸収体内部へと滑落する。
 さらに、血液滑性付与剤は、約0.01~約4.0質量%の抱水率を有し、経血中の、主に親水性成分(血漿等)との親和性が過度に高くないため、経血の一部をトップシート上に残存させにくい。
 さらに、血液滑性付与剤は、約0.01~約4.0質量%の抱水率を有し、そして所望により約0.00~約0.60のIOBを有するため、親油性度が高く、第1エンボス部及び所望による第3エンボス部が血液滑性付与剤を含む場合には、そこに到達した経血を、排泄口当接域に跳ね返す。
[血液滑性付与剤]
 本開示の吸収性物品では、血液滑性付与剤は、40℃における約0.01~約80mm2/sの動粘度と、約0.05~約4.0質量%の抱水率と、約1,000未満の重量平均分子量とを有する。
 上記血液滑性付与剤は、40℃において、約0~約80mm2/sの動粘度を有し、約1~約70mm2/sの動粘度を有することが好ましく、約3~約60mm2/sの動粘度を有することがより好ましく、約5~約50mm2/sの動粘度を有することがさらに好ましく、そして約7~約45mm2/sの動粘度を有することがさらに好ましい。
 上記動粘度は、a)血液滑性付与剤の分子量が大きくなるほど、b)極性基、例えば、カルボニル基(-CO-)、オキシ基(-O-)、カルボキシル基(-COOH)、ヒドロキシル基(-OH)等、極性を有する結合、例えば、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、エーテル結合(-O-)等の比率が高いほど、そしてc)後述のIOBが大きくなるほど、高くなる傾向がある。
 また、40℃において、約0~約80mm2/sの動粘度を有するためには、血液滑性付与剤の融点が45℃以下であることが好ましい。血液滑性付与剤が40℃で結晶を含むと、その動粘度が高くなる傾向があるからである。
 なお、本明細書では、40℃における動粘度を、単に「動粘度」と称する場合がある。
 上記動粘度が約80mm2/sを超えると、血液滑性付与剤の粘性が高く、トップシートの肌当接面に到達した経血と一緒に、吸収体内部に移行することが難しくなる傾向がある。
 上記動粘度は、JIS K 2283:2000の「5.動粘度試験方法」に従って、キャノンフェンスケ逆流形粘度計を用いて、40℃の試験温度で測定する。
 上記血液滑性付与剤は、約0.01~約4.0質量%の抱水率を有し、約0.02~約3.5質量%の抱水率を有することが好ましく、約0.03~約3.0質量%の抱水率を有することがより好ましく、約0.04~約2.5質量%の抱水率を有することがさらに好ましく、そして約0.05~約2.0質量%の抱水率を有することがさらに好ましい。
 本明細書において、「抱水率」は、物質が保持する水の比率を意味し、以下の通りに測定されうる。
(1)40℃の恒温室に、試験管、ゴム栓、測定すべき物質及び脱イオン水を一昼夜静置する。
(2)上記恒温室で、20mLの試験管に、測定すべき物質5.0gと、脱イオン水5.0gを投入する。
(3)上記恒温室で、試験管の口をゴム栓にて栓をし、1回転させ、5分間静置する。
(4)上記恒温室で、測定すべき物質の層(通常は、上層)3.0gを、直径90mmのガラス製シャーレ(質量:W0)に採取する。
(5)上記シャーレを、オーブン内で、105℃で3時間加熱し、水分を蒸発させ、シャーレごと、質量を測定する(質量:W1)。
(6)抱水率を、以下の式に従って算出する。
 抱水率(%)=100×(W0-W1)/3.0
 測定は3回実施し、平均値を採用する。
 上記抱水率の値が小さくなると、血液滑性付与剤と、経血との親和性が低下し、トップシートの肌当接面に到達した経血と共に移行しにくくなる傾向がある。一方、上記抱水率の値が大きくなると、界面活性剤のように、経血との親和性が非常に高くなり、トップシートの肌当接面に、吸収した経血が残存し、トップシートの肌当接面が赤く着色しやすくなる傾向がある。
 また、上記抱水率の値が大きくなると、経血との親和性が非常に高くなり、第2エンボス部に到達した経血を跳ね返し、排泄口当接域の方向に押し戻しにくくなる。
 さらに、上記抱水率の値が大きくなると、経血との親和性が非常に高くなり、第1エンボス部及び所望による第3エンボス部が血液滑性付与剤を含む場合に、経血を排泄口当接域内に跳ね返しにくくなる。
 上記抱水率は、a)血液滑性付与剤の分子量が小さくなるほど、そしてb)極性基、例えば、カルボニル基(-CO-)、オキシ基(-O-)、カルボキシル基(-COOH)、ヒドロキシル基(-OH)等、極性を有する結合、例えば、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、エーテル結合(-O-)等の比率が高いほど、値が大きくなる傾向がある。血液滑性付与剤が、より親水性を有するからである。また、抱水率は、IOBが大きくなるほど、すなわち、無機性値が高いほど、そして有機性値が小さいほど、値が大きくなる傾向がある。血液滑性付与剤が、より親水性を有することになるからである。
 上記血液滑性付与剤は、約1,000未満の重量平均分子量を有し、そして好ましくは約900未満の重量平均分子量を有する。上記重量平均分子量が約1,000以上であると、血液滑性付与剤そのものにタック性が生じ、着用者に不快感を与える傾向があるからである。また、重量平均分子量が高くなると、血液滑性付与剤の粘度が高くなる傾向があるため、加温により、血液滑性付与剤の粘度を、塗工に適した粘度に下げることが難しくなり、その結果、血液滑性付与剤を、溶媒で希釈しなければならない場合も生じうる。
 上記血液滑性付与剤は、約100以上の重量平均分子量を有することが好ましく、そして約200以上の重量平均分子量を有することがより好ましい。上記重量平均分子量が小さくなると、上記血液滑性付与剤の蒸気圧が高くなり、保存中に気化してその量が減少する、着用時に血液滑性付与剤の臭気がする等の問題が生ずる場合があるからである。
 なお、本明細書において、「重量平均分子量」は、多分散系の化合物(例えば、逐次重合により製造された化合物、複数の脂肪酸と、複数の脂肪族1価アルコールとから生成されたエステル)と、単一化合物(例えば、1種の脂肪酸と、1種の脂肪族1価アルコールから生成されたエステル)とを含む概念であり、Ni個の分子量Miの分子(i=1、又はi=1,2・・・)からなる系において、次の式:
 Mw=ΣNii 2/ΣNii
 により求められるMwを意味する。
 本明細書において、重量平均分子量は、ゲルパーミエーションクロマトグラフィー(GPC)により求められる、ポリスチレン換算の値を意味する。
 GPCの測定条件としては、例えば、以下が挙げられる。
 機種:(株)日立ハイテクノロジーズ製 高速液体クロマトグラム Lachrom Elite
 カラム:昭和電工(株)製 SHODEX KF-801、KF-803及びKF-804
 溶離液:THF
 流量 :1.0mL/分
 打込み量:100μL
 検出:RI(示差屈折計)
 なお、本明細書の実施例に記載される重量平均分子量は、上記条件により測定したものである。
 上記血液滑性付与剤は、約0.00~約0.60のIOBを有することができる。
 IOB(Inorganic Organic Balance)は、親水性及び親油性のバランスを示す指標であり、本明細書では、小田らによる次式:
 IOB=無機性値/有機性値
 により算出される値を意味する。
 上記無機性値と、有機性値とは、藤田穆「有機化合物の予測と有機概念図」化学の領域Vol.11,No.10(1957)p.719-725)に記載される有機概念図に基づく。
 藤田氏による、主要な基の有機性値及び無機性値を、下記表1にまとめる。
Figure JPOXMLDOC01-appb-T000001
 例えば、炭素数14のテトラデカン酸と、炭素数12のドデシルアルコールとのエステルの場合には、有機性値が520(CH2,20×26個)、無機性値が60(-COOR,60×1個)となるため、IOB=0.12となる。
 上記血液滑性付与剤において、IOBは、約0.00~約0.60であることが好ましく、約0.00~約0.50であることがより好ましく、約0.00~約0.40であることがさらに好ましく、そして約0.00~約0.30であることがさらに好ましい。IOBが上述の範囲にあると、上記抱水力及び動粘度が、上述の要件を満たしやすくなるからである。
 また、上記IOBの値が大きくなると、経血との親和性が非常に高くなり、第2エンボス部に到達した経血を、排泄口当接域に跳ね返しにくくなる。
 さらに、上記IOBの値が大きくなると、経血との親和性が非常に高くなり、第1エンボス部及び所望による第3エンボス部が血液滑性付与剤を含む場合に、経血を排泄口当接域内に跳ね返しにくくなる。
 上記血液滑性付与剤は、約45℃以下の融点を有することが好ましく、そして約40℃以下の融点を有することがより好ましい。血液滑性付与剤が約45℃以下の融点を有することにより、上記血液滑性付与剤が、上述の範囲の動粘度を有しやすくなるからである。
 本明細書において、「融点」は、示差走査熱量分析計において、昇温速度10℃/分で測定した場合の、固形状から液状に変化する際の吸熱ピークのピークトップ温度を意味する。上記融点は、例えば、島津製作所社製のDSC-60型DSC測定装置を用いて測定することができる。
 上記血液滑性付与剤は、約45℃以下の融点を有すれば、室温(約25℃)で液体であっても、又は固体であってもよい、すなわち、融点が約25℃以上でも、又は約25℃未満でもよく、そして例えば、約-5℃、約-20℃等の融点を有することができる。
 上記血液滑性付与剤は、その融点に下限は存在しないが、その蒸気圧が低いことが好ましい。上記血液滑性付与剤の蒸気圧は、25℃(1気圧)で約0~約200Paであることが好ましく、約0~約100Paであることがより好ましく、約0~約10Paであることがさらに好ましく、約0~約1Paであることがさらにいっそう好ましく、そして約0.0~約0.1Paであることがさらにいっそう好ましい。
 本開示の吸収性物品が、人体に接して用いられることを考慮すると、上記蒸気圧は、1気圧及び40℃で約0~約700Paであることが好ましく、約0~約100Paであることがより好ましく、そして約0~約10Paであることがさらに好ましく、約0~約1Paであることがさらにいっそう好ましく、そして約0.0~約0.1Paであることがさらにいっそう好ましい。上記血液滑性付与剤の蒸気圧が高いと、保存中に気化し、その量の減少、着用時の臭気等の問題が発生する場合があるからである。
 また、上記血液滑性付与剤の融点を、気候、着用時間の長さ等に応じて選択することができる。例えば、平均気温が約10℃以下の地域では、約10℃以下の融点を有する血液滑性付与剤を採用することにより、経血が排泄された後、周囲温度によって冷却された場合であっても、血液滑性付与剤が機能しやすい。
 また、吸収性物品が長時間にわたって使用される場合には、血液滑性付与剤の融点は、約45℃以下の範囲で高い方が好ましい。汗、着用時の摩擦等の影響を受けにくく、長時間着用した場合であっても、血液滑性付与剤が偏りにくいからである。
 当技術分野では、経血の表面張力等を変化させ、経血を迅速に吸収することを目的として、トップシートの肌当接面を、界面活性剤でコーティングすることが行われている。しかし、界面活性剤がコーティングされたトップシートは、経血中の親水性成分(血漿等)と親和性が非常に高く、それらを引き寄せ、むしろ経血をトップシートに残存させるようにはたらく傾向がある。上記血液滑性付与剤は、従来公知の界面活性剤と異なり、経血と親和性が過度に高くなく、経血をトップシートに残存させず、迅速に吸収体に移行させることができる。
 上記血液滑性付与剤は、好ましくは、次の(i)~(iii)、
 (i)炭化水素、
 (ii) (ii-1)炭化水素部分と、(ii-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル基(-CO-)及びオキシ基(-O-)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、及び
 (iii) (iii-1)炭化水素部分と、(iii-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル基(-CO-)及びオキシ基(-O-)から成る群から選択される、一又は複数の、同一又は異なる基と、(iii-3)上記炭化水素部分の水素原子を置換する、カルボキシル基(-COOH)及びヒドロキシル基(-OH)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、
 並びにそれらの任意の組み合わせから成る群から選択される。
 本明細書において、「炭化水素」は、炭素と水素とから成る化合物を意味し、鎖状炭化水素、例えば、パラフィン系炭化水素(二重結合及び三重結合を含まない、アルカンとも称される)、オレフィン系炭化水素(二重結合を1つ含む、アルケンとも称される)、アセチレン系炭化水素(三重結合を1つ含む、アルキンとも称される)、及び二重結合及び三重結合から成る群から選択される結合を2つ以上含む炭化水素、並びに環状炭化水素、例えば、芳香族炭化水素、脂環式炭化水素が挙げられる。
 上記炭化水素としては、鎖状炭化水素及び脂環式炭化水素であることが好ましく、鎖状炭化水素であることがより好ましく、パラフィン系炭化水素、オレフィン系炭化水素、及び二重結合を2つ以上含む炭化水素(三重結合を含まない)であることがさらに好ましく、そしてパラフィン系炭化水素であることがさらに好ましい。
 上記鎖状炭化水素には、直鎖状炭化水素及び分岐鎖状炭化水素が含まれる。
 上記(ii)及び(iii)の化合物において、オキシ基(-O-)が2つ以上挿入されている場合には、各オキシ基(-O-)は隣接していない。従って、上記(ii)及び(iii)の化合物には、オキシ基が連続する化合物(いわゆる、過酸化物)は含まれない。
 また、上記(iii)の化合物では、炭化水素部分の少なくとも1つの水素原子がカルボキシル基(-COOH)で置換された化合物よりも、炭化水素部分の少なくとも1つの水素原子が、ヒドロキシル基(-OH)で置換された化合物の方が好ましい。カルボキシル基は、経血中の金属等と結合し、血液滑性付与剤の抱水率が高くなり、所定の範囲を超える場合があるからである。これは、IOBの観点からも同様である。表1に示すように、カルボキシル基は、経血中の金属等と結合し、無機性値が150から、400以上へと大幅に上昇するため、カルボキシル基を有する血液滑性付与剤は、使用時にIOBの値が約0.60を上回る場合がありうる。
 上記血液滑性付与剤は、より好ましくは、次の(i’)~(iii’)、
 (i’)炭化水素、
 (ii’) (ii’-1)炭化水素部分と、(ii’-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、及びエーテル結合(-O-)から成る群から選択される、一又は複数の、同一又は異なる結合とを有する化合物、及び
 (iii’) (iii’-1)炭化水素部分と、(iii’-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、及びエーテル結合(-O-)から成る群から選択される、一又は複数の、同一又は異なる結合と、(iii’-3)上記炭化水素部分の水素原子を置換する、カルボキシル基(-COOH)及びヒドロキシル基(-OH)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、
 並びにそれらの任意の組み合わせから成る群から選択される。
 上記(ii’)及び(iii’)の化合物において、2以上の同一又は異なる結合が挿入されている場合、すなわち、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)及びエーテル結合(-O-)から選択される2以上の同一又は異なる結合が挿入されている場合には、各結合は隣接しておらず、各結合の間には、少なくとも、炭素原子が1つ介在する。
 上記血液滑性付与剤は、さらに好ましくは、炭化水素部分に、炭素原子10個当たり、カルボニル結合(-CO-)を約1.8個以下、エステル結合(-COO-)を2個以下、カーボネート結合(-OCOO-)を約1.5個以下、エーテル結合(-O-)を約6個以下、カルボキシル基(-COOH)を約0.8個以下、そして/又はヒドロキシル基(-OH)を約1.2個以下有することができる。
 上記血液滑性付与剤は、さらに好ましくは、次の(A)~(F)、
 (A) (A1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(A2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のカルボキシル基とを有する化合物とのエステル、
 (B) (B1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(B2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエーテル、
 (C) (C1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する、2~4個のカルボキシル基とを含むカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、(C2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエステル、
 (D)鎖状炭化水素部分と、上記鎖状炭化水素部分のC-C単結合間に挿入された、エーテル結合(-O-)、カルボニル結合(-CO-)、エステル結合(-COO-)、及びカーボネート結合(-OCOO-)から成る群から選択されるいずれか1つの結合とを有する化合物、
 (E)ポリオキシC3~C6アルキレングリコール、又はそのアルキルエステル若しくはアルキルエーテル、及び
 (F)鎖状炭化水素、
 並びにそれらの任意の組み合わせから成る群から選択される。
 以下、(A)~(F)に従う血液滑性付与剤について詳細に説明する。
[(A) (A1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(A2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のカルボキシル基とを有する化合物とのエステル]
 (A)(A1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(A2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のカルボキシル基とを有する化合物とのエステル(以下、「化合物(A)」と称する場合がある)は、上述の動粘度、抱水率及び重量平均分子量を有する限り、全てのヒドロキシル基がエステル化されていなくともよい。
 (A1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物(以下、「化合物(A1)」と称する場合がある)としては、例えば、鎖状炭化水素テトラオール、例えば、アルカンテトラオール、例えば、ペンタエリトリトール、鎖状炭化水素トリオール、例えば、アルカントリオール、例えば、グリセリン、及び鎖状炭化水素ジオール、例えば、アルカンジオール、例えば、グリコールが挙げられる。
 (A2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のカルボキシル基とを有する化合物としては、例えば、炭化水素上の1つの水素原子が、1つのカルボキシル基(-COOH)で置換された化合物、例えば、脂肪酸が挙げられる。
 化合物(A)としては、例えば、(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル、(a2)鎖状炭化水素トリオールと少なくとも1の脂肪酸とのエステル、及び(a3)鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステルが挙げられる。
[(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル]
 上記鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステルとしては、例えば、次の式(1):
Figure JPOXMLDOC01-appb-C000002
 のペンタエリトリトールと脂肪酸とのテトラエステル、次の式(2):
Figure JPOXMLDOC01-appb-C000003
 のペンタエリトリトールと脂肪酸とのトリエステル、次の式(3):
Figure JPOXMLDOC01-appb-C000004
 のペンタエリトリトールと脂肪酸とのジエステル、次の式(4):
Figure JPOXMLDOC01-appb-C000005
 のペンタエリトリトールと脂肪酸とのモノエステルが挙げられる。
 (式中、R1~R4は、それぞれ、鎖状炭化水素である)
 上記ペンタエリトリトールと脂肪酸とのエステルを構成する脂肪酸(R1COOH、R2COOH,R3COOH,及びR4COOH)としては、ペンタエリトリトールと脂肪酸とのエステルが、上記動粘度、抱水率及び重量平均分子量の要件を満たすものであれば、特に制限されないが、例えば、飽和脂肪酸、例えば、C2~C30の飽和脂肪酸、例えば、酢酸(C2)(C2は、炭素数を示し、R1C、R2C,R3C又はR4Cの炭素数に相当する、以下同じ)、プロパン酸(C3)、ブタン酸(C4)及びその異性体、例えば、2-メチルプロパン酸(C4)、ペンタン酸(C5)及びその異性体、例えば、2-メチルブタン酸(C5)、2,2-ジメチルプロパン酸(C5)、ヘキサン酸(C6)、ヘプタン酸(C7)、オクタン酸(C8)及びその異性体、例えば、2-エチルヘキサン酸(C8)、ノナン酸(C9)、デカン酸(C10)、ドデカン酸(C12)、テトラデカン酸(C14)、ヘキサデカン酸(C16)、ヘプタデカン酸(C17)、オクタデカン酸(C18)、エイコサン酸(C20)、ドコサン酸(C22)、テトラコサン酸(C24)、ヘキサコサン酸(C26)、オクタコサン酸(C28)、トリアコンタン酸(C30)等、並びに列挙されていないこれらの異性体が挙げられる。
 上記脂肪酸はまた、不飽和脂肪酸であることができる。上記不飽和脂肪酸としては、例えば、C3~C20の不飽和脂肪酸、例えば、モノ不飽和脂肪酸、例えば、クロトン酸(C4)、ミリストレイン酸(C14)、パルミトレイン酸(C16)、オレイン酸(C18)、エライジン酸(C18)、バクセン酸(C18)、ガドレイン酸(C20)、エイコセン酸(C20)等、ジ不飽和脂肪酸、例えば、リノール酸(C18)、エイコサジエン酸(C20)等、トリ不飽和脂肪酸、例えば、リノレン酸、例えば、α-リノレン酸(C18)及びγ-リノレン酸(C18)、ピノレン酸(C18)、エレオステアリン酸、例えば、α-エレオステアリン酸(C18)及びβ-エレオステアリン酸(C18)、ミード酸(C20)、ジホモ-γ-リノレン酸(C20)、エイコサトリエン酸(C20)等、テトラ不飽和脂肪酸、例えば、ステアリドン酸(C20)、アラキドン酸(C20)、エイコサテトラエン酸(C20)等、ペンタ不飽和脂肪酸、例えば、ボセオペンタエン酸(C18)、エイコサペンタエン酸(C20)等、並びにこれらの部分水素付加物が挙げられる。
 上記ペンタエリトリトールと脂肪酸とのエステルとしては、酸化等により変性する可能性を考慮すると、飽和脂肪酸に由来する、ペンタエリトリトールと脂肪酸とのエステル、すなわち、ペンタエリトリトールと飽和脂肪酸とのエステルであることが好ましい。
 また、上記ペンタエリトリトールと脂肪酸とのエステルとしては、抱水率の値を小さくする観点から、ジエステル、トリエステル又はテトラエステルであることが好ましく、トリエステル又はテトラエステルであることがより好ましく、そしてテトラエステルであることがさらに好ましい。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪酸とのテトラエステルでは、ペンタエリトリトールと脂肪酸とのテトラエステルを構成する脂肪酸の炭素数の合計、すなわち、上記式(1)において、R1C、R2C、R3C及びR4C部分の炭素数の合計が、約15であることが好ましい(上記炭素数の合計が15の場合に、IOBが0.60となる)。
 上記ペンタエリトリトールと脂肪酸とのテトラエステルでは、例えば、ペンタエリトリトールと、ヘキサン酸(C6)、ヘプタン酸(C7)、オクタン酸(C8)、例えば、2-エチルヘキサン酸(C8)、ノナン酸(C9)、デカン酸(C10)及び/又はドデカン酸(C12)とのテトラエステルが挙げられる。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪酸とのトリエステルでは、ペンタエリトリトールと脂肪酸とのトリエステルを構成する脂肪酸の炭素数の合計、すなわち、上記式(2)において、R1C、R2C及びR3C部分の炭素数の合計が、約19以上であることが好ましい(上記炭素数の合計が19の場合に、IOBが0.58となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪酸とのジエステルでは、ペンタエリトリトールと脂肪酸とのジエステルを構成する脂肪酸の炭素数の合計、すなわち、上記式(3)において、R1C及びR2C部分の炭素数の合計が、約22以上であることが好ましい(上記炭素数の合計が22の場合に、IOBが0.59となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪酸とのモノエステルでは、ペンタエリトリトールと脂肪酸とのモノエステルを構成する脂肪酸の炭素数、すなわち、上記式(4)において、R1C部分の炭素数が、約25以上であることが好ましい(上記炭素数が25の場合に、IOBが0.60となる)。
 なお、上記IOBの計算に当たっては、二重結合、三重結合、iso分岐、及びtert分岐の影響は、考慮していない(以下、同様である)。
 上記ペンタエリトリトールと脂肪酸とのエステルの市販品としては、ユニスター H-408BRS、H-2408BRS-22(混合品)等(以上、日油株式会社製)が挙げられる。
[(a2)鎖状炭化水素トリオールと少なくとも1の脂肪酸とのエステル]
 上記鎖状炭化水素トリオールと少なくとも1の脂肪酸とのエステルとしては、例えば、次の式(5):
Figure JPOXMLDOC01-appb-C000006
 のグリセリンと脂肪酸とのトリエステル、次の式(6):
Figure JPOXMLDOC01-appb-C000007
 のグリセリンと脂肪酸とのジエステル、及び次の式(7):
Figure JPOXMLDOC01-appb-C000008
 (式中、R5~R7は、それぞれ、鎖状炭化水素である)
 のグリセリンと脂肪酸とのモノエステルが挙げられる。
 上記グリセリンと脂肪酸とのエステルを構成する脂肪酸(R5COOH、R6COOH及びR7COOH)としては、グリセリンと脂肪酸とのエステルが、上記動粘度、抱水率及び重量平均分子量の要件を満たすものであれば、特に制限されず、例えば、「(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル」において列挙される脂肪酸、すなわち、飽和脂肪酸及び不飽和脂肪酸が挙げられ、酸化等により変性する可能性を考慮すると、飽和脂肪酸に由来する、グリセリンと脂肪酸とのエステル、すなわち、グリセリンと飽和脂肪酸とのエステルであることが好ましい。
 また、上記グリセリンと脂肪酸とのエステルとしては、抱水率の値を小さくする観点から、ジエステル又はトリエステルであることが好ましく、そしてトリエステルであることがより好ましい。
 上記グリセリンと脂肪酸とのトリエステルは、トリグリセリドとも称され、例えば、グリセリンとオクタン酸(C8)とのトリエステル、グリセリンとデカン酸(C10)とのトリエステル、グリセリンとドデカン酸(C12)とのトリエステル、及びグリセリンと、2種又は3種の脂肪酸とのトリエステル、並びにこれらの混合物が挙げられる。
 上記グリセリンと、2種以上の脂肪酸とのトリエステルとしては、例えば、グリセリンと、オクタン酸(C8)及びデカン酸(C10)とのトリエステル、グリセリンと、オクタン酸(C8)、デカン酸(C10)及びドデカン酸(C12)とのトリエステル、グリセリンと、オクタン酸(C8)、デカン酸(C10)、ドデカン酸(C12)、テトラデカン酸(C14)、ヘキサデカン酸(C16)及びオクタデカン酸(C18)とのトリエステル等が挙げられる。
 融点を約45℃以下とする観点から考察すると、上記グリセリンと脂肪酸とのトリエステルは、グリセリンと脂肪酸とのトリエステルを構成する脂肪酸の炭素数の合計、すなわち、式(5)において、R5C、R6C及びR7C部分の炭素数の合計が、約40以下であることが好ましい。
 IOBを約0.00~約0.60とする観点から考察すると、上記グリセリンと脂肪酸とのトリエステルでは、グリセリンと脂肪酸とのトリエステルを構成する脂肪酸の炭素数の合計、すなわち、式(5)において、R5C、R6C及びR7C部分の炭素数の合計が、約12以上であることが好ましい(炭素数の合計が12の場合に、IOBが0.60となる)。
 上記グリセリンと脂肪酸とのトリエステルは、いわゆる、脂肪であり、人体を構成しうる成分であるため、安全性の観点から好ましい。
 上記グリセリンと脂肪酸とのトリエステルの市販品としては、トリヤシ油脂肪酸グリセリド、NA36、パナセート800、パナセート800B及びパナセート810S、並びにトリC2L油脂肪酸グリセリド及びトリCL油脂肪酸グリセリド(以上、日油株式会社製)等が挙げられる。
 上記グリセリンと脂肪酸とのジエステルは、ジグリセリドとも称され、例えば、グリセリンとデカン酸(C10)とのジエステル、グリセリンとドデカン酸(C12)とのジエステル、グリセリンとヘキサデカン酸(C16)とのジエステル、及びグリセリンと、2種の脂肪酸とのジエステル、並びにこれらの混合物が挙げられる。
 IOBを約0.00~約0.60とする観点から考察すると、上記グリセリンと脂肪酸とのジエステルでは、グリセリンと脂肪酸とのジエステルを構成する脂肪酸の炭素数の合計、すなわち、式(6)において、R5C及びR6C部分の炭素数の合計が、約16以上であることが好ましい(上記炭素数の合計が16の場合にIOBが0.58となる)。
 上記グリセリンと脂肪酸とのモノエステルは、モノグリセリドとも称され、例えば、グリセリンのオクタデカン酸(C18)モノエステル、グリセリンのドコサン酸(C22)モノエステル等が挙げられる。
 IOBを約0.00~約0.60とする観点から考察すると、上記グリセリンと脂肪酸とのモノエステルでは、グリセリンと脂肪酸とのモノエステルを構成する脂肪酸の炭素数、すなわち、式(7)において、R5C部分の炭素数が、約19以上であることが好ましい(上記炭素数が19の場合に、IOBが0.59となる)。
[(a3)鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステル]
 上記鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステルとしては、例えば、C2~C6の鎖状炭化水素ジオール、例えば、C2~C6のグリコール、例えば、エチレングリコール、プロピレングリコール、ブチレングリコール、ペンチレングリコール又はヘキシレングリコールと、脂肪酸とのモノエステル又はジエステルが挙げられる。
 具体的には、上記鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステルとしては、例えば、次の式(8):
 R8COOCk2kOCOR9 (8)
 (式中、kは、2~6の整数であり、そしてR8及びR9は、それぞれ、鎖状炭化水素である)
 のC2~C6グリコールと脂肪酸とのジエステル、及び次の式(9):
 R8COOCk2kOH (9)
 (式中、kは、2~6の整数であり、そしてR8は、鎖状炭化水素である)
 のC2~C6グリコールと脂肪酸とのモノエステルが挙げられる。
 上記C2~C6グリコールと脂肪酸とのエステルにおいて、エステル化すべき脂肪酸(式(8)及び式(9)において、R8COOH及びR9COOHに相当する)としては、C2~C6グリコールと脂肪酸とのエステルが、上記動粘度、抱水率及び重量平均分子量の要件を満たすものであれば、特に制限されず、例えば、「(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル」において列挙されている脂肪酸、すなわち、飽和脂肪酸及び不飽和脂肪酸が挙げられ、酸化等により変性する可能性を考慮すると、飽和脂肪酸が好ましい。
 IOBを約0.00~約0.60とする観点から考察すると、式(8)に示されるブチレングリコール(k=4)と脂肪酸とのジエステルでは、R8C及びR9C部分の炭素数の合計が、約6以上であることが好ましい(上記炭素数の合計が6の場合に、IOBが0.60となる)。
 IOBを約0.00~約0.60とする観点から考察すると、式(9)に示されるエチレングリコール(k=2)と脂肪酸とのモノエステルでは、R8C部分の炭素数が、約12以上であることが好ましい(上記炭素数が12の場合に、IOBが0.57となる)。
 上記C2~C6グリコールと脂肪酸とのエステルとしては、酸化等により変性する可能性を考慮すると、飽和脂肪酸に由来する、C2~C6グリコールと脂肪酸とのエステル、すわなち、C2~C6グリコールと飽和脂肪酸とのエステルであることが好ましい。
 また、上記C2~C6グリコールと脂肪酸とのエステルとしては、抱水率の値を小さくする観点から、炭素数の大きいグリコールに由来する、グリコールと脂肪酸とのエステル、例えば、ブチレングリコール、ペンチレングリコール又はヘキシレングリコールに由来するグリコールと脂肪酸とのエステルであることが好ましい。
 さらに、上記C2~C6グリコールと脂肪酸とのエステルとしては、抱水率の値を小さくする観点から、ジエステルであることが好ましい。
 上記C2~C6グリコールと脂肪酸とのエステルの市販品としては、例えば、コムポールBL、コムポールBS(以上、日油株式会社製)等が挙げられる。
[(B) (B1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(B2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエーテル]
 (B) (B1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(B2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエーテル(以下、「化合物(B)」と称する場合がある)は、上述の動粘度、抱水率及び重量平均分子量を有する限り、全てのヒドロキシル基がエーテル化されていなくともよい。
 (B1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物(以下、「化合物(B1)」と称する場合がある)としては、「化合物(A)」において化合物(A1)として列挙されるもの、例えば、ペンタエリトリトール、グリセリン、及びグリコールが挙げられる。
 (B2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物(以下、「化合物(B2)」と称する場合がある)としては、例えば、炭化水素の1個の水素原子が、1個のヒドロキシル基(-OH)で置換された化合物、例えば、脂肪族1価アルコール、例えば、飽和脂肪族1価アルコール及び不飽和脂肪族1価アルコールが挙げられる。
 上記飽和脂肪族1価アルコールとしては、例えば、C1~C20の飽和脂肪族1価アルコール、例えば、メチルアルコール(C1)(C1は、炭素数を示す、以下同じ)、エチルアルコール(C2)、プロピルアルコール(C3)及びその異性体、例えば、イソプロピルアルコール(C3)、ブチルアルコール(C4)及びその異性体、例えば、sec-ブチルアルコール(C4)及びtert-ブチルアルコール(C4)、ペンチルアルコール(C5)、ヘキシルアルコール(C6)、ヘプチルアルコール(C7)、オクチルアルコール(C8)及びその異性体、例えば、2-エチルヘキシルアルコール(C8)、ノニルアルコール(C9)、デシルアルコール(C10)、ドデシルアルコール(C12)、テトラデシルアルコール(C14)、ヘキサデシルアルコール(C16)、へプラデシルアルコール(C17)、オクタデシルアルコール(C18)、及びエイコシルアルコール(C20)、並びに列挙されていないこれらの異性体が挙げられる。
 上記不飽和脂肪族1価アルコールとしては、上記飽和脂肪族1価アルコールのC-C単結合の1つを、C=C二重結合で置換したもの、例えば、オレイルアルコールが挙げられ、例えば、新日本理化株式会社から、リカコールシリーズ及びアンジェコオールシリーズの名称で市販されている。
 化合物(B)としては、例えば、(b1)鎖状炭化水素テトラオールと少なくとも1の脂肪族1価アルコールとのエーテル、例えば、モノエーテル、ジエーテル、トリエーテル及びテトラエーテル、好ましくはジエーテル、トリエーテル及びテトラエーテル、より好ましくはトリエーテル及びテトラエーテル、そしてさらに好ましくはテトラエーテル、(b2)鎖状炭化水素トリオールと少なくとも1の脂肪族1価アルコールとのエーテル、例えば、モノエーテル、ジエーテル及びトリエーテル、好ましくはジエーテル及びトリエーテル、そしてより好ましくはトリエーテル、並びに(b3)鎖状炭化水素ジオールと少なくとも1の脂肪族1価アルコールとのエーテル、例えば、モノエーテル及びジエーテル、そして好ましくはジエーテルが挙げられる。
 上記鎖状炭化水素テトラオールと少なくとも1の脂肪族1価アルコールとのエーテルとしては、例えば、次の式(10)~(13):
Figure JPOXMLDOC01-appb-C000009
 (式中、R10~R13は、それぞれ、鎖状炭化水素である。)
 の、ペンタエリトリトールと脂肪族1価アルコールとのテトラエーテル、トリエーテル、ジエーテル及びモノエーテルが挙げられる。
 上記鎖状炭化水素トリオールと少なくとも1の脂肪族1価アルコールとのエーテルとしては、例えば、次の式(14)~(16):
Figure JPOXMLDOC01-appb-C000010
 (式中、R14~R16は、それぞれ、鎖状炭化水素である。)
 の、グリセリンと脂肪族1価アルコールとのトリエーテル、ジエーテル及びモノエーテルが挙げられる。
 上記鎖状炭化水素ジオールと少なくとも1の脂肪族1価アルコールとのエーテルとしては、次の式(17):
 R17OCn2nOR18 (17)
 (式中、nは、2~6の整数であり、そしてR17及びR18は、それぞれ、鎖状炭化水素である)
 のC2~C6グリコールと脂肪族1価アルコールとのジエーテル、及び次の式(18):
 R17OCn2nOH (18)
 (式中、nは、2~6の整数であり、そしてR17は、鎖状炭化水素である)
 のC2~C6グリコールと脂肪族1価アルコールとのモノエーテルが挙げられる。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪族1価アルコールとのテトラエーテルでは、ペンタエリトリトールと脂肪族1価アルコールとのテトラエーテルを構成する脂肪族1価アルコールの炭素数の合計、すなわち、上記式(10)において、R10、R11、R12及びR13部分の炭素数の合計が、約4以上であることが好ましい(上記炭素数の合計が4の場合に、IOBが0.44となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪族1価アルコールとのトリエーテルでは、ペンタエリトリトールと脂肪族1価アルコールとのトリエーテルを構成する脂肪族1価アルコールの炭素数の合計、すなわち、上記式(11)において、R10、R11及びR12部分の炭素数の合計が、約9以上であることが好ましい(上記炭素数の合計が9の場合に、IOBが0.57となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪族1価アルコールとのジエーテルでは、ペンタエリトリトールと脂肪族1価アルコールとのジエーテルを構成する脂肪族1価アルコールの炭素数の合計、すなわち、上記式(12)において、R10及びR11部分の炭素数の合計が、約15以上であることが好ましい(上記炭素数の合計が15の場合に、IOBが0.60となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記ペンタエリトリトールと脂肪族1価アルコールとのモノエーテルでは、ペンタエリトリトールと脂肪族1価アルコールとのモノエーテルを構成する脂肪族1価アルコールの炭素数、すなわち、上記式(13)において、R10部分の炭素数が、約22以上であることが好ましい(上記炭素数が22の場合に、IOBが0.59となる)。
 また、IOBを約0.00~約0.60とする観点から考察すると、上記グリセリンと脂肪族1価アルコールとのトリエーテルでは、グリセリンと脂肪族1価アルコールとのトリエーテルを構成する脂肪族1価アルコールの炭素数の合計、すなわち、式(14)において、R14、R15及びR16部分の炭素数の合計が、約3以上であることが好ましい(上記炭素数の合計が3の場合に、IOBが0.50となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記グリセリンと脂肪族1価アルコールとのジエーテルでは、グリセリンと脂肪族1価アルコールとのジエーテルを構成する脂肪族1価アルコールの炭素数の合計、すなわち、式(15)において、R14及びR15部分の炭素数の合計が、約9以上であることが好ましい(上記炭素数の合計が9の場合に、IOBが0.58となる)。
 IOBを約0.00~約0.60とする観点から考察すると、上記グリセリンと脂肪族1価アルコールとのモノエーテルでは、グリセリンと脂肪族1価アルコールとのモノエーテルを構成する脂肪族1価アルコールの炭素数、すなわち、式(16)において、R14部分の炭素数が、約16以上であることが好ましい(上記炭素数が16の場合に、IOBが0.58となる)。
 IOBを約0.00~約0.60とする観点から考察すると、式(17)に示されるブチレングリコール(n=4)と脂肪族1価アルコールとのジエーテルでは、R17及びR18部分の炭素数の合計が、約2以上であることが好ましい(上記炭素数の合計が2の場合に、IOBが0.33となる)。
 また、IOBを約0.00~約0.60とする観点から考察すると、式(18)に示されるエチレングリコール(n=2)と脂肪族1価アルコールとのモノエーテルでは、R17部分の炭素数が、約8以上であることが好ましい(上記炭素数が8の場合に、IOBが0.60となる)。
 化合物(B)としては、化合物(B1)と、化合物(B2)とを、酸触媒の存在下で、脱水縮合することにより生成することができる。
[(C) (C1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する、2~4個のカルボキシル基とを含むカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、(C2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエステル]
 (C) (C1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する、2~4個のカルボキシル基とを含むカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、(C2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエステル(以下、「化合物(C)」と称する場合がある)は、上述の動粘度、抱水率及び重量平均分子量を有する限り、全てのカルボキシル基がエステル化されていなくともよい。
 (C1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する、2~4個のカルボキシル基とを含むカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸(以下、「化合物(C1)」と称する場合がある)としては、例えば、2~4個のカルボキシル基を有する鎖状炭化水素カルボン酸、例えば、鎖状炭化水素ジカルボン酸、例えば、アルカンジカルボン酸、例えば、エタン二酸、プロパン二酸、ブタン二酸、ペンタン二酸、ヘキサン二酸、ヘプタン二酸、オクタン二酸、ノナン二酸及びデカン二酸、鎖状炭化水素トリカルボン酸、例えば、アルカントリカルボン酸、例えば、プロパン三酸、ブタン三酸、ペンタン三酸、ヘキサン三酸、ヘプタン三酸、オクタン三酸、ノナン三酸及びデカン三酸、並びに鎖状炭化水素テトラカルボン酸、例えば、アルカンテトラカルボン酸、例えば、ブタン四酸、ペンタン四酸、ヘキサン四酸、ヘプタン四酸、オクタン四酸、ノナン四酸及びデカン四酸が挙げられる。
 また、化合物(C1)には、2~4個のカルボキシル基を有する鎖状炭化水素ヒドロキシ酸、例えば、リンゴ酸、酒石酸、クエン酸、イソクエン酸等、2~4個のカルボキシル基を有する鎖状炭化水素アルコキシ酸、例えば、O-アセチルクエン酸、及び2~4個のカルボキシル基を有する鎖状炭化水素オキソ酸が含まれる。
 (C2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物としては、「化合物(B)」の項で列挙されるもの、例えば、脂肪族1価アルコールが挙げられる。
 化合物(C)としては、(c1)4個のカルボキシル基を有する鎖状炭化水素テトラカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、例えば、モノエステル、ジエステル、トリエステル及びテトラエステル、好ましくはジエステル、トリエステル及びテトラエステル、より好ましくはトリエステル及びテトラエステル、そしてさらに好ましくはテトラエステル、(c2)3個のカルボキシル基を有する鎖状炭化水素トリカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、例えば、モノエステル、ジエステル及びトリエステル、好ましくはジエステル及びトリエステル、そしてより好ましくはトリエステル、並びに(c3)2個のカルボキシル基を有する鎖状炭化水素ジカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、例えば、モノエステル及びジエステル、好ましくはジエステルが挙げられる。
 化合物(C)の例としては、アジピン酸ジオクチル、O-アセチルクエン酸トリブチル等が挙げられ、そして市販されている。
[(D)鎖状炭化水素部分と、上記鎖状炭化水素部分のC-C単結合間に挿入された、エーテル結合(-O-)、カルボニル結合(-CO-)、エステル結合(-COO-)、及びカーボネート結合(-OCOO-)から成る群から選択されるいずれか1つの結合とを有する化合物]
 (D)鎖状炭化水素部分と、上記鎖状炭化水素部分のC-C単結合間に挿入された、エーテル結合(-O-)、カルボニル結合(-CO-)、エステル結合(-COO-)、及びカーボネート結合(-OCOO-)から成る群から選択されるいずれか1つの結合とを有する化合物(以下、「化合物(D)」と称する場合がある)としては、(d1)脂肪族1価アルコールと脂肪族1価アルコールとのエーテル、(d2)ジアルキルケトン、(d3)脂肪酸と脂肪族1価アルコールとのエステル、及び(d4)ジアルキルカーボネートが挙げられる。
[(d1)脂肪族1価アルコールと脂肪族1価アルコールとのエーテル]
 上記脂肪族1価アルコールと脂肪族1価アルコールとのエーテルとしては、次の式(19):
 R19OR20  (19)
 (式中、R19及びR20は、それぞれ、鎖状炭化水素である)
 を有する化合物が挙げられる。
 上記エーテルを構成する脂肪族1価アルコール(式(19)において、R19OH及びR20OHに相当する)としては、上記エーテルが、上述の動粘度、抱水率及び重量平均分子量の要件を満たすものであれば、特に制限されず、例えば、「化合物(B)」の項で列挙される脂肪族1価アルコールが挙げられる。
[(d2)ジアルキルケトン]
 上記ジアルキルケトンとしては、次の式(20):
 R21COR22  (20)
 (式中、R21及びR22は、それぞれ、アルキル基である)
 を有する化合物が挙げられる。
 上記ジアルキルケトンは、市販されている他、公知の方法、例えば、第二級アルコールを、クロム酸等で酸化することにより得ることができる。
[(d3)脂肪酸と脂肪族1価アルコールとのエステル]
 上記脂肪酸と脂肪族1価アルコールとのエステルとしては、例えば、次の式(21):
 R23COOR24 (21)
 (式中、R23及びR24は、それぞれ、鎖状炭化水素である)
 を有する化合物が挙げられる。
 上記エステルを構成する脂肪酸(式(21)において、R23COOHに相当する)としては、例えば、「(a1)鎖状炭化水素テトラオールと脂肪酸とのエステル」において列挙されている脂肪酸、すなわち、飽和脂肪酸又は不飽和脂肪酸が挙げられ、酸化等により変性する可能性を考慮すると、飽和脂肪酸が好ましい。上記エステルを構成する脂肪族1価アルコール(式(21)において、R24OHに相当する)としては、例えば、「化合物(B)」の項で列挙される脂肪族1価アルコールが挙げられる。
 上記脂肪酸と脂肪族1価アルコールとのエステルの例としては、例えば、ドデカン酸(C12)と、ドデシルアルコール(C12)とのエステル、テトラデカン酸(C14)と、ドデシルアルコール(C12)とのエステル等が挙げられ、上記脂肪酸と脂肪族1価アルコールとのエステルの市販品としては、例えば、エレクトールWE20、及びエレクトールWE40(以上、日油株式会社製)が挙げられる。
[(d4)ジアルキルカーボネート]
 上記ジアルキルカーボネートとしては、次の式(22):
 R25OC(=O)OR26  (22)
 (式中、R25及びR26は、それぞれ、アルキル基である)
 を有する化合物が挙げられる。
 上記ジアルキルカーボネートは、市販されている他、ホスゲンとアルコールとの反応、塩化ギ酸エステルとアルコール又はアルコラートとの反応、及び炭酸銀とヨウ化アルキルとの反応により合成することができる。
 抱水率、蒸気圧等の観点から考察すると、(d1)脂肪族1価アルコールと脂肪族1価アルコールとのエーテル、(d2)ジアルキルケトン、(d3)脂肪酸と脂肪族1価アルコールとのエステル、及び(d4)ジアルキルカーボネートでは、重量平均分子量が約100以上であることが好ましく、そして約200以上であることがより好ましい。
 なお、(d2)ジアルキルケトンにおいて、上記炭素数の合計が約8の場合、例えば、5-ノナノンでは、融点は約-50℃であり、蒸気圧は20℃で約230Paである。
[(E)ポリオキシC3~C6アルキレングリコール、又はそのアルキルエステル若しくはアルキルエーテル]
 (E)ポリオキシC3~C6アルキレングリコール、又はそのアルキルエステル若しくはアルキルエーテル(以下、化合物(E)と称する場合がある)としては、(e1)ポリオキシC3~C6アルキレングリコール、(e2)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪酸とのエステル、(e3)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪族1価アルコールとのエーテルが挙げられる。以下、説明する。
[(e1)ポリオキシC3~C6アルキレングリコール]
 上記ポリオキシC3~C6アルキレングリコールは、i)オキシC3~C6アルキレン骨格、すなわち、オキシプロピレン骨格、オキシブチレン骨格、オキシペンチレン骨格、及びオキシヘキシレン骨格から成る群から選択されるいずれか1種の骨格を有し且つ両末端にヒドロキシ基を有するホモポリマー、ii)上記群から選択される2種以上の骨格を有し且つ両末端にヒドロキシ基を有するブロックコポリマー、又はiii)上記群から選択される2種以上の骨格を有し且つ両末端にヒドロキシ基を有するランダムコポリマーを意味する。
 上記ポリオキシC3~C6アルキレングリコールは、次の式(23):
 HO-(Cm2mO)n-H   (23)
 (式中、mは3~6の整数である)
 により表わされる。
 本開示者が確認したところ、ポリプロピレングリコール(式(23)において、m=3のホモポリマーに相当する)では、重量平均分子量が約1,000未満の場合には、抱水率の要件を満たさないことが見いだされた。従って、上記血液滑性付与剤の範囲に、ポリプロピレングリコールのホモポリマーは含まれず、プロピレングリコールは、他のグリコールとのコポリマー又はランダムポリマーとして、(e1)ポリオキシC3~C6アルキレングリコールに含まれる。
 なお、本開示者が確認したところ、ポリエチレングリコール(式(23)において、m=2のホモポリマーに相当する)では、重量平均分子量が1,000未満では、動粘度及び抱水率の要件を満たし得ないことが示唆された。
 IOBを約0.00~約0.60とする観点から考察すると、例えば、式(23)がポリブチレングリコール(m=4のホモポリマー)である場合には、n≧約7であることが好ましい(n=7の場合に、IOBが0.57となる)。
 上記ポリオキシC3~C6アルキレングリコールの市販品としては、例えば、ユニオール(商標)PB-500及びPB-700(以上、日油株式会社製)が挙げられる。
[(e2)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪酸とのエステル]
 上記ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪酸とのエステルとしては、「(e1)ポリオキシC3~C6アルキレングリコール」の項で説明したポリオキシC3~C6アルキレングリコールのOH末端の一方又は両方が、脂肪酸によりエステル化されているもの、すなわち、モノエステル及びジエステルが挙げられる。
 ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪酸とのエステルにおいて、エステル化すべき脂肪酸としては、例えば、「(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル」において列挙されている脂肪酸、すなわち、飽和脂肪酸又は不飽和脂肪酸が挙げられ、酸化等により変性する可能性を考慮すると、飽和脂肪酸が好ましい。
[(e3)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪族1価アルコールとのエーテル]
 上記ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪族1価アルコールとのエーテルとしては、「(e1)ポリオキシC3~C6アルキレングリコール」の項で説明したポリオキシC3~C6アルキレングリコールのOH末端の一方又は両方が、脂肪族1価アルコールによりエーテル化されているもの、すなわち、モノエーテル及びジエーテルが挙げられる。
 ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪族1価アルコールとのエーテルにおいて、エーテル化すべき脂肪族1価アルコールとしては、例えば、「化合物(B)」の項で列挙されている脂肪族1価アルコールが挙げられる。
[(F)鎖状炭化水素]
 上記鎖状炭化水素としては、例えば、(f1)鎖状アルカン、例えば、直鎖アルカン及び分岐鎖アルカンが挙げられる。直鎖アルカンは、融点が約45℃以下の場合には、炭素数が約22以下となり、そして蒸気圧が1気圧及び25℃で約0.01Pa以下である場合には、炭素数が約13以上となる。分岐鎖アルカンは、直鎖アルカンよりも、同一炭素数において融点が低い傾向がある。従って、分岐鎖アルカンは、融点が約45℃以下の場合でも、炭素数が22以上のものも含むことができる。
 上記炭化水素の市販品としては、例えば、パールリーム6(日油株式会社)が挙げられる。
 上記液透過性のトップシートとしての不織布及び織布を構成する繊維として、天然繊維及び化学繊維が挙げられ、天然繊維としては、例えば、粉砕パルプ、コットン等のセルロースが挙げられ、化学繊維としては、例えば、レーヨン、フィブリルレーヨン等の再生セルロース、アセテート、トリアセテート等の半合成セルロース、熱可塑性疎水性化学繊維、並びに親水化処理を施した熱可塑性疎水性化学繊維が挙げられる。
 上記熱可塑性疎水性化学繊維としては、例えば、ポリエチレン(PE)、ポリプロピレン(PP)、ポリエチレンテレフタレート(PET)等の単繊維、PE及びPPのグラフト重合物からなる繊維が挙げられる。
 上記不織布の例としては、例えば、エアスルー不織布、スパンボンド不織布、ポイントボンド不織布、スパンレース不織布、ニードルパンチ不織布、メルトブローン不織布、及びこれらの組み合わせ(例えば、SMS等)等が挙げられる。
 また、上記不織布は、特開2008-2034号等に記載の方法に従って製造された、複数の畝部と、複数の溝部とを有する、畝溝構造を有する不織布であってもよい。
 また、上記不織布は、特開2011-226010号、特開2011-226011号等に記載の方法に従って製造された複数の畝部と、複数の溝部とを有する、畝溝構造を有する不織布であってもよい。当該畝溝構造を有する不織布は、搬送方向と直交する回転軸線を有する一対のギアロールであって、当該ギアロールのそれぞれの外周面に配置された複数の歯を互いに噛み合わせながら回転するものの間隙に、処理すべき不織布を通し、流体処理することにより形成することができる。
 上記畝溝構造を有する不織布から、例えば、吸収性物品の長手方向に延びる、複数の畝部と、複数の溝部とを有するトップシートを形成することができる。
 上記液不透過性のバックシートとしては、PE、PP等を含むフィルム、通気性を有する樹脂フィルム、スパンボンド又はスパンレース等の不織布に通気性を有する樹脂フィルムを接合したもの、SMS等の複層不織布等が挙げられる。吸収性物品の柔軟性を考慮すると、例えば、坪量約15~約30g/m2の低密度ポリエチレン(LDPE)フィルムが好ましい。
 本開示の吸収性物品の実施形態の1つでは、吸収性物品が、液透過性のトップシートと、吸収体との間に、セカンドシートを含むことができ、上記セカンドシートとしては、液透過性のトップシートと同様の例が挙げられる。
 上記吸収体の第1の例としては、吸収コアが、コアラップで覆われているものが挙げられる。
 上記吸収コアの構成要素としては、例えば、親水性繊維、例えば、粉砕パルプ、コットン等のセルロース、レーヨン、フィブリルレーヨン等の再生セルロース、アセテート、トリアセテート等の半合成セルロース、粒子状ポリマー、繊維状ポリマー、熱可塑性疎水性化学繊維、及び親水化処理された熱可塑性疎水性化学繊維、並びにこれらの組み合わせ等が挙げられる。また、上記吸収コアの構成要素として、高吸収性ポリマー、例えば、アクリル酸ナトリウムコポリマー等の粒状物が挙げられる。
 上記コアラップとしては、液透過性で高分子吸収体が透過しないバリアー性を有する物であれば、特に制限されず、例えば、織布、不織布等が挙げられる。上記織布及び不織布としては、天然繊維、化学繊維、ティッシュ等が挙げられる。
 上記吸収体の第2の例としては、吸収シート又はポリマーシートから形成されたものが挙げられ、その厚さは、約0.3~約5.0mmであることが好ましい。上記吸収シート及びポリマーシートとしては、通常、生理用ナプキン等の吸収性物品に用いられるものであれば特に制限なく用いることができる。
 第1エンボス部及び第2エンボス部、並びに所望による第3エンボス部は、当技術分野で公知の方法により形成することができ、例えば、上下一対のエンボスロールであって、一方にパターンが形成されているものを、繊維の融点未満の温度及び約100~約1000N/cmの圧力で、トップシート及び吸収体(又はトップシート、セカンドシート及び吸収体)をエンボスすることにより、上記エンボス部を形成することができる。
 本開示の吸収性物品の実施形態の1つでは、排泄口当接域内のトップシート及び/又は第2エンボス部が、その肌側の表面、すなわち、肌当接面に、血液滑性付与剤を含む。本開示の吸収性物品の別の実施形態では、排泄口当接域内のトップシート及び/又は第2エンボス部が、肌当接面と、肌当接面及び着衣側表面の間の内部とに血液滑性付与剤を含む。本開示の吸収性物品のさらに別の実施形態では、排泄口当接域内のトップシート及び/又は第2エンボス部が、その厚さ方向全体、すなわち、肌当接面と、肌当接面及び着衣側表面の間の内部と、着衣側表面とに血液滑性付与剤を含む。排泄口当接域内のトップシート及び/又は第2エンボス部の内部及び/又は着衣側表面に血液滑性付与剤が存在することにより、肌当接面に存在する経血を、吸収体に迅速に移行させる。
 本開示の吸収性物品の実施形態の1つでは、第1エンボス部及び/又は所望による第3エンボス部が、肌当接面に、血液滑性付与剤を含む。本開示の吸収性物品の別の実施形態では、第1エンボス部及び/又は所望による第3エンボス部が、肌当接面と、肌当接面及び着衣側表面の間の内部とに血液滑性付与剤を含む。本開示の吸収性物品のさらに別の実施形態では、第1エンボス部及び/又は所望による第3エンボス部が、その厚さ方向全体、すなわち、肌当接面と、肌当接面及び着衣側表面の間の内部と、着衣側表面とに血液滑性付与剤を含む。第1エンボス部及び/又は所望による第3エンボス部の内部及び/又は着衣側表面に血液滑性付与剤が存在することにより、そこに到達した経血を、排泄口当接域に跳ね返しやすくなる。
 また、上記血液滑性付与剤は、トップシートを構成する不織布又は織布の繊維間の空隙を閉塞しないことが好ましく、上記血液滑性付与剤は、例えば、不織布又は織布の繊維の表面に、液滴状又は粒子状で付着しているか、又は繊維の表面を覆うことができる。
 また、上記血液滑性付与剤は、吸収した経血とともに移行するため、また経血を跳ね返すために、その表面積が大きいことが好ましく、液滴状又は粒子状で存在する血液滑性付与剤は、粒径が小さいことが好ましい。
 上記液透過性のトップシートとしての不織布及び織布を構成する繊維は、親水剤がその表面にコーティングされているか、又は繊維の原料と親水剤とを混合することにより、その表面が親水化処理されていることが好ましい。繊維が親水性を有することにより、トップシート上に血液滑性付与剤に由来する親油性領域と、親水剤に由来する親水性領域とがまばらに共存することになり、経血を移行させやすくなるからである。
 上記血液滑性付与剤の塗布方法は、特に制限されるものではなく、必要に応じて加熱され、例えば、非接触式のコーター、例えば、スパイラルコーター、カーテンコーター、スプレーコーター、ディップコーター等、接触式のコーター等により、所望の領域に塗布されることができる。
 液滴状又は粒子状の血液滑性付与剤が均一に分散される点、及びトップシートにダメージを与えない観点から、非接触式のコーターが好ましい。また、上記血液滑性付与剤は、室温で液体の場合にはそのまま、又は粘度を下げるために加熱し、そして室温で固体の場合には液化するように加熱して、コントロールシームHMAガンから塗布することができる。コントロールシームHMAガンのエアー圧を高くすることにより、微粒子状の血液滑性付与剤を塗布することができる。
 上記血液滑性付与剤は、トップシートの素材、例えば、不織布を製造する際に塗布されることができ、又は吸収性物品を製造する製造ラインにおいて塗布されることもできる。設備投資を抑制する観点からは、吸収性物品の製造ラインにおいて、血液滑性付与剤を塗布することが好ましく、さらに、血液滑性付与剤が脱落し、ラインを汚染することを抑制するためには、製造ラインの川下工程、具体的には、製品を個包装に封入する直前に、血液滑性付与剤を塗布することが好ましい。
 上記血液滑性付与剤は潤滑剤としても作用しうる。従って、血液滑性付与剤が、繊維同士の摩擦を低減させ、不織布又は織布全体のしなやかさを向上させることができる。
 本開示の吸収性物品の好ましい実施形態では、吸収性物品が、経血を吸収することを目的とするもの、例えば、生理用ナプキン、パンティーライナー等である。
 なお、本開示の吸収性物品は、公知のスキンケア組成物、ローション組成物等を含む吸収性物品とは異なり、エモリエント剤、固定化剤等の成分が不要であり、血液滑性付与剤は、単体で、トップシートに適用されうる。
 以下、例を挙げて本開示を説明するが、本開示はこれらの例に限定されるものではない。
[例1]
[リウェット率及び吸収体移行速度の評価]
 図1に示されるような、市販の生理用ナプキンを準備した。当該生理用ナプキンは、親水剤で処理されたエアスルー不織布(ポリエステル及びポリエチレンテレフタレートから成る複合繊維、坪量:35g/m2)から形成されたトップシートと、エアスルー不織布(ポリエステル及びポリエチレンテレフタレートから成る複合繊維、坪量:30g/m2)から形成されたセカンドシートと、パルプ(坪量:150~450g/m2、中央部ほど多い)、アクリル系高吸収ポリマー(坪量:15g/m2)及びコアラップとしてのティッシュを含む吸収体と、撥水剤処理されたサイドシートと、ポリエチレンフィルムから成るバックシートとから形成されていた。
 以下に、実験に用いられた血液滑性付与剤を列挙する。
[(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル]
・ユニスター H-408BRS,日油株式会社製
 テトラ2-エチルヘキサン酸ペンタエリトリトール,重量平均分子量:約640
・ユニスター H-2408BRS-22,日油株式会社製
 テトラ2-エチルヘキサン酸ペンタエリトリトールと、ジ2-エチルヘキサン酸ネオペンチルグリコールとの混合物(58:42、重量比),重量平均分子量:約520
[(a2)鎖状炭化水素トリオールと少なくとも1の脂肪酸とのエステル]
・Cetiol SB45DEO,コグニスジャパン株式会社製
 脂肪酸が、オレイン酸又はステアリル酸である、グリセリンと脂肪酸とのトリエステル
・SOY42,日油株式会社製
 C14の脂肪酸:C16の脂肪酸:C18の脂肪酸:C20の脂肪酸(飽和脂肪酸及び不飽和脂肪酸の両方を含む)がおおよそ0.2:11:88:0.8の質量比で含まれている、グリセリンと脂肪酸とのトリエステル,重量平均分子量:880
・トリC2L油脂肪酸グリセリド,日油株式会社製
 C8の脂肪酸:C10の脂肪酸:C12の脂肪酸がおおよそ37:7:56の重量比で含まれている、グリセリンと脂肪酸とのトリエステル,重量平均分子量:約570
・トリCL油脂肪酸グリセリド,日油株式会社製
 C8の脂肪酸:C12の脂肪酸がおおよそ44:56の重量比で含まれている、グリセリンと脂肪酸とのトリエステル,重量平均分子量:約570
・パナセート810s,日油株式会社製
 C8の脂肪酸:C10の脂肪酸がおおよそ85:15の重量比で含まれている、グリセリンと脂肪酸とのトリエステル,重量平均分子量:約480
・パナセート800,日油株式会社製
 脂肪酸が全てオクタン酸(C8)である、グリセリンと脂肪酸とのトリエステル,重量平均分子量:約470
・パナセート800B,日油株式会社製
 脂肪酸が全て2-エチルヘキサン酸(C8)である、グリセリンと脂肪酸とのトリエステル,重量平均分子量:約470
・NA36,日油株式会社製
 C16の脂肪酸:C18の脂肪酸:C20の脂肪酸(飽和脂肪酸及び不飽和脂肪酸の両方を含む)がおおよそ5:92:3の重量比で含まれている、グリセリンと脂肪酸とのトリエステル,重量平均分子量:約880
・トリヤシ油脂肪酸グリセリド,日油株式会社製
 C8の脂肪酸:C10の脂肪酸:C12の脂肪酸:C14の脂肪酸:C16の脂肪酸(飽和脂肪酸及び不飽和脂肪酸の両方を含む)がおおよそ4:8:60:25:3の重量比で含まれている、グリセリンと脂肪酸とのトリエステル,重量平均分子量:670
・カプリル酸ジグリセリド,日油株式会社製
 脂肪酸がオクタン酸である、グリセリンと脂肪酸とのジエステル,重量平均分子量:340
[(a3)鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステル]
・ユニスター H-208BRS,日油株式会社製
 ジ2-エチルヘキサン酸ネオペンチルグリコール,重量平均分子量:約360
・コムポールBL,日油株式会社製
 ブチレングリコールのドデカン酸(C12)モノエステル,重量平均分子量:約270
・コムポールBS,日油株式会社製
 ブチレングリコールのオクタデカン酸(C18)モノエステル,重量平均分子量:約350
[(c2)3個のカルボキシル基を有する鎖状炭化水素トリカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル]
・O-アセチルクエン酸トリブチル,東京化成工業株式会社製
 重量平均分子量:約400
・クエン酸トリブチル,東京化成工業株式会社製
 重量平均分子量:約360
[(c3)2個のカルボキシル基を有する鎖状炭化水素ジカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル]
・アジピン酸ジオクチル,和光純薬工業製
 重量平均分子量:約380
[(d3)脂肪酸と脂肪族1価アルコールとのエステル]
・エレクトールWE20,日油株式会社製
 ドデカン酸(C12)と、ドデシルアルコール(C12)とのエステル,重量平均分子量:約360
・エレクトールWE40,日油株式会社製
 テトラデカン酸(C14)と、ドデシルアルコール(C12)とのエステル,重量平均分子量:約390
[(e1)ポリオキシC3~C6アルキレングリコール]
・ユニオールPB500,日油株式会社製
 ポリブチレングリコール,重量平均分子量:約500
・ユニオールPB700,日油株式会社製
 ポリオキシブチレンポリオキシプロピレングリコール,重量平均分子量:約700
[(f1)鎖状アルカン]
・パールリーム6,日油株式会社製
 流動イソパラフィン、イソブテン及びn-ブテンを共重合し、次いで水素を付加することにより生成された分岐鎖炭化水素、重合度:約5~約10,重量平均分子量:約330
[その他の材料]
・NA50,日油株式会社製
 NA36に水素を付加し、原料である不飽和脂肪酸に由来する二重結合の比率を下げたグリセリンと脂肪酸とのトリエステル,重量平均分子量:約880
・(カプリル酸/カプリン酸)モノグリセリド,日油株式会社製
 オクタン酸(C8)及びデカン酸(C10)がおおよそ85:15の重量比で含まれている、グリセリンと脂肪酸とのモノエステル,重量平均分子量:約220
・Monomuls 90-L2ラウリン酸モノグリセリド,コグニスジャパン株式会社製
・クエン酸イソプロピル,東京化成工業株式会社製
 重量平均分子量:約230
・リンゴ酸ジイソステアリル
 重量平均分子量:約640
・ユニオールPB1000R,日油株式会社製
 ポリブチレングリコール,重量平均分子量:約1,000
・ユニオールD-250,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約250
・ユニオールD-400,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約400
・ユニオールD-700,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約700
・ユニオールD-1000,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約1,000
・ユニオールD-1200,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約1,160
・ユニオールD-2000,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約2,030
・ユニオールD-3000,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約3,000
・ユニオールD-4000,日油株式会社製
 ポリプロピレングリコール,重量平均分子量:約4,000
・PEG1500,日油株式会社製
 ポリエチレングリコール,重量平均分子量:約1,500~約1,600
・ウィルブライトcp9,日油株式会社製
 ポリブチレングリコールの両末端のOH基が、ヘキサデカン酸(C16)によりエステル化された化合物,重量平均分子量:約1,150
・ユニルーブMS-70K,日油株式会社製
 ポリプロピレングリコールのステアリルエーテル,約15の繰返し単位,重量平均分子量:約1,140
・ノニオンS-6,日油株式会社製
 ポリオキシエチレンモノステアレート、約7の繰返し単位、重量平均分子量:約880
・ユニルーブ5TP-300KB
 ペンタエリトリトール1モルに、エチレンオキシド5モルと、プロピレンオキシド65モルとを付加させることにより生成した、ポリオキシエチレンポリオキシプロピレンペンタエリスリトールエーテル,重量平均分子量:4,130
・ウィルブライトs753,日油株式会社製
 ポリオキシエチレンポリオキシプロピレンポリオキシブチレングリセリン,重量平均分子量:約960
・ユニオール TG-330,日油株式会社製
 ポリプロピレングリコールのグリセリルエーテル,約6の繰返し単位,重量平均分子量:約330
・ユニオール TG-1000,日油株式会社製
 ポリプロピレングリコールのグリセリルエーテル,約16の繰返し単位,重量平均分子量:約1,000
・ユニオール TG-3000,日油株式会社製
 ポリプロピレングリコールのグリセリルエーテル,約16の繰返し単位,重量平均分子量:約3,000
・ユニオール TG-4000,日油株式会社製
 ポリプロピレングリコールのグリセリルエーテル,約16の繰返し単位,重量平均分子量:約4,000
・ユニルーブ DGP-700,日油株式会社製
 ポリプロピレングリコールのジグリセリルエーテル,約9の繰返し単位,重量平均分子量:約700
・ユニオックスHC60,日油株式会社製
 ポリオキシエチレン硬化ヒマシ油,重量平均分子量:約3,570
・ワセリン,コグニスジャパン株式会社製
 石油に由来する炭化水素、半固形
 上記試料の、動粘度、抱水率、重量平均分子量、IOB及び融点を、下記表2に示す。
 また、融点に関し、「<45」は、融点が45℃未満であることを意味する。
 上記生理用ナプキンのトップシートの排泄口当接域と、第2エンボス部とを、上述の血液滑性付与剤で塗工した。各血液滑性付与剤を、血液滑性付与剤が室温で液体である場合にはそのまま、そして血液滑性付与剤が室温で固体である場合には、融点+20℃まで加熱し、次いで、コントロールシームHMAガンを用いて、各血液滑性付与剤を微粒化し、トップシートの肌当接面に、坪量がおおよそ5g/m2となるように塗布した。
 図3は、トップシートがトリC2L油脂肪酸グリセリドを含む生理用ナプキン(No.1-5)における、トップシートの肌当接面の電子顕微鏡写真である。図3から明らかなように、トリC2L油脂肪酸グリセリドは、微粒子状で、繊維の表面に存在している。
[試験方法]
 各血液滑性付与剤を含むトップシートの上に、穴の開いたアクリル板(200mm×100mm,125g,中央に、40mm×10mmの穴が開いている)を置き、上記穴から、37±1℃のウマEDTA血(ウマの血液に、凝結防止のため、エチレンジアミン四酢酸(以下、「EDTA」と称する)が添加されたもの)3gを、ピペットを用いて滴下(1回目)し、1分後、37±1℃のウマEDTA血3gを、アクリル板の穴から、ピペットで再度滴下した(2回目)。
 2回目の血液の滴下後、直ちに上記アクリル板を外し、血液を滴下した場所に、ろ紙(アドバンテック東洋株式会社 定性濾紙 No.2,50mm×35mm)10枚を置き、その上から、圧力が30g/cm2となるようにおもりを置いた。1分後、上記ろ紙を取出し、以下の式に従って、「リウェット率」を算出した。
 リウェット率(%)=100×(試験後のろ紙質量-当初のろ紙質量)/6
 また、リウェット率の評価とは別に、2回目の血液の滴下後、血液がトップシートから吸収体に移行する時間である「吸収体移行速度」を測定した。上記吸収体移行速度は、トップシートに血液を投入してから、トップシートの表面及び内部に、血液の赤さが見られなくなるまでの時間を意味する。
 リウェット率と、吸収体移行速度の結果を、下記表2に示す。
 また、吸収体移行速度の試験後のトップシート(TS)の肌当接面の白さを、以下の基準に従って、目視で評価した。
 ◎:血液の赤さがほとんど残っておらず、血液が存在した場所と、存在していない場所の区別がつかない
 ○:血液の赤さが若干残っているが、血液の存在した場所と、存在していない場所の区別がつきいにくい
 △:血液の赤さが若干残っており、血液が存在した場所が分かる
 ×:血液の赤さがそのまま残っている
 さらに、トップシートの肌当接面のタック性を、以下の基準に従って35℃で測定した。
 ○:タック性なし
 △:若干のタック性有り
 ×:タック性有り
 結果を、併せて下記表2に示す。
Figure JPOXMLDOC01-appb-T000011
Figure JPOXMLDOC01-appb-T000012
 血液滑性付与剤を有しない場合には、リウェット率は22.7%であり、そして吸収体移行速度は60秒超であったが、グリセリンと脂肪酸とのトリエステルは、いずれも、リウェット率が7.0%以下であり、そして吸収体移行速度が8秒以下であることから、吸収性能が大幅に改善されていることが分かる。
 同様に、40℃における約0.01~80mm2/sの動粘度と、約0.01~約4.0質量%の抱水率と、約1,000未満の重量平均分子量とを有する血液滑性付与剤では、吸収性能が大きく改善されることが分かった。
 次に、No.1-1~1-51の生理用ナプキンを、複数のボランティアの被験者に着用してもらったところ、No.1-1~1-23の血液滑性付与剤を含む生理用ナプキンでは、経血を吸収した後であってもトップシートにべたつき感がなく、トップシートがサラサラしているとの回答を得た。
 また、No.1-1~1-23、特にNo.1-11,13,16,18~20及び23の血液滑性付与剤を含む生理用ナプキンでは、経血を吸収後のトップシートの排泄口当接域が、血液で赤く染まりにくく、不快感が少ないとの回答を得た。さらに、No.1-1~1-23、特にNo.1-11,13,16,18~20及び23では、トップシートの排泄口当接域が経血で赤く着色されにくいが、吸収体が多量の経血を吸収した後に、第2エンボス部が赤く染まるため、交換時期を視覚的に確認しやすいとの回答を得た。また、長時間着用しても、漏れにくかったとの回答を得た。
 血液滑性付与剤の作用を確認するために、さらに以下の実験を行った。
[例2]
[畝溝構造を有するトップシートにおける経血の表面残存率]
 畝溝構造を有するトップシートにおける経血の表面残存率を評価した。
 親水剤で処理されたエアスルー不織布(ポリエステル及びポリエチレンテレフタレートから成る複合繊維、坪量:35g/m2)から形成されたトップシートと、エアスルー不織布(ポリエステル及びポリエチレンテレフタレートから成る複合繊維、坪量:30g/m2)から形成されたセカンドシートと、パルプ(坪量:150~450g/m2、中央部ほど多い)、アクリル系高吸収ポリマー(坪量:15g/m2)及びコアラップとしてのティッシュを含む吸収体と、撥水剤処理されたサイドシートと、ポリエチレンフィルムから成るバックシートとを準備した。
 上記トップシートは、特開2008-2034号に記載の方法に従って製造された、畝溝構造を有するトップシートであり、畝部の厚さが約1.5mmであり、溝部の厚さが約0.4mmであり、畝溝構造のピッチ(畝部の幅+溝部の幅)が約4mmであり、そして溝部には、開孔率約15%の開孔部が形成されていた。
 血液滑性付与剤として、ユニスター H-408BRS(日油株式会社製、ペンタエリトリトールと脂肪酸とのテトラエステル)を選択し、室温において、コントロールシームHMAガンから、上記トップシートの肌当接面(畝溝面)に、5.0g/m2の坪量で塗工した。電子顕微鏡で確認したところ、H-408BRSは、微粒子状で、繊維の表面に付着していた。
 次いで、バックシート、吸収体、セカンドシート、そして畝溝面を上にしてトップシートを順に重ね合わせることにより、生理用ナプキンNo.2-1を形成した。
 血液滑性付与剤を、ユニスター H-408BRSから、下記表3に示されるものに変更して、生理用ナプキンNo.2-2~No.2-40を製造した。なお、血液滑性付与剤が室温で液体である場合には、そのまま、そして血液滑性付与剤が室温で固体である場合には、融点+20℃まで加熱し、次いで、コントロールシームHMAガンを用いて、血液滑性付与剤を微粒化し、トップシートの肌当接面に、坪量がおおよそ5g/m2となるように塗布した。
 また、血液滑性付与剤は、トップシートの肌当接面のほぼ全面に、そして畝部及び溝部の両方に塗工された。
[試験方法]
 トップシートの質量W2(試験前のトップシートの質量)を測定した後、吸収性物品の長手方向及び幅方向の中央部且つトップシートの上に、穴の開いたアクリル板(200mm×100mm,125g,中央に、40mm×10mmの穴が開いている)を置き、上記穴から、37±1℃のウマEDTA血(ウマの血液に、凝結防止のため、エチレンジアミン四酢酸(以下、「EDTA」と称する)が添加されたもの)4.0gを、ピペットを用いて滴下した。
 ウマEDTA血の滴下後、直ちに上記アクリル板を外し、トップシートを取出し、その質量W3(試験後のトップシートの質量)を測定し、以下の式に従って、「表面残存率(質量%)」を算出した。
 表面残存率(質量%)
 =100×(W3-W2)/4.0
 結果を、下記表3に示す。
Figure JPOXMLDOC01-appb-T000013
Figure JPOXMLDOC01-appb-T000014
 血液滑性付与剤を有しない生理用ナプキンNo.2-40では、表面残存率が7.5質量%であったが、動粘度及び抱水率が所定の範囲内にある生理用ナプキンNo.2-1~No.2-16では、表面残存率が2.5質量%以下であった。
 生理用ナプキンNo.2-1~No.2-16では、トップシートの畝部に滴下されたウマEDTA血が、畝部から溝部へと滑落し、溝部から吸収体内部に迅速に吸収される様子が観察された。一方、血液滑性付与剤を有しない生理用ナプキンNo.2-40では、滴下したウマEDTA血は、溝部に滑落するのではなく、溝部にゆっくりと垂れ落ち、その多くがトップシートの畝部に残存した。また、抱水率が高い吸収性物品、例えば、No.2-25では、トップシートの畝部に滴下されたウマEDTA血は、溝部に滑落するのではなく、トップシートに一部残存しながらゆっくりと垂れ落ち、そして一部が畝部に残存した。
[例3]
[血液滑性付与剤を含む血液の粘性]
 血液滑性付与剤を含む血液の粘性を、Rheometric Expansion System ARES(Rheometric Scientific,Inc)を用いて測定した。ウマ脱繊維血に、パナセート810sを2質量%添加し、軽く撹拌して試料を形成し、直径50mmのパラレルプレートに試料を載せ、ギャップを100μmとし、37±0.5℃で粘度を測定した。パラレルプレートゆえ、試料に均一なせん断速度はかかっていないが、機器に表示された平均せん断速度は、10s-1であった。
 パナセート810sを2質量%含むウマ脱繊維血の粘度は、5.9mPa・sであり、一方、血液滑性付与剤を含まないウマ脱繊維血の粘度は、50.4mPa・sであった。従って、パナセート810sを2質量%含むウマ脱繊維血は、血液滑性付与剤を含まない場合と比較して、約90%粘度を下げることが分かる。
 血液は、血球等の成分を含み、チキソトロピーの性質を有することが知られているが、上記血液滑性付与剤は、低粘度域で、経血等の血液の粘度を下げる作用をも有する。血液の粘度を下げることにより、吸収した経血を、トップシートから吸収体に速やかに移行しやすくなる。
[例4]
[血液滑性付与剤を含む経血の顕微鏡写真]
 健常ボランティアの経血を、食品保護用ラップフィルム上に採取し、その一部に、10倍の質量のリン酸緩衝生理食塩水中に分散されたパナセート810sを、パナセート810sの濃度が1質量%となるように添加した。経血を、スライドグラスに適下し、カバーグラスをかけ、光学顕微鏡にて、赤血球の状態を観察した。血液滑性付与剤を含まない経血の顕微鏡写真を図4(a)に、そしてパナセート810sを含む経血の顕微鏡写真を図4(b)に示す。
 図4(a)から、血液滑性付与剤を含まない経血では、赤血球が連銭等の集合塊を形成していることが分かり、そして図4(b)から、パナセート810sを含む経血では、赤血球が、それぞれ、安定に分散していることが分かる。従って、血液滑性付与剤は、経血の中で、赤血球を安定化させる働きをも有することが示唆される。
[例5]
[血液滑性付与剤を含む血液の表面張力]
 血液滑性付与剤を含む血液の表面張力を、協和界面科学社製接触角計 Drop Master500を用い、ペンダントドロップ法にて測定した。表面張力は、ヒツジ脱繊維血に、所定の量の血液滑性付与剤を添加し、十分振とうした後に測定した。
 測定は、機器が自動で行うが、表面張力γは、以下の式により求められる(図5を参照)。
 γ=g×ρ×(de)2×1/H
 g:重力定数
 1/H:ds/deから求められる補正項
 ρ:密度
 de:最大直径
 ds:滴下端よりdeだけ上がった位置での径
 密度ρは、JIS K 2249-1995の「密度試験方法及び密度・質量・容量換算表」の5.振動式密度試験方法に準拠し、下記表4に示される温度で測定した。
 測定には、京都電子工業株式会社のDA-505を用いた。
 結果を、下記表4に示す。
Figure JPOXMLDOC01-appb-T000015
 表4から、血液滑性付与剤は、血液の表面張力を下げる作用をも有することが分かる。
 血液の表面張力を下げることにより、吸収した血液をトップシートの繊維間に保持せず、速やかに吸収体に移行させる。
 本開示は、以下の(J1)~(J10)に関する。
[J1]
 液透過性のトップシートと、液不透過性のバックシートと、上記トップシート及びバックシートの間の吸収体とを有する吸収性物品であって、
 上記トップシートが、不織布又は織布から形成され、
 上記吸収性物品が、その厚さ方向に上記吸収体と重複する範囲において、着用者の排泄口に接する排泄口当接域と、当該排泄口当接域を囲むように連続的又は非連続的に配置されている第1エンボス部と、第1エンボス部より外側の外縁領域とを有し、
 上記吸収性物品が、上記排泄口当接域の長手方向外側に位置する外縁領域に配置されており且つ上記トップシート及び吸収体を含む層をエンボスすることにより形成された第2エンボス部を含み、
 上記排泄口当接域内のトップシートと、第2エンボス部とが、それぞれ、40℃における0.01~80mm2/sの動粘度と、0.01~4.0質量%の抱水率と、1,000未満の重量平均分子量とを有する血液滑性付与剤を含む、
 ことを特徴とする、上記吸収性物品。
[J2]
 上記血液滑性付与剤が、0.00~0.60のIOBをさらに有する、J1に記載の吸収性物品。
[J3]
 第2エンボス部が、上記排泄口当接域の長手方向端部を囲むように湾曲して配置されている、J1又はJ2に記載の吸収性物品。
[J4]
 上記トップシートが、上記排泄口当接域と、第2エンボス部との間に、上記血液滑性付与剤を含まない領域を有する、J1~J3のいずれか一項に記載の吸収性物品。
[J5]
 第1エンボス部が、上記血液滑性付与剤をさらに含む、J1~J4のいずれか一項に記載の吸収性物品。
[J6]
 第1エンボス部が、上記排泄口当接域を囲むように非連続的に配置されており、第1エンボス部の外側に、第3エンボス部がさらに配置されている、J1~J5のいずれか一項に記載の吸収性物品。
[J7]
 第3エンボス部が、第1エンボス部の非連続部分の外側に配置されている、J6に記載の吸収性物品。
[J8]
 第3エンボス部が、上記血液滑性付与剤を含む、J6又はJ7に記載の吸収性物品。
[J9]
 上記吸収性物品が、上記トップシートと吸収体との間にセカンドシートをさらに有し、第1エンボス部が、上記トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成された、J1~J8のいずれか一項に記載の吸収性物品。
[J10]
 第2エンボス部が、上記トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成された、J9に記載の吸収性物品。
[J11]
 上記血液滑性付与剤が、次の(i)~(iii)、
 (i)炭化水素、
 (ii) (ii-1)炭化水素部分と、(ii-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル基(-CO-)及びオキシ基(-O-)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、及び
 (iii) (iii-1)炭化水素部分と、(iii-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル基(-CO-)及びオキシ基(-O-)から成る群から選択される、一又は複数の、同一又は異なる基と、(iii-3)上記炭化水素部分の水素原子を置換する、カルボキシル基(-COOH)及びヒドロキシル基(-OH)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、
 並びにそれらの任意の組み合わせから成る群から選択され、
 ここで、(ii)又は(iii)の化合物において、オキシ基が2つ以上挿入されている場合には、各オキシ基は隣接していない、
 J1~J10のいずれか一項に記載の吸収性物品。
[J12]
 上記血液滑性付与剤が、次の(i’)~(iii’)、
 (i’)炭化水素、
 (ii’) (ii’-1)炭化水素部分と、(ii’-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、及びエーテル結合(-O-)から成る群から選択される、一又は複数の、同一又は異なる結合とを有する化合物、及び
 (iii’) (iii’-1)炭化水素部分と、(iii’-2)上記炭化水素部分のC-C単結合間に挿入された、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、及びエーテル結合(-O-)から成る群から選択される、一又は複数の、同一又は異なる結合と、(iii’-3)上記炭化水素部分の水素原子を置換する、カルボキシル基(-COOH)及びヒドロキシル基(-OH)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、
 並びにそれらの任意の組み合わせから成る群から選択され、
 ここで、(ii’)又は(iii’)の化合物において、2以上の同一又は異なる結合が挿入されている場合には、各結合は隣接していない、
 J1~J11のいずれか一項に記載の吸収性物品。
[J13]
 上記血液滑性付与剤が、次の(A)~(F)、
 (A) (A1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(A2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のカルボキシル基とを有する化合物とのエステル、
 (B) (B1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(B2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエーテル、
 (C) (C1)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する、2~4個のカルボキシル基とを含むカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、(C2)鎖状炭化水素部分と、上記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエステル、
 (D)鎖状炭化水素部分と、上記鎖状炭化水素部分のC-C単結合間に挿入された、エーテル結合(-O-)、カルボニル結合(-CO-)、エステル結合(-COO-)、及びカーボネート結合(-OCOO-)から成る群から選択されるいずれか1つの結合とを有する化合物、
 (E)ポリオキシC3~C6アルキレングリコール、又はそのアルキルエステル若しくはアルキルエーテル、及び
 (F)鎖状炭化水素、
 並びにそれらの任意の組み合わせから成る群から選択される、J1~J12のいずれか一項に記載の吸収性物品。
[J14]
 上記血液滑性付与剤が、(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル、(a2)鎖状炭化水素トリオールと少なくとも1の脂肪酸とのエステル、(a3)鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステル、(b1)鎖状炭化水素テトラオールと少なくとも1の脂肪族1価アルコールとのエーテル、(b2)鎖状炭化水素トリオールと少なくとも1の脂肪族1価アルコールとのエーテル、(b3)鎖状炭化水素ジオールと少なくとも1の脂肪族1価アルコールとのエーテル、(c1)4個のカルボキシル基を有する鎖状炭化水素テトラカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、(c2)3個のカルボキシル基を有する鎖状炭化水素トリカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、(c3)2個のカルボキシル基を有する鎖状炭化水素ジカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、(d1)脂肪族1価アルコールと脂肪族1価アルコールとのエーテル、(d2)ジアルキルケトン、(d3)脂肪酸と脂肪族1価アルコールとのエステル、(d4)ジアルキルカーボネート、(e1)ポリオキシC3~C6アルキレングリコール、(e2)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪酸とのエステル、(e3)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪族1価アルコールとのエーテル、及び(f1)鎖状アルカン、並びにそれらの任意の組み合わせから成る群から選択される、J1~J13のいずれか一項に記載の吸収性物品。
 1  生理用ナプキン
 2  トップシート
 3  吸収体
 4  排泄口当接域
 5  第1エンボス部
 6  外縁領域
 7  第2エンボス部
 8  第3エンボス部
 9  非薬剤含有領域
 10  非連続部分

Claims (14)

  1.  不織布又は織布から形成された、液透過性のトップシートと、液不透過性のバックシートと、前記トップシート及びバックシートの間の吸収体とを有する吸収性物品であって、
     前記吸収性物品が、その厚さ方向に前記吸収体と重複する範囲において、着用者の排泄口に接する排泄口当接域と、当該排泄口当接域を囲むように連続的又は非連続的に配置されている第1エンボス部と、第1エンボス部より外側の外縁領域と、前記排泄口当接域の長手方向外側に位置する外縁領域に配置されている第2エンボス部とを有し、
     第1エンボス部及び第2エンボス部が、前記トップシート及び吸収体を含む層をエンボスすることにより形成され、そして
     前記排泄口当接域内のトップシートと、第2エンボス部とが、それぞれ、40℃における0.01~80mm2/sの動粘度と、0.01~4.0質量%の抱水率と、1,000未満の重量平均分子量とを有する血液滑性付与剤を含む、
     ことを特徴とする、前記吸収性物品。
  2.  前記血液滑性付与剤が、0.00~0.60のIOBをさらに有する、請求項1に記載の吸収性物品。
  3.  第2エンボス部が、前記排泄口当接域の長手方向端部を囲むように湾曲して配置されている、請求項1又は2に記載の吸収性物品。
  4.  前記トップシートが、前記排泄口当接域と、第2エンボス部との間に、前記血液滑性付与剤を含まない領域を有する、請求項1~3のいずれか一項に記載の吸収性物品。
  5.  第1エンボス部が、前記血液滑性付与剤をさらに含む、請求項1~4のいずれか一項に記載の吸収性物品。
  6.  第1エンボス部が、前記排泄口当接域を囲むように非連続的に配置されており、第1エンボス部の外側に、第3エンボス部がさらに配置されている、請求項1~5のいずれか一項に記載の吸収性物品。
  7.  第3エンボス部が、第1エンボス部の非連続部分の外側に配置されている、請求項6に記載の吸収性物品。
  8.  第3エンボス部が、前記血液滑性付与剤を含む、請求項6又は7に記載の吸収性物品。
  9.  前記吸収性物品が、前記トップシートと吸収体との間にセカンドシートをさらに有し、第1エンボス部が、前記トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成された、請求項1~8のいずれか一項に記載の吸収性物品。
  10.  第2エンボス部が、前記トップシート、セカンドシート及び吸収体を含む層をエンボスすることにより形成された、請求項9に記載の吸収性物品。
  11.  前記血液滑性付与剤が、次の(i)~(iii)、
     (i)炭化水素、
     (ii) (ii-1)炭化水素部分と、(ii-2)前記炭化水素部分のC-C単結合間に挿入された、カルボニル基(-CO-)及びオキシ基(-O-)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、及び
     (iii) (iii-1)炭化水素部分と、(iii-2)前記炭化水素部分のC-C単結合間に挿入された、カルボニル基(-CO-)及びオキシ基(-O-)から成る群から選択される、一又は複数の、同一又は異なる基と、(iii-3)前記炭化水素部分の水素原子を置換する、カルボキシル基(-COOH)及びヒドロキシル基(-OH)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、
     並びにそれらの任意の組み合わせから成る群から選択され、
     ここで、(ii)又は(iii)の化合物において、オキシ基が2つ以上挿入されている場合には、各オキシ基は隣接していない、
     請求項1~10のいずれか一項に記載の吸収性物品。
  12.  前記血液滑性付与剤が、次の(i’)~(iii’)、
     (i’)炭化水素、
     (ii’) (ii’-1)炭化水素部分と、(ii’-2)前記炭化水素部分のC-C単結合間に挿入された、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、及びエーテル結合(-O-)から成る群から選択される、一又は複数の、同一又は異なる結合とを有する化合物、及び
     (iii’) (iii’-1)炭化水素部分と、(iii’-2)前記炭化水素部分のC-C単結合間に挿入された、カルボニル結合(-CO-)、エステル結合(-COO-)、カーボネート結合(-OCOO-)、及びエーテル結合(-O-)から成る群から選択される、一又は複数の、同一又は異なる結合と、(iii’-3)前記炭化水素部分の水素原子を置換する、カルボキシル基(-COOH)及びヒドロキシル基(-OH)から成る群から選択される、一又は複数の、同一又は異なる基とを有する化合物、
     並びにそれらの任意の組み合わせから成る群から選択され、
     ここで、(ii’)又は(iii’)の化合物において、2以上の同一又は異なる結合が挿入されている場合には、各結合は隣接していない、
     請求項1~11のいずれか一項に記載の吸収性物品。
  13.  前記血液滑性付与剤が、次の(A)~(F)、
     (A) (A1)鎖状炭化水素部分と、前記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(A2)鎖状炭化水素部分と、前記鎖状炭化水素部分の水素原子を置換する1個のカルボキシル基とを有する化合物とのエステル、
     (B) (B1)鎖状炭化水素部分と、前記鎖状炭化水素部分の水素原子を置換する2~4個のヒドロキシル基とを有する化合物と、(B2)鎖状炭化水素部分と、前記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエーテル、
     (C) (C1)鎖状炭化水素部分と、前記鎖状炭化水素部分の水素原子を置換する、2~4個のカルボキシル基とを含むカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、(C2)鎖状炭化水素部分と、前記鎖状炭化水素部分の水素原子を置換する1個のヒドロキシル基とを有する化合物とのエステル、
     (D)鎖状炭化水素部分と、前記鎖状炭化水素部分のC-C単結合間に挿入された、エーテル結合(-O-)、カルボニル結合(-CO-)、エステル結合(-COO-)、及びカーボネート結合(-OCOO-)から成る群から選択されるいずれか1つの結合とを有する化合物、
     (E)ポリオキシC3~C6アルキレングリコール、又はそのアルキルエステル若しくはアルキルエーテル、及び
     (F)鎖状炭化水素、
     並びにそれらの任意の組み合わせから成る群から選択される、請求項1~12のいずれか一項に記載の吸収性物品。
  14.  前記血液滑性付与剤が、(a1)鎖状炭化水素テトラオールと少なくとも1の脂肪酸とのエステル、(a2)鎖状炭化水素トリオールと少なくとも1の脂肪酸とのエステル、(a3)鎖状炭化水素ジオールと少なくとも1の脂肪酸とのエステル、(b1)鎖状炭化水素テトラオールと少なくとも1の脂肪族1価アルコールとのエーテル、(b2)鎖状炭化水素トリオールと少なくとも1の脂肪族1価アルコールとのエーテル、(b3)鎖状炭化水素ジオールと少なくとも1の脂肪族1価アルコールとのエーテル、(c1)4個のカルボキシル基を有する鎖状炭化水素テトラカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、(c2)3個のカルボキシル基を有する鎖状炭化水素トリカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、(c3)2個のカルボキシル基を有する鎖状炭化水素ジカルボン酸、ヒドロキシ酸、アルコキシ酸又はオキソ酸と、少なくとも1の脂肪族1価アルコールとのエステル、(d1)脂肪族1価アルコールと脂肪族1価アルコールとのエーテル、(d2)ジアルキルケトン、(d3)脂肪酸と脂肪族1価アルコールとのエステル、(d4)ジアルキルカーボネート、(e1)ポリオキシC3~C6アルキレングリコール、(e2)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪酸とのエステル、(e3)ポリオキシC3~C6アルキレングリコールと少なくとも1の脂肪族1価アルコールとのエーテル、及び(f1)鎖状アルカン、並びにそれらの任意の組み合わせから成る群から選択される、請求項1~13のいずれか一項に記載の吸収性物品。
PCT/JP2013/058862 2012-04-02 2013-03-26 吸収性物品 Ceased WO2013150924A1 (ja)

Priority Applications (3)

Application Number Priority Date Filing Date Title
US14/390,006 US9381268B2 (en) 2012-04-02 2013-03-26 Absorbent article
EP13773006.5A EP2835121B1 (en) 2012-04-02 2013-03-26 Absorbent article
CN201380029015.4A CN104349755B (zh) 2012-04-02 2013-03-26 吸收性物品

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2012084321A JP5717686B2 (ja) 2012-04-02 2012-04-02 吸収性物品
JP2012-084321 2012-04-02

Publications (1)

Publication Number Publication Date
WO2013150924A1 true WO2013150924A1 (ja) 2013-10-10

Family

ID=49300417

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2013/058862 Ceased WO2013150924A1 (ja) 2012-04-02 2013-03-26 吸収性物品

Country Status (7)

Country Link
US (1) US9381268B2 (ja)
EP (1) EP2835121B1 (ja)
JP (1) JP5717686B2 (ja)
CN (1) CN104349755B (ja)
AR (1) AR090530A1 (ja)
TW (1) TWI551273B (ja)
WO (1) WO2013150924A1 (ja)

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2014050599A1 (ja) * 2012-09-28 2014-04-03 ユニ・チャーム株式会社 吸収性物品
WO2014050573A1 (ja) * 2012-09-28 2014-04-03 ユニ・チャーム株式会社 吸収性物品

Families Citing this family (12)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP6092508B2 (ja) * 2011-09-30 2017-03-08 ユニ・チャーム株式会社 吸収性物品
JP6021566B2 (ja) * 2012-09-28 2016-11-09 ユニ・チャーム株式会社 吸収性物品
JP6062199B2 (ja) * 2012-09-28 2017-01-18 ユニ・チャーム株式会社 吸収性物品
JP5898285B1 (ja) * 2014-09-19 2016-04-06 ユニ・チャーム株式会社 ショーツ型ナプキン
CN107072849B (zh) * 2014-11-06 2020-10-30 宝洁公司 莫尔效应层合体及其制备方法
JP6496567B2 (ja) * 2015-02-16 2019-04-03 花王株式会社 吸収性物品
JP6674326B2 (ja) * 2016-06-03 2020-04-01 花王株式会社 吸収性物品
JP6669595B2 (ja) * 2016-06-03 2020-03-18 花王株式会社 吸収性物品
USD917692S1 (en) 2019-03-19 2021-04-27 Johnson & Johnson Consumer Inc. Absorbent article
USD919084S1 (en) 2019-03-19 2021-05-11 Johnson & Johnson Consumer Inc. Absorbent article
USD978342S1 (en) * 2019-09-06 2023-02-14 Kimberly-Clark Worldwide, Inc. Feminine pad
WO2023064746A1 (en) * 2021-10-15 2023-04-20 The Procter & Gamble Company Upper layer system for absorbent article

Citations (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2008002034A (ja) 2006-06-23 2008-01-10 Uni Charm Corp 不織布、不織布製造方法及び不織布製造装置
JP2008541943A (ja) * 2005-06-02 2008-11-27 ザ プロクター アンド ギャンブル カンパニー 横方向強化要素を有する吸収性物品
JP2010518918A (ja) 2007-02-16 2010-06-03 ザ プロクター アンド ギャンブル カンパニー ポリプロピレングリコール材料を含むローションを備える吸収性物品
JP2010148708A (ja) * 2008-12-25 2010-07-08 Uni Charm Corp 薄型吸収性物品
JP2011510801A (ja) 2008-02-15 2011-04-07 ザ プロクター アンド ギャンブル カンパニー ポリプロピレングリコール材料を含むローションを備える吸収性物品
JP2011226011A (ja) 2010-04-16 2011-11-10 Uni Charm Corp 伸長性繊維と伸縮性繊維とを含む、凹凸を有する不織布、及び当該不織布を製造する方法
JP2011226010A (ja) 2010-04-16 2011-11-10 Uni Charm Corp 凹凸を有する不織布を簡易に製造する方法、及び不織布を簡易に加工する方法
JP2012050626A (ja) * 2010-08-31 2012-03-15 Unicharm Corp 吸収性物品及び生理用ナプキン

Family Cites Families (101)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3929135A (en) 1974-12-20 1975-12-30 Procter & Gamble Absorptive structure having tapered capillaries
US4263363A (en) * 1979-12-20 1981-04-21 Colgate-Palmolive Company Emulsion-containing absorbent article having improved water holding capacity
JPS5717081A (en) 1981-05-25 1982-01-28 Noriko Ikegami Electronic interpreter
US4588630A (en) 1984-06-13 1986-05-13 Chicopee Apertured fusible fabrics
ES2065900T3 (es) 1987-07-30 1995-03-01 Kao Corp Articulo sanitario.
JPH0775616B2 (ja) 1987-07-30 1995-08-16 花王株式会社 衛生用品の表面材
US4759754A (en) 1987-08-26 1988-07-26 Personal Products Company Sanitary napkin
JPH082364B2 (ja) 1987-12-16 1996-01-17 花王株式会社 衛生用品の表面材
JPH0720856B2 (ja) 1988-12-01 1995-03-08 株式会社大塚製薬工場 皮膚の殺菌・清拭用組成物
JP2728921B2 (ja) 1989-03-01 1998-03-18 花王株式会社 凹凸を有する不織布の製造方法
US5334176A (en) 1991-07-23 1994-08-02 The Procter & Gamble Company Absorbent core for use in catamenial products
SK37693A3 (en) 1991-07-23 1994-03-09 Procter & Gamble Streable absorbent articles
MA22660A1 (fr) 1991-10-01 1993-04-01 Procter & Gamble Article absorbant comportant des rabats et des zones d'extensibilite differentielle .
JP3091283B2 (ja) 1991-12-09 2000-09-25 花王株式会社 生理用ナプキン
JP2559049Y2 (ja) 1992-06-30 1998-01-14 ユニ・チャーム株式会社 使い捨て衛生吸収物品
AU6776394A (en) 1993-05-21 1994-12-20 Procter & Gamble Company, The Absorbent article having anti-wicking crimp seal
JPH0784697A (ja) 1993-09-10 1995-03-31 Canon Inc 情報処理装置
US5614283A (en) 1994-12-22 1997-03-25 Tredegar Industries Absorbent composite with three-dimensional film surface for use in absorbent disposable products
US5693037A (en) * 1995-04-21 1997-12-02 The Procter & Gamble Company Absorbent articles having improved surfactant-treated hydrophilic topsheets
JP2974934B2 (ja) 1995-06-02 1999-11-10 ザ、プロクター、エンド、ギャンブル、カンパニー 生理用ナプキン
US5650214A (en) 1996-05-31 1997-07-22 The Procter & Gamble Company Web materials exhibiting elastic-like behavior and soft, cloth-like texture
US5891126A (en) 1996-08-30 1999-04-06 The Procter & Gamble Company Absorbent interlabial device treated with a polysiloxane emollient
JPH1095810A (ja) 1996-09-24 1998-04-14 Oji Paper Co Ltd 高吸水性樹脂及びその製造方法
ZA985679B (en) 1997-06-30 1999-01-26 Procter & Gamble Absorbent article with multi-layered extensible wings
JP2000510376A (ja) 1997-12-05 2000-08-15 ザ、プロクター、エンド、ギャンブル、カンパニー フラップと延伸性ゾーンとを有する体にフィットする複合生理用ナプキン
US6262331B1 (en) 1998-06-05 2001-07-17 The Procter & Gamble Company Absorbent article having a topsheet that includes selectively openable and closable openings
CN1190239C (zh) * 1998-11-09 2005-02-23 花王株式会社 增粘处理体液或排泄物的物品
EP1034804A1 (en) 1999-03-05 2000-09-13 The Procter & Gamble Company Articles comprising an oxidising agent and a hemolytic agent
US6730819B1 (en) 1999-03-05 2004-05-04 The Procter & Gamble Company Articles comprising oxidizing and hemolytic agents
US6153209A (en) 1999-09-28 2000-11-28 The Procter & Gamble Company Article having a transferable breathable skin care composition thereon
JP3748743B2 (ja) 1999-10-04 2006-02-22 ユニ・チャーム株式会社 吸収性物品およびその製造方法
JP3611761B2 (ja) 1999-11-02 2005-01-19 花王株式会社 吸収性物品
US20010044614A1 (en) 1999-12-23 2001-11-22 Damay Emmanuelle Cecile Reducing agents for feminine care products
JP3701208B2 (ja) 2000-03-13 2005-09-28 ユニ・チャーム株式会社 開孔シートとこの開孔シートを使用した吸収性物品および前記開孔シートの製造方法。
ATE454173T1 (de) 2001-04-17 2010-01-15 Procter & Gamble Saugfähiger einwegartikel mit einem wirkstoff zur übertragung einer sensation
JP3926587B2 (ja) 2001-07-12 2007-06-06 ユニ・チャーム株式会社 吸収性物品
JP4855606B2 (ja) 2001-08-10 2012-01-18 ユニ・チャーム株式会社 吸収性物品
SE519783C2 (sv) 2001-08-31 2003-04-08 Sca Hygiene Prod Ab Absorberande alster innefattande öppningar i absorptionskroppen
US20030082219A1 (en) 2001-10-01 2003-05-01 The Procter & Gamble Company Skin care compositions comprising low concentrations of skin treatment agents
SG103382A1 (en) 2002-01-11 2004-04-29 Uni Charm Corp Colored absorbent article
JP4278963B2 (ja) 2002-03-26 2009-06-17 ユニ・チャーム株式会社 吸収性物品
JP4693847B2 (ja) 2002-03-26 2011-06-01 ユニ・チャーム株式会社 吸収性物品およびその製造方法
EP1371379B2 (en) 2002-06-12 2012-06-20 SCA Hygiene Products AB Absorbent article containing a skincare composition
JP3949020B2 (ja) 2002-07-19 2007-07-25 花王株式会社 吸収性物品
US9035123B2 (en) 2002-10-01 2015-05-19 The Procter & Gamble Company Absorbent article having a lotioned topsheet
US8030535B2 (en) 2002-12-18 2011-10-04 The Procter & Gamble Company Sanitary napkin for clean body benefit
JP2005095759A (ja) 2003-09-24 2005-04-14 San-Dia Polymer Ltd 吸収剤とこれを用いてなる吸収性物品
US20050096614A1 (en) 2003-10-29 2005-05-05 Perez Roberto C. Cover layer for an absorbent article
JP4476102B2 (ja) 2003-12-11 2010-06-09 花王株式会社 吸収性物品の表面シート
WO2006009996A1 (en) 2004-06-21 2006-01-26 The Procter & Gamble Company Absorbent article with lotion-containing topsheet
JP4459013B2 (ja) 2004-10-20 2010-04-28 花王株式会社 吸収性物品
US8211078B2 (en) * 2005-02-17 2012-07-03 The Procter And Gamble Company Sanitary napkins capable of taking complex three-dimensional shape in use
JP4514630B2 (ja) 2005-03-16 2010-07-28 花王株式会社 吸収性物品の表面シート
JP4523866B2 (ja) 2005-03-31 2010-08-11 ユニ・チャーム株式会社 吸収性物品
JP4792249B2 (ja) 2005-07-11 2011-10-12 ユニ・チャーム株式会社 体液吸収性物品
EP1993498A1 (en) 2006-03-14 2008-11-26 The Procter and Gamble Company Absorbent articles with lotions
JP5328089B2 (ja) 2006-06-23 2013-10-30 ユニ・チャーム株式会社 多層不織布及び多層不織布の製造方法
JP5069891B2 (ja) 2006-06-23 2012-11-07 ユニ・チャーム株式会社 不織布
JP5123512B2 (ja) 2006-06-23 2013-01-23 ユニ・チャーム株式会社 不織布
JP5069890B2 (ja) 2006-06-23 2012-11-07 ユニ・チャーム株式会社 不織布
JP5123513B2 (ja) 2006-06-23 2013-01-23 ユニ・チャーム株式会社 吸収体
JP5123505B2 (ja) 2006-06-23 2013-01-23 ユニ・チャーム株式会社 不織布
JP5154048B2 (ja) 2006-06-23 2013-02-27 ユニ・チャーム株式会社 不織布
JP5328088B2 (ja) 2006-06-23 2013-10-30 ユニ・チャーム株式会社 不織布
WO2007148799A1 (ja) 2006-06-23 2007-12-27 Uni-Charm Corporation 吸収性物品
JP5123511B2 (ja) 2006-06-23 2013-01-23 ユニ・チャーム株式会社 不織布
JP5021380B2 (ja) 2006-07-05 2012-09-05 花王株式会社 吸収性物品
EP2036521A4 (en) 2006-07-05 2012-06-20 Kao Corp ABSORBENT ARTICLE
JP4986673B2 (ja) 2007-03-27 2012-07-25 花王株式会社 吸収性物品
JP4939192B2 (ja) 2006-12-05 2012-05-23 ユニ・チャーム株式会社 不織布、不織布の製造方法及び吸収性物品
JP4939196B2 (ja) 2006-12-12 2012-05-23 ユニ・チャーム株式会社 不織布、不織布の製造方法及び吸収性物品
EP2090683B1 (en) 2006-12-05 2011-10-12 Uni-charm Corporation Nonwoven fabric, process for production of nonwoven fabric and absorbent articles
EP2092918A4 (en) 2006-12-13 2012-06-27 Uni Charm Corp ABSORBENT ARTICLE
JP4979424B2 (ja) 2007-03-20 2012-07-18 花王株式会社 吸収性物品
JP4979423B2 (ja) 2007-03-20 2012-07-18 花王株式会社 吸収性物品
JP5114087B2 (ja) 2007-04-17 2013-01-09 ユニ・チャーム株式会社 不織布、及び、吸収性物品
WO2008133067A1 (ja) 2007-04-17 2008-11-06 Uni-Charm Corporation 不織布、不織布製造方法、及び、吸収性物品
JP4879074B2 (ja) 2007-04-17 2012-02-15 ユニ・チャーム株式会社 不織布製造方法
EP1992366B1 (en) 2007-05-15 2011-07-06 The Procter & Gamble Company Use of a lotion composition on an absorbent article for reducing adherence of feces or menses to the skin
JP5161491B2 (ja) 2007-05-30 2013-03-13 ユニ・チャーム株式会社 吸収性物品
JP5568210B2 (ja) 2007-06-13 2014-08-06 ユニ・チャーム株式会社 不織布シートの製造方法
JP5497987B2 (ja) 2007-06-22 2014-05-21 ユニ・チャーム株式会社 不織布およびその製造方法
JP4652387B2 (ja) 2007-10-03 2011-03-16 王子製紙株式会社 折り返し部を有する吸収体製品
JP2009201878A (ja) 2008-02-29 2009-09-10 Uni Charm Corp 吸収性物品
JP5173616B2 (ja) 2008-06-10 2013-04-03 花王株式会社 吸収性物品
JP5371361B2 (ja) 2008-10-10 2013-12-18 ユニ・チャーム株式会社 吸収性物品及び吸収性物品の製造方法
JP5520124B2 (ja) 2009-05-14 2014-06-11 ユニ・チャーム株式会社 透液性繊維不織布
JP5401177B2 (ja) 2009-06-04 2014-01-29 花王株式会社 吸収性物品
EP2433602B1 (en) 2009-05-20 2016-08-17 Kao Corporation Absorbent body and absorbent article
JP5590834B2 (ja) 2009-08-11 2014-09-17 ユニ・チャーム株式会社 不織布およびその製造方法
JP2011067484A (ja) 2009-09-28 2011-04-07 Kao Corp 吸収性物品
JP5623052B2 (ja) 2009-09-29 2014-11-12 ユニ・チャーム株式会社 不織布の製造方法
JP5530693B2 (ja) 2009-09-30 2014-06-25 大王製紙株式会社 吸収性物品
JP5421720B2 (ja) 2009-10-09 2014-02-19 ユニ・チャーム株式会社 不織布
JP5395630B2 (ja) 2009-11-13 2014-01-22 花王株式会社 吸収性物品
JP5466489B2 (ja) 2009-11-16 2014-04-09 花王株式会社 吸収性物品
JP5551926B2 (ja) 2009-12-09 2014-07-16 花王株式会社 吸収性物品
TWI448277B (zh) 2011-03-31 2014-08-11 Uni Charm Corp Absorbent items
JP5916327B2 (ja) * 2011-09-30 2016-05-11 ユニ・チャーム株式会社 吸収性物品
JP5717672B2 (ja) * 2012-02-29 2015-05-13 ユニ・チャーム株式会社 吸収性物品
JP5847055B2 (ja) * 2012-02-29 2016-01-20 ユニ・チャーム株式会社 吸収性物品

Patent Citations (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2008541943A (ja) * 2005-06-02 2008-11-27 ザ プロクター アンド ギャンブル カンパニー 横方向強化要素を有する吸収性物品
JP2008002034A (ja) 2006-06-23 2008-01-10 Uni Charm Corp 不織布、不織布製造方法及び不織布製造装置
JP2010518918A (ja) 2007-02-16 2010-06-03 ザ プロクター アンド ギャンブル カンパニー ポリプロピレングリコール材料を含むローションを備える吸収性物品
JP2011510801A (ja) 2008-02-15 2011-04-07 ザ プロクター アンド ギャンブル カンパニー ポリプロピレングリコール材料を含むローションを備える吸収性物品
JP2010148708A (ja) * 2008-12-25 2010-07-08 Uni Charm Corp 薄型吸収性物品
JP2011226011A (ja) 2010-04-16 2011-11-10 Uni Charm Corp 伸長性繊維と伸縮性繊維とを含む、凹凸を有する不織布、及び当該不織布を製造する方法
JP2011226010A (ja) 2010-04-16 2011-11-10 Uni Charm Corp 凹凸を有する不織布を簡易に製造する方法、及び不織布を簡易に加工する方法
JP2012050626A (ja) * 2010-08-31 2012-03-15 Unicharm Corp 吸収性物品及び生理用ナプキン

Non-Patent Citations (2)

* Cited by examiner, † Cited by third party
Title
FUJITA A.; KAGAKU NO RYOIKI: "Organic compound predictions and organic paradigms", JOURNAL OF JAPANESE CHEMISTRY, vol. 11, no. 10, 1957, pages 719 - 725
See also references of EP2835121A4

Cited By (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2014050599A1 (ja) * 2012-09-28 2014-04-03 ユニ・チャーム株式会社 吸収性物品
WO2014050573A1 (ja) * 2012-09-28 2014-04-03 ユニ・チャーム株式会社 吸収性物品
JP2014068935A (ja) * 2012-09-28 2014-04-21 Uni Charm Corp 吸収性物品
JP2014068934A (ja) * 2012-09-28 2014-04-21 Uni Charm Corp 吸収性物品
US9248060B2 (en) 2012-09-28 2016-02-02 Unicharm Corporation Absorbent article
US10278875B2 (en) 2012-09-28 2019-05-07 Unicharm Corporation Absorbent article with blood slipping agent-containing regions

Also Published As

Publication number Publication date
EP2835121A4 (en) 2015-10-28
EP2835121A1 (en) 2015-02-11
TWI551273B (zh) 2016-10-01
TW201404376A (zh) 2014-02-01
JP5717686B2 (ja) 2015-05-13
CN104349755A (zh) 2015-02-11
US20150057628A1 (en) 2015-02-26
JP2013212283A (ja) 2013-10-17
US9381268B2 (en) 2016-07-05
AR090530A1 (es) 2014-11-19
CN104349755B (zh) 2016-06-01
EP2835121B1 (en) 2017-11-22

Similar Documents

Publication Publication Date Title
JP5717672B2 (ja) 吸収性物品
JP5717686B2 (ja) 吸収性物品
JP5122007B1 (ja) 吸収性物品
JP5717685B2 (ja) 吸収性物品
JP6021567B2 (ja) 吸収性物品
JP6116179B2 (ja) 吸収性物品
JP6116177B2 (ja) 吸収性物品
JP5685234B2 (ja) 吸収性物品
JP6116178B2 (ja) 吸収性物品
JP6092508B2 (ja) 吸収性物品
JP6057648B2 (ja) 吸収性物品
JP5988810B2 (ja) 吸収性物品
JP6012380B2 (ja) 不織布及び吸収性物品
JP6104551B2 (ja) 吸収性物品
JP5939949B2 (ja) 吸収性物品
JP2017109125A (ja) 吸収性物品

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 13773006

Country of ref document: EP

Kind code of ref document: A1

REEP Request for entry into the european phase

Ref document number: 2013773006

Country of ref document: EP

WWE Wipo information: entry into national phase

Ref document number: 2013773006

Country of ref document: EP

WWE Wipo information: entry into national phase

Ref document number: IDP00201405845

Country of ref document: ID

WWE Wipo information: entry into national phase

Ref document number: 14390006

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE
