WO2020170148A1 - Spray composition of aversive agent - Google Patents

Spray composition of aversive agent Download PDF

Info

Publication number
WO2020170148A1
WO2020170148A1 PCT/IB2020/051373 IB2020051373W WO2020170148A1 WO 2020170148 A1 WO2020170148 A1 WO 2020170148A1 IB 2020051373 W IB2020051373 W IB 2020051373W WO 2020170148 A1 WO2020170148 A1 WO 2020170148A1
Authority
WO
WIPO (PCT)
Prior art keywords
composition
denatonium
present
compound
agent
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/IB2020/051373
Other languages
French (fr)
Inventor
Parasu Veera UPPARA
Pradnya Sanjay LOKHANDE
Krishna Ramprakash SRIVASTAVA
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
UPL Ltd
Original Assignee
UPL Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by UPL Ltd filed Critical UPL Ltd
Priority to EP20758961.5A priority Critical patent/EP3927162A4/en
Priority to CA3130564A priority patent/CA3130564A1/en
Priority to SG11202108243SA priority patent/SG11202108243SA/en
Priority to BR112021015580-5A priority patent/BR112021015580B1/en
Priority to US17/431,210 priority patent/US12516001B2/en
Publication of WO2020170148A1 publication Critical patent/WO2020170148A1/en
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • C—CHEMISTRY; METALLURGY
    • C06—EXPLOSIVES; MATCHES
    • C06D—MEANS FOR GENERATING SMOKE OR MIST; GAS-ATTACK COMPOSITIONS; GENERATION OF GAS FOR BLASTING OR PROPULSION (CHEMICAL PART)
    • C06D7/00—Compositions for gas-attacks
    • A—HUMAN NECESSITIES
    • A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
    • A01M—CATCHING, TRAPPING OR SCARING OF ANIMALS; APPARATUS FOR THE DESTRUCTION OF NOXIOUS ANIMALS OR NOXIOUS PLANTS
    • A01M29/00—Scaring or repelling devices, e.g. bird-scaring apparatus
    • A01M29/12—Scaring or repelling devices, e.g. bird-scaring apparatus using odoriferous substances, e.g. aromas, pheromones or chemical agents
    • A—HUMAN NECESSITIES
    • A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
    • A01N—PRESERVATION OF BODIES OF HUMANS OR ANIMALS OR PLANTS OR PARTS THEREOF; BIOCIDES, e.g. AS DISINFECTANTS, AS PESTICIDES OR AS HERBICIDES; PEST REPELLANTS OR ATTRACTANTS; PLANT GROWTH REGULATORS
    • A01N37/00—Biocides, pest repellants or attractants, or plant growth regulators containing organic compounds containing a carbon atom having three bonds to hetero atoms with at the most two bonds to halogen, e.g. carboxylic acids
    • A01N37/44—Biocides, pest repellants or attractants, or plant growth regulators containing organic compounds containing a carbon atom having three bonds to hetero atoms with at the most two bonds to halogen, e.g. carboxylic acids containing at least one carboxylic group or a thio analogue, or a derivative thereof, and a nitrogen atom attached to the same carbon skeleton by a single or double bond, this nitrogen atom not being a member of a derivative or of a thio analogue of a carboxylic group, e.g. amino-carboxylic acids
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F41—WEAPONS
    • F41H—ARMOUR; ARMOURED TURRETS; ARMOURED OR ARMED VEHICLES; MEANS OF ATTACK OR DEFENCE, e.g. CAMOUFLAGE, IN GENERAL
    • F41H9/00—Equipment for attack or defence by spreading flame, gas or smoke or leurres; Chemical warfare equipment
    • F41H9/10—Hand-held or body-worn self-defence devices using repellant gases or chemicals
    • A—HUMAN NECESSITIES
    • A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
    • A01N—PRESERVATION OF BODIES OF HUMANS OR ANIMALS OR PLANTS OR PARTS THEREOF; BIOCIDES, e.g. AS DISINFECTANTS, AS PESTICIDES OR AS HERBICIDES; PEST REPELLANTS OR ATTRACTANTS; PLANT GROWTH REGULATORS
    • A01N25/00—Biocides, pest repellants or attractants, or plant growth regulators, characterised by their forms, or by their non-active ingredients or by their methods of application, e.g. seed treatment or sequential application; Substances for reducing the noxious effect of the active ingredients to organisms other than pests
    • A01N25/02—Biocides, pest repellants or attractants, or plant growth regulators, characterised by their forms, or by their non-active ingredients or by their methods of application, e.g. seed treatment or sequential application; Substances for reducing the noxious effect of the active ingredients to organisms other than pests containing liquids as carriers, diluents or solvents
    • A—HUMAN NECESSITIES
    • A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
    • A01N—PRESERVATION OF BODIES OF HUMANS OR ANIMALS OR PLANTS OR PARTS THEREOF; BIOCIDES, e.g. AS DISINFECTANTS, AS PESTICIDES OR AS HERBICIDES; PEST REPELLANTS OR ATTRACTANTS; PLANT GROWTH REGULATORS
    • A01N25/00—Biocides, pest repellants or attractants, or plant growth regulators, characterised by their forms, or by their non-active ingredients or by their methods of application, e.g. seed treatment or sequential application; Substances for reducing the noxious effect of the active ingredients to organisms other than pests
    • A01N25/02—Biocides, pest repellants or attractants, or plant growth regulators, characterised by their forms, or by their non-active ingredients or by their methods of application, e.g. seed treatment or sequential application; Substances for reducing the noxious effect of the active ingredients to organisms other than pests containing liquids as carriers, diluents or solvents
    • A01N25/04—Dispersions, emulsions, suspoemulsions, suspension concentrates or gels
    • A01N25/06—Aerosols
    • A—HUMAN NECESSITIES
    • A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
    • A01N—PRESERVATION OF BODIES OF HUMANS OR ANIMALS OR PLANTS OR PARTS THEREOF; BIOCIDES, e.g. AS DISINFECTANTS, AS PESTICIDES OR AS HERBICIDES; PEST REPELLANTS OR ATTRACTANTS; PLANT GROWTH REGULATORS
    • A01N25/00—Biocides, pest repellants or attractants, or plant growth regulators, characterised by their forms, or by their non-active ingredients or by their methods of application, e.g. seed treatment or sequential application; Substances for reducing the noxious effect of the active ingredients to organisms other than pests
    • A01N25/30—Biocides, pest repellants or attractants, or plant growth regulators, characterised by their forms, or by their non-active ingredients or by their methods of application, e.g. seed treatment or sequential application; Substances for reducing the noxious effect of the active ingredients to organisms other than pests characterised by the surfactants

Definitions

  • the present invention relates to a composition comprising bittering agent for defense against human or animal attacker.
  • the present invention more particularly relates to a composition comprising denatonium compound for self-defense, method of making and use of said composition as a personal protectant against human or animal attacker.
  • Denatonium benzoate also known as phenylmethyl-[2-[(2,6-dimethylphenyl)amino]- 2- oxoethyl]-di ethyl ammonium benzoate, CAS no. 3734-33-6.
  • Denatonium benzoate is a quaternary ammonium salt formed by the combination of a cationic quaternary ammonium salt with an inert anion such as benzoate ion or saccharin anion. Having the following structure:
  • Denatonium benzoate is listed in the Guinness Book of Records and the Merck Index as “the bitterest substance known to man”. Denatonium benzoate can be detected by the average person at 10 ppb and has a generally recognized bitter taste at 50 ppb. The normal application range is 6-50 ppm, depending on the nature of the product to which it is added. However, clinical trials have proven that its extremely human safe drug.
  • Denatonium benzoate is generally used as a aversive agent (bittering agent) to prevent eating of toxic substances. For example, added to industrial alcohol, paint, toilet cleaners, liquid soaps, and shampoos in order to prevent poisoning in people, animals. Also, For example, it can be used in a dilute solution to brush on the fingernails of people who are compulsive fingernail -biters or on the thumbs of children who suck their thumbs more than they should.
  • Denatonium benzoate is also used as an animal repellent such as cat, dog, and bird repellents, for prevention of cannibalism in pigs, to keep horses from chewing their stalls, deer from nibbling tree shoots, and to keep hedgehogs from eating slug pellets (Payne 1988).
  • denatonium compounds in particular, Denatonium Benzoate and Denatonium Saccharide, as aversive agents is known in patents, viz., US3080327, US3268577, US4661504 and US4652577.
  • EP0173410 discloses a composition for repelling birds and other creatures comprising Denatonium benzoate as a repellant in association with a terpene or terpene polymer.
  • a variety of products are available commercially for defense purpose and other requirements such as chili spray or pepper spray used by females for self-defense, spray that assists in subduing and arresting people whose behavior is violent or uncooperative.
  • various spray systems are effective and readily available for personal protection.
  • pepper spray and capsaicin can cause permanent damage to the eye, however, prolong exposure could certainly cause permanent damage to the cornea.
  • chili spray is not safe for human.
  • both chili spray and pepper spray are not safe for the human attackers.
  • bittering agents when used in a composition does not cause any physical damage to the person on whom it is used and is effective for the purpose. Its inhalation will cause extreme bitterness to the person and person will be distracted instantly from the actions.
  • aversive agent spray causes discomfort and nausea instantly.
  • Chemical or pepper spray or chili spray can be harmful to the person on whom it has been used.
  • the aversive agent used herein is chemically safe and doesn’t cause any physical damage to the person on whom it is being used.
  • composition comprising a bittering agent.
  • composition comprising denatonium compound as active agent for defense against attackers.
  • composition comprising denatonium benzoate.
  • the present invention is directed to a method of personal self-defense for females which is safe to use and provides an effective deterrent to a would-be assailant.
  • defense method involves spraying in the direction of the assailant the composition without permanent harmful effect on skin or eyes.
  • bitter substance in the specification.
  • the terms“comprising”“including,”“having,”“containing,”“involving,” and the like are to be understood to be open-ended, i.e., to mean including but not limited to.
  • the present invention relates to a composition comprising bittering agent, used for defense.
  • the bittering agent is selected from natural or synthetic bitterants.
  • a composition comprising denatonium compound for defense against attacker.
  • bittering agent is selected from natural or synthetic bitterants.
  • composition comprising denatonium compound.
  • the present composition further comprising a carrier selected from water, surfactant, dispersing agent, solvent, colorants, flavors, stabilizers, buffers, thickening agent, solubilizing agent or mixtures thereof.
  • a carrier selected from water, surfactant, dispersing agent, solvent, colorants, flavors, stabilizers, buffers, thickening agent, solubilizing agent or mixtures thereof.
  • the carrier is used in an amount of 0.1 to 50 % w/v of the composition.
  • the liquid composition comprising denatonium compound as aversive agent and a carrier.
  • the present composition can be in the form of a liquid or solid such as paste, gel, cream, ointment and the like.
  • the present invention provides a liquid composition comprising denatonium compound as aversive agent.
  • liquid forms of the composition include solutions, suspensions, and emulsions.
  • These liquid preparations may further contain, in addition to the active component, colorants, flavors, stabilizers, buffers, artificial and natural bitterants, dispersants, thickeners, solubilizing agents, and the like.
  • the liquid composition of the present invention may further comprise actives that are soluble in water and dissolve in the aqueous medium.
  • actives that are soluble in water and dissolve in the aqueous medium.
  • both suspended and any dissolved active agents are distributed homogeneously.
  • the present composition may comprise about 10 wt% to about 80 wt% of the propellant.
  • the present composition may comprise about 10 wt% to about 90 wt% of at least one water-miscible solvent selected from monohydric alcohols, polyhydric alcohols and mixtures thereof.
  • the water-miscible solvent can be selected from methyl alcohol, ethyl alcohol, isopropyl alcohol, n-propyl alcohol, iso- butyl alcohol, sec-butyl alcohol, n-butyl alcohol, ethylene glycol, propylene glycol and mixtures thereof.
  • the present composition may contain irritant for example pelargonic acid morpholide, or capsicum oleoresin, or [b, f -1,4-oxazepine (CR) dibenz, or a mixture of these irritants.
  • irritant for example pelargonic acid morpholide, or capsicum oleoresin, or [b, f -1,4-oxazepine (CR) dibenz, or a mixture of these irritants.
  • Oleoresin capsicum (OS) is a natural capsaicinoid, an extract of the most burning varieties of red pepper, an irritating substance of natural origin, which is becoming increasingly popular as a means of self-defense. If it enters the mucous membrane of the eyes, nose, upper respiratory tract, it causes a short-term irritating effect in the form of lacrimation, sneezing, salivation, nasal discharge, conjunctival redness. Oleoresin capsicum is considered the safest of all used irri
  • Pelargonic acid morpholide is an analogue of OS, with a similar effect on the affected object. It is an oily, transparent liquid with a yellowish tint, insoluble in water, soluble in polar organic solvents (acetone, propanol, dimethylformamide, benzene, alcohols), fats (sunflower, castor oil, etc.).
  • Dibenz [b, f] -1,4-oxazepine (CR) is a yellow crystal that has irritating effects on the eyes, nasopharynx and skin.
  • the present composition is aqueous composition or non-aqueous composition or a hydroalcoholic composition.
  • the present composition comprises a bittering agent and water.
  • the present composition is a suspension.
  • the present composition is a solution.
  • the present composition is a gel.
  • the present composition is a clear aqueous suspension formulation.
  • an aqueous composition comprising denatonium compound as aversive agent.
  • the composition is in the form of a spray.
  • the composition is a spray comprising an aqueous suspension of aversive agent.
  • the composition is a spray comprising an aqueous suspension of denatonium compound.
  • denatonium compound is selected from the group comprising denatonium chloride, denatonium citrate, denatonium saccharide, denatonium carbonate, denatonium acetate, denatonium benzoate, denatonium benzoate monohydrate and mixtures thereof.
  • denatonium salt is denatonium benzoate.
  • an aqueous composition comprising denatonium benzoate as bittering agent and a carrier.
  • an aqueous composition comprising denatonium compound as bittering agent for defense against attacker.
  • an aqueous suspension comprising denatonium benzoate as bittering agent for defense against human or animal attacker.
  • a spray comprising an aqueous composition comprising denatonium compound as bittering agent for protection against attacker.
  • the present composition is a spray comprising an aqueous suspension of denatonium compound.
  • the present composition is a spray comprising an aqueous suspension of denatonium benzoate.
  • the present spray comprising denatonium compound is particularly used for defense against attackers.
  • the present invention more particularly relates to use of denatonium compound in the present composition which may be formed into water or an aerosol or placed in a pressure sprayer to form a personal protectant for defense against attackers.
  • the present invention relates to a spray comprising denatonium compound used for defense.
  • a method of preparing a composition comprising aversive agent.
  • compositions can be prepared by the convention methods known to a person skilled in the art.
  • the method of prepariing the present spray composition comprises mixting the active agent with suitable carrier and stirring the mixture to obtain a clear composition ready to spray.
  • the composition according to the present invention may be mixed with water and sprayed on the mob.
  • spraying is also helpful in controlling riots or taming violent protest by mob.
  • the bitterant effect of denatonium compound for example denatonium benzoate would disperse the angry mob and help control the riots or violent protest.
  • the carrier is water and forms an aqueous solution containing the other ingredients.
  • the composition comprises an oil-based carrier solution containing the ingredients is an alternative to the aqueous carrier solution.
  • the composition can comprise essential oil for example sesame oil, olive oil, corn oil, soybean oil, cottonseed oil, peanut oil, lanolin, petroleum jelly, paraffin, silicone oil, fatty acids of 6 to 30 carbon atoms or the corresponding glycerol or alcohol esters.
  • essential oil for example sesame oil, olive oil, corn oil, soybean oil, cottonseed oil, peanut oil, lanolin, petroleum jelly, paraffin, silicone oil, fatty acids of 6 to 30 carbon atoms or the corresponding glycerol or alcohol esters.
  • Alternative embodiments of the present invention provide a gel formulation comprising solid carriers containing the active ingredients.
  • the solid carrier further contains thickening agents to provide the composition with the consistency of wax or paraffin.
  • the concentration of the aversive agent in the compositions of the invention may vary depending on the particular bittering agent employed, and on the application for which the composition is intended, with the proviso that the concentration employed may not be toxic or below the targeted toxicity level.
  • the composition comprises denatonium compound as aversive agent
  • the denatonium compound is typically present in the composition at a concentration in the range of about 0.01 to 50 % wt/v, preferably 0.01 to 20% w/v, more preferably in the range of about 0.01 to 10 % w/v which include 1%, 2%, 3%, 4%, 5%, 6%, 7%, 8% and 9% w/v.
  • the composition may be formed into an aerosol or placed in a pressure sprayer to form a personal protectant for defense against attackers.
  • a method of deterring an attack comprising spraying the composition at a human or animal attacker.
  • the method of deterring human attack comprising spraying the composition comprising denatonium compound at a human attacker.
  • composition further comprises surfactant selected from the below list.
  • Anionic surfactant sulfate, sulfonate, and phosphate, carboxylate derivatives: Anionic surfactants contain anionic functional groups at their head, such as sulfate, sulfonate, phosphate, and carboxylates.
  • Prominent alkyl sulfates include ammonium lauryl sulfate, sodium lauryl sulfate (sodium dodecyl sulfate, SLS, or SDS), and the related alkyl-ether sulfates sodium laureth sulfate (sodium lauryl ether sulfate or SLES), and sodium myreth sulfate.
  • Carboxylates are the most common surfactants and comprise the carboxylate salts (soaps), such as sodium stearate. More specialized species include sodium lauroyl sarcosinate and carboxylate-based fluorosurfactants such as perfluorononanoate, perfluorooctanoate (PFOA or PFO).
  • carboxylate salts such as sodium stearate. More specialized species include sodium lauroyl sarcosinate and carboxylate-based fluorosurfactants such as perfluorononanoate, perfluorooctanoate (PFOA or PFO).
  • Cationic surfactant pH-dependent primary, secondary, or tertiary amines; primary and secondary amines become positively charged at pH ⁇ 10: octenidine dihydrochloride.
  • CAB cetrimonium bromide
  • CPC cetylpyridinium chloride
  • BAC benzalkonium chloride
  • BZT benzethonium chloride
  • Zwitterionic Zwitterionic (amphoteric) surfactants have both cationic and anionic centers attached to the same molecule.
  • the cationic part is based on primary, secondary, or tertiary amines or quaternary ammonium cations.
  • the anionic part can be more variable and include sulfonates, as in the sultaines CHAPS (3 -[(3- cholamidopropyl)dimethylammonio]-l-propanesulfonate) and cocamide.
  • Betaines such as cocamidopropyl betaine have a carboxylate with the ammonium.
  • the most common biological zwitterionic surfactants have a phosphate anion with an amine or ammonium, such as the phospholipids phosphatidylserine, phosphatidylethanolamine, phosphatidylcholine, and sphingomyelins.
  • Non-ionic surfactants are non-ionic surfactants:
  • Non-ionic surfactants have covalently bonded oxygen-containing hydrophilic groups, which are bonded to hydrophobic parent structures.
  • the water-solubility of the oxygen groups is the result of hydrogen bonding. Hydrogen bonding decreases with increasing temperature, and the water solubility of non-ionic surfactants therefore decreases with increasing temperature.
  • Alkylphenol ethoxylates Nonoxynols, Triton X-100
  • Fatty acid ethoxylates are a class of very versatile surfactants, which combine in a single molecule the characteristic of a weakly anionic, pH-responsive head group with the presence of stabilizing and temperature responsive ethyleneoxide units.
  • Ethoxylated amines and/or fatty acid amides Polyethoxylated tallow amine, Cocamide monoethanolamine, Cocamide diethanolamine, Terminally blocked ethoxylate, Poloxamers
  • Fatty acid esters of glycerol Glycerol monostearate, Glycerol monolaurate
  • Tweens Tween 20, Tween 40, Tween 60, Tween 80 Fatty acid esters of sucrose
  • Alkyl polyglycoside Decyl glucoside,Lauryl glucoside, Octyl glucoside
  • bitter (aversive) agents which can used in the composition either alone or in combination or the composition comprising at least one bittering agent can be prepared according to the present invention for desired purpose, include but not limited to, natural bitter substance or a member selected from the group consisting of: denatonium salts or a derivative thereof; quercetin (3,3',4',5,7-pentahydroxyflavone); Naringin (4',5,7-Trihydroxyflavanone-7-rhamnoglucoside); Aucubin; Amarogentin; Dihydrofoliamentin; Gentiopicroside; Gentiopicrin; Swertiamarin; Swerosid; Gentioflavosid; Centaurosid; Methiafolin; Harpagoside; Centapikrin; Sailicin; Kondurangin; Absinthin; Artabsin; Cnicin; Lactucin; Lactucopicrin; Salonitenolid; a- thujone; b-
  • a particularly preferred bittering agent is denatonium benzoate, also known as phenylmethyl-[2-[(2,6-dimethylphenyl)amino]-2-oxoethyl]- diethylammonium benzoate.
  • composition comprising denatonium benzoate as aversive agent and at least one carrier selected from poly vinyl pyrrolidone, poly vinyl pyridine, polyvinyl alcohol or mixtures thereof.
  • the present invention provides use of denatonium compound for example denatonium benzoate as bittering agent for self-defense against human or animal attacker.
  • a method of deterring a human attack comprising spraying the present composition comprising denatonium compound for example denatonium benzoate at a human attacker.
  • a kit comprising stable composition according to the present invention for self-defense.
  • the present invention provides a spray device comprising a composition of denatonium benzoate in an amount of less than 50 % w/v.
  • the present invention provides a spray device comprising a composition of denatonium benzoate in an amount of 0.01 to 50 % w/v.
  • the present invention provides a personal defense device carried by a user, for spraying a liquid composition comprising denatonium benzoate in an amount of 0.01 to 50 % w/v.
  • the present invention provides a defense spray pack comprising an aqueous composition of denatonium benzoate in an amount of 0.01 to 50 % w/v and instructions manual to use the same.
  • the present invention provides a defense spray pack comprising a non- aqueous composition of denatonium benzoate in an amount of 0.01 to 50 % w/v.
  • the present formulation is environment friendly.
  • the present formulation doesn’t cause any physical damages to skin and eyes.
  • the present product is physiochemically stable and environmentally safe.
  • the formulation also gives sustain release effect because of addition of polymers.
  • the formulation has excellent spray ability. 7. The formulation has improved efficacy.
  • composition described above is safe, efficacious and stable at various temperatures, and even when the stable agrochemical composition undergoes shear forces for example on mixing.
  • compositions described in following examples were taken further to evaluate physicochemical parameters. Stability features associated with the composition developed according to the present invention were studied. It was found that all the compositions remained stable when tested at ambient conditions i.e. room temperature and pressure. The compositions also passed 0°C and Accelerated Heat Stability (AHS) test for 14 days and remained clear and flowable suspension.
  • AHS Accelerated Heat Stability

Landscapes

  • Life Sciences & Earth Sciences (AREA)
  • Engineering & Computer Science (AREA)
  • Environmental Sciences (AREA)
  • Zoology (AREA)
  • Health & Medical Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Wood Science & Technology (AREA)
  • Pest Control & Pesticides (AREA)
  • Chemical & Material Sciences (AREA)
  • General Engineering & Computer Science (AREA)
  • Insects & Arthropods (AREA)
  • Birds (AREA)
  • Toxicology (AREA)
  • Agronomy & Crop Science (AREA)
  • Plant Pathology (AREA)
  • Dentistry (AREA)
  • Organic Chemistry (AREA)
  • Combustion & Propulsion (AREA)
  • Acyclic And Carbocyclic Compounds In Medicinal Compositions (AREA)
  • Medicinal Preparation (AREA)
  • Agricultural Chemicals And Associated Chemicals (AREA)

Abstract

The present invention relates to a composition comprising bittering agent for defense against human or animal attacker. The present invention more particularly relates to a composition comprising denatonium compound for self-defense, method of making and use of said composition as a personal protectant against human or animal attacker.

Description

SPRAY COMPOSITION OF AVERSIVE AGENT
FIELD OF INVENTION
The present invention relates to a composition comprising bittering agent for defense against human or animal attacker. The present invention more particularly relates to a composition comprising denatonium compound for self-defense, method of making and use of said composition as a personal protectant against human or animal attacker.
BACKGROUND OF THE INVENTION
Denatonium benzoate, also known as phenylmethyl-[2-[(2,6-dimethylphenyl)amino]- 2- oxoethyl]-di ethyl ammonium benzoate, CAS no. 3734-33-6. Formula: C28H34N203 molecular weight: 446.58 g/mol
Denatonium benzoate is a quaternary ammonium salt formed by the combination of a cationic quaternary ammonium salt with an inert anion such as benzoate ion or saccharin anion. Having the following structure:
Figure imgf000002_0001
Denatonium benzoate is listed in the Guinness Book of Records and the Merck Index as “the bitterest substance known to man”. Denatonium benzoate can be detected by the average person at 10 ppb and has a generally recognized bitter taste at 50 ppb. The normal application range is 6-50 ppm, depending on the nature of the product to which it is added. However, clinical trials have proven that its extremely human safe drug.
Denatonium benzoate is generally used as a aversive agent (bittering agent) to prevent eating of toxic substances. For example, added to industrial alcohol, paint, toilet cleaners, liquid soaps, and shampoos in order to prevent poisoning in people, animals. Also, For example, it can be used in a dilute solution to brush on the fingernails of people who are compulsive fingernail -biters or on the thumbs of children who suck their thumbs more than they should. Denatonium benzoate is also used as an animal repellent such as cat, dog, and bird repellents, for prevention of cannibalism in pigs, to keep horses from chewing their stalls, deer from nibbling tree shoots, and to keep hedgehogs from eating slug pellets (Payne 1988).
The use of denatonium compounds, in particular, Denatonium Benzoate and Denatonium Saccharide, as aversive agents is known in patents, viz., US3080327, US3268577, US4661504 and US4652577.
EP0173410 discloses a composition for repelling birds and other creatures comprising Denatonium benzoate as a repellant in association with a terpene or terpene polymer.
A variety of products are available commercially for defense purpose and other requirements such as chili spray or pepper spray used by females for self-defense, spray that assists in subduing and arresting people whose behavior is violent or uncooperative. When it comes to self-defense, various spray systems are effective and readily available for personal protection. However, pepper spray and capsaicin can cause permanent damage to the eye, however, prolong exposure could certainly cause permanent damage to the cornea. Similarly, chili spray is not safe for human. Thus, both chili spray and pepper spray are not safe for the human attackers.
There remains a need for alternative and effective composition used for defense against human and animal attackers.
The present inventors have surprisingly found that bittering agents when used in a composition does not cause any physical damage to the person on whom it is used and is effective for the purpose. Its inhalation will cause extreme bitterness to the person and person will be distracted instantly from the actions.
Without causing any physical damage to the attacker, aversive agent spray causes discomfort and nausea instantly. Chemical or pepper spray or Chili spray can be harmful to the person on whom it has been used. The aversive agent used herein is chemically safe and doesn’t cause any physical damage to the person on whom it is being used. OBJECTS OF THE INVENTION
It is an object of the present invention to provide a composition comprising an aversive agent.
It is another object to provide a spray composition for defense against attackers.
It is an object of the present invention to provide denatonium compounds as aversive agent for dispersing mob and curbing violent protest.
It is an object of the present invention to provide spray composition comprising denatonium compound which does not cause any physical damage to the person on whom it is used.
It is another object of the present invention to provide a method of defense using said composition which is safe to use and effective against defense by another.
It is an object of the invention to provide a composition comprising denatonium compound which is readily available and used by a person being attacked toward an attacker to provide effective defense.
SUMMARY OF THE INVENTION
In an aspect of the present invention, there is provided a composition comprising a bittering agent.
In another aspect of the present invention, there is provided a composition comprising denatonium compound as active agent for defense against attackers.
In yet another aspect of the present invention, there is provided a composition comprising denatonium benzoate.
In another aspect of the present invention, there is provided a method of deterring an attack comprising applying said composition to attacker.
The present invention is directed to a method of personal self-defense for females which is safe to use and provides an effective deterrent to a would-be assailant. In a preferred embodiment, defense method involves spraying in the direction of the assailant the composition without permanent harmful effect on skin or eyes. DETAILED DESCRIPTION OF THE INVENTION
For the purposes of the following detailed description, it is to be understood that the invention may assume various alternative variations and step sequences, except where expressly specified to the contrary. Moreover, other than in any operating examples, or where otherwise indicated, all numbers expressing, for example, quantities of materials/ingredients used in the specification are to be understood as being modified in all instances by the term "about". The term "about" used to qualify the amounts of active agent shall be interpreted to mean "approximately" or "reasonably close to" and any statistically insignificant variations therefrom.
Thus, before describing the present invention in detail, it is to be understood that this invention is not limited to particularly exemplified systems or process parameters that may of course, vary. It is also to be understood that the terminology used herein is for the purpose of describing particular embodiments of the invention only and is not intended to limit the scope of the invention in any manner. The use of examples anywhere in this specification including examples of any terms discussed herein is illustrative only, and in no way limits the scope and meaning of the invention or of any exemplified term. Likewise, the invention is not limited to various embodiments given in this specification.
It must be noted that, as used in this specification, the singular forms“a,”“an” and“the” include plural referents unless the content clearly dictates otherwise. The terms “preferred” and“preferably” refer to embodiments of the invention that may afford certain benefits, under certain circumstances.
The terms“aversive agent” and“bittering agent” are used interchangeably and included to mean bitter substance in the specification.
As used herein, the terms“comprising”“including,”“having,”“containing,”“involving,” and the like are to be understood to be open-ended, i.e., to mean including but not limited to.
The present invention relates to a composition comprising bittering agent, used for defense.
The bittering agent is selected from natural or synthetic bitterants. In an aspect of the present invention, there is provided a composition comprising denatonium compound for defense against attacker.
In yet another aspect of the present invention, there is provided a composition comprising bittering agent and a carrier. bittering agent is selected from natural or synthetic bitterants.
In yet another aspect of the present invention, there is provided a composition comprising denatonium compound.
The present composition further comprising a carrier selected from water, surfactant, dispersing agent, solvent, colorants, flavors, stabilizers, buffers, thickening agent, solubilizing agent or mixtures thereof.
The carrier is used in an amount of 0.1 to 50 % w/v of the composition.
In an embodiment, the liquid composition comprising denatonium compound as aversive agent and a carrier.
In another embodiments, the present composition can be in the form of a liquid or solid such as paste, gel, cream, ointment and the like.
Accordingly, the present invention provides a liquid composition comprising denatonium compound as aversive agent.
In one embodiment, such liquid forms of the composition include solutions, suspensions, and emulsions. These liquid preparations may further contain, in addition to the active component, colorants, flavors, stabilizers, buffers, artificial and natural bitterants, dispersants, thickeners, solubilizing agents, and the like.
The liquid composition of the present invention may further comprise actives that are soluble in water and dissolve in the aqueous medium. In the composition of the invention both suspended and any dissolved active agents are distributed homogeneously. In some embodiments the present composition may comprise about 10 wt% to about 80 wt% of the propellant.
In some embodiments the present composition may comprise about 10 wt% to about 90 wt% of at least one water-miscible solvent selected from monohydric alcohols, polyhydric alcohols and mixtures thereof. The water-miscible solvent can be selected from methyl alcohol, ethyl alcohol, isopropyl alcohol, n-propyl alcohol, iso- butyl alcohol, sec-butyl alcohol, n-butyl alcohol, ethylene glycol, propylene glycol and mixtures thereof.
The present composition may contain irritant for example pelargonic acid morpholide, or capsicum oleoresin, or [b, f -1,4-oxazepine (CR) dibenz, or a mixture of these irritants. Oleoresin capsicum (OS) is a natural capsaicinoid, an extract of the most burning varieties of red pepper, an irritating substance of natural origin, which is becoming increasingly popular as a means of self-defense. If it enters the mucous membrane of the eyes, nose, upper respiratory tract, it causes a short-term irritating effect in the form of lacrimation, sneezing, salivation, nasal discharge, conjunctival redness. Oleoresin capsicum is considered the safest of all used irritants. The use of OS in the liquid composition as a irritant provides a decrease in the toxicity of the composition.
Pelargonic acid morpholide (IPC) is an analogue of OS, with a similar effect on the affected object. It is an oily, transparent liquid with a yellowish tint, insoluble in water, soluble in polar organic solvents (acetone, propanol, dimethylformamide, benzene, alcohols), fats (sunflower, castor oil, etc.).
Dibenz [b, f] -1,4-oxazepine (CR) is a yellow crystal that has irritating effects on the eyes, nasopharynx and skin.
The use of these substances in the liquid composition as irritants makes it possible to provide criteria for the effectiveness of the irritating effect (blepharospasm, lacrimation, etc.).
In an embodiment the present composition is aqueous composition or non-aqueous composition or a hydroalcoholic composition. In an embodiment the present composition comprises a bittering agent and water.
In an embodiment the present composition is a suspension.
In an embodiment the present composition is a solution.
In an embodiment the present composition is a gel.
In another embodiment the present composition is a clear aqueous suspension formulation.
In one embodiment, there is provided an aqueous composition comprising denatonium compound as aversive agent.
In an embodiment, the composition is in the form of a spray.
In one embodiment, the composition is a spray comprising an aqueous suspension of aversive agent.
In one embodiment, the composition is a spray comprising an aqueous suspension of denatonium compound.
In an embodiment, denatonium compound is selected from the group comprising denatonium chloride, denatonium citrate, denatonium saccharide, denatonium carbonate, denatonium acetate, denatonium benzoate, denatonium benzoate monohydrate and mixtures thereof.
In an embodiment, denatonium salt is denatonium benzoate.
In one embodiment, there is provided an aqueous composition comprising denatonium benzoate as bittering agent and a carrier.
In one embodiment, there is provided an aqueous composition comprising denatonium compound as bittering agent for defense against attacker. In one embodiment, there is provided an aqueous suspension comprising denatonium benzoate as bittering agent for defense against human or animal attacker.
In one embodiment, there is provided a spray comprising an aqueous composition comprising denatonium compound as bittering agent for protection against attacker.
In one embodiment, there is provided use of denatonium benzoate as bittering agent for self-defense.
In one embodiment, the present composition is a spray comprising an aqueous suspension of denatonium compound.
In one embodiment, the present composition is a spray comprising an aqueous suspension of denatonium benzoate.
The present spray comprising denatonium compound is particularly used for defense against attackers.
The present invention more particularly relates to use of denatonium compound in the present composition which may be formed into water or an aerosol or placed in a pressure sprayer to form a personal protectant for defense against attackers.
The present invention relates to a spray comprising denatonium compound used for defense.
According to an aspect of the present invention, there is provided a method of preparing a composition comprising aversive agent.
The compositions can be prepared by the convention methods known to a person skilled in the art. Typically the method of prepariing the present spray composition comprises mixting the active agent with suitable carrier and stirring the mixture to obtain a clear composition ready to spray. The composition according to the present invention may be mixed with water and sprayed on the mob. Advantageously, such spraying is also helpful in controlling riots or taming violent protest by mob. The bitterant effect of denatonium compound for example denatonium benzoate would disperse the angry mob and help control the riots or violent protest.
Preferably, the carrier is water and forms an aqueous solution containing the other ingredients.
In some embodiments, the composition comprises an oil-based carrier solution containing the ingredients is an alternative to the aqueous carrier solution.
Accordingly, the composition can comprise essential oil for example sesame oil, olive oil, corn oil, soybean oil, cottonseed oil, peanut oil, lanolin, petroleum jelly, paraffin, silicone oil, fatty acids of 6 to 30 carbon atoms or the corresponding glycerol or alcohol esters.
Alternative embodiments of the present invention provide a gel formulation comprising solid carriers containing the active ingredients. The solid carrier further contains thickening agents to provide the composition with the consistency of wax or paraffin.
In an embodiment, the concentration of the aversive agent in the compositions of the invention may vary depending on the particular bittering agent employed, and on the application for which the composition is intended, with the proviso that the concentration employed may not be toxic or below the targeted toxicity level.
In an embodiment, the composition comprises denatonium compound as aversive agent, the denatonium compound is typically present in the composition at a concentration in the range of about 0.01 to 50 % wt/v, preferably 0.01 to 20% w/v, more preferably in the range of about 0.01 to 10 % w/v which include 1%, 2%, 3%, 4%, 5%, 6%, 7%, 8% and 9% w/v.
The composition may be formed into an aerosol or placed in a pressure sprayer to form a personal protectant for defense against attackers. According to another aspect of the present invention, there is provided a method of deterring an attack comprising spraying the composition at a human or animal attacker.
In an embodiment, the method of deterring human attack comprising spraying the composition comprising denatonium compound at a human attacker.
In an embodiment, the composition further comprises surfactant selected from the below list.
Anionic surfactant: sulfate, sulfonate, and phosphate, carboxylate derivatives: Anionic surfactants contain anionic functional groups at their head, such as sulfate, sulfonate, phosphate, and carboxylates. Prominent alkyl sulfates include ammonium lauryl sulfate, sodium lauryl sulfate (sodium dodecyl sulfate, SLS, or SDS), and the related alkyl-ether sulfates sodium laureth sulfate (sodium lauryl ether sulfate or SLES), and sodium myreth sulfate. Carboxylates are the most common surfactants and comprise the carboxylate salts (soaps), such as sodium stearate. More specialized species include sodium lauroyl sarcosinate and carboxylate-based fluorosurfactants such as perfluorononanoate, perfluorooctanoate (PFOA or PFO).
Cationic surfactant: pH-dependent primary, secondary, or tertiary amines; primary and secondary amines become positively charged at pH < 10: octenidine dihydrochloride.
Permanently charged quaternary ammonium salts: cetrimonium bromide (CTAB), cetylpyridinium chloride (CPC), benzalkonium chloride (BAC), benzethonium chloride (BZT), dimethyl dioctadecyl ammonium chloride, and dioctadecyl dimethyl ammonium bromide
Zwitterionic: Zwitterionic (amphoteric) surfactants have both cationic and anionic centers attached to the same molecule. The cationic part is based on primary, secondary, or tertiary amines or quaternary ammonium cations. The anionic part can be more variable and include sulfonates, as in the sultaines CHAPS (3 -[(3- cholamidopropyl)dimethylammonio]-l-propanesulfonate) and cocamide. Betaines such as cocamidopropyl betaine have a carboxylate with the ammonium. The most common biological zwitterionic surfactants have a phosphate anion with an amine or ammonium, such as the phospholipids phosphatidylserine, phosphatidylethanolamine, phosphatidylcholine, and sphingomyelins.
Non-ionic surfactants:
Non-ionic surfactants have covalently bonded oxygen-containing hydrophilic groups, which are bonded to hydrophobic parent structures. The water-solubility of the oxygen groups is the result of hydrogen bonding. Hydrogen bonding decreases with increasing temperature, and the water solubility of non-ionic surfactants therefore decreases with increasing temperature.
Ethoxylates:
Fatty alcohol ethoxylate, Narrow-range ethoxylate,Octaethylene glycol monododecyl ether, Pentaethylene glycol monododecyl ether
Alkylphenol ethoxylates (APEs) : Nonoxynols, Triton X-100
Fatty acid ethoxylates, Fatty acid ethoxylates are a class of very versatile surfactants, which combine in a single molecule the characteristic of a weakly anionic, pH-responsive head group with the presence of stabilizing and temperature responsive ethyleneoxide units.
Special ethoxylated fatty esters and oils:
Ethoxylated amines and/or fatty acid amides: Polyethoxylated tallow amine, Cocamide monoethanolamine, Cocamide diethanolamine, Terminally blocked ethoxylate, Poloxamers
Fatty acid esters of polyhydroxy compounds
Fatty acid esters of glycerol: Glycerol monostearate, Glycerol monolaurate
Fatty acid esters of sorbitol
Spans: Sorbitan monolaurate, Sorbitan monostearate, Sorbitan tristearate,
Tweens: Tween 20, Tween 40, Tween 60, Tween 80 Fatty acid esters of sucrose
Alkyl polyglucosides
Alkyl polyglycoside : Decyl glucoside,Lauryl glucoside, Octyl glucoside
Amine oxides : Lauryldimethylamine oxide
In some embodiments, other bitter (aversive) agents which can used in the composition either alone or in combination or the composition comprising at least one bittering agent can be prepared according to the present invention for desired purpose, include but not limited to, natural bitter substance or a member selected from the group consisting of: denatonium salts or a derivative thereof; quercetin (3,3',4',5,7-pentahydroxyflavone); Naringin (4',5,7-Trihydroxyflavanone-7-rhamnoglucoside); Aucubin; Amarogentin; Dihydrofoliamentin; Gentiopicroside; Gentiopicrin; Swertiamarin; Swerosid; Gentioflavosid; Centaurosid; Methiafolin; Harpagoside; Centapikrin; Sailicin; Kondurangin; Absinthin; Artabsin; Cnicin; Lactucin; Lactucopicrin; Salonitenolid; a- thujone; b-thujone; Desoxy Limonene; Limonin; Ichangin; iso-Obacunoic Acid; Obacunone; Obacunoic Acid; Nomilin; Ichangin; Nomilinoic acid; Marrubin; Pramarrubin; Carnosol; Carnosic acid; Quassin; Quinine hydrochloride; Quinine sulfate; Quinine dihydrochloride; Columbine; Caffeine; Threonine; Methionine; Phenylalanine; Tryptophan; Arginine; Histidine; Valine; Aspartic acid; Sucrose octaacetate; Qunine bi sulfate; hop extract; and mixtures thereof.
According to the present invention a particularly preferred bittering agent is denatonium benzoate, also known as phenylmethyl-[2-[(2,6-dimethylphenyl)amino]-2-oxoethyl]- diethylammonium benzoate.
In one preferred embodiment the composition comprising denatonium benzoate as aversive agent and at least one carrier selected from poly vinyl pyrrolidone, poly vinyl pyridine, polyvinyl alcohol or mixtures thereof.
In one embodiment, the present invention provides use of denatonium compound for example denatonium benzoate as bittering agent for self-defense against human or animal attacker. In another aspect of the present invention, there is provided a method of deterring a human attack comprising spraying the present composition comprising denatonium compound for example denatonium benzoate at a human attacker.
According to an embodiment of the present invention, a kit comprising stable composition according to the present invention for self-defense.
In another aspect the present invention provides a spray device comprising a composition of denatonium benzoate in an amount of less than 50 % w/v.
In another aspect the present invention provides a spray device comprising a composition of denatonium benzoate in an amount of 0.01 to 50 % w/v.
In another aspect the present invention provides a personal defense device carried by a user, for spraying a liquid composition comprising denatonium benzoate in an amount of 0.01 to 50 % w/v.
In another aspect the present invention provides a defense spray pack comprising an aqueous composition of denatonium benzoate in an amount of 0.01 to 50 % w/v and instructions manual to use the same.
In another aspect the present invention provides a defense spray pack comprising a non- aqueous composition of denatonium benzoate in an amount of 0.01 to 50 % w/v.
Advantages of the present invention:
1. The present formulation is environment friendly.
2. The present formulation doesn’t cause any physical damages to skin and eyes.
3. The present product is physiochemically stable and environmentally safe.
4. The formulation also gives sustain release effect because of addition of polymers.
5. The advantage of using polymer is bitter effect remains on the surface for a longer period and hence the efficacy of the formulation is extended to a longer period.
6. The formulation has excellent spray ability. 7. The formulation has improved efficacy.
It will be understood that the specification and examples are illustrative but not limitative of the present invention and that other embodiments within the spirit and scope of the present invention will suggest themselves to those skilled in the art. Other embodiments can be practiced that are also within the scope of the present invention. The following examples illustrate the invention, but by no means intend to limit the scope of the claims.
The composition described above is safe, efficacious and stable at various temperatures, and even when the stable agrochemical composition undergoes shear forces for example on mixing.
In order that the present invention may be more readily understood, reference will now be made, by way of example, to the aforesaid description.
EXAMPLES
The compositions described in following examples were taken further to evaluate physicochemical parameters. Stability features associated with the composition developed according to the present invention were studied. It was found that all the compositions remained stable when tested at ambient conditions i.e. room temperature and pressure. The compositions also passed 0°C and Accelerated Heat Stability (AHS) test for 14 days and remained clear and flowable suspension.
EXAMPLE 1:
TABLE 1
Figure imgf000015_0001

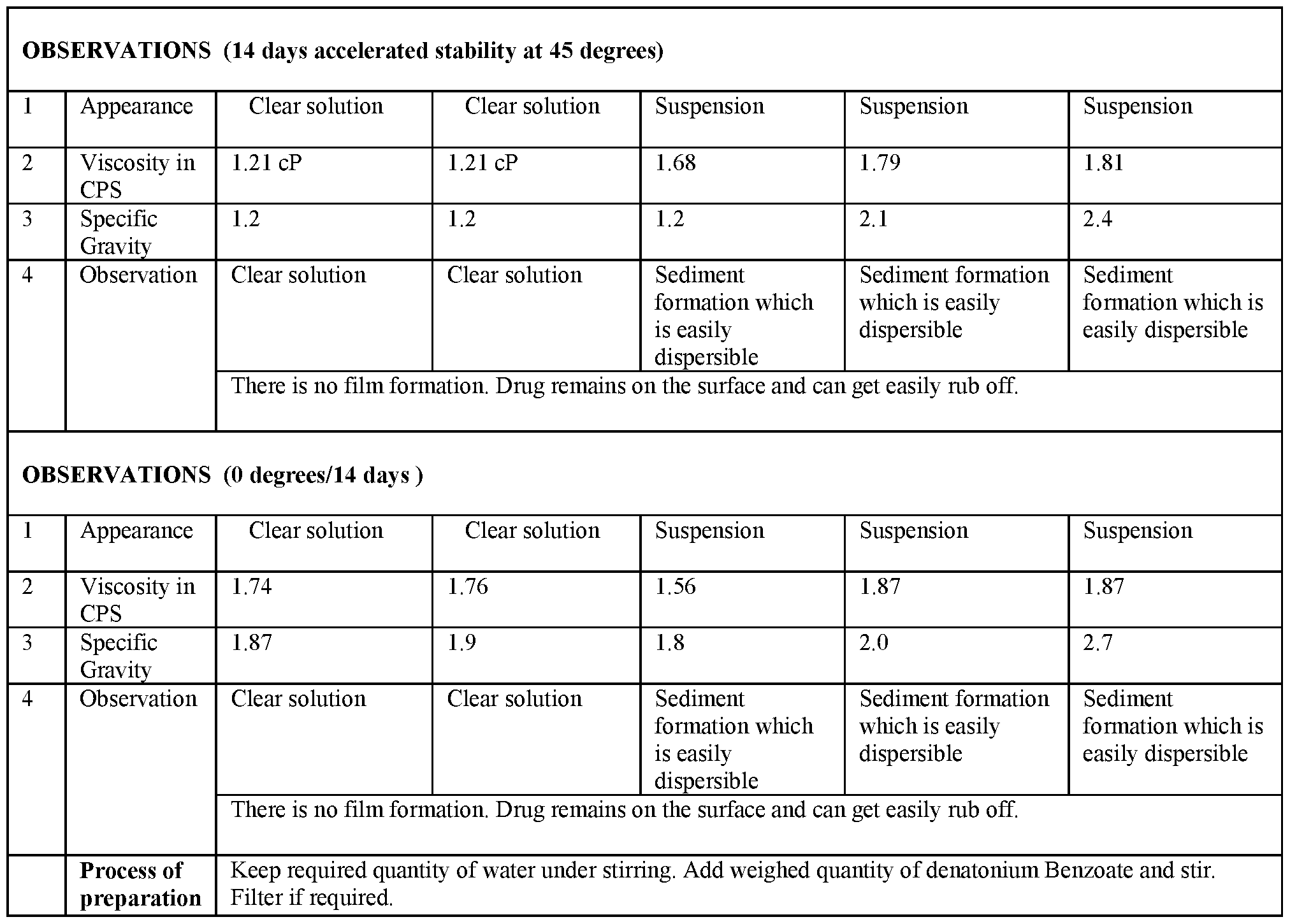

Figure imgf000016_0001
EXAMPLE 2:
TABLE 2
Figure imgf000016_0002
Figure imgf000017_0001
EXAMPLE 3:
TABLE 3
Figure imgf000017_0002
Figure imgf000018_0001
EXAMPLE 4:
TABLE 4
Figure imgf000018_0002

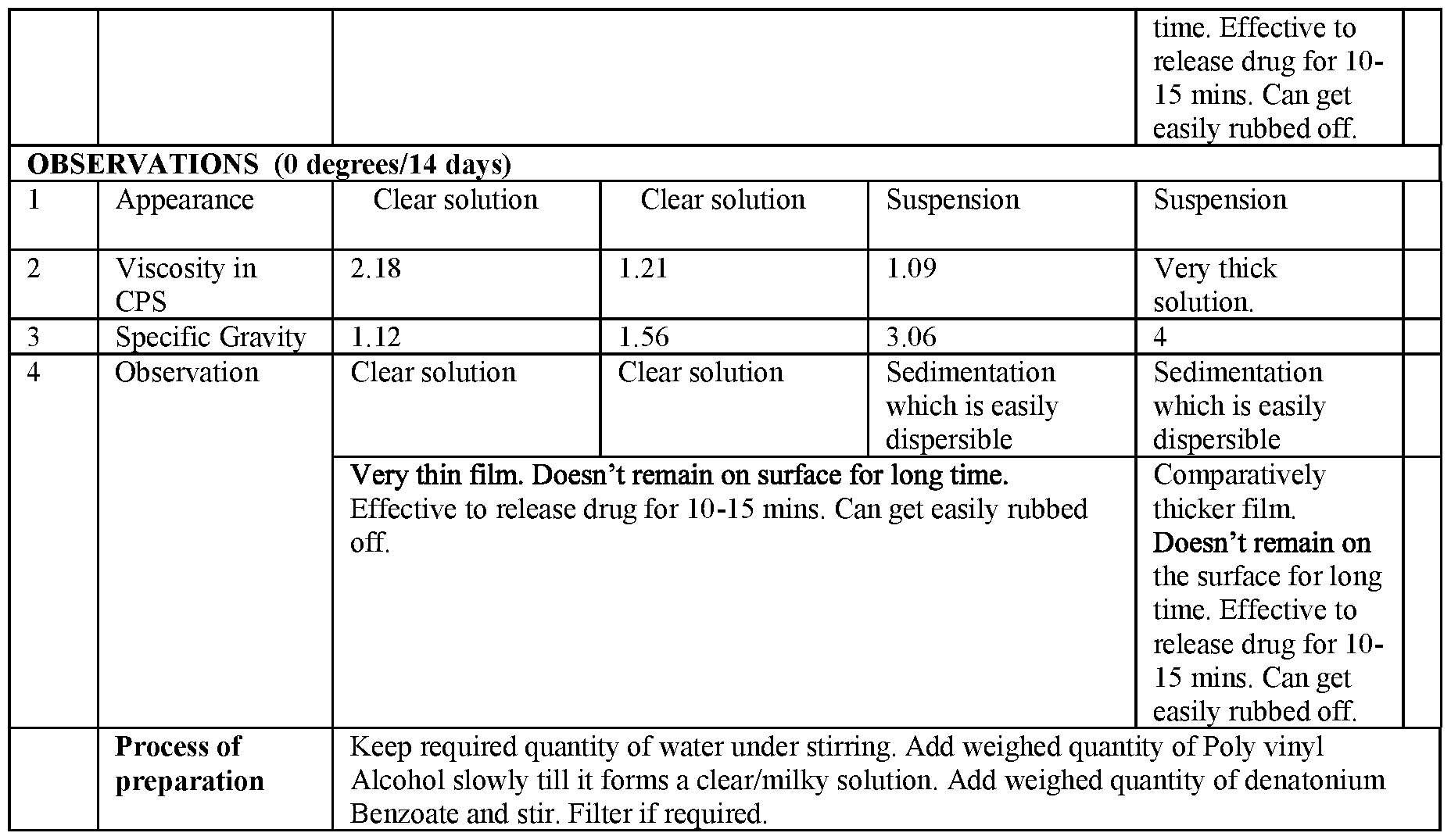

Figure imgf000019_0002
EXAMPLE 5:
Figure imgf000019_0001
Figure imgf000019_0003
Figure imgf000020_0001
Example 6:
TABLE 6
Figure imgf000020_0002
Figure imgf000021_0001
From the above data, it was observed that the all the compositions of the present invention are stable and effective.

Claims

1. A composition comprising a bittering agent for defense against attacker.
2. The composition as claimed in claim 1 wherein said bittering agent is selected from natural or synthetic bitterant.
3. The composition as claimed in claim 1 wherein said bittering agent is denatonium compound.
4. The composition as claimed in claim 3 wherein said denatonium compound is selected from the group comprising denatonium chloride, denatonium citrate, denatonium saccharide, denatonium carbonate, denatonium acetate, denatonium benzoate, denatonium benzoate monohydrate and mixtures thereof.
5. The composition as claimed in claim 1 wherein said denatonium compound is denatonium benzoate.
6. The composition as claimed in claim 1 wherein said denatonium compound is used in an amount of less than 50% w/v.
7. The composition as claimed in claim 1 wherein said denatonium compound is used in an amount of 0.01 to 50% w/v.
8. The composition as claimed in claim 1 further comprising a carrier selected from water, surfactant, dispersing agent, solvent, colorants, flavors, stabilizers, buffers, thickening agent, solubilizing agent or mixtures thereof.
9. The composition as claimed in claim 5 wherein said carrier is used in an amount of 0.1 to 50 % w/v of the composition.
10. The composition as claimed in claim 1 is in the form of liquid, paste, gel, cream formulation.
11. The composition as claimed in claim 7 wherein said liquid formulation is an aqueous or non-aqueous formulation, solution, suspension or emulsion.
12. An aqueous composition comprising denatonium compound as bittering agent for defense against attacker.
13. An aqueous suspension comprising denatonium benzoate as bittering agent for defense against human or animal attacker.
14. A spray comprising an aqueous composition comprising denatonium compound as bittering agent for protection against attacker.
15. Use of denatonium benzoate as bittering agent for self-defense.
16. A method of deterring an attack comprising spraying composition comprising denatonium compound as bittering agent at attacker.
PCT/IB2020/051373 2019-02-20 2020-02-19 Spray composition of aversive agent Ceased WO2020170148A1 (en)

Priority Applications (5)

Application Number Priority Date Filing Date Title
EP20758961.5A EP3927162A4 (en) 2019-02-20 2020-02-19 AVERSIVE AGENT SPRAY COMPOSITION
CA3130564A CA3130564A1 (en) 2019-02-20 2020-02-19 Spray composition of aversive agent
SG11202108243SA SG11202108243SA (en) 2019-02-20 2020-02-19 Spray composition of aversive agent
BR112021015580-5A BR112021015580B1 (en) 2019-02-20 2020-02-19 AVERSIVE AGENT SPRAY COMPOSITION
US17/431,210 US12516001B2 (en) 2019-02-20 2020-02-19 Spray composition of aversive agent

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
IN201931006753 2019-02-20
IN201931006753 2019-02-20

Publications (1)

Publication Number Publication Date
WO2020170148A1 true WO2020170148A1 (en) 2020-08-27

Family

ID=72143488

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/IB2020/051373 Ceased WO2020170148A1 (en) 2019-02-20 2020-02-19 Spray composition of aversive agent

Country Status (7)

Country Link
US (1) US12516001B2 (en)
EP (1) EP3927162A4 (en)
AR (1) AR118156A1 (en)
CA (1) CA3130564A1 (en)
SG (1) SG11202108243SA (en)
TW (1) TW202044994A (en)
WO (1) WO2020170148A1 (en)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2023212247A1 (en) * 2022-04-27 2023-11-02 Aardvark Therapeutics, Inc. Improved abuse-deterrent pharmaceutical composition with aversion properties

Families Citing this family (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN117243962B (en) * 2023-10-13 2024-02-09 中国药科大学 Application of nomilin in preparing drug for treating methamphetamine addiction

Citations (9)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP0027624B1 (en) * 1979-10-22 1983-03-16 Henkel Kommanditgesellschaft auf Aktien Composition for the control of cannibalism of pigs
US4661504A (en) * 1984-11-02 1987-04-28 Atomergic Chemetals Corporation Denatonium saccharide compositions and method of use
WO1994004027A1 (en) * 1992-08-25 1994-03-03 Nortech Forest Products, Inc. Composition for preventing damage caused by animals
US5698180A (en) * 1996-03-08 1997-12-16 Gusty Winds Corporation Piper nigrum and acetic acid lachrymator
US5891919A (en) * 1997-09-19 1999-04-06 Burlington Bio-Medical & Scientific Corp. Denatonium capsaicinate and methods of producing the same
US6399073B2 (en) * 1992-02-05 2002-06-04 Defense Technology Corporation Of America Capsicum lachrymator
US20130161222A1 (en) * 2011-12-21 2013-06-27 Ajit M. Patel Bedbugs eliminator
CN105265433A (en) * 2015-11-04 2016-01-27 东莞市立普利化工科技有限公司 Long-acting wide spray formulation capable of preventing animals from biting articles and production technology thereof
CA2941717A1 (en) * 2016-09-14 2018-03-14 Timothy J. Martyn Novel device for de-escalation of animal attacks

Family Cites Families (30)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US3080327A (en) 1959-11-20 1963-03-05 T & H Smith Ltd Quaternary salts as denaturants for organic substances
US3268577A (en) 1960-11-15 1966-08-23 Edinburgh Pharmaceutical Ind L Quaternary organic salts of omega-dialkylamino-2, 6-dimethylacetanilides
EP0173410A1 (en) 1984-05-09 1986-03-05 Michael James Sampson Repellent for birds and other creatures
US4652577A (en) 1984-11-02 1987-03-24 Atomergic Chemetals Corporation Denatonium saccharide, compositions and method of use
GB2213724A (en) 1987-12-22 1989-08-23 Peter John Long Repellent
CN1120303A (en) 1993-03-31 1996-04-10 曾尼卡有限公司 insecticidal composition
US6468554B1 (en) 1994-06-07 2002-10-22 Ted Ichino Sensorially active substance embedded in plastic
US5741553A (en) * 1995-06-07 1998-04-21 Venus Laboratories, Incorporated Pet repellants
US6399109B1 (en) 1997-12-19 2002-06-04 Alan D. Brite Insecticide including disodium octaborate tetrahydrate and method for treating wood therewith
JP2002055187A (en) 2000-08-09 2002-02-20 Japan Nuclear Cycle Development Inst States Of Projects Fuel assemblies for fast reactors
US6903093B2 (en) 2000-10-06 2005-06-07 Monsanto Technology Llc Seed treatment with combinations of pyrethrins/pyrethroids and thiamethoxam
EP1504664A1 (en) 2003-07-29 2005-02-09 Novartis AG Organic compounds
GB2405339A (en) 2003-08-29 2005-03-02 Reckitt Benckiser Insecticidal stick composition
KR100656897B1 (en) * 2003-12-23 2006-12-13 종 두 박 Self-defense
US7531187B2 (en) 2004-07-13 2009-05-12 United Phosphorus, Ltd. Synergistic insecticidal composition containing chloronicotynyle and pyrethroids compounds
JP5309357B2 (en) 2007-04-13 2013-10-09 アース製薬株式会社 Mosquito blood-sucking inhibitor
NL2004256A (en) 2009-05-13 2010-11-18 Asml Netherlands Bv Enhancing alignment in lithographic apparatus device manufacture.
US20130053421A1 (en) 2010-01-06 2013-02-28 Fmc Corporation Method for Flying Insect Control
US20120148520A1 (en) 2010-12-10 2012-06-14 Michael Strobel Organic Iodine Complex Durable Barrier With Antimicrobial Preparations
GB201219322D0 (en) * 2012-10-26 2012-12-12 Vaterlaws Michael Garment having puncturable receptacle
EP3114202B1 (en) * 2014-03-07 2019-11-13 The Procter & Gamble Company Compositions comprising a bittering agent
BE1022244B1 (en) * 2014-05-07 2016-03-04 Globachem Nv PESTING AGAINST AGENTS AND THEIR USE
US20170112126A1 (en) 2014-06-10 2017-04-27 Sabic Global Technologies B.V. Insecticide-containing coating composition and method for protecting palm trees from pests
FR3040260B1 (en) 2015-08-25 2017-09-08 David Tortillard REPULSIVE COMPOSITION AGAINST INSECT VECTORS OF TROPICAL DISEASES IN THE FORM OF SPRAY
US20170087199A1 (en) * 2016-02-10 2017-03-30 Senomyx, Inc. Compositions for delivering a cooling sensation
ITUA20163734A1 (en) 2016-05-24 2017-11-24 Zapi Ind Chimiche S P A Insecticide bait containing fluorescent colors
BR102017003113A2 (en) 2017-02-16 2018-09-25 Biomar Produtos Quim Ltda Me formulation with repellent action for use in agriculture and animals against insects and arachnids
CA3131578A1 (en) * 2019-02-06 2020-08-13 Monosol, Llc Water-soluble coatings for substrate surfaces
US20220046919A1 (en) 2019-03-13 2022-02-17 Upl Ltd Synergistic insecticidal combinations
EP3874950A1 (en) 2020-03-05 2021-09-08 KWS SAAT SE & Co. KGaA Use of denatonium benzoate as a seed treatment for crops as insect repellent

Patent Citations (9)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
EP0027624B1 (en) * 1979-10-22 1983-03-16 Henkel Kommanditgesellschaft auf Aktien Composition for the control of cannibalism of pigs
US4661504A (en) * 1984-11-02 1987-04-28 Atomergic Chemetals Corporation Denatonium saccharide compositions and method of use
US6399073B2 (en) * 1992-02-05 2002-06-04 Defense Technology Corporation Of America Capsicum lachrymator
WO1994004027A1 (en) * 1992-08-25 1994-03-03 Nortech Forest Products, Inc. Composition for preventing damage caused by animals
US5698180A (en) * 1996-03-08 1997-12-16 Gusty Winds Corporation Piper nigrum and acetic acid lachrymator
US5891919A (en) * 1997-09-19 1999-04-06 Burlington Bio-Medical & Scientific Corp. Denatonium capsaicinate and methods of producing the same
US20130161222A1 (en) * 2011-12-21 2013-06-27 Ajit M. Patel Bedbugs eliminator
CN105265433A (en) * 2015-11-04 2016-01-27 东莞市立普利化工科技有限公司 Long-acting wide spray formulation capable of preventing animals from biting articles and production technology thereof
CA2941717A1 (en) * 2016-09-14 2018-03-14 Timothy J. Martyn Novel device for de-escalation of animal attacks

Non-Patent Citations (3)

* Cited by examiner, † Cited by third party
Title
BOB MARTIN: "Shaws Chew Deterrent", GNPD DATABASE RECORD ID 4993957, August 2017 (2017-08-01), pages 1 - 2, XP055830569, Retrieved from the Internet <URL:https://canineconcepts.co.uk/product/chew-deterrent-shaws> *
See also references of EP3927162A4 *
TRENT A: "Comparison of Commercial Deer Repellants", TECHNOLOGY & DEVELOPMENT PROGRAM, 2001, XP055734770 *

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2023212247A1 (en) * 2022-04-27 2023-11-02 Aardvark Therapeutics, Inc. Improved abuse-deterrent pharmaceutical composition with aversion properties

Also Published As

Publication number Publication date
BR112021015580A2 (en) 2021-10-05
EP3927162A1 (en) 2021-12-29
SG11202108243SA (en) 2021-09-29
TW202044994A (en) 2020-12-16
AR118156A1 (en) 2021-09-22
EP3927162A4 (en) 2022-12-21
US20220127205A1 (en) 2022-04-28
CA3130564A1 (en) 2020-08-27
US12516001B2 (en) 2026-01-06

Similar Documents

Publication Publication Date Title
AU2009230768B2 (en) Physical Mode of Action Pesticide
US4321277A (en) Germicidal use of compositions containing certain quaternary ammonium compounds
US12516001B2 (en) Spray composition of aversive agent
CN110839624A (en) Pesticide composition
TWI852993B (en) A method and composition for insect repellency using aversive agent
CN102919266A (en) High-content ammonium glyphosate water soluble granules
TR201903633T4 (en) Aromatic esters for controlling slippage in agricultural spraying.
US10015963B2 (en) Microemulsions of lipidated glycines and phenoxy ethanol for preservation of personal care products
RU2793135C2 (en) Sprayable repellant composition
US7807717B2 (en) Pesticide for insect control
BR112021015580B1 (en) AVERSIVE AGENT SPRAY COMPOSITION
US20030040436A1 (en) Use of benzyl ester compositions for controlling non-arthropod pest populations
JP3233251B2 (en) Aqueous suspension type pesticide formulation
KR100421419B1 (en) Non-Lethal Chemical Bird Aversion Compositions
CN103734153A (en) Water-soluble biological insecticide containing active abamectin and preparation method of biological insecticide
RU2236134C1 (en) Herbicide composite for control of weeds in cereal crop planting
CN113749092B (en) Unsaturated fatty acid ester application, agrochemical composition, low-eye-prick pesticide preparation and application thereof
JP3059471B2 (en) Aqueous insecticide
RU2413413C1 (en) New liquid pesticide composition and method to protect culture plants against weeds, diseases and pests
CN113749112A (en) A kind of 50% tetracycline soluble powder formulation and application thereof
US2624665A (en) Herbicidal composition
CA3232935A1 (en) Compositions comprising a saturated or unsaturated aliphatic acid and a non-ionic surfactant for enhancing penetration of pesticide components
WO2016111661A1 (en) Capsule formulation technique for insect growth regulator pyriproxyfen, a juvenile hormone analog
JPH09509660A (en) Adjuvant composition
WO2012156770A2 (en) A pesticide, household or industrial cleaning agent, a personal care cosmetic or a lubricant containing a surfactant consisting in a branched alkyl alcohol polyethoxylated or polypropoxylated, or a surfactant consisting in a branched alkyl amine polyethoxylated or polypropoxylated and their mixtures

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 20758961

Country of ref document: EP

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: LK/P/1/21882

Country of ref document: LK

ENP Entry into the national phase

Ref document number: 3130564

Country of ref document: CA

REG Reference to national code

Ref country code: BR

Ref legal event code: B01A

Ref document number: 112021015580

Country of ref document: BR

NENP Non-entry into the national phase

Ref country code: DE

ENP Entry into the national phase

Ref document number: 2020758961

Country of ref document: EP

Effective date: 20210920

ENP Entry into the national phase

Ref document number: 112021015580

Country of ref document: BR

Kind code of ref document: A2

Effective date: 20210806

WWG Wipo information: grant in national office

Ref document number: 17431210

Country of ref document: US
