Abstract

本发明公开了一种短消息处理方法及系统，用以解决现有技术中在用短消息请求相关业务时，无法在目标终端号码后用业务标识携带业务信息的问题。所述方法包括：A、终端向短消息中心提交短消息，其中目标号码包括目标终端号码及位于其后的业务标识；B、所述短消息中心解析出所述目标终端号码和业务标识，并根据所述业务标识对短消息进行相应处理。本发明还提供了一种相应的系统。利用本发明方案，可以使用户发送短消息的操作更加便捷，同时还拓展了短消息中心的业务，从很大程度上提高了业务量。

Figure 200610098866

The invention discloses a short message processing method and system, which are used to solve the problem in the prior art that the service identification cannot be used to carry the service information after the target terminal number when the short message is used to request related services. The method includes: A. The terminal submits a short message to the short message center, wherein the target number includes the target terminal number and the service identification behind it; B. the short message center parses out the target terminal number and the service identification, and The short message is processed accordingly according to the service identifier. The invention also provides a corresponding system. Utilizing the scheme of the invention, the operation of sending short messages for users can be made more convenient, and meanwhile, the business of the short message center is expanded, and the business volume is increased to a great extent.

Figure 200610098866

Description

一种短消息处理方法及系统 A short message processing method and system

技术领域 technical field

本发明涉及通信领域，尤其涉及一种短消息处理方法及系统。The invention relates to the communication field, in particular to a short message processing method and system.

背景技术 Background technique

短消息系统作为一个具有独立功能的业务点，接入PLMN(Public MobileNetwork，公共陆地移动网络)，完成短消息的业务应用，为运营商提供短消息以及丰富的增值业务。As a service point with independent functions, the short message system is connected to the PLMN (Public Mobile Network, public land mobile network), completes the business application of short messages, and provides short messages and rich value-added services for operators.

如图1所示，现有技术中短消息在短消息系统中的传输流程为：As shown in Figure 1, the transmission flow of short messages in the short message system in the prior art is:

终端将短消息分别经过短消息中心和短消息网关发送到业务提供系统；The terminal sends the short message to the service providing system through the short message center and the short message gateway respectively;

业务提供系统将响应消息分别通过短消息网关和短消息中心返回给终端。The service providing system returns the response message to the terminal through the short message gateway and the short message center respectively.

随着短消息业务的不断发展，基于短消息的业务应用层出不穷，其中有些业务需要在目标终端号码上添加相应业务信息，如一个特殊接入码等，来标识对这条短消息的特殊业务要求。比如某种业务，主叫用户要求目标终端接收到短消息时，只在目标终端上显示一次，而不放入目标终端收件箱，例如运营商可定义规则：主叫用户在输入目标终端号码时，输入123+目标终端号码，短消息系统在处理到该号码时，会修改相应短消息信息(如DCS值)，使目标终端用户接收短消息时，消息只显示一次，而不会存入目标终端收件箱。With the continuous development of short message services, short message-based business applications emerge in endlessly, some of which need to add corresponding service information, such as a special access code, to the target terminal number to identify the special service requirements for this short message . For example, for a certain service, when the calling user requires the target terminal to receive a short message, it will only be displayed on the target terminal once and not put into the target terminal’s inbox. For example, the operator can define a rule: the calling user can enter the target terminal number When entering 123+target terminal number, the short message system will modify the corresponding short message information (such as DCS value) when the number is processed, so that when the target terminal user receives a short message, the message will only be displayed once and will not be stored in Target terminal inbox.

现有短消息系统都只支持在目标终端号码之前加前缀，相关网络节点(短消息中心，短消息网关、业务提供系统)都只支持解析前缀号码，对这条短消息做特殊业务处理。Existing short message systems only support adding a prefix before the target terminal number, and relevant network nodes (short message center, short message gateway, service provision system) only support parsing the prefix number, and perform special service processing on this short message.

目前绝大多数终端都支持电话号码簿功能，用户在发短消息的过程中，都会被要求输入目标终端号码，而该号码通常都可以从号码簿中选择，用户可以方便的直接从号码簿中选择目标终端号码。如果要在目标终端号码前加前缀，则用户需要先输入前缀号码，此时终端都无法支持从电话簿中选择输入目标终端号码，用户必须先记下目标终端号码，再依次输入前缀号码+目标终端号码，很不方便。At present, most of the terminals support the telephone directory function. When the user sends a short message, he will be required to input the target terminal number, and the number can usually be selected from the directory. Select the target terminal number. If you want to add a prefix before the target terminal number, the user needs to enter the prefix number first. At this time, the terminal cannot support the selection and input of the target terminal number from the phone book. The user must first write down the target terminal number, and then enter the prefix number + target in sequence. Terminal number, very inconvenient.

由于操作不便，用户可能不愿意选择这种输入方式，导致短消息发送量下降，直接影响相关短消息业务的开展。Due to the inconvenient operation, the user may not be willing to choose this input method, resulting in a decrease in the sending volume of short messages, which directly affects the development of related short message services.

此外，携带特殊业务接入号前缀的短消息通常都需要路由到业务提供系统进行处理，而且这些接入号码通常都由运营商统一分配。短消息中心可以提供一些特有业务，如消息前转、黑/白名单设置等，这些都是短消息中心自己提供的基于短消息平台的业务，业务提供系统是提供不了的。这些短消息也需要携带相应业务信息，而且这些业务信息是短消息中心自行定义的，如果采用前缀方式，则受到运营商分配业务接入号码的限制，而且这样影响到短消息中心的处理模式，短消息中心很难区分该消息到底是需要发送到业务提供系统，还是由短消息中心自己处理。In addition, the short messages carrying the prefix of the special service access number usually need to be routed to the service providing system for processing, and these access numbers are usually uniformly allocated by the operator. The short message center can provide some special services, such as message forwarding, black/white list setting, etc. These are services based on the short message platform provided by the short message center itself, and the service provision system cannot provide them. These short messages also need to carry corresponding service information, and these service information are defined by the short message center. If the prefix method is used, it will be restricted by the service access number allocated by the operator, and this will affect the processing mode of the short message center. It is difficult for the short message center to distinguish whether the message needs to be sent to the service providing system or processed by the short message center itself.

发明内容 Contents of the invention

本发明提供一种目标终端号码后缀携带业务信息的短消息传输方法及系统，用以解决现有技术中在用短消息请求相关业务时，无法在目标终端号码后用业务标识携带业务信息的问题。The present invention provides a short message transmission method and system in which the suffix of the target terminal number carries service information, which is used to solve the problem in the prior art that the service identification cannot be used to carry the service information after the target terminal number when the short message is used to request related services .

本发明方案如下：The present invention scheme is as follows:

一种短消息处理方法，包括以下步骤：A short message processing method, comprising the following steps:

A、终端向短消息中心提交短消息，其中目标号码包括目标终端号码及位于其后的业务标识；A. The terminal submits a short message to the short message center, wherein the target number includes the target terminal number and the service identification behind it;

B、所述短消息中心解析出所述目标终端号码和业务标识，并根据所述业务标识对短消息进行相应处理。B. The short message center parses out the target terminal number and service identifier, and processes the short message according to the service identifier.

所述步骤B包括：所述短消息中心根据所述业务标识判断是否可以提供相应业务，是则进行步骤B1：由短消息中心提供相应业务给目标终端；否则进行步骤B2：由业务提供系统提供相应业务给目标终端。The step B includes: the short message center judges whether the corresponding service can be provided according to the service identification, if so, proceed to step B1: the short message center provides the corresponding service to the target terminal; otherwise, proceed to step B2: provide the service by the service providing system The corresponding service is given to the target terminal.

所述业务标识携带的业务信息由所述短消息中心定义。The service information carried by the service identifier is defined by the short message center.

所述步骤B1进一步包括：Said step B1 further comprises:

B11、短消息中心根据所述业务标识，对短消息进行处理；B11. The short message center processes the short message according to the service identifier;

B12、短消息中心将响应信息发送给目标终端。B12. The short message center sends the response information to the target terminal.

所述步骤B2进一步包括：Described step B2 further comprises:

B21、所述短消息中心根据所述业务标识将短消息发送到短消息网关；B21. The short message center sends the short message to the short message gateway according to the service identifier;

B22、所述短消息网关解析出目标终端号码和业务标识，并根据所述业务标识将所述短消息发送到相关业务提供系统；B22, the short message gateway parses out the target terminal number and service identification, and sends the short message to the relevant service providing system according to the service identification;

B23、所述业务提供系统解析出目标终端号码和业务标识，并向目标终端提供相应业务。B23. The service providing system analyzes the target terminal number and service identifier, and provides corresponding services to the target terminal.

所述短消息中心和/或短消息网关和/或业务提供系统解析所述目标终端号码和业务标识，包括以下内容：The short message center and/or short message gateway and/or service providing system resolves the target terminal number and service identification, including the following:

a、如果所述目标终端号码携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，剩下的部分为所述业务标识；a. If the target terminal number carries a country code, and the length parameter of the target terminal number includes the length of the country code, then the short message center and/or short message gateway and/or service providing system start from the country code in the target number and move to the right Analyzing the target terminal number according to the target terminal number length parameter, and the remaining part is the service identification;

b、如果所述目标终端号码携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数与国家码长度之和解析出目标终端号码，剩下的部分为所述业务标识；b. If the target terminal number carries a country code, and the length parameter of the target terminal number does not include the length of the country code, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and sends to Right according to the sum of the length parameter of the target terminal number and the length of the country code, the target terminal number is parsed out, and the remaining part is the service identification;

c、如果所述目标终端号码不携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数减去国家码长度的值，解析出目标终端号码，剩下的部分为所述业务标识；c. If the target terminal number does not carry a country code, and the length parameter of the target terminal number includes the length of the country code, then the short message center and/or the short message gateway and/or the service providing system start from the country code in the target number and send to Right according to the value of the length of the target terminal number minus the length of the country code, parse out the target terminal number, and the remaining part is the service identifier;

d、如果所述目标终端号码不携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，剩下的部分为所述业务标识。d. If the target terminal number does not carry a country code, and the length parameter of the target terminal number does not include the length of the country code, then the short message center and/or the short message gateway and/or the service provision system starts from the country code in the target number, To the right, analyze the target terminal number according to the length parameter of the target terminal number, and the remaining part is the service identifier.

所述目标终端号码与所述业务标识中间带有符号。There is a symbol between the target terminal number and the service identifier.

所述短消息中心和/或短消息网关和/或业务提供系统解析所述目标终端号码和业务标识包括以下内容：The short message center and/or short message gateway and/or service provision system parsing the target terminal number and service identification includes the following content:

a’、如果所述目标终端号码携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，所述符号后的部分为所述业务标识；a', if the target terminal number carries a country code, and the length parameter of the target terminal number includes the length of the country code, then the short message center and/or the short message gateway and/or the service providing system start from the country code in the target number and send to Right according to the length parameter of the target terminal number, the target terminal number is parsed out, and the part after the symbol is the service identification;

b’、如果所述目标终端号码携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数与国家码长度之和解析出目标终端号码，所述符号后的部分为所述业务标识；b', if the target terminal number carries a country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or short message gateway and/or service provision system starts from the country code in the target number, To the right, according to the sum of the target terminal number length parameter and the country code length, the target terminal number is resolved, and the part after the symbol is the service identification;

c’、如果所述目标终端号码不携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数减去国家码长度的值，解析出目标终端号码，所述符号后的部分为所述业务标识；c', if the target terminal number does not carry a country code, and the length parameter of the target terminal number includes the length of the country code, then the short message center and/or the short message gateway and/or the service provision system starts from the country code in the target number, To the right, according to the target terminal number length parameter minus the value of the country code length, resolve the target terminal number, and the part after the symbol is the service identification;

d’、如果所述目标终端号码不携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，所述符号后的部分为所述业务标识。d'. If the target terminal number does not carry a country code, and the length parameter of the target terminal number does not include the length of the country code, then the short message center and/or short message gateway and/or the service provision system starts from the country code in the target number , to the right to parse out the target terminal number according to the length parameter of the target terminal number, and the part after the symbol is the service identifier.

所述目标终端为：主叫用户终端或被叫用户终端。The target terminal is: a calling user terminal or a called user terminal.

一种短消息处理系统，包括终端及短消息中心，还包括：A short message processing system, including a terminal and a short message center, also includes:

输入单元，位于所述终端，用于输入目标终端号码和业务标识，其中所述业务标识位于所述目标终端号码后；an input unit, located at the terminal, for inputting a target terminal number and a service identifier, wherein the service identifier is located behind the target terminal number;

短消息中心第一解析单元，位于所述短消息中心，用于解析所述目标终端号码；The first parsing unit of the short message center is located in the short message center and is used for parsing the target terminal number;

短消息中心第二解析单元，位于所述短消息中心，用于解析所述业务标识；The second parsing unit of the short message center is located in the short message center and is used for parsing the service identifier;

短消息中心根据所述解析单元的解析结果，对短消息做相应处理并根据该业务标识判断是否可以提供相应业务，若是则由短消息中心提供相应业务给目标终端；否则由业务提供系统提供相应业务给目标终端。The short message center performs corresponding processing on the short message according to the parsing result of the parsing unit and judges whether the corresponding service can be provided according to the service identifier. If so, the short message center provides the corresponding service to the target terminal; otherwise, the service providing system provides the corresponding service. service to the target terminal.

所述系统还包括：The system also includes:

判断单元，位于所述短消息中心，用于根据所述业务标识判断所述短消息中心是否可以提供相应业务，是则由所述短消息中心向目标终端提供相应业务，否则将短消息发送给相关业务提供系统处理；The judging unit is located in the short message center and is used to judge whether the short message center can provide the corresponding service according to the service identifier. If yes, the short message center will provide the corresponding service to the target terminal; otherwise, the short message will be sent to Provide system processing for relevant business;

业务提供系统，用于在判断单元确定所述短消息中心不提供相应业务时，接收短消息中心发送来的短消息，并对短消息做相应处理后，向目标终端提供相应业务。The service providing system is used for receiving the short message sent by the short message center when the judging unit determines that the short message center does not provide the corresponding service, and providing the corresponding service to the target terminal after performing corresponding processing on the short message.

所述系统，还包括：The system also includes:

业务提供系统第一解析单元，位于所述业务提供系统，用于解析所述目标终端号码；A first parsing unit of the service providing system, located in the service providing system, for parsing the target terminal number;

业务提供系统第二解析单元，位于所述业务提供系统，用于解析所述业务标识；The second parsing unit of the service providing system is located in the service providing system and is used for parsing the service identifier;

所述业务提供系统根据所述解析单元的解析结果，向目标终端提供相应业务，将响应消息发送到所述目标终端。The service providing system provides corresponding services to the target terminal according to the analysis result of the analysis unit, and sends a response message to the target terminal.

所述系统，还包括：The system also includes:

短消息网关，位于所述短消息中心，所述短消息中心包括：The short message gateway is located in the short message center, and the short message center includes:

短消息网关第一解析单元，位于所述短消息网关，用于解析所述目标终端号码；A first parsing unit of the short message gateway, located in the short message gateway, for parsing the target terminal number;

短消息网关第二解析单元，位于所述短消息网关，用于解析所述业务标识；The second parsing unit of the short message gateway, located in the short message gateway, is used to parse the service identifier;

所述短消息网关根据所述解析单元的解析结果，将所述短消息发送给相关The short message gateway sends the short message to the relevant

本发明通过将业务标识放在目标终端号码后面，使得用户在发送短消息，输入目标号码时更加方便，不用先记下目标终端号码，输入业务接入码后再输入目标终端号码，采用本发明方案，可以直接从用户终端的号码簿上选择目标终端号码，在其后输入业务标识，使操作更便捷，从而还可以很大程度地提高业务量；In the present invention, by placing the service identification behind the target terminal number, it is more convenient for the user to input the target number when sending a short message, without first writing down the target terminal number, inputting the service access code and then inputting the target terminal number, and adopting the present invention Solution, you can directly select the target terminal number from the directory of the user terminal, and then input the service ID, which makes the operation more convenient and can also greatly increase the business volume;

另外，采用本发明方案可以拓展短消息业务，避开上述现有技术中所述业务接入码由运营商统一分配的弊端，采用本发明方案，采用在目标终端号码后用业务标识携带业务信息的方式，可以由短消息中心提供一些特殊业务，进而为短消息中心基于平台的业务提供了便利。In addition, adopting the scheme of the present invention can expand the short message service, avoiding the drawbacks of the service access codes in the above-mentioned prior art being uniformly allocated by the operator, adopting the scheme of the present invention, adopting the service identification to carry the service information after the target terminal number In this way, some special services can be provided by the short message center, which in turn facilitates the platform-based services of the short message center.

附图说明 Description of drawings

图1为本发明现有技术中传输短消息的流程示意图；Fig. 1 is the schematic flow chart of transmitting short message in the prior art of the present invention;

图2为本发明实施例一中的系统结构框图；Fig. 2 is a system structural block diagram in Embodiment 1 of the present invention;

图3为本发明实施例二的方法流程示意图；Fig. 3 is a schematic flow chart of the method of Embodiment 2 of the present invention;

图4为本发明实施例二中解析方法的流程示意图。Fig. 4 is a schematic flow chart of the analysis method in Embodiment 2 of the present invention.

具体实施方式 Detailed ways

本发明系统的具体实施方式通过结合实施例一阐述如下：The specific implementation of the system of the present invention is set forth as follows in conjunction with Embodiment 1:

实施例一：Embodiment one:

如图2所示，本发明系统包括：As shown in Figure 2, the system of the present invention includes:

终端201、短消息中心202、短消息网关203和业务提供系统204；Terminal 201, short message center 202, short message gateway 203 and service provision system 204;

所述终端201包括输入单元2011；The terminal 201 includes an input unit 2011;

所述终端用于发送短消息，请求相关业务(如请求发送一段文字)，所述输入单元用于按先后顺序分别输入目标终端号码和业务标识(标识相关业务)；Described terminal is used for sending short message, requests related business (as requesting to send a section of text), and described input unit is used for respectively inputting target terminal number and business identification (identification related business) sequentially;

所述输入单元也可以在目标终端号码和业务标识之间输入符号(如“*”)；The input unit can also input symbols (such as "*") between the target terminal number and the service identifier;

所述终端可以为：手机、小灵通、电脑。The terminal can be: a mobile phone, a PHS, or a computer.

所述短消息中心包括：The short message center includes:

短消息中心第一解析单元2021、短消息中心第二解析单元2022、判断单元2023；The first parsing unit 2021 of the short message center, the second parsing unit 2022 of the short message center, and the judging unit 2023;

所述短消息中心202接收终端201发送来的短消息，所述短消息中心第一解析单元2021用于从目标号码中解析出目标终端号码，所述短消息中心第二解析单元2022用于从所述目标号码中解析出业务标识，所述判断单元2023用于根据所述业务标识判断所述短消息中心202能否向目标终端提供相应业务，能则由所述短消息中心根据解析出的目标终端号码及业务标识，按照内部定义的程序对所述短消息进行处理，并向目标终端返回响应消息、提供相应的业务；不能则将所述处理后短消息发送给相关业务提供系统，由相关业务提供系统向目标终端提供相应业务。The short message center 202 receives the short message sent by the terminal 201, the first parsing unit 2021 of the short message center is used to parse out the target terminal number from the target number, and the second parsing unit 2022 of the short message center is used for parsing the target terminal number from the target number. The service identifier is parsed out of the target number, and the judging unit 2023 is used to judge whether the short message center 202 can provide corresponding services to the target terminal according to the service identifier. Target terminal number and service identification, process the short message according to the internally defined program, and return a response message to the target terminal to provide corresponding services; if not, send the processed short message to the relevant service providing system, by The related service providing system provides corresponding services to the target terminal.

所述短消息网关203包括：Described short message gateway 203 comprises:

短消息网关第一解析单元2031、短消息网关第二解析单元2032；Short message gateway first parsing unit 2031, short message gateway second parsing unit 2032;

所述短消息网关203接收短消息中心202发送的短消息，所述短消息网关第一解析单元2031用于从目标号码中解析出目标终端号码，所述短消息网关第二解析单元2032用于从所述目标号码中解析出业务标识，所述短消息网关203根据解析出的目标终端号码及业务标识，按照内部定义的程序对所述短消息进行处理，处理后发送到相关业务提供系统；The short message gateway 203 receives the short message sent by the short message center 202, the first parsing unit 2031 of the short message gateway is used to parse out the target terminal number from the target number, and the second parsing unit 2032 of the short message gateway is used for Parse the service identification from the target number, and the short message gateway 203 processes the short message according to an internally defined program according to the parsed target terminal number and the service identification, and sends it to the relevant service provision system after processing;

所述业务提供系统204包括：The service provision system 204 includes:

业务提供系统第一解析单元2041、业务提供系统第二解析单元2042；The first analyzing unit 2041 of the service providing system, and the second analyzing unit 2042 of the service providing system;

所述业务提供系统204接收短消息网关203发送的短消息，所述业务提供系统第一解析单元2041用于从目标号码中解析出目标终端号码，所述业务提供系统第二解析单元2042用于从目标号码中解析出业务标识，所述业务提供系统204根据解析出的目标终端号码及业务标识，按照内部定义的程序对所述短消息进行处理，并向目标终端返回响应消息、提供相应的业务。The service providing system 204 receives the short message sent by the short message gateway 203, the first parsing unit 2041 of the service providing system is used for parsing out the target terminal number from the target number, and the second parsing unit 2042 of the service providing system is used for Analyze the service identifier from the target number, and the service provision system 204 processes the short message according to the internally defined program according to the parsed target terminal number and service identifier, returns a response message to the target terminal, and provides a corresponding business.

所述目标终端可以为主叫用户终端，也可以是被叫用户终端，取决于主叫用户终端发送短消息时所要求的业务类型，例如：如果主叫用户终端请求短消息中心或业务提供系统发送一段文字给自己，则短消息中心或业务提供系统将响应消息发送给主叫用户终端；如果主叫用户终端请求短消息中心或业务提供系统发送一首歌曲给被叫用户终端，则短消息中心或业务提供系统根据目标终端号码向此被叫用户终端发送携带有该歌曲的响应消息。The target terminal can be a calling user terminal or a called user terminal, depending on the service type required when the calling user terminal sends a short message, for example: if the calling user terminal requests a short message center or a service providing system Send a piece of text to yourself, then the short message center or the service providing system will send a response message to the calling user terminal; if the calling user terminal requests the short message center or the service providing system to send a song to the called user terminal, the short message The center or the service providing system sends a response message carrying the song to the called user terminal according to the target terminal number.

所述短消息中心、短消息网关及业务提供系统需要设置国家码参数以及目标终端号码长度参数，目标终端号码长度参数可以包括国家码长度，也可以不包括国家码长度，所述各解析单元按照下述规则对目标号码进行解析：The short message center, the short message gateway and the service providing system need to set the country code parameter and the target terminal number length parameter, the target terminal number length parameter can include the country code length, and can also not include the country code length, and each analysis unit according to The following rules parse the destination number:

当业务标识直接放在目标终端号码后面时：When the service identifier is placed directly after the target terminal number:

如果所述目标终端号码携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，剩下的部分为业务标识；If the target terminal number carries a country code, and the target terminal number length parameter includes the country code length, then the short message center and/or short message gateway and/or service providing system start from the country code in the target number and move rightward according to the target The terminal number length parameter parses out the target terminal number, and the rest is the business identifier;

如果所述目标终端号码携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数与国家码长度之和解析出目标终端号码，剩下的部分为业务标识；If the target terminal number carries the country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and proceeds to the right according to The sum of the length parameter of the target terminal number and the length of the country code is analyzed to obtain the target terminal number, and the remaining part is the service identification;

如果所述目标终端号码不携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数减去国家码长度的值，解析出目标终端号码，剩下的部分为所述业务标识；If the target terminal number does not carry the country code, and the target terminal number length parameter includes the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and proceeds to the right according to The target terminal number length parameter subtracts the value of the country code length to parse out the target terminal number, and the remaining part is the service identification;

如果所述目标终端号码不携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，剩下的部分为所述业务标识；If the target terminal number does not carry the country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and moves to the right Analyzing the target terminal number according to the target terminal number length parameter, and the remaining part is the service identification;

当终端的输入单元在目标终端号码与业务标识之间输入符号(如“*”)时：When the input unit of the terminal enters a symbol (such as "*") between the target terminal number and the service identifier:

如果所述目标终端号码携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，所述符号后的部分为所述业务标识；If the target terminal number carries a country code, and the target terminal number length parameter includes the country code length, then the short message center and/or short message gateway and/or service providing system start from the country code in the target number and move rightward according to the target The terminal number length parameter parses out the target terminal number, and the part after the symbol is the service identifier;

如果所述目标终端号码携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数与国家码长度之和解析出目标终端号码，所述符号后的部分为所述业务标识；If the target terminal number carries the country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and proceeds to the right according to The sum of the target terminal number length parameter and the country code length is analyzed to obtain the target terminal number, and the part after the symbol is the service identifier;

如果所述目标终端号码不携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数减去国家码长度的值，解析出目标终端号码，所述符号后的部分为所述业务标识；If the target terminal number does not carry the country code, and the target terminal number length parameter includes the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and proceeds to the right according to The target terminal number length parameter minus the value of the country code length, parse out the target terminal number, and the part after the symbol is the service identifier;

如果所述目标终端号码不携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，所述符号后的部分为所述业务标识。If the target terminal number does not carry the country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and moves to the right The target terminal number is analyzed according to the length parameter of the target terminal number, and the part after the symbol is the service identifier.

下面结合两个实施例说明本发明方法的具体实施方式：The specific implementation manner of the inventive method is illustrated below in conjunction with two examples:

实施例二：Embodiment two:

终端发送短消息请求提供相关业务，在目标号码中，业务标识位于目标终端号码后，所述业务由业务提供系统提供时，在如图3所示，对短消息进行处理的方法流程如下：The terminal sends a short message request to provide related services. In the target number, the service identifier is located after the target terminal number. When the service is provided by the service providing system, as shown in Figure 3, the method flow for processing the short message is as follows:

S301、终端发送短消息到短消息中心，其中业务标识位于目标终端号码后；S301. The terminal sends a short message to the short message center, wherein the service identifier is located behind the target terminal number;

用户终端发短消息时，都会被要求输入目标终端号码，而该号码通常都可以从终端的号码簿中选择，用户可以先从号码簿中选择目标终端号码(如13812345678)，然后在其后面直接输入业务标识(如123)构成目标号码(即13812345678123)，所述业务标识用于标识用户要求提供的相应业务(如一首歌曲)，终端输入完目标号码后，将此短消息发送到短消息中心进行处理。When the user terminal sends a short message, it will be required to input the target terminal number, and the number can usually be selected from the terminal's directory. The user can first select the target terminal number (such as 13812345678) from the directory, and then directly follow it. Input the service identification (as 123) to form the target number (i.e. 13812345678123), and the service identification is used to identify the corresponding service (as a song) that the user requires to provide. After the terminal has input the target number, the short message is sent to the short message center to process.

S302、短消息中心解析出目标终端号码及业务标识；S302. The short message center parses out the target terminal number and service identifier;

短消息中心需要设置国家码参数以及目标终端号码长度参数，目标终端号码长度参数可以包括国家码长度，也可以不包括国家码长度，短消息中心收到短消息之后，按照图4所示的流程解析出目标终端号码以及业务标识。The short message center needs to set the country code parameter and the target terminal number length parameter. The target terminal number length parameter can include the country code length or not include the country code length. After the short message center receives the short message, follow the process shown in Figure 4 Analyze the target terminal number and service identifier.

S303、判断短消息中心是否能向目标终端提供相应业务；S303. Determine whether the short message center can provide corresponding services to the target terminal;

短消息中心根据解析出的业务标识判断用户终端请求的业务是否能由短消息中心本身提供，是则进行步骤S304，否则进行步骤S305。The short message center judges whether the service requested by the user terminal can be provided by the short message center itself according to the parsed service identifier, if yes, go to step S304, otherwise go to step S305.

S304、短消息中心根据业务标识向目标终端提供相应业务；S304. The short message center provides corresponding services to the target terminal according to the service identifier;

所述短消息中心根据业务标识，按照内部定义程序对短消息进行处理，并向目标终端返回响应消息、提供相应业务，完成对所述短消息的处理。The short message center processes the short message according to the internal definition program according to the service identifier, returns a response message to the target terminal, provides corresponding services, and completes the processing of the short message.

S305、短消息中心将短消息发送给短消息网关处理；S305. The short message center sends the short message to the short message gateway for processing;

所述短消息网关需要设置国家码参数以及目标终端号码长度参数，目标终端号码长度参数可以包括国家码长度，也可以不包括国家码长度，所述短消息网关收到短消息之后，按照图4所示的流程解析出目标终端号码以及业务标识；Described short message gateway needs to set country code parameter and target terminal number length parameter, and target terminal number length parameter can comprise country code length, also can not comprise country code length, after described short message gateway receives short message, according to Fig. 4 The shown process parses out the target terminal number and service identifier;

所述短消息网关根据解析出的业务标识，并按照内部定义的程序对短消息进行处理，并将所述短消息发送给相关业务提供系统。The short message gateway processes the short message according to the parsed service identifier and an internally defined program, and sends the short message to the relevant service providing system.

S306、业务提供系统解析出目标终端号码及业务标识；S306. The service providing system parses out the target terminal number and service identifier;

所述业务提供系统需要设置国家码参数以及目标终端号码长度参数，目标终端号码长度参数可以包括国家码长度，也可以不包括国家码长度，所述业务提供系统收到短消息之后，按照图4所示的流程解析出目标终端号码以及业务标识。The service provision system needs to set the country code parameter and the target terminal number length parameter. The target terminal number length parameter can include the country code length or not include the country code length. After the service provision system receives the short message, according to Fig. 4 The flow shown parses out the target terminal number and service identifier.

S307、业务提供系统向目标终端提供相应业务；S307. The service providing system provides corresponding services to the target terminal;

所述业务提供系统根据解析出的目标终端号码及业务标识，按照内部定义的程序对短消息进行处理，并向目标终端发送响应消息、提供相应业务，完成对短消息的处理。The service providing system processes the short message according to the internally defined program according to the parsed target terminal number and service identifier, sends a response message to the target terminal, provides corresponding services, and completes the processing of the short message.

S308、业务提供系统返回响应消息给短消息网关；S308. The service providing system returns a response message to the short message gateway;

业务提供系统根据用户终端所要求的业务类型返回所述响应消息，例如：当要求提供一首歌曲给目标终端时，则为提供歌曲给目标终端的响应消息。The service providing system returns the response message according to the type of service required by the user terminal, for example: when it is required to provide a song to the target terminal, it is a response message to provide the song to the target terminal.

S309、短消息网关返回响应消息给短消息中心；S309. The short message gateway returns a response message to the short message center;

S310、短消息中心返回响应消息给目标终端；S310. The short message center returns a response message to the target terminal;

所述目标终端可以为主叫用户终端，也可以为被叫用户终端。The target terminal may be a calling user terminal or a called user terminal.

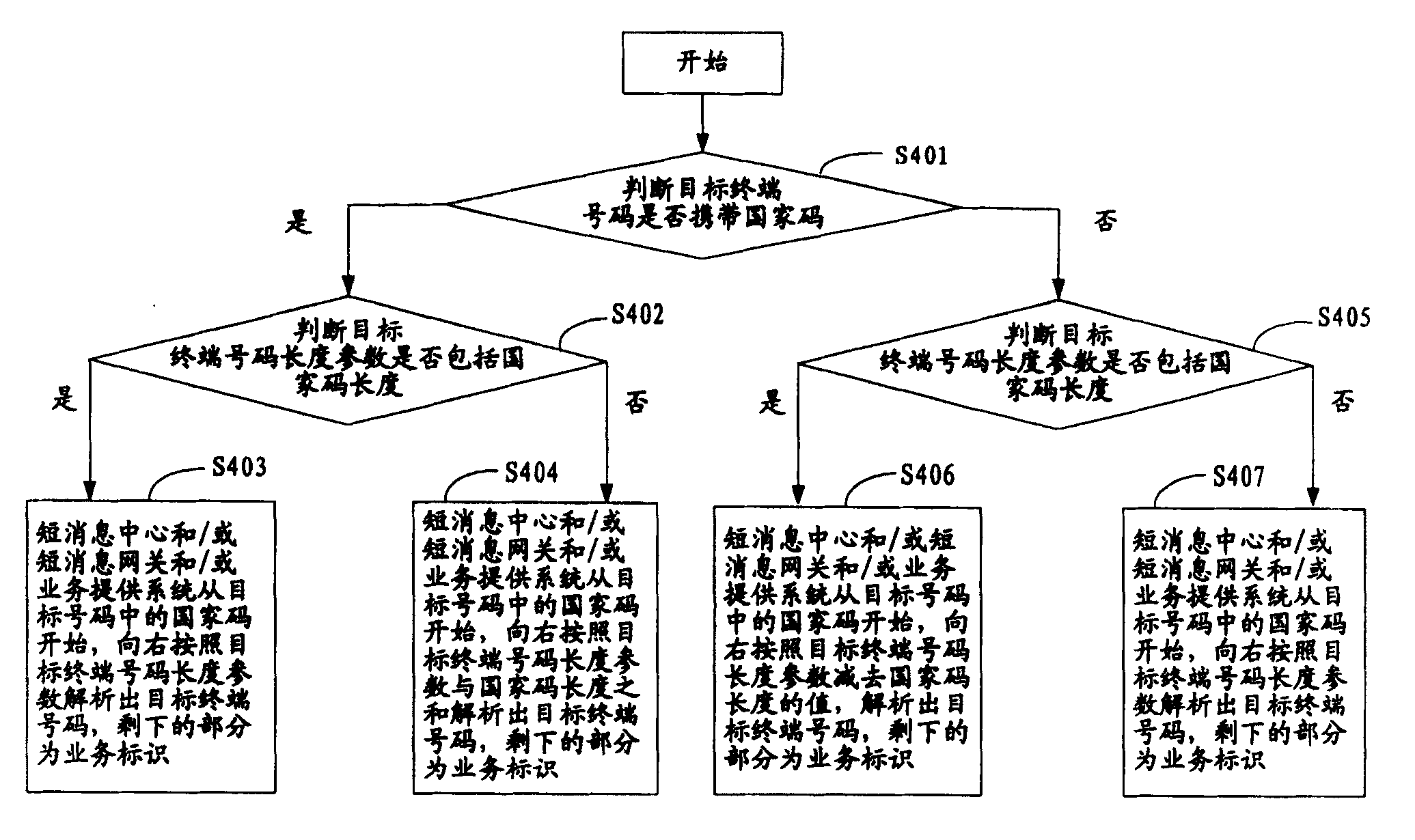

所述的解析过程如图4所示，包括以下步骤：Described parsing process is shown in Figure 4, comprises the following steps:

S401、判断目标终端号码是否携带国家码？S401. Determine whether the target terminal number carries a country code?

例如：目标终端号码为13812345678，不携带国家码，则进行步骤S405；如果携带国家码，例如：目标终端号码为+8613812345678，则进行步骤S402。For example, if the target terminal number is 13812345678 and does not carry a country code, proceed to step S405; if it carries a country code, for example: the target terminal number is +8613812345678, proceed to step S402.

S402、判断目标终端号码长度参数是否包括国家码长度？S402. Determine whether the target terminal number length parameter includes the country code length?

如果目标终端号码长度参数包括国家码长度，则进行步骤S403；If the target terminal number length parameter includes the country code length, proceed to step S403;

如果目标终端号码长度参数不包括国家码长度，则进行步骤S404。If the target terminal number length parameter does not include the country code length, go to step S404.

S403、短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，剩下的部分为业务标识；S403, the short message center and/or the short message gateway and/or the service provision system starts from the country code in the target number, and parses the target terminal number to the right according to the length parameter of the target terminal number, and the remaining part is the service identifier;

例如：目标号码为+8613812345678123，则根据目标终端号码长度参数解析出目标终端号码为+8613812345678，剩下的123为业务标识。For example, if the target number is +8613812345678123, then according to the target terminal number length parameter, the target terminal number is analyzed to be +8613812345678, and the remaining 123 is the service identifier.

S404、短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数与国家码长度之和解析出目标终端号码，剩下的部分为业务标识；S404, the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number, and parses out the target terminal number according to the sum of the length parameter of the target terminal number and the length of the country code to the right, and the remaining part for business identification;

例如：目标号码为+8613812345678123，则根据目标终端号码长度参数与国家码长度之和解析出目标终端号码为+8613812345678，剩下的123为业务标识。For example: the target number is +8613812345678123, then according to the sum of the target terminal number length parameter and the country code length, the target terminal number is analyzed to be +8613812345678, and the remaining 123 is the service identification.

S405、判断目标终端号码长度参数是否包括国家码长度？S405. Determine whether the target terminal number length parameter includes the country code length?

如果目标终端号码长度参数包括国家码长度，则进行步骤S406；If the target terminal number length parameter includes the country code length, proceed to step S406;

如果目标终端号码长度参数不包括国家码长度，则进行步骤S407。If the target terminal number length parameter does not include the country code length, go to step S407.

S406、短消息中心和/或短消息网关和/或业务提供系统从目标终端号码中的国家码开始，向右按照目标终端号码长度参数减去国家码长度的值，解析出目标终端号码，剩下的部分为业务标识；S406, the short message center and/or the short message gateway and/or the service providing system start from the country code in the target terminal number, and then subtract the value of the country code length according to the target terminal number length parameter to the right to resolve the target terminal number, and the remaining The part below is the business identification;

例如目标终端号码长度参数为13位，国家码长度为2位，则按目标终端号码长度参数减去国家码长度的值，解析出11位的目标终端号码，剩下的部分为业务标识。For example, the target terminal number length parameter is 13 digits, and the country code length is 2 digits, then the target terminal number of 11 digits is analyzed by subtracting the country code length from the target terminal number length parameter, and the remaining part is the service identification.

S407、短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，剩下的部分为业务标识。S407, the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number, and parses the target terminal number to the right according to the length parameter of the target terminal number, and the remaining part is the service identifier.

即目标终端号码长度参数为11位，按照此参数解析出11位的目标终端号码，剩下的部分为业务标识。That is, the length parameter of the target terminal number is 11 digits, and the 11-digit target terminal number is analyzed according to this parameter, and the remaining part is the service identification.

实施例三：Embodiment three:

用户终端发送短消息请求所需业务，在目标号码中，业务标识位于目标终端号码后，且所述目标终端号码与业务标识中间带有符号，在所需业务由相关业务提供系统提供时，则对该短消息的处理方法如下：The user terminal sends a short message to request the required service. In the target number, the service identifier is located after the target terminal number, and there is a symbol between the target terminal number and the service identifier. When the required service is provided by the relevant service providing system, then The processing method of this short message is as follows:

用户终端发送短消息时，从终端的电话薄中选择目标终端号码，在其后输入符号(如“*”)，然后在符号后输入业务标识，输入完毕将此短消息发送给短消息中心，此短消息分别经过短消息中心、短消息网关及业务提供系统，按照下述解析方法，将目标终端号码和业务标识解析出来，再按照内部定义的程序对短消息进行处理，并由业务提供系统将携带相应业务的响应消息分别经过短消息网关、短消息中心返回至目标终端，完成对短消息的处理。When the user terminal sends a short message, select the target terminal number from the terminal's phone book, enter a symbol (such as "*") thereafter, and then input a service identification after the symbol, and send the short message to the short message center after the input is completed. The short message passes through the short message center, short message gateway and service provision system respectively, and the target terminal number and service identification are analyzed according to the following analysis method, and then the short message is processed according to the internally defined program, and the service provision system The response message carrying the corresponding service is returned to the target terminal through the short message gateway and the short message center respectively, and the processing of the short message is completed.

上述解析方法为：The above parsing method is:

如果所述目标终端号码携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，所述符号后的部分为所述业务标识；If the target terminal number carries a country code, and the target terminal number length parameter includes the country code length, then the short message center and/or short message gateway and/or service providing system start from the country code in the target number and move rightward according to the target The terminal number length parameter parses out the target terminal number, and the part after the symbol is the service identifier;

如果所述目标终端号码携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数与国家码长度之和解析出目标终端号码，所述符号后的部分为所述业务标识；If the target terminal number carries the country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and proceeds to the right according to The sum of the target terminal number length parameter and the country code length is analyzed to obtain the target terminal number, and the part after the symbol is the service identifier;

如果所述目标终端号码不携带国家码，且目标终端号码长度参数包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数减去国家码长度的值，解析出目标终端号码，所述符号后的部分为所述业务标识；If the target terminal number does not carry the country code, and the target terminal number length parameter includes the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and proceeds to the right according to The target terminal number length parameter minus the value of the country code length, parse out the target terminal number, and the part after the symbol is the service identifier;

如果所述目标终端号码不携带国家码，且目标终端号码长度参数不包括国家码长度，则短消息中心和/或短消息网关和/或业务提供系统从目标号码中的国家码开始，向右按照目标终端号码长度参数解析出目标终端号码，所述符号后的部分为所述业务标识。If the target terminal number does not carry the country code, and the target terminal number length parameter does not include the country code length, then the short message center and/or the short message gateway and/or the service providing system starts from the country code in the target number and moves to the right The target terminal number is analyzed according to the length parameter of the target terminal number, and the part after the symbol is the service identifier.

所述目标终端可以为主叫用户终端，也可以为其他的被叫用户终端。The target terminal may be a calling user terminal, or another called user terminal.

本发明通过将业务标识放在目标终端号码后面，使得用户在发送短消息，输入目标号码时更加方便，不用先记下目标终端号码，输入业务接入码后再输入目标终端号码，采用本发明方案，可以直接从用户终端的号码薄上选择目标终端号码，在其后输入业务标识，使操作更便捷，从而还可以很大程度地提高业务量；In the present invention, by placing the service identification behind the target terminal number, it is more convenient for the user to input the target number when sending a short message, without first writing down the target terminal number, inputting the service access code and then inputting the target terminal number, and adopting the present invention Solution, you can directly select the target terminal number from the number book of the user terminal, and then enter the service ID, which makes the operation more convenient and can also greatly increase the business volume;

另外，采用本发明方案可以拓展短消息业务，避开上述现有技术中所述业务接入码由运营商统一分配的弊端，采用本发明方案，采用在目标终端号码后用业务标识携带业务信息的方式，可以由短消息中心提供一些特殊业务，进而为短消息中心基于平台的业务提供了便利。In addition, adopting the scheme of the present invention can expand the short message service, avoiding the drawbacks of the service access codes in the above-mentioned prior art being uniformly allocated by the operator, adopting the scheme of the present invention, adopting the service identification to carry the service information after the target terminal number In this way, some special services can be provided by the short message center, which in turn facilitates the platform-based services of the short message center.

同时，通过增加后缀方式，短消息中心可认为前缀消息是需要发送到业务提供系统的，后缀消息是需要在短消息中心提供特殊业务的，这样会大大丰富短消息业务。At the same time, by adding a suffix, the SMS center can think that the prefix message needs to be sent to the service providing system, and the suffix message needs to provide special services in the SMS center, which will greatly enrich the SMS service.

显然，本领域的技术人员可以对本发明进行各种改动和变型而不脱离本发明的精神和范围。这样，倘若本发明的这些修改和变型属于本发明权利要求及其等同技术的范围之内，则本发明也意图包含这些改动和变型在内。Obviously, those skilled in the art can make various changes and modifications to the present invention without departing from the spirit and scope of the present invention. Thus, if these modifications and variations of the present invention fall within the scope of the claims of the present invention and their equivalent technologies, the present invention also intends to include these modifications and variations.

Claims (14)

1, a kind of SMS processing is characterized in that, may further comprise the steps:
A, terminal are submitted short message to short message service center, and wherein destination number comprises target terminal number and is positioned at thereafter service identification;
B, described short message service center parse described target terminal number and service identification, and according to described service identification short message are carried out respective handling.
2, method according to claim 1, it is characterized in that described step B comprises: described short message service center judges whether corresponding service can be provided according to described service identification, is then to carry out step B1: provide corresponding service to target terminal by short message service center; Otherwise carry out step B2: provide corresponding service to target terminal by service providing system.
3, as method as described in the claim 2, it is characterized in that the business information that described service identification carries is defined by described short message service center.
4, as method as described in the claim 3, it is characterized in that described step B1 further comprises:
B11, short message service center handle short message according to described service identification;
B12, short message service center send to target terminal with response message.
5, as method as described in the claim 2, it is characterized in that described step B2 further comprises:
B21, described short message service center send to short messaging gateway according to described service identification with short message;
B22, described short messaging gateway parse target terminal number and service identification, and according to described service identification described short message are sent to related service system is provided;
B23, described service providing system parse target terminal number and service identification, and provide corresponding service to target terminal.
6, as method as described in the claim 5, it is characterized in that described short message service center and/or short messaging gateway and/or service providing system are resolved described target terminal number and service identification, comprise following content:
If the described target terminal number of a is carried national code, and the target terminal number length parameter comprises national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, parse target terminal number according to the target terminal number length parameter to the right, remaining part is described service identification;
If the described target terminal number of b is carried national code, and the target terminal number length parameter does not comprise national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, parse target terminal number according to target terminal number length parameter and national code length sum to the right, remaining part is described service identification;
If the described target terminal number of c is not carried national code, and the target terminal number length parameter comprises national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, deduct the value of national code length to the right according to the target terminal number length parameter, parse target terminal number, remaining part is described service identification;
If the described target terminal number of d is not carried national code, and the target terminal number length parameter does not comprise national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, parse target terminal number according to the target terminal number length parameter to the right, remaining part is described service identification.
7, as method as described in claim 1 or 5, it is characterized in that, have symbol in the middle of described target terminal number and the described service identification.
8, as method as described in the claim 7, it is characterized in that described short message service center and/or short messaging gateway and/or service providing system resolve described target terminal number and service identification comprises following content:
A ' is if described target terminal number is carried national code, and the target terminal number length parameter comprises national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, parse target terminal number according to the target terminal number length parameter to the right, the part behind the described symbol is described service identification;
B ' is if described target terminal number is carried national code, and the target terminal number length parameter does not comprise national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, parse target terminal number according to target terminal number length parameter and national code length sum to the right, the part behind the described symbol is described service identification;
C ' is not if described target terminal number is carried national code, and the target terminal number length parameter comprises national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, deduct the value of national code length to the right according to the target terminal number length parameter, parse target terminal number, the part behind the described symbol is described service identification;
D ' is not if described target terminal number is carried national code, and the target terminal number length parameter does not comprise national code length, then short message service center and/or short messaging gateway and/or the service providing system national code from destination number begins, parse target terminal number according to the target terminal number length parameter to the right, the part behind the described symbol is described service identification.
9, as claim 1---6 methods as described in any is characterized in that described target terminal is: call subscriber terminal or called user terminal.
10, a kind of short message handling system comprises terminal and short message service center, it is characterized in that, also comprises:
Input unit is positioned at described terminal, is used to import target terminal number and service identification, after wherein said service identification is positioned at described target terminal number;
Short message service center's first resolution unit is positioned at described short message service center, is used to resolve described target terminal number;
Short message service center's second resolution unit is positioned at described short message service center, is used to resolve described service identification;
Short message service center does respective handling according to the analysis result of described resolution unit to short message.
11, as system as described in the claim 10, it is characterized in that, also comprise:
Judging unit, be positioned at described short message service center, be used for judging according to described service identification whether described short message service center can provide corresponding service, is then to provide corresponding service by described short message service center to target terminal, provides system handles otherwise short message is sent to related service;
Service providing system is used for when judging unit determines that described short message service center does not provide corresponding service, receives the short message that short message service center sends, and after short message done respective handling, provides corresponding service to target terminal.
12, as system as described in the claim 11, it is characterized in that, also comprise:
Service providing system first resolution unit is positioned at described service providing system, is used to resolve described target terminal number;
Service providing system second resolution unit is positioned at described service providing system, is used to resolve described service identification;
Described service providing system provides corresponding service according to the analysis result of described resolution unit to target terminal, and response message is sent to described target terminal.
13, as system as described in claim 11 or 12, it is characterized in that, also comprise:
Short messaging gateway is positioned at described short message service center, and described short message service center comprises:
Short messaging gateway first resolution unit is positioned at described short messaging gateway, is used to resolve described target terminal number;
Short messaging gateway second resolution unit is positioned at described short messaging gateway, is used to resolve described service identification;
Described short messaging gateway sends to related service with described short message system is provided according to the analysis result of described resolution unit.
14, as system as described in the claim 10,11 or 12, it is characterized in that described target terminal is: call subscriber terminal or called user terminal.
CNB2006100988666A 2006-07-17 2006-07-17 A short message processing method and system Expired - Fee Related CN100428811C (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CNB2006100988666A CN100428811C (en) 2006-07-17 2006-07-17 A short message processing method and system

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CNB2006100988666A CN100428811C (en) 2006-07-17 2006-07-17 A short message processing method and system

Publications (2)

Publication Number Publication Date
CN1878352A CN1878352A (en) 2006-12-13
CN100428811C true CN100428811C (en) 2008-10-22

Family

ID=37510610

Family Applications (1)

Application Number Title Priority Date Filing Date
CNB2006100988666A Expired - Fee Related CN100428811C (en) 2006-07-17 2006-07-17 A short message processing method and system

Country Status (1)

Country Link
CN (1) CN100428811C (en)

Families Citing this family (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN102004990A (en) * 2010-10-29 2011-04-06 西本新干线股份有限公司 Short message sending method adapted to short message management system
CN105578432A (en) * 2014-10-16 2016-05-11 中兴通讯股份有限公司 Short message sending method and short message center
CN110300222B (en) * 2019-05-29 2021-05-14 深圳市梦网科技发展有限公司 Short message display method, system, terminal equipment and computer readable storage medium
CN111601364B (en) * 2019-06-05 2021-01-22 维沃移动通信有限公司 Network identification information sending method, receiving method and communication device

Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO1994007338A1 (en) * 1992-09-18 1994-03-31 Nokia Telecommunications Oy A method for starting a short message transmission
EP1091601A2 (en) * 1999-10-07 2001-04-11 Nokia Mobile Phones Ltd. Multimedia message content adaptation
WO2004081859A1 (en) * 2003-03-12 2004-09-23 Telia Ab (Publ) Device and procedure for handling of services
CN1555178A (en) * 2003-12-26 2004-12-15 北京纵横移通信息技术有限公司 Intermediate piece device for providing united electronic communication book function and its expansion function based on increment business development of mobile device
WO2005032100A1 (en) * 2003-09-30 2005-04-07 Telefonaktiebolaget Lm Ericsson (Publ) Means and method for generating a unique user’s identity for use between different domains
CN1735228A (en) * 2004-08-13 2006-02-15 中兴通讯股份有限公司 Short message expansion system and its service expansion method

Patent Citations (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO1994007338A1 (en) * 1992-09-18 1994-03-31 Nokia Telecommunications Oy A method for starting a short message transmission
EP1091601A2 (en) * 1999-10-07 2001-04-11 Nokia Mobile Phones Ltd. Multimedia message content adaptation
WO2004081859A1 (en) * 2003-03-12 2004-09-23 Telia Ab (Publ) Device and procedure for handling of services
WO2005032100A1 (en) * 2003-09-30 2005-04-07 Telefonaktiebolaget Lm Ericsson (Publ) Means and method for generating a unique user’s identity for use between different domains
CN1555178A (en) * 2003-12-26 2004-12-15 北京纵横移通信息技术有限公司 Intermediate piece device for providing united electronic communication book function and its expansion function based on increment business development of mobile device
CN1735228A (en) * 2004-08-13 2006-02-15 中兴通讯股份有限公司 Short message expansion system and its service expansion method

Also Published As

Publication number Publication date
CN1878352A (en) 2006-12-13

Similar Documents

Publication Publication Date Title
EP1216561B1 (en) Launching application from embedded indicator in short message service message
US8001272B2 (en) Obtaining a valid international destination address
US20090285382A1 (en) Method, device and system for routing
MX2007013141A (en) A shortcut generator for services accessible via a messaging service system.
JP2011511479A (en) Mobile phone content real-time translation system and method
CN100454949C (en) Method for Acquiring Service Capability Information of Mobile Terminal
CN100415006C (en) Short message URL device and system and method for realizing short message value-added service
JP5520285B2 (en) Method for establishing communication from a mobile terminal in dual mode
CN100428811C (en) A short message processing method and system
US8005494B2 (en) Providing to sender of message an identifier of service provider associated with recipient of the message
CN103096273B (en) Method, equipment and the system that a kind of up short message sends
EP2149205A1 (en) Method for providing roaming service of international call and mobile terminal for the same
KR100817561B1 (en) Information searching·providing system using short message service and method thereof
KR20040010457A (en) Wireless Internet content service method that provides the ability to edit and process the original content according to the user's taste
KR100650351B1 (en) Content update system and method of mobile communication terminal
CN102783192A (en) Method and system for transmitting digital data during call waiting and corresponding mobile terminal
CN101179755A (en) A method and system for realizing business handling through a characterized short message port
KR100834134B1 (en) Call connection method and system using wink service in portable terminal
KR20030028588A (en) Music-mail service system and method for mobile information terminal
KR100659466B1 (en) Content providing method and system using content code number
KR100994778B1 (en) Number change device and method in mobile communication system
CN100362797C (en) Method for processing information sent by mobile terminal
FI118556B (en) Procedure and mobile telephone exchange to implement home area pricing for a service provider's subscribers
KR100676620B1 (en) Method and system for moving upper swap pages of mobile terminal
KR20080011881A (en) Keyword search system and method using a portable terminal

Legal Events

Date Code Title Description
C06 Publication
PB01 Publication
C10 Entry into substantive examination
SE01 Entry into force of request for substantive examination
C14 Grant of patent or utility model
GR01 Patent grant
C17 Cessation of patent right
CF01 Termination of patent right due to non-payment of annual fee

Granted publication date: 20081022

Termination date: 20120717
