Abstract
本发明提供了一种用于广告、信息显示的双面式像素显示灯，包括灯体，其中所述的灯体中部固定有控制线路板，在控制线路板的两个表面上均设有至少一排LED发光组件，每个LED发光组件由至少一个LED灯组成；控制线路板两边的LED发光组件由同一信号控制器控制。本发明具有重量轻、造价低、组合安装方便的优点，用于广告、信息显示。
The present invention provides a double-sided pixel display lamp for advertising and information display, comprising a lamp body, wherein a control circuit board is fixed in the middle of the lamp body, at least one row of LED light emitting components are arranged on both surfaces of the control circuit board, and each LED light emitting component is composed of at least one LED lamp; the LED light emitting components on both sides of the control circuit board are controlled by the same signal controller. The present invention has the advantages of light weight, low cost, and convenient assembly and installation, and is used for advertising and information display.
Description
Technical field
The present invention relates to a kind of display lamp, refer in particular to a kind of two-side pixel display lamp that is used for advertisement, information demonstration that is used for indoor and outdoor advertisement, information demonstration.
Background technology
At present, be used for pixel lamp that advertisement, information show and be commonly single face and show, need increase by one group of display system, cause Heavy Weight, the price height of pixel etc., be difficult to use in marketing as the need double-sided display.
Summary of the invention
The object of the present invention is to provide a kind of in light weight, price is low, aggregate erection is convenient, display effect is good a kind ofly is used for the two-side pixel display lamp that advertisement, information show.
The object of the present invention is achieved like this: a kind of two-side pixel display lamp that is used for advertisement, information demonstration, comprise lamp body, wherein said lamp body middle part is fixed with control circuit board, be equipped with at least one row LED luminescence component on two surfaces of control circuit board, each LED luminescence component is made up of at least one LED lamp; The LED luminescence component on control circuit board both sides is controlled by same signal controller.
The above-mentioned lamp body that is used for the outside, control circuit board both sides described in the two-side pixel display lamp that advertisement, information show is provided with panel, and panel is provided with and each LED luminescence component through hole one to one.
The above-mentioned through hole that is used for panel described in the two-side pixel display lamp that advertisement, information show is provided with transparent lamp shade, can increase the visual angle of pixel etc.
The lamp body in the outside, control circuit board both sides is provided with transparent panel described in the above-mentioned two-side pixel display lamp that is used for advertisement, information demonstration.
After the present invention adopts said structure, by the LED luminescence component being set as the pixel display lamp on wiring board both sides, can realize that double-faced advertising, information show, and can reduce the weight of lamp body, reduce the manufacturing expense of double-sided display lamp body, simplify the aggregate erection operation, substitute a large amount of at present roadside static advertising, information display boards that use, realize that dynamic advertising, information show.
Description of drawings
Below in conjunction with the embodiment in the accompanying drawing the present invention is described in further detail, but does not constitute any limitation of the invention.

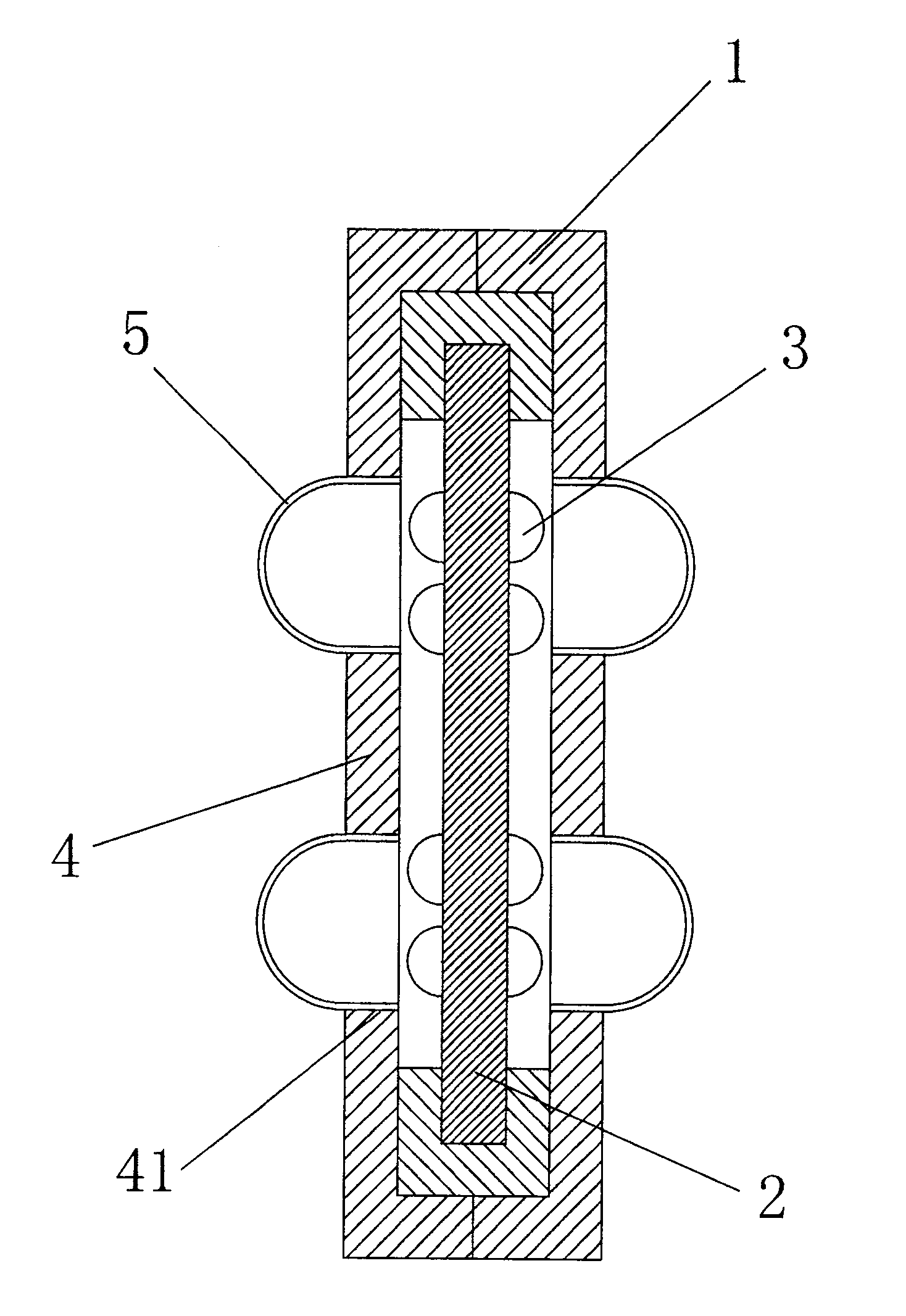

Fig. 1 is the structural representation of the embodiment of the invention 1;
Fig. 2 is the left view of Fig. 1;
Fig. 3 is the structural representation of the embodiment of the invention 2;
Fig. 4 is a circuit control principle synoptic diagram of the present invention.
Among the figure: 1-lamp body, 2-control circuit board, 3-LED luminescence component, 4-panel, 41-through hole, 5-diffuser, 6-light-passing board, 7-main frame, 8-frame controller, 9-screen body controller, 10-scanner, 11-receptacle.
Embodiment
Consult Fig. 1, shown in Figure 2, the two-side pixel display lamp that is used for advertisement, information demonstration of the present invention, comprise lamp body 1, be fixed with a control circuit board 2 at lamp body 1 middle part, be equipped with two row LED luminescence components 3 on two surfaces of control circuit board 2, each LED luminescence component 3 is formed by three LED lamps; The LED luminescence component 3 on control circuit board 2 both sides is controlled by same signal controller; Signal controller can be fixed in the lamp body 1, also can be placed on outside the lamp body 1; Be provided with panel 4 on the lamp body 1 in the control circuit board 2 both sides outsides, panel 4 is provided with and each LED luminescence component 3 through hole 41 one to one, is provided with transparent lamp shade 5 on through hole 41.
Consult shown in Figure 3, the two-side pixel display lamp that is used for advertisement, information demonstration of the present invention, comprise lamp body 1, be fixed with upper and lower two control circuit boards 2 at lamp body 1 middle part, be equipped with a row LED luminescence component 3 on two surfaces of control circuit board 2, each LED luminescence component 3 is made up of three LED lamps; The LED luminescence component 3 on control circuit board 2 both sides is controlled by same signal controller; On the lamp body 1 in the outside, control circuit board 2 both sides, be provided with glass transparent plate 6.
Circuit working principle of the present invention is consulted shown in Figure 4, and the LED luminescence component 3 on control circuit board 2 two sides is by same signal controller control, shows the identical advertisement or the information content.Display control signal is sent by main frame 7, through frame controller 8, screen body controller 9, scanner 10, receptacle 11, inputs to control circuit board 2 control LED luminescence components 3 and is combined into various display patterns or information; The displaying contents of the LED luminescence component 3 of the LED luminescence component 3 above the control circuit board 2 below control circuit board 2 becomes the minute surface symmetry to show.
The present invention can be used as advertisement, the information double-sided display plate of indoor and outdoor, and each LED luminescence component 3 can show different advertisement or information frame according to the control signal of controller.
