本发明涉及一种球形办公桌椅，要解决的技术问题是提供一种结构简单，操作方便，占用空间小的办公桌椅，包括球体和底座，所述的球体的一半为椅子部分，另一半为桌子部分；所述的椅子部分上与桌子部分相对的表面为凹形面，其中凹形面内设置有椅座和椅背，并且椅子部分通过椅腿与底座固定连接；所述的桌子部分上与椅子部分相对的表面上设置有盖板，并且桌子部分与底座之间设置有立柱，其中立柱的一端固定在桌子部分上，另一端活动安装在底座上；所述的盖板中部设置有桌板，其中桌板通过合页安装在盖板上，其中盖板上还设有与桌板相配合的限位板。通过本发明能够减少办公的空间，方便人们办公，属于办公桌椅的技术领域。
The invention relates to a spherical office desk and chair. The technical problem to be solved is to provide an office desk and chair with simple structure, convenient operation and small space occupation, including a sphere and a base. Half of the sphere is the chair part, and the other half It is a table part; the surface opposite to the table part on the chair part is a concave surface, wherein a seat and a chair back are arranged in the concave surface, and the chair part is fixedly connected to the base through the chair legs; the table part A cover plate is provided on the surface opposite to the chair part, and a column is provided between the table part and the base, wherein one end of the column is fixed on the table part, and the other end is movably installed on the base; the middle part of the cover plate is provided with The table board, wherein the table board is installed on the cover plate through hinges, wherein the cover board is also provided with a limit plate matched with the table board. The invention can reduce office space and facilitate people's office, and belongs to the technical field of office desks and chairs.
Description
Technical field
The invention belongs to the technical field of office desk and chair, be specifically related to a kind of spherical office desk and chair.
Background technology
Existing office products is more and more diversified, wherein also more and more for the research of office desk and chair, but existing office desk and chair is generally split type, be that desk and chair are respectively self-existent, quickening along with modern life rhythm, and the dwindling of urban life space, split type desk and chair bring inconvenience to people, and such office desk and chair takes up room bigger.
Summary of the invention
The technical problem to be solved in the present invention provides a kind of simple in structure, and is easy to operate, and little office desk and chair takes up room.
In order to solve the problems of the technologies described above, the invention provides a kind of spherical office desk and chair and comprise spheroid and base, half of described spheroid is the chair part, second half is the desk part; It is concave panel that described chair is partly gone up with desk part facing surfaces, wherein is provided with seat support and the chair back in the concave panel, and chair is partly fixedlyed connected with base by the chair leg; Described desk is partly gone up with chair part facing surfaces and is provided with cover plate, and is provided with column between desk part and the base, and an end of its central post is fixed on the desk part, and the other end is movably arranged on the base; Described cover plate middle part is provided with table, and wherein table is installed on the cover board by hinge, also is provided with the limiting plate that matches with table on its cover plate.
Because this office desk and chair is the integrative-structure of a spheroid base, simple in structure, the moulding uniqueness, it is little to take up room, spheroid is divided into Cain and Abel two parts in addition, such structure combines Cain and Abel, when using, spheroid is opened, with the spheroid closure, easy to operate like this in the time of obsolete, make it not only have the function of chair but also have the function of desk, the structure that chair and desk are combined like this, compare with traditional office desk and chair, this kind structure is conserve space more, more can utilize limited space.
Further, restriction is when described spheroid is in closure state, and described chair leg and column are all perpendicular to base, and the faying face of at this moment described chair part and desk part and the angle that base is are acute angle; When described spheroid was in open mode, described column equated with described acute angle with the minimum angle that base is.In the time of can guaranteeing that spheroid is in closure state like this, shared space minimum can make cover plate and the base of desk part be in plumbness when open mode, can guarantee to use the convenience of table like this.
Further again, limit the upper edge, position that column is installed on the described base and the direction that chair partly faces and be provided with stopper slot, wherein the width of stopper slot is consistent with the diameter of column.The stopper slot structure can prevent that desk from can not rock from side to side like this, and the angle before and after also the convenient table subdivision is regulated, thereby makes this office desk and chair more stable.
Further, limiting described limiting plate is two, lays respectively at the left and right sides of table, and the angle that the upper surface of limiting plate and cover plate are is the right angle to the maximum, and can be movable in 0～90 ° of scope.Can guarantee table when in use like this, its position can better be limited, thereby guarantee the stability of people when using the table office, the angle that restriction limiting plate and cover plate are is the right angle, can guarantee that like this angle that table and cover plate are is the right angle to the maximum, thereby it is more convenient that people are used, and when not in use limiting plate is close to cover plate, thereby can guarantee that this spheroid can tight close.
Further, when limiting described limiting plate and table all perpendicular to cover plate, wherein the lower surface of the upper surface of limiting plate and table is on a horizontal plane.Can guarantee limiting plate like this when restriction table position, be in contact with one another closelyr, also make the position of table be limited more stablely, thereby guarantee the office stability of whole office tables and chairs.
Further again, limit in the described desk part and be provided with Lattice for putting article.So more effectively utilized the inner space of desk part, and the Lattice for putting article that arranges can place various office appliances, increase the storing effect of these tables and chairs like this, it is more convenient that people are used.
Description of drawings
Fig. 1 is the structural representation of the spherical office desk and chair closure state of the present invention;

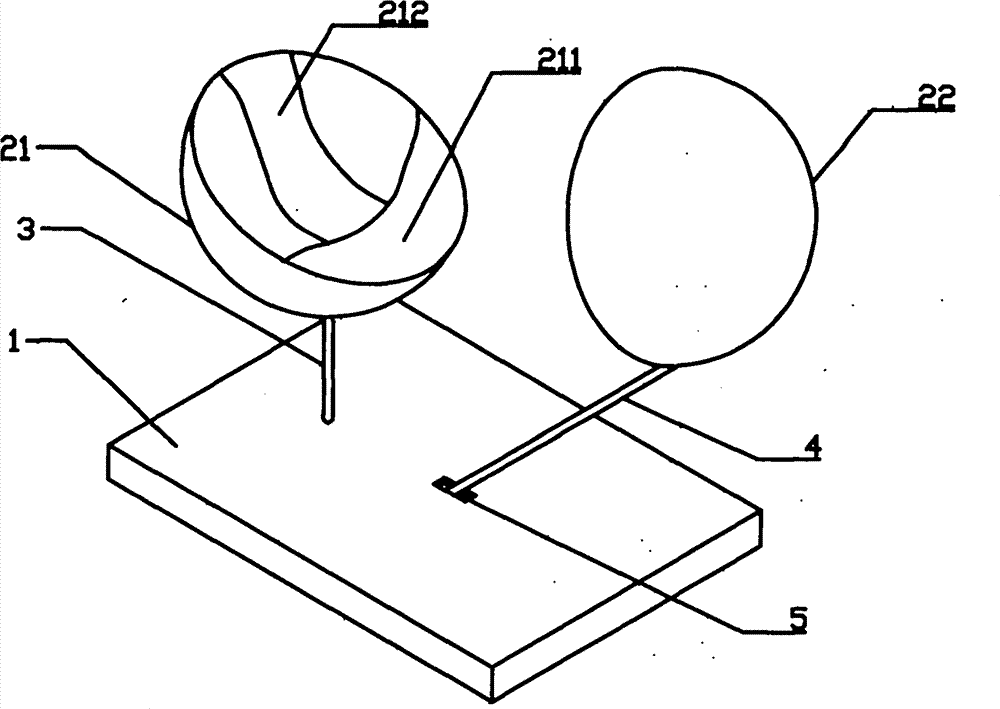

Fig. 2 is the structural representation of the spherical office desk and chair open mode of the present invention;
Fig. 3 is the structural representation of spherical another open mode of office desk and chair of the present invention;
Fig. 4 is the structural representation of open mode among the spherical office desk and chair embodiment 1 of the present invention;
Fig. 5 is the structural representation of open mode among the spherical office desk and chair embodiment 2 of the present invention.
The specific embodiment
Below in conjunction with drawings and Examples technical solution of the present invention is further specified:
Embodiment 1:
As Fig. 1, Fig. 2, Fig. 3, shown in Figure 4, the invention provides a kind of spherical office desk and chair and comprise spheroid 2 and base 1, half of described spheroid 2 is chair part 21, second half is desk part 22; Be concave panel with desk part 22 facing surfaces on the described chair part 21, wherein be provided with seat support 211 and the chair back 212 in the concave panel, and chair part 21 is fixedlyed connected with base 1 by chair leg 3; Be provided with cover plate 221 with chair part 21 facing surfaces on the described desk part 22, and be provided with column 4 between desk part 22 and the base 1, an end of its central post 4 is fixed on the desk part 22, and the other end is movably arranged on the base 1; Described cover plate 221 middle parts are provided with table 222, wherein table 222 is installed on the cover plate 221 by hinge 223, also be provided with the limiting plate 224 that matches with table 222 on its cover plate 221, when described spheroid 2 is in closure state, described chair leg 3 and column 4 are all perpendicular to base 1, and this moment, described chair part 21 and the faying face of desk part 22 and the angle that base 1 is were acute angle 11; When described spheroid 2 is in open mode, described column 4 equates with described acute angle 11 with the minimum angle 12 that base 1 is, the upper edge, position of installation column 4 and the direction that chair partly faces are provided with stopper slot 5 on the described base 1, wherein the width of stopper slot 5 is consistent with the diameter of column 4, described limiting plate 224 is two, lay respectively at the left and right sides of table 222, and the angle that the upper surface of spacing 224 plates and cover plate 221 are is the right angle to the maximum, and can be movable in 0～90 ° of scope, during all perpendicular to cover plate 221, wherein the lower surface of the upper surface of limiting plate 224 and table 222 is on a horizontal plane with table 222 for described limiting plate 224.
Embodiment 2:
As Fig. 1, Fig. 2, Fig. 3, shown in Figure 5, the invention provides a kind of spherical office desk and chair and comprise spheroid 2 and base 1, half of described spheroid 2 is chair part 21, second half is desk part 22; Be concave panel with desk part 22 facing surfaces on the described chair part 21, wherein be provided with seat support 211 and the chair back 212 in the concave panel, and chair part 21 is fixedlyed connected with base 1 by chair leg 3; Be provided with cover plate 221 with chair part 21 facing surfaces on the described desk part 22, and be provided with column 4 between desk part 22 and the base 1, an end of its central post 4 is fixed on the desk part 22, and the other end is movably arranged on the base 1; Described cover plate 221 middle parts are provided with table 222, wherein table 222 is installed on the cover plate 221 by hinge 223, also be provided with the limiting plate 224 that matches with table 222 on its cover plate 221, when described spheroid 2 is in closure state, described chair leg 3 and column 4 are all perpendicular to base 1, and this moment, described chair part 21 and the faying face of desk part 22 and the angle that base 1 is were acute angle 11; When described spheroid 2 is in open mode, described column 4 equates with described acute angle 11 with the minimum angle 12 that base 1 is, the upper edge, position of installation column 4 and the direction that chair partly faces are provided with stopper slot 5 on the described base 1, wherein the width of stopper slot 5 is consistent with the diameter of column 4, be provided with Lattice for putting article 225 in the described desk part 22, described limiting plate 224 is two, lay respectively at the left and right sides of table 222, and the angle that the upper surface of spacing 224 plates and cover plate 221 are is the right angle to the maximum, and can be movable in 0～90 ° of scope, during all perpendicular to cover plate 221, wherein the lower surface of the upper surface of limiting plate 224 and table 222 is on a horizontal plane with table 222 for described limiting plate 224.
Above-described only is preferred embodiment of the present invention; should be understood that; for a person skilled in the art; under the prerequisite that does not break away from structure of the present invention; can also make some distortion and improvement; these also should be considered as protection scope of the present invention, can not influence effect of the invention process and practical applicability.
Claims (6)
1. a spherical office desk and chair comprises spheroid and base, it is characterized in that: half of described spheroid is the chair part, and second half is the desk part; It is concave panel that described chair is partly gone up with desk part facing surfaces, wherein is provided with seat support and the chair back in the concave panel, and chair is partly fixedlyed connected with base by the chair leg; Described desk is partly gone up with chair part facing surfaces and is provided with cover plate, and is provided with column between desk part and the base, and an end of its central post is fixed on the desk part, and the other end is movably arranged on the base; Described cover plate middle part is provided with table, and wherein table is installed on the cover board by hinge, also is provided with the limiting plate that matches with table on its cover plate.
2. a kind of spherical office desk and chair according to claim 1, it is characterized in that: when described spheroid is in closure state, described chair leg and column are all perpendicular to base, and the faying face of at this moment described chair part and desk part and the angle that base is are acute angle; When described spheroid was in open mode, described column equated with described acute angle with the minimum angle that base is.
3. a kind of spherical office desk and chair according to claim 2 is characterized in that: on the described base upper edge, position of column is installed and the direction that chair partly faces is provided with stopper slot, wherein the width of stopper slot is consistent with the diameter of column.
4. a kind of spherical office desk and chair according to claim 3, it is characterized in that: described limiting plate is positioned at the left and right sides of table, and the angle that the upper surface of limiting plate and cover plate are is the right angle to the maximum, and can be movable in 0～90 ° of scope.
5. a kind of spherical office desk and chair according to claim 4 is characterized in that: described limiting plate and table are during all perpendicular to cover plate, and wherein the lower surface of the upper surface of limiting plate and table is on a horizontal plane.
6. a kind of spherical office desk and chair according to claim 5 is characterized in that: be provided with Lattice for putting article in the described desk part.
