Abstract

The invention discloses a clothes dryer. The dryer includes a body arranged in a sealed box and a heat exchanger arranged outside the box. The box is divided into a working chamber and a motor chamber, and a motor is arranged in the motor chamber. The working chamber is sequentially divided into a buffer chamber, a drying chamber and an operating chamber. The drying chamber is equipped with an air heater and an inner cylinder, and a number of air holes are opened on the bottom plate corresponding to the position of the drying chamber; the heat exchanger includes a shell, and the shell is divided into a second A chamber, a heat exchange chamber and a second chamber. In the present invention, the blades on one side of the inner cylinder are used to make the air in the box flow continuously from the air inlet to the air outlet, because the inner cylinder wall is provided with closely arranged through holes, and the air heater in the drying chamber will use the air heater in the drying chamber to The gas inside is heated to the preset temperature, and with the rotation of the inner cylinder, it contacts the clothes in the inner cylinder evenly; before the high-temperature gas is about to be discharged from the box, the heat is partially recovered through the heat exchanger to prevent the gas from being discharged. Cause a lot of waste of heat energy.

Description

a clothes dryer

technical field

The invention belongs to the field of mechanical equipment, and in particular relates to a mechanical equipment in the field of clothing, more specifically a clothes dryer.

Background technique

Dryers can be divided into industrial and civilian. Industrial dryers are also called drying equipment or dryers. Civilian dryers are one of washing machines. They are generally used to remove clothing and other textiles after washing and dehydration. of moisture. Chinese patent CN1690299A discloses a clothes dryer, which includes a rotatable drying cylinder, a hot air inlet pipe for introducing hot air into the drying cylinder, and a hot air discharge pipe for discharging hot air to the outside of the drying cylinder, which can be easily completed Clothes drying.

However, in the above-mentioned clothes dryer, the air enters from the air inlet, is heated by the heating pipe, and then is discharged from the exhaust port around the rotating cylinder, but the above-mentioned clothes dryer has the following disadvantages: both the air inlet and the exhaust port need to be installed If one of the fans is damaged, it will affect the normal operation of the whole equipment, and the equipment needs two motors to work at the same time, which is a waste of electricity; in addition, the traditional hot air does not directly contact the clothes to be dried, but only turns the rotating drum The cylinder wall is heated, and then the air and clothes in the rotating cylinder are used to carry out indirect heat conduction, and the thermal efficiency is low; and when the rotating cylinder rotates, the clothes are tightly attached to the inner wall of the rotating cylinder due to the centrifugal force. The clothes are wrinkled seriously, and on the other hand, the clothes are dried unevenly; finally, because the temperature of the air discharged from the exhaust port is often much higher than normal temperature, it will cause a waste of heat energy if it is directly discharged into the air.

Contents of the invention

In order to solve the problems of low thermal efficiency of the above-mentioned existing clothes dryer, the clothes to be dried are easy to cling to the cylinder wall, and a large amount of heat energy is discharged from the exhaust port with the gas to cause waste, etc., the present invention provides a clothes dryer , the specific scheme is as follows:

A clothes dryer, the dryer includes a body arranged in a box and a heat exchanger arranged outside the box, the body includes a bottom plate arranged horizontally in the box, a first vertical plate arranged vertically and The second vertical plate, the bottom plate divides the box body into a working cavity and a motor cavity; the first vertical plate and the second vertical plate divide the working cavity into a buffer cavity, a drying cavity and an operating cavity in sequence , the drying chamber is provided with an air heater, the bottom plate is provided with a number of air holes corresponding to the position of the drying chamber, the drying chamber is provided with an inner cylinder with one end open and one end closed, and the wall of the inner cylinder A number of closely arranged through holes are provided, and the first vertical plate and the second vertical plate are respectively provided with a first through hole and a second through hole corresponding to the closed end and the open end of the inner cylinder. The two ends of the inner cylinder are rotationally connected with the first vertical plate and the second vertical plate through several rotating parts; the closed end of the inner cylinder is fixed with a drive shaft, and the drive shaft is provided with a fan and drives the The drive assembly for rotating the inner cylinder; the box is respectively provided with an air outlet communicating with the buffer chamber, an operating port communicating with the operating chamber, and an air inlet communicating with the motor chamber; the heat exchange The device includes a shell, and a first baffle and a second baffle are arranged inside the shell, and the first baffle and the second baffle divide the shell into a first chamber, a heat exchange chamber and a heat exchange chamber in turn. The second cavity; between the first baffle plate and the second baffle plate, there are a number of ventilation pipes communicating the first cavity and the second cavity; the housing corresponds to the first cavity and the second cavity. The position of the second chamber is respectively provided with a first port and a second port, and the housing is provided with a third port and a fourth port corresponding to the heat exchange chamber, and the third port and the fourth port are They are respectively located on two opposite sides of the housing; the second chamber communicates with the motor chamber through a pipeline arranged between the second port and the air inlet, and the third port communicates with the motor chamber. An air-inducing elbow is arranged between the air outlets.

Further, the rotating member includes bearing grooves, a main shaft and two fixing plates arranged on the side walls at both ends of the inner cylinder; one end of the two fixing plates is fixed on the first vertical plate or the second vertical plate On the plate, the other end of the fixing plate is provided with a shaft hole through which the main shaft passes, and a bearing matching the bearing groove is pierced on the main shaft.

Further, the drive assembly includes an electric motor arranged in the motor chamber, a transmission wheel arranged on the drive shaft, the transmission wheel is connected to the output shaft of the motor through a transmission device, and a useful The transmission hole through which the transmission device passes.

Further, the outer wall of the inner cylinder is provided with a number of deflectors arranged axially along the inner cylinder, and the high-temperature air in the drying chamber is evenly distributed as the inner cylinder rotates, and the inner wall of the inner cylinder is provided with Several inner cylinder top blocks arranged axially along the inner cylinder prevent the clothes in the inner cylinder from clinging to the cylinder wall when the inner cylinder is rotating.

Further, the air heater is arranged between the air hole and the inner cylinder, and the distance between the air heater and the open end of the inner cylinder is smaller than the distance between the air heater and the closed end of the inner cylinder Ensure that the air heated by the air heater can pass through the inner cylinder more evenly.

Further, a first water guide plate and a second water guide plate arranged obliquely are arranged above the air heater corresponding to the drying chamber and below the air hole in the motor cavity, and the second water guide plate The lowest end of the machine is provided with a water diversion pipe connected to the outside of the box to prevent the remaining moisture in the clothes to be dried from being thrown into the motor cavity from the air hole and affecting the service life of the motor.

Further, the transmission device includes a transmission chain, and the transmission hole includes two parallel small holes, and the transmission chain passes through the small holes and is connected to the transmission wheel and the output shaft of the motor.

Further, the operation port is provided with a door that can be opened and closed, and the contact part between the door and the operation port is provided with a sealing ring, and the center of the door extends into the operation chamber to the inner cylinder The opening end forms a blocking column, which is used to prevent the clothes in the inner cylinder from being thrown into the operating chamber when the dryer is in normal operation.

Further, a number of heat collecting fins are provided on the side wall of the ventilation pipe to increase the contact area between the gas in the heat exchange chamber and the ventilation pipe, and the materials of the ventilation pipe and the heat collecting fins are both aluminum. Ensure the effect of gas heat recovery.

Further, the first port and the second port are relatively staggered, and the third port and the fourth port are relatively staggered, so as to prolong the contact time between the hot air that is about to be discharged and the cold air that is about to enter, Guaranteed heat recovery.

The beneficial effect of the present invention is that the clothes dryer proposed by the present invention divides the sealed box into a number of relatively independent but sequentially connected chambers, and uses the blades on one side of the inner cylinder to make the air in the box flow from The air flow continues from the air inlet to the air outlet, because there are closely arranged through holes on the wall of the inner cylinder, and there is an inner cylinder top block on the inner wall of the inner cylinder, the clothes to be dried will not be tightly attached to the inner cylinder. Then use the air heater in the drying chamber to heat the gas entering the drying chamber to the preset temperature. With the rotation of the inner cylinder, it will evenly contact the clothes in the inner cylinder, and the drying effect is good; when the high-temperature gas is about to be discharged from the box Before in vitro, the heat is partially recovered through the heat exchanger to prevent the waste of a large amount of heat energy due to the discharge of the gas.

Description of drawings

Fig. 1 is a structural representation of the present invention,

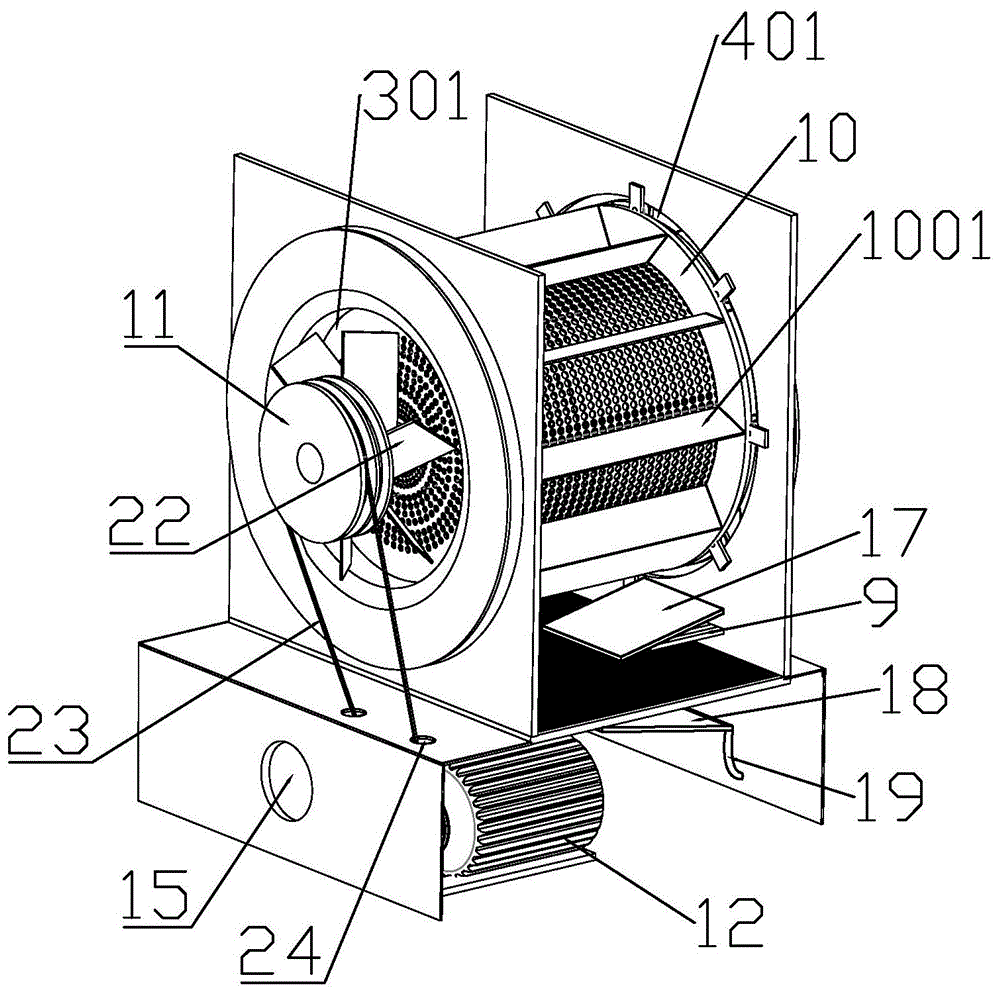

Fig. 2 is the structural representation of the body of the present invention,

Fig. 3 is a schematic structural view of the rotating member of the present invention,

Fig. 4 is a cross-sectional view of the inner cylinder of the present invention,

Fig. 5 is the structural representation of heat exchanger of the present invention,

Fig. 6 is a sectional view of the heat exchanger of the present invention.

The serial numbers and titles of the attached drawings: 1. box body, 2. bottom plate, 3. first vertical plate, 301, first through hole, 4. second vertical plate, 401, second through hole, 5. buffer cavity, 6. Drying chamber, 7, operating chamber, 8, motor chamber, 9, air heater, 10, inner cylinder, 1001, deflector, 1002, through hole, 1003, bearing groove, 1004, inner cylinder top block, 1005, fixed Plate, 1006, shaft hole, 1007, main shaft, 1008, bearing, 11, drive wheel, 12, motor, 13, air outlet, 14, operation port, 15, air inlet, 16, housing, 1601, first gear plate, 1602, second baffle plate, 1603, first chamber, 1604, heat exchange chamber, 1605, second chamber, 1606, ventilation pipe, 1607, first port, 1608, second port, 1609, third port, 1610, the fourth port, 1611, the draft pipe, 17, the first water diversion plate, 18, the second water diversion plate, 19, the water diversion pipe, 20, the gate, 21, the retaining column, 22, the blade, 23, the transmission device , 24, drive hole, 25, drive shaft.

Detailed ways

In order to describe the technical content, structural features, goals and effects of the present invention in detail, the following examples are given to describe the embodiments in conjunction with the accompanying drawings.

Example 1

As shown in Figure 1, a clothes dryer, the dryer includes a body arranged in a sealed box 1 and a heat exchanger arranged outside the box 1,

As shown in Figure 1 and Figure 2, the body includes a bottom plate 2 arranged horizontally in the box body 1 and a first vertical plate 3 and a second vertical plate 4 arranged vertically, the bottom plate 2 divides the box body 1 into a working chamber and a motor chamber 8. The first vertical plate 3 and the second vertical plate 4 divide the working chamber into a buffer chamber 5, a drying chamber 6 and an operating chamber 7 in turn. The drying chamber 6 is provided with an air heater 9, and the bottom plate 2 corresponds to the drying chamber 6. The position is provided with some air holes, and the inner cylinder 10 with one end open and one end closed is provided in the drying chamber 6, and the cylinder wall of the inner cylinder 10 is provided with a plurality of closely arranged through holes 1002, and the first vertical plate 3 and the second vertical plate 4 are respectively A first through hole 301 and a second through hole 401 corresponding to the closed end and the open end of the inner cylinder 10 are opened, and the two ends of the inner cylinder 10 are rotationally connected with the first vertical plate 3 and the second vertical plate 4 through several rotating parts; The closed end of the inner cylinder 10 is fixed with a drive shaft 25, and the drive shaft 25 is provided with a fan 22 and a driving assembly for driving the inner cylinder 10 to rotate; the box body 1 is respectively provided with an air outlet 13 communicating with the buffer chamber 5 and an operating chamber. 7 communicated with the operating port 14 and the air inlet 15 communicated with the motor chamber 8.

As shown in Figure 3, the rotating member includes bearing grooves 1003, a main shaft 1007 and two fixed plates 1005 arranged on the side walls at both ends of the inner cylinder 10; one end of the two fixed plates 1005 is fixed on the first vertical plate 3 or the second On the vertical plate 4 , the other end of the fixing plate 1005 is provided with a shaft hole 1006 through which the main shaft 1007 passes, and the main shaft 1007 is provided with a bearing 1008 matching the bearing groove 1003 .

Referring to Fig. 5 and Fig. 6, the heat exchanger includes a shell 16, and the shell 16 is provided with a first baffle 1601 and a second baffle 1602, and the first baffle 1601 and the second baffle 1602 separate the shell 16 in sequence A first chamber 1603, a heat exchange chamber 1604, and a second chamber 1605 are formed; between the first baffle plate 1601 and the second baffle plate 1602, there are ten ventilation pipes 1606 connecting the first chamber 1603 and the second chamber 1605; the housing The positions corresponding to the first chamber 1603 and the second chamber 1605 on the housing 16 are respectively provided with a first port 1607 and a second port 1608, and the housing 16 is provided with a third port 1609 and a fourth port 1610 corresponding to the heat exchange chamber 1604. The port 1609 and the fourth port 1610 are arranged on two opposite sides of the casing 16; the second chamber 1605 communicates with the motor chamber 8 through a pipeline arranged between the second port 1608 and the air inlet 15, and the third port 1609 An air-introduction elbow 1611 is provided between the air outlet 13 and the air outlet 13 . The side wall of the ventilation pipe 1606 is provided with several heat collecting fins to increase the contact area between the gas in the heat exchange chamber 1604 and the ventilation pipe 1606. The materials of the ventilation pipe 1606 and the heat collecting fins are all aluminum to ensure the recovery of gas heat. Effect. The first port 1607 and the second port 1608 are relatively staggered, and the third port 1609 and the fourth port 1610 are relatively staggered, so as to prolong the contact time between the hot air to be discharged and the cold air to be entered to ensure the heat recovery rate.

As shown in Figure 2, the driving assembly includes the motor 12 arranged in the motor cavity 8, the transmission wheel 11 arranged on the drive shaft 25, the transmission wheel 11 is connected with the output shaft of the motor 12 through the transmission device 23, and the bottom plate 2 is provided with a useful The transmission hole 24 passing through the transmission device 23 prevents the motor from being directly affected by the high temperature gas in the drying chamber.

As shown in Figure 4, the outer wall of the inner cylinder 10 is provided with eight deflectors 1001 arranged axially along the inner cylinder 10. With the rotation of the inner cylinder 10, the high-temperature air in the drying chamber 6 is evenly distributed, and the inner wall of the inner cylinder 10 Five inner tube top blocks 1004 arranged axially along the inner tube 10 are arranged on the top, to prevent the clothes in the inner tube 10 from clinging to the tube wall when the inner tube 10 is rotating. The air heater 9 is arranged between the air hole and the inner cylinder 10, and the distance between the air heater 9 and the storage end is smaller than the distance between the air heater 9 and the transmission end, so as to ensure that the air heated by the air heater 9 can pass through more evenly Inner cylinder 10. The inner cylinder 10 is provided with a temperature sensor electrically connected to the air heater 9. When the temperature of the air in the inner cylinder 10 reaches a preset value, the air heater 9 stops working immediately. On the one hand, it prevents overheating from damaging the clothes. To avoid wasting power.

1 and 2, the air heater 9 is arranged between the air hole and the inner cylinder 10, and the distance between the air heater 9 and the opening end of the inner cylinder is smaller than that between the air heater 9 and the inner cylinder Closed end distance. Above the corresponding air heater 9 in the drying chamber 6 and below the corresponding air holes in the motor cavity 8 are respectively provided with a first water diversion plate 17 and a second water diversion plate 18 arranged obliquely, and the lowest end of the second water diversion plate 18 is provided with a tank. The water diversion pipe 19 connected to the outside of the body 1 prevents the remaining moisture in the clothes to be dried from being thrown into the motor cavity 8 from the air hole and then affects the service life of the motor 12 . The transmission device 23 includes a transmission chain, and the transmission hole 24 includes two side-by-side small holes. The transmission chain passes through the transmission hole 24 and is connected to the transmission wheel 11 and the output shaft of the motor 12 . The operation port 14 is provided with a door 20 which can be opened and closed. The contact part between the door 20 and the operation port 14 is provided with a sealing ring.

Combining Figures 1-6, the working process of the present invention is as follows: open the door, put the clothes to be dried into the inner cylinder from the operating port, and then close the door; start the motor, the inner cylinder starts to rotate, and the fan at the closed end of the inner cylinder will The air in the drying chamber is sucked into the buffer chamber and then discharged out of the machine through the heat exchange chamber of the heat exchanger. At the same time, because the pressure in the sealed machine is reduced, the external air passes through the vent pipe from the first port of the heat exchange chamber and then passes through the second The air inlet and the air inlet enter the motor chamber, and the air entering the motor chamber enters the drying chamber through the air holes on the bottom plate. At this time, the gas inside the machine forms a cycle; while the gas circulates, the air heater cools the air that has just entered the drying chamber. Heating, under the action of the deflector, the hot air is evenly distributed in the drying chamber, and then the clothes in the inner cylinder are dried; the hot air enters the heat exchange chamber of the heat exchanger through the buffer chamber and the draft elbow, Due to the aluminum heat-collecting fins on the ventilation pipe, the hot air will be absorbed part of the heat by the room-temperature gas that has just entered the ventilation pipe, because the third and fourth ports are staggered from each other to ensure that the hot air is fully in contact with the ventilation pipe before being discharged. ground contact. To sum up, the present invention uses a motor to realize the gas circulation in the whole cavity, and the gas will be recovered most of the heat by the air just entering before the gas is discharged, with high working efficiency and energy saving, which greatly reduces the drying cost of clothes .

Example 2

The difference between embodiment 2 and embodiment 1 is: the transmission device 23 is a transmission chain, and the transmission chain passes through the transmission hole 24 and is connected to the output shaft of the transmission wheel 11 and the motor 12, so as to ensure that the transmission device 23 can be used in a high-temperature working environment for a long time The stability of the work prolongs the service life of the whole device.

In summary, the above is only a preferred embodiment of the present invention, and does not limit the protection scope of the present invention. All equivalent changes and modifications made according to the patent scope of the present invention and the content of the specification are covered by the patent of the present invention. within range.

Claims (8)

1. A clothes dryer, the dryer includes a body inside the box (1) and a heat exchanger outside the box (1), characterized in that: The body includes a horizontally arranged bottom plate (2) and a vertically arranged first vertical plate (3) and a second vertical plate (4) in the box body (1), and the bottom plate (2) connects the box body ( 1) Divided into a working chamber and a motor chamber (8); the first vertical plate (3) and the second vertical plate (4) sequentially divide the working chamber into a buffer chamber (5), a drying chamber (6 ) and an operating chamber (7), the drying chamber (6) is provided with an air heater (9), and a number of air holes are opened on the base plate (2) corresponding to the position of the drying chamber (6). The cavity (6) is provided with an inner cylinder (10) with one end open and one end closed, and the wall of the inner cylinder (10) is provided with a number of closely arranged through holes (1002), the first vertical plate (3) and The second vertical plate (4) is respectively opened with a first through hole (301) and a second through hole (401) corresponding to the closed end and the open end of the inner cylinder (10), and the inner cylinder (10) ) are rotationally connected with the first vertical plate (3) and the second vertical plate (4) through several rotating parts; the closed end of the inner cylinder (10) is fixed with a drive shaft (25), so The drive shaft (25) is provided with a fan (22) and a drive assembly that drives the inner cylinder (10) to rotate; the box body (1) is respectively provided with air outlets communicating with the buffer chamber (5) (13), an operating port (14) communicating with the operating chamber (7) and an air inlet (15) communicating with the motor chamber (8); The heat exchanger includes a casing (16), and a first baffle (1601) and a second baffle (1602) are arranged inside the casing (16), and the first baffle (1601) and the The second baffle (1602) divides the housing (16) into a first cavity (1603), a heat exchange cavity (1604) and a second cavity (1605); the first baffle (1601) and the Between the second baffle plate (1602) there are a number of ventilation pipes (1606) connecting the first chamber (1603) and the second chamber (1605); the housing (16) corresponds to the first The positions of the first cavity (1603) and the second cavity (1605) are respectively opened with a first port (1607) and a second port (1608), and the housing (16) corresponds to the heat exchange cavity (1604) A third port (1609) and a fourth port (1610) are opened, and the third port (1609) and the fourth port (1610) are respectively located on two opposite sides of the housing (16); The second chamber (1605) communicates with the motor chamber (8) through the pipeline provided between the second port (1608) and the air inlet (15), and the third port (1609) An air induction elbow (1611) is provided between the air outlet (13); The rotating member includes bearing grooves (1003), a main shaft (1007) and two fixed plates (1005) arranged on the side walls at both ends of the inner cylinder (10); one end of the two fixed plates (1005) fixed on the first vertical plate (3) or the second vertical plate (4), the other end of the fixed plate (1005) is provided with a shaft hole (1006) through which the main shaft (1007) passes, so The main shaft (1007) is pierced with a bearing (1008) matching the bearing groove (1003); The driving assembly includes a motor (12) arranged in the motor chamber (8), a transmission wheel (11) arranged on the drive shaft (25), and the transmission wheel (11) passes through a transmission device (23 ) is connected with the output shaft of the motor (12), and the bottom plate (2) is provided with a transmission hole (24) for the transmission device (23) to pass through. 2. A clothes dryer according to claim 1, characterized in that: the outer wall of the inner cylinder (10) is provided with several deflectors (1001) arranged axially along the inner cylinder (10) ), the inner wall of the inner cylinder (10) is provided with several inner cylinder top blocks (1004) arranged axially along the inner cylinder (10). 3. The clothes dryer according to claim 1, characterized in that: the air heater (9) is arranged between the air hole and the inner cylinder (10), and the air heater ( The distance between 9) and the open end of the inner cylinder is smaller than the distance between the air heater (9) and the closed end of the inner cylinder. 4. The clothes dryer according to claim 1, characterized in that: the drying chamber (6) corresponds to the upper part of the air heater (9) and the motor chamber (8) corresponds to the The first water diversion plate (17) and the second water diversion plate (18) arranged obliquely are arranged below the air holes respectively, and the lowest end of the second water diversion plate (18) is provided with a diversion diversion plate communicating with the outside of the box body (1). water pipe (19). 5. The clothes dryer according to claim 2, characterized in that: the transmission device (23) comprises a transmission chain, the transmission hole (24) comprises two side-by-side small holes, and the transmission chain It passes through the transmission hole (24) and is connected to the transmission wheel (11) and the output shaft of the electric motor (12). 6. The clothes dryer according to claim 1, characterized in that: the operating port (14) is provided with a door (20) that can be opened and closed, and the door (20) is connected to the The contact part of the operation port (14) is provided with a sealing ring, and the center of the blocking door (20) extends into the operation chamber (7) to the opening end of the inner cylinder to form a blocking column (21). 7. The clothes dryer according to claim 1, characterized in that: the side wall of the ventilation pipe (1606) is provided with several heat collecting fins, and the ventilation pipe (1606) and the collection The material of the heat fins is all aluminum. 8. The clothes dryer according to claim 1, characterized in that: the first port (1607) and the second port (1608) are relatively staggered, and the third port (1609) and The fourth ports (1610) are relatively staggered.
