CN109727662B - Display method, device, device, and non-transitory storage medium for medical image detection - Google Patents

Abstract

The present invention proposes a display method, device, device, and non-transitory storage medium for medical image detection, wherein the display method for medical image detection includes: displaying the main operation interface of medical image detection on the first display device, and displaying the main operation interface of the medical image detection in conjunction with the The second display device interacting with the first display device displays the protocol manager corresponding to the medical image detection; acquires protocol selection information on the second display device; selects several target protocols according to the protocol selection information; The target protocol display area of the main operation interface in the first display device displays the several target protocols. Through the technical solution of the present invention, the interaction between the main operation interface of medical image detection and the protocol manager is more intuitive and convenient, the display aesthetics is improved, and the operation of the doctor is also simplified, which is convenient for saving time and cost, especially for acute Illness saves time and improves life safety for patients with acute illnesses.

Description

Display method and device, device, and non-transitory storage medium for medical image detection

【Technical field】

The present invention relates to the field of medical technology, in particular to a display method, device, equipment and non-transitory storage medium for medical image detection.

【Background technique】

Current medical imaging equipment often provides doctors with a display device with an operation interface, so that the doctor can understand and process the work content and scan data of the medical imaging equipment through the display device. For example, the target protocol can be selected in the protocol manager and added to In the target protocol display area, the medical imaging equipment can execute each target protocol in the target protocol display area.

However, during this process, the protocol manager often occupies part of the area of the operation interface in the form of pop-up windows or suspension, so that the target protocol display area and target image on the operation interface are blocked or covered, and the doctor needs to drag the protocol back and forth. Only the manager can see the content it blocks or covers, resulting in cumbersome and time-consuming operations.

Therefore, how to provide a simple display method of the operation interface of the medical imaging device has become an urgent technical problem to be solved.

【Content of invention】

Embodiments of the present invention provide a display method, device, device, and non-transitory storage medium for medical image detection, aiming to solve the cumbersome and time-consuming operation caused by partial content of the operation interface of medical imaging equipment being blocked by the protocol manager in the related art It can make the display mode of the operation interface of the medical imaging equipment more simple and clear, simplify the user operation, and improve the user experience.

In the first aspect, an embodiment of the present invention provides a display method for medical image detection, including: displaying the main operation interface of medical image detection on a first display device, and displaying the main operation interface of medical image detection on a second display device interacting with the first display device. The protocol manager corresponding to the medical image detection; obtain the protocol selection information on the second display device; select several target protocols according to the protocol selection information; the main operation interface on the first display device The target protocol display area displays the several target protocols.

In the above embodiments of the present invention, optionally, the protocol selection information includes single protocol drag operation information, single protocol click selection operation information, protocol set drag operation information, and protocol set click selection operation information.

In the above embodiments of the present invention, optionally, the medical image detection includes positron emission tomography and/or magnetic resonance examination.

In the above embodiments of the present invention, optionally, further comprising: displaying the target image obtained by medical image detection on the second display device, where the target image includes one of a basic scan image, a partially enlarged image, and a processed image. One or more items, wherein the processed image includes one or more of a virtual reality image, a multi-planar reconstructed image, and a maximum density projection image.

In the above embodiments of the present invention, optionally, further comprising: acquiring display switching information on the first display device or the second display device; displaying the displayed information on the second display device according to the display switching information the target image or the protocol manager.

In the second aspect, the embodiment of the present invention provides a display device for medical image detection, including: an interactive display unit, displaying the main operation interface of medical image detection on the first display device, and displaying the main operation interface of medical image detection on the first display device, The second display device displays the protocol manager corresponding to the medical image detection; the protocol selection information acquisition unit acquires the protocol selection information on the second display device; the target protocol selection unit selects several target protocols according to the protocol selection information A target protocol display unit, displaying the several target protocols in the target protocol display area of the main operation interface in the first display device.

In the above embodiments of the present invention, optionally, the protocol selection information includes single protocol drag operation information, single protocol click selection operation information, protocol set drag operation information, and protocol set click selection operation information.

In the above embodiments of the present invention, optionally, the medical image detection includes positron emission tomography and/or magnetic resonance examination.

In the above-mentioned embodiments of the present invention, optionally, further comprising: a target image display unit, displaying the target image obtained by medical image detection on the second display device, the target image includes a basic scan image, a partially enlarged image and a processed One or more items in the subsequent image.

In the above embodiments of the present invention, optionally, further comprising: a target image display unit, configured to display the target image obtained by medical image detection on the second display device, the target image includes a basic scan image, a partially enlarged image and one or more of the processed image, wherein the processed image includes one or more of a virtual reality image, a multi-planar reconstructed image, and a maximum density projection image.

In the above-mentioned embodiments of the present invention, optionally, further comprising: a display switching information acquiring unit, which acquires display switching information from the first display device or the second display device; and a display switching unit, according to the display switching information , displaying the target image or the protocol manager on the second display device.

In a third aspect, an embodiment of the present invention provides a medical image detection device, including: at least one processor; and a memory connected to the at least one processor in communication; An instruction executed by a processor, the instruction being configured to execute the method described in any one of the above first aspects.

In a fourth aspect, an embodiment of the present invention provides a computer-readable storage medium, which stores computer-executable instructions, and the computer-executable instructions are used to execute the method procedure described in any one of the above-mentioned first aspects.

The above technical solution aims at the technical problem of cumbersome and time-consuming operations caused by partial content of the operation interface of medical imaging equipment being blocked by the protocol manager in the related art, and provides a first display device and a second display device that can interact with each other, medical image detection The main operation interface and the protocol manager are displayed on the first display device and the second display device respectively, since the first display device and the second display device can interact in any way such as wireless or wired, so when the user is on the second display When the target protocol in the protocol manager is selected on the device, the selection result can be directly displayed on the first display device through the interaction between the first display device and the second display device, for example, the second display device obtains the target protocol a correspondingly, add target protocol a is displayed in the target protocol list of the first display device.

Through the above technical solutions, the interaction between the main operation interface of medical image detection and the protocol manager is more intuitive and convenient, and the aesthetics of the display is improved. At the same time, it also simplifies the operation of doctors and saves time and cost, especially for acute diseases. time, improving the life safety of patients with acute illness.

【Description of drawings】

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings used in the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only some embodiments of the present invention. Those of ordinary skill in the art can also obtain other drawings based on these drawings without any creative effort.

FIG. 1 shows a flowchart of a display method for medical image detection according to an embodiment of the present invention;

FIG. 2 shows a flowchart of a display method for medical image detection according to another embodiment of the present invention;

Fig. 3 shows a block diagram of a display device for medical image detection according to an embodiment of the present invention;

Fig. 4 shows a block diagram of a display device for medical image detection according to another embodiment of the present invention;

Fig. 5 shows a block diagram of a medical imaging device according to an embodiment of the present invention.

【Detailed ways】

In order to better understand the technical solutions of the present invention, the embodiments of the present invention will be described in detail below in conjunction with the accompanying drawings.

It should be clear that the described embodiments are only some of the embodiments of the present invention, not all of them. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of the present invention.

Terms used in the embodiments of the present invention are only for the purpose of describing specific embodiments, and are not intended to limit the present invention. As used in the embodiments of the present invention and the appended claims, the singular forms "a", "said" and "the" are also intended to include the plural forms unless the context clearly indicates otherwise.

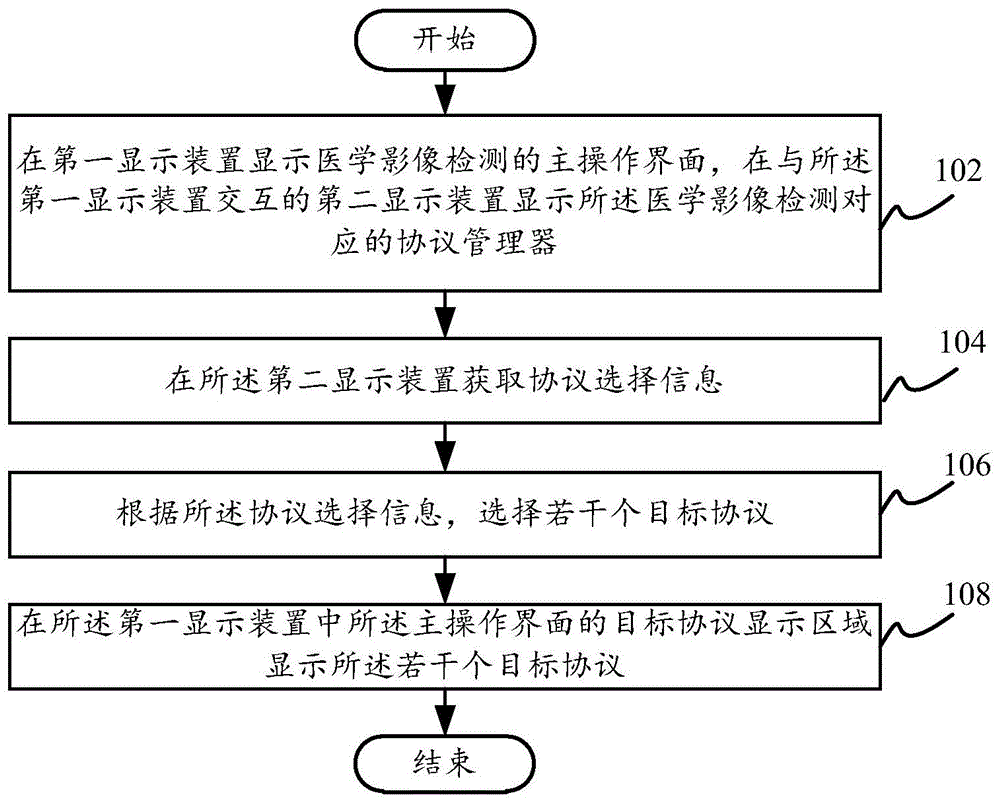

Fig. 1 shows a flowchart of a display method for medical image detection according to an embodiment of the present invention.

As shown in Figure 1, an embodiment of the present invention provides a display method for medical image detection, including:

Step 102, displaying the main operation interface of the medical image detection on the first display device, and displaying the protocol manager corresponding to the medical image detection on the second display device interacting with the first display device.

The main operation interface and protocol manager of medical image detection are displayed on the first display device and the second display device respectively. Since the first display device and the second display device can interact in any way such as wireless or wired, in this way, when the user When the target protocol in the protocol manager is selected on the second display device, the selection result can be directly displayed on the first display device through the interaction between the first display device and the second display device. A selection command of the target protocol a, correspondingly, the addition of the target protocol a is displayed in the target protocol list of the first display device.

Step 104, acquire protocol selection information on the second display device.

Since the protocol manager is displayed on the second display device, and the doctor performs the operation of selecting the target protocol on the second display device, the system can obtain the protocol selection information through the second display device

Step 106, select several target protocols according to the protocol selection information.

Step 108, displaying the several target protocols in the target protocol display area of the main operation interface in the first display device.

According to the content of the doctor's operation on the second display device, the system determines that several target protocols are the goals required by the doctor. Then, the system can directly send display instruction information to the first display device, and the first display device can receive The display instruction information of the display device displays the several target protocols, thereby completing the display interaction between the first display device and the second display device.

The aforementioned protocol selection information includes, but is not limited to, single protocol drag and drop operation information, single protocol click and select operation information, protocol set drag and drop operation information, and protocol set click and select operation information. Wherein, the protocol set refers to multiple selected target protocols, multiple target protocols can be selected, and multiple target protocols can be added to the first display device for display through one operation.

It should be known that the operation mode of the target protocol includes but not limited to drag operation and click selection operation, and can also be any operation that can realize the selection function.

Through the above technical solutions, the interaction between the main operation interface of medical image detection and the protocol manager is more intuitive and convenient, and the aesthetics of the display is improved. At the same time, it also simplifies the operation of doctors and saves time and cost, especially for acute diseases. time, improving the life safety of patients with acute illness.

In addition, in an implementation manner of the present invention, the method further includes: displaying the target image on the second display device.

That is to say, the target image that originally needs to be displayed on the main operation interface of the medical image detection can also be displayed through the second display device, and the target image refers to the image of the position required to be detected by the target protocol. In this way, problems such as incomplete display of the target image caused by too much content in the main operation interface and a small display area for the target image can be avoided, which facilitates a more comprehensive display of the target image and improves diagnostic efficiency. Strive for treatment time.

The target image includes one or more of a basic scan image, a partially enlarged image, and a processed image, wherein the processed image includes a virtual reality (VR) image, a multiplanar reconstruction (MPR) image, and a maximum density projection (MIP) one or more of the images.

The basic scan image refers to the image formed by the unprocessed initial scan result, and the processed image refers to the image with diagnostic information. The processed image includes any two-dimensional or three-dimensional parameter map that can be helpful for diagnosis and treatment. images, such as one or more of virtual reality images, multi-plane reconstruction images, and maximum density projection images, these images can respectively display the contents of the scan results in multiple dimensions and in multiple points, which is helpful for the judgment of the disease condition . The processed image is displayed directly through the second display device, that is, the execution results of the three-dimensional reconstruction and other functions are directly displayed through the second display device, which facilitates a more intuitive display of the scan results of the patient, compared to the related art that only displays them on the main operation interface The basic scanning image solution can improve the comprehensiveness of the display and the practicability of the display content, help to improve the accuracy of diagnosis, save time for diagnosis and treatment, and win treatment time for patients with acute diseases.

Fig. 2 shows a flowchart of a display method for medical image detection according to another embodiment of the present invention.

As shown in Figure 2, the display method of medical image detection according to another embodiment of the present invention includes:

Step 202, acquiring display switching information on the first display device or the second display device.

Step 204: Display the target image or the protocol manager on the second display device according to the display switching information.

The display switching information is used to instruct the second display device to switch between the target image and the protocol manager. When the target image is displayed on the second display device, if the display switching information is obtained, it can be switched to display the protocol manager; otherwise, when the second display device displays the protocol manager, if the display switching information is obtained, it can be switched to Display the target image.

The display switching information can be generated through user operation, and can also be periodically sent by the system to the second display device for the second display device to periodically switch between the target image and the protocol manager, avoiding manual switching operations by doctors.

It should be known that medical image detection includes but not limited to positron emission tomography and/or magnetic resonance detection, and can also be any detection method that requires the size of the display interface.

Fig. 3 shows a block diagram of a display device for medical image detection according to an embodiment of the present invention.

As shown in FIG. 3 , the embodiment of the present invention provides a display device 300 for medical image detection, including: an interactive display unit 302, which displays the main operation interface of medical image detection on the first display device, and The second display device for device interaction displays the protocol manager corresponding to the medical image detection; the protocol selection information acquisition unit 304 acquires the protocol selection information on the second display device; the target protocol selection unit 306, according to the protocol selection information , select several target protocols; the target protocol display unit 308 is configured to display the several target protocols in the target protocol display area of the main operation interface in the first display device.

The display device 300 for medical image detection uses any of the solutions described in the embodiments shown in FIG. 1 to FIG. 3 , so it has all the technical effects described above, which will not be repeated here. The display device 300 for medical image detection also has the following technical features:

In the above embodiments of the present invention, optionally, the protocol selection information includes single protocol drag operation information, single protocol click selection operation information, protocol set drag operation information, and protocol set click selection operation information.

In the above embodiments of the present invention, optionally, the medical image detection includes positron emission tomography and/or magnetic resonance examination.

In the above-mentioned embodiments of the present invention, optionally, further comprising: a target image display unit, displaying the target image obtained by medical image detection on the second display device, the target image includes a basic scan image, a partially enlarged image and a processed One or more items in the subsequent image.

In the above embodiments of the present invention, optionally, further comprising: a target image display unit, configured to display the target image obtained by medical image detection on the second display device, the target image includes a basic scan image, a partially enlarged image and one or more of the processed image, wherein the processed image includes one or more of a virtual reality image, a multi-planar reconstructed image, and a maximum density projection image.

Fig. 4 shows a block diagram of a display device for medical image detection according to another embodiment of the present invention.

As shown in FIG. 4 , an embodiment of the present invention provides a display device 400 for medical image detection, including: a first display device 402 for displaying the main operation interface of medical image detection; a second display device 404 for displaying The medical image detects a corresponding protocol manager and interacts with the first display device.

The display device 400 for medical image detection has the same technical effects as the display device 300 for medical image detection shown in FIG. 3 , which will not be repeated here.

Fig. 5 shows a block diagram of a medical image detection device according to an embodiment of the present invention.

As shown in FIG. 5 , a medical image detection device 500 according to an embodiment of the present invention includes at least one memory 502; and a processor 504 communicatively connected to the at least one memory 502; wherein, the memory stores information that can be The instructions executed by the at least one processor 504 are configured to execute the solution described in any one of the above embodiments in FIG. 1 to FIG. 3 . Therefore, the electronic device 500 has the same technical effect as any one of the embodiments in FIG. 1 to FIG. 3 , which will not be repeated here.

In addition, an embodiment of the present invention provides a non-transitory storage medium storing computer-executable instructions, and the computer-executable instructions are configured as the method flow described in any one of the embodiments in FIG. 1 to FIG. 3 .

The technical solution of the present invention has been described in detail above in conjunction with the accompanying drawings. Through the technical solution of the present invention, the interaction between the main operation interface of medical image detection and the protocol manager is more intuitive and convenient, the aesthetics of the display is improved, and it also simplifies the operation of doctors. The operation is convenient to save time and cost, especially it can save time for acute diseases and improve the life safety of patients with acute diseases.

It should be understood that the term "and/or" used herein is only an association relationship describing associated objects, which means that there may be three relationships, for example, A and/or B, which may mean that A exists alone, and A and B exist simultaneously. B, there are three situations of B alone. In addition, the character "/" in this article generally indicates that the contextual objects are an "or" relationship.

It should be understood that although the terms first, second, etc. may be used to describe the display device in the embodiments of the present invention, these display devices should not be limited to these terms. These terms are only used to distinguish display devices from each other. For example, without departing from the scope of the embodiments of the present invention, a first display device may also be called a second display device, and similarly, a second display device may also be called a first display device.

Depending on the context, the word "if" as used herein may be interpreted as "at" or "when" or "in response to determining" or "in response to detecting". Similarly, depending on the context, the phrases "if determined" or "if detected (the stated condition or event)" could be interpreted as "when determined" or "in response to the determination" or "when detected (the stated condition or event) )" or "in response to detection of (a stated condition or event)".

In the several embodiments provided by the present invention, it should be understood that the disclosed systems, devices and methods can be implemented in other ways. For example, the device embodiments described above are only illustrative. For example, the division of the units is only a logical function division. In actual implementation, there may be other division methods. For example, multiple units or components can be combined Or it can be integrated into another system, or some features can be ignored, or not implemented. In another point, the mutual coupling or direct coupling or communication connection shown or discussed may be through some interfaces, and the indirect coupling or communication connection of devices or units may be in electrical, mechanical or other forms.

In addition, each functional unit in each embodiment of the present invention may be integrated into one processing unit, each unit may exist separately physically, or two or more units may be integrated into one unit. The above-mentioned integrated units can be implemented in the form of hardware, or in the form of hardware plus software functional units.

The above-mentioned integrated units implemented in the form of software functional units may be stored in a computer-readable storage medium. The above-mentioned software functional units are stored in a storage medium, and include several instructions to make a computer device (which may be a personal computer, server, or network device, etc.) or a processor (Processor) execute the methods described in various embodiments of the present invention. partial steps. The aforementioned storage medium includes: U disk, mobile hard disk, read-only memory (Read-Only Memory, ROM), random access memory (Random Access Memory, RAM), magnetic disk or optical disk and other various media that can store program codes. .

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included in the present invention. within the scope of protection.

Claims (10)

1. A display method for medical image detection, comprising: Displaying the main operation interface of medical image detection on the first display device, and displaying the protocol manager corresponding to the medical image detection on the second display device interacting with the first display device; acquiring protocol selection information on the second display device; Select several target protocols according to the protocol selection information; Displaying the several target protocols in the target protocol display area of the main operation interface in the first display device; displaying the target image obtained by medical image detection on the second display device; acquiring display switching information on the first display device or the second display device; The target image or the protocol manager is displayed on the second display device according to the display switching information. 2. The display method for medical image detection according to claim 1, wherein the protocol selection information includes single protocol drag operation information, single protocol click selection operation information, protocol set drag operation information and protocol set click Select Action Information. 3. The display method for medical image detection according to claim 1 or 2, characterized in that the medical image detection includes positron emission tomography and/or magnetic resonance examination. 4. The display method for medical image detection according to claim 3, wherein the target image includes one or more of a basic scan image, a partially enlarged image, and a processed image, wherein the processed The images include one or more of virtual reality images, multiplanar reformatted images, and maximum intensity projection images. 5. A display device for medical image detection, comprising: The interactive display unit displays the main operation interface of medical image detection on the first display device, and displays the protocol manager corresponding to the medical image detection on the second display device interacting with the first display device; a protocol selection information acquisition unit, configured to acquire protocol selection information on the second display device; The target protocol selection unit selects several target protocols according to the protocol selection information; A target protocol display unit, for displaying the several target protocols in the target protocol display area of the main operation interface in the first display device; a target image display unit, configured to display the target image obtained by medical image detection on the second display device; a display switching information acquiring unit, configured to acquire display switching information on the first display device or the second display device; A display switching unit, configured to display the target image or the protocol manager on the second display device according to the display switching information. 6. The display device for medical image detection according to claim 5, wherein the protocol selection information includes single protocol drag operation information, single protocol click selection operation information, protocol set drag operation information and protocol set click Select Action Information. 7. The display device for medical image detection according to claim 5 or 6, wherein the medical image detection includes positron emission tomography and/or magnetic resonance examination. 8. The display device for medical image detection according to claim 5, wherein the target image includes one or more of a basic scan image, a partially enlarged image, and a processed image, wherein the processed The images include one or more of virtual reality images, multiplanar reformatted images, and maximum intensity projection images. 9. A medical image detection device, comprising: at least one processor; and a memory connected to the at least one processor in communication; Wherein, the memory stores instructions executable by the at least one processor, and the instructions are configured to perform the method described in any one of claims 1 to 4 above. 10. A non-transitory storage medium, which is characterized by storing computer-executable instructions, the computer-executable instructions being configured as the method flow according to any one of claims 1 to 4.
