Abstract

A patient interaction system based on a smart watch relates to the technical field of doctor-patient communication and patient management, in particular to a patient interaction system based on a smart watch. It includes a wristband, a main body, and a data analysis and processing system. The main body is connected by a wristband. The right side of the main body is provided with a power-on button, an emergency call button is provided below the power-on button, and a charging port is provided below the emergency call button. A speaker is arranged on the left side of the main body, a monitoring sensor is arranged on the back of the main body, and a WIFI module, a display module and a data processing module are arranged inside the main body. After adopting the above technical scheme, the beneficial effect of the present invention is that it has functions such as positioning, information display, blood pressure, pulse, body temperature monitoring, identity recognition, and monitoring functions.

Description

A patient interaction system based on a smart watch

technical field

The invention relates to the technical field of doctor-patient communication and patient management, in particular to a patient interaction system based on a smart watch.

Background technique

At present, the wristbands of patients in hospitals are handwritten or printed barcodes, and some are RFID wristbands. The wristbands with handwritten or printed barcodes have problems such as easy damage or writing errors. Although the RFID wristband has no problems such as writing errors, it can only be read or written by the hospital, and cannot be directly fed back to the patient. And the function is relatively simple.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a patient interaction system based on a smart watch, which has functions such as positioning, information display, blood pressure, pulse, body temperature monitoring, identity recognition, and monitoring functions, aiming at the defects and deficiencies of the prior art.

In order to achieve the above purpose, the present invention adopts the following technical solutions: it includes a wristband, a main body, and a data analysis and processing system, the main body is connected by a wristband, a power-on button is arranged on the right side of the main body, and an emergency button is arranged below the power-on button. A distress button, a charging port is arranged below the emergency distress button, a speaker is arranged on the left side of the main body, a monitoring sensor is arranged on the back of the main body, and a WIFI module, a display module, a data processing module, a WIFI module and a data processing module are arranged inside the main body. Electrical connection, the data processing module is electrically connected with the display module, the main body is connected with the electrical signal of the data analysis and processing system, and the data analysis and processing system is connected with the hospital system.

The main body is connected with the data analysis and processing system through the WIFI module.

The main body is connected with the hospital system through the data analysis and processing system.

The display module is a capacitive screen.

The working principle of the present invention: it can write and read patient information through the WIFI module, and at the same time can use the hospital's WIFI hotspot for positioning, the back of the main body is equipped with a monitoring sensor, which can monitor the blood pressure, pulse and body temperature of the patient, The above human body parameters can be displayed through the display module, which is convenient for doctors or patients to view. At the same time, it can be connected to the hospital system through the WIFI module. When the above parameters of the patient are abnormal, the watch will send the data to the doctor, so that the doctor can quickly check and display the data at the same time. The module can display and remind the patient of the examination that needs to be done, and display the examination location and the number of people to be examined, so that the patient can plan the time reasonably and improve the efficiency of the hospital examination department. The speaker on the watch can play various alert tones.

After adopting the above technical scheme, the beneficial effect of the present invention is that it has functions such as positioning, information display, blood pressure, pulse, body temperature monitoring, identity recognition, and monitoring functions.

Description of drawings

In order to explain the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description are only These are some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

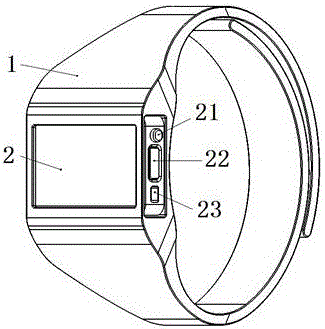

Fig. 1 is the structural representation of the present invention;

Fig. 2 is the structural representation of the back of the present invention;

Fig. 3 is the schematic block diagram of internal device work flow in the present invention;

Fig. 4 is the schematic block diagram of the system work flow in the present invention;

Fig. 5 is the circuit principle diagram of the detection circuit of the present invention;

Fig. 6 is the circuit diagram of amplifying circuit in the present invention;

FIG. 7 is a circuit diagram of a single-chip microcomputer in the present invention.

Description of reference numerals: wristband 1, main body 2, power-on button 21, emergency distress button 22, charging port 23, speaker 24, monitoring sensor 25, WIFI module 26, display module 27, data processing module 28, data analysis and processing system 3 .

Detailed ways

1-7, the technical solution adopted in this specific embodiment is that it includes a wristband 1, a main body 2, and a data analysis and processing system 3, the main body 2 is connected by the wristband 1, and the right side of the main body 2 is provided. There is a power-on button 21, an emergency call button 22 is provided below the power-on button 21, a charging port 23 is provided below the emergency call button 22, a speaker 24 is provided on the left side of the main body 2, and a monitoring sensor 25 is provided on the back of the main body 2. 2 is provided with a WIFI module 26, a display module 27, and a data processing module 28. The WIFI module 26 is electrically connected to the data processing module 28, the data processing module 28 is electrically connected to the display module 27, and the main body 2 is connected to the data analysis and processing system 3. The electrical signal is connected, the data analysis and processing system 3 is connected with the hospital system, the wristband 1 and the main body 2 constitute a wristwatch, when the patient wears the wristwatch, the power button 21 can be used to switch the machine on and off, and the patient's information is passed by the hospital system through the data analysis and processing system. 3 and the WIFI module 26 on the watch are written into the watch, and at the same time, the WIFI hotspot of the hospital can be used to locate the patient, and the monitoring sensor 25 on the watch can monitor the blood pressure, pulse, and body temperature of the human body, and the medical staff can The hospital system can be viewed at any time, and the alarm value can also be set. When the above parameters of the patient are abnormal, an alarm will be issued, or the patient will press the emergency call button 22 to call for help. The display module 27 on the watch is a capacitive screen, which can display various information. , and reminds the patient of the inspection that needs to be done, and displays the inspection location and the number of people to be inspected. The patient can also touch and operate to view relevant information. The watch can be charged through the charging port 23. The HTD1 in the table sends the detected pulse beating sound wave signal to the grid of V1, where V1 plays the role of impedance transformation. Convert the weak acoustic signal voltage with high internal resistance into a lower impedance output, and couple it to IC1 through C1, C2, and C4. IC1 is a four operational amplifier, its ⑤, ⑥, ⑦ pins internal circuit and peripheral components constitute a voltage amplifier, changing the resistance of R8 can adjust the magnification of this stage. The amplified audio signal is coupled to the low-pass filter composed of the internal and external circuits of ①, ②, and ③ feet through R9 and C6 to eliminate human body induction and external interference signals, and to improve the load capacity. Coupling to pins 12, 13, and 14 for shaping and amplification, transforming the pulse sound wave into a square wave and outputting it from pin 14. Adjusting w1 can change the amount of amplification. The square wave signal output from pin 14 is directly coupled to pins ③ and 12 of IC2. After the two operational amplifiers are amplified, they are output by pins ① and 14 respectively. The square wave voltage output by pin ① is coupled to pins 12 and 13 of IC3 through D6. IC3 is a four-NAND gate circuit. When pins 12 and 13 are high voltage Usually, the ② pin outputs a low level, and D7 emits light to indicate that the light-emitting delay time of D7 can be changed by adjusting the capacity of C12. The high level of square wave pulse output from pin 14 of IC2 is coupled to pin ① of IC3 through D5, and the internal and external circuits of pins ①, ②, ③, ④, ⑤, ⑥ constitute an oscillator. ①When the pin is at a high level, the oscillator starts to vibrate and makes a sound, and its oscillation frequency is about 2000Hz. The circuits of V2 and IC2's ⑤～⑩ feet play the role of sound and light synchronization. A3 constitutes a follower for the output signal of the pressure sensor BP01 Perform isolation buffering; A1, A2 form an amplifier circuit, and its gain AV is determined by the following formula AV=1+(R53/R51) If the offset is ignored, the output voltage PRESSOUT of the preprocessing circuit is: PRESSOUT=2 (1+R53/R51 ) VIN where: VIN is the output voltage of the pressure sensor BP01.

The working principle of the present invention: it can write and read patient information through the WIFI module 26, and at the same time can use the hospital's WIFI hotspot for positioning. The above human body parameters are displayed through the display module 27, which is convenient for doctors or patients to view. At the same time, it can be connected to the hospital system through the WIFI module 26. When the above parameters of the patient are abnormal, the wrist watch sends the data to the doctor, which can make the doctor Quickly check, at the same time, the display module 27 can display and remind the patient of the examination that needs to be done, and display the examination location and the number of people to be examined, so that the patient can plan the time reasonably and improve the efficiency of the hospital examination department. When the patient needs to call for help, the speaker 24 on the watch can play various reminder tones.

After adopting the above technical scheme, the beneficial effect of the present invention is that it has functions such as positioning, information display, blood pressure, pulse, body temperature monitoring, identity recognition, and monitoring functions.

The above is only used to illustrate the technical solution of the present invention and not to limit it. Other modifications or equivalent replacements made by those of ordinary skill in the art to the technical solution of the present invention, as long as they do not depart from the spirit and scope of the technical solution of the present invention, should be Included within the scope of the claims of the present invention.

Claims (4)

1. A patient interaction system based on an intelligent wristwatch is characterized in that: it comprises a wrist strap (1), a main body (2) and a data analysis processing system (3), main part (2) connect through wrist strap (1), the right side of main part (2) is provided with start button (21), the below of start button (21) is provided with emergency call for help button (22), the below of emergency call for help button (22) is provided with mouthful (23) of charging, the left side of main part (2) is provided with speaker (24), the back of main part (2) is provided with monitoring sensor (25), the inside of main part (2) is provided with WIFI module (26), display module (27), data processing module (28), WIFI module (26) and data processing module (28) electric connection, data processing module (28) and display module (27) electric connection, main part (2) and data analysis processing system (3) signal of telecommunication connection, data analysis processing system (3) and hospital system connection.

2. The intelligent wristwatch-based patient interaction system of claim 1, wherein: the main body (2) is connected with the data analysis and processing system (3) through the WIFI module (26).

3. The intelligent wristwatch-based patient interaction system of claim 1, wherein: the main body (2) is connected with a hospital system through a data analysis and processing system (3).

4. The intelligent wristwatch-based patient interaction system of claim 1, wherein: the display module (27) is a capacitive screen.
