Abstract

The invention relates to a mold release agent brushing equipment, in particular to a mold release agent brushing equipment for a cement support seat casting mold. The technical problem of the present invention is how to provide a mold release agent brushing device for cement support base casting molds that can speed up the speed of applying the mold release agent and ensure the even distribution of the mold release agent on the surface of the casting mold. The utility model relates to a device for brushing a mold release agent for a casting mold of a cement support seat, which comprises a mounting frame, a wheel and the like; the lower part of the mounting frame is rotatably connected with a wheel. Through the cooperation of the wiper belt and the device on it, the invention replaces the traditional method of manually painting the release agent by workers, and further improves the technological level. After wiping, the mold release agent painted on the surface of the mold can be evenly distributed, which is convenient for the subsequent use of the mold, and the anti-skid sleeve is used to assist the movement of the equipment to ensure the smooth operation of the equipment.

Description

Release agent brushing equipment for cement support seat casting mold

Technical Field

The invention relates to a release agent brushing device, in particular to a release agent brushing device for a cement supporting seat casting mold.

Background

The cement support seat, also called steel bar protective layer cushion block, is placed between the steel bar and the template, and is used for fixing the position of the steel bar, so as to prevent the steel bar from being exposed and corroded.

The traditional mold release agent coating mode is manual operation by workers, although the mode is simple and direct, a large amount of manpower and material resources are consumed by the workers, the working efficiency of other procedures is seriously affected in industrial production, and meanwhile, the problem of uneven distribution of the mold release agent is easily caused by manually coating the mold release agent on the surface of a mold.

Therefore, the release agent brushing equipment for the cement support seat casting mold, which can accelerate the brushing of the release agent and ensure the uniform distribution of the release agent on the surface of the casting mold, needs to be developed to solve the problems.

Disclosure of Invention

In order to overcome the defects that the speed of brushing the release agent cannot be accelerated and the uniform distribution of the release agent on the surface of a casting mold cannot be ensured, the technical problems to be solved are as follows: the release agent brushing equipment for the cement supporting seat casting mold can accelerate the speed of brushing the release agent and ensure that the release agent on the surface of the casting mold is uniformly distributed.

The technical scheme is as follows: a demolding agent brushing device for a cement supporting seat casting mold comprises a mounting frame and wheels, wherein the lower portion of the mounting frame is rotatably connected with the wheels, the device further comprises a first rotating shaft, a first chain wheel, a push rod, a groove rod, a wiping device, a second rotating shaft, a second chain wheel, a chain belt, a wiping belt, a driving motor, a discharging device and a push handle, the first rotating shaft is rotatably connected to the upper portion of one side of the mounting frame, the first chain wheel is arranged at the rear end of the first rotating shaft, the push rod is arranged at the front end of the first rotating shaft, the groove rod is rotatably connected to the front side of the lower portion of the mounting frame in a sliding mode and matched with the push rod, the wiping device is arranged at the bottom of the groove rod, the second rotating shaft is rotatably connected to the mounting frame on one side away from the first rotating shaft, the second chain wheel is arranged at the rear end of the second rotating shaft, the chain belt is sleeved on the, and a discharging device is arranged on the upper part of the mounting frame, a pushing handle is arranged on one side of the mounting frame, the discharging device is used for discharging the release agent, and the wiping device is used for carrying out secondary wiping operation on the casting mold.

Further, discharging device is equipped with an opening section of thick bamboo including an opening section of thick bamboo, third pivot, stock solution spare and feed liquor pipe on the mounting bracket upper portion, and the rotary type is connected with the third pivot in the opening section of thick bamboo, is equipped with stock solution spare in the third pivot, and stock solution spare and the laminating of opening section of thick bamboo inner wall are equipped with feed liquor pipe on opening section of thick bamboo upper portion.

Further, the liquid storage part is a liquid storage cylinder, the third rotating shaft is provided with the liquid storage cylinder, and the liquid storage cylinder is attached to the inner wall of the opening cylinder.

Further, wiping arrangement is including carriage, slider, compression spring, connecting rod and rubber cleaning plate, and the grooved bar bottom is equipped with the carriage, and the slidingtype is connected with the slider in the carriage, is connected with compression spring between slider and the carriage top, and the slider bottom is equipped with the connecting rod, and the connecting rod bottom is equipped with rubber cleaning plate.

Further, the guide device comprises a guide sleeve, a guide rod, a rack and a gear, wherein the guide sleeve is arranged at the top of the mounting frame, the guide rod is connected in the guide sleeve in a sliding mode, the rack is arranged at one end of the guide rod, a guide groove is formed in the upper portion of the groove rod, the other end of the guide rod is located in the guide groove in the groove rod, and the gear is arranged at the front end of the third rotating shaft.

Furthermore, the vehicle wheel further comprises an anti-slip sleeve, and the anti-slip sleeve is sleeved on the vehicle wheel.

Has the advantages that: the invention replaces the traditional mode that workers manually brush the release agent by the cooperation of the wiping belt and the devices on the wiping belt, further improves the process level, and carries out secondary wiping on the surface of the casting mold coated with the release agent by the rubber wiping plate, so that the release agent coated on the surface of the casting mold can be uniformly distributed, the subsequent use of the casting mold is facilitated, and the anti-slip sleeve is used for assisting the movement of equipment, thereby achieving the effect of ensuring the stable operation of the equipment.

Drawings

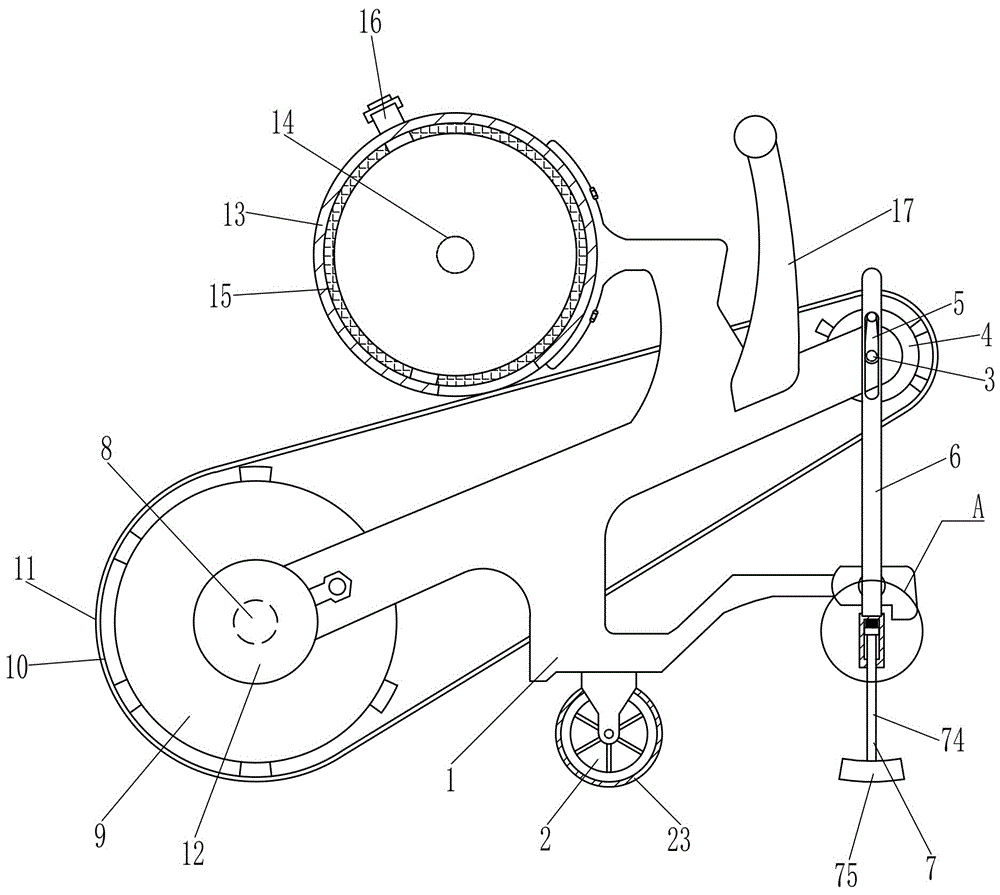

Fig. 1 is a schematic front view of the present invention.

Fig. 2 is an enlarged schematic view of the structure of the present invention a.

Fig. 3 is a partial schematic front view of the present invention.

Wherein: 1 … mounting bracket, 2 … wheel, 3 … first rotating shaft, 4 … first chain wheel, 5 … push rod, 6 … grooved rod, 7 … wiping device, 71 … sliding frame, 72 … sliding block, 73 … compression spring, 74 … connecting rod, 75 … rubber wiping plate, 8 … second rotating shaft, 9 … second chain wheel, 10 … chain belt, 11 … wiping belt, 12 … driving motor, 13 … opening cylinder, 14 … third rotating shaft, 15 … liquid storage cylinder, 16 … liquid inlet pipe, 17 … push handle, 18 … guide sleeve, 19 … guide rod, 20 … rack, 21 … guide groove, 22 … gear, 23 … anti-slip sleeve.

Detailed Description

The invention is described in detail below with reference to the drawings and specific examples, but the invention is not limited thereto.

Example 1

A demolding agent brushing device for a cement supporting seat casting mold is disclosed, as shown in figure 1-2, and comprises a mounting frame 1, wheels 2, a first rotating shaft 3, a first chain wheel 4, a push rod 5, a groove rod 6, a wiping device 7, a second rotating shaft 8, a second chain wheel 9, a chain belt 10, a wiping belt 11, a driving motor 12, an opening cylinder 13, a third rotating shaft 14, a liquid storage cylinder 15, a liquid inlet pipe 16 and a push handle 17, wherein the lower part of the mounting frame 1 is rotatably connected with the wheels 2, the upper part of one side of the mounting frame 1 is rotatably connected with the first rotating shaft 3, the rear end of the first rotating shaft 3 is provided with the first chain wheel 4, the front end of the first rotating shaft 3 is provided with the push rod 5, the front side of the lower part of the mounting frame 1 is rotatably connected with the groove rod 6, the groove rod 6 is in sliding fit with the push rod 5, the bottom of the groove rod 6 is provided with the wiping device 7, the mounting, the cover has chain area 10 on second sprocket 9 and first sprocket 4, chain area 10 surface is equipped with cleans and takes 11, 1 opposite side of mounting bracket is equipped with driving motor 12, driving motor 12 output shaft is connected with 8 front ends in the second pivot, 1 upper portion of mounting bracket is equipped with an opening section of

thick bamboo

13, 13 internal rotation formulas in an opening section of thick bamboo are connected with third pivot 14, be equipped with liquid storage cylinder 15 in the third pivot 14,

liquid storage cylinder

15 and 13 inner wall laminating in an opening section of thick bamboo, 13 upper portions in an opening section of thick bamboo are equipped with feed liquor pipe 16, 1 one side of mounting bracket is equipped with pushes away the.

The wiping device 7 comprises a sliding frame 71, a sliding block 72, a compression spring 73, a connecting rod 74 and a rubber wiping plate 75, the sliding frame 71 is arranged at the bottom of the grooved rod 6, the sliding block 72 is connected in the sliding frame 71 in a sliding manner, the compression spring 73 is connected between the sliding block 72 and the top of the sliding frame 71, the connecting rod 74 is arranged at the bottom of the sliding block 72, and the rubber wiping plate 75 is arranged at the bottom end of the connecting rod 74.

When the cement support seat casting mold needs to be coated with the demolding agent, the position of the liquid storage cylinder 15 is reasonably adjusted through the third rotating shaft 14, a liquid inlet on the liquid storage cylinder 15 is aligned to the liquid inlet pipe 16, then a valve on the liquid inlet pipe 16 is opened, sufficient demolding agent is injected into the liquid storage cylinder 15, after sufficient demolding agent is injected into the liquid storage cylinder 15, the valve on the liquid inlet pipe 16 is closed, the equipment is pushed through the push handle 17, the wiping belt 11 and the rubber wiping plate 75 of the equipment are placed at the top of the casting mold, at the moment, the compression spring 73 is in a compression state, then the driving motor 12 is controlled to operate, the output shaft of the driving motor 12 drives the second rotating shaft 8 to rotate, the second chain wheel 9 is driven to rotate, the second chain wheel 9 drives the first rotating shaft 3 to rotate through the chain belt 10, the push rod 5 is driven to rotate, and the grooved rod 6 is driven to swing back and forth left, when the chain belt 10 rotates, the wiping belt 11 is driven to rotate along with the chain belt, in the process, a worker manually rotates the third rotating shaft 14 in a reciprocating manner for a certain angle, so that the demolding agent is intermittently discharged to the surface of the wiping belt 11 through a liquid outlet on the liquid storage cylinder 15, then the demolding agent is coated on the surface of a casting mold through the rotating wiping belt 11, the worker pushes the equipment to move from right to left, when the grooved rod 6 swings back and forth, the compression spring 73 in a compression state pushes the sliding block 72 and the upper device to move towards the direction close to the surface of the casting mold, so that the rubber wiping plate 75 is always in contact with the surface of the casting mold, the surface of the casting mold coated with the demolding agent is wiped for the second time through the rubber wiping plate 75, the demolding agent coated on the surface of the casting mold can be uniformly distributed, the subsequent use of the casting mold is facilitated, after the demolding agent is coated on the surface, then the driving motor 12 is controlled to stop running, and finally the equipment is removed.

Example 2

On the basis of the embodiment 1, as shown in fig. 3, the rack-and-pinion mounting device further comprises a guide sleeve 18, a guide rod 19, a rack 20 and a pinion 22, the guide sleeve 18 is arranged at the top of the mounting frame 1, the guide rod 19 is connected in the guide sleeve 18 in a sliding manner, the rack 20 is arranged at one end of the guide rod 19, a guide groove 21 is formed in the upper portion of the grooved rod 6, the other end of the guide rod 19 is located in the guide groove 21 on the grooved rod 6, and the pinion 22 is arranged at the front end of the third rotating shaft.

When the equipment is operated, the guide rod 19 reciprocates left and right along an angle tangent to the gear 22 by the aid of the groove rod 6 swinging left and right in a reciprocating mode through matching with the guide rod 19, the rack 20 is driven to reciprocate left and right at the motion angle, the third rotating shaft 14 rotates left and right in a reciprocating mode at a certain angle through mutual matching of the rack 20 and the gear 22, and through matching of the parts, when the equipment is operated, the demolding agent can be automatically discharged, manual operation steps of workers are omitted, working efficiency of the workers is improved, and when the equipment is stopped, the rack 20 and devices on the rack 20 stop operating along with the parts.

Example 3

On the basis of the embodiment 2, as shown in fig. 1, the anti-skid device further comprises an anti-skid sleeve 23, and the anti-skid sleeve 23 is sleeved on the wheel 2.

Through antiskid cover 23 for the auxiliary assembly removes, has reached the effect of guaranteeing equipment even running.

The above description is only for the specific embodiments of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art can easily conceive of the changes or substitutions within the technical scope of the present invention, and all the changes or substitutions should be covered within the scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the appended claims.

Claims

1. A release agent brushing device for a cement support seat casting mold, comprising a mounting frame (1) and a wheel (2), and the lower part of the mounting frame (1) is rotatably connected with a wheel (2), characterized in that: it also includes There are first rotating shaft (3), first sprocket (4), push rod (5), groove rod (6), wiping device (7), second rotating shaft (8), second sprocket (9), chain The belt (10), the wiping belt (11), the driving motor (12), the discharging device and the push handle (17), the upper part of one side of the mounting frame (1) is rotatably connected with a first rotating shaft (3), and the first rotating shaft ( 3) The rear end is provided with a first sprocket (4), and the front end of the first shaft (3) is provided with a push rod (5). 6) It is slidingly matched with the push rod (5), the bottom of the groove rod (6) is provided with a wiping device (7), and a second rotating shaft ( 8), the rear end of the second shaft (8) is provided with a second sprocket (9), the second sprocket (9) and the first sprocket (4) are covered with a chain belt (10), the chain belt (10) The outer surface is provided with a wiping belt (11), the other side of the mounting frame (1) is provided with a driving motor (12), the output shaft of the driving motor (12) is connected with the front end of the second rotating shaft (8), and the upper part of the mounting frame (1) is provided with a driving motor (12). There is a discharging device, and a push handle (17) is provided on one side of the mounting frame (1), wherein the discharging device is used to discharge the release agent, and the wiping device (7) is used to perform a secondary wiping operation on the casting mold ;

The discharging device includes an opening cylinder (13), a third rotating shaft (14), a liquid storage member and a liquid inlet pipe (16). The upper part of the mounting frame (1) is provided with an opening cylinder (13), which rotates inside the opening cylinder (13). There is a third rotating shaft (14) connected with the third rotating shaft (14), a liquid storage part is arranged on the third rotating shaft (14), the liquid storage part is attached to the inner wall of the opening cylinder (13), and the upper part of the opening cylinder (13) is provided with a liquid inlet pipe (16) ;

The liquid storage member is a liquid storage cylinder (15), the third rotating shaft (14) is provided with a liquid storage cylinder (15), and the liquid storage cylinder (15) is attached to the inner wall of the opening cylinder (13);

The wiping device (7) includes a sliding frame (71), a slider (72), a compression spring (73), a connecting rod (74) and a rubber wiping plate (75), and the bottom of the groove rod (6) is provided with a sliding frame (71) ), a sliding block (72) is slidably connected in the sliding frame (71), a compression spring (73) is connected between the sliding block (72) and the inner top of the sliding frame (71), and the bottom of the sliding block (72) is provided with a connection The rod (74) is provided with a rubber wiping plate (75) at the bottom end of the connecting rod (74).

2. The device for brushing a release agent for a cement support seat casting mold according to claim 1, characterized in that it further comprises a guide sleeve (18), a guide rod (19), a rack (20) and a gear ( 22), the top of the mounting frame (1) is provided with a guide sleeve (18), the guide sleeve (18) is slidably connected with a guide rod (19), and one end of the guide rod (19) is provided with a rack (20), a groove rod ( 6) The upper part is provided with a guide groove (21), the other end of the guide rod (19) is located in the guide groove (21) on the groove rod (6), and the front end of the third shaft (14) is provided with a gear (22).

3 . The device for brushing release agent for cement support seat casting mold according to claim 2 , characterized in that it further comprises a non-slip sleeve ( 23 ), and the wheel ( 2 ) is covered with an anti-slip sleeve ( 23 ). 4 .
