本发明公开了一种超高强度钢的形性梯度控制装置，包括传送架，传送架上从输入端到输出端之间依次设置第一加热炉、轧制装置和第二加热炉；传送架的输出端与冲压装置连接；冲压装置包括相匹配的上凸模和下凹模，下凹模面对面设置的侧面上安装伸缩装置，伸缩装置的输出端连接边辊轨道；上凸模和所述下凹模的内部均匀布设若干冷却水道，每个冷却水道单独控制，且每个冷却水道均受热电偶监控温度。还公开一种超高强度钢的形性梯度控制方法，包括以下步骤：预加热、变厚度在线轧制、奥体化及同步定型去应力、热冲压及分区淬火。有效实现超高强度钢板材刚度、强度、韧性梯度的同步控制，使得钢板材的形性具有梯度，在保证刚度设计要求的同时实现轻量化。

Figure 201911310382

The invention discloses a shape gradient control device for ultra-high-strength steel. The output end is connected with the punching device; the punching device includes a matching upper punch and a lower punch, a telescopic device is installed on the side of the lower punch facing each other, and the output end of the expansion device is connected to the side roller track; the upper punch and the said Several cooling water channels are evenly arranged inside the lower die, each cooling water channel is controlled individually, and each cooling water channel is monitored by thermocouple for temperature. Also disclosed is a formability gradient control method for ultra-high strength steel, which includes the following steps: preheating, on-line rolling with variable thickness, austenitization and simultaneous shaping and stress relief, hot stamping and zone quenching. Effectively realize the synchronous control of the gradient of stiffness, strength and toughness of ultra-high-strength steel sheets, so that the shape of the steel sheet has a gradient, and realizes lightweight while ensuring the stiffness design requirements.

Figure 201911310382

Description

Device and method for controlling shape gradient of ultrahigh-strength steel
Technical Field
The invention belongs to the technical field of hot stamping forming, and particularly relates to a device and a method for controlling the shape gradient of ultrahigh-strength steel.
Background
The automobile industry is one of five major post industries of national economy in China and is also the largest carrier of high and new technology. On the premise of ensuring the safety performance, the lightweight material structural member is introduced into the vehicle body, so that the quality of the vehicle body can be reduced, the fuel oil rate is improved, and the maintenance cost of the vehicle is reduced.
The ultra-high strength steel is a steel grade with ultra-high tensile strength (above 1380Mpa level) and martensite structure, and is increasingly favored by the automobile industry in recent years due to low cost, high tensile strength and obvious weight reduction benefit. The ultrahigh-strength steel plate is generally manufactured by adopting a hot forming technology, wherein an ultrahigh-strength steel plate is heated to austenitize, and then is sent into a hot stamping die with a cooling water channel through equipment such as a mechanical arm and the like for stamping and pressure-maintaining quenching to form a hot stamping part with high strength and high precision.
The Chinese patent CN201510096852.X, a hot stamping method for gradient distribution of performance of high-strength steel parts, provides a method for heating and quenching twice to obtain hot stamped parts with different mechanical properties. The process has the defects of relatively complex process and low production efficiency, and is not suitable for large-scale production. The invention of Chinese patent CN201410110908.8, a method for processing high-strength steel hot stamping formed parts, proposes that local tempering or annealing treatment is carried out on parts with uniform performance after hot stamping forming, and the heat conduction of the plate is utilized to realize the gradient change of tempering or annealing temperature and the gradient change of performance. The process needs a specially designed induction heating coil, and parts can deform in the quenching and heating process.
At present, the hot forming of the ultrahigh-strength steel is generally to make the steel plate of the same wall thickness, and the performance gradient that realizes is homogeneous in addition, and along with the continuous promotion of automobile lightweight design, the demand of designing and developing the ultrahigh-strength steel part that rigidity, intensity gradient change is stronger and stronger. The problem of strength can only be changed through heat treatment, the problem of rigidity cannot be solved, and the rigidity of the steel plate needs to be designed by adopting a method of section deformation. At present, no public research report exists on the hot stamping technology with strength and rigidity gradient change.
Disclosure of Invention
The invention provides a device and a method for controlling the shape gradient of ultrahigh-strength steel, which solve the technical problem of shape gradient change in the hot stamping technology.
In order to solve the technical problems, the technical scheme adopted by the invention is as follows: the shape gradient control device for the ultrahigh-strength steel comprises a conveying frame, conveying rollers are arranged at intervals along the length direction of the conveying frame, and a first heating furnace, a rolling device and a second heating furnace are sequentially arranged on the conveying frame from an input end to an output end; the output end of the conveying frame is connected with the stamping device; the stamping device comprises an upper male die and a lower female die which are matched, a telescopic device is arranged on the side surface opposite to the lower female die, and the output end of the telescopic device is connected with the edge roller track; and a plurality of cooling water channels are uniformly distributed in the upper male die and the lower female die, each cooling water channel is independently controlled, and each cooling water channel is monitored by a thermocouple.
Furthermore, a plurality of groups of shaping rollers are arranged in the second heating furnace. The function of removing residual stress of the plate under the shaping condition is realized.
Furthermore, connecting plates are respectively arranged on the side surfaces opposite to the lower concave die surface, and telescopic devices are arranged on the connecting plates.
Furthermore, the telescopic device comprises an L-shaped support fixedly connected with the connecting plate, and a hydraulic cylinder or a pneumatic cylinder is connected to the L-shaped support.
Further, the output end of the conveying frame is connected with the input end of the side roller track through a group of guide plates.
Furthermore, the side roller track is in a side U shape, and a conveying roller is paved on the inner bottom surface of the side U-shaped side roller track.
Furthermore, the positioning pin is arranged on the top surface of the lower concave die and used for limiting the ultrahigh-strength steel plate to be stamped.
A method for controlling the shape gradient of ultrahigh-strength steel is characterized by comprising the following steps:
transferring the punched ultrahigh-strength steel plate into a first heating furnace, preheating under the protection of nitrogen, and keeping the temperature for a period of time;
moving the preheated ultrahigh-strength steel plate out of the first heating furnace, and performing variable-thickness on-line rolling to enable the thickness of the ultrahigh-strength steel plate to have gradient;
transferring the rolled ultrahigh-strength steel plate into a second heating furnace, continuously heating under the protection of nitrogen and preserving heat for a period of time to austenitize the ultrahigh-strength steel plate;
and quickly transferring the austenitized red hot plate to a position to be punched of a punching device, and punching and quenching in a subarea mode.
Further, the heating temperature in the first heating furnace is 720-760 ℃, and the heat preservation time is t-d × n; the heating temperature in the second heating furnace is 910-940 ℃, and the heat preservation time is t ═ d × m; in the formula: d is the thickness of the plate, and the unit is mm; t is the holding time in units of s; n and m are constants, the value of n is 60-65, and the value of m is 100-110.
Furthermore, a plurality of groups of shaping rollers are arranged in the second heating furnace; a plurality of cooling water channels are uniformly distributed in the upper male die and the lower female die of the stamping device, each cooling water channel is independently controlled, and each cooling water channel is monitored by a thermocouple.
The invention achieves the following beneficial effects:
1. based on the process control of thickness-variable online rolling, austenitizing synchronous shaping and destressing and partition quenching regulation and control of martensite content in the hot forming process, the synchronous control of the rigidity, strength and toughness gradient of the ultrahigh-strength steel is effectively realized, and a solution is provided for the optimal design of automobile safety parts.
2. And the edge roller track is adopted to replace a mechanical arm to quickly transfer the austenitized red hot plate to a position to be stamped of the stamping device. Through the mutual cooperation of the conveying speed of the edge roller track and the quick evacuation of the edge roller track under the driving of the telescopic device, the plate transfer time is shortened, the dissipation of the plate temperature during transfer is avoided, the surface oxidation of the plate is also reduced, the initial heating temperature can be effectively reduced, and the forming efficiency and the forming quality are improved.
3. A plurality of cooling water channels are uniformly distributed in the upper male die and the lower female die of the stamping device, each cooling water channel is independently controlled, and each cooling water channel is monitored by a thermocouple. In the stamping and quenching process, the accurate feedback of the cooling speed is realized, so that the cooling rate of each cooling water channel is accurately adjusted, the ultrahigh-strength steel with the strength gradient is obtained, and the lightweight requirement of an automobile is met.
Drawings

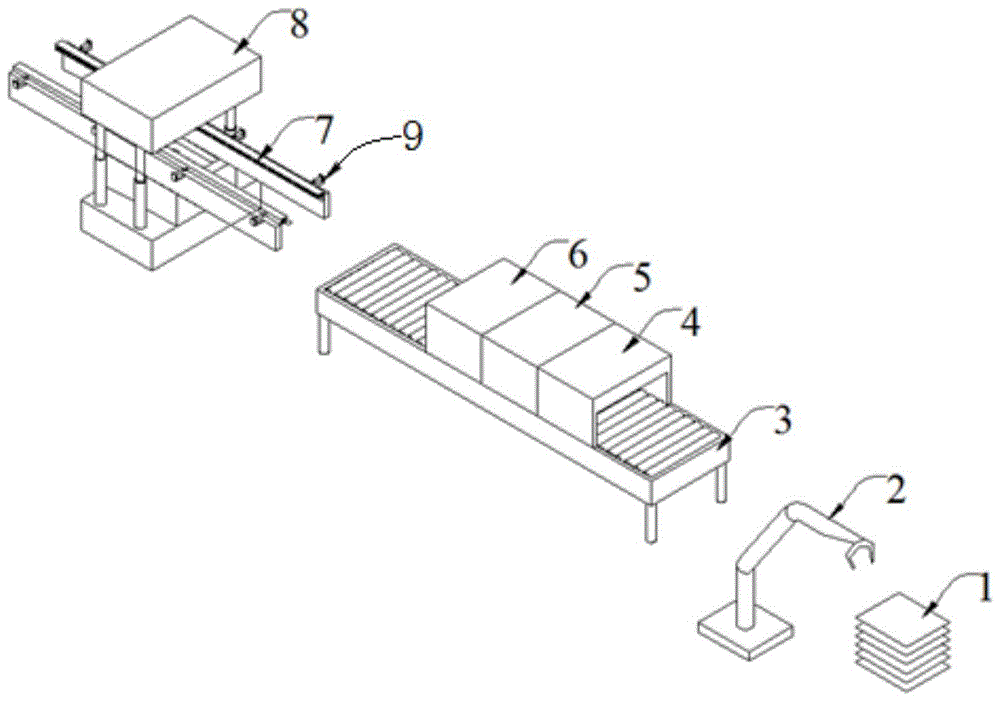

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the edge roll track and retractor of the present invention;
FIG. 3 is a schematic view of an upper punch and a lower die of the present invention.
In the figure: 1-ultrahigh strength steel plate; 2-a manipulator; 3-a conveying frame; 4-a first heating furnace; 5-a rolling device; 6-a second heating furnace; 7-edge roll tracks; 8-a stamping device; 9-a telescopic device; 10-connecting plate, 11-guide plate; 12-hydraulic/pneumatic cylinders; 13-lower concave die; 14-a locating pin; 15-upper male die; 16-a thermocouple; 17-cooling water channels; an 18-L shaped stent; 19-conveying roller.
Detailed Description
The invention is further described below. The following examples are only for illustrating the technical solutions of the present invention more clearly, and the protection scope of the present invention is not limited thereby.
Example 1
As shown in fig. 1, the shape gradient control device for ultra-high strength steel provided in the embodiment of the present invention includes a conveying frame 3, conveying rollers are disposed at intervals along the length direction of the conveying frame 3, and a plate to be processed can move on the conveying frame 3. The conveying frame 3 is sequentially provided with a first heating furnace 4, a rolling device 5 and a second heating furnace 6 from the input end to the output end, and the output end of the conveying frame 3 is connected with a stamping device 8 through an edge roller rail 7. The first heating furnace 4 is used for preheating the ultrahigh-strength steel plate 1; the rolling device 5 is used for rolling the preheated plate in a variable thickness online manner; the second heating furnace 6 is used for austenitizing and synchronously shaping and destressing the rolled plate; the stamping device 8 is used for stamping and zone quenching the austenitized red hot plate. In this embodiment, a plurality of groups of shaping rollers are arranged in the second heating furnace 6, which plays a role in removing residual stress of the plate under shaping conditions. Based on the process control of thickness-variable online rolling, austenitizing synchronous shaping and destressing and partition quenching regulation and control of martensite content in the hot forming process, the synchronous control of the rigidity, strength and toughness gradient of the ultrahigh-strength steel is effectively realized, and a solution is provided for the optimal design of automobile safety parts.
As shown in fig. 3, the stamping device 8 includes an upper male die 15 and a lower female die 13 which are matched, a plurality of cooling water channels 17 are uniformly distributed inside the upper male die 15 and the lower female die 13, each cooling water channel 17 is controlled individually, and each cooling water channel 7 is monitored by a thermocouple 16. The thermocouple 16 realizes accurate feedback of the cooling speed through feedback of the integrated controller, so that the cooling rate of each cooling water channel 17 is accurately adjusted, stamping and quenching are effectively completed, and the ultrahigh-strength steel with the strength gradient is obtained. The output end of the transport carriage 3 is connected to the lower matrix 13 of the punching device 8 by means of a set of guide plates 11. In this embodiment, 9 cooling water channels 17 are arranged inside the upper male die 15 and the lower female die 13.
The telescopic device 9 is installed on the side face, facing to each other, of the lower female die 13, the output end of the telescopic device 9 is connected with the edge roller rail 7, the length of the edge roller rail 7 is larger than that of the lower female die 13, and the telescopic device 9 can control the group of edge roller rails 7 to be close to or far away from each other. Specifically, the connecting plates 10 are respectively installed on the side surfaces of the lower female dies 13 which are arranged face to face, as shown in fig. 2, the telescopic devices 9 are arranged on the connecting plates 10, each telescopic device 9 comprises an L-shaped support 18 fixedly connected with the corresponding connecting plate, a hydraulic cylinder or a pneumatic cylinder 12 is connected to each L-shaped support 18, and the output end of each hydraulic cylinder or pneumatic cylinder 12 is connected with the edge roller rail 7. In this embodiment, the side roller rail 7 is a side U-shape, and a conveying roller 19 is laid on the inner bottom surface of the side U-shaped side roller rail. And the edge roller rail 7 is adopted to replace a mechanical arm to quickly transfer the austenitized red hot plate to a position to be punched of a punching device 8. Through the mutual cooperation of the conveying speed of the edge roller rail 7 and the quick evacuation of the edge roller rail 7 under the driving of the telescopic device 9, the plate transfer time is shortened, the dissipation of the plate temperature during transfer is avoided, the surface oxidation of the plate is also reduced, the initial heating temperature can be effectively reduced, and the forming efficiency and the forming quality are improved.
Be equipped with compressible locating pin 14 on the 13 top surface of lower die, locating pin 14 is used for spacing ultrahigh strength steel sheet 1 of treating the punching press, utilizes photoinduction or position response, when in side roller track 7 shifts red hot panel to stamping device 8 fast, and locating pin 14 acts on immediately, makes panel can accurate entering treat the punching press region, has guaranteed the rate of accuracy of punching press. The front half and the back half of the edge roller track 7 respectively rotate forward and backward to perform zone control, and the uniform speed of the edge roller track 7 is reduced to 0m/s from the initial speed; and the reverse conveying roller is supported by damping materials, so that the plate is rapidly stopped at the positioning pin, and the damage caused by the impact of the plate is eliminated.
Example 2
Based on the same inventive concept as embodiment 1, the embodiment of the invention provides a method for controlling the shape gradient of ultrahigh-strength steel, which comprises the following steps:
transferring the punched ultrahigh-strength steel plate into a first heating furnace, preheating under the protection of nitrogen, wherein the heating temperature is 720-760 ℃, and preserving heat for a period of time; the heat preservation time is t, and t is d multiplied by n; in the formula: d is the thickness of the plate, and the unit is mm; t has the unit s; n is a constant, and the value of n is 60-65.
And (4) moving the preheated ultrahigh-strength steel plate out of the first heating furnace, and carrying out on-line rolling to enable the thickness of the ultrahigh-strength steel plate to have gradient.
Transferring the rolled ultrahigh-strength steel plate into a second heating furnace, continuously heating under the protection of nitrogen at the heating temperature of 910-940 ℃, and preserving heat for a period of time to austenitize the ultrahigh-strength steel plate; the heat preservation time is t, and t is d multiplied by m; in the formula: d is the thickness of the plate, and the unit is mm; t has the unit s; m is a constant, and the value of m is 100-110. And a plurality of groups of shaping rollers are arranged in the second heating furnace, so that the plate can remove residual stress under the shaping condition.
And quickly transferring the austenitized red hot plate to a position to be punched of a punching device through an edge roller rail, and performing punching and zone quenching.
Example 3
The embodiment of the invention provides a method for controlling the shape gradient of ultrahigh-strength steel, which specifically comprises the following steps:
1) preheating: moving the punched ultrahigh-strength steel plate into a first heating furnace, and preheating to 720-760 ℃ under the protection of nitrogen; keeping the temperature for a period of time, wherein t is dXn; in the formula: d is the thickness of the plate, and the unit is mm; t has the unit s; n is a constant, and the value of n is 60-65.
2) And (3) variable thickness on-line rolling: moving the ultrahigh-strength steel plate out of the first heating furnace through a conveying roller, and carrying out on-line rolling to enable the thickness of the ultrahigh-strength steel plate to have gradient; the deformation of the part of the area of the variable thickness on-line rolling is controlled to be 30-50%, and the area of the variable thickness is not more than 30%.
3) Austenitizing and synchronous shaping destressing: transferring the rolled ultrahigh-strength steel plate into a second heating furnace, continuously heating under the protection of nitrogen at the heating temperature of 910-940 ℃, and preserving heat for a period of time to austenitize the ultrahigh-strength steel plate; the heat preservation time is t, and t is d multiplied by m; in the formula: d is the thickness of the plate, and the unit is mm; t has the unit s; m is a constant, and the value of m is 100-110. And a plurality of groups of shaping rollers are arranged in the second heating furnace, so that the plate is austenitized, and the residual stress is removed under the condition of keeping the geometric shape.
4) Transferring: rapidly transferring the red hot plate to a position to be punched of a punching device by using an edge roller track; the conveying of the lower roller is changed into the conveying of the side roller. The edge roll track is ramped down from an initial speed of 0.5m/s to 0 m/s.
5) Stamping and zone quenching: when the positioning of the austenitized plate in the hot stamping device is finished, the edge roller rails are removed (namely the group of edge roller rails are far away from each other) through a hydraulic cylinder/a pneumatic cylinder, and the removal speed is less than or equal to 0.5 m/s; the closing and the separation of an upper male die and a lower female die in the stamping device are realized. Pressing the upper male die downwards, and closing the die to perform hot stamping operation; and while the pressure of the male die is kept, the upper male die and the lower male die are subjected to cooling rate adjustment through the cooling water channels, so that the zone quenching is realized, and the gradient structure performance is obtained. The cooling rate is 10 ℃/s-50 ℃/s.
6) Stacking: after the stamping and the zone quenching are finished, the hydraulic cylinder/the pneumatic cylinder controls the group of edge roller tracks to mutually approach, and the ultrahigh-strength steel plates are continuously conveyed for stacking treatment.
Example 4
The embodiment of the invention provides a method for controlling the shape gradient of ultrahigh-strength steel, which specifically comprises the following steps:
1) blanking: selecting a 22MnB5 ultrahigh-strength steel plate with the thickness of 2mm, and blanking the steel plate by 1000mm multiplied by 500 mm;
2) preheating: transferring the punched ultrahigh-strength steel plate to a first heating furnace, preheating to 720 ℃ under the protection of nitrogen, and preserving heat for 120 s;
3) and (3) variable thickness on-line rolling: moving the ultrahigh-strength steel plate out of the first heating furnace through a conveying roller, and carrying out on-line rolling to enable the thickness of the plate within 10mm from the edge width to be 1.2 mm;
4) austenitizing and synchronous shaping destressing: transferring the rolled ultrahigh-strength steel plate to a second heating furnace, shaping the plate through a shaping roller in the furnace, and heating to 920 ℃ under the protection of nitrogen; and keeping the temperature for 200 s;
5) transferring: the method comprises the steps of utilizing an edge roller track to quickly transfer red hot plates to a position to be punched of a punching device, namely changing lower roller conveying into edge roller conveying, and reducing the initial speed of the edge roller track to 0.5m/s from uniform speed in the transfer process to 0 m/s.
6) Stamping and zone quenching: upon completion of positioning of the austenitized sheet in the hot stamping device, the edge roll rails are removed (i.e., the set of edge roll rails are moved away from each other) by the hydraulic cylinders at a removal speed of 0.2 m/s; the closing and the separation of an upper male die and a lower female die in the stamping device are realized. Pressing the upper male die downwards, and closing the die to perform hot stamping operation; the cooling rate of the upper male die and the lower male die is adjusted through the cooling water channels while the pressure of the male die is kept, so that the cooling rate of the ultrahigh-strength steel within 10mm of the edge width is 15 ℃/s, the cooling rate of the central area is 40 ℃/s, the zone quenching is realized, and the strength gradient of the same plate is obtained.
7) After the stamping and the zone quenching are finished, the hydraulic cylinder/the pneumatic cylinder controls the group of edge roller tracks to mutually approach, and the ultrahigh-strength steel plates are continuously conveyed for stacking treatment.
Example 5
The embodiment of the invention provides a method for controlling the shape gradient of ultrahigh-strength steel, which specifically comprises the following steps:
1) blanking: selecting a 27MnCrB5 ultrahigh-strength steel plate with the thickness of 3mm, and blanking the plate by 1200mm multiplied by 700 mm;
2) preheating: transferring the punched ultrahigh-strength steel plate to a first heating furnace, preheating to 740 ℃ under the protection of nitrogen, and preserving heat for 180 s;
3) and (3) variable thickness on-line rolling: moving the ultrahigh-strength steel plate out of the first heating furnace through a conveying roller, and carrying out on-line rolling to reduce the width of the central area of the plate to 1.5mm within 100 mm;
4) austenitizing and synchronous shaping destressing: transferring the rolled ultrahigh-strength steel plate to a second heating furnace, shaping the plate through a shaping roller in the furnace, and heating to 930 ℃ under the protection of nitrogen; and preserving the heat for 330 s;
5) transferring: the method comprises the steps of utilizing an edge roller track to quickly transfer red hot plates to a position to be punched of a punching device, namely changing lower roller conveying into edge roller conveying, and reducing the initial speed of the edge roller track to 0.5m/s from uniform speed in the transfer process to 0 m/s.
6) Stamping and zone quenching: upon completion of positioning of the austenitized sheet in the hot stamping apparatus, the edge roll rails are removed (i.e., the set of edge roll rails are moved away from each other) by the hydraulic cylinders at a removal speed of 0.4 m/s; the closing and the separation of an upper male die and a lower female die in the stamping device are realized. Pressing the upper male die downwards, and closing the die to perform hot stamping operation; the cooling rate of the upper male die and the lower male die is adjusted through the cooling water channels while the pressure of the male die is kept, so that the cooling rate of the ultrahigh-strength steel within 200mm of the central area is 50 ℃/s, the cooling rate of the edge is 15 ℃/s, the zone quenching is realized, and the strength gradient of the same plate is obtained.
7) After the stamping and the zone quenching are finished, the hydraulic cylinder/the pneumatic cylinder controls the group of edge roller tracks to mutually approach, and the ultrahigh-strength steel plates are continuously conveyed for stacking treatment.
Example 6
The embodiment of the invention provides a method for controlling the shape gradient of ultrahigh-strength steel, which specifically comprises the following steps:
1) blanking: selecting a 37MnB4 ultrahigh-strength steel plate with the thickness of 1.5mm, and blanking the steel plate with the thickness of 1400mm multiplied by 500 mm;
2) preheating: transferring the punched ultrahigh-strength steel plate to a first heating furnace, preheating to 760 ℃ under the protection of nitrogen, and preserving heat for 90 s;
3) and (3) variable thickness on-line rolling: moving the ultrahigh-strength steel plate out of the first heating furnace through the conveying roller, and carrying out on-line rolling to thin the plate to 1mm within 20mm of the width of the edge;
4) austenitizing and synchronous shaping destressing: transferring the rolled ultrahigh-strength steel plate to a second heating furnace, shaping the plate through a shaping roller in the furnace, and heating to 940 ℃ under the protection of nitrogen; and preserving heat for 165 s;
5) transferring: the method comprises the steps of utilizing an edge roller track to quickly transfer red hot plates to a position to be punched of a punching device, namely changing lower roller conveying into edge roller conveying, and reducing the initial speed of the edge roller track to 0.5m/s from uniform speed in the transfer process to 0 m/s.
6) Stamping and zone quenching: upon completion of positioning of the austenitized sheet in the hot stamping device, the edge roll rails were removed (i.e., the set of edge roll rails were moved away from each other) by the pneumatic cylinders at a removal speed of 0.5 m/s; the closing and the separation of an upper male die and a lower female die in the stamping device are realized. Pressing the upper male die downwards, and closing the die to perform hot stamping operation; the cooling rate of the upper male die and the lower male die is adjusted through the cooling water channels while the pressure of the male die is kept, so that the cooling rate of the ultrahigh-strength steel within 20mm from the width of the edge part is 60 ℃/s, the cooling rate of the edge is 20 ℃/s, the zone quenching is realized, and the strength gradient of the same plate is obtained.
7) After the stamping and the zone quenching are finished, the hydraulic cylinder/the pneumatic cylinder controls the group of edge roller tracks to mutually approach, and the ultrahigh-strength steel plates are continuously conveyed for stacking treatment.
The above description is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, several modifications and variations can be made without departing from the technical principle of the present invention, and these modifications and variations should also be regarded as the protection scope of the present invention.

Claims (10)

1.一种超高强度钢的形性梯度控制装置，包括传送架，沿传送架长度方向间隔设置有传送辊，其特征在于，所述传送架上从输入端到输出端之间依次设置第一加热炉、轧制装置和第二加热炉；1. A shape gradient control device for ultra-high-strength steel, comprising a conveying frame, and conveying rollers are arranged at intervals along the length direction of the conveying frame, and it is characterized in that, on the conveying frame, from the input end to the output end, a No. a heating furnace, a rolling device and a second heating furnace; 所述传送架的输出端通过边辊轨道与冲压装置连接；The output end of the conveying frame is connected with the punching device through the side roller track; 所述冲压装置包括相匹配的上凸模和下凹模，下凹模面对面设置的侧面上安装伸缩装置，伸缩装置的输出端连接边辊轨道；The punching device comprises a matching upper punch and a lower die, a telescopic device is installed on the side of the lower die facing each other, and the output end of the telescopic device is connected to the side roller track; 所述上凸模和所述下凹模的内部均匀布设若干冷却水道，每个冷却水道单独控制，且每个冷却水道均受热电偶监控温度。Several cooling water channels are evenly arranged inside the upper punch and the lower female mold, each cooling water channel is controlled independently, and the temperature of each cooling water channel is monitored by a thermocouple. 2.根据权利要求1所述的一种超高强度钢的形性梯度控制装置，其特征在于，所述第二加热炉内设有若干组定型辊。2 . The shape gradient control device for ultra-high strength steel according to claim 1 , wherein several sets of shaping rollers are arranged in the second heating furnace. 3 . 3.根据权利要求1所述的一种超高强度钢的形性梯度控制装置，其特征在于，所述下凹模面对面设置的侧面上分别安装连接板，连接板上设有伸缩装置。3 . The shape gradient control device for ultra-high strength steel according to claim 1 , wherein connecting plates are respectively installed on the side faces of the lower concave die facing each other, and a telescopic device is provided on the connecting plates. 4 . 4.根据权利要求3所述的一种超高强度钢的形性梯度控制装置，其特征在于，所述伸缩装置包括与所述连接板固定连接的L型支架，L型支架上连接液压缸或气压缸。4 . The shape gradient control device of ultra-high strength steel according to claim 3 , wherein the telescopic device comprises an L-shaped bracket fixedly connected with the connecting plate, and a hydraulic cylinder is connected to the L-shaped bracket. 5 . or pneumatic cylinders. 5.根据权利要求1所述的一种超高强度钢的形性梯度控制装置，其特征在于，所述传送架的输出端与所述边辊轨道的输入端通过一组引导板连接。5 . The shape gradient control device of ultra-high strength steel according to claim 1 , wherein the output end of the conveying frame and the input end of the side roller track are connected by a set of guide plates. 6 . 6.根据权利要求1所述的一种超高强度钢的形性梯度控制装置，其特征在于，所述边辊轨道为侧U型，侧U型边辊轨道的内底面上铺设输送辊。6 . The shape gradient control device of ultra-high strength steel according to claim 1 , wherein the side roller track is a side U-shaped, and the inner bottom surface of the side U-shaped side roller track is laid with conveying rollers. 7 . 7.根据权利要求1所述的一种超高强度钢的形性梯度控制装置，其特征在于，所述下凹模顶表面上设有定位销，定位销用于限位待冲压的超高强度钢板材。7 . The shape gradient control device for ultra-high strength steel according to claim 1 , wherein a positioning pin is provided on the top surface of the lower concave die, and the positioning pin is used to limit the ultra-high-strength steel to be punched. 8 . Strength steel sheet. 8.一种超高强度钢的形性梯度控制方法，其特征在于，包括以下步骤：8. A formability gradient control method for ultra-high strength steel, characterized in that, comprising the following steps: 将冲裁好的超高强度钢板材移至第一加热炉内，在氮气保护下进行预加热并保温一段时间；Move the punched ultra-high-strength steel sheet to the first heating furnace, preheat it under nitrogen protection, and keep it for a period of time; 将预加热后的超高强度钢板材移出第一加热炉，并进行变厚度在线轧制，使超高强度钢板材的厚度具有梯度化；Move the preheated ultra-high-strength steel sheet out of the first heating furnace, and perform on-line rolling with variable thickness, so that the thickness of the ultra-high-strength steel sheet has a gradient; 将轧制后的超高强度钢板材移至第二加热炉内，在氮气保护下继续加热并保温一段时间，使其奥氏体化；Move the rolled ultra-high-strength steel sheet to the second heating furnace, continue heating under nitrogen protection and keep it for a period of time to austenitize it; 将奥氏体化的红热板材通过边辊轨道快速转移至冲压装置的待冲压位置，进行冲压及分区淬火。The austenitized red-hot plate is quickly transferred to the to-be-stamped position of the stamping device through the side roller track for stamping and zone quenching. 9.根据权利要求8所述的一种超高强度钢的形性梯度控制方法，其特征在于，所述第一加热炉内的加热温度为720~760℃，保温时间为t=d×n；第二加热炉内的加热温度为910~940℃，保温时间为t=d×m；式中：d为板材厚度，单位为mm；t为保温时间，单位为s；n和m均为常数，n的取值为60~65，m的取值为100~110。9 . The method for controlling shape gradient of ultra-high strength steel according to claim 8 , wherein the heating temperature in the first heating furnace is 720-760° C., and the holding time is t=d×n. 10 . ; The heating temperature in the second heating furnace is 910~940℃, and the holding time is t=d×m; in the formula: d is the thickness of the plate, the unit is mm; t is the holding time, the unit is s; n and m are both Constant, the value of n is 60~65, and the value of m is 100~110. 10.根据权利要求8所述的一种超高强度钢的形性梯度控制方法，其特征在于，所述第二加热炉内设有若干组定型辊；所述冲压装置的上凸模和下凹模的内部均匀布设若干冷却水道，每个冷却水道单独控制，且每个冷却水道均受热电偶监控温度。10. The method for controlling the shape gradient of ultra-high strength steel according to claim 8, wherein the second heating furnace is provided with several groups of setting rollers; the upper punch and the lower punch of the stamping device Several cooling water channels are evenly arranged inside the die, each cooling water channel is controlled individually, and each cooling water channel is monitored by a thermocouple for temperature.
CN201911310382.7A 2019-12-18 2019-12-18 Shape gradient control device and method for ultra-high strength steel Active CN111069331B (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN201911310382.7A CN111069331B (en) 2019-12-18 2019-12-18 Shape gradient control device and method for ultra-high strength steel

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN201911310382.7A CN111069331B (en) 2019-12-18 2019-12-18 Shape gradient control device and method for ultra-high strength steel

Publications (2)

Publication Number Publication Date
CN111069331A true CN111069331A (en) 2020-04-28
CN111069331B CN111069331B (en) 2026-01-13

Family

ID=70315475

Family Applications (1)

Application Number Title Priority Date Filing Date
CN201911310382.7A Active CN111069331B (en) 2019-12-18 2019-12-18 Shape gradient control device and method for ultra-high strength steel

Country Status (1)

Country Link
CN (1) CN111069331B (en)

Cited By (9)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN111571235A (en) * 2020-05-12 2020-08-25 艾伯纳工业炉(太仓)有限公司 Metal plate's thermoforming production line
CN111589920A (en) * 2020-05-11 2020-08-28 首钢集团有限公司 Hot stamping method
CN112338065A (en) * 2020-11-13 2021-02-09 湖南晓光汽车模具有限公司 Multi-water-channel hot stamping die
CN113843369A (en) * 2021-09-23 2021-12-28 扬州扬子到河复合材料制品有限公司 Front wall side-turning door forming device with adjustable working state and forming method
CN113953388A (en) * 2021-10-19 2022-01-21 马鞍山钢铁股份有限公司 Punch forming die and punching method for reducing cold punching resilience
CN115318955A (en) * 2022-07-13 2022-11-11 东风柳州汽车有限公司 Press forming method, press die and press system
CN116900178A (en) * 2023-06-20 2023-10-20 本钢板材股份有限公司 An advanced hot stamping forming method for high Cr-Si alloyed coating-free hot stamping steel
CN117505525A (en) * 2023-11-17 2024-02-06 南通江勤美金属制品有限公司 A method for rolling high corrosion-resistant pure titanium strip
CN117600334A (en) * 2023-08-25 2024-02-27 山东省领旋技术开发有限公司 A sandwich hot forming steel plate roll forming process

Citations (16)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US5542995A (en) * 1992-02-19 1996-08-06 Reilly; Robert Method of making steel strapping and strip and strapping and strip
US5937688A (en) * 1998-08-19 1999-08-17 Sms Engineering Corporation, Inc. Adjustable side guide with quick change strip heater assembly
CN101638715A (en) * 2009-08-27 2010-02-03 吉林省四方自动化工程技术有限责任公司 Production method of highway guardrail plate
KR20110010502A (en) * 2009-07-24 2011-02-01 현대제철 주식회사 Coil winding shape control device using width direction temperature and its method
US20110132052A1 (en) * 2007-03-22 2011-06-09 Voestalpine Stahl Gmbh Method for flexibly rolling coated steel strips
CN102304612A (en) * 2011-09-20 2012-01-04 唐炳涛 High-temperature splicing and quenching forming process and device of ultrahigh-strength steel
DE102010055148A1 (en) * 2010-12-18 2012-06-21 Tu Bergakademie Freiberg Manufacturing form-hardened component, preferably vehicle body component, comprises heating a board of steel in a heating plant to a temperature above the austenitizing temperature of steel, and form curing in a tool
CN203767414U (en) * 2013-12-30 2014-08-13 马钢(集团)控股有限公司 Pitch-changing train wheel self-adaptive conveyor
US20150147589A1 (en) * 2011-09-06 2015-05-28 Arcelormittal Investigacion Y Desarrollo, S.L. Rolled steel that hardens by means of precipitation after hot-forming and/or quenching with a tool having very high strength and ductility, and method for manufacturing same
CN104960903A (en) * 2015-05-25 2015-10-07 绥阳县华夏陶瓷有限责任公司 Double-layer roller kiln elevating device
CN107824678A (en) * 2017-10-11 2018-03-23 南京工程学院 A kind of stamping module method of heating of martensite steel component without transfer
US20190169708A1 (en) * 2016-08-24 2019-06-06 Wuhan Iron And Steel Company Limited 1900 MPa GRADE PRESS HARDENING STEEL BY MEDIUM THIN SLAB CASTING AND DIRECT ROLLING AND METHOD FOR PRODUCING THE SAME
CN208945578U (en) * 2018-04-18 2019-06-07 清华大学天津高端装备研究院 A kind of aluminium ingot self-centering flexible manufacturing system (FMS)
CN209125841U (en) * 2018-11-07 2019-07-19 山东罗波克智能装备有限公司 A kind of clamp device that robot palletizer uses
CN209206214U (en) * 2018-10-09 2019-08-06 宁波裕民机械工业有限公司 A kind of left and right rail punching die
CN211757698U (en) * 2019-12-18 2020-10-27 南京工程学院 Shape gradient control device of ultrahigh-strength steel

Patent Citations (16)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US5542995A (en) * 1992-02-19 1996-08-06 Reilly; Robert Method of making steel strapping and strip and strapping and strip
US5937688A (en) * 1998-08-19 1999-08-17 Sms Engineering Corporation, Inc. Adjustable side guide with quick change strip heater assembly
US20110132052A1 (en) * 2007-03-22 2011-06-09 Voestalpine Stahl Gmbh Method for flexibly rolling coated steel strips
KR20110010502A (en) * 2009-07-24 2011-02-01 현대제철 주식회사 Coil winding shape control device using width direction temperature and its method
CN101638715A (en) * 2009-08-27 2010-02-03 吉林省四方自动化工程技术有限责任公司 Production method of highway guardrail plate
DE102010055148A1 (en) * 2010-12-18 2012-06-21 Tu Bergakademie Freiberg Manufacturing form-hardened component, preferably vehicle body component, comprises heating a board of steel in a heating plant to a temperature above the austenitizing temperature of steel, and form curing in a tool
US20150147589A1 (en) * 2011-09-06 2015-05-28 Arcelormittal Investigacion Y Desarrollo, S.L. Rolled steel that hardens by means of precipitation after hot-forming and/or quenching with a tool having very high strength and ductility, and method for manufacturing same
CN102304612A (en) * 2011-09-20 2012-01-04 唐炳涛 High-temperature splicing and quenching forming process and device of ultrahigh-strength steel
CN203767414U (en) * 2013-12-30 2014-08-13 马钢(集团)控股有限公司 Pitch-changing train wheel self-adaptive conveyor
CN104960903A (en) * 2015-05-25 2015-10-07 绥阳县华夏陶瓷有限责任公司 Double-layer roller kiln elevating device
US20190169708A1 (en) * 2016-08-24 2019-06-06 Wuhan Iron And Steel Company Limited 1900 MPa GRADE PRESS HARDENING STEEL BY MEDIUM THIN SLAB CASTING AND DIRECT ROLLING AND METHOD FOR PRODUCING THE SAME
CN107824678A (en) * 2017-10-11 2018-03-23 南京工程学院 A kind of stamping module method of heating of martensite steel component without transfer
CN208945578U (en) * 2018-04-18 2019-06-07 清华大学天津高端装备研究院 A kind of aluminium ingot self-centering flexible manufacturing system (FMS)
CN209206214U (en) * 2018-10-09 2019-08-06 宁波裕民机械工业有限公司 A kind of left and right rail punching die
CN209125841U (en) * 2018-11-07 2019-07-19 山东罗波克智能装备有限公司 A kind of clamp device that robot palletizer uses
CN211757698U (en) * 2019-12-18 2020-10-27 南京工程学院 Shape gradient control device of ultrahigh-strength steel

Non-Patent Citations (2)

* Cited by examiner, † Cited by third party
Title
吴博雅等: "热冲压概述与变强度热冲压技术的诞生", 模具制造, no. 05, 8 May 2017 (2017-05-08), pages 93 - 98 *
尚欣等: "超高强度钢板热冲压同步淬火阶段材料模型的构建与实验分析", 功能材料, vol. 46, no. 23, 15 December 2015 (2015-12-15), pages 23132 - 23138 *

Cited By (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN111589920A (en) * 2020-05-11 2020-08-28 首钢集团有限公司 Hot stamping method
CN111571235A (en) * 2020-05-12 2020-08-25 艾伯纳工业炉(太仓)有限公司 Metal plate's thermoforming production line
CN112338065A (en) * 2020-11-13 2021-02-09 湖南晓光汽车模具有限公司 Multi-water-channel hot stamping die
CN113843369A (en) * 2021-09-23 2021-12-28 扬州扬子到河复合材料制品有限公司 Front wall side-turning door forming device with adjustable working state and forming method
CN113843369B (en) * 2021-09-23 2024-05-31 扬州扬子到河复合材料制品有限公司 Front wall side-turning door forming device with adjustable working state and forming method
CN113953388A (en) * 2021-10-19 2022-01-21 马鞍山钢铁股份有限公司 Punch forming die and punching method for reducing cold punching resilience
CN113953388B (en) * 2021-10-19 2022-12-16 马鞍山钢铁股份有限公司 Punch forming die and punching method for reducing cold punching resilience
CN115318955A (en) * 2022-07-13 2022-11-11 东风柳州汽车有限公司 Press forming method, press die and press system
CN116900178A (en) * 2023-06-20 2023-10-20 本钢板材股份有限公司 An advanced hot stamping forming method for high Cr-Si alloyed coating-free hot stamping steel
CN117600334A (en) * 2023-08-25 2024-02-27 山东省领旋技术开发有限公司 A sandwich hot forming steel plate roll forming process
CN117505525A (en) * 2023-11-17 2024-02-06 南通江勤美金属制品有限公司 A method for rolling high corrosion-resistant pure titanium strip

Also Published As

Publication number Publication date
CN111069331B (en) 2026-01-13

Similar Documents

Publication Publication Date Title
CN111069331A (en) A formability gradient control device and method for ultra-high strength steel
US20160059295A1 (en) Method and press for producing sheet metal parts that are hardened at least in regions
CN101805821B (en) Integrated stamping forming treatment method of steel
CN107552625B (en) The heating device, production line and method of subregion intensity heat-punch member can be produced
CN113145745A (en) Double-station blanking thermoforming tool and method for producing thermoformed and press-quenched motor vehicle parts
CN103826771B (en) The manufacture method of stamping product and stamping equipment
US7533553B2 (en) Hot-shaping and hardening a workpiece
RU2711705C2 (en) Systems and methods of pressing
US20110094282A1 (en) Method and hot forming system for producing a hardened, hot formed workpiece
EP2791372B1 (en) Method and device for partially hardening sheet metal components
JP5730308B2 (en) Steel plate forming method by hot pressing
CN108070704B (en) An ultra-thin and high-strength steel plate full hydraulic roll pressing quenching system
RU2742549C1 (en) Methods for pressing coated steel and application of steel
CN105363864B (en) Thermoforming apparatus and method for producing press-quenched formed parts from steel sheets
CN104056994B (en) The intensive hot forming production line of automobile boron steel part and heat forming technology
CN115397578B (en) Hot pressing production line and manufacturing method of hot-pressed products
CN211757698U (en) Shape gradient control device of ultrahigh-strength steel
CN106916930A (en) Thermoforming line and its operation method for manufacturing the steel sheet product of thermoforming and pressure quench
CN103805761A (en) Hot forming line for producing hot formed and press hardened steel sheet products
CN109661281B (en) Hot pressing device
CN202139274U (en) Continuous pressurizing, oil injection and quenching device
TW201224157A (en) Method and apparatus for producing a shaped component
KR101990994B1 (en) Rolling mill
CN113249559A (en) Continuous furnace for hot forming and press hardening
EP4219036A1 (en) Press systems and methods

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
GR01 Patent grant
GR01 Patent grant
