CN111663303A - A washing machine wall installation structure, installation method and wall-mounted washing machine - Google Patents

Abstract

The invention discloses a washing machine wall installation structure, an installation method and a wall-mounted washing machine. The installation structure includes a fixing member for fixing on one side of the wall, and the fixing member is provided with a first installation hole a connecting piece for passing through the first mounting hole of the fixing piece and the wall to connect with the washing machine on the other side of the wall. The present invention increases the strength of the support provided by the wall by installing the fixing member on one side of the wall, and the connecting member passes through the first mounting hole of the fixing member and the wall to install the washing machine on the wall. On the other side of the wall, the washing machine can use the fixing parts on the other side to improve the installation stability and installation strength, and can realize the installation of the washing machine on the mezzanine wall, with high support strength, good stability and wide application range. Features.

Description

A washing machine wall installation structure, installation method and wall-mounted washing machine

technical field

The invention belongs to the field of washing machine installation, and in particular relates to a washing machine wall installation structure, an installation method and a wall-mounted washing machine.

Background technique

Wall-mounted home appliances can be installed on the wall to improve the space utilization rate of consumers' homes, so they are increasingly favored by consumers, especially small-capacity wall-mounted washing machines.

Most of the existing wall-mounted drum washing machine installation methods are to directly fix the washing machine to the wall with bolts. The wall-mounted washing machine is directly installed on the wall, and there is a certain degree of vibration during the washing process. Because the interlayer wall generally has a hollow interlayer or a soft interlayer such as a sponge, it does not have the strength of the wall to be able to install and fix the washing machine, and cannot stably fix the expansion bolts. If the washing machine is installed on a light wall, when the washing machine is running, the fixed place of the expansion bolt will become loose due to the force, which will make the washing machine loose from the wall, or even fall off, posing a great safety hazard. Since the installation of the wall-mounted washing machine has certain restrictions on the wall, users are often unable to install and use the wall-mounted washing machine on the mezzanine wall.

The present invention has been made in view of this.

SUMMARY OF THE INVENTION

The technical problem to be solved by the present invention is to overcome the deficiencies of the prior art and provide a wall mounting structure for a washing machine that can be firmly mounted on a wall with interlayers.

The invention also provides a washing machine wall installation structure that can be installed quickly and can avoid wall reconstruction projects.

Another object of the present invention is to provide an installation method capable of installing a washing machine on a mezzanine wall.

Another object of the present invention is to provide a wall-mounted washing machine.

In order to solve the above technical problems, the basic idea of the technical solution adopted in the present invention is to provide a wall mounting structure for a washing machine, and the mounting structure includes:

a fixing piece for fixing on one side of the wall, the fixing piece is provided with a first installation hole;

The connecting piece is used for passing through the first installation hole of the fixing piece and the wall, and connecting with the washing machine on the other side of the wall.

The present invention increases the strength of the support provided by the wall by installing the fixing member on one side of the wall, and the connecting member passes through the first mounting hole of the fixing member and the wall to install the washing machine on the wall. On the other side of the wall, the washing machine can use the fixing piece on the other side to improve the installation stability and installation strength, and the washing machine can be installed on the interlayer wall, which is safe and reliable.

Further, the fixing member includes a fixing plate, the fixing plate has a cavity, the first mounting hole is provided at the bottom of the cavity, and one end of the connecting piece is installed in the cavity.

In the present invention, by setting a cavity on the fixing plate and installing one end of the connecting piece in the cavity, the connecting piece can be prevented from protruding from the wall surface and users can be prevented from bumping in life.

Further, the fixing plate is provided with a protruding part, the protruding part is formed by a part of the fixing plate protruding to the same side, and the protruding part is used to be embedded on one side of the wall;

Preferably, one side of the fixing plate is punched toward the other side, the concave cavity is formed on one side of the fixing plate, and the protruding portion is formed on the other side of the fixing plate.

Further, the fixing member further includes a blocking cover installed in the cavity for blocking the opening of the cavity.

Further, the connecting piece includes a screw rod and a nut, the screw rod is used to pass through the first installation hole, the wall and the installation part of the washing machine, and the nut includes,

The first nut is used for connecting with the screw rod on one side of the wall to fix the fixing piece on one side of the wall;

The second nut is used for connecting with the screw rod on the other side of the wall to fix the washing machine on the other side of the wall.

Further, the nut also includes,

a third nut, the third nut is connected to the screw rod, is located between the first nut and the second nut, and is used for cooperating with the first nut to fix the screw rod on the wall;

Preferably, the connecting member further includes a vibration damping member for buffering vibration between the wall and the washing machine.

The present invention also provides an installation method with any of the above-mentioned washing machine wall installation structures, comprising the following steps:

S1, opening holes on the wall to form second installation holes connecting both sides of the wall;

S2, the connecting piece passes through the first mounting hole of the fixing piece and the second mounting hole of the wall to fix the fixing piece on one side of the wall;

S3. Install the washing machine on the connector on the other side of the wall.

Further, in the step S1, holes are formed on the wall to form third installation holes that communicate with both sides of the wall, and then the third installation holes located on one side of the wall are trimmed to protrude from the fixing member. match to form a second mounting hole.

Further, in the step S2, the protruding portion of the fixing member is installed in the second installation hole on one side of the wall.

The present invention also provides a wall-mounted washing machine, which is installed on the wall by using the wall mounting structure of the washing machine described in any of the above or using the installation method described in any of the above.

After adopting the above technical solution, the present invention has the following beneficial effects compared with the prior art.

(1) The present invention increases the strength of the support provided by the wall by installing the fixing piece on one side of the wall, and the connecting piece passes through the first mounting hole of the fixing piece and the wall to connect The washing machine is installed on the other side of the wall, and the washing machine can use the fixing piece on the other side to improve the installation stability and installation strength, and the washing machine can be installed on the mezzanine wall, which is safe and reliable. The installation structure of the invention has the characteristics of high support strength, good stability and wide application range.

(2) In the present invention, by setting a cavity on the fixing plate, and installing one end of the connecting piece in the cavity, the connecting piece can be prevented from protruding from the wall surface and users can be prevented from bumping in life.

The specific embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.

Description of drawings

The accompanying drawings, as a part of the present invention, are used to provide further understanding of the present invention, and the exemplary embodiments of the present invention and their descriptions are used to explain the present invention, but do not constitute an improper limitation of the present invention. Obviously, the drawings in the following description are only some embodiments, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort. In the attached image:

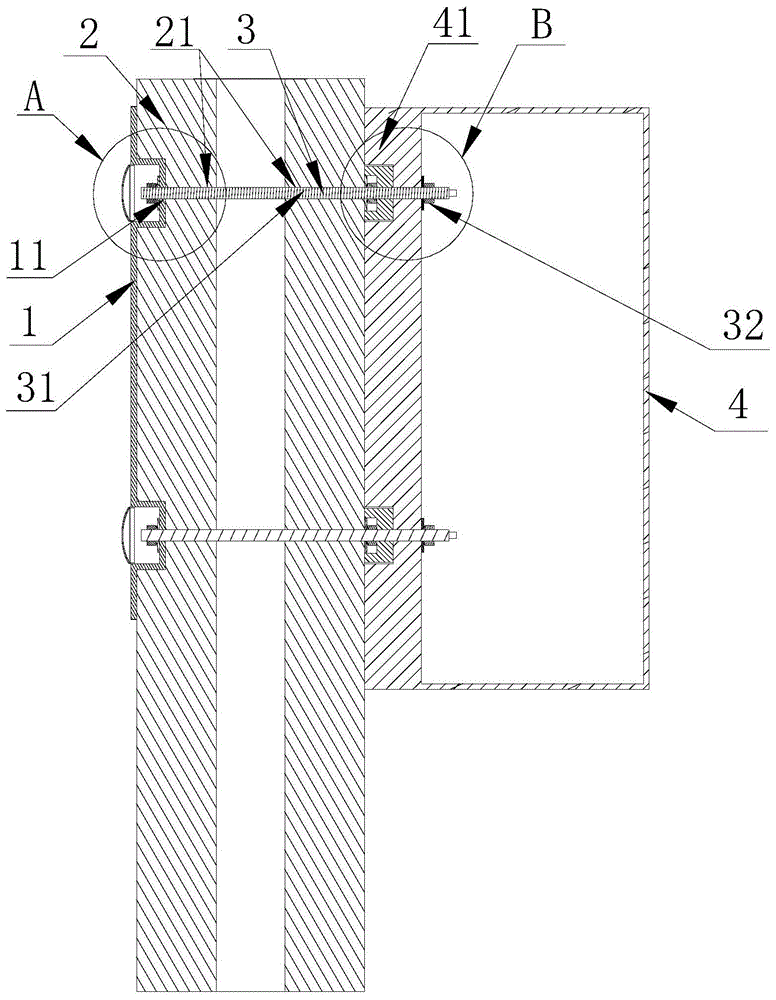

Fig. 1 is the schematic diagram of the wall mounting structure of the washing machine of the present invention;

Fig. 2 is the enlarged schematic diagram of the place A in Fig. 1 of the present invention;

Fig. 3 is the schematic diagram of the fixing member in the present invention;

Fig. 4 is the enlarged schematic diagram of the place B in Fig. 1 of the present invention;

Fig. 5 is the schematic diagram of the third mounting hole in the present invention;

FIG. 6 is a schematic diagram of the second mounting hole in the present invention.

In the figure: 1. Fixing part; 11. First installation hole; 12. Fixing plate; 121. Hollow part; 13. Protruding part; 14. Recess; 15. Blocking cover; 2. Wall; 21. Section Two mounting holes; 22, the third mounting hole; 3, connecting piece; 31, screw rod; 32, nut; 321, the first nut; 322, the second nut; 323, the third nut; 33, the damping element; 4. Washing machine; 41. Mounting part; 411. Groove; 42. Fourth mounting hole.

It should be noted that these drawings and written descriptions are not intended to limit the scope of the present invention in any way, but to illustrate the concept of the present invention to those skilled in the art by referring to specific embodiments.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and the following embodiments are used to illustrate the present invention , but are not intended to limit the scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "front", "rear", "left", "right", "vertical", "inner", "outer", etc. The indicated orientation or positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation or a specific orientation. construction and operation, and therefore should not be construed as limiting the invention.

In the description of the present invention, it should be noted that the terms "installed", "connected" and "connected" should be understood in a broad sense, unless otherwise expressly specified and limited, for example, it may be a fixed connection or a detachable connection Connection, or integral connection; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

As shown in Figures 1 to 6, the wall mounting structure of the washing machine according to the present invention includes:

A fixing member 1 is used to be fixed on one side of the wall 2, and the fixing member 1 is provided with a first installation hole 11;

The connecting piece 3 is used to pass through the first mounting hole 11 of the fixing piece 1 and the wall body 2 , and is connected to the mounting part 41 of the washing machine 4 on the other side of the wall body 2 .

The washing machine wall installation structure of the present invention can be applied to coal ash walls, walls with interlayers, and non-load-bearing walls to install washing machines, and can also be used to install home appliances such as washing machines, air conditioners, water heaters, and range hoods. Sandwich walls generally have soft interlayers such as hollow interlayers or sponges. In the prior art, in order to install the washing machine on a wall with interlayers, it is necessary to carry out a renovation project on the wall, such as filling the wall with high-strength filling materials or fillers, increasing the strength of the wall, and then carrying out drilling. hole installation. The invention can directly drill holes on the wall for installation, and does not need to carry out wall reconstruction works on the wall with interlayer, so that the user's wall is beautiful and the installation cost is saved.

The present invention increases the strength of the support provided by the wall 2 by installing the fixing member 1 on one side of the wall 2 , and the connecting member 3 passes through the first installation holes 11 , The wall body 2 installs the washing machine 4 on the other side of the wall body 2. The washing machine 4 can use the fixing member 1 on the other side to improve the installation stability and installation strength, and can realize the installation of the washing machine 4 on the mezzanine wall. ,Safe and reliable. The installation structure of the invention has the characteristics of high support strength, good stability and wide application range.

The wall body 2 has second installation holes 21 penetrating both sides of the wall body 2, and the connecting piece 3 is used to pass through the first installation hole 11 of the fixing piece 1 and the second installation hole 21 of the wall body 2, It is connected to the attachment part 41 of the washing machine 4 . The fixing member 1 and the second mounting hole 21 match the mounting structure of the mounting portion 41 of the washing machine 4 .

As shown in FIG. 2 to FIG. 3 , the fixing member 1 includes a fixing plate 12 , the fixing plate 12 has a cavity 14 , the first mounting hole 11 is arranged at the bottom of the cavity 14 , and the One end of the connector 3 is installed in the cavity 14 . The shape of the fixing plate 12 can match the shape of the back plate of the washing machine 4 , and the larger the area of the fixing plate 12 is, the greater the strength that can be provided for the installation of the washing machine 4 .

By arranging a cavity 14 on the fixing plate 12 and installing one end of the connecting piece 3 in the cavity 14, the connecting piece 3 can be prevented from protruding from the wall, and users can be prevented from bumping in life.

The fixing plate 12 has a protruding portion 13 formed by a part of the fixing plate 12 protruding toward the same side. in the second mounting hole 21 on the side. Preferably, the second mounting hole 21 is a variable diameter through hole.

Preferably, the fixing plate 12 is punched from one side to the other side, the concave cavity 14 is formed on one side of the fixing plate 12 , and the protruding portion 13 is formed on the other side of the fixing plate 12 . The protruding portion 13 is cylindrical or prismatic, the cavity 14 is cylindrical, and the diameter of the first mounting hole 11 is smaller than the diameter of the bottom of the cavity 14 . The first mounting hole 11 is arranged at the bottom center of the cavity 14 .

A preferred solution is that the fixing plate 12 has four concave cavities 14 and four first mounting holes 11 , and the first mounting holes 11 are respectively disposed at the bottom of the concave cavities 14 .

A more preferred solution is that the fixing plate 12 has a hollow portion 121 in the middle position, and the hollow portion 121 can reduce the weight of the fixing plate 12 and reduce the cost. The arrangement of the hollow portion 121 also facilitates the installation and separation of the fixing plate 12 . The first mounting holes 11 are arranged around the periphery of the fixing plate 12 . Preferably, the shape of the fixing plate 12 is a rectangle with rounded corners, and the hollow portion 121 is a circle.

The fixing member 1 further includes a blocking cover 15 installed in the cavity 14 for blocking the opening of the cavity 14 . By arranging the blocking cover 15, the wall surface can be kept flat and beautiful, and users can be prevented from being scratched. The blocking cover 15 is adapted to the shape of the cavity 14 . Preferably, the fixing member 1 is a sheet metal member formed by processing a thin plate through a sheet metal process.

As shown in FIG. 4 , the connecting member 3 includes a screw rod 31 and a nut 32. The screw rod 31 is used to pass through the first mounting hole 11, the wall body 2 and the mounting portion 41 of the washing machine. The nut 32 includes a first The nut 321 is used to connect with the screw 31 on one side of the wall 2 to fix the fixing member 1 on one side of the wall 2; the second nut 322 is used to connect with the screw 31 on the other side of the wall 2 to connect the washing machine 4 is fixed on the other side of the wall 2.

Specifically, the mounting portion 41 of the washing machine 4 includes a fourth mounting hole 42 , the screw rod 31 passes through the first mounting hole 11 , the second mounting hole 21 and the fourth mounting hole 42 , and one end of the screw rod 31 protrudes The first mounting hole 11 on one side of the wall 2 is connected with the first nut 321 ; the other end of the screw 31 protrudes from the fourth mounting hole 42 on the other side of the wall 2 , and is connected with the second nut 322 connect.

The installation part 41 of the washing machine 4 of the present invention can be a structure configured by the washing machine itself, such as the rear panel that constitutes the rear wall of the outer tub of the washing machine, or the mounting parts such as the hanging lugs arranged on the peripheral wall of the rear end of the outer tub, and can also be additional accessories, such as Mounting frame, etc.

The first nut 321 may be an integral structure with the screw rod 31 , and the first nut 321 is a nut connected to the screw rod 31 . The length of the screw rod 31 is greater than the depth of the second installation hole 21 . A gasket 34 is provided between the first nut 321 and one side of the wall 2 . Between the second nut 322 and the mounting portion 41 , a cushion member 34 and a vibration damping member 33 are arranged in sequence. The gasket 34 is a gasket and is sleeved on the screw 31 . The depth of the cavity 14 is 3-4 times the thickness of the first nut 321 .

The nut 32 further includes a third nut 323 , which is located between the first nut 321 and the second nut 322 and is used to cooperate with the first nut 321 to fix the screw rod 31 on the wall 2 . The third nut 323 is located between the other side of the wall 2 and the washing machine 4 .

With the cooperation of the first nut 321 and the third nut 323, both ends of the screw rod 31 can be fixed on the wall 2, and the fixing member 1 is fixed on one side of the wall 2 through the connecting member 3, ensuring that The stability and connection strength of the connector 3 on the wall 2, and then the washing machine 4 is installed on the screw 31 protruding from the other side of the wall 2, and fixed by the second nut 322, which can improve the strength of the entire installation structure and ensure The stability of the installation of the washing machine 4 is improved.

The first nut 321 is installed in the cavity 14 . A groove 411 communicated with the fourth mounting hole 42 is provided on the side of the mounting portion 41 of the washing machine 4 close to the wall 2 , the third nut 323 , the vibration damping member 33 , the pad The parts 34 are located in the grooves 411 of the installation part 41, which can maintain the stability of the installation of the washing machine 4. The present invention uses the two ends of the connecting piece 3 to install the fixing piece 1 and the washing machine 4 respectively. Since the connecting piece 3 needs to penetrate the wall 2, the use of the screw 31 can facilitate production and processing, with high versatility and convenient installation.

The connecting member 3 further includes a vibration damping member 33 for damping the vibration between the wall 2 and the washing machine 4 , and is located between the third nut 323 and the washing machine 4 . A cushion member 34 is provided between the vibration damping member 33 and the washing machine 4 . The vibration damping member 33 is matched with the groove 411 of the mounting portion 41 , and the vibration damping member 33 is a shock-absorbing cushion and is sleeved on the outer peripheral wall of the third nut 323 .

Preferably, the second mounting hole 21 is a variable diameter through hole. The protruding portion 13 and the screw rod 31 are matched with the second mounting hole 21 respectively. The outer diameter of the protruding portion 13 is larger than the outer diameter of the screw rod 31. Preferably, the protruding portion 13 The outer diameter is 4-5 times the outer diameter of the screw 31 .

The present invention also provides an installation method with any of the above-mentioned washing machine wall installation structures, comprising the following steps:

S1, opening holes on the wall body 2 to form second installation holes 21 connecting both sides of the wall body 2;

S2, the connecting piece passes through the first mounting hole 11 of the fixing piece 1 and the second mounting hole 21 of the wall body 2 to fix the fixing piece 1 on one side of the wall body 2;

S3. Install the washing machine 4 on the connector 3 on the other side of the wall 2.

The wall-mounted washing machine wall installation method of the present invention improves the load-bearing capacity of the wall 2, and can install the washing machine 4 on a coal ash wall, a wall with interlayers, and a non-load-bearing wall, with a simple method and high installation strength.

In the present invention, by forming the second installation holes 21 penetrating both sides of the wall body 2 on the wall body 2, the fixing member 1 is installed on one side of the wall body 2, thereby increasing the strength that the wall body 2 can support, so The connecting piece 3 passes through the first mounting hole 11 of the fixing piece 1 and the wall body 2 to install the washing machine 4 on the other side of the wall body 2. The washing machine 4 can be improved by the fixing piece 1 on the other side. The installation stability and installation strength can realize the installation of the washing machine 4 on the interlayer wall, which is safe and reliable. The installation structure of the invention has the characteristics of high support strength, good stability and wide application range.

In the step S1, holes are formed on the wall body 2 to form third installation holes 22 (refer to FIG. 5 ) connecting both sides of the wall body 2, and then the part of the third installation hole 22 on one side of the wall body 2 is installed. The hole is enlarged and trimmed to match the protruding portion 13 of the fixing member 1 to form a second mounting hole 21 (refer to FIG. 6 ). The depth of the reamed portion of the second mounting hole 21 matches the protruding height of the protruding portion 13 .

Specifically, in the step S2, the protruding portion 13 of the fixing member 1 is installed in the second installation hole 21 on one side of the wall 2; the screw rod 31 is passed through the first installation hole 11 and the second installation hole 11. In the hole 21 , by installing nuts 32 on both sides of the wall 2 of the screw 31 , the screw 31 and the fixing member 1 are fixed on the wall 2 .

The specific method is: pass the screw rod 31 through the first installation hole 11 and the second installation hole 21, install the washer 34, the vibration damping member 33 and the first nut 321 on the screw rod 31 on the side of the wall body 2 in sequence, A washer 34 , a damping member 33 and a second nut 322 are sequentially installed on the screw 31 on the other side of the body 2 to fix the screw 31 and the fixing member 1 on the wall 2 .

After the step S2 or the step S3 is completed, the blocking cover 15 is installed in the cavity 14 of the fixing member 1 .

The present invention also provides a wall-mounted washing machine. As shown in FIG. 1 , the washing machine 4 is installed on the wall 2 using the wall mounting structure of the washing machine described in any of the above or the installation method described in any of the above. . The installation strength of the washing machine is high, which overcomes the problem that the washing machine cannot be installed on coal ash walls, walls with interlayers, and non-load-bearing walls.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention in any form. Although the present invention has been disclosed above with preferred embodiments, it is not intended to limit the present invention. Without departing from the scope of the technical solution of the present invention, when the technical content indicated above can be used to make some changes or modifications to equivalent examples of equivalent changes, the implementations in the above-mentioned examples can also be further combined or replaced, but any Without departing from the content of the technical solution of the present invention, any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention still fall within the scope of the solution of the present invention.

Claims (10)

1. A washing machine wall mounting structure, characterized in that: the mounting structure comprises, a fixing piece for fixing on one side of the wall, the fixing piece is provided with a first installation hole; The connecting piece is used for passing through the first installation hole of the fixing piece and the wall, and connecting with the washing machine on the other side of the wall. 2 . The wall mounting structure of a washing machine according to claim 1 , wherein the fixing member comprises a fixing plate, the fixing plate has a cavity, and the first installation hole is arranged in the cavity. 3 . The bottom of the connecting piece is installed in the cavity. 3 . The wall mounting structure of a washing machine according to claim 2 , wherein the fixing plate has a protruding part, and the protruding part is formed by a part of the fixing plate protruding to the same side. 4 . , the protruding part is used to be embedded on one side of the wall; Preferably, the fixing plate is punched from one side to the other side, the concave cavity is formed on one side of the fixing plate, and the protruding portion is formed on the other side of the fixing plate. 4. The wall mounting structure of a washing machine according to claim 2 or 3, wherein the fixing member further comprises a blocking cover, and the blocking cover is installed in the concave cavity for blocking the opening of the cavity. 5. A washing machine wall mounting structure according to any one of claims 1-4, wherein the connecting piece comprises a screw and a nut, and the screw is used to pass through the first installation hole, the wall and the washing machine the mounting portion, the nut includes, The first nut is used for connecting with the screw rod on one side of the wall to fix the fixing piece on one side of the wall; The second nut is used for connecting with the screw rod on the other side of the wall to fix the washing machine on the other side of the wall. 6. The wall mounting structure of a washing machine according to claim 5, wherein the nut further comprises: a third nut, the third nut is connected to the screw rod, is located between the first nut and the second nut, and is used for cooperating with the first nut to fix the screw rod on the wall; Preferably, the connecting member further includes a vibration damping member for buffering vibration between the wall and the washing machine. 7. An installation method with the wall mounting structure of a washing machine according to any one of claims 1-6, characterized in that it comprises the following steps: S1, opening holes on the wall to form second installation holes connecting both sides of the wall; S2, the connecting piece passes through the first mounting hole of the fixing piece and the second mounting hole of the wall to fix the fixing piece on one side of the wall; S3. Install the washing machine on the connector on the other side of the wall. 8. The installation method according to claim 7, wherein in the step S1, holes are formed on the wall to form third installation holes connecting both sides of the wall, and then the The third mounting hole is trimmed to match with the protruding portion of the fixing member, forming the second mounting hole. 9 . The installation method according to claim 7 , wherein in the step S2 , the protruding portion of the fixing member is installed in the second installation hole on one side of the wall. 10 . 10. A wall-mounted washing machine, characterized in that it is mounted on the wall by using the wall mounting structure of the washing machine according to any one of claims 1-6 or using the mounting method according to any one of claims 7-9.
