Abstract

The invention discloses an adjustable medicine constant temperature storage box, comprising a constant temperature storage box body, a cavity is formed on the upper part of the constant temperature storage box body, a fixing seat is arranged at the bottom of the cavity, and a placement groove is arranged on the top of the fixing seat, There is a buffer seat in the placement groove, a semiconductor refrigerator is fixedly installed on the top of the buffer seat, two symmetrically arranged positioning pins are fixedly installed on the inner wall of the bottom of the cavity, and two positioning pins are provided on the side away from each other. Symmetrically arranged card slots, the bottom of the fixing seat is provided with two symmetrically arranged positioning slots, and the positioning pins are adapted to the corresponding positioning slots, and a first groove is opened on the inner wall of one side of the two positioning slots away from each other . The invention has high practical performance, simple structure, convenient operation, and is convenient for disassembling and assembling the semiconductor refrigerator.

Description

An adjustable medicine constant temperature storage box

technical field

The invention relates to the technical field of constant temperature storage boxes, in particular to an adjustable medicine constant temperature storage box.

Background technique

At present, patients with uremia and anemia are treated with erythropoietin, diabetic patients are treated with insulin, and many biological agents have strict requirements on storage temperature, and it is necessary to ensure that the temperature is within a certain ambient temperature (2 ~ 20 ℃). )save. Therefore, when patients need to inject these drugs, the medical staff will take their drugs out of the refrigerator, thus avoiding the failure of the drug solution. However, when patients take medicines home when they are discharged from the hospital, how to properly store these refrigerated medicines on the road, and how to store these medicines that patients need to carry on their journeys have become an important issue that everyone pays attention to. It is easy to disassemble and assemble the semiconductor refrigerator, and during the use of the semiconductor refrigerator, vibration will occur, and there is a problem that it is inconvenient to buffer and shock the semiconductor refrigerator. Therefore, we propose an adjustable medicine constant temperature. Storage boxes are used to solve the above problems.

SUMMARY OF THE INVENTION

Based on the technical problems existing in the background art, the present invention proposes an adjustable medicine constant temperature storage box.

An adjustable medicine constant temperature storage box proposed by the present invention includes a constant temperature storage box body, a cavity is formed on the upper part of the constant temperature storage box body, a fixing seat is arranged at the bottom of the cavity, and a placing slot is arranged on the top of the fixing seat, There is a buffer seat in the placement groove, a semiconductor refrigerator is fixedly installed on the top of the buffer seat, two symmetrically arranged positioning pins are fixedly installed on the inner wall of the bottom of the cavity, and two positioning pins are provided on the side away from each other. Symmetrically arranged card slots, the bottom of the fixing seat is provided with two symmetrically arranged positioning slots, and the positioning pins are adapted to the corresponding positioning slots, and a first groove is opened on the inner wall of one side of the two positioning slots away from each other , a slide plate is slidably installed in the first groove, two symmetrically arranged bayonet pins are fixedly installed on the sides of the two slide boards that are close to each other, and the bayonet pins are clamped with the corresponding bayonet slots, and the first groove is far away from its A connecting plate is slidably installed on the inner wall of one side of the mouth, the bottom of the connecting plate is hinged with one end of the connecting rod, the other end of the connecting rod is hinged on the slide plate, the top inner wall of the first groove is provided with a second groove, the second A rotating shaft is rotatably installed in the groove, the bottom end of the rotating shaft is provided with a rotating groove, a screw sleeve is fixedly installed in the rotating groove, a screw rod is provided on the screw sleeve, and the bottom end of the screw rod extends to the first groove inside and fixedly installed on the corresponding connecting plate, the top of the rotating shaft is fixedly installed with a rotating rod, and the top of the rotating rod extends to the top of the fixed seat and is fixedly installed with a rotary switch;

A plurality of support rods are fixedly installed on the inner wall of the bottom of the placement groove, a plurality of buffer grooves are opened at the bottom of the buffer seat, and the top end of the support rod extends into the buffer groove, and the inner walls of both sides of the buffer groove are provided with a first A spring groove, a baffle plate is slidably installed in the first spring groove, one end of a plurality of first springs is fixedly installed on one side of the baffle plate, and the other end of the first springs is fixedly installed on the inner wall of one side of the first spring groove, and the baffle plate is fixed on one side of the first spring groove. The other side of the plate is hinged with one end of the vertical rod, the other end of the vertical rod is hinged on the corresponding support rod, the side wall of the placement groove is provided with a plurality of second spring grooves, and the second spring grooves are far away from the inner wall of the open side One end of the second spring is fixedly installed on the upper part, and the other end of the second spring extends into the placing groove and contacts the buffer seat.

Preferably, the inner wall of the bottom of the first groove is provided with a chute, the bottom of the slide plate is fixedly installed with a slider, and the slider is slidably connected to the side wall of the corresponding chute.

Preferably, a limit slot is formed on the inner wall of the first groove away from its opening, a limit block is fixedly installed on one side of the connecting plate, and the limit block is slidably connected to the side wall of the limit slot.

Preferably, a first ball is installed on one side of the limit block in a rolling manner, and the first ball is connected with the corresponding limit groove in a rolling manner.

Preferably, the screw sleeve is provided with threaded holes, and the screw is threadedly connected with the corresponding threaded holes.

Preferably, a bearing is fixedly sleeved on the rotating shaft, and the outer ring of the bearing is fixedly mounted on the inner wall of the second groove.

Preferably, the number of the buffer grooves is six to ten, and the six to ten buffer grooves are arranged at equal intervals.

Preferably, second balls are installed on the top and bottom of the baffle plate in a rolling manner, and the second balls are in rolling connection with the first spring groove.

Compared with the prior art, the beneficial effects of the present invention are:

(1) By cooperating with the rotary switch, the rotating rod, the rotating shaft, the screw sleeve, the screw, the connecting plate, the connecting rod, the sliding plate, the bayonet and the bayonet, the fixing seat is placed in the cavity, so that the positioning pin is placed in the cavity. In the positioning groove, turn the rotary switch, the rotary switch drives the rotating rod to rotate, the rotating rod drives the rotating shaft to rotate, the rotating shaft drives the screw sleeve to rotate, the screw sleeve drives the screw to move, the screw drives the connecting plate to move, and the connecting plate The connecting rod is driven to move, the connecting rod drives the slide plate to move, and the slide plate drives the bayonet to move, so that the bayonet is stuck in the bayonet slot, so as to fix the fixed seat and install the semiconductor refrigerator;

(2) Through the cooperation of the buffer seat, the support rod, the vertical rod, the baffle, the first spring and the second spring, when in use, the semiconductor refrigerator vibrates, and the semiconductor refrigerator transmits the vibration to the buffer plate, and the buffer plate The vibration in the horizontal direction is transmitted to the second spring, and the buffer plate transmits the vibration in the vertical direction to the baffle through the vertical rod, so that the baffle compresses the first spring, and through the elastic deformation of the first spring and the second spring, Buffering and damping of semiconductor refrigerators.

The invention has high practical performance, simple structure, convenient operation, and is convenient for disassembling and assembling the semiconductor refrigerator.

Description of drawings

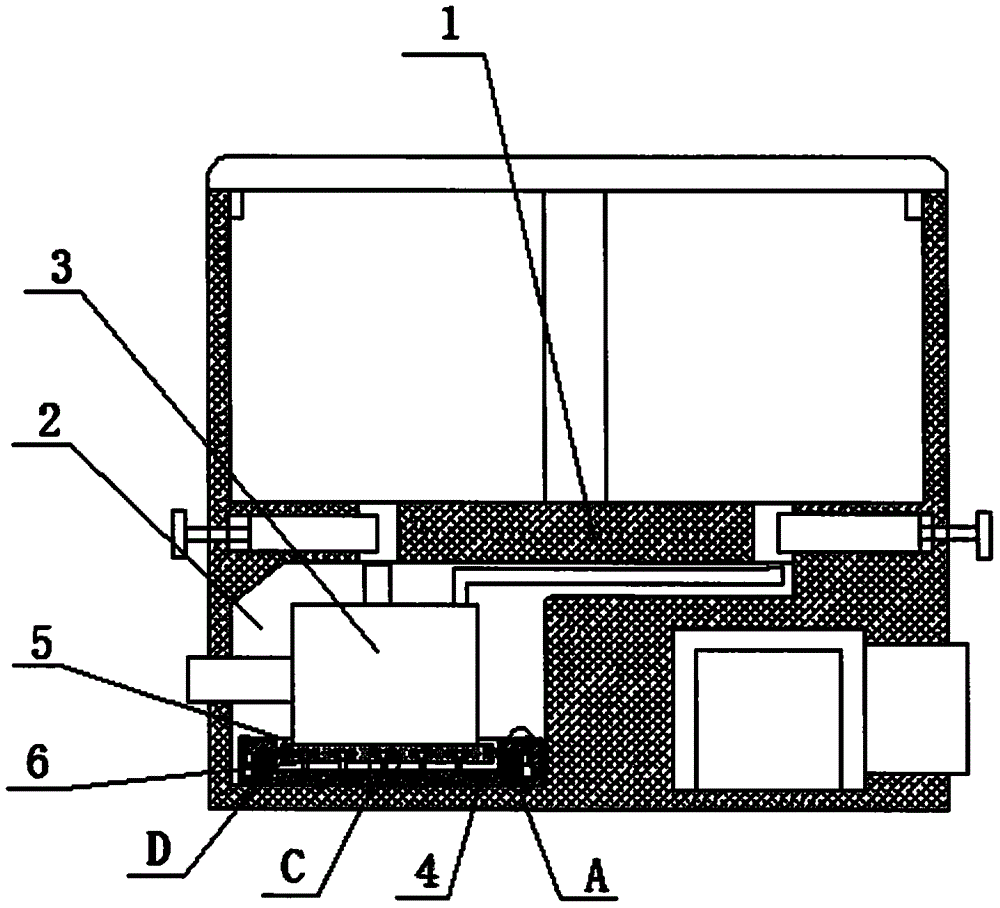

Fig. 1 is the structural representation of a kind of regulated medicine constant temperature storage box proposed by the present invention;

Fig. 2 is the sectional structure schematic diagram of part A of a kind of regulation type medicine constant temperature storage box proposed by the present invention;

3 is a schematic cross-sectional structure diagram of part B of an regulated medicine constant temperature storage box proposed by the present invention;

4 is a schematic cross-sectional structural diagram of part C of an regulated medicine constant temperature storage box proposed by the present invention;

FIG. 5 is a schematic cross-sectional structural diagram of part D of an regulated medicine constant temperature storage box proposed by the present invention.

In the figure: 1 thermostatic storage box body, 2 cavity, 3 semiconductor refrigerator, 4 fixed seat, 5 placement slot, 6 buffer seat, 7 positioning pin, 8 positioning slot, 9 card slot, 10 first groove, 11 slide plate , 12 bayonet pins, 13 connecting plates, 14 connecting rods, 15 second grooves, 16 rotating shafts, 17 rotating grooves, 18 screw sleeves, 19 screw rods, 20 rotating rods, 21 rotary switches, 22 supporting rods, 23 buffer grooves , 24 first spring groove, 25 baffle plate, 26 first spring, 27 vertical rod, 28 second spring groove, 29 second spring.

Detailed ways

The present invention will be further explained below in conjunction with specific embodiments.

Example

Referring to FIGS. 1-5 , an adjustable medicine constant temperature storage box is proposed in this embodiment, including a constant temperature storage box body 1 , a cavity 2 is opened on the top of the constant temperature storage box body 1 , and a fixing seat is arranged at the bottom of the cavity 2 4. The top of the fixed seat 4 is provided with a placement slot 5, and the placement slot 5 is provided with a buffer seat 6, the top of the buffer seat 6 is fixedly installed with the semiconductor refrigerator 3, and the bottom inner wall of the cavity 2 is fixedly installed with two symmetrically arranged The two positioning pins 7 are provided with two symmetrically arranged clamping slots 9 on the side away from each other, and the bottom of the fixing base 4 is provided with two symmetrically arranged positioning slots 8, and the positioning pins 7 and the corresponding The positioning grooves 8 are adapted to each other, and a first groove 10 is opened on the inner wall of one side of the two positioning grooves 8 away from each other. A sliding plate 11 is slidably installed in the first groove 10, and the sides of the two sliding plates 11 are close to each other. Two symmetrically arranged bayonet pins 12 are fixedly installed, and the bayonet pins 12 are clamped with the corresponding bayonet slots 9. A connecting plate 13 is slidably installed on the inner wall of the first groove 10 away from its mouth. The connecting plate 13 One end of the connecting rod 14 is hinged on the bottom of the bottom of the connecting rod 14, the other end of the connecting rod 14 is hinged on the slide plate 11, a second groove 15 is opened on the top inner wall of the first groove 10, and a rotating shaft 16 is installed in the second groove 15. , the bottom end of the rotating shaft 16 is provided with a rotating groove 17, a screw sleeve 18 is fixedly installed in the rotating groove 17, a screw rod 19 is threaded on the screw sleeve 18, and the bottom end of the screw rod 19 extends to the first groove. 10 and fixedly installed on the corresponding connecting plate 13, the top of the rotating shaft 16 is fixedly installed with a rotating rod 20, and the top of the rotating rod 20 extends to the top of the fixed seat 4 and is fixedly installed with a rotary switch 21, the bottom of the slot 5 is placed A plurality of support rods 22 are fixedly installed on the inner wall, a plurality of buffer grooves 23 are formed at the bottom of the buffer seat 6 , and the top of the support rod 22 extends into the buffer groove 23 . A spring groove 24, a baffle 25 is slidably installed in the first spring groove 24, one end of a plurality of first springs 26 is fixedly installed on one side of the baffle 25, and the other end of the first spring 26 is fixedly installed in the first spring groove 24 On the inner wall of one side, the other side of the baffle 25 is hinged with one end of the vertical rod 27, the other end of the vertical rod 27 is hinged on the corresponding support rod 22, and the side wall of the placement slot 5 is provided with a plurality of second spring grooves 28. One end of the second spring 29 is fixedly installed on the inner wall of the side of the second spring groove 28 away from the opening, and the other end of the second spring 29 extends into the placing groove 5 and contacts the buffer seat 6, through the rotary switch 21, The rotating rod 20, the rotating shaft 16, the screw sleeve 18, the screw rod 19, the connecting plate 13, the connecting rod 14, the sliding plate 11, the locking pin 12 and the locking groove 9 are matched, and the fixing seat 4 is placed in the cavity 2, so that the positioning The pin 7 is placed in the positioning slot 8, the rotary switch 21 is rotated, the rotary switch 21 drives the rotating rod 20 to rotate, the rotating rod 20 drives the rotating shaft 16 to rotate, the rotating shaft 16 drives the screw sleeve 18 to rotate, and the screw sleeve 18 drives the screw rod 19 moves, the screw 19 drives the connecting plate 13 to move, and the connecting plate 13 drives the connection The rod 14 moves, the connecting rod 14 drives the slide plate 11 to move, and the slide plate 11 drives the bayonet 12 to move, so that the bayonet 12 is snapped into the bayonet 9 , thereby fixing the fixing seat 4 , thereby installing the semiconductor refrigerator 3 , through the cooperation of the buffer seat 6, the support rod 22, the vertical rod 27, the baffle 25, the first spring 26 and the second spring 29, when in use, the semiconductor refrigerator 3 vibrates, and the semiconductor refrigerator 3 transmits the vibration to the buffer plate 6, the buffer plate 6 transmits the horizontal vibration to the second spring 29, and the buffer plate 6 transmits the vertical vibration to the baffle 25 through the vertical rod 27, so that the baffle 25 compresses the first spring 26 , through the elastic deformation of the first spring 26 and the second spring 29, the semiconductor refrigerator 3 is buffered and damped. The present invention has high practical performance, simple structure, convenient operation, and is easy to disassemble and assemble the semiconductor refrigerator 3. The elastic deformation of the first spring 26 and the second spring 29 facilitates buffering and shock absorption of the semiconductor refrigerator 3 and is convenient for people to use.

In this embodiment, a chute is opened on the inner wall of the bottom of the first groove 10 , a slider is fixedly installed at the bottom of the slide plate 11 , and the slider is slidably connected to the side wall of the corresponding chute, and the first groove 10 is far away from A limit slot is set on the inner wall of one side of the opening, a limit block is fixedly installed on one side of the connecting plate 13, and the limit block is slidably connected with the side wall of the limit slot, and a first ball is installed on one side of the limit block. , and the first ball is rollingly connected with the corresponding limit groove, the screw sleeve 18 is provided with threaded holes, and the screw 19 is threadedly connected with the corresponding threaded holes, the rotating shaft 16 is fixedly sleeved with a bearing, and the outer ring of the bearing is It is fixedly installed on the inner wall of the second groove 15. The number of buffer grooves 23 is six to ten, and the six to ten buffer grooves 23 are arranged at equal intervals. The top and bottom of the baffle plate 25 are rollingly installed with second balls. And the second ball is rollingly connected with the first spring groove 24, through the rotary switch 21, the rotary rod 20, the rotary shaft 16, the screw sleeve 18, the screw rod 19, the connecting plate 13, the connecting rod 14, the sliding plate 11, the card pin 12 and the card The slot 9 is matched, and the fixed seat 4 is placed in the cavity 2, so that the positioning pin 7 is placed in the positioning slot 8, and the rotary switch 21 is rotated. , the shaft 16 drives the screw sleeve 18 to rotate, the screw sleeve 18 drives the screw 19 to move, the screw 19 drives the connecting plate 13 to move, the connecting plate 13 drives the connecting rod 14 to move, and the connecting rod 14 drives the slide 11 to move , the sliding plate 11 drives the bayonet 12 to move, so that the bayonet 12 is locked into the bayonet slot 9, thereby fixing the fixing seat 4, so as to install the semiconductor refrigerator 3, through the buffer seat 6, the support rod 22, the vertical rod 27 , the baffle 25, the first spring 26 and the second spring 29 cooperate, when in use, the semiconductor refrigerator 3 vibrates, the semiconductor refrigerator 3 transmits the vibration to the buffer plate 6, and the buffer plate 6 transmits the horizontal vibration to the On the second spring 29 , the buffer plate 6 transmits the vertical vibration to the baffle plate 25 through the vertical rod 27 , so that the baffle plate 25 compresses the first spring 26 , through the elasticity of the first spring 26 and the second spring 29 Deformation, buffering and damping the semiconductor refrigerator 3, the present invention has high practical performance, simple structure, convenient operation, easy to disassemble and assemble the semiconductor refrigerator 3, and through the elastic deformation of the first spring 26 and the second spring 29, it is convenient to The semiconductor refrigerator 3 is buffered and damped, which is convenient for people to use.

In this embodiment, during installation, the fixing base 4 is placed in the cavity 2 so that the positioning pin 7 is placed in the positioning groove 8, the rotary switch 21 is rotated, the rotary switch 21 drives the rotating rod 20 to rotate, and the rotating rod 20 drives the rotating shaft 16 rotates, the shaft 16 drives the screw sleeve 18 to rotate, the screw sleeve 18 drives the screw 19 to move, the screw 19 drives the connecting plate 13 to move, the connecting plate 13 drives the connecting rod 14 to move, and the connecting rod 14 drives the sliding plate 11 to move, the sliding plate 11 drives the bayonet 12 to move, so that the bayonet 12 snaps into the bayonet 9, thereby fixing the fixing seat 4, so as to install the semiconductor refrigerator 3, and the semiconductor refrigerator 3 vibrates during use , the semiconductor refrigerator 3 transmits the vibration to the buffer plate 6, the buffer plate 6 transmits the horizontal vibration to the second spring 29, and the buffer plate 6 transmits the vertical vibration to the baffle plate 25 through the vertical rod 27, The baffle 25 compresses the first spring 26, and the semiconductor refrigerator 3 is buffered and damped by elastic deformation of the first spring 26 and the second spring 29, which is convenient for people to use.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (8)

1. An adjustable medicine constant temperature storage box, comprising a constant temperature storage box body (1), characterized in that a cavity (2) is provided on the top of the constant temperature storage box body (1), and the bottom of the cavity (2) is provided with a cavity (2). A fixed seat (4) is provided, a placement groove (5) is opened on the top of the fixed seat (4), a buffer seat (6) is arranged in the placement groove (5), and a semiconductor refrigerator is fixedly installed on the top of the buffer seat (6). (3), two symmetrically arranged positioning pins (7) are fixedly installed on the bottom inner wall of the cavity (2), and two symmetrically arranged clamping slots ( 9), the bottom of the fixed seat (4) is provided with two symmetrically arranged positioning grooves (8), and the positioning pin (7) is adapted to the corresponding positioning groove (8), and the two positioning grooves (8) are far away from each other A first groove (10) is opened on the inner wall of one side of the sliding plate, a sliding plate (11) is slidably installed in the first groove (10), and two symmetrical sliding plates (11) are fixedly installed on one side of the two sliding plates (11) close to each other. A bayonet (12) is provided, and the bayonet (12) is clamped with the corresponding bayonet (9), and a connecting plate (13) is slidably installed on the inner wall of the first groove (10) away from its mouth. , the bottom of the connecting plate (13) is hinged with one end of the connecting rod (14), the other end of the connecting rod (14) is hinged on the slide plate (11), and the top inner wall of the first groove (10) is provided with a second recess A groove (15), a rotating shaft (16) is rotatably installed in the second groove (15), a rotating groove (17) is opened at the bottom end of the rotating shaft (16), and a screw sleeve (18) is fixedly installed in the rotating groove (17). ), the screw sleeve (18) is threadedly sleeved with a screw rod (19), and the bottom end of the screw rod (19) extends into the first groove (10) and is fixedly installed on the corresponding connecting plate (13) , a rotating rod (20) is fixedly installed on the top of the rotating shaft (16), and the top end of the rotating rod (20) extends to the top of the fixed seat (4) and a rotating switch (21) is fixedly installed; A plurality of support rods (22) are fixedly installed on the bottom inner wall of the placement groove (5), a plurality of buffer grooves (23) are opened at the bottom of the buffer seat (6), and the top end of the support rod (22) extends to the buffer In the groove (23), first spring grooves (24) are provided on both inner walls of the buffer groove (23), and a baffle plate (25) is slidably installed in the first spring groove (24). One end of a plurality of first springs (26) is fixedly installed on one side, the other end of the first springs (26) is fixedly installed on the inner wall of one side of the first spring groove (24), and the other side of the baffle plate (25) One end of the vertical rod (27) is hinged, the other end of the vertical rod (27) is hinged on the corresponding support rod (22), and the side wall of the placement groove (5) is provided with a plurality of second spring grooves (28). One end of the second spring (29) is fixedly installed on the inner wall of the side of the two spring grooves (28) away from the opening, and the other end of the second spring (29) extends into the placing groove (5) and is connected with the buffer seat (6) touch. 2. An adjustable medicine constant temperature storage box according to claim 1, characterized in that, a chute is provided on the bottom inner wall of the first groove (10), and the bottom of the sliding plate (11) is fixedly installed with a sliding groove. block, and the sliding block is slidably connected with the side wall of the corresponding chute. 3. An adjustable medicine constant temperature storage box according to claim 1, characterized in that, a limiting groove is provided on the inner wall of the first groove (10) away from its opening, and the connecting plate (13) A limit block is fixedly installed on one side of the device, and the limit block is slidably connected with the side wall of the limit slot. 4 . The adjustable medicine constant temperature storage box according to claim 3 , wherein a first ball is installed on one side of the limit block in a rolling manner, and the first ball is connected with the corresponding limit groove in a rolling manner. 5 . 5 . The adjustable medicine constant temperature storage box according to claim 1 , wherein the screw sleeve ( 18 ) is provided with threaded holes, and the screw ( 19 ) is threadedly connected with the corresponding threaded holes. 6 . 6. An adjustable medicine constant temperature storage box according to claim 1, characterized in that, a bearing is fixedly sleeved on the rotating shaft (16), and the outer ring of the bearing is fixedly installed in the second groove (15) on the inner wall. 7. An adjustable medicine constant temperature storage box according to claim 1, wherein the number of the buffer tanks (23) is six to ten, and the six to ten buffer tanks (23) are arranged at equal intervals . 8 . The adjustable medicine constant temperature storage box according to claim 1 , wherein the top and bottom of the baffle plate ( 25 ) are rollingly installed with second balls, and the second balls are connected to the first spring grooves. 9 . (24) ROLLING CONNECTION.
