本发明公开了一种用于实现两个主罗拉快速夹紧或分开的雪尼尔集成板结构，包括设置在基座上的板体，板体上铰接有两组对称设置的摆臂组件，摆臂组件包括铰接在板体上的摆臂本体，摆臂本体上设有主罗拉，摆臂本体上设有电机驱动组件，板体上设有滑块，板体上活动设有调压臂，调压臂上设有螺纹段，螺纹段上套设有调压杆，滑块通过传力弹簧与调压杆连接，调压臂一端与设置在基座上的快速夹钳相连接，快速夹钳打开时调压杆条压杆推动滑块向靠近主罗拉方向运动；滑块两侧分别铰接有连接杆，连接杆端部与相应的左侧摆臂本体或右侧摆臂本体相铰接，滑块向靠近主罗拉方向滑动时，两个连接杆分别带动左侧摆臂组件与右侧摆臂组件转动，使两个主罗拉分开。
The invention discloses a chenille integrated plate structure for realizing quick clamping or separation of two main rollers, comprising a plate body arranged on a base, and two sets of symmetrically arranged swing arm assemblies are hinged on the plate body. The swing arm assembly includes a swing arm body hinged on the plate body, the swing arm body is provided with a main roller, the swing arm body is provided with a motor drive assembly, the plate body is provided with a slider, and the plate body is movably provided with a pressure regulating arm , There is a threaded section on the pressure regulating arm, and a pressure regulating rod is sleeved on the threaded section. When the clamp is opened, the pressure regulating rod pushes the sliding block to move toward the main roller; connecting rods are hinged on both sides of the sliding block, and the ends of the connecting rods are hinged with the corresponding left swing arm body or right swing arm body , When the slider slides toward the direction close to the main roller, the two connecting rods drive the left swing arm assembly and the right swing arm assembly to rotate respectively, so that the two main rollers are separated.
Description
Technical Field
The invention relates to a textile device, in particular to a chenille integrated plate structure.
Background
Current chenille integrated board structure, including setting up the plate body on the base, articulated on the plate body have the swing arm subassembly that two sets of symmetries set up, swing arm subassembly is including articulating the swing arm body on the plate body, the swing arm body is close to one of plate body middle part and serves and be equipped with main roller, be equipped with drive main roller pivoted motor drive subassembly on the swing arm body, be equipped with on the plate body and lean on tight main spring with main roller on the swing arm subassembly to another main roller, it has the lever board to articulate on the swing arm body, a side end of lever board rotates and is equipped with the pressurization roller, detachably is equipped with the pressurization spring that makes the pressurization roller compress tightly main roller between lever board and the. When the two main rollers are separated, the two swing arm bodies need to be pulled independently, so that the operation is inconvenient.
Disclosure of Invention
The technical problem to be solved by the invention is as follows: a chenille integrated plate structure for realizing quick clamping or separation of two main rollers is provided.
In order to solve the technical problems, the technical scheme adopted by the invention is as follows: a chenille integrated board structure comprises a board body arranged on a base, wherein two groups of symmetrically arranged swing arm assemblies are hinged on the board body, each swing arm assembly comprises a swing arm body hinged on the board body, a main roller is arranged at one end, close to the middle part of the board body, of each swing arm body, a motor driving assembly for driving the main roller to rotate is arranged on each swing arm body, a lever board is hinged on each swing arm body, a pressurizing roller is rotatably arranged at one end part of each lever board, and a pressurizing spring for enabling the pressurizing roller to compress the main roller is detachably arranged between each lever board and the board body; the plate body is provided with a sliding block which slides along the length direction of the central lines of the two main rollers, a pressure regulating arm which moves along the length direction of the central lines of the two main rollers is movably arranged on the plate body, a threaded section is arranged on the pressure regulating arm and close to the sliding block, a pressure regulating rod is sleeved on the threaded section, the sliding block is connected with the pressure regulating rod through a force transmission spring, one end, far away from the sliding block, of the pressure regulating arm is connected with a quick clamp arranged on the base, and the pressure regulating rod pushes the sliding block to move towards the direction close; the slider both sides articulate respectively has the connecting rod, and the connecting rod tip is articulated mutually with corresponding left side swing arm body or right side swing arm body, and when the slider slided to being close to main roller direction, two connecting rods driven left side swing arm subassembly and right side swing arm subassembly respectively and rotated for two main rollers part.
Preferably, the threaded section is provided with a locking nut for limiting the position of the pressure regulating rod on the side of the pressure regulating rod away from the plate body.
As a preferred scheme, a fine adjustment mechanism for adjusting the front and rear positions of the main roller is arranged on the swing arm body, and the main roller is arranged on the fine adjustment mechanism.
As a preferred scheme, fine setting mechanism is including wearing to establish the fine setting seat in the swing arm body, fine setting seat includes the linkage segment of the adjustable connection of screw thread and swing arm body and the positioning section that the diameter is greater than the linkage segment that set up through it, be equipped with the spacing groove of following the axial setting in the linkage segment periphery, the movable sleeve is equipped with the spacing fixture block with spacing groove matched with on the locking fluted disc of linkage segment periphery, the portion that the linkage segment is located the swing arm body outside is overlapped and is equipped with the regulation fluted disc with locking fluted disc engaged with, be equipped with the fine setting spring on the linkage segment between regulation fluted disc and positioning section, the fine setting spring is connected with the regulation fluted disc, rotate in the fine setting seat and wear to be equipped with the installation axle of being connected.
The invention has the beneficial effects that: the structure is used for quickly clamping and separating the two main rollers, the whole structure is compact, the clamping is convenient and quick, and the working efficiency is greatly improved. And because the pressure regulating arm is provided with a threaded section near the sliding block, the threaded section is sleeved with a pressure regulating rod, and the sliding block is connected with the pressure regulating rod through a force transmission spring, so that the rotating force applied to the swing arm body when the two main rollers are clamped is flexible force, the two main rollers are gradually clamped, and the situation of yarn breakage is avoided.
The locking nut for limiting the position of the pressure regulating rod is arranged on one side, far away from the plate body, of the pressure regulating rod in the threaded section, so that the pressure regulating rod is prevented from rotating randomly to change the set elastic force of the force transmission spring.
Because be equipped with the fine-tuning of position around the adjustment main roller on the swing arm body, main roller sets up on fine-tuning for the mounted position of main roller is more accurate.
Because be equipped with the spacing groove of following the axial setting in the fine-tuning in the linkage segment periphery, the movable sleeve is equipped with the spacing fixture block with spacing groove matched with on the locking fluted disc of linkage segment periphery, the part that the linkage segment is located the swing arm body outside is overlapped and is equipped with the regulation fluted disc with locking fluted disc engaged with, be equipped with the fine setting spring on the linkage segment between regulation fluted disc and locating segment, the fine setting spring is connected with the regulation fluted disc, must move the regulation fluted disc to the locating segment with just can adjust main roller position through rotating the fine setting seat with the locking fluted disc of breaking away, avoid main roller to take place to remove under other circumstances, make and use reliably.
Drawings

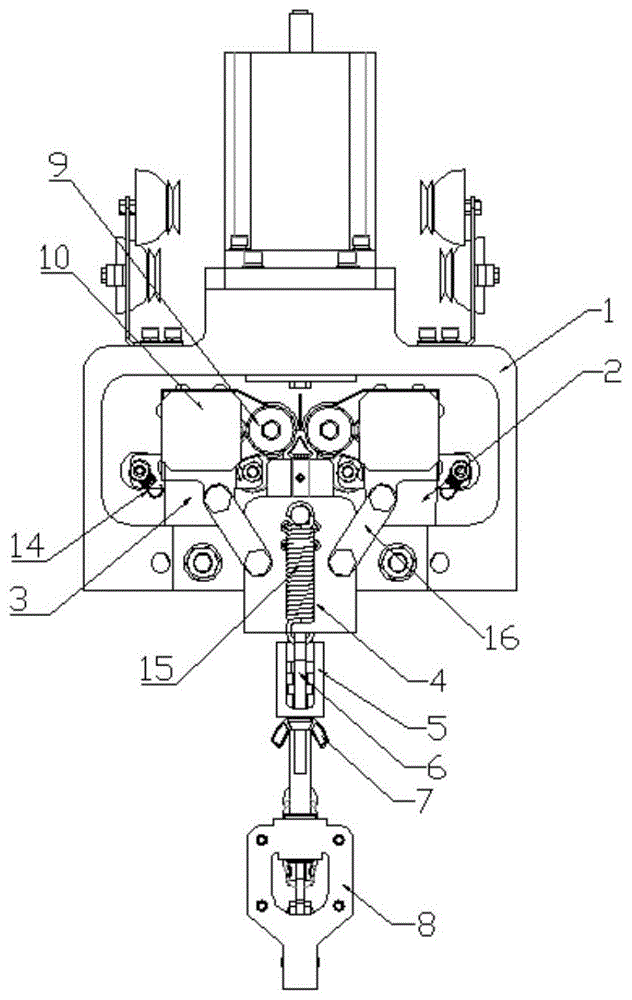

Fig. 1 is a schematic front view of the present invention.
Fig. 2 is a rear view structural diagram of the present invention.
Fig. 3 is a schematic cross-sectional view of a portion of the swing arm assembly of the present invention.
In the figure: 1. the automatic pressure regulating device comprises a plate body, a swing arm body 2, a swing arm body 3, a sliding block 4, a pressure regulating arm 5, a pressure regulating rod 6, a locking nut 7, a quick clamp 8, a fine adjustment mechanism 9, a fine adjustment seat 91, a locking fluted disc 92, an adjusting fluted disc 93, a fine adjustment spring 94, a mounting shaft 95, a motor driving assembly 10, a main roller 11, a pressurizing roller 12, a lever plate 13, a pressurizing spring 14, a force transmission spring 15 and a connecting rod 16.
Detailed Description
Specific embodiments of the present invention will be described in detail below with reference to the accompanying drawings.
As shown in fig. 1-3, a chenille integrated board structure comprises a board body 1 arranged on a base, two sets of swing arm assemblies symmetrically arranged are hinged on the board body 1, each swing arm assembly comprises a swing arm body 2 and a swing arm body 3 hinged on the board body 1, one end of each swing arm body 2 and 3, which is close to the middle of the board body 1, is provided with a fine adjustment mechanism 9 for adjusting the front and rear positions of a main roller 11, and the main roller 11 is arranged on the fine adjustment mechanism 9. Fine-tuning 9 is including wearing to establish in swing arm body 2, fine-tuning 91 in 3, fine-tuning 91 includes through the screw thread and swing arm body 2 that set up on it, the linkage segment of 3 adjustable connections and the locating section that the diameter is greater than the linkage segment, be equipped with the spacing groove of following the axial settlement in the linkage segment periphery, the movable sleeve is equipped with the spacing fixture block with spacing groove matched with on the locking fluted disc 92 of linkage segment periphery, the linkage segment is located swing arm body 2, the cover is equipped with the regulation fluted disc 93 with locking fluted disc 92 engaged with on the part in 3 outsides, be equipped with fine setting spring 94 on the linkage segment between regulation fluted disc 93 and locating section, fine setting spring 94 is connected with regulation fluted disc 93, the installation axle 95 of being connected with main roller 11 is worn to be equipped with in the rotation of fine. The swing arm bodies 2 and 3 are provided with a motor driving assembly 10 for driving the main roller 11 to rotate.
A lever plate 13 is hinged on the swing arm bodies 2 and 3, a pressurizing roller 12 is rotatably arranged at the end part of one side of the lever plate 13, and a pressurizing spring 14 which enables the pressurizing roller 12 to compress the main roller 11 is detachably arranged between the lever plate 13 and the plate body 1;
the plate body 1 is provided with a sliding block 4 which slides along the length direction of the central line of the two main rollers 11, the plate body 1 is movably provided with a pressure regulating arm 5 which moves along the length direction of the central line of the two main rollers 11, a threaded section is arranged on the pressure regulating arm 5 and is close to the sliding block 4, a pressure regulating rod 6 is sleeved on the threaded section, the sliding block 4 is connected with the pressure regulating rod 6 through a force transmission spring 15, one end, far away from the sliding block 4, of the pressure regulating arm 5 is connected with a quick clamp 8 arranged on a base, and when the quick clamp 8 is opened, the pressure regulating rod 6 pushes the sliding block 4; and a locking nut 7 for limiting the position of the pressure regulating rod 6 is arranged on one side of the pressure regulating rod 6, which is far away from the plate body 1, of the threaded section.
The slider 4 both sides articulate respectively has connecting rod 16, and connecting rod 16 tip is articulated mutually with corresponding left side swing arm body 2, 3 or right side swing arm body 2, 3, and when slider 4 slided to being close to main roller 11 direction, two connecting rods 16 drive left side swing arm subassembly and right side swing arm subassembly respectively and rotate for two main rollers 11 part.
When the two main rollers 11 are clamped: the quick clamp 8 is pressed down to drive the pressure regulating arm 5, the pressure regulating rod 6 is fixed on the pressure regulating arm 5 (the stress of the spring can be adjusted by adjusting the position of the pressure regulating rod 6), and the pressure regulating rod pulls the force transmission spring 15 downwards to drive the sliding block 4, so that the connecting rod 16 drives the left and right swing arm bodies 2 and 3 fixed on the plate body 1 to rotate, and the two main rollers 11 are clamped tightly.
When separating the two main rollers 11: the quick clamp 8 is lifted upwards, the slide block 4 is jacked up by the quick clamp, and the left and right swing arm bodies 2 and 3 are propped open through a connecting rod 16 on the slide block 4 to separate the two main rollers 11.
