Abstract

一种航空公务舱座椅，包括座椅骨架、椅背、中央扶手、边扶手、腿靠、坐垫、靠垫和头靠，所述的中央扶手设置有餐桌、吧台、储物盒、调节控制器、音频娱乐系统、视频娱乐系统、娱乐系统控制手柄、电源，餐桌能够折叠收纳于于中央扶手的内部，吧台位于中央扶手顶部的前端，储物盒位于中央扶手两侧上部，调节控制器位于中央扶手两侧板的上部前端，音频娱乐系统及电源位于中央扶手的前面板，视频娱乐系统能够折叠收纳于所述中央扶手的底部前端，娱乐系统控制手柄位于调节控制器的下端。本发明提升了中央扶手的配置功能，满足乘客的不同需求。此外，通过对救生衣存储位置的调整，提升了适航安全性；通过对边扶手设计的改进，减轻了公务舱座椅的重量，增加了乘客活动空间。

Figure 202110405464

An aviation business class seat, comprising a seat frame, a seat back, a central armrest, a side armrest, a legrest, a seat cushion, a back cushion and a headrest, wherein the central armrest is provided with a dining table, a bar, a storage box, and an adjustment controller , audio entertainment system, video entertainment system, entertainment system control handle, power supply, the dining table can be folded and stored inside the center armrest, the bar is located at the front of the top of the center armrest, the storage box is located on the upper part of both sides of the center armrest, and the adjustment controller is located in the center The upper front end of the two side panels of the armrest, the audio entertainment system and the power supply are located on the front panel of the center armrest, the video entertainment system can be folded and stored at the bottom front end of the center armrest, and the entertainment system control handle is located at the lower end of the adjustment controller. The invention improves the configuration function of the central armrest and meets the different needs of passengers. In addition, by adjusting the storage position of life jackets, the airworthiness safety is improved; by improving the design of the side armrests, the weight of the business class seats is reduced, and the passenger space is increased.

Figure 202110405464

Description

Seat of aviation business class
Technical Field
The invention relates to the field of aviation equipment, in particular to an aviation official cabin seat.
Background
In the civil aviation field, the seat of the aviation official cabin is positioned at the front cabin position of the mixed-level passenger cabin layout for the visitors to ride. However, the central armrest of the seat in the current airline business class is generally not fully equipped with functions, such as not integrating a display or a dining table (the display or the dining table of part of the seat is integrated inside the armrest), and cannot be equipped with functions such as audio and video at will, and cannot well meet different requirements of passengers; the storage position of the life jacket is usually designed below the central armrest, and in an emergency, interference may occur when passengers take the life jacket from adjacent seats at the same time, so that the airworthiness safety is influenced; in addition, the side armrests of the seat of the air service cabin are generally designed into a box shape, so that the weight is heavier, the riding space is limited, and the passenger experience is influenced.
Disclosure of Invention
The object of the present invention is to provide an airline official cabin seat that solves the aforementioned problems of the prior art.
In order to achieve the purpose, the technical scheme adopted by the invention is as follows:
an aviation business class seat mainly comprises a seat framework, a seat back, a central armrest, side armrests, leg rests, a cushion, a back cushion and a headrest, wherein the seat back, the central armrest, the side armrests and the leg rests are fixedly connected onto the seat framework through fasteners; the seat cushion and the back cushion are detachably arranged on the seat framework and the seat back; the headrest is connected through the fastener and fixes on the back of the chair, central armrest be provided with dining table, bar counter, storing box, regulation controller, audio entertainment system, video entertainment system, entertainment system brake valve lever, power, the dining table can fold accomodate in the inside of central armrest, the bar counter is located the front end at central armrest top, the storing box is located central armrest both sides upper portion, the regulation controller is located the upper portion front end of central armrest both sides board, audio entertainment system reaches the power is located the front panel of central armrest, video entertainment system can fold accomodate in the bottom front end of central armrest, entertainment system brake valve lever is located the lower extreme of regulation controller.
Furthermore, the dining table, the bar counter, the storage box, the adjusting controller, the audio entertainment system, the video entertainment system, the entertainment system control handle and the power supply can be in modularized combined configuration.
Further, a typical modular combination configuration thereof includes: the first configuration is a basic configuration, and the central armrest is provided with the dining table, the bar counter, the storage box, the adjusting controller and the power supply; the second configuration is an audio entertainment system configuration, and the central armrest is provided with the dining table, the bar counter, the storage box, the adjusting controller, the audio entertainment system, the entertainment system control handle and the power supply; and the third configuration is a video entertainment system configuration, and the central armrest is provided with the dining table, the bar counter, the storage box, the adjusting controller, the audio entertainment system, the video entertainment system, the entertainment system control handle and the power supply.
Further, a life jacket box for storing life jackets is integrated in the leg rest.
Furthermore, the side handrail adopts an open design.
The invention has the beneficial effects that:
1. functional components such as a dining table and a video entertainment system are integrated on the central armrest, so that the functionality and the applicability of the central armrest are improved;
2. functional components such as a dining table, a bar counter, a storage box, an adjusting controller, an audio entertainment system, a video entertainment system, an entertainment system control handle, a power supply and the like on the central armrest can be combined and configured at will, so that different requirements of passengers are met;
3. the life jacket box for storing life jackets is integrated in the leg rest, so that passengers can conveniently and quickly take the life jackets in emergency, and the seaworthiness safety is improved;
4. the side armrests are designed in an open mode, so that the weight of the seat is effectively reduced, and the sitting space is increased.
Drawings

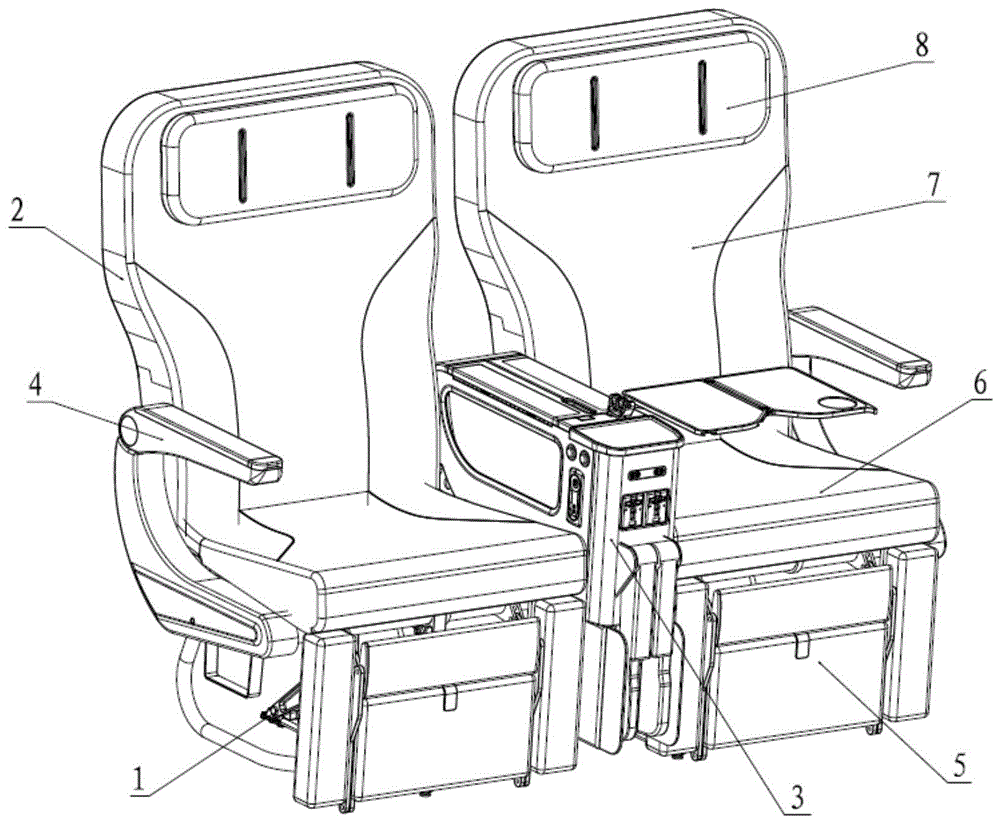

FIG. 1 is a schematic view of the general components of the present airline business class seat;
FIG. 2 is a schematic view of the functional integration of the center armrest of the present airline business class seat;
FIG. 3 is a functional integration of a seat and a leg rest;
in the figure: 1. a seat frame; 2. a chair back; 3. a central armrest; 4. a side rail; 5. a leg rest; 6. a cushion; 7. back cushion; 8. a headrest; 9. a dining table; 10. a bar counter; 11. a storage box; 12. an adjustment controller; 13. an audio entertainment system; 14. a video entertainment system; 15. an entertainment system control handle; 16. a power source; 17. pedaling; 18. a life jacket box.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is further described in detail below with reference to the accompanying drawings. It should be understood that the detailed description and specific examples, while indicating the invention, are intended for purposes of illustration only and are not intended to limit the scope of the invention.
Referring to fig. 1, the aviation business class seat mainly comprises a seat framework 1, a seat back 2, a central armrest 3, side armrests 4, a leg rest 5, a seat cushion 6, a back cushion 7 and a headrest 8. The chair back 2, the central armrest 3, the side armrests 4 and the leg rest 5 are fixedly connected on the chair framework 1 through fasteners; the seat cushion 6 and the back cushion 7 are respectively arranged on the seat framework 1 and the seat back 2 through nylon buckles; the headrest 8 is connected and fixed on the chair back 2 through a fastener. The side armrests 4 are designed in an open mode, so that the weight of the seat is effectively reduced, and the sitting space is increased. The chair is characterized in that a hydraulic lock is arranged between the lower end of the chair back 2 and the chair framework 1, a hydraulic lock is arranged between the upper end of the leg rest 5 and the chair framework 1, and the hydraulic locks are all provided with an adjusting controller 12, so that the sitting posture can be adjusted.
As shown in fig. 2, the center armrest 3 includes a dining table 9, a bar counter 10, a storage box 11, an adjustment controller 12, an audio entertainment system 13, a video entertainment system 14, an entertainment system control handle 15, a power supply 16, and the like, the dining table 9 can be folded and stored inside the center armrest 3, the bar counter 10 is located at the front end of the top of the center armrest 3, the storage box 11 is located at the upper portions of both sides of the center armrest 3, the adjustment controller 12 is located at the front end of the upper portions of both side plates of the center armrest 3, the audio entertainment system 13 and the power supply 16 are located at the front panel of the center armrest 3, the video entertainment system 14 can be folded and stored at the front end of the bottom of the center armrest 3, and the entertainment system control handle 15 is located at the lower end of the adjustment controller 12. Further, the functional components of the table 9, the bar counter 10, the storage box 11, the adjusting controller 12, the audio entertainment system 13, the video entertainment system 14, the entertainment system control handle 15, the power supply 16, etc. can be configured in any combination, and typical modular configurations thereof include a basic configuration (including the table 9, the bar counter 10, the storage box 11, the adjusting controller 12, the power supply 16), an audio entertainment system configuration (including the table 9, the bar counter 10, the storage box 11, the adjusting controller 12, the audio entertainment system 13, the entertainment system control handle 15, the power supply 16), a video entertainment system configuration (including the table 9, the bar counter 10, the storage box 11, the adjusting controller 12, the audio entertainment system 13, the video entertainment system 14, the entertainment system control handle 15, the power supply 16).
As shown in fig. 3, the leg rest 5 is integrated with a pedal 17 for resting of the passenger and a life jacket box 18 for storing life jackets, so that the passenger can quickly get the life jacket in emergency, thereby improving the airworthiness safety.
By adopting the technical scheme disclosed by the invention, the following beneficial effects are obtained:
1. functional components such as a dining table and a video entertainment system are integrated on the central armrest, so that the functionality and the applicability of the central armrest are improved;
2. functional components such as a dining table, a bar counter, a storage box, an adjusting controller, an audio entertainment system, a video entertainment system, an entertainment system control handle, a power supply and the like on the central armrest can be combined and configured at will, so that different requirements of passengers are met;
3. the life jacket box for storing life jackets is integrated in the leg rest, so that passengers can conveniently and quickly take the life jackets in emergency, and the seaworthiness safety is improved;
4. the side armrests are designed in an open mode, so that the weight of the seat is effectively reduced, and the sitting space is increased.
The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, various modifications and improvements can be made without departing from the principle of the present invention, and such modifications and improvements should also be considered within the scope of the present invention.

Claims (7)

1.一种航空公务舱座椅，主要包括座椅骨架、椅背、中央扶手、边扶手、腿靠、坐垫、靠垫和头靠，所述椅背、所述中央扶手、所述边扶手和所述腿靠通过紧固件连接固定在所述座椅骨架上；所述坐垫及所述靠垫可拆卸的安装在所述座椅骨架及所述椅背上；所述头靠通过紧固件连接固定在所述椅背上，其特征是，所述的中央扶手设置有餐桌、吧台、储物盒、调节控制器、音频娱乐系统、视频娱乐系统、娱乐系统控制手柄、电源，所述的餐桌能够折叠收纳于于所述中央扶手的内部，所述吧台位于所述中央扶手顶部的前端，所述储物盒位于所述中央扶手两侧上部，所述调节控制器位于所述中央扶手两侧板的上部前端，所述音频娱乐系统及所述电源位于所述中央扶手的前面板，所述视频娱乐系统能够折叠收纳于所述中央扶手的底部前端，所述娱乐系统控制手柄位于所述调节控制器的下端。1. An aviation business class seat, mainly comprising a seat frame, a seat back, a center armrest, a side armrest, a legrest, a seat cushion, a back cushion and a headrest, the seatback, the center armrest, the side armrest and the headrest; The legrest is connected and fixed on the seat frame by fasteners; the seat cushion and the back cushion are detachably mounted on the seat frame and the seatback; the headrest is fixed on the seat frame by fasteners It is connected and fixed on the back of the chair, and is characterized in that, the central armrest is provided with a dining table, a bar, a storage box, an adjustment controller, an audio entertainment system, a video entertainment system, an entertainment system control handle, and a power supply. The dining table can be folded and stored inside the center armrest, the bar is located at the front end of the top of the center armrest, the storage box is located at the upper part of both sides of the center armrest, and the adjustment controller is located at the two sides of the center armrest. The upper front end of the side panel, the audio entertainment system and the power supply are located on the front panel of the center armrest, the video entertainment system can be folded and stored at the bottom front end of the center armrest, and the entertainment system control handle is located in the center armrest. Adjust the lower end of the controller. 2.如权利要求1所述的航空公务舱座椅，其特征是，所述餐桌、所述吧台、所述储物盒、所述调节控制器、所述音频娱乐系统、所述视频娱乐系统、所述娱乐系统控制手柄、所述电源能够进行模块化组合配置。2. The airline business class seat of claim 1, wherein the dining table, the bar counter, the storage box, the adjustment controller, the audio entertainment system, and the video entertainment system , The entertainment system control handle and the power supply can be configured in modular combination. 3.如权利要求2所述的航空公务舱座椅，其特征是，其典型的模块化组合配置为基本配置，所述中央扶手设置有所述餐桌、所述吧台、所述储物盒、所述调节控制器和所述电源。3. The airline business class seat according to claim 2, characterized in that its typical modular combination configuration is a basic configuration, and the center armrest is provided with the dining table, the bar, the storage box, the regulation controller and the power supply. 4.如权利要求2所述的航空公务舱座椅，其特征是，其典型的模块化组合配置为音频娱乐系统配置，所述中央扶手设置有所述餐桌、所述吧台、所述储物盒、所述调节控制器、所述音频娱乐系统、所述娱乐系统控制手柄和所述电源。4 . The airline business class seat according to claim 2 , wherein a typical modular combination configuration is an audio entertainment system configuration, and the center armrest is provided with the dining table, the bar, and the storage. 5 . The box, the adjustment controller, the audio entertainment system, the entertainment system control handle, and the power supply. 5.如权利要求2所述的航空公务舱座椅，其特征是，其典型的模块化组合配置为视频娱乐系统配置，所述中央扶手设置有所述餐桌、所述吧台、所述储物盒、所述调节控制器、所述音频娱乐系统、所述视频娱乐系统、所述娱乐系统控制手柄和所述电源。5 . The airline business class seat according to claim 2 , wherein a typical modular combination configuration is a video entertainment system configuration, and the center armrest is provided with the dining table, the bar, and the storage. 6 . The box, the adjustment controller, the audio entertainment system, the video entertainment system, the entertainment system control handle, and the power supply. 6.如权利要求1至5任一所述的航空公务舱座椅，其特征是，所述的腿靠中集成了用于存放救生衣的救生衣盒。6. The airline business class seat according to any one of claims 1 to 5, wherein a life jacket box for storing life jackets is integrated into the legrest. 7.如权利要求6所述的航空公务舱座椅，其特征是，所述的边扶手采用敞开式设计。7. The airline business class seat according to claim 6, wherein the side armrest adopts an open design.
