CN1521612A - Mouse and method for reminding user to have rest - Google Patents
Mouse and method for reminding user to have rest Download PDFInfo
- Publication number
- CN1521612A CN1521612A CNA031038328A CN03103832A CN1521612A CN 1521612 A CN1521612 A CN 1521612A CN A031038328 A CNA031038328 A CN A031038328A CN 03103832 A CN03103832 A CN 03103832A CN 1521612 A CN1521612 A CN 1521612A
- Authority
- CN
- China
- Prior art keywords
- mouse
- time
- user
- timer
- warning device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 238000000034 method Methods 0.000 title claims abstract description 28
- 230000005236 sound signal Effects 0.000 claims description 2
- 230000000977 initiatory effect Effects 0.000 claims 1
- 230000002045 lasting effect Effects 0.000 claims 1
- 238000010586 diagram Methods 0.000 description 8
- 230000008569 process Effects 0.000 description 7
- 230000009471 action Effects 0.000 description 6
- 238000010792 warming Methods 0.000 description 6
- 230000008878 coupling Effects 0.000 description 4
- 238000010168 coupling process Methods 0.000 description 4
- 238000005859 coupling reaction Methods 0.000 description 4
- 230000006378 damage Effects 0.000 description 2
- 238000005516 engineering process Methods 0.000 description 2
- 238000001514 detection method Methods 0.000 description 1
- 230000009931 harmful effect Effects 0.000 description 1
- 230000006872 improvement Effects 0.000 description 1
- 230000007774 longterm Effects 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000002093 peripheral effect Effects 0.000 description 1
- 210000000707 wrist Anatomy 0.000 description 1
Landscapes
- Position Input By Displaying (AREA)
Abstract
一种提醒使用者在长时间使用鼠标后休息的方法。鼠标包含第一计时器及警告装置且内建第一预设时间。当使用者使用鼠标时，启动第一计时器以计算使用者使用鼠标的第一时间。当第一时间超过第一预设时间，启动警告装置。而当使用者停止操作鼠标时，停止警告装置。
A method for reminding a user to take a break after using a mouse for a long time. The mouse includes a first timer and a warning device and has a first preset time built in. When the user uses the mouse, the first timer is started to count the first time the user uses the mouse. When the first time exceeds the first preset time, the warning device is started. When the user stops operating the mouse, the warning device is stopped.
Description
Technical field
The present invention relates to avoid long-term computed method of user and device, the mouse of the signal that especially after the user uses mouse for a long time, can sound a warning.
Background technology
Along with development in science and technology, people constantly increase the computed time.Especially in recent years computer game is in vogue, more causes the game player to expend for a long time before computing machine, causes producing harmful effect.As be sitting in before the computing machine and forget to eat and sleep, cause uncomfortable.Therefore how remember to want suitable rest at reasonable time by the computing machine user, the factor that need begin to think deeply for computing machine peripheral equipment deviser now.
In addition, long-time worker before computing machine also can be because of the long-time mouse that uses, and causes the discomfort of wrist and produces employment injuries.In sum,, using mouse after a period of time, reminding the user to have a rest one of the means improved the problems referred to above of can yet be regarded as from the design of improvement mouse.
Summary of the invention
The object of the present invention is to provide a kind of prompting user behind long-time use mouse, force the mouse and the implementation method thereof of having a rest.
In the first embodiment of the present invention, mouse comprises first timer and warning device and built-in first Preset Time.When the user uses mouse, start first timer to calculate the very first time that the user uses mouse.Surpass first Preset Time when the very first time, start warning device.And when user's shut-down operation mouse, stop warning device.
In the second embodiment of the present invention, mouse comprises first timer, second timer and warning device, and built-in first Preset Time and second Preset Time.When the user uses mouse, start first timer to calculate the very first time that the user uses mouse.Surpass first Preset Time when the very first time, start warning device.Then start second timer to calculate second time of user's shut-down operation mouse.Surpass second Preset Time when second time, reset first timer and second timer.And when this second time is operated mouse less than second Preset Time and user, start warning device.
In the third embodiment of the present invention, mouse comprises first timer, second timer and warning device, and built-in first Preset Time and second Preset Time.When the user stops using mouse and very first time during less than first Preset Time, start second timer to calculate second time of user's shut-down operation mouse.
Description of drawings
Fig. 1 is the block schematic diagram of mouse of the present invention.
Fig. 2 is in the first embodiment of the present invention, describes the process flow diagram of mouse action and method for warming.
Fig. 3 is in the second embodiment of the present invention, describes the process flow diagram of mouse action and method for warming.
Fig. 4 is in the third embodiment of the present invention, describes the process flow diagram of mouse action and method for warming.
The drawing reference numeral explanation
100 mouses, 102 microprocessors
1,022 first timers, 1,024 second timers
104 warning devices, 106 pick-up units
108 coupling arrangements, 110 links
Embodiment
The invention provides and remind a user after long-time the use, to need the mouse and the using method thereof of having a rest.Thus, avoid the user to use a computer for a long time, cause healthy harm.
Fig. 1 is the block schematic diagram of mouse of the present invention.Mouse 100 comprises microprocessor 102, warning device 104, pick-up unit 106 and coupling arrangement 108.Optionally built-in first timer 1022 and second timer 1024 in the microprocessor 102 are in order to calculate the very first time and second time respectively.Also optionally built-in first Preset Time of microprocessor 102 and second Preset Time.The time that the very first time is used mouse for the user, second time was stopped using the time of mouse for the user.First Preset Time is the time interval of the sustainable use mouse of user, the time interval that second Preset Time need be had a rest for the user.For example, first Preset Time can be 50 minutes, and second Preset Time can be 10 minutes.Promptly force the user continuing to use mouse after 50 minutes, need to have a rest 10 minutes.
Continuation is with reference to figure 1, and warning device 104 is stopped using mouse for a warning signal is provided to remind the user.The warning signal can be sound signal, and then warning device 104 is preferably hummer.In addition, warning device 104 also can be vibrating motor, allows mouse 100 vibrations remind the user to stop using mouse.Pick-up unit 106 moves and button operation for detection mouse 100, and is sent to microprocessor 102.Microprocessor 102 sees through coupling arrangement 108, and the operation signal of mouse is sent to computing machine (figure does not show) via output terminal 110.Coupling arrangement 108 provides the signal that can transmit via PS/2 connectivity port or serial connectivity port according to the difference of computing machine link.
Fig. 2 is in the first embodiment of the present invention, describes the process flow diagram of mouse action and method for warming.Mouse comprises first timer and warning device, and built-in first Preset Time.In first embodiment, when operating mouse, the user surpasses the very first time, and warning device can start up to the user stops using mouse just can stop.After beginning step 202, the user begins to operate mouse.Then carry out step 204, start first timer to calculate the very first time that the user uses mouse.In step 206, mouse judges that whether the very first time is greater than first Preset Time.If be "No" in step 206, then get back to step 204, first timer continues to calculate the very first time.If in step 206 is "Yes", then enters step 208 and start warning device.Then in step 210, judge whether the user stops using mouse.If be "No" in step 210, then get back to step 208, continue to start warning device.If be "Yes" in step 210, then stop warning device.
Fig. 3 is in the second embodiment of the present invention, describes the process flow diagram of mouse action and method for warming.Mouse comprises first timer, second timer and warning device, and built-in first Preset Time and second Preset Time.In a second embodiment, except as described in first embodiment, detect the user and use outside the very first time of mouse, and further detect second time that the user stops using mouse.When second time that the user has a rest surpasses second Preset Time, just can continue to use mouse.
With reference to figure 3, after beginning step 302, the user begins to operate mouse.Then carry out step 304, start first timer to calculate the very first time that the user uses mouse.In step 306, mouse judges that whether the very first time is greater than first Preset Time.If be "No" in step 306, then get back to step 304, first timer continues to calculate the very first time.If in step 306 is "Yes", then enters step 308 and start warning device.Then in step 310, judge whether the user stops using mouse.If be "No" in step 310, then get back to step 308, continue to start warning device.If be "Yes" in step 310, then in step 312, stop warning device.
Continuation then in step 314, starts second timer to calculate second time of user's shut-down operation mouse with reference to figure 3.Then in step 316, whether second time of judging is greater than second Preset Time.If be "No" in step 316, then get back to step 310, detect the user and whether use mouse.If in step 316 is "Yes", then reset first timer and second timer, allow the very first time and second time make zero.Recomputate the time that the user uses mouse and rest.

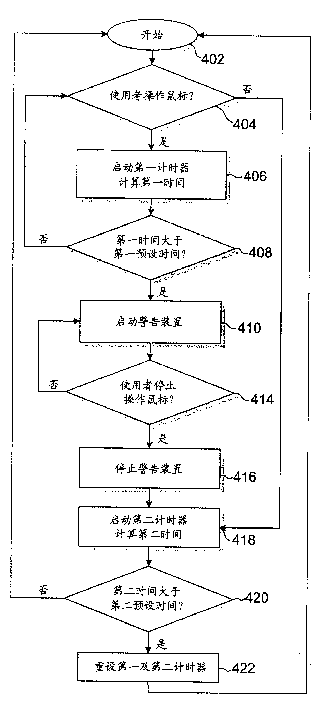

Fig. 4 is in the third embodiment of the present invention, describes the process flow diagram of mouse action and method for warming.Mouse comprises first timer, second timer and warning device, and built-in first Preset Time and second Preset Time.In the 3rd embodiment,, detect the user and use the very first time of mouse and detect second time that the user stops using mouse except as described in second embodiment.In the 3rd embodiment, when the user used the mouse time not surpass the very first time and begins rest, second timer can start earlier.As long as second time surpassed second Preset Time, first and second timer will be reseted, and recomputates first and second time.
With reference to figure 4, after beginning step 402, in step 404, judge whether the user begins to operate mouse.If be "No" in step 404, then enter step 418, start second timer and calculated for second time.If step 404 is a "Yes", then carry out step 406, start first timer to calculate the very first time that the user uses mouse.Then in step 408, mouse judges that whether the very first time is greater than first Preset Time.If be "No" in step 408, then get back to step 404, judge whether the user uses mouse.If in step 408 is "Yes", then enters step 410 and start warning device.Then in step 414, judge whether the user stops using mouse.If be "No" in step 414, then get back to step 410, continue to start warning device.If be "Yes" in step 414, then in step 416, stop warning device.
Continuation, enters in the step 418 after step 404 is to stop warning device in "No" or the step 416 with reference to figure 4, starts second timer to calculate second time of user's shut-down operation mouse.Then in step 420, whether second time of judging is greater than the very first time.If be "No" in step 420, step 402 is then got back in expression, repeats above-mentioned flow process.If the very first time does not surpass first Preset Time as yet, the user operates mouse even second time did not surpass second Preset Time as yet, and warning device can not start yet.If in step 420 is "Yes", then reset first timer and second timer, allow the very first time and second time make zero.Recomputate the time that the user uses mouse and rest.
It will be apparent to those skilled in the art understanding, the present invention can not break away under spirit of the present invention and the scope, is implemented with other many particular forms.Therefore, the embodiment that provides now should be taken as explanation, rather than restricted, and the details that this invention is not subjected in the literary composition and is given is limited to, and can make impartial variation and modification with appended claim.
Claims (14)
1. remind a user in the long-time method of having a rest of needing after using a mouse for one kind, this mouse comprises one first timer and a warning device, built-in one first Preset Time of this mouse, and this method comprises the following step:
Start this first timer to calculate the very first time that this user uses this mouse;
Start this warning device, surpass this first Preset Time when this very first time; And
Stop this warning device, when this this mouse of user's shut-down operation.
2. the method for claim 1, this mouse further comprises one second timer and built-in one second Preset Time, and this method further comprises the following step:
Start this second timer to calculate one second time of this this mouse of user's shut-down operation;
Reset this first timer and this second timer, surpass this second Preset Time when this second time.
3. method as claimed in claim 2 wherein when this second time is operated this mouse less than this second Preset Time and this user, starts this warning device.
4. method as claimed in claim 2 further comprises the following step:
Start this second timer calculating this second time of this this mouse of user's shut-down operation, when this user stops using this mouse and should the very first time during less than this first Preset Time.
5. the method for claim 1, wherein this warning device is for providing an audio mail to warn this user.
6. method as claimed in claim 5, wherein this warning device is a hummer.
7. the method for claim 1, wherein this warning device is a vibrating motor.
8. mouse of reminding a user to need after long-time the use and have a rest comprises:
One microprocessor, in have one first Preset Time;
One first timer is positioned at this microprocessor, and this first timer calculates the very first time that this user uses this mouse;
And
One warning device is for providing a warning signal to remind this user to stop using this mouse;
Wherein, use this mouse and should the very first time surpass this first Preset Time when this user is lasting, this microprocessor activates this warning device, then works as this user and stops using this mouse, and this microprocessor stops this warning device.
9. mouse as claimed in claim 8, this microprocessor further comprises one second timer and built-in one second Preset Time, when this user stops using this mouse, this second timer initiation is to calculate one second time of this this mouse of user's shut-down operation, and when this second time surpassed this second Preset Time, this microprocessor was reseted this first timer and this second timer.
10. mouse as claimed in claim 9, wherein when this second time was operated this mouse less than this second Preset Time and this user, this microprocessor started this warning device.
11. mouse as claimed in claim 8 wherein when this user stops using this mouse and should the very first time during less than this first Preset Time, starts this second timer to calculate this second time of this this mouse of user's shut-down operation.
12. mouse as claimed in claim 8, wherein this warning signal is a sound signal.
13. mouse as claimed in claim 8, wherein this warning device is a hummer.
14. mouse as claimed in claim 8, wherein this warning device is a vibrating motor.
