CN1882014B - A Method for Reminding User's Schedule Based on Intelligent Network - Google Patents

Abstract

The invention discloses a user schedule reminder method based on an intelligent network, which includes: a user uploads schedule information to a database; a reminder server scans the database regularly; and when the reminder time is up, the user is reminded in a manner required by the user. SMS mode: the reminder server sends the reminder content to the SMS gateway in the form of SMS, and the SMS gateway sends the SMS data to the SMS center, and the SMS center sends a SMS to remind the user and ends. Telephone notification method: first judge whether the user has provided voice content, if so, remind the server to send the reminder voice data to the service control point, and the service control point will call the user and control to play the voice reminder to the user before ending; otherwise, the reminder text content will be sent first Convert to a reminder voice, and then perform the above operations. The method proposed by the invention can realize the automatic schedule reminder function, provide users with various schedule reminder arrangements and reminder methods, and can serve many users at the same time, and has the advantages of large capacity and high reliability.

Description

A Method for Reminding User's Schedule Based on Intelligent Network

technical field

The invention relates to intelligent network technology, in particular to a method for reminding user's schedule through the intelligent network.

Background technique

In modern society, the pace of life and work is very fast, and there are many social entertainments. I often worry about forgetting a certain appointment, a certain relative or friend’s birthday, especially important meetings related to personal future, business activities, etc. The reminder of the schedule is very important, especially for enterprises, especially large enterprises, there are many daily schedules such as meetings, business negotiations, promotions, etc. The usual solution for enterprises is to hire a secretary, but a large enterprise group has There are many departments, each of which needs a secretary, and the cost is very high; it is not realistic for most individuals to hire a secretary.

One of the existing solutions is to use the artificial secretary desk provided by a third party to realize the reminder of the schedule. If the schedule reminder involves manual processing, it has the following disadvantages: on the one hand, it needs to increase human resources, on the other hand, human negligence may also occur, and people also have working time restrictions.

Contents of the invention

The purpose of the present invention is to propose an intelligent network-based user schedule reminder method that can provide users with multiple schedule arrangement means and automatically remind users in multiple ways.

A user schedule reminder method based on an intelligent network:

The method relates to a service control point, a service exchange point, a database, a reminder server, a short message gateway, a Web server, and a text-to-speech converter of an intelligent network system. The service control point completes the processing and control of intelligent services; the service exchange point completes The access and exchange of calls triggers an intelligent service; the database saves the schedule information; the reminder server monitors the user's schedule information and initiates a reminder event; the short message gateway is responsible for communication with the short message center; the Web The server provides the user with submitting schedule information through the Internet; the text-to-speech converter completes converting the reminder text content into a reminder voice,

Specifically include the following steps:

(1) The user uploads the schedule information to the database through SMS, Internet or voice interaction; among them, uploading by SMS means that the user uses a mobile phone to send a short message containing schedule information to a designated number, and the short message is sent in a prescribed format, The SMS center uploads the reminder data to the database through the SMS gateway; Internet upload means that the user visits the specified web page through the Internet, fills in the schedule information according to the requirements of the web page, and the Web server uploads the reminder data to the database; Uploading in interactive mode means that the user dials the specified number, enters the intelligent business process through the exchange office and business exchange point, operates according to the voice navigation, enters the schedule information, records the reminder voice online, and the system provides the default reminder text content at the same time;

(2) Remind the server to scan the database regularly;

(3) If the reminder time is up, remind the user in the manner requested by the user:

If the reminder method is SMS, then:

The reminder server sends the reminder content to the SMS gateway in the form of SMS, and the SMS gateway sends the SMS data to the SMS center, and the SMS center sends a SMS to remind the user and ends;

If the reminder mode is telephone notification, then: first judge whether the user has provided voice content, if so, remind the server to send the reminder voice data to the service control point, call the user by the service control point and control to play the voice reminder to the user and end;

Otherwise, first convert the reminding text content into reminding voice, and then send the reminding voice data to the service control point, and the service control point calls the user and controls to play the voice reminder to the user, and then ends.

It can be seen from the above implementation method that the present invention can realize the automatic schedule reminder function, and can provide users with various schedule reminder arrangements and reminder methods, which can satisfy many users at the same time, and has the advantages of large capacity and high reliability. It is ensured that the user can be reminded conveniently, timely and accurately, the work efficiency and quality of the user are improved, and there are obvious economic and social benefits.

Description of drawings

Fig. 1 is the flowchart of the method that the present invention proposes;

Fig. 2 is a schematic diagram of a user uploading schedule information through a short message;

Fig. 3 is a schematic diagram of a user uploading schedule information through the Internet;

Fig. 4 is a schematic diagram of a user uploading schedule information through voice interaction.

Detailed ways

The method proposed by the present invention will be further described below in conjunction with the accompanying drawings.

The method of the invention relates to a service control point, a service switching point, a database, a reminder server, a short message gateway, a Web server, a text-to-voice converter, etc. of an intelligent network system. Its corresponding function is as follows:

The service control point completes the processing and control of intelligent services; the service switching point completes the access and switching of calls, and triggers an intelligent service; the database saves schedule data; the reminder server monitors the user's schedule and initiates A reminder event; the short message gateway is responsible for communication with the short message center; the Web server provides the user with schedule data submitted through the Internet; the text-to-speech converter completes the conversion of text content into voice.

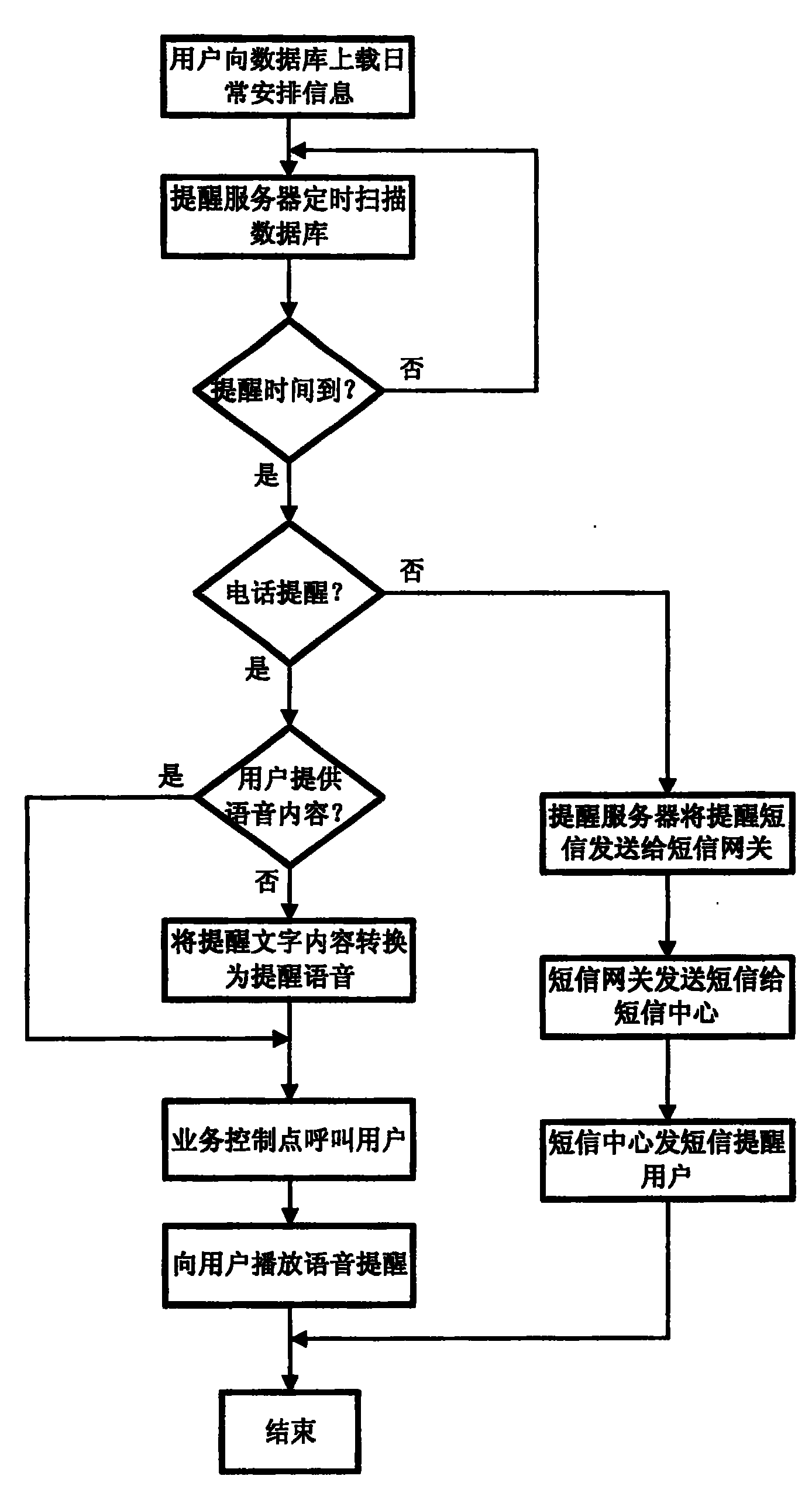

Fig. 1 is a flowchart of the method proposed by the present invention. As shown in Figure 1, the method that the present invention proposes comprises:

Users upload scheduling information to the database. Users can upload schedule reminder data to the database through SMS, Internet, voice interaction, etc.

Short message method: as shown in Figure 2, the user can use a mobile phone to send a short message to a designated number, and the short message is sent in a prescribed format. The content must include the reminder method, the contact number for the reminder, the reminder content, and the reminder time. The SMS center uploads the reminder data to the database through the SMS gateway.

Internet method: as shown in Figure 3, users can access a designated web page through the Internet, and fill in the schedule reminder content according to the requirements of the web page. The content must include the reminder method, reminder contact number, reminder content, and reminder time. The reminder data is uploaded into the database by the web server.

Voice interaction: As shown in Figure 4, the user dials the specified number, enters the intelligent service process through the switching center and service switching point, and operates according to the voice navigation. Enter the reminder time, remind the contact number, select the reminder method, record the reminder voice online, and the system can provide the default reminder text content at the same time.

Remind the server to scan the database regularly and monitor the user's schedule data in real time. If the scheduled reminder time scheduled by the user is up, the reminder server automatically initiates a reminder event.

If the reminding event requires notifying the user with a short message, then the reminding server will send the reminding event and data to the SMS gateway in the form of a short message, and the SMS gateway will send the text message data to the SMS center, and finally the SMS center will send the text message to the user.

If the reminder event requires the user to be notified by voice, if the user provides only text reminder content at this time, the reminder server will request the text-to-speech converter to convert the text content into voice. After receiving the reminder voice, the reminder server will remind the event and data It is sent to the service control point, which initiates a new dialogue and requires the service switching point to generate a new call. The service switching point calls the user according to the number provided by the service control point. Play a notification voice to the user under control.

Claims (2)

1. subscriber calendar prompting method based on intelligent network is characterized in that:

This method relates to service control point, the Service Switching Point of intelligent net system, and database, reminding service device, Short Message Service Gateway, Web server, text voice transducer, described service control point are finished the processing and the control of IN service; Described Service Switching Point is finished the access and the exchange of calling, triggers an IN service; Described database is preserved scheduling information; The scheduling information of described reminding service device supervisory user is initiated a reminder events; Described Short Message Service Gateway is responsible for the communication with sms center; Described Web server provides by Internet to the user and submits scheduling information to; Described text voice transducer is finished the prompting word content is converted to the prompting voice,

Specifically comprise the following steps:

(1) user uploads scheduling information by the mode of note, Internet or interactive voice to database; Wherein, short message mode is uploaded and is meant that the user uses mobile phone to pass through to send the note of content as scheduling information to assigned number, and note form in accordance with regulations sends, and sms center uploads to reminding data in the database by Short Message Service Gateway; The Internet mode is uploaded and is meant the web page of user by Internet visit appointment, according to the requirement of the web page, fills in scheduling information, by Web server reminding data is uploaded in the database; The interactive voice mode is uploaded and is meant that the user dials the number of appointment, by exchange and Service Switching Point, enters the IN service flow process, operate according to Voice Navigation, the input scheduling information, the online prompting voice of recording, system provides acquiescence to remind word content simultaneously;

(2) reminding service device timing scan database;

(3) if reminder time arrives, then remind the user in the mode of customer requirements:

If alerting pattern is a note, then:

The reminding service device sends to Short Message Service Gateway with reminded contents with way of short messages, by Short Message Service Gateway note data is sent to sms center, and sms center sends and finishes after note is reminded the user;

If alerting pattern is an Advise By Wire, then:

Judge at first whether the user provides voice content,, after the user plays voice reminder, finish by service control point calling party and control if then the reminding service device will remind speech data to send to service control point;

Otherwise will remind word content to convert the prompting voice to earlier, will remind speech data to send to service control point again, after the user plays voice reminder, finish by service control point calling party and control.

2. method according to claim 1 is characterized in that described scheduling information comprises at least: reminder time, reminded contents, alerting pattern and telephone number.
