Abstract
本实用新型涉及一种环保水窖。针对现有的集雨水窖因雨水具有时效性，储水能力小、泥沙易沉积，增加劳力且常伴污染等缺陷。在本窖体上侧壁设置入水孔，入水孔连接水渠，水渠路径中设置沉沙池。增大了雨水的接收面积及容量，拓宽水源；过滤泥沙，净化水质、防尘挡土、防虫防鼠、不增加成本及施工难度，却达到了环保无污染、提高水质、干净卫生、防蒸发、节省土地、减少水土流失、防洪、灌溉、人畜饮用的效果。
The utility model relates to an environment-friendly water cellar. For the existing rainwater cellars, due to the timeliness of rainwater, the water storage capacity is small, the sediment is easy to deposit, the labor is increased, and it is often accompanied by pollution and other defects. A water inlet hole is arranged on the upper side wall of the pit body, and the water inlet hole is connected to a water channel, and a sedimentation tank is arranged in the water channel path. Increase the receiving area and capacity of rainwater, broaden the water source; filter sediment, purify water quality, prevent dust and retain soil, prevent insects and rodents, do not increase cost and construction difficulty, but achieve environmental protection and pollution-free, improve water quality, clean and hygienic, prevent Evaporation, saving land, reducing soil erosion, flood control, irrigation, human and livestock drinking effects.
Description
Technical field
The utility model relates to a kind of device that stores water, relates in particular to a kind of environmental protection water cellar.
Background technology
Existing water cellar is mainly rural area widely used collection rain equipment, as Chinese patent 200620131039.8 disclosed " a kind of water cellar " cellar for storing things cylindraceous body, sealing of hemisphere mouth shape, this Ji Yushuijiao directly inserts rainwater, rainwater has ageing, the water storage of water cellar just has significant limitation, and storage capacity is little.And silt easily deposits to be needed in time to clean, and will increase defectives such as labour and normal companion pollution.
Summary of the invention
The utility model provides a kind of and makes full use of the natural resources, enlarges the water source at above-mentioned deficiency, the environmental protection water cellar of clean hygiene.
This cellar for storing things body upper side wall sets into the water hole, and blasthole connects water channel, and water channel is provided with sand trap in the path.
For better effect: the cellar for storing things body is the hollow cubic body, and the cube top perimeter from bottom to top is contracted to except that cinder hole gradually.
The cellar for storing things body is a hollow cylinder, and the cylinder top circumference extends upward to the round platform cylinder, and round platform cylinder top is provided with removes cinder hole.
Remove the cinder hole top and one bore is set greater than the seal closure that removes cinder hole.
On the fixedly rack at blasthole bore place a filtrate is set.
Filtrate adopts palm fibre.
The utility model is simple in structure, utilizes water channel to increase area and the capacity that receives rainwater, and can collect scenery with hills and waters and wait and widen the water source and increase reserves; In the path of water channel, set up sand trap, can play filtration silt, purify water, make the water clean hygiene, reduced the deposition of silt in water cellar; Removing cinder hole is the access of in time removing mud, cleaning cellar for storing things inwall or necessary maintenance, environmentally-friendly sanitary; Seal closure is only just opened when slagging-off or maintenance, and common water can play the effect of well dustproof retaining soil, insect protected protection against rodents, filtration silt foreign material by the blasthole seepage water source on top; Palm fibre commonly used is used as the effect that filtrate can play filtration, be difficult for microbiological contamination in the rural area.In sum: the utility model is simple in structure, can on the basis of former water cellar, transform, do not increase cost and difficulty of construction, but reached environment friendly and pollution-free, increase water quality, clean hygiene, vaporization prevention, saving soil, reduced the effect that soil erosion, flood control, irrigation, people and animals are drunk.
Description of drawings
The utility model is further described reaching embodiment in conjunction with the accompanying drawings down.

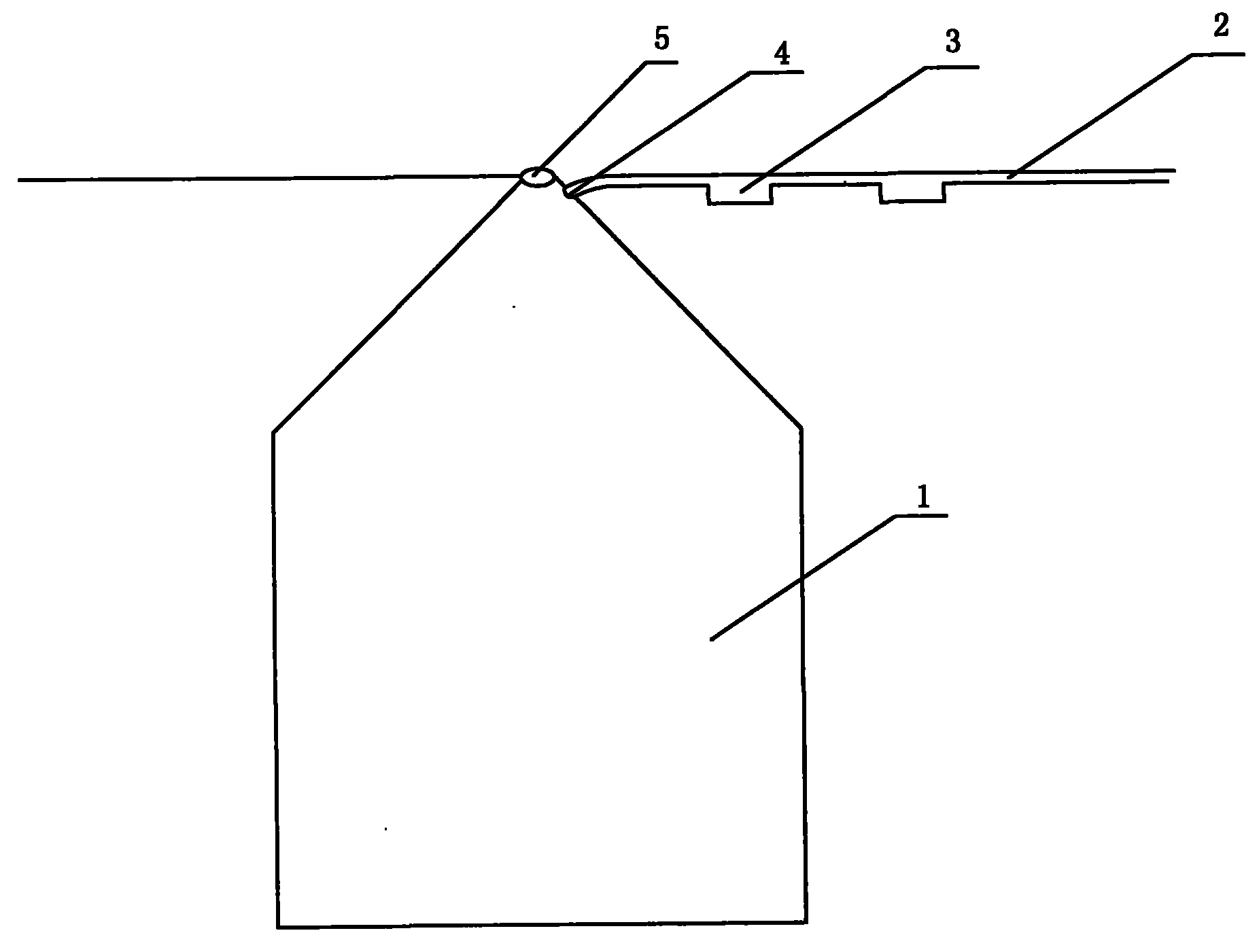

Fig. 1 is the utility model one example structure schematic diagram.
The specific embodiment
See Fig. 1, cellar for storing things body 1 upper side wall sets into water hole 4, and blasthole 4 connects water channel 2, and water channel 2 keeps at a certain distance away successively on the way two sand traps 3 are set.Body 1 below, cellar for storing things is a cylinder, and the cylinder top circumference extends upward to the round platform cylinder, and round platform cylinder top is provided with removes cinder hole.Remove the cinder hole top and one bore is set greater than the seal closure 5 that removes cinder hole, on the iron wire net rack at blasthole bore place palm fibre is set and makes filtrate, the water in the water channel 2 covers sand trap 3 and oozes to splash in the water cellar through blasthole 4 and store.
