CN201213647Y - Perforated Handshake Plastic Tray - Google Patents

Abstract

The open-hole handshake plastic tray consists of a plastic plate bottom and a plate edge, and is characterized in that hand holes are formed in the left and right walls of the plate edge. This technical solution has two symmetrical hand holes in the body of the plate edge, which not only saves materials, but also has a simple structure and good strength, and is also conducive to the movement of the plate. It is convenient and stable to hold the plate in the hand hole. .

Description

Perforated Handshake Plastic Tray

technical field

The utility model relates to a tray (or called a fruit tray), in particular to a perforated handshake plastic tray, such as a fruit tray, a candy tray, a tea tray, etc., belonging to daily necessities.

Background technique

There are many kinds of trays or fruit bowls, which can be divided into wood, bamboo, glass and plastic products according to the different materials. Due to the fast molding of plastic products and suitable for mass processing, plastic pallets have been developed rapidly. There are many styles of plastic trays, but the existing plastic trays have the following disadvantages: first, the existing plastic trays generally do not have handles, and the bottom of the tray needs to be supported by both hands when the tray is placed, which is poor in force and unstable in hand; second, even if the tray There is a handle, and the handle is also installed on the edge of the tray, which has both increased the production cost, and the handle is installed on the edge of the tray, and hangs out of the edge of the tray, which is bulky, and the packaging and transportation costs are high.

Contents of the invention

The purpose of this utility model is to overcome the shortcoming of prior art, provide a kind of perforated handshake type plastic pallet that is beneficial to move, and the pallet is very stable, simple in structure, saves material, simple in shape, generous.

The technical solution of the utility model is a hole-shaking plastic tray: it consists of a plastic tray bottom and a tray edge, and is characterized in that hand holes are formed in the left and right walls of the tray edge.

The handshake type plastic tray with openings of the utility model has hand holes in the left and right sides of the tray, which not only saves materials, but also has a simple structure, and is conducive to moving the tray. It is convenient for people to hold the tray in the hand holes. Very steady.

The perforated handshake plastic tray of the utility model can be in various shapes such as square, circular, or polygonal. Its described hand hole is rectangular arc angle or ellipse or circle etc. The edge of the disc is formed with flanging, which not only improves the strength of the disc, but also increases the appearance. The bottom of the tray and the bottom surface of the tray are provided with rough surfaces, such as woven lines, to prevent the tray from sliding when there are stains such as oil stains and fruit stains on the table top.

Description of drawings

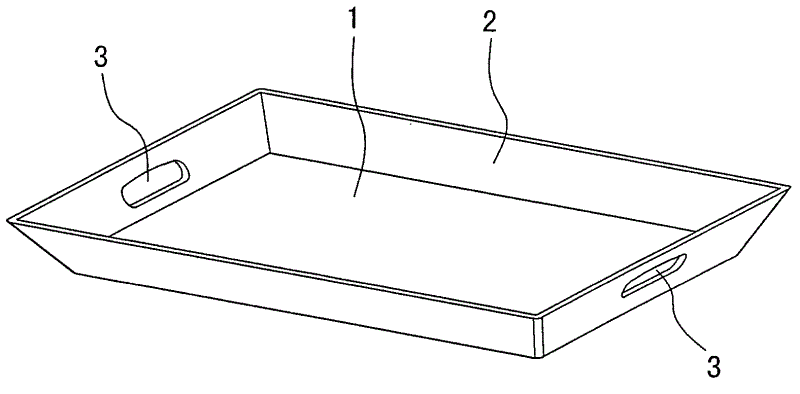

Fig. 1 is the structure schematic diagram of the utility model perforated handshake type plastic tray;

Fig. 2 is a schematic diagram showing that the tray of the utility model is circular and has flanges on the edge of the tray;

Fig. 3 is the bottom of the tray of the utility model and the schematic diagram of the rough surface along the bottom surface of the tray;

Fig. 4 is a polygonal schematic diagram of the utility model tray;

Fig. 5 is a schematic diagram of a hexagonal tray of the utility model.

Detailed ways

The utility model relates to a perforated handshake plastic tray, as shown in Fig. 1-Fig. 5, which consists of a tray bottom 1 and a tray edge 2 made of plastic, and is characterized in that the tray edge 2 and the left and right walls (that is, the tray edge body ) is shaped on hand hole 3. This solution has two symmetrical hand holes in the body of the plate edge, which not only saves materials, but also has a simple structure and good strength, and is also conducive to the movement of the plate. It is convenient and stable to hold the plate in the hand holes. As shown in Fig. 4 and Fig. 5, various colored patterns can also be printed or lined as decoration on the bottom of the disc 1, so as to increase the appearance and improve the product grade. Its described pallet can be square or circular or polygonal etc. various shapes. Its described hand hole 3 can be rectangular arc angle hand hole (as shown in Fig. 1-Fig. shape. As shown in Figure 2, the edge 2 of the dish is shaped on a flanging 4, such as a circular arc turning over the eaves, and the flanging not only improves the strength of the handicap, but also increases the appearance. As shown in Figure 3, its described dish bottom 1 and dish edge 2 bottom surfaces are shaped with rough surfaces, such as various shapes such as braided lines, which increases attractive in appearance, and when there are stains such as oil stains and fruit stains on the tabletop, the tray is prevented from sliding.

Claims (5)

1. A perforated handshake plastic tray, comprising a tray bottom (1) and a tray edge (2) made of plastic, characterized in that hand holes (3) are formed in the left and right walls of the tray edge (2). 2. The perforated handshake plastic pallet according to claim 1, characterized in that the pallet is square, circular or polygonal. 3. The perforated handshake plastic tray according to claim 1, characterized in that the said hand hole (3) is rectangular with rounded corners or oval or circular. 4. The perforated handshake plastic tray according to claim 1, characterized in that the edge (2) of the tray is provided with a flange (4). 5. The open-hole handshake plastic tray according to claim 1, characterized in that the bottom surface of the tray (1) and the tray edge (2) are made with rough surfaces (5).
