Abstract
本实用新型涉及一种节水减污降耗装置，公开了一种涂装前脱脂和脱脂清洗工序节水减污降耗装置，包括脱脂装置，脱脂装置设置在撬装式平台上，所述脱脂装置包括加热除油器、过滤提升泵、吸附过滤罐、污油槽和电控柜，其中，加热除油器固定安装在撬装式平台上，过滤提升泵与加热除油器相连，吸附过滤罐、污油槽和电控柜从左至右依次固定安装在撬装式平台上。本实用新型通过实施节水减污技术，保留废水中的有效成分，除去废水中影响生产的有害杂质，处理后的清洁水重新回用于生产，不但保护了环境，而且降低了企业的生产成本。
The utility model relates to a water-saving, pollution-reducing and consumption-reducing device, which discloses a water-saving, pollution-reducing and consumption-reducing device for the degreasing and degreasing cleaning process before painting, including a degreasing device, which is arranged on a skid-mounted platform. The degreasing device includes a heating degreaser, a filter lifting pump, an adsorption filter tank, a dirty oil tank and an electric control cabinet. The tank, dirty oil tank and electric control cabinet are fixedly installed on the skid-mounted platform in sequence from left to right. The utility model retains the effective components in the waste water by implementing the water-saving and pollution-reducing technology, removes harmful impurities in the waste water that affect production, and reuses the treated clean water for production, which not only protects the environment, but also reduces the production cost of the enterprise .
Description
Technical field
The utility model relates to a kind of water saving and subtracts dirty consumption reduction device, relates in particular to preceding degreasing of a kind of application and the water saving of cleaning by degreasing operation and subtracts dirty consumption reduction device.
Background technology
The CHINESE FRESHWATER resource scarcity, per capita 1/4 of the not enough world of Freshwater resources quantity per capita, and it is very uneven to distribute.Having more than 400 in the big and medium-sized cities, the whole nation is the lack of water city, and wherein more than 100 is the city of severe water shortage.On the other hand, add up according to State Environmental Protection Administration: the whole nation has 70% rivers water system to be polluted, and 40% has lost functions of use substantially, and the river in the city of flowing through is subjected to severe contamination more than 95%.
According to statistics, about 1.2 hundred million tons of the industrial annual wastewater flow rate of application, wherein about 35% for degreasing and cleaning by degreasing waste water, enters annual about 100,000 tons of oil removing grease-removing agent, 210,000 tons in caustic soda, about 30,000 tons of the stretching wet goods grease of water body with blowdown, to enterprise all round water body cause serious harm.Therefore, it is significant that the pollution of carrying out Coating Pretreatment subtracts dirty work.
The Pollution abatement technology of degreasing at present and cleaning by degreasing waste water mainly is the end treatment technology, uses the acidifying breakdown of emulsion, adds a large amount of mineral acids, regulates pH value about 2, removes grease; Use remaining grease, polymeric surface active agent and metal ion etc. in the mixed condensed gas flotation process removal waste water then; Adopt aerobic biochemical process to remove dissolved organic matter in the waste water and a spot of phosphoric acid salt etc. again; The water outlet qualified discharge.
Present application industry clearer production technology mainly contains the purification techniques, electrophoresis groove liquid electrocoating paint recovery technology of low toxicity coating technology, no nitrite-oxidizing technology, low alkali degreaser technology, low acidity rust remover technology, low zinc phosphating process agent technology, spraying cleaning water-saving technology, phosphatization tank liquor etc.But cleansing and recycling is carried out in the draining with regard to degreasing and cleaning by degreasing operation, reclaims industrial chemicals (grease-removing agent and caustic soda) simultaneously, reduces blowdown, and the cleaner production equipment of the closed cycle of water still is blank at home in realizing producing.
Summary of the invention
The utility model is at the deficiency of above-mentioned existence, and degreasing and the water saving of cleaning by degreasing operation subtract dirty consumption reduction device before the application of a kind of rational in infrastructure, good working effect, energy-conserving and environment-protective and provide.
For solving the problems of the technologies described above, the utility model is solved by following technical proposals:
The water saving of degreasing and cleaning by degreasing operation subtracts dirty consumption reduction device before a kind of application, comprise skimming unit, skimming unit is arranged on the sledge-borne type platform, described skimming unit comprises the heating oil eliminator, filters lift pump, adsorption filtration jar, sump oil groove and electrical control cubicles, wherein, the heating oil eliminator is fixedly mounted on the sledge-borne type platform, filters lift pump and links to each other with the heating oil eliminator, and adsorption filtration jar, sump oil groove and electrical control cubicles are fixedly mounted on the sledge-borne type platform from left to right successively.
As preferably, be provided with whipping appts in the described heating oil eliminator.
As preferably, be provided with the grease absorbent filter medium in the described adsorption filtration jar.Grease absorbent filter medium that is provided with the grease absorbent filter medium formed by caking agents such as the pearlstone of 30-60mg and resins in the adsorption filtration jar or forms by carbon fiber and quartz sand or the absorbent filter medium of forming by carbon fiber and gac.The one, can make the emulsified fat in the sewage under high pH value condition, realize the absorption removal; The 2nd, can hold back the suspended substance of removing in the sewage by filtration.
The utility model is in concrete work, and the degreasing cleaning fluid in its pre-treatment degreasing tank needs discharging regularly, contains a large amount of alkali lye and grease in this part degreasing waste water, and PH is more than 14, and oleaginousness is more than 2000mg/L, based on oil in water emulsion.And cleaning by degreasing waste water is divided into twice, contain more alkali lye and grease in the first road rinse water, PH is about 9, oleaginousness contains a spot of alkali lye and grease in the second road cleaning sullage about 100mg/l, PH is about 8, oleaginousness is about 30mg/l, in order to guarantee the workpiece cleaning quality, the water of rinse bath is wanted continuous overflow, therefore produces a large amount of oily(waste)waters.
The utility model is a core technology with breaking milk and removing oil technology under the high pH value condition of waste water and the absorption degreasing technique under the high pH value condition.
After the heating oil eliminator oil removing of degreasing cleaning fluid through having whipping appts, oleaginousness can reach below the 150mg/L, and after the further oil removing of adsorption filtration technology and removing suspended substance, the alkaline water of cleaning is back in the rinse bath then.Finish closed cycle, save fresh water, save the alkali consumption, reclaim greases such as stretching sump oil.
Contain grease and alkali lye that a large amount of workpiece are taken out of after the degreasing in the cleaning sullage.The first road cleaning by degreasing sewage is after collecting, at first regulate pH value by neutralization, pressurization promotes and by the adsorption filtration oil eliminator grease in the sewage is dropped to below the 5mg/l again, suspended substance drops to below the 10mg/l, cleaning water is back to use the second road cleaning sink moisturizing through pressurization, finish the water closed cycle, save fresh water.In order to guarantee the stable of pH value, the PH varitrol is set in sewage recovering system.
The utility model has been owing to adopted above technical scheme, can solve simultaneously from the source application industry pre-treatment degreasing process water saving, reduce blowdown, reduce material consumption and improve the quality of products etc. many-sided technical barrier.Simultaneously, each unit equipment is assembled in and forms an integral body on the steel platform, rectangular structure, and compact construction, rationally distributed, be convenient to operation, install, transport and maintenance; Control is automatically adopted in operation, can realize unattended; Equipment can carry out automatically easily, manual switchover, and is easy to operate.
Description of drawings

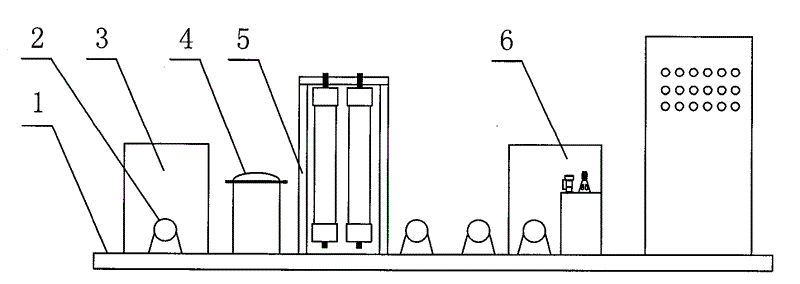

Fig. 1 is the structural representation of the utility model embodiment.
Fig. 2 is the vertical view of Fig. 1.
Fig. 3 is the utility model embodiment process flow sheet in use.
Embodiment
Below in conjunction with drawings and Examples the utility model is described in further detail:
Embodiment as shown in Figure 1, the water saving of degreasing and cleaning by degreasing operation subtracts dirty consumption reduction device before a kind of application, comprise skimming unit, skimming unit is arranged on the sledge-borne type platform 1, described skimming unit comprises heating oil eliminator 3, filters lift pump 2, adsorption filtration jar 4, sump oil groove 5 and electrical control cubicles 6, wherein, heating oil eliminator 3 is fixedly mounted on the sledge-borne type platform 1, filter lift pump 2 and link to each other with heating oil eliminator 3, adsorption filtration jar 4, sump oil groove 5 and electrical control cubicles 6 are fixedly mounted on the sledge-borne type platform 1 from left to right successively.Be provided with whipping appts in the described heating oil eliminator 3.Be provided with the grease absorbent filter medium in the described adsorption filtration jar 4.The utility model is collected the useless degreasing fluid that receives in the degreasing tank and is entered the heating oil eliminator 3 that has whipping appts; In heating oil eliminator 3, the temperature of waste water is elevated to 70-75 ℃, and (the grease-removing agent tolerable temperature in the waste water is greater than 80 ℃, can be not destroyed), adding under the emulsion splitter condition of 2-20ppm, most of oil in water emulsion in the waste water is by breakdown of emulsion, the grease of the overwhelming majority is separated from water, in the income sump oil groove 5; Heating oil eliminator 3 water outlet oleaginousness are lower than 100-200mg/l.3 water outlets of heating oil eliminator are transported to adsorption filtration jar 4 by filtering lift pump 2; Adsorption filtration jar 4 is provided with the grease absorbent filter medium be made up of caking agents such as 30-60 purpose pearlstone and resins or grease absorbent filter medium of being made up of carbon fiber and quartz sand or the absorbent filter medium of being made up of carbon fiber and gac, one can make the emulsified fat in the sewage realize the absorption removal under high pH value condition, and two can hold back the suspended substance of removing in the sewage by filtration.Adsorption filtration jar 4 water outlet oleaginousness are 30-100mg/l, and water outlet SS concentration is lower than 10mg/l; Can flow directly in the degreasing tank, finish closed cycle.Grease in the waste water obtains reclaiming, and grease-removing agent and caustic soda in the water are utilized again, and water obtains recycling.Solve water saving, subtracted dirt, fallen material consumption three big cleaner production problems.Adsorption filtration jar 4 disposes the automatic back-washing system, and the backwash water outlet enters waste water processing station and handles.
For an annual production is the paint line of 50,000 amount pony cars, about 20 ton per days of amount of useless degreasing fluid, after using the processing of this device, discharged waste water can reduce to about 1 ton per day, simultaneously can save about 19 ton per days of fresh water, about 100Kg/ day of recyclable grease-removing agent, can save about 200Kg/ day of caustic soda, recyclable drawing oil 35Kg/ day; About 300,000 yuan of annual producible economic return, recoverable investment in 1.0～1.5 years.Can improve the quality of products simultaneously, economic benefit, environmental benefit and social benefit are fairly obvious.
