Abstract
本实用新型公开了一种可生化的斜体填料，用于高浊度污染水体的净化处理，可以降低污染水体SS、N、P、COD等。本实用新型是在填料本体外表覆盖一层生物膜，填料本体呈板状或管状。本实用新型弥补了现有填料过滤技术单一的不足，具有可生化性、助沉淀性和过滤作用，本实用新型的应用将进一步推动环保水处理技术的发展，使水处理设备系统更为紧凑、合理，具有极大的经济价值和社会价值。
The utility model discloses a biochemical italic filler, which is used for the purification treatment of high turbidity polluted water, and can reduce SS, N, P, COD and the like of the polluted water. The utility model covers a layer of biofilm on the outer surface of the filler body, and the filler body is in the shape of a plate or a tube. The utility model makes up for the single deficiency of the existing filler filtration technology, and has biodegradability, sedimentation aid and filtering effect. The application of the utility model will further promote the development of environmental protection water treatment technology, making the water treatment equipment system more compact and efficient. Reasonable, with great economic value and social value.
Description
Technical field
The utility model relates to a kind of brand-new improvement polluted water purification treatment technology, specifically relates to a kind of italic filler that can be biochemical, is used for the purifying treatment of high turbidity polluted-water, can reduce polluted-water SS, N, P, COD etc.
Background technology
Along with people's environmental consciousness is constantly strengthened, the cognition of people's environmental pollution harm is more and more deep, and some are reasonable in design, outstanding effect green technology, environmentfriendly products also are being widely used, and have great market outlook.At can biochemical sewage, the A/O technology be just extensively effectively used, and biochemical filler commonly used has 3 D elastic filler, combined stuffing, fibrous nodules filler etc., again in conjunction with the effect of aeration, can remove N in the water, P, COD, reduces part SS simultaneously.At ultra's body purification techniques flocculation, precipitation etc. are arranged.The settling region is provided with the italic filler, can prolong the absurd creature residence time, promotes the precipitation of suspension dirt, improve sedimentation effect greatly, obvious to reducing the water turbidity effect, dwindled equipment volume simultaneously, but existing its material of italic filler has glass reinforced plastic, plastics etc., does not all have biodegradability.Existing filtering technique has the filtrate formula to filter (can select different size, performance filtrate according to the treatment process demand, if any: each specification quartz sand, fiber-like filtrate, removing of iron and manganese filtrate, activated carbon, zwitterion resin etc.), filter net type to filter (filter screen that can require to select different filtering accuracies such as thick, thin, precision, film according to treatment process).
Summary of the invention
The utility model mainly is to solve the existing in prior technology technical problem, provide a kind of can biochemical italic filler.
Above-mentioned technical problem of the present utility model is mainly solved by following technical proposals: a kind of italic filler that can be biochemical, comprise filler body, and described filler body appearance covers one deck microbial film, and described filler body is tabular or tubulose.
The utlity model has simple in structure, characteristics such as reasonable in design, the utility model has remedied the single deficiency of existing filler filtering technique, have biodegradability, help precipitation threshold and filteration, application of the present utility model will further promote the development of environmental protection water technology, make the water treating equipment system more compact, reasonable, have great economic worth and social value.
Description of drawings

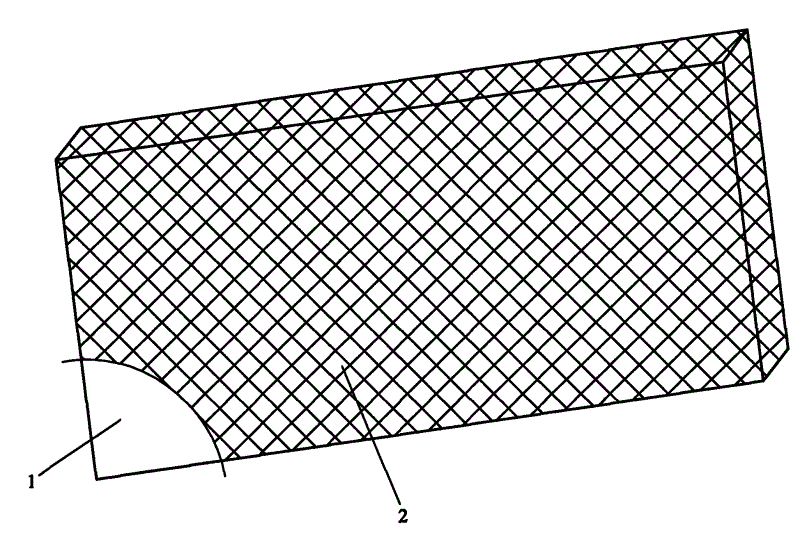

Fig. 1 is a kind of structural representation of the utility model embodiment 1;
Fig. 2 is a kind of structural representation of the utility model embodiment 2;
Fig. 3 is a kind of structural representation that the utility model is used;
Fig. 4 is the another kind of structural representation that the utility model is used.
Embodiment
Below by embodiment, and in conjunction with the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment 1: referring to Fig. 1, filler body 1 of the present utility model is tabular, and its appearance covers one deck microbial film 2.During use, the utility model be seated in can biochemical filler pond 7 in, referring to Fig. 3, under the situation that the low turbidity water body purifies, need not deep biochemical and handle, former water enters from water-in 6 can biochemical filler pond 7, being provided with some groups in can biochemical filler pond 7 can biochemical swash plate filler 8, former water can carry out biochemistry, filtration and precipitation in the biochemical filler pond 7, reduces polluted-water SS, N, P, COD etc., emits through effluent weir 9 again.Can biochemical filler pond 7 aerating systems 11 that are provided with can improve the effect of sedimentation and filtration.
Referring to Fig. 4, under the situation that ultra's body purifies, need deep biochemical to handle, former water enters from water-in 6 can biochemical filler pond 7, and being provided with some groups in can biochemical filler pond 7 can biochemical swash plate filler 8, and former water can carry out biochemistry, filtration and precipitation in the biochemical filler pond 7, reduce polluted-water SS, N, P, COD etc., enter into delicate bioreactor 10 through effluent weir 9 again,, reach the effect that purifies fully further biochemistry of water and secondary filter.Can biochemical filler pond 7 and the pond of delicate bioreactor 10 at the bottom of the aerating system 11 that is provided with can improve the effect of sedimentation and filtration.
Embodiment 2: referring to Fig. 2, filler body 1 of the present utility model in a tubular form, its appearance covers one deck microbial film 2.All the other reference examples 1.
At last, should be pointed out that above embodiment only is the more representational example of the utility model.Obviously, the technical solution of the utility model is not limited to the foregoing description, and many distortion can also be arranged.All distortion that those of ordinary skill in the art can directly derive or associate from the disclosed content of the utility model all should be thought protection domain of the present utility model.
Claims (2)
- One kind can be biochemical the italic filler, comprise filler body (1), it is characterized in that described filler body (1) appearance covers one deck microbial film (2).
- 2. italic filler that can be biochemical according to claim 1 is characterized in that described filler body (1) is tabular or tubulose.
