CN201683020U - Smoke dust absorption device for cigarette equipment - Google Patents

Abstract

A smoke dust absorption device for cigarette equipment, comprising a pressure plate, a cover plate, and a bottom plate, the cover plate is connected with the bottom plate to form a cavity, the bottom of the bottom plate is opened with a through hole, the cavity communicates with a connecting pipe through the through hole, and the connecting pipe It is connected with the dust removal pipe, and an air pressure regulating device is installed on the connecting pipe. The smoke dust absorbing device of the utility model connects the cavity formed by the cover plate and the bottom plate with the dust removal pipe through the connecting pipe, and then installs an air pressure regulating device on the connecting pipe, and at the same time, the cavity is aligned with the small pressure plate at the gluing position, and the air pressure regulating device Set it to negative pressure, so that when the shredded tobacco passes through the small pressure plate, the scattered tobacco powder will be absorbed into the cavity due to the effect of air pressure, and then enter the dust removal pipe through the connecting pipe, and the tobacco powder will be disposed of, so that the cigarette paper The scattered tobacco powder during gluing will not affect the gluing effect, and there will be no cracked smoke in the final tobacco rod, thereby improving the quality index of cigarettes and the stable operation of the equipment.

Description

Smoke dust absorption device for cigarette equipment

technical field

The utility model relates to a cigarette device, in particular to a device used for processing the smoke dust produced in the production of the cigarette device.

Background technique

The tobacco rod is compressed by the tongue for the first time and enters the small pressure plate for the second compression. At this time, the gluing device glues the cigarette paper of the tobacco rod in the second compression state, because the compressed tobacco rod is not completely sealed by the small pressure plate , causing the tobacco powder to scatter from the tobacco rod, and the scattered tobacco powder accumulates more and more, which affects the cleanliness of the site. What is more serious is: the scattered tobacco powder is adsorbed on the gluing position of the cigarette paper, which affects the stickiness of the cigarette paper. Fitting and shaping, resulting in the opening of the tobacco rod, which not only affects the circumferential quality index of the cigarette but also affects the stable operation of the equipment.

Contents of the invention

In view of the above problems, the purpose of this utility model is to provide a tobacco dust absorption device, which collects the shredded tobacco scattered during the compression process of the shredded tobacco rod, and recovers it through the dust removal system; prevents the dust from falling on the glued cigarettes On paper, so as to reduce the problem of cigarette stick opening caused by tobacco dust and the problem of equipment downtime caused by tobacco stick breaking.

The technical solution of the utility model: a tobacco dust absorption device for cigarette equipment, including a pressure plate, a cover plate, and a bottom plate, the cover plate and the bottom plate are connected to form a cavity, and a through hole is opened at the bottom of the bottom plate, and the cavity passes through the through hole It communicates with the connecting pipe, the connecting pipe is connected with the dust removal pipe, and the air pressure regulating device is installed on the connecting pipe.

Preferably, a support seat is provided on the pressing plate.

Preferably, the pressing plate is in close contact with the small pressing plate that presses the cigarette paper.

The smoke dust absorbing device of the utility model connects the cavity formed by the cover plate and the bottom plate with the dust removal pipe through the connecting pipe, and then installs an air pressure regulating device on the connecting pipe, and at the same time, the cavity is aligned with the small pressure plate at the gluing position, and the air pressure regulating device Set it to negative pressure, so that when the shredded tobacco passes through the small pressure plate, the scattered tobacco powder will be absorbed into the cavity due to the effect of air pressure, and then enter the dust removal pipe through the connecting pipe, and the tobacco powder will be disposed of, so that the cigarette paper The scattered tobacco powder during gluing will not affect the gluing effect, and there will be no cracked smoke in the final tobacco rod, thereby improving the quality index of cigarettes and the stable operation of the equipment.

Description of drawings

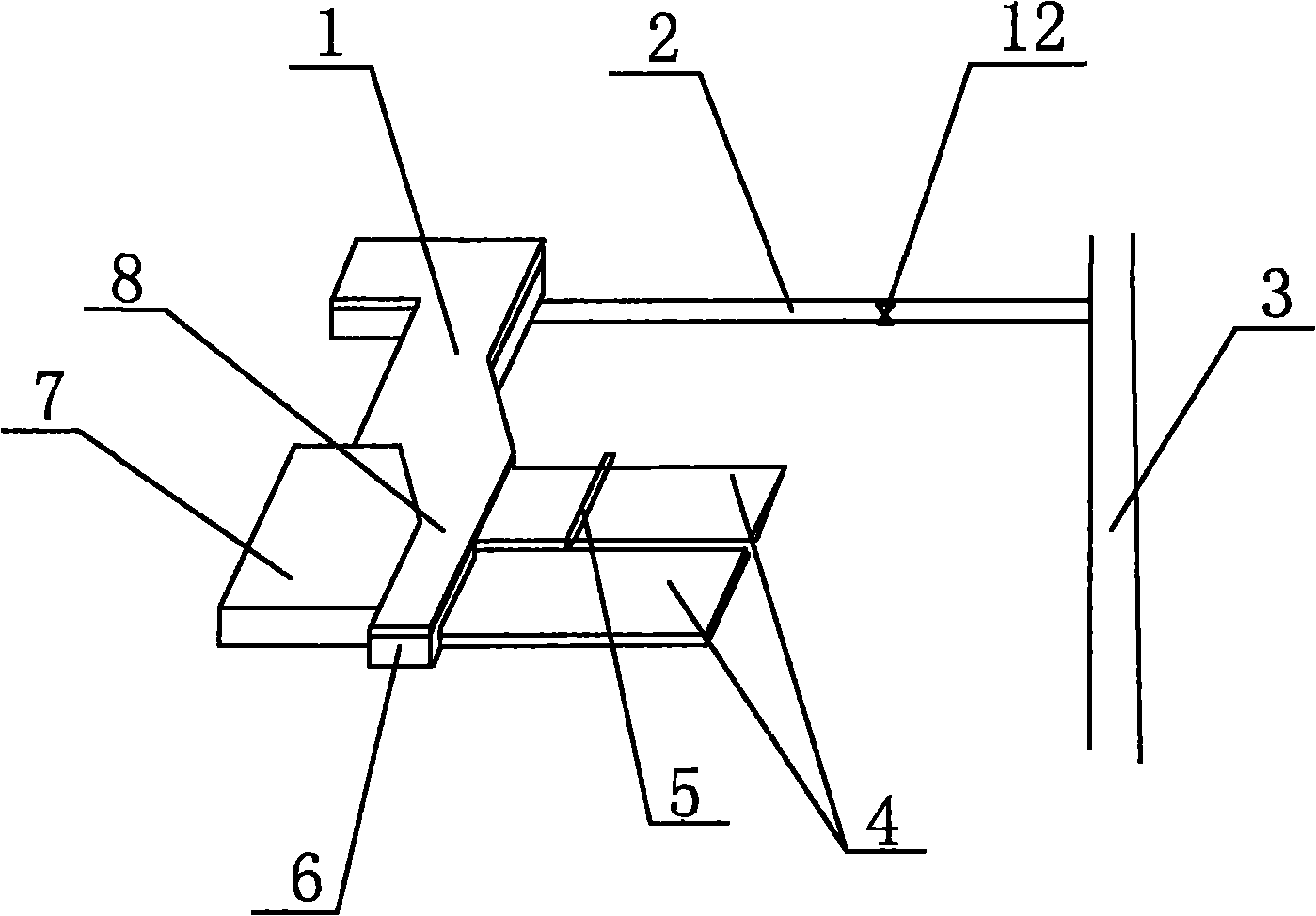

Fig. 1 is the working structure schematic diagram of the present utility model;

Fig. 2 is a structural schematic diagram 1 of the smoke recovery device;

Fig. 3 is the second structural diagram of the smoke recovery device.

Detailed ways

As shown in Figures 1, 2, and 3, a tobacco dust absorption device for cigarette equipment includes a pressing plate 8, a cover plate 1, and a bottom plate 10. The cover plate 1 is connected to the bottom plate 10 to form a cavity 9, and the bottom of the bottom plate 10 is A through hole 11 is opened, the cavity 9 communicates with the connecting pipe 2 through the through hole 11, the connecting pipe 2 is connected with the dust removal pipe 3, and an air pressure regulating device 12 is installed on the connecting pipe 2. The support seat 6 is arranged on the pressing plate 8 . The pressing plate 8 is in close contact with the small pressing plate 4 that presses the cigarette paper.

When using the absorption device, the pressure plate 8 is pressed on the small pressure plate 4, and the device can be installed more stably through the support seat 6. The cover plate 1 is connected with the bottom plate 10 to form a cavity 9, and the small pressure plate 4 is aligned with the glue nozzle 5. Position, the through hole 11 opened under the bottom plate 10 communicates with the connecting pipe 2, and the air pressure regulating device 12 arranged in the connecting pipe 2 is opened, and the air pressure regulating device 12 sucks the air in the cavity into the pipe, so that the entire wind direction is towards the connecting pipe. The air flows in the pipe, and when the air flows, it drives the smoke powder on the small pressure plate into the cavity, and finally enters the dust removal pipe through the connection, so as to achieve the purpose of removing the smoke powder.

Claims (3)

1. A tobacco powder absorbing device for cigarette equipment, comprising a pressing plate, a cover plate, and a base plate, characterized in that the cover plate is connected to the base plate to form a cavity, and the bottom of the base plate has a through hole, and the cavity is connected with the through hole The connecting pipes communicate with each other, the connecting pipes are connected with the dust removal pipe, and the air pressure regulating device is installed on the connecting pipes. 2 . The smoke dust absorbing device for cigarette making equipment according to claim 1 , wherein a support seat is arranged on the pressing plate. 3 . 3. A tobacco dust absorbing device for cigarette making equipment according to claim 1 or 2, characterized in that the said pressing plate is in close contact with the small pressing plate that presses the cigarette paper.
