CN201683063U - Sports vest with bandeau - Google Patents

Abstract

The utility model discloses a sports vest with a tube top. The sports vest with a tube top includes a vest, a tube top, shoulder straps, and a bottom edge. The vest and the tube top are integrated, the waist and abdomen on the left and right sides of the vest adopt tuck weave, the cleavage part of the tube top adopts rib weave, and the bottom edges of the tube top and the vest are double-layered edges of rib weave. The utility model is comfortable to wear, beautiful in appearance, strong in functionality, short in processing flow and low in cost.

Description

Sports vest with bandeau

technical field

The utility model relates to a seamless sportswear, in particular to a sports vest with a tube top.

Background technique

At present, most of the sports vests worn by women are flat, and the tension is mainly generated by the elasticity of the fabric. Therefore, the pressure is often the greatest in the most plump parts of the human body, and the chest is greatly restrained. In addition, the side seams of general sports vests It is stitched, which not only affects the comfort of the human body, but also hinders smooth and convenient movement, and cannot fully show the soft curve from the side of the female chest to the waistline. Furthermore, the edge and waist of the general vest rarely have changes in the organizational structure, and the degree of fit with the human body is not good enough. Often there is a large gap between the clothing and the human body due to different exercise postures, and it cannot be close to the skin and slippery. The embarrassing scene of moving, so the functionality and modification of the sports vest are greatly reduced. Ordinary vests are mostly single-layer fabrics, without chest pad support, and the unsightly wearing is also a problem to be solved at present. Therefore, combining the vest and the tube top to manufacture is one of the keys of the present invention.

Utility model content

The technical problem to be solved by the utility model is to overcome the deficiencies in the prior art and provide a sports vest with a tube top that is comfortable to wear, beautiful in appearance, strong in functionality, short in processing flow and cost-saving.

The technical scheme adopted by the utility model to solve the above-mentioned technical problems is: the sports vest with a tube top includes a vest, a tube top, shoulder straps, and a bottom edge. It is integrated with the tube top, the waist and abdomen on the left and right sides of the vest adopt tuck tissue, the cleavage part of the tube top adopts rib weave, and the bottom edges of the tube top and the vest are double-layered edges of rib weave.

The back of the vest described in the utility model is provided with a semicircular backless part, and the vest and the tube top are assembled at the front and rear necklines, cuff rings, and the opening of the backless.

The back of the vest described in the utility model is provided with shoulder straps connected therewith as a whole, and the shoulder straps are movably connected with the front part of the vest through a metal ring.

The waist and abdomen parts on the left and right sides of the vest described in the utility model adopt tuck weave, the outer contour edge part of the vest adopts 1+1 rib weave, and other parts of the vest adopt flat stitch weave.

The tube top described in the utility model adopts plain stitches on the chest, 1+1 rib weaves on the left and right side seams, and rib weaves on the cleavage part.

Compared with the prior art, the utility model has the following advantages: the tube top is woven in a whole piece by a seamless knitting machine, and there is no splicing seam on both sides, which can achieve a seamless fit effect. According to the shape of women's breasts, the tube top part adopts ribbed tissue to longitudinally shrink the connection between the left and right circular surfaces of the breast, that is, the cleavage part, to form a three-dimensional shape of two convex surfaces. This tube top is woven by advanced seamless knitting machine, using elastic yarn, so that the tube top fits the body everywhere, which is not only comfortable but also beautiful to wear. The hem edge adopts double-layer edge, which has the characteristics of not curling. The edge structure of the vest is different from that of the main body, and the rib structure is tighter than the flat stitch, so there is no need to worry about slipping when the human body moves freely. The chest inner layer of the utility model is a tube top connected with a vest, which replaces a bra during exercise, has better comfort effect, and is convenient and practical. The tuck structure on both sides of the waist and abdomen tightens the curve of the waist and abdomen, and at the same time increases the friction between the waist and the skin. When wearing it, the vest will not slide up due to bending and other movements. The open-back style of the back allows the wearer to move more freely while exercising, and at the same time helps the back to wick away sweat. Wearing the sports vest can not only perfectly show the soft and beautiful lines of the chest, but also has advantages and comfort that cannot be compared with the existing ordinary sports vests. In addition, the seamless weaving process enables the product to be formed at one time, which shortens the product processing process, saves costs, and improves production efficiency and product quality.

Description of drawings

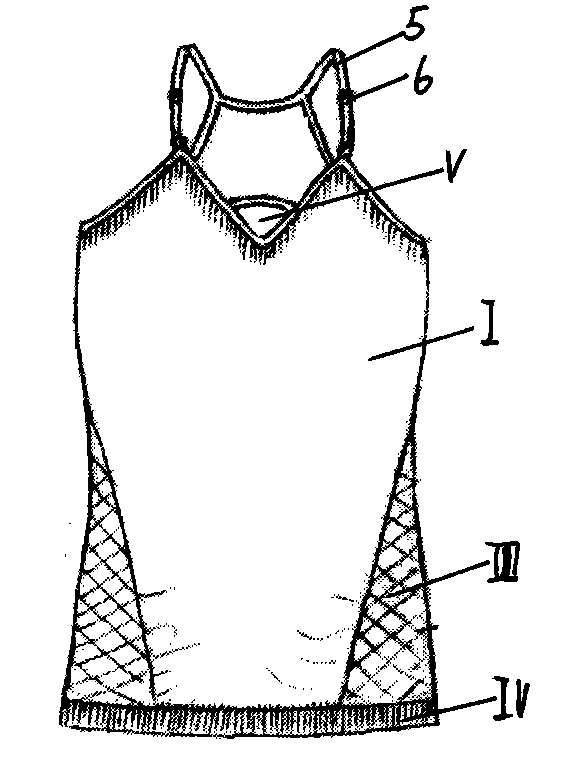

Fig. 1 is a schematic diagram of the front outer layer of the utility model.

Fig. 2 is a schematic diagram of the outer layer at the back of the utility model.

Fig. 3 is a schematic diagram of the front inner layer of the utility model.

Fig. 4 is a schematic diagram of the back layer of the utility model.

Detailed ways:

Referring to Fig. 1-Fig. 4, the utility model comprises vest I, tube top II, waist and abdomen part III and bottom edge IV. The main body of the vest I adopts plain stitches, the waist and abdomen parts III on the left and right sides adopt tuck weaves and are formed in one piece, and the back of the vest I is provided with a semicircular backless part V. The back of the vest 1 is provided with shoulder straps 5 connected with it, and the shoulder straps 5 are movably connected with the vest 1 front portion by the metal ring 6, and the length can be adjusted. The tube top II is formed by weaving the whole piece at one time, and the vest I and the tube top II are joined together along the front and rear necklines, armbands, and the opening of the open back. The triangular part 1 on the side of the waist and abdomen adopts tuck weaving to tighten both sides of the waist and abdomen so that it fits the body closely and strengthens friction during exercise. The cleavage part 2 on the tube top II adopts ribbed tissue to form longitudinal shrinkage, so that the chest 3 forms two three-dimensional convex surfaces. The chest 3 is made of plain stitches, and the side seam part 4 of the tube top is made of 1+1 ribbed weave, so as to generate greater elasticity and stably support the chest 3 . Bottom edge IV of tank top I and tube top II is a double edge, woven with rib weave.

The fabric of the utility model is composed of 96% nylon or polyester or nylon and 4% elastic fibers.

When the utility model weaves the tube top chest, the middle of the tube top front part adopts rib weave to longitudinally shrink the connection between the left and right round surfaces of the chest braided by plain stitches, and through the cooperation of different tissue structures, two parts are formed. A convex three-dimensional configuration. The seamless knitting technology of the whole piece makes the tube top have no side seam, and the elastic fiber is added to the yarn to make the tube top close to the body, so that it will not slip in position. Similarly, when weaving the vest, different weave structures are also used to achieve the three-dimensional effect of the garment. The edge of the vest adopts a tight 1+1 rib weave, which is combined with the flat stitch of the main body to make it more comfortable to wear. Good fit, especially when exercising, the edge part can still be close to the skin. The tuck structure on both sides of the waist and abdomen strengthens the waist effect of this part on the one hand, so that the vest fits closely to the body; on the other hand, the tuck structure makes the fabric produce an uneven effect, which increases the friction of this part during exercise , so that there will be no position slippage. The bottom edge design of the double-layer edge improves the unfavorable effect that the knitted fabric is easy to curl.

Claims (5)

1. jersey with undergarment covering the chest and abdomen, comprise vest, undergarment covering the chest and abdomen, shoulder belt, base, it is characterized in that: vest and undergarment covering the chest and abdomen are full sheet braiding one-shot forming, vest and undergarment covering the chest and abdomen are connected as a single entity, the midsection of the vest left and right sides adopts tuck stitch, the cleavage of undergarment covering the chest and abdomen partly adopts rib construction, and the base of undergarment covering the chest and abdomen and vest is the double-deck limit of rib construction.

2. the jersey of band undergarment covering the chest and abdomen according to claim 1 is characterized in that: described vest back is provided with the part of being backless of semi-circular shape, and vest and undergarment covering the chest and abdomen be at the front and back neckline, armhole, the opening part amalgamation of being backless.

3. the jersey of band undergarment covering the chest and abdomen according to claim 1 and 2 is characterized in that: described vest back is provided with the shoulder belt that is connected as a single entity with it, and shoulder belt and vest front portion flexibly connect by becket.

4. the jersey of band undergarment covering the chest and abdomen according to claim 1 and 2 is characterized in that: the midsection of the described vest left and right sides adopts tuck stitch, and the 1+1 rib construction is adopted in the outline marginal portion of vest, and other parts of vest adopt plain stitch.

5. the jersey of band undergarment covering the chest and abdomen according to claim 1 is characterized in that: its chest of described undergarment covering the chest and abdomen adopts plain stitch, and left and right sides side sewing portion adopts the 1+1 rib construction, and rib construction is adopted at the cleavage position.
