Abstract

The cold-proof ambulance suit applicable to the disaster scene, comprising a cross-shaped cotton cloth 1, a head and neck opening 2, a neck zipper 3, a jacket connection device 4, an M-shaped cotton cloth 5, and a trousers connection device 6. It is characterized in that the cross-shaped cotton cloth 1 is a piece of "ten"-shaped cotton cloth, the middle of the cross-shaped cotton cloth 1 is provided with a head and neck opening 2, and the cloth edges of the four corners of the cross-shaped cotton cloth 1 are provided with a jacket connecting device 4, and when used, the cross-shaped cotton cloth is placed along the head and neck opening. 2 put it into the neck of the wounded, fold it in half along the opening 2 of the head and neck, and fix the upper garment connecting device 4 to each other to form a warm cotton coat; The selvedge of the inverted "V"-shaped opening below it is provided with a trousers connecting device 6. When in use, the whole piece of M-shaped cotton cloth 5 is spread under the buttocks of the injured, and the longitudinal folding line is located on the outside of the thigh, and is folded in half along the longitudinal folding line. The trousers connecting devices 6 are mutually fixed to form warm trousers.

Description

Cold-resistant first aid suits for disaster sites

technical field

The utility model relates to a clothing product, in particular to a cold-proof ambulance suit suitable for wearing at the scene of an accident and disaster under special circumstances.

Background technique

At present, although the clothing products in the prior art are beautiful, their structure is relatively single, and they cannot meet the requirements of work under special working conditions, especially at the scene of an accident or in earthquake relief. There are simple ambulance suits, but due to different structures, the wearing effect is also different.

Contents of the invention

The purpose of this utility model is to provide a kind of anti-cold ambulance suit that is applicable to the scene of disaster that is suitable for wearing under special circumstances, especially the site of accident disaster. The technical scheme adopted by the utility model to solve its technical problems is: the structure of the utility model comprises a cross-shaped cotton cloth 1, a head and neck opening 2, a neck slide fastener 3, a coat connection device 4, an M-shaped cotton cloth 5, and a trousers connection device 6. It is characterized in that the cross-shaped cotton cloth 1 is a piece of "ten"-shaped cotton cloth, the middle of the cross-shaped cotton cloth 1 is provided with a head and neck opening 2, and the cloth edges of the four corners of the cross-shaped cotton cloth 1 are provided with a jacket connecting device 4, and the cross-shaped cotton cloth 1 is provided with a jacket connecting device 4. 2. Put it into the neck of the injured person, fold it in half along the opening 2 of the head and neck, and fix the upper garment connecting device 4 to each other to form a warm cotton coat; And the selvedge of the inverted "V"-shaped opening below it is provided with a trousers connecting device 6. When in use, the whole piece of M-shaped cotton cloth 5 is spread under the buttocks of the injured, and the longitudinal folding line is located on the outside of the thigh. The trousers connecting devices 6 are mutually fixed to form warm trousers, and the trouser legs can be long or short. The device only uses two pieces of cotton cloth, and can be quickly worn without greatly moving the body of the injured. In order to effectively observe the vital signs of the injured, a temperature sensor can be set on the inner layer of the jacket, and the temperature sensor can be wirelessly connected to the monitoring instrument of the centralized ambulance office.

The beneficial effect of the utility model is that the cold-proof ambulance suit suitable for disaster sites has the advantages of convenient use, simple structure, low manufacturing cost and easy large-scale production.

Description of drawings

Fig. 1 is a schematic diagram of the unfolded structure of the coat of the present utility model;

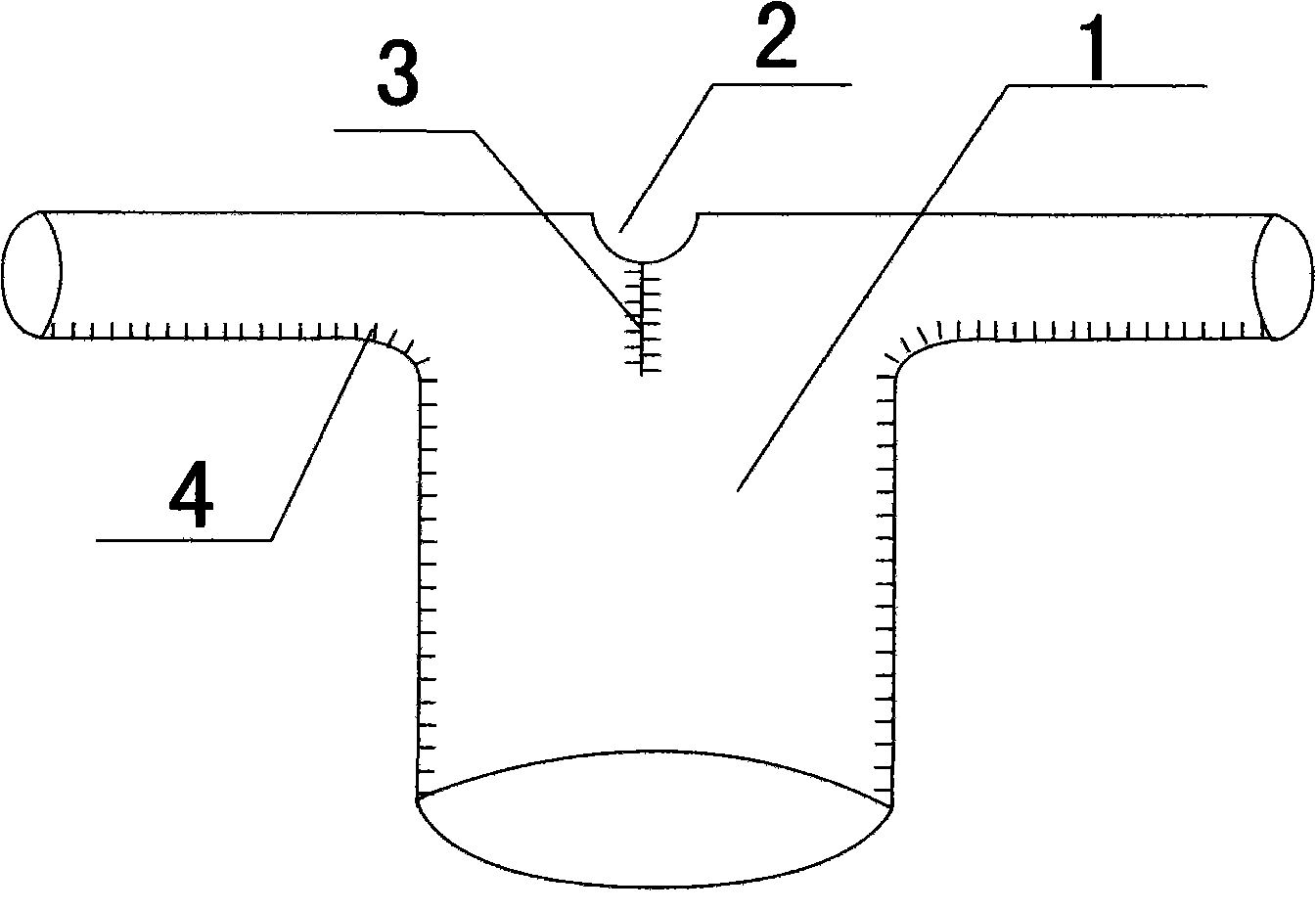

Fig. 2 is a structural schematic diagram of the state of use of the coat of the utility model;

Fig. 3 is a schematic diagram of the expanded structure of trousers of the present utility model;

Fig. 4 is a schematic diagram of the structure of the trousers in use of the utility model;

In the figure: cross-shaped cotton cloth 1, head and neck opening 2, neck zipper 3, coat connecting device 4, M-shaped cotton cloth 5, trousers connecting device 6.

Detailed ways

The utility model is described in detail below with reference to accompanying drawing, and the structure of the utility model comprises cross-shaped cotton cloth 1, head and neck opening 2, neck slide fastener 3, coat connection device 4, M-shaped cotton cloth 5, trousers connection device 6. It is characterized in that the cross-shaped cotton cloth 1 is a piece of "ten"-shaped cotton cloth, the middle of the cross-shaped cotton cloth 1 is provided with a head and neck opening 2, and the cloth edges of the four corners of the cross-shaped cotton cloth 1 are provided with a jacket connecting device 4, and the cross-shaped cotton cloth 1 is provided with a jacket connecting device 4. 2. Put it into the neck of the injured person, fold it in half along the opening 2 of the head and neck, and fix the upper garment connecting device 4 to each other to form a warm cotton coat; And the selvedge of the inverted "V"-shaped opening below it is provided with a trousers connecting device 6. When in use, the whole piece of M-shaped cotton cloth 5 is spread under the buttocks of the injured, and the longitudinal folding line is located on the outside of the thigh. The trousers connecting devices 6 are mutually fixed to form warm trousers, and the trouser legs can be long or short.

The above-described embodiments are only described to the preferred implementation of the utility model, and are not intended to limit the concept and scope of the utility model. Various modifications and improvements made in the new technical solution should fall within the scope of protection of the utility model, and the technical content claimed in the utility model has been fully recorded in the claims.

Claims (1)

1. Cold-proof ambulance clothing suitable for disaster sites, including cross-shaped cotton cloth (1), head and neck opening (2), neck zipper (3), jacket connecting device (4), M-shaped cotton cloth (5), trousers connecting device ( 6), characterized in that the cross-shaped cotton cloth (1) is a piece of "ten"-shaped cotton cloth, the middle of the cross-shaped cotton cloth (1) is provided with a head and neck opening (2), and the cloth edges of the four corners of the cross-shaped cotton cloth (1) are provided with The jacket connection device (4), when in use, is inserted into the neck of the injured person along the head and neck opening (2), folded in half along the head and neck opening (2), and the jacket connection devices (4) are fixed to each other to form a warm cotton coat; M-shaped The cotton cloth (5) is a piece of "M" shaped cotton cloth, and the selvedges on both sides of the M-shaped cotton cloth (5) and the selvedge of the inverted "V"-shaped opening below it are provided with a trousers connecting device (6). The M-shaped cotton cloth (5) is spread under the injured person's buttocks, and the longitudinal fold line is positioned at the outside of the thigh, and is folded in half along the longitudinal fold line, so that the trouser connecting devices (6) are fixed to each other to form warm trousers. the
