CN201714560U - Generating apparatus for mountain area drinking water pipeline - Google Patents
Generating apparatus for mountain area drinking water pipeline Download PDFInfo
- Publication number
- CN201714560U CN201714560U CN2010202584599U CN201020258459U CN201714560U CN 201714560 U CN201714560 U CN 201714560U CN 2010202584599 U CN2010202584599 U CN 2010202584599U CN 201020258459 U CN201020258459 U CN 201020258459U CN 201714560 U CN201714560 U CN 201714560U
- Authority
- CN
- China
- Prior art keywords
- water
- pipeline
- power generation
- generation device
- pipelines
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/20—Hydro energy
Landscapes
- Other Liquid Machine Or Engine Such As Wave Power Use (AREA)
Abstract
山区饮水管道发电装置，在具有势能差的山区饮水管道上，设置有若干个由水轮驱动的发电机，所述水轮埋设在饮水管道内，所述水轮与管道交叉的部分不超过管道的中心线，水轮与发电机的壳体采用密封结构，与外界隔离。山区市政府水厂引水管道和自来水管道发电装置，在具有势能差的引水管道出水口和自来水供水主管道分支管道之前处安装冲击式发电装置，并且从水库到市政水厂，从水厂到居民区的主管道上设置有若干个水轮驱动的发电机，所述发电装置是管道和水轮机与发电机一体，管道一提醒发电装置的水轮与管道交叉的部分不超过管道的中心线，这样可以保证水轮转动发电的过程中不会对水压带来过大的影响。
The power generation device for drinking water pipelines in mountainous areas. On the drinking water pipelines in mountainous areas with poor potential energy, several generators driven by water wheels are installed. The water wheels are buried in the drinking water pipelines. The center line of the water wheel and generator adopts a sealed structure, which is isolated from the outside world. The water diversion pipeline and tap water pipeline power generation device of the government water plant in the mountainous area, the impact power generation device is installed before the outlet of the diversion pipeline with potential energy difference and the branch pipeline of the main water supply pipeline, and it is connected from the reservoir to the municipal water plant, from the water plant to the residents The main pipeline in the district is provided with several generators driven by water wheels. The power generation device is a combination of pipelines, water turbines and generators. Pipeline 1 reminds that the intersection of the water wheels and pipelines of the power generation device does not exceed the center line of the pipeline, so that It is ensured that the water pressure will not be greatly affected during the rotation of the water wheel to generate electricity.
Description
Technical field
The present invention relates to the equipment that a kind of mountain area water factory of municipal government utilizes conduit pipe and tap water supply pipeline to generate electricity.
Background technique
The energy that mountain area water factory of municipal government generating is utilized is left in the basket and the conduit pipe that wastes and the gravitational potential energy of tap water supply pipeline always, can satisfy under the prerequisite of diversion and water supply, the pipe fluid pressure that kinetic energy produced, can effectively utilize, the renewable energy sources exploitation policy that meets country, and can satisfy water factory of municipal government electricity consumption power supply and use, surplus electricity can be incorporated national grid into.
Summary of the invention
The purpose of this invention is to provide a kind of mountain area water factory of municipal government and utilize conduit pipe and tap water supply pipeline electricity generating device, utilize the potential energy of water to generate electricity under the prerequisite of hydraulic pressure satisfying.
The objective of the invention is to be achieved through the following technical solutions.
Mountain area drinking water pipeline electricity generating device, have on the mountain area drinking water pipeline of potential energy difference, be provided with the generator that several are driven by water wheels, described water wheels are embedded in the drinking water pipeline, the part that described water wheels and pipeline intersect is no more than the center line of pipeline, the housing of water wheels and generator adopts sealing configuration, is isolated from the outside.
Mountain area water factory of municipal government conduit pipe and running water pipe pipe power generating system, before conduit pipe water outlet with potential energy difference and tap water supply main pipe lateral, locate to install the impact type electricity generating device, and from reservoir to municipal water factory, main pipe from the water factory to the residential belt is provided with the generator that several water wheels drive, described electricity generating device is pipeline and water turbine and generator one, the part that the water wheels that pipeline one is reminded electricity generating device and pipeline intersect is no more than the center line of pipeline, can guarantee so can not bring excessive influence to hydraulic pressure in the process that the water wheels rotation generates electricity.Before conduit pipe water outlet with potential energy difference and tap water supply main pipe lateral, locate to install the impact type electricity generating device.
Description of drawings
With embodiment the present invention is described in further detail with reference to the accompanying drawings below.

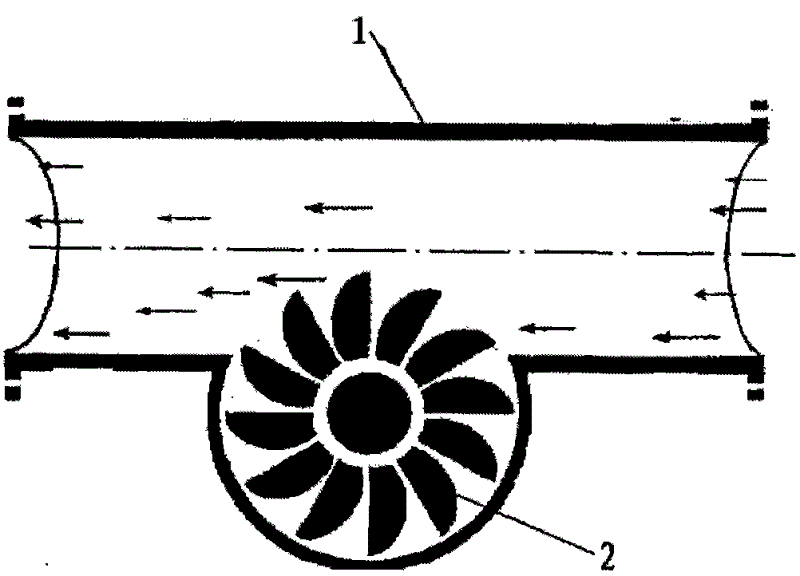

Fig. 1 is the structural drawing of mountain area drinking water pipeline electricity generating device;
Fig. 2 is a mountain area drinking water pipeline electricity generating device user mode schematic representation.
Fig. 3 is the three-dimensional structure diagram of mountain area drinking water pipeline electricity generating device;
Fig. 4 is the mountain area drinking water pipeline electricity generating device three-dimensional structure diagram that removes generator.
Embodiment
Shown in Fig. 1-2, and in conjunction with Fig. 3-4, mountain area drinking water pipeline electricity generating device, have on the mountain area drinking water pipeline 1 of potential energy difference, be provided with several by the generator that water wheels 2 drive, described water wheels 2 are embedded in the drinking water pipeline 1, water wheels 2 adopt sealing configuration with generator 3 housings, are isolated from the outside.The part that described water wheels 2 and pipeline 1 intersect is no more than the center line of pipeline 1, can guarantee that like this water wheels rotate in the process of generating, can not bring excessive influence to hydraulic pressure.
