一种太阳能热水器光伏供电装置，属于太阳能热水器技术领域，主要包括太阳能储水箱和测控仪；其中太阳能储水箱内设有水温水位传感器；测控仪上设有显示屏、供水按钮和水温调节控制按钮；所述水温水位传感器通过四芯信号线与测控仪相连；该装置还包括控制器、蓄电池和逆变器，所述的太阳能储水箱与控制器相连；控制器一端与蓄电池相连，另一端与逆变器相连，逆变器与测控仪相连。本实用新型结构简单，使用方便，节约能源；自动测控，减少人工操作控制；在无电源或停电情况下测控仪能正常使用。
A photovoltaic power supply device for a solar water heater, belonging to the technical field of solar water heaters, mainly includes a solar water storage tank and a measuring and controlling instrument; wherein the solar water storing tank is provided with a water temperature and level sensor; the measuring and controlling instrument is provided with a display screen, a water supply button and a water temperature adjustment control button; The water temperature and water level sensor is connected to the measurement and control instrument through a four-core signal line; the device also includes a controller, a battery and an inverter, and the solar water storage tank is connected to the controller; one end of the controller is connected to the battery, and the other end is connected to the inverter. The inverter is connected, and the inverter is connected with the measuring and controlling instrument. The utility model has the advantages of simple structure, convenient use and energy saving; automatic measurement and control reduces manual operation control; and the measurement and control instrument can be used normally in the case of no power supply or power failure.
Description
Technical field
The utility model relates to a kind of solar water heater photovoltaic power supply device, belongs to technical field of solar water heaters.
Background technology
The design of prior solar water heater is at designing under the situation that has tap water supply now, therefore controller can only be controlled the control realization bathing that automatically adjusts of boiler and running water, especially in the winter time solar water heater is short heating time, also need the additional electrical heat pipe that the water in the boiler is further heated, just can reach the temperature requirement of hot bath, therefore very power consumption is consuming time, uses also very inconvenient.
The utility model content
The purpose of this utility model is to overcome deficiency of the prior art, thereby a kind of solar water heater photovoltaic power supply device is provided.
The purpose of this utility model realizes by following technical proposal:
Solar water heater photovoltaic power supply device mainly comprises solar storage water tank and measurement and control instrument; Wherein be provided with water-temperature water-level sensor in the solar storage water tank; Measurement and control instrument is provided with display screen, water supply button and water temperature and regulates control button; Described water-temperature water-level sensor links to each other with measurement and control instrument by the four-core holding wire; This device also comprises controller, storage battery and inverter, and described solar storage water tank links to each other with controller; Controller one end links to each other with storage battery, and the other end links to each other with inverter, and inverter links to each other with measurement and control instrument.
Display screen on the described measurement and control instrument shows the water level and the water temperature state of solar storage water tank.
Water supply button on the described measurement and control instrument can be controlled and supply water in solar storage water tank.
Connect by two leads between described controller and the storage battery.
Adopt the beneficial effect of technique scheme to be:
1, the utility model is simple in structure, and is easy to use, energy savings;
2, the utility model automatic measuring and controlling reduces manual operation control;
3, the utility model measurement and control instrument under non-transformer or power-off condition can normally use.
Description of drawings

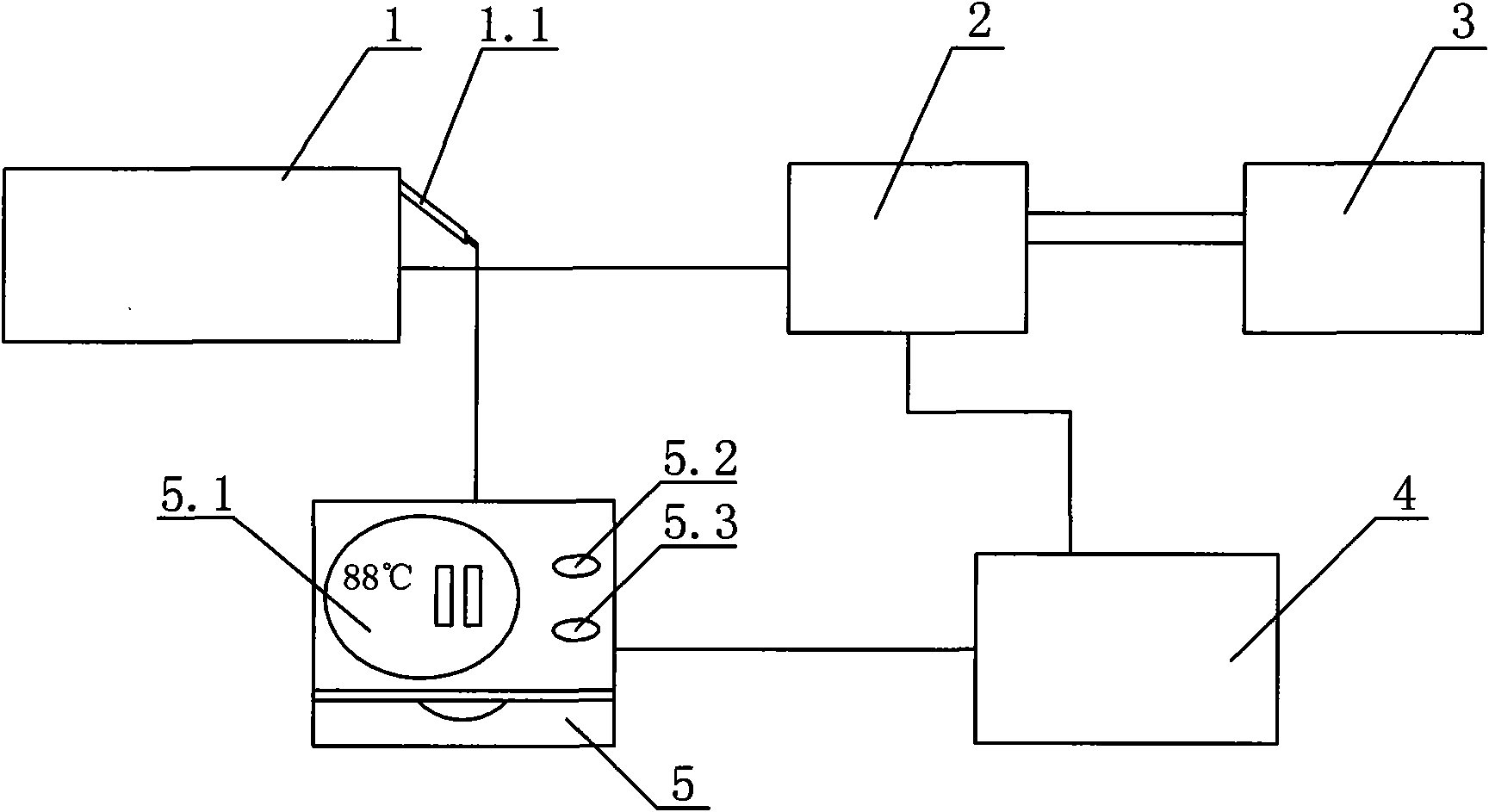

Fig. 1 is the structural representation of the utility model solar water heater photovoltaic power supply device;
Among the figure: 1-solar storage water tank, 1.1-water-temperature water-level sensor, 2-controller, 3-storage battery, 4-inverter, 5-measurement and control instrument, 5.1-display screen, 5.2-water supply button, 5.3-water temperature are regulated control button.
Embodiment
Below in conjunction with accompanying drawing the utility model is described in further detail:
Solar water heater photovoltaic power supply device mainly comprises solar storage water tank 1 and measurement and control instrument 5; Wherein be provided with water-temperature water-level sensor 1.1 in the solar storage water tank 1; Measurement and control instrument 5 is provided with display screen 5.1, water supply button 5.2 and water temperature and regulates control button 5.3; Described water-temperature water-level sensor 1.1 links to each other with measurement and control instrument 5 by the four-core holding wire; This device also comprises controller 2, storage battery 3 and inverter 4, and described solar storage water tank 1 links to each other with controller 2; Controller 2 one ends link to each other with storage battery 3, and the other end links to each other with inverter 4, and inverter 4 links to each other with measurement and control instrument 5.
Display screen 5.1 on the described measurement and control instrument 5 shows the water level and the water temperature state of solar storage water tank 1.
Water supply button 5.2 on the described measurement and control instrument 5 can be controlled in solar storage water tank 1 and supply water.
Connected by two leads between described controller 2 and the storage battery 3, one is used for discharge, and one is used for charging.
Solar panel is converted into electric energy with heat energy and is stored in the storage battery 3 by controller 2, by inverter 4 direct current is converted into alternating current during storage battery 3 discharges and supplies with measurement and control instrument 5, and measurement and control instrument 5 can normally use under non-transformer or power-off condition.
Claims (4)
1. a solar water heater photovoltaic power supply device mainly comprises solar storage water tank (1) and measurement and control instrument (5); Wherein be provided with water-temperature water-level sensor (1.1) in the solar storage water tank (1); Measurement and control instrument (5) is provided with display screen (5.1), water supply button (5.2) and water temperature and regulates control button (5.3); Described water-temperature water-level sensor (1.1) links to each other with measurement and control instrument (5) by the four-core holding wire; It is characterized in that: this device also comprises controller (2), storage battery (3) and inverter (4); Described solar storage water tank (1) links to each other with controller (2); Controller (2) one ends link to each other with storage battery (3), and the other end links to each other with inverter (4); Inverter (4) links to each other with measurement and control instrument (5).
2. solar water heater photovoltaic power supply device according to claim 1 is characterized in that: the display screen (5.1) on the described measurement and control instrument (5) shows the water level and the water temperature state of solar storage water tank (1).
3. solar water heater photovoltaic power supply device according to claim 1 is characterized in that: the water supply button (5.2) on the described measurement and control instrument (5) can be controlled in solar storage water tank (1) and supply water.
4. solar water heater photovoltaic power supply device according to claim 1 is characterized in that: connected by two leads between described controller (2) and the storage battery (3).
