Abstract

A kind of floor mat, which is usually placed at the door of the bathroom or kitchen, and is used to scrape off the dirt and moisture on the human feet, including the floor mat body, which also includes a non-slip layer, which is connected to the bottom of the floor mat body , a plurality of anti-skid bumps are evenly distributed on the bottom surface of the anti-skid layer. The floor mat of the utility model can effectively increase the contact friction force with the tiles, thereby ensuring the personal safety of users.

Description

carpet

Technical field:

The utility model relates to a daily necessities, in particular to a floor mat which is placed at a doorway and used for scraping off mud, dust and moisture on people's feet.

Background technique:

In the prior art, floor mats are generally placed at the door of bathrooms or kitchens, and the bottom of them is mostly a smooth plane. The coefficient of friction between this smooth plane and the tiles laid on the ground is very small, especially when the tile surface is wet. , There is almost no friction between the floor mat and the tiles. Therefore, when people's feet step on the floor mat, the floor mat will slide and shift, causing the person's center of gravity to be unstable and fall.

Utility model content:

The technical problem to be solved by the utility model is to provide a floor mat that can effectively increase the contact friction with the ceramic tiles, thereby ensuring the personal safety of users.

The technical solution of the present invention is to provide a floor mat with the following structure: it includes a floor mat body, which also includes an anti-slip layer, the anti-slip layer is connected to the bottom of the floor mat body, and a plurality of Anti-slip bumps.

In the floor mat of the utility model, the anti-skid bumps can be spherical or square.

After adopting the above structure, compared with the prior art, the floor mat of the present utility model has the following advantages: Unlike the bottom of the floor mat of the prior art which is a smooth plane, the bottom of the floor mat of the present utility model is connected with an anti-slip layer, and the bottom of the anti-slip layer is uniform There are a plurality of anti-skid bumps distributed, in other words, the contact surface between the floor mat and the ceramic tile of the utility model is uneven, therefore, when the user steps on it, the plurality of anti-skid bumps will effectively increase the cost. The contact friction force between the floor mat and the ceramic tile of the utility model serves the purpose of anti-slip, thereby greatly ensuring the personal safety of users.

Description of drawings:

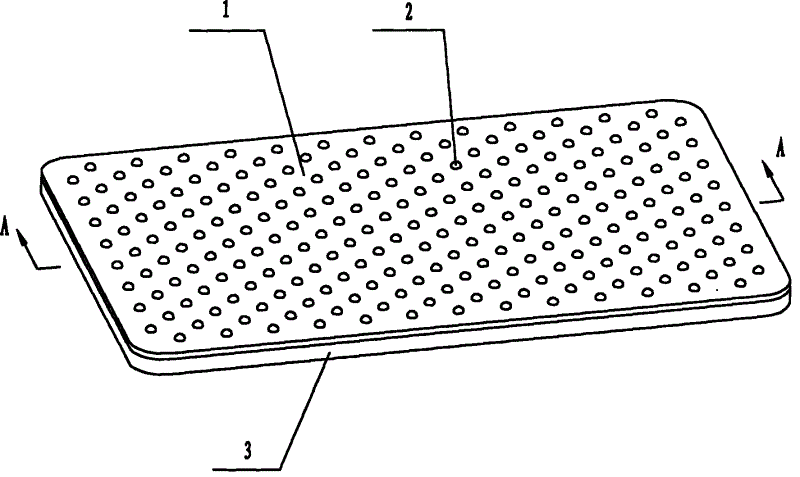

Fig. 1 is a schematic diagram of the three-dimensional structure when the anti-skid bumps in the floor mat of the present invention are spherical;

Fig. 2 is a schematic diagram of a cross-sectional enlarged structure along the "A-A" line in Fig. 1;

Fig. 3 is a schematic diagram of looking up when the anti-slip bumps in the floor mat of the present invention are square;

Fig. 4 is a schematic diagram of an enlarged cross-section along the line "B-B" in Fig. 3 .

Detailed ways:

Below in conjunction with accompanying drawing and specific embodiment, floor mat of the present utility model is described in further detail:

As shown in Fig. 1 and Fig. 2, in this specific embodiment, the floor mat of the present utility model includes a floor mat body 3 and an anti-skid layer 1 connected to the bottom of the floor mat body 3, and a plurality of anti-skid layers are evenly distributed on the bottom surface of the anti-skid layer 1. The bump 2, the anti-skid bump 2 is hemispherical, and the anti-skid layer 1 and the anti-skid bump 2 are made of rubber material as a whole. Certainly, as shown in Fig. 3 and Fig. 4, the anti-slip protrusions 2 provided on the bottom surface of the anti-slip layer 1 in the floor mat of the present invention can also be square.

The above-mentioned embodiments are only described to the preferred implementation of the utility model, and are not limited to the scope of the utility model. Various deformations and improvements made, such as the anti-skid bump 2 being in the shape of a rhombus, a cylinder or a triangle, etc., should all fall within the scope of protection determined by the claims of the present utility model.

Claims (2)

1. a ground cushion comprises ground pad body (3), it is characterized in that: also comprise skid resistant course (1), described skid resistant course (1) is connected ground pad body (3) bottom, is evenly distributed with a plurality of anti-skidding salient points (2) on described skid resistant course (1) lower surface.

2. ground cushion according to claim 1 is characterized in that: described anti-skidding salient point (2) is spherical in shape or square.
