Abstract
本实用新型涉及一种超声波提取装置，具体涉及一种蜂胶的提取提纯装置。包括提取罐、超声器，提取罐顶端开有超声器口、进料口，提取罐底部开有出渣口、罐循环入口，提取罐内底部设有过滤网，提取罐侧壁开有罐循环出口，罐循环出口与循环泵入口通过管道连接，罐循环入口与循环泵出口通过管道连接，罐循环入口与气体搅拌器连接。利用超声波加速提取蜂胶有效成分的溶解速度，具有提取时间短、提取率高、杂质少等优点。
The utility model relates to an ultrasonic extraction device, in particular to an extraction and purification device for propolis. Including the extraction tank and the ultrasonic device, the top of the extraction tank is provided with a ultrasonic port and a feed port, the bottom of the extraction tank is provided with a slag outlet and a tank circulation inlet, a filter is provided at the bottom of the extraction tank, and a tank circulation is provided on the side wall of the extraction tank. The outlet, the tank circulation outlet is connected to the circulation pump inlet through pipelines, the tank circulation inlet is connected to the circulation pump outlet through pipelines, and the tank circulation inlet is connected to the gas agitator. Ultrasound is used to accelerate the dissolution rate of the active ingredients of propolis, which has the advantages of short extraction time, high extraction rate, and less impurities.
Description
Technical field
The utility model relates to a kind of Extraction by Ultrasound device, is specifically related to a kind of extraction purifying plant of propolis.
Background technology
Propolis is the resin that honeybee is gathered the secretion of natural plant innovation leaf bud, mixes with on it gland and wax gland secretion and some other active ingredient, the colloid substance that processes.The composition of propolis is very complicated, is rich in more than 300 kind of compositions such as flavonoids, mushroom alkene class, organic acid, amino acid, enzyme, vitamin, mineral matter.Be liposoluble constituent more than 95% wherein, be dissolved in alcohol in high concentration, have only 5% the water that is partially soluble in.Many qualities of estimating propolis and method for distilling with general flavone content, content of beary metal on the industry.
At present, the alcohol-pickled filtration extraction of many employings when extraction, bee glue purifying both at home and abroad.But this method recovery rate is low, and heavy metal is dispeled not exclusively, the solvent waste, and the process-cycle is long.
The utility model content
The purpose of the utility model is to overcome above-mentioned not enough problem, and a kind of Extraction by Ultrasound device is provided.
The utility model for realizing the technical scheme that above-mentioned purpose adopted is: a kind of Extraction by Ultrasound device, comprise extractor, ultrasonic device, and the extractor top has ultrasonic device mouth, charging aperture; The extractor bottom has slag notch, jar loop head; The extractor inner bottom part is provided with screen pack, and the extractor sidewall has a jar loop exit, and a jar loop exit is connected through pipeline with pump entry; The jar loop head is connected through pipeline with circulating-pump outlet, and a jar loop head is connected with gas blender.
Ultrasonic device bottom screen pack is equipped with permanent-magnet block.
Be provided with steel mesh in the jar loop exit.
The characteristics of the utility model are: utilize ultrasonic wave quicken to extract the dissolution velocity of effective bee glue components, have short, advantage such as recovery rate is high, impurity is few of extraction time.
Description of drawings

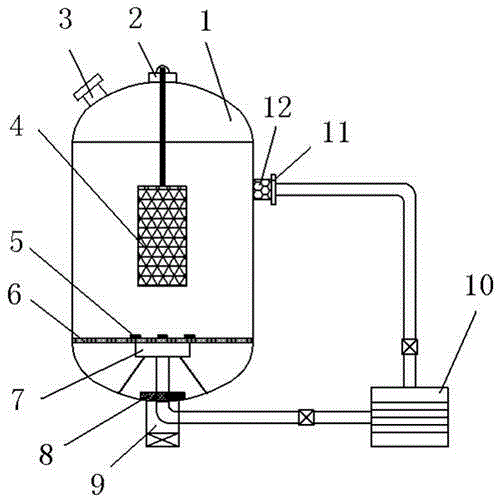

Fig. 1 is the structural representation of the utility model.
Wherein: 1, extractor 2, ultrasonic device mouth 3, charging aperture 4, ultrasonic device 5, permanent-magnet block 6, screen pack 7, air-flow agitator 8, jar loop head 9, slag notch 10, circulating pump 11, jar loop exit 12, steel mesh.
The specific embodiment
As shown in Figure 1, a kind of Extraction by Ultrasound device comprises extractor 1, ultrasonic device 4; Extractor 1 top has ultrasonic device mouth 2, charging aperture 3, and extractor 1 bottom has slag notch 9, jar loop head 8, and extractor 1 inner bottom part is provided with screen pack 6; On the ultrasonic device 4 bottom screen packs 6 permanent-magnet block is housed; Extractor 1 sidewall has jar loop exit 11, is provided with steel mesh 12 in jar loop exit 11, and jar loop exit 11 is connected through pipeline with circulating pump 10 inlets; Jar loop head 8 is connected through pipeline with circulating pump 10 outlets, and a jar loop head 8 is connected with gas blender 7.
The above; Be merely the preferable specific embodiment of the utility model; But the protection domain of the utility model is not limited thereto; Any technical staff who is familiar with the present technique field is equal to replacement or changes according to the technical scheme of the utility model and inventive concept thereof in the technical scope that the present invention discloses, and all should be encompassed within the protection domain of the utility model.
Claims (3)
1. Extraction by Ultrasound device; Comprise extractor (1), ultrasonic device (4); It is characterized in that: extractor (1) top has ultrasonic device mouth (2), charging aperture (3), and extractor (1) bottom has slag notch (9), jar loop head (8), and extractor (1) inner bottom part is provided with screen pack (6); Extractor (1) sidewall has a jar loop exit (11); Jar loop exit (11) is connected through pipeline with circulating pump (10) inlet, and jar loop head (8) is connected through pipeline with circulating pump (10) outlet, and a jar loop head (8) is connected with gas blender (7).
2. Extraction by Ultrasound device as claimed in claim 1 is characterized in that: on ultrasonic device (4) the bottom screen pack (6) permanent-magnet block (5) is housed.
3. Extraction by Ultrasound device as claimed in claim 1 is characterized in that: be provided with steel mesh (12) in jar loop exit (11).
