CN202490525U - Cyclone bag type impulse dust remover cloth bag dust-collecting device - Google Patents
Cyclone bag type impulse dust remover cloth bag dust-collecting device Download PDFInfo
- Publication number
- CN202490525U CN202490525U CN2012200667609U CN201220066760U CN202490525U CN 202490525 U CN202490525 U CN 202490525U CN 2012200667609 U CN2012200667609 U CN 2012200667609U CN 201220066760 U CN201220066760 U CN 201220066760U CN 202490525 U CN202490525 U CN 202490525U
- Authority
- CN
- China
- Prior art keywords
- dust
- bag
- filter bag
- utility
- pulse
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000000428 dust Substances 0.000 title claims abstract description 31
- 239000004744 fabric Substances 0.000 title claims abstract 4
- 229910000831 Steel Inorganic materials 0.000 claims abstract description 8
- 239000010959 steel Substances 0.000 claims abstract description 8
- 238000010276 construction Methods 0.000 claims 2
- 230000003584 silencer Effects 0.000 claims 1
- 238000007664 blowing Methods 0.000 abstract description 6
- 230000000694 effects Effects 0.000 abstract description 4
- 238000009434 installation Methods 0.000 abstract description 3
- 241000282414 Homo sapiens Species 0.000 description 2
- 239000004566 building material Substances 0.000 description 1
- 239000004568 cement Substances 0.000 description 1
- 238000004140 cleaning Methods 0.000 description 1
- 239000003814 drug Substances 0.000 description 1
- 238000003912 environmental pollution Methods 0.000 description 1
- 238000004519 manufacturing process Methods 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 238000005498 polishing Methods 0.000 description 1
- 239000000126 substance Substances 0.000 description 1
- 239000002023 wood Substances 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A50/00—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE in human health protection, e.g. against extreme weather
- Y02A50/20—Air quality improvement or preservation, e.g. vehicle emission control or emission reduction by using catalytic converters
- Y02A50/2351—Atmospheric particulate matter [PM], e.g. carbon smoke microparticles, smog, aerosol particles, dust
Landscapes
- Filtering Of Dispersed Particles In Gases (AREA)
Abstract
本实用新型涉及一种除尘器零部件，尤其是涉及一种旋风袋式脉冲除尘器布袋集尘装置。其主要是解决现有技术所存在的除尘器体积大，安装成本高，且通过高压风机反吹，潮气易浸湿布袋，影响除尘清灰效果等的技术问题。本实用新型包括钢结构支撑架(1)，其特征在于所述的钢结构支撑架(1)上架设有壳体(2)，壳体内设有滤袋笼架组合(3)，滤袋笼架组合上方设有脉冲喷吹管(4)，脉冲喷吹管通过柔性接头(5)连接风机(6)，滤袋笼架组合下方设有灰斗(7)，灰斗内设有导流板(8)，灰斗下端连接有旋转阀(9)。
The utility model relates to a part of a dust collector, in particular to a bag dust collecting device for a cyclone bag type pulse dust collector. It mainly solves the technical problems existing in the prior art that the dust remover is large in size, high in installation cost, and is blown back by a high-pressure fan, and the moisture is easy to soak the cloth bag, which affects the effect of dust removal and ash removal. The utility model comprises a steel structure support frame (1), which is characterized in that a shell (2) is erected on the steel structure support frame (1), and a filter bag cage frame assembly (3) is arranged inside the shell, and the filter bag cage A pulse blowing pipe (4) is arranged above the frame combination, and the pulse blowing pipe is connected to the fan (6) through a flexible joint (5), and an ash bucket (7) is arranged below the filter bag cage frame combination, and a deflector ( 8), the lower end of the ash hopper is connected with a rotary valve (9).
Description
技术领域 technical field
本实用新型涉及一种除尘器零部件，尤其是涉及一种旋风袋式脉冲除尘器布袋集尘装置。The utility model relates to a part of a dust collector, in particular to a bag dust collecting device for a cyclone bag type pulse dust collector.
背景技术 Background technique
随着现代工业的发展，粉尘对环境的污染以及人类的健康造成的影响日益严重，治理粉尘污染，净化人类的生存环境，已成为所有人的共识。为了维护生产环境洁净，必须及时清理被粉尘污染的场所。除尘器能广发应用于清理抛光机、汽车、摩托车、弹簧行业磨簧机、化工、水泥建材、木材加工、粮食加工、制药、机械加工能行业。但是，目前使用的除尘器体积大，安装成本高，且通过高压风机反吹，潮气易浸湿布袋，影响除尘清灰效果。With the development of modern industry, the impact of dust on environmental pollution and human health is becoming more and more serious. It has become the consensus of all to control dust pollution and purify the living environment of human beings. In order to maintain a clean production environment, places polluted by dust must be cleaned up in time. The dust collector can be widely used in cleaning and polishing machines, automobiles, motorcycles, spring grinding machines in the spring industry, chemicals, cement building materials, wood processing, grain processing, pharmaceuticals, and mechanical processing energy industries. However, the currently used dust collectors are large in size, high in installation cost, and are blown back by high-pressure fans, and the moisture is easy to soak the bag, which affects the effect of dust removal and ash removal.
实用新型内容 Utility model content
本实用新型是提供一种旋风袋式脉冲除尘器布袋集尘装置，其主要是解决现有技术所存在的除尘器体积大，安装成本高，且通过高压风机反吹，潮气易浸湿布袋，影响除尘清灰效果等的技术问题。The utility model provides a bag dust collection device of a cyclone bag type pulse dust collector, which mainly solves the problem that the dust collector in the prior art has a large volume and high installation cost, and the high-pressure blower blows back, and the moisture is easy to soak the bag. Technical problems that affect the effect of dust removal and dust removal.
本实用新型的上述技术问题主要是通过下述技术方案得以解决的：The above-mentioned technical problems of the utility model are mainly solved by the following technical solutions:
本实用新型的一种旋风袋式脉冲除尘器布袋集尘装置，包括钢结构支撑架，所述的钢结构支撑架上架设有壳体，壳体内设有滤袋笼架组合，滤袋笼架组合上方设有脉冲喷吹管，脉冲喷吹管通过柔性接头连接风机，滤袋笼架组合下方设有灰斗，灰斗内设有导流板，灰斗下端连接有旋转阀。A cyclone bag type pulse dust collector bag dust collecting device of the utility model comprises a steel structure support frame, a shell is set on the steel structure support frame, a filter bag cage frame combination is arranged inside the shell, and a filter bag cage frame There is a pulse blowing pipe above the combination, and the pulse blowing pipe is connected to the fan through a flexible joint. There is an ash hopper under the filter bag cage frame combination, a deflector is arranged inside the ash hopper, and a rotary valve is connected to the lower end of the ash hopper.
作为优选，所述的风机与柔性接头之间设有消声器。Preferably, a muffler is provided between the fan and the flexible joint.
因此，本实用新型满足了小型化需求，通过脉冲装置使滤袋产生振动，使粘附在滤袋上的粉尘被剥落下来，沉降于灰斗内，降低了除尘阻力，提高了除尘效果，结构简单、合理。Therefore, the utility model meets the requirement of miniaturization, and the filter bag is vibrated by the pulse device, so that the dust adhered to the filter bag is peeled off and settled in the ash hopper, which reduces the dust removal resistance and improves the dust removal effect. Simple and reasonable.
附图说明 Description of drawings

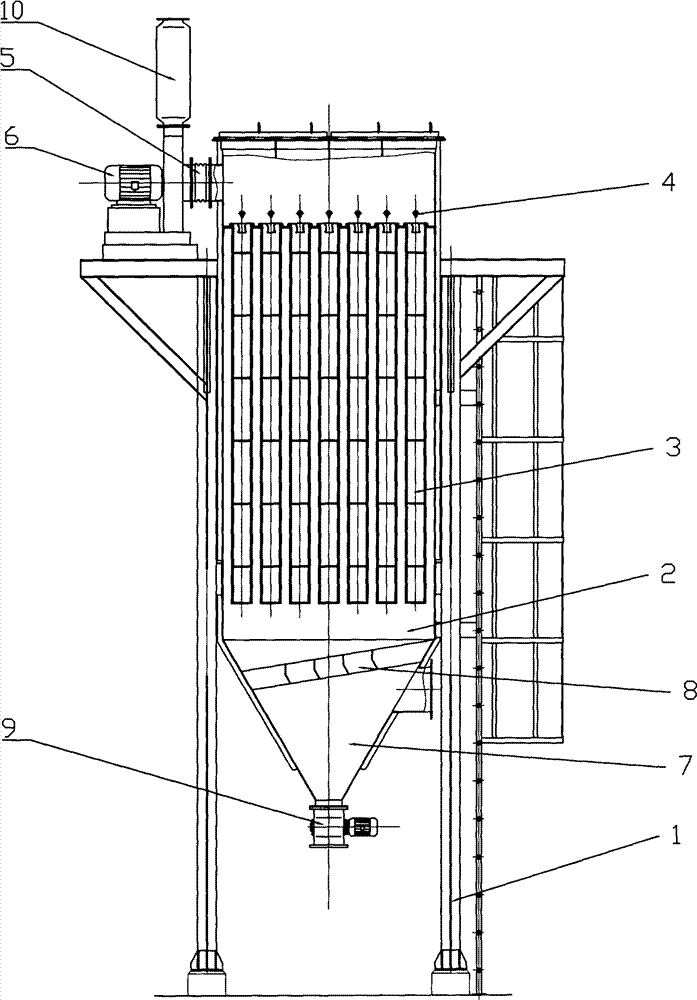

附图1是本实用新型的一种结构示意图。Accompanying drawing 1 is a kind of structural representation of the utility model.
具体实施方式 Detailed ways
下面通过实施例，并结合附图，对本实用新型的技术方案作进一步具体的说明。The technical solutions of the present utility model will be further specifically described below through the embodiments and in conjunction with the accompanying drawings.
实施例：本例的一种旋风袋式脉冲除尘器布袋集尘装置，如图1，包括钢结构支撑架1，钢结构支撑架上架设有壳体2，壳体内设有滤袋笼架组合3，滤袋笼架组合上方设有脉冲喷吹管4，脉冲喷吹管通过柔性接头5连接风机6，滤袋笼架组合下方设有灰斗7，灰斗内设有导流板8，灰斗下端连接有旋转阀9。风机与柔性接头之间设有消声器10。Embodiment: A cyclone bag-type pulse dust collector bag dust collection device of this example, as shown in Figure 1, includes a steel structure support frame 1, a shell 2 is mounted on the steel structure support frame, and a filter bag cage frame combination is arranged inside the shell 3. There is a pulse blowing pipe 4 above the filter bag cage frame combination, and the pulse blowing pipe is connected to the fan 6 through a
以上所述仅为本实用新型的具体实施例，但本实用新型的结构特征并不局限于此，任何本领域的技术人员在本实用新型的领域内，所作的变化或修饰皆涵盖在本实用新型的专利范围之中。The above is only a specific embodiment of the utility model, but the structural features of the utility model are not limited thereto, and any changes or modifications made by those skilled in the art within the scope of the utility model are covered by the utility model. In the scope of the new patent.
