Abstract

The utility model discloses a double wine bottle packaging box, which is characterized in that it comprises a first box body and a second box body, both of the first box body and the second box body are straight triangular prisms, and one side of the first box body The rib is movably connected with a side edge of the second box body, and the opposite sides of the first box body and the second box body are respectively provided with a first inner cavity and a second inner cavity. The utility model overcomes the monotony and tediousness of the traditional single wine bottle packaging box, and provides a novel double wine bottle packaging box, which can put two bottles of wine at the same time, which is suitable for the auspicious psychology of Chinese people in pairs and enriches the wine culture Content. At the same time, the original cuboid shape is retained, which is convenient for storage.

Description

A double wine bottle packaging box

technical field

The utility model relates to a packing box, in particular to a wine bottle packing box.

Background technique

Chinese people have always had the auspicious mentality of being in pairs, so giving wine is usually an even number. The traditional wine bottle packaging box is a bottle of wine packaging box. For a long time, these wine bottle packaging boxes have become monotonous, boring, and lack of novelty. sex.

Contents of the invention

The purpose of the utility model is to provide a double wine bottle packaging box, which can put two bottles of wine at the same time.

In order to achieve the above object, the utility model provides a double wine bottle packaging box, which is characterized in that it includes a first box body and a second box body, both the first box body and the second box body are straight triangular prisms, the first box body A side edge of the box body is movably connected with a side edge of the second box body, and the opposite sides of the first box body and the second box body are respectively provided with a first inner cavity and a second inner cavity.

Further, the top surfaces of the first box body and the second box body are respectively provided with a positioning hole, and the positioning pin is arranged in the positioning hole.

The utility model has the advantages of overcoming the monotony and tediousness of the traditional single wine bottle packaging box, and providing a novel double wine bottle packaging box, which can put two bottles of wine at the same time, which is suitable for the auspicious psychology of Chinese people in pairs, Enriched the content of wine culture. At the same time, the original cuboid shape is retained, which is convenient for storage.

Description of drawings

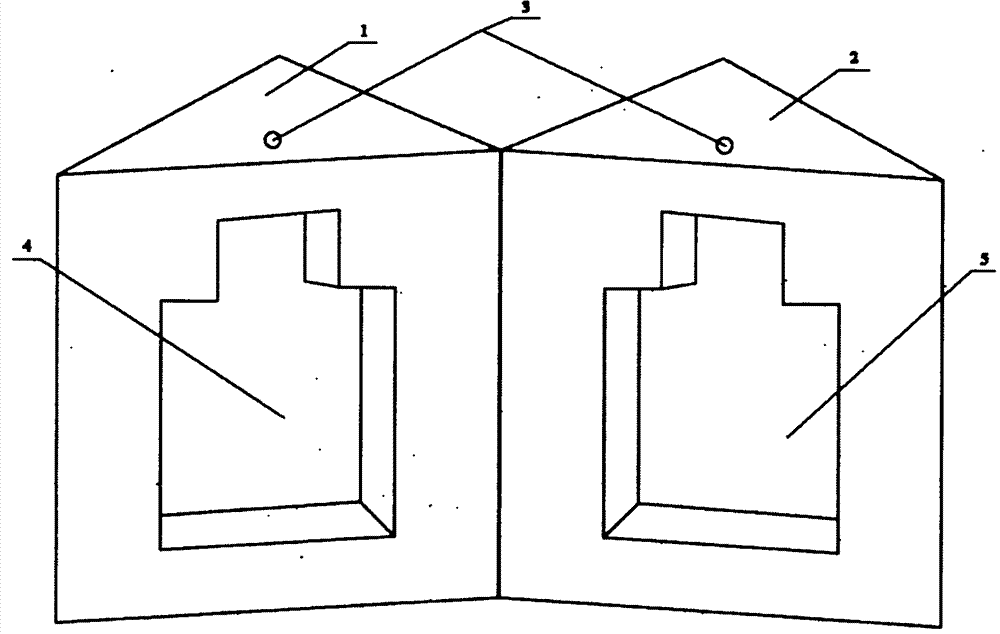

Fig. 1 is the schematic diagram when a kind of double wine bottle packaging box provided by the utility model is opened;

Fig. 2 is a schematic diagram of a double wine bottle packaging box provided by the present invention before unsealing.

In the picture:

1. The first box body; 3. The positioning hole; 5. The second inner cavity;

2. The second box body; 4. The first inner cavity; 6. The positioning pin.

Detailed ways

Further illustrate the utility model below in conjunction with embodiment and accompanying drawing.

Example

As shown in FIG. 1 , the double wine bottle packaging box provided by the utility model includes a first box body 1 and a second box body 2 . The first box body 1 and the second box body 2 are straight triangular prisms with the same shape, and the bottom surfaces of the right triangular prisms are right-angled equilateral triangles. The right edge of the first box body 1 is movably connected with the left edge of the second box body 2, and the opposite sides of the first box body 1 and the second box body 2 are respectively provided with a wine bottle-shaped first inner chamber 4 and a second inner chamber. The second inner cavity 5 is used to place two bottles of wine, and after the wine is put into, it does not exceed the side. As shown in Figure 2, the first box body 1 and the second box body 2 form a regular square prism when they are combined, and the top surfaces of the first box body 1 and the second box body 2 are respectively provided with a positioning hole 3, two positioning holes 3 are respectively located on the diagonals of the upper bottom surface of the regular quadrangular prism, that is, on both sides of the closure of the first box body 1 and the second box body 2, and the positioning pins 6 are inserted into the positioning holes 3.

When unsealing, unplug the positioning pin 6, open the first box body 1 and the second box body 2, the first bottle of wine can be taken out from the first inner cavity 4, and the second bottle of wine can be taken out from the second inner cavity 5.

Claims (2)

1. A double wine bottle packaging box, characterized in that it comprises a first box body (1) and a second box body (2), the first box body (1) and the second box body (2) are straight three A prism, a side edge of the first box body (1) is flexibly connected with a side edge of the second box body (2), and the opposite sides of the first box body (1) and the second box body (2) are respectively provided with a second A lumen (4) and a second lumen (5). 2. A kind of double wine bottle packaging box according to claim 1, characterized in that, the top surfaces of the first box body (1) and the second box body (2) are respectively provided with a positioning hole ( 3), the positioning pin (6) is set in the positioning hole (3).
