CN202495982U - Handset and handset docking station - Google Patents
Handset and handset docking station Download PDFInfo
- Publication number
- CN202495982U CN202495982U CN2011205010548U CN201120501054U CN202495982U CN 202495982 U CN202495982 U CN 202495982U CN 2011205010548 U CN2011205010548 U CN 2011205010548U CN 201120501054 U CN201120501054 U CN 201120501054U CN 202495982 U CN202495982 U CN 202495982U
- Authority
- CN
- China
- Prior art keywords
- mobile phone
- connector
- camera
- docking station
- control
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Mobile Radio Communication Systems (AREA)
- Telephone Set Structure (AREA)
Abstract
一种手机扩展坞，包括：手机连接器，用于连接手机；控制模块，与所述手机连接器相连，通过所述手机连接器连接手机控制手机工作；电视连接器，与所述手机连接器相连，将所述控制模块控制手机工作产生的数据流输出；驱动装置，与所述手机连接器连接在所述手机的控制下驱动所述手机连接器带动所述手机移动对准所述手机的摄像头拍摄的目标。此外还提供一种手机。通过手机根据手机的驱动控制装置根据手机的图像处理装置确定摄像头拍摄的图像中的目标相对位置发送驱动信号，以控制手机扩展坞的驱动装置驱动手机连接器带动手机移动对准手机的摄像头拍摄的目标，使得放置在扩展坞上后手机的摄像头仍然得到很到好应用。
A mobile phone docking station, comprising: a mobile phone connector, used to connect a mobile phone; a control module, connected to the mobile phone connector, connected to the mobile phone through the mobile phone connector to control the work of the mobile phone; a TV connector, connected to the mobile phone connector Connected, the control module controls the output of the data stream generated by the mobile phone; the driving device is connected to the mobile phone connector and drives the mobile phone connector to drive the mobile phone to move and align with the mobile phone under the control of the mobile phone. The target captured by the camera. In addition, a mobile phone is provided. Through the mobile phone, according to the mobile phone’s driving control device, according to the mobile phone’s image processing device, determine the relative position of the target in the image captured by the camera and send the driving signal to control the driving device of the mobile phone docking station to drive the mobile phone connector to drive the mobile phone to move and aim at the camera of the mobile phone. The goal is to make the camera of the mobile phone still be well used after being placed on the docking station.
Description
【技术领域】 【Technical field】
本实用新型涉及一种电子设备，特别是涉及一种手机及手机扩展坞。 The utility model relates to an electronic device, in particular to a mobile phone and a mobile phone docking station. the
【背景技术】 【Background technique】
随着电子技术的发展，手机的功能变得越来越强大。但是，手机为了满足便携式的要求，手机屏幕通常较小，喇叭的音质和音量都受到限制，这使得欣赏手机中的多媒体文件变得不太方便。 With the development of electronic technology, the functions of mobile phones have become more and more powerful. But, mobile phone is in order to meet the requirement of portability, and mobile phone screen is usually less, and the sound quality and the volume of loudspeaker are all limited, and this makes it not very convenient to appreciate the multimedia file in the mobile phone. the
为了解决上述问题，可以通过手机扩展坞将手机的显示信号输出，将显示屏幕扩大到电视机的屏幕上。但是，由于扩展坞通常置于电视机的旁边，人远离手机，此时手机的摄像头得不到很好应用。 In order to solve the above problems, the display signal of the mobile phone can be output through the mobile phone docking station, and the display screen can be expanded to the screen of the television. However, since the docking station is usually placed next to the TV and people are far away from the mobile phone, the camera of the mobile phone cannot be well used at this time. the
【实用新型内容】 【Content of utility model】
基于此，有必要针对手机放置在扩展坞上后手机的摄像头得不到很好应用的问题，提供一种手机扩展坞。 Based on this, it is necessary to provide a mobile phone docking station for the problem that the camera of the mobile phone cannot be well used after the mobile phone is placed on the docking station. the
此外，还必要针对手机放置在扩展坞上后手机的摄像头得不到很好应用的问题，提供一种手机。 In addition, it is also necessary to provide a mobile phone for the problem that the camera of the mobile phone cannot be well used after the mobile phone is placed on the docking station. the
一种手机扩展坞，包括： A mobile phone docking station, comprising:
手机连接器，用于连接手机； Mobile phone connector, used to connect mobile phone;
控制模块，与所述手机连接器相连，通过所述手机连接器连接手机控制手机工作； The control module is connected to the mobile phone connector, and the mobile phone is connected to the mobile phone through the mobile phone connector to control the work of the mobile phone;
电视连接器，与所述手机连接器相连，将所述控制模块控制手机工作产生的数据流输出； The TV connector is connected with the mobile phone connector, and outputs the data stream generated by the control module to control the work of the mobile phone;
驱动装置，与所述手机连接器连接在所述手机的控制下驱动所述手机连接器带动所述手机移动对准所述手机的摄像头拍摄的目标。 The driving device is connected with the mobile phone connector and drives the mobile phone connector under the control of the mobile phone to drive the mobile phone to move and aim at the target captured by the camera of the mobile phone. the
在优选的实施例中，所述驱动装置为马达，所述手机连接器安装在所述马达上在所述马达的驱动下转动。 In a preferred embodiment, the driving device is a motor, and the mobile phone connector is mounted on the motor to rotate under the driving of the motor. the
在优选的实施例中，所述驱动装置包括马达和丝杆，所述手机连接器安装在所述丝杆上在所述马达的驱动下沿直线移动。 In a preferred embodiment, the driving device includes a motor and a screw, and the mobile phone connector is mounted on the screw and moves linearly under the drive of the motor. the
在优选的实施例中，所述手机连接器和电视连接器内均设有将手机的音频输出到电视机喇叭的音频信号线。 In a preferred embodiment, both the mobile phone connector and the TV connector are provided with an audio signal line for outputting audio from the mobile phone to a TV speaker. the
在优选的实施例中，所述手机连接器和电视连接器内均设有将手机的摄像头捕获的视频输出到电视机屏幕的视频信号线。 In a preferred embodiment, both the mobile phone connector and the TV connector are provided with a video signal line for outputting the video captured by the camera of the mobile phone to the TV screen. the
在优选的实施例中，所述手机连接器与电视连接器的连接线路中设有充电线路。 In a preferred embodiment, a charging circuit is provided in the connecting circuit between the mobile phone connector and the TV connector. the
在优选的实施例中，所述电视连接器为主动式HDMI连接器。 In a preferred embodiment, the TV connector is an active HDMI connector. the
一种手机，包括摄像头，还包括： A mobile phone, including a camera, also includes:
扩展连接器，用于连接外部设备； Expansion connector for connecting external devices;
图像处理装置，与所述摄像头相连根据所述摄像头拍摄的图像确定目标在所述图像中的相对位置； An image processing device, connected to the camera, determines the relative position of the target in the image according to the image captured by the camera;
驱动控制装置，与所述图像处理装置及所述扩展连接器相连，根据所述相对位置通过所述扩展连接器发出控制驱动装置动作使所述手机移动将所述摄像头对准所述目标的驱动信号。 The drive control device is connected to the image processing device and the expansion connector, and according to the relative position, sends out the action of controlling the drive device through the expansion connector to move the mobile phone and align the camera with the target. Signal. the
在优选的实施例中，还包括自动对焦装置，所述自动对焦装置与所述图像处理装置及摄像头相连，根据所述图像处理装置的处理结果控制所述摄像头自动对所述目标对焦。 In a preferred embodiment, an auto-focus device is further included, the auto-focus device is connected to the image processing device and the camera, and the camera is controlled to automatically focus on the target according to the processing result of the image processing device. the
上述手机及手机扩展坞的控制模块控制手机工作，驱动装置在手机控制下驱动所述手机连接器带动手机移动对准手机的摄像头拍摄的目标，使得放置在扩展坞上后手机的摄像头仍然得到很好应用。 The control module of the above-mentioned mobile phone and mobile phone docking station controls the work of the mobile phone, and the driving device drives the mobile phone connector under the control of the mobile phone to drive the mobile phone to move and aim at the camera of the mobile phone to shoot, so that the camera of the mobile phone can still be well received after being placed on the docking station. good application. the
【附图说明】 【Description of drawings】
图1为手机扩展坞的模块图； Fig. 1 is the block diagram of mobile phone docking station;
图2为控制模块的示意图； Fig. 2 is the schematic diagram of control module;
图3为手机扩展坞的模块图； Fig. 3 is the block diagram of mobile phone docking station;
图4为手机的示意图。 FIG. 4 is a schematic diagram of a mobile phone. the
【具体实施方式】 【Detailed ways】
如图1所示，手机扩展坞包括手机连接器、控制模块及电视连接器。 As shown in Figure 1, the mobile phone docking station includes a mobile phone connector, a control module and a TV connector. the
手机连接器用于连接手机。 The mobile phone connector is used to connect the mobile phone. the
控制模块与所述手机连接器相连，通过手机连接器连接手机控制手机工作。 The control module is connected with the mobile phone connector, and is connected to the mobile phone through the mobile phone connector to control the work of the mobile phone. the
电视连接器与所述手机连接器相连，将所述控制模块控制手机工作的数据流输出。电视连接器可以是HDMI连接器，S-Video连接器等。 The TV connector is connected with the mobile phone connector, and outputs the data flow for controlling the operation of the mobile phone by the control module. The TV connector can be an HDMI connector, S-Video connector, etc. the
在优选的实施例中，上述的工作为播放多媒体文件。在其他实施例中，上述的工作还可以是浏览网页、图像或录像拍摄、视频通话、普通语音通话等。 In a preferred embodiment, the above-mentioned work is to play multimedia files. In other embodiments, the above work may also be web browsing, image or video shooting, video calling, ordinary voice calling, and the like. the
在优选的实施例中，所述手机连接器与电视连接器的连接线路中设有充电线路。从而手机扩展坞可以对手机进行充电，不需要耗费手机的电能。 In a preferred embodiment, a charging circuit is provided in the connecting circuit between the mobile phone connector and the TV connector. Thus, the mobile phone docking station can charge the mobile phone without consuming the power of the mobile phone. the
在优选的实施例中，所述电视连接器为主动式HDMI连接器(active HDMI)，这样扩展坞本身也不需要额外连接电源，方便手机扩展坞的使用。 In a preferred embodiment, the TV connector is an active HDMI connector (active HDMI), so that the docking station itself does not need to be additionally connected to a power supply, which facilitates the use of the mobile phone docking station. the
如图2所示，在优选的实施例中，所述控制模块包括： As shown in Figure 2, in a preferred embodiment, the control module includes:
检测单元，与所述手机连接器相连，检测手机是否与所述手机连接器连接； The detection unit is connected to the mobile phone connector to detect whether the mobile phone is connected to the mobile phone connector;
信号产生单元，与所述检测单元及所述手机连接器相连，接收所述检测单元检测到手机与所述手机连接器连接时产生的检测信号并发出触发所述手机播放多媒体文件的触发信号。 The signal generation unit is connected with the detection unit and the mobile phone connector, receives the detection signal generated when the detection unit detects that the mobile phone is connected to the mobile phone connector, and sends a trigger signal to trigger the mobile phone to play the multimedia file. the
在优选的实施例中，所述触发信号用于触发手机接续上次的多媒体播放任务、播放喜爱的多媒体文件。 In a preferred embodiment, the trigger signal is used to trigger the mobile phone to continue the last multimedia playing task and play favorite multimedia files. the
在优选的实施例中，所述控制模块还包括存储单元，所述信号产生单元与所述存储单元相连读取所述存储单元存储的身份识别信息控制所述手机根据所述识别信息访问指定网站并播放相应内容。对于需要付费播放的网站的视频内容，可以通过此种方式实现自动登陆和播放相应内容。 In a preferred embodiment, the control module further includes a storage unit, and the signal generation unit is connected to the storage unit to read the identification information stored in the storage unit and control the mobile phone to access a designated website according to the identification information and play the corresponding content. For the video content of the website that needs to be played for a fee, this method can be used to automatically log in and play the corresponding content. the
如图1所示，在优选的实施例中，所述控制模块与所述手机连接器通过RS-232接口相连。 As shown in FIG. 1 , in a preferred embodiment, the control module is connected to the mobile phone connector through an RS-232 interface. the
在优选的实施例中，还包括遥控接收器，所述遥控接收器与所述控制模块相连接收遥控信号，所述控制模块根据所述遥控信号发送控制信号至所述手机 连接器控制手机执行相应指令。 In a preferred embodiment, it also includes a remote control receiver, the remote control receiver is connected to the control module to receive a remote control signal, and the control module sends a control signal to the mobile phone connector to control the mobile phone to perform corresponding operations according to the remote control signal. instruction. the
在优选的实施例中，电视连接器与所述手机连接器通过线路直接相连。这种方式可以不需要控制模块有视频解码功能，直接利用手机的视频播放功能将解码后的多媒体音视频流输出即可，降低需要较强处理功能的控制模块的成本。在其他的实施方式中，还可以在电视连接器与所述手机连接器之间增加开关，受控制模块控制确定是否连通电视连接器与所述手机连接器。另外，还可以将控制模块连接在电视连接器与所述手机连接器之间，对手机输出的多媒体音视频流进行处理。 In a preferred embodiment, the TV connector is directly connected to the mobile phone connector through a wire. This method does not require the control module to have a video decoding function, and can directly use the video playback function of the mobile phone to output the decoded multimedia audio and video stream, reducing the cost of the control module that requires strong processing functions. In other embodiments, a switch may also be added between the TV connector and the mobile phone connector, and is controlled by the control module to determine whether to connect the TV connector and the mobile phone connector. In addition, the control module can also be connected between the TV connector and the mobile phone connector to process the multimedia audio and video streams output by the mobile phone. the
在优选的实施例中，所述电视连接器为HDMI连接器、S-Video连接器、AV连接器、DVI连接器中的一种或两种以上。 In a preferred embodiment, the TV connector is one or more of HDMI connector, S-Video connector, AV connector, and DVI connector. the

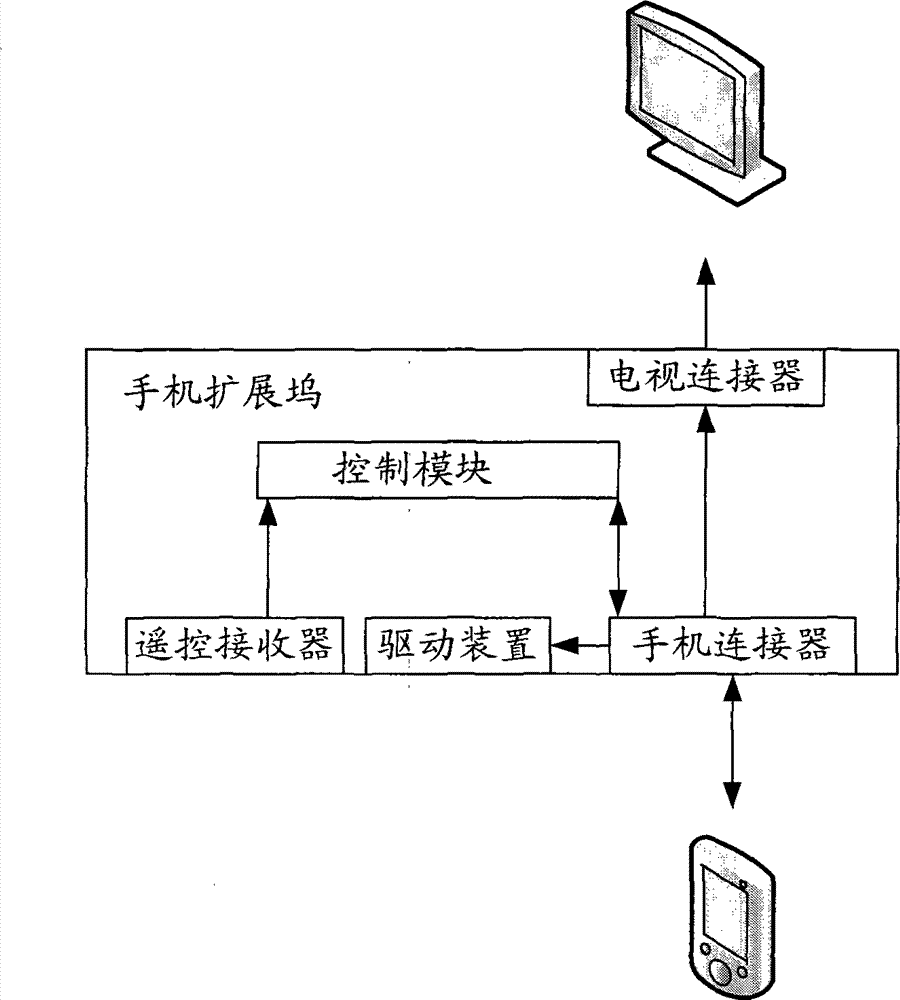

如图3所示，加设驱动装置的手机扩展坞，包括手机连接器、控制模块、电视连接器及驱动装置。 As shown in Figure 3, the mobile phone docking station with a driving device includes a mobile phone connector, a control module, a TV connector and a driving device. the
手机连接器用于连接手机。本实施例中，手机直接插接在可传送数据的手机连接器上，手机连接器周围可以开设定位和支撑手机与手机形状匹配的凹槽。在其他实施例中，手机与手机连接器可以通过数据线连接以传送数据。 The mobile phone connector is used to connect the mobile phone. In this embodiment, the mobile phone is directly plugged into the mobile phone connector capable of transmitting data, and a groove matching the shape of the mobile phone for positioning and supporting the mobile phone can be provided around the mobile phone connector. In other embodiments, the mobile phone and the mobile phone connector can be connected by a data line to transmit data. the
控制模块与所述手机连接器相连，通过所述手机连接器连接手机控制手机工作。在本实施例中，上述的工作为视频通话。在其他实施例中，上述的工作还可以是播放多媒体文件、浏览网页、录像拍摄、普通语音通话等。 The control module is connected with the mobile phone connector, and is connected to the mobile phone through the mobile phone connector to control the work of the mobile phone. In this embodiment, the above work is a video call. In other embodiments, the above-mentioned tasks may also be playing multimedia files, browsing webpages, video shooting, ordinary voice calls, and the like. the
电视连接器与所述手机连接器相连，将所述控制模块控制手机工作产生的音视频数据流输出。电视连接器可以是HDMI连接器、S-Video连接器、AV连接器、DVI连接器中的一种或两种以上。 The TV connector is connected with the mobile phone connector, and outputs the audio and video data stream generated by the control module to control the mobile phone to work. The TV connector can be one or more of HDMI connector, S-Video connector, AV connector, and DVI connector. the
驱动装置与手机连接器连接，在手机的控制下驱动手机连接器带动手机移动对准手机的摄像头拍摄的目标。驱动装置接收手机的驱动信号，在手机的控制下带动手机移动拍摄实现跟踪拍摄。 The driving device is connected with the mobile phone connector, and under the control of the mobile phone, the mobile phone connector is driven to drive the mobile phone to move and aim at the target captured by the camera of the mobile phone. The driving device receives the driving signal of the mobile phone, and drives the mobile phone to move and shoot under the control of the mobile phone to realize tracking and shooting. the
在优选的实施例中，驱动装置为马达，手机连接器安装在马达上，在马达的驱动下转动。通过手机控制马达带动手机转动到所需方向。在其他实施例中，驱动装置包括马达和丝杆，手机连接器安装在丝杆上在马达的驱动下沿直线移动。通过手机控制马达的转动带动丝杆转动以驱动手机连接器带动手机移动到 所需位置。另外，驱动装置还可以包括马达、与马达连接的齿轮、与齿轮齿合的齿条，手机连接器安装在齿条上，通过手机控制马达的转动以带动齿轮和齿条以驱动手机连接器带动手机移动到所需位置。 In a preferred embodiment, the driving device is a motor, and the mobile phone connector is mounted on the motor to rotate under the driving of the motor. The motor is controlled by the mobile phone to drive the mobile phone to rotate to the desired direction. In other embodiments, the driving device includes a motor and a screw, and the mobile phone connector is mounted on the screw and moves linearly under the drive of the motor. The rotation of the mobile phone controls the motor to drive the screw to rotate to drive the mobile phone connector to move the mobile phone to the desired position. In addition, the driving device can also include a motor, a gear connected to the motor, and a rack meshed with the gear. The mobile phone connector is installed on the rack, and the rotation of the motor is controlled by the mobile phone to drive the gear and the rack to drive the mobile phone connector. Move the phone to the desired location. the
在优选的实施例中，手机连接器和电视连接器内均设有将手机的音频输出到电视机喇叭的音频信号线。当手机与手机扩展坞连接进行视频通话时，对方说话的音频通过手机连接器和电视连接器内的音频信号线输出到电视机喇叭中，解决了手机喇叭播放时的音质和音量都受到限制问题。 In a preferred embodiment, both the mobile phone connector and the TV connector are provided with an audio signal line for outputting audio from the mobile phone to a TV speaker. When the mobile phone is connected to the mobile phone docking station for video calls, the audio of the other party’s speech is output to the TV speaker through the audio signal line in the mobile phone connector and TV connector, which solves the problem that the sound quality and volume of the mobile phone speaker are limited when playing . the
在优选的实施例中，手机连接器和电视连接器内均设有将手机的摄像头捕获的视频输出到电视机屏幕的视频信号线。当手机与手机扩展坞连接时，打开手机的摄像头，摄像头捕获的视频通过视频信号线输出到电视机屏幕中，解决了手机捕获的视频在手机的小屏幕上欣赏不方便的问题。除了手机本身摄像头捕获的视频可以通过视频信号线在电视上显示外，还可以将视频通话中对方视频通话时的图像一并在电视上显示，即电视的显示内容可以和手机的显示内容相同。 In a preferred embodiment, both the mobile phone connector and the TV connector are provided with a video signal line for outputting the video captured by the camera of the mobile phone to the TV screen. When the mobile phone is connected to the mobile phone docking station, the camera of the mobile phone is turned on, and the video captured by the camera is output to the TV screen through the video signal line, which solves the problem of inconvenient appreciation of the video captured by the mobile phone on the small screen of the mobile phone. In addition to the video captured by the camera of the mobile phone itself can be displayed on the TV through the video signal cable, the image of the other party during the video call can also be displayed on the TV together, that is, the display content of the TV can be the same as that of the mobile phone. the
上述的手机连接器和电视连接器内均设有将手机的音频输出到电视机喇叭的音频信号线和将手机的摄像头捕获的视频输出到电视机屏幕的视频信号线。这种方式可以不需要控制模块有音视频解码功能，直接利用手机的音视频播放功能将解码后的多媒体音视频流输出即可，降低需要较强处理功能的控制模块的成本。在其他的实施方式中，还可以在电视连接器与所述手机连接器之间增加开关，受控制模块控制确定是否连通电视连接器与所述手机连接器。 Both the above-mentioned mobile phone connector and the TV connector are provided with an audio signal line for outputting the audio of the mobile phone to the TV speaker and a video signal line for outputting the video captured by the camera of the mobile phone to the TV screen. This method does not require the control module to have an audio and video decoding function, and can directly use the audio and video playback function of the mobile phone to output the decoded multimedia audio and video stream, reducing the cost of the control module that requires strong processing functions. In other embodiments, a switch may also be added between the TV connector and the mobile phone connector, and is controlled by the control module to determine whether to connect the TV connector and the mobile phone connector. the
在优选的实施例中，所述手机连接器与电视连接器的连接线路中设有充电线路。从而手机扩展坞可以对手机进行充电，不需要耗费手机的电能。 In a preferred embodiment, a charging circuit is provided in the connecting circuit between the mobile phone connector and the TV connector. Thus, the mobile phone docking station can charge the mobile phone without consuming the power of the mobile phone. the
在优选的实施例中，所述电视连接器为主动式HDMI连接器(active HDMI)，这样扩展坞本身也不需要额外连接电源，方便手机扩展坞的使用。另外，手机扩展坞也可以采用外接电源或内置电池，在使用较大功率驱动装置时，仍然可以带动手机移动。 In a preferred embodiment, the TV connector is an active HDMI connector (active HDMI), so that the docking station itself does not need to be additionally connected to a power supply, which facilitates the use of the mobile phone docking station. In addition, the mobile phone docking station can also use an external power supply or a built-in battery, which can still drive the mobile phone to move when using a relatively high-power driving device. the
如图4所示，一种手机，包括摄像头、扩展连接器、图像处理装置及驱动控制装置。 As shown in FIG. 4 , a mobile phone includes a camera, an expansion connector, an image processing device and a drive control device. the
扩展连接器用于连接外部设备。在本实施例中，扩展连接器与手机扩展坞(如图3所示)中的手机连接器连接，扩展连接器与手机连接器通过数据线连接以传送数据。 Expansion connectors are used to connect external devices. In this embodiment, the expansion connector is connected to the mobile phone connector in the mobile phone docking station (as shown in FIG. 3 ), and the expansion connector is connected to the mobile phone connector through a data cable to transmit data. the
图像处理装置与摄像头相连，根据摄像头拍摄的图像确定目标在图像中的相对位置。在本实施方式中，图像处理装置在拍摄到的图像中确定目标的相对位置，其中的目标为人体或人脸。在其他实施方式中，上述的目标可以根据需求设定为其他物体。此外，图像处理装置除能处理图像中的目标外，还能将摄像头的拍摄的图像以数据流下传到扩展连接器流出。 The image processing device is connected with the camera, and determines the relative position of the target in the image according to the image captured by the camera. In this embodiment, the image processing device determines the relative position of the target in the captured image, where the target is a human body or a human face. In other implementation manners, the above-mentioned targets can be set as other objects according to requirements. In addition, the image processing device can not only process the target in the image, but also transmit the image captured by the camera to the expansion connector as data stream. the
驱动控制装置与图像处理装置及扩展连接器相连，根据相对位置通过扩展连接器发出控制驱动装置动作使手机移动将摄像头对准目标的驱动信号。驱动控制装置根据目标在图像的相对位置，通过扩展连接器发出驱动信号控制驱动装置(如图3所示)带动手机连接器以转动或移动的形式带动插在手机连接器上的手机转动或移动到目标所在的方向或位置，实现了手机的跟踪拍摄。 The driving control device is connected with the image processing device and the expansion connector, and according to the relative position, a driving signal for controlling the action of the driving device is sent through the expansion connector to move the mobile phone and aim the camera at the target. According to the relative position of the target in the image, the drive control device sends a drive signal through the expansion connector to control the drive device (as shown in Figure 3) to drive the mobile phone connector to rotate or move the mobile phone inserted in the mobile phone connector. To the direction or position of the target, the tracking and shooting of the mobile phone is realized. the
在优选的实施例中，手机还包括自动对焦装置，其与图像处理装置及摄像头相连，根据图像处理装置的处理结果控制摄像头自动对所述目标对焦。自动对焦装置根据图像处理装置的处理图像的结果，如清晰度、焦距等结果发送对焦控制信号至摄像头以控制摄像头完成自动对焦，能得到效果更好的实时图像。 In a preferred embodiment, the mobile phone further includes an autofocus device, which is connected to the image processing device and the camera, and controls the camera to automatically focus on the target according to the processing result of the image processing device. The auto-focus device sends a focus control signal to the camera according to the image processing results of the image processing device, such as sharpness, focal length, etc., to control the camera to complete auto-focus, and better real-time images can be obtained. the
上述手机及手机扩展坞，通过驱动控制装置根据图像处理装置确定摄像头拍摄的图像中的目标相对位置从扩展连接器发出驱动信号，参考图3，以控制手机扩展坞的驱动装置驱动手机连接器带动手机移动对准手机的摄像头拍摄的目标，此后将拍摄的图像通过手机扩展坞以数据流流出至大屏幕显示器显示图像、喇叭播放声音，使得放置在扩展坞上后手机的摄像头仍然得到很好应用。 The above-mentioned mobile phone and mobile phone docking station, through the drive control device according to the image processing device to determine the relative position of the target in the image captured by the camera, send a driving signal from the expansion connector, referring to Figure 3, to control the driving device of the mobile phone docking station to drive the mobile phone connector to drive Move the mobile phone to the target shot by the camera of the mobile phone, and then the captured image will be streamed out to the large-screen display through the mobile phone docking station to display the image, and the speaker will play the sound, so that the camera of the mobile phone can still be used well after being placed on the docking station . the
此外，如图3所示，手机扩展坞还可以使手机实现手机工作(播放多媒体文件、浏览网页、视频拍摄、普通语音通话等)中的多媒体文件以显示信号输出，将显示屏幕扩大到电视机的屏幕上，使得欣赏手机中的多媒体文件变得方便。 In addition, as shown in Figure 3, the mobile phone docking station can also enable the mobile phone to realize the multimedia files in the mobile phone work (playing multimedia files, browsing the web, video shooting, ordinary voice calls, etc.) to display signal output, and expand the display screen to the TV. On the screen of the mobile phone, it is convenient to enjoy the multimedia files in the mobile phone. the
以上所述实施例仅表达了本实用新型的几种实施方式，其描述较为具体和详细，但并不能因此而理解为对本实用新型专利范围的限制。应当指出的是， 对于本领域的普通技术人员来说，在不脱离本实用新型构思的前提下，还可以做出若干变形和改进，这些都属于本实用新型的保护范围。因此，本实用新型专利的保护范围应以所附权利要求为准。 The above-mentioned embodiments only express several implementations of the utility model, and the description thereof is relatively specific and detailed, but it should not be construed as limiting the patent scope of the utility model. It should be noted that, for those of ordinary skill in the art, without departing from the concept of the utility model, several modifications and improvements can be made, and these all belong to the protection scope of the utility model. Therefore, the scope of protection of the utility model patent should be based on the appended claims. the
Claims (9)
