Abstract

The utility model discloses an outdoor multifunctional seat, which comprises a chair frame, a backrest and a seat board. It is equipped with a bulletin board for setting advertisements; there is also a return device that can restore the seat board and maintain a vertical state and a limit device that can make the rotation angle of the hinge shaft not exceed 90°; Features speakers. The utility model is foldable, which not only saves space, but also can display the content of the bulletin board after folding; it also realizes the integrated design of the seat, the bulletin board, and the outdoor loudspeaker. Humanized design.

Description

Outdoor Multifunctional Seat

technical field

The utility model relates to an outdoor seat, in particular to an outdoor multifunctional seat.

Background technique

The existing public seats, publicity billboards and outdoor small speakers are commonly used outdoor landscape public facilities. They are installed in many parks and streets, but public seats, outdoor advertising billboards and outdoor small speakers are generally set separately. For example, the Chinese utility model patent whose notification number is CN200983985 includes a seat, a chair back and a light box for advertising on the top of the seat back, which realizes the integration of the seat and the advertisement, but the design of the light box increases the height of the seat. Height, people's field of vision is limited, and it is not beautiful enough; in addition, it cannot be folded and folded when not in use, which is not convenient to use and easy to be stained with dust, and there is a problem that the seat board cannot be dried quickly after rainy days and is easily affected Problems with rain soak damage.

Utility model content

The technical problem to be solved by the utility model is to provide a foldable outdoor multi-functional seat with a bulletin board.

In order to solve the above-mentioned technical problems, the outdoor multifunctional seat designed by the utility model includes a chair frame, a backrest and a seat board, and the seat board can be hinged on the chair frame or the backrest so that it can rotate around the hinge shaft from horizontal to vertical. ;The back of the seat plate is provided with a billboard for setting advertisements; there is also a return device that can restore the seat plate and maintain a vertical state and a limit device that can make the rotation angle of the hinge shaft not exceed 90°, that is, when the seat plate After reaching the horizontal state, it can no longer swing down. When the seat is occupied by someone, manually rotate the seat panel back to the horizontal position. When the seat panel reaches the horizontal position, the limit device will limit the seat panel, and the seat panel cannot be rotated downward. The limit device can be set between the hinge shaft and the seat. It can also be set on the chair frame or the backrest; the return device can be a return spring or other devices with equivalent work, which can be set in the hinge shaft. When getting up, the return device rotates the seat board upwards to be vertical and maintains the vertical state, displaying an advertising billboard, which can not only promote the city culture, but also keep the seat board clean and beautiful.

Described seat plate can be one piece, also can be two pieces, but in order to provide more seats and save space, described seat plate is two pieces, is respectively hinged on the front and back of the backrest. The backrest can be in a long shape, an arc shape, or other shapes, preferably having the same length as the seat board. The two seat boards can be respectively hingedly connected to the lower part of the front and back sides of the backrest, so that the seat is more comfortable.

In order to make the seat more beautiful, beautify the surrounding environment and purify the air, the upper end surface of the backrest can be provided with a long strip of green belt grooves for planting green plants.

In order to allow visitors to listen to music and enjoy themselves while riding, the chair frame can be a support body arranged at both ends of the backrest, and the support body is provided with a loudspeaker. The loudspeaker can also be arranged at only one end, but in order to have a better sound effect and a more beautiful seat, it is better to have loudspeakers arranged at both ends. Such a design is more symmetrical.

The upper end surface of the support body can be concaved to form a groove, and the speaker is arranged in the groove. The shape of the support body can be columnar, cuboid, and a bronze drum-like musical instrument shape with ball tables at both ends and a cylinder in the middle. This solution is a bronze drum-like shape with ball tables at both ends and a cylinder in the middle.

In order to protect the loudspeaker from being damaged by dust, sundries and rain, a cover can be arranged above the loudspeaker, the legs of the cover are connected to the groove wall, and the speaker is isolated from the upper surface of the cover. The upper surface of the cover body can be flat or umbrella-shaped. In order not to affect the sound quality of the speaker and to obtain better protection, the upper surface of the cover body is planar, completely covering the speaker, and is isolated from the speaker. touch. The legs of the cover can be spaced strips distributed around the upper surface of the cover, or can be walls with sound holes surrounding the upper surface of the cover downwards, but in order to make the sound quality better, The supporting legs of the cover body are bar-shaped bodies distributed on the upper surface periphery of the cover body and facing downward at intervals.

Compared with the prior art, the utility model has the following advantages:

1. It can be folded, which not only saves space, but also displays the content of the bulletin board after folding; at the same time, it can be folded to keep the seat board tidy, and it can dry quickly after rainwater, prolonging the service life;

2. It is also equipped with speakers to realize the integrated design of public seats, publicity billboards and outdoor small audio, which not only meets the aesthetic appearance, but also conforms to the concept of urban planning;

3. The green belt on the backrest can beautify the surrounding environment and purify the air without increasing the occupied area.

Description of drawings

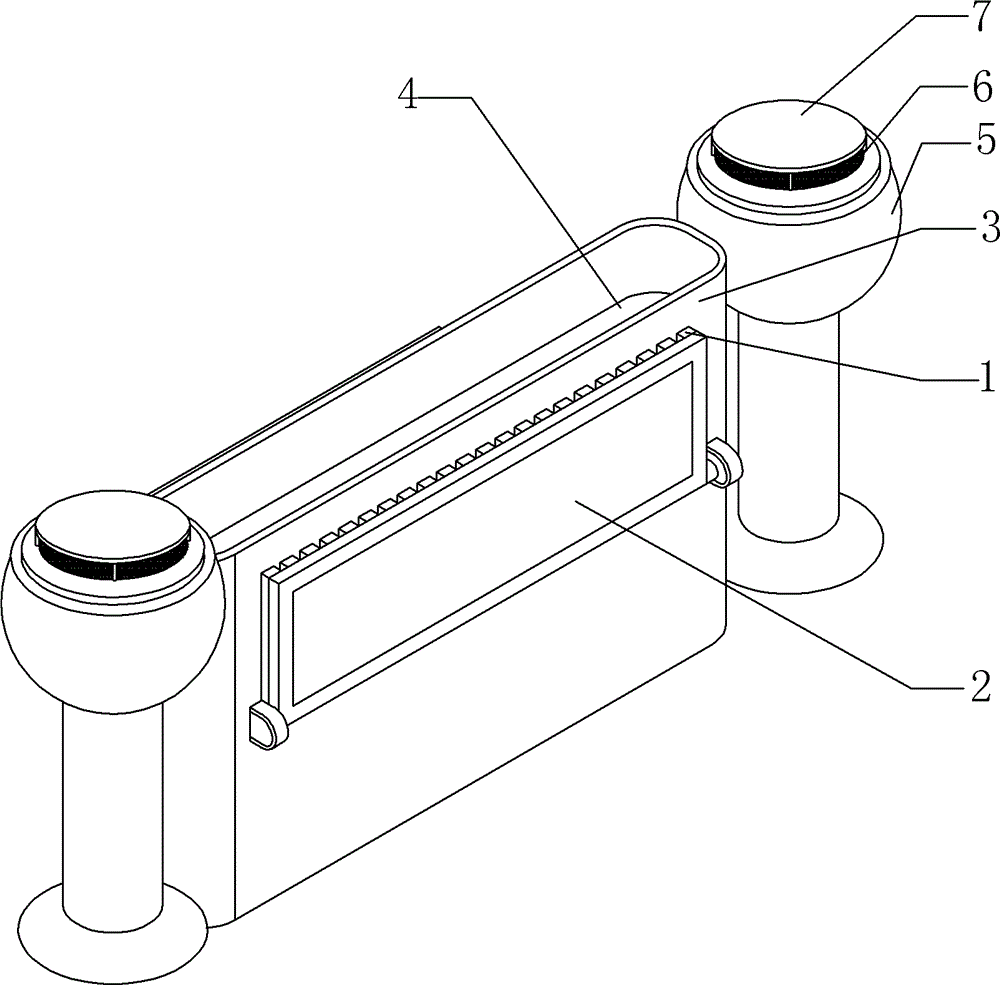

Fig. 1 is the structural representation of a kind of outdoor multifunctional seat of the utility model;

Fig. 2 is a structural schematic diagram of an outdoor multifunctional seat of the utility model when the seat board is unfolded;

Fig. 3 is a side view of an outdoor multifunctional seat of the present invention.

The labels in the figure are: 1. Seat board; 2. Bulletin board; 3. Backrest; 4. Green belt groove; 5. Support body; 6. Loudspeaker; 7. Cover body.

Detailed ways

The utility model is an outdoor multifunctional seat, as shown in Fig. 1 and Fig. 2, comprising a chair frame, a backrest 3 and a seat board 1, and the seat board 1 can be hinged around a hinge shaft from horizontal to vertical On the backrest 3; the back of the seat plate 1 is provided with a billboard 2 for setting advertisements; there is also a return device that can restore the seat plate 1 and maintain a vertical state. The return device is a return spring, which is located on the hinge In the shaft; there is also a limit device that can make the rotation angle of the hinge shaft not exceed 90°, that is, when the seat plate 1 reaches the horizontal state, it can no longer swing downward, and the limit device is located on the hinge shaft and the chair frame or backrest 3 In the collar at the connection. When the seat plate 1 is not stressed, the return device restores the seat plate 1 and maintains it in a vertical state, and displays the billboard 2, which can be framed with glass to prevent rainwater, etc., and city slogans, Pictures of promotional materials such as scenery and culture.

As shown in FIG. 3 , the seat board 1 is two pieces, which are respectively hinged on the front and back sides of the backrest 3 . The backrest 3 is in the shape of a cuboid, and its upper end surface is provided with a long green belt groove 4 for planting green plants. The groove is recessed to a certain depth, filled with soil, and small green plants can be planted.

Described chair frame is the supporting body 5 that is arranged on the two ends of backrest 3, and loudspeaker 6 is arranged on this supporting body 5, and supporting body 5 is the ball table shape at both ends, and the center is the structure of column shape, and the upper end surface of supporting body 5 is concave A groove is formed, and a speaker 6 is built in the groove, which can be connected to an external power supply device. A cover body 7 is arranged above the speaker 6, and the legs of the cover body 7 are connected to the upper wall of the groove to support the upper surface of the cover body 7, and the height of the legs of the cover body 7 is higher than that of the speaker 6 to expose the groove, that is, the speaker 6 It is isolated from the upper surface of the cover body 7 without contact, and is also isolated from the groove opening, so that the pronunciation effect is better. The upper surface of cover body 7 is planar, covers the upper surface of loudspeaker 6 completely, and the supporting foot of cover body 7 is the equally spaced strip-shaped body that is distributed on the upper surface periphery of cover body 7, and the lower end of this strip-shaped body is connected on on the groove.

Claims (6)

1. outdoor multifunction seat comprises chair frame, backrest (3) and seat board (1), it is characterized in that: said seat board (1) can cut with scissors rotationally between level is extremely vertical around hinge axis and be loaded on chair frame or the backrest (3); The back side of seat board (1) is provided with the propaganda board (2) that is used to be provided with advertisement; Also have one can make seat board (1) recovery and keep returning device and the anglec of rotation that can make hinge axis of plumbness to be no more than 90 ° stopping means.

2. outdoor multifunction seat according to claim 1 is characterized in that: said seat board (1) is two, and hinge is connected on the tow sides of backrest (3) respectively.

3. outdoor multifunction seat according to claim 2 is characterized in that: said backrest (3) upper surface offers the rectangular greenbelt groove (4) that is used to plant green plants.

4. according to any described outdoor multifunction seat of claim 1～3, it is characterized in that: said chair frame is for being arranged on the supporter (5) at backrest (3) two ends, and this supporter (5) is provided with loudspeaker (6).

5. outdoor multifunction seat according to claim 4 is characterized in that: the recessed formation groove in said supporter (5) upper surface, loudspeaker (6) is located in the groove.

6. outdoor multifunction seat according to claim 5 is characterized in that: said loudspeaker (6) top is provided with cover body (7), and the leg of this cover body (7) links to each other with groove walls, and loudspeaker (6) is isolated with the upper surface of cover body (7).
