CN202802439U - Fixator of trachea cannula passing through nasal cavity - Google Patents
Fixator of trachea cannula passing through nasal cavity Download PDFInfo
- Publication number
- CN202802439U CN202802439U CN 201220411178 CN201220411178U CN202802439U CN 202802439 U CN202802439 U CN 202802439U CN 201220411178 CN201220411178 CN 201220411178 CN 201220411178 U CN201220411178 U CN 201220411178U CN 202802439 U CN202802439 U CN 202802439U
- Authority
- CN
- China
- Prior art keywords
- intubation
- fixer
- screw rod
- nasal cavity
- fixing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 210000003928 nasal cavity Anatomy 0.000 title claims abstract 5
- 210000003437 trachea Anatomy 0.000 title description 12
- 238000002627 tracheal intubation Methods 0.000 claims abstract description 29
- 238000003780 insertion Methods 0.000 description 8
- 230000037431 insertion Effects 0.000 description 8
- 230000001815 facial effect Effects 0.000 description 4
- 230000006378 damage Effects 0.000 description 3
- 210000003128 head Anatomy 0.000 description 3
- 210000000214 mouth Anatomy 0.000 description 3
- 208000027418 Wounds and injury Diseases 0.000 description 2
- 239000000853 adhesive Substances 0.000 description 2
- 230000001070 adhesive effect Effects 0.000 description 2
- 208000014674 injury Diseases 0.000 description 2
- 239000011505 plaster Substances 0.000 description 2
- 238000001356 surgical procedure Methods 0.000 description 2
- 206010002198 Anaphylactic reaction Diseases 0.000 description 1
- 230000036783 anaphylactic response Effects 0.000 description 1
- 208000003455 anaphylaxis Diseases 0.000 description 1
- 239000004744 fabric Substances 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 210000002345 respiratory system Anatomy 0.000 description 1
- 230000028327 secretion Effects 0.000 description 1
- 230000001954 sterilising effect Effects 0.000 description 1
- 238000004659 sterilization and disinfection Methods 0.000 description 1
Landscapes
- Orthopedics, Nursing, And Contraception (AREA)
Abstract
本实用新型提供了一种经鼻腔气管插管固定器，所述经鼻腔气管插管固定器包括一固定器本体，所述固定器本体上设置有与鼻孔相对应的二插管孔，各所述插管孔上方均设置一插管定位装置，所述固定器本体上设置有至少一固定绑带；各所述插管定位装置包括一定位支架、一螺杆以及一卡合部，所述螺杆上设有螺纹，且穿设过所述定位支架；所述卡合部设置螺杆的下方，并与对应的插管孔相配合。本实用新型用于经鼻腔气管插管在口腔颌面部手术中的固定，能够防止插管滑脱，保证手术安全顺利的进行。
The utility model provides a transnasal endotracheal intubation fixer. The transnasal endotracheal intubation fixer includes a fixer body, and two intubation holes corresponding to the nostrils are arranged on the fixer body. An intubation positioning device is arranged above the intubation hole, and at least one fixing strap is arranged on the fixer body; each of the intubation positioning devices includes a positioning bracket, a screw rod and an engaging part, and the screw rod Threads are provided on the top, and pass through the positioning bracket; the engaging part is provided under the screw rod, and is matched with the corresponding intubation hole. The utility model is used for fixing the intubation tube through the nasal cavity in the operation of the mouth and maxillofacial region, which can prevent the intubation tube from slipping off and ensure safe and smooth operation.
Description
[technical field]
This utility model relates to medical instruments field, particularly a kind of trachea intubation holder.
[background technology]
Common artificial airway sets up mode per nasal, oral cavity and tracheotomy.In the oral and maxillofacial surgery outer operation, because the patient needs at patient's mouth and nose transluminal operation, maybe need recover occluding relation, so often adopt per os naso-tracheal intubation mode.The direct oral cavity tracheal cannula fixer is more in tracheal intubation fixed form in the past, and trachea intubation adopts wing of nose sticking cloth fixation, suspensory type nasal trachea cannula fixation etc. more.
Yet in Oral and Maxillofacial Surgery, carry out changing in the facial sterilization of jaw, the art and head position and occur repeatedly because the factors such as the facial oil secretion is vigorous cause adhesive plaster to get loose to situations such as tracheal intubation skid off, comes off, the safety of operation is produced certain impact; Other has small number of patients that anaphylaxis is easily occured fixing adhesive plaster, and causes the complication such as erythra.For seeking safe and effective via intranasal application artificial airway's fixed form, so study, designed the trachea intubation holder.
[summary of the invention]
The technical problems to be solved in the utility model is to provide a kind of trachea intubation holder, is used for trachea intubation fixing that oromaxillo-facial region is performed the operation, and can prevent the intubate slippage, guarantees that operation safety carries out smoothly.
This utility model is achieved in that
A kind of trachea intubation holder, described trachea intubation holder comprises a retainer body, be provided with two insertion holes corresponding with the nostril on the described retainer body, each described insertion hole top all arranges an intubate positioner, is provided with at least one fixedly bandage on the described retainer body.
Further, each described intubate positioner comprises location support, a screw rod and a holding section, and described screw rod is provided with screw thread, and wears described locating support; Described holding section arranges the below of screw rod, and matches with corresponding insertion hole.
Further, described retainer body inboard is provided with a nose cavity volume, and the retainer body inboard also is lined with a soft pad layer.
Further, described at least one fixedly bandage is two fixing bandages, described two fixedly bandage be separately positioned on the top of retainer body and the both sides of bottom.
Further, each described fixedly bandage comprises a male fixedly bandage and a female fixedly bandage, described male fixedly bandage and mother fixedly bandage by linking to each other by VELCRO.
The utility model has the advantage of:
Retainer body be provided with two fixedly bandage be used for retainer body is fixed on patient's head, guarantee the stability of retainer body; The male fixedly bandage of described fixedly bandage and mother fixedly bandage are by linking to each other by VELCRO so that of the present utility model wear with take off more convenient; The intubate positioner that arranges is used for fixedly stretching into the intubate of corresponding insertion hole, prevents the intubate slippage; Described intubate positioner is provided with a screw rod, can rotate up and down and regulate to adapt to the intubate of different sizes, highly versatile; Described retainer body inboard is provided with a nose cavity volume, and more docile and nose during use make operation more convenient, accurately; And the retainer body inboard also is lined with a soft pad layer, can protect facial skin not to be subject to the injury of retainer body, and makes user more comfortable.
[description of drawings]
In conjunction with the embodiments this utility model is further described with reference to the accompanying drawings.

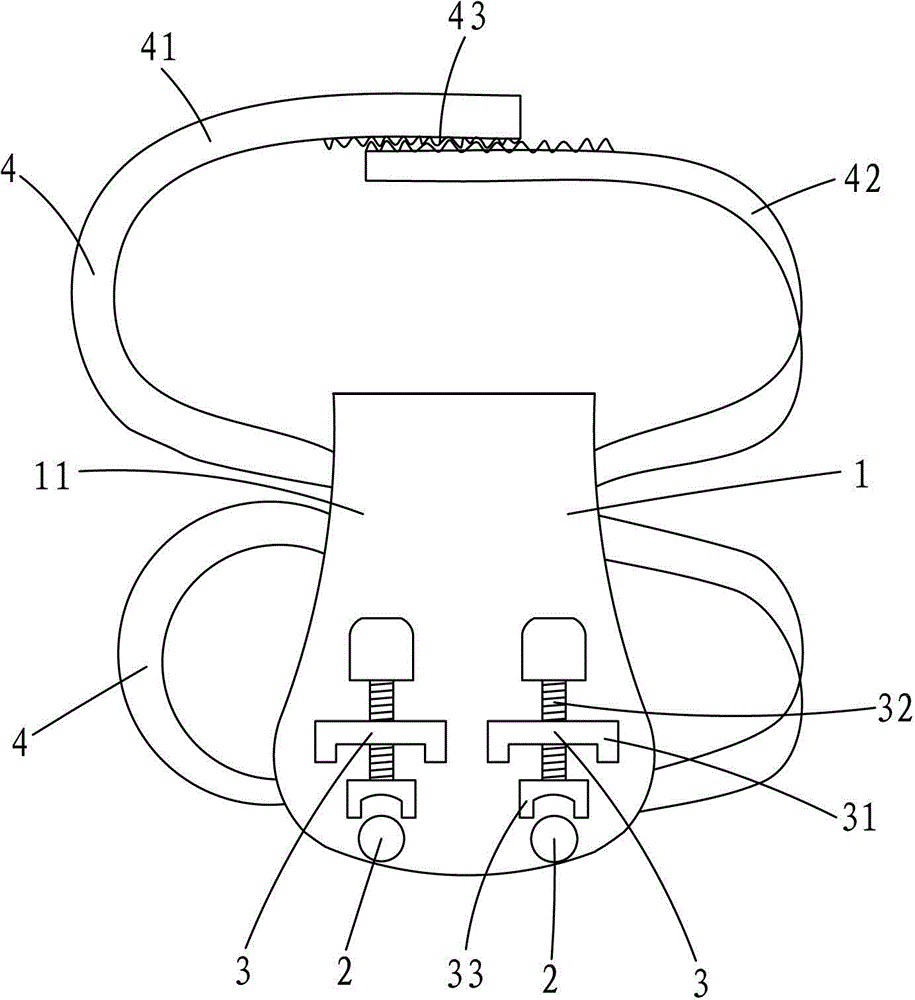

Fig. 1 is structural representation of the present utility model.
[specific embodiment]
See also shown in Figure 1ly, embodiment of the present utility model is described in detail.
As shown in Figure 1, a kind of trachea intubation holder that this utility model is related, described trachea intubation holder comprises a retainer body 1, be provided with two insertion holes 2 corresponding with the nostril on the described retainer body 1, each described insertion hole top all arranges an intubate positioner 3, is provided with at least one fixedly bandage 4 on the described retainer body 1; Described intubate positioner 3 is used for fixedly stretching into the intubate (not shown) of corresponding insertion hole 2, prevents the intubate slippage.
Each described intubate positioner 3 comprises location support 31, a screw rod 32 and a holding section 33, and described screw rod 32 is provided with screw thread, and wears described locating support 31; Described holding section 33 arranges the below of screw rod 32, and matches with corresponding insertion hole 2; The screw rod 32 that described intubate positioner 3 arranges can rotate up and down and regulate to adapt to the intubate of different sizes, highly versatile.
Described retainer body 1 inboard is provided with a nose cavity volume 11; More docile and nose during use make operation more convenient, accurately.Retainer body 1 inboard also is lined with a soft pad layer (not shown); Can protect facial skin not to be subject to the injury of retainer body 1, and make user more comfortable.
Described at least one fixedly bandage 4 is two fixing bandages 4, described two fixedly bandage 4 be separately positioned on the top of retainer body 1 and the both sides of bottom; Retainer body 1 be provided with two fixedly bandage 4 be used for retainer body 1 is fixed on patient's head, guarantee the stability of retainer body 1.
Each described fixedly bandage 4 comprises a male fixedly bandage 41 and a female fixedly bandage 42, described male fixedly bandage 41 and mother fixedly bandage 42 by linking to each other by VELCRO 43; So that of the present utility model wear with take off more convenient.
In a word, this utility model can prevent the intubate slippage, and the intubate when making operation is more firm, reduces damage, guarantees that operation safety carries out smoothly, guarantees that patients with respiratory tract is unobstructed.
Although more than described the specific embodiment of the present utility model; but being familiar with those skilled in the art is to be understood that; our described specific embodiment is illustrative; rather than for the restriction to scope of the present utility model; those of ordinary skill in the art are in modification and the variation of the equivalence of doing according to spirit of the present utility model, all should be encompassed in the scope that claim of the present utility model protects.
Claims (5)
