Abstract

The utility model discloses a barber chair, which comprises a seat, a backrest and a base placed on the ground connected by a pillar. The pillar is provided with a plurality of clips for fixing an external power line, and the backrest is provided with a The tool bag is movably connected; the tool bag is distributed with a plurality of partitioned pouches, and the mouth of the partitioned pouches is surrounded by teeth; adopting the technical scheme of the utility model, when using the electric hairdressing appliance, the plug is inserted into the socket, and the power cord uses the plug on the pillar. The clip for fixing the external power cord is fixed on the pillar, which avoids the potential safety hazard caused by the entanglement of electric hairdressing appliances in the prior art; the tool bag made of soft material around the back of the backrest is distributed with multiple compartments The small bag facilitates the placement of the electric hairdressing appliance and improves the work efficiency. The evenly distributed teeth on the mouth of the small bag prevent the electric hairdressing appliance from falling out of the pocket when the chair is tilted.

Description

a barber chair

technical field

The utility model belongs to the field of beauty and hairdressing, more specifically, the utility model relates to a barber chair.

Background technique

When hairdressing in a hair salon, the hairdresser will use a variety of hair cutting electric appliances, including hair dryers, electric clippers, electric hair straighteners, styling wind shields, rechargeable clippers, hair curlers, etc. Most of these appliances are placed on the workbench under the mirror or placed in the tool bag that the barber surrounds the body. When in use, the plug is inserted into the socket on the wall or on the workbench. Sometimes entanglement also occurs, which brings great potential safety hazards.

Utility model content

The problem to be solved by the utility model is to provide a hairdressing chair which improves the safety performance of the electric hairdressing appliance.

In order to achieve the above purpose, the technical solution adopted by the utility model is: a barber chair provided, including a seat, a backrest and a base placed on the ground connected by a pillar, and the pillar is provided with a plurality of fixed external power supplies The clamp of the line, the tool bag that is flexibly connected with it is arranged on the said backrest.

Preferably, the clip of the external power cord is detachably connected to the support.

Preferably, the tool bag is made of soft material and surrounds the back of the backrest.

Preferably, the tool bag distributes a plurality of partitioned pouches, and the mouth of the partitioned pouches is surrounded by teeth.

Preferably, the teeth are made of plastic.

Adopting the technical solution of the utility model, when using the electric hairdressing appliance, the plug is inserted into the socket, and the power cord is fixed on the pillar by using the clip on the pillar to fix the external power cord, which avoids the entanglement of the electric hairdressing appliance in the prior art potential safety hazards; the tool bag is made of soft material around the back of the backrest, and the tool bag is distributed with multiple separate pouches to facilitate the placement of electric hairdressing appliances and improve work efficiency. The mouth of the pouch is evenly distributed with teeth , to prevent the electric hairdressing appliance from falling out of the pocket when the chair is tilted.

Description of drawings

The following is a brief description of the content expressed in the drawings of this manual and the marks in the drawings:

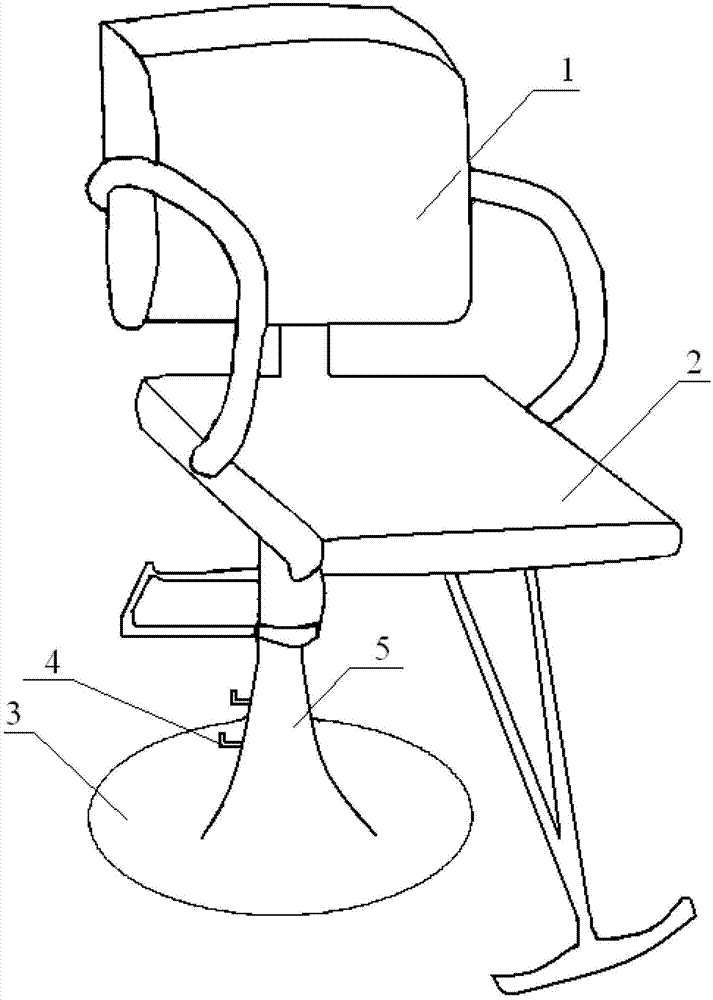

Fig. 1 is the schematic diagram of a kind of barber chair of the present utility model;

Fig. 2 is a rear view of a barber chair of the present invention shown in Fig. 1 .

The marks in the figure are: 1. Backrest; 2. Seat; 3. Base; 4. Clip; 5. Pillar; 6. Tool bag; 7. Partition pouch.

Detailed ways

Below with reference to the accompanying drawings, through the description of the embodiments, the specific implementation of the present utility model, such as the shape, structure, mutual position and connection relationship between each part, the function and working principle of each part, and manufacturing of the utility model. Processes, operation methods, etc. are further described in detail to help those skilled in the art have a more complete, accurate and in-depth understanding of the utility model concept and technical solutions of the present utility model.

Fig. 1 is a schematic diagram of a barber chair of the present utility model, and Fig. 2 is a rear view of a barber chair of the present utility model shown in Fig. 1, and a barber chair of the present utility model as shown in the figure includes a seat 2 , the backrest 1 and the base 3 placed on the ground connected by the pillar 5, the pillar 5 is provided with a plurality of clips 4 for fixing the external power cord, the backrest 1 is provided with the tool bag 6 which is movably connected with it; the clip 4 for the external power cord It is detachably connected with the pillar 5; the tool bag 6 is made of soft material and surrounds the back of the backrest 1; the tool bag 6 is distributed with a plurality of partitioned pouches 7, and the mouth of the partitioned pouches 7 is surrounded by teeth; It is made of plastic; adopting the technical scheme of the utility model, when using the electric hairdressing appliance, the plug is inserted into the socket, and the power cord is fixed on the pillar 5 using the clip 4 for fixing the external power cord on the pillar 5, which avoids the existing Technology uses electric hairdressing appliances to cause safety hazards caused by winding; the tool bag 6 made of soft material surrounding the back of the backrest 1, and the tool bag 6 is distributed with multiple separate small bags 7, which is convenient for the placement of electric hairdressing appliances and improves work. Efficiency, the teeth that separate the mouth of the pouch 7 are evenly distributed, so that the electric hairdresser will not fall out of the pocket when the chair is tilted.

The utility model has been exemplarily described above in conjunction with the accompanying drawings. Obviously, the specific implementation of the utility model is not limited by the above-mentioned methods, as long as various insubstantial improvements are made by adopting the method concept and technical solutions of the utility model, or Directly applying the ideas and technical solutions of the utility model to other occasions without improvement is within the protection scope of the utility model.

Claims (5)

1. A barber chair, comprising a seat, a backrest and a base connected to the ground by a pillar, characterized in that: the pillar is provided with a plurality of clips for fixing the external power cord, and the backrest is provided with A tool bag linked to its activity. the 2. A barber chair according to claim 1, characterized in that: the clip of the external power cord is detachably connected to the support. the 3. A barber chair according to claim 1, characterized in that: said tool bag is made of soft material and surrounds the back of the backrest. the 4. A barber chair according to claim 1 or 3, characterized in that the tool bag is distributed with a plurality of partitioned pouches, and the mouth of the partitioned pouches is surrounded by teeth. the 5. A barber chair according to claim 4, wherein said teeth are made of plastic. the
