Abstract

The utility model provides a medicine taker suitable for tablets, which relates to the technical field of medical devices. A medicine taking device includes a medicine taking spoon and a body. The body is made of transparent material. The body is provided with a cavity, and both ends of the body are provided with openings communicating with the cavity. On the one hand, when the medicine spoon reaches the top of the main body, because the main body is transparent, it is easy to observe how many tablets are taken; Inside the bottle, excess pills will not spill out.

Description

A medicine dispenser for pills

technical field

The utility model relates to the technical field of medical devices, in particular to a medicine taker suitable for tablets.

Background technique

When a doctor or pharmacist dispenses medicine, they often use a medicine spoon to take out 1 to 5 tablets from a medicine bottle. When taking medicine, after the medicine spoon is inserted into the medicine bottle, usually several pieces are taken out at one time. Because the medicine bottle is not transparent for anti-oxidation and other reasons, it is difficult to observe how many pieces have been taken out; There are many tablets, and the doctor will shake the opening of the bottle to make the excess tablets enter the bottle again. During the shaking process, the tablets are easily spilled on the outside, so that the tablets are polluted and wasted.

Utility model content

The purpose of the utility model is to provide a medicine taker suitable for tablets, which aims to improve the shaking on the opening of the medicine bottle to make the excess medicine enter the medicine bottle again when taking medicine. It is easy to spill the tablet on the outside, so that the tablet is polluted and wasted.

The utility model is realized in this way:

A medicine taking device suitable for tablets, comprising a medicine taking spoon and a body made of transparent material, the main body is provided with a cavity, both ends of the main body are provided with openings communicating with the cavity, and opposite sides of the main body are respectively provided with a cavity. There are a first fixing part and a second fixing part, the bottom end of the main body is provided with a fitting part, the fitting part includes a first abutting part and a second abutting part, the first abutting part is fixedly connected with the first fixing part, the second The fixing part is provided with a chute extending along the width direction of the body, the top end of the second abutting piece is set in the chute, the chute and the second abutting piece are both in a "T" shape and cooperate with each other; the second fixing part includes The first end is connected with the outer wall of the body, and the second abutting member is connected with the first end through a spring.

Further, in a preferred embodiment of the present invention, the bottom surface of the first fixing portion and the bottom surface of the second fixing portion are both flush with the bottom surface of the body.

Further, in a preferred embodiment of the present invention, the second abutting member is provided with a hook, the second fixing portion further includes a second end opposite to the first end, and the second end is provided with a fixing rod for fixing The rod is provided with a hanging hole matched with the hook.

Further, in a preferred embodiment of the present invention, the hanging hole is provided at the bottom end of the fixing rod.

Further, in a preferred embodiment of the present invention, the height of the fixing rod is smaller than the height of the second abutting member.

Further, in a preferred embodiment of the present invention, the medicine spoon is detachably connected to the inner wall of the body.

Further, in a preferred embodiment of the present invention, the body further includes a clip, the clip includes two oppositely arranged elastic ends, the two elastic ends are respectively connected with the inner wall of the main body through a connecting rod, and the two elastic ends are respectively connected to the inner wall of the main body. Each elastic end encloses a snap portion for snapping and receiving the medicine spoon.

Further, in a preferred embodiment of the present invention, the clamping member is arranged at the top of the body.

Further, in a preferred embodiment of the present invention, the top of the body is provided with a first magnetic patch, the medicine-taking spoon is provided with a second magnetic patch, and the first magnetic patch and the second magnetic patch are separated. The magnetic poles are opposite.

Further, in a preferred embodiment of the present invention, the matching piece is made of stainless steel.

The beneficial effects of a medicine taker suitable for tablets provided by the utility model are:

The utility model relates to a medicine taking device suitable for medicine tablets, which comprises a medicine taking spoon and a body. The body is made of transparent material. The body is provided with a cavity, and both ends of the body are provided with openings communicating with the cavity. On the one hand, when the medicine spoon reaches the top of the main body, because the main body is transparent, it is easy to observe how many tablets are taken; Inside the bottle, excess pills will not spill out.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

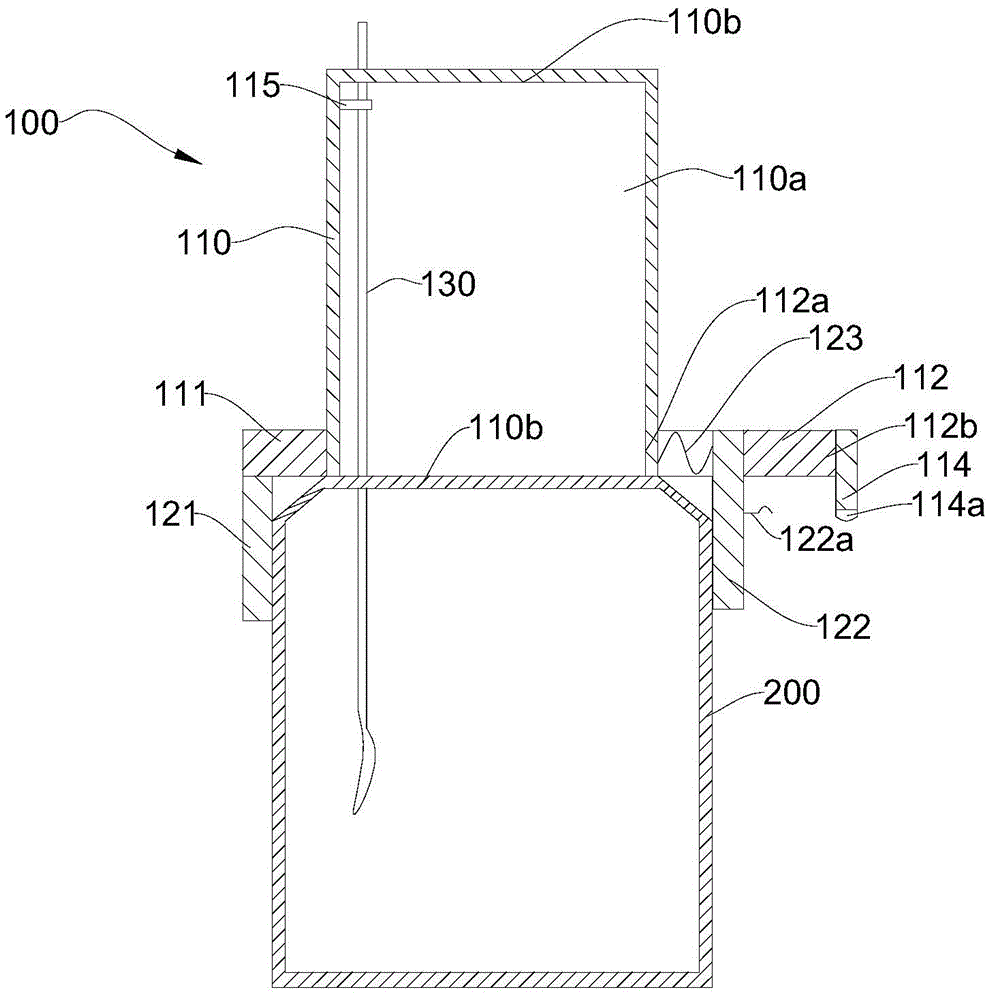

Fig. 1 is a schematic diagram of a medicine taker suitable for tablets provided by an embodiment of the present invention;

2 is a schematic diagram of the cooperation between a chute and a second abutting member in a medicine dispenser suitable for tablets provided by an embodiment of the present invention;

FIG. 3 is a schematic diagram of the connection between the clip and the inner wall of the main body in the medicine extractor suitable for tablets provided by the embodiment of the present invention.

Icon: 100-drug dispenser; 110-body; 110a-cavity; 110b-opening; 111-first fixing part; 112-second fixing part; 112a-first end; 112b-second end; 113-slip 114-fixing rod; 114a-hanging hole; 115-clamping piece; 115a-elastic end; 115b-connecting rod; 121-first abutting piece; 122-second abutting piece; 122a-hook; 123- Spring; 130 - medicine spoon; 200 - medicine bottle.

Detailed ways

In order to make the objectives, technical solutions and advantages of the present invention more clear, the technical solutions of the present invention will be described in detail below. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other implementations obtained by those of ordinary skill in the art without creative work fall within the scope of protection of the present invention.

Example

As shown in FIG. 1 to FIG. 3 , the present embodiment provides a medicine taker 100 suitable for tablets, including a medicine spoon 130 and a body 110 . The body 110 is made of a transparent material, such as transparent glass, transparent plastic, and the like. The body 110 is provided with a cavity 110a, and both ends of the body 110 are provided with openings 110b communicating with the cavity 110a. That is, the body 110 is a structure with the openings 110b at both ends being hollow in the middle. In this embodiment, the body 110 is cylindrical.

Specifically, opposite sides of the body 110 are respectively provided with a first fixing portion 111 and a second fixing portion 112 . Both the first fixing portion 111 and the second fixing portion 112 are located outside the cavity 110a. The bottom end of the body 110 is provided with a fitting piece, and the fitting piece includes a first abutting piece 121 and a second abutting piece 122 . In this embodiment, the first abutting member 121 and the second abutting member 122 can be understood as being rod-shaped, and are mainly used for abutting and cooperation with the outer wall of the medicine bottle 200 . It should be noted that the shapes of the first abutting member 121 and the second abutting member 122 are not limited, and can be made into a shape suitable for the outer wall of the medicine bottle 200 , such as an arc shape or the like.

The first abutting member 121 is fixedly connected to the first fixing portion 111 . The second fixing portion 112 is provided with a sliding groove 113 extending along the width direction of the body 110 (or the diameter direction of the body 110 ). That is, the chute 113 is arranged in the lateral direction in FIG. 1 . The top end of the second abutting member 122 is disposed in the chute 113 . Both the sliding groove 113 and the second abutting member 122 are in a “T” shape and cooperate with each other; that is, the second abutting member 122 can slide in the sliding groove 113 stably. In this embodiment, the fittings are made of stainless steel to prevent rusting.

The second fixing part 112 includes a first end 112 a and a second end 112 b opposite to each other, wherein the first end 112 a is connected with the outer wall of the body 110 . The second abutting member 122 is connected to the first end 112a through a spring 123 . It should be noted that, in this embodiment, in actual production, the diameter of the body 110 is smaller than that of the general medicine bottle 200 . When the vial 200 is placed under the bottom opening 110b of the body 110, the upper part of the vial 200 can be clamped by the first abutting member 121 and the second abutting member 122, while the spring 123 is stretched.

The working principle of the medicine dispenser 100 suitable for tablets provided in this embodiment is as follows: the upper end of the medicine bottle 200 is fixed by the first abutting member 121 and the second abutting member 122, and the opening 110b at the lower end of the body 110 is connected to the upper end of the medicine bottle 200. The opening of the medicine bottle 200 is connected, and the medicine can be taken by using the medicine spoon 130. On the one hand, when the medicine spoon 130 reaches the top of the main body 110, because the main body 110 is a transparent structure, it is convenient to observe how many tablets are taken; On the one hand, if there are many tablets taken out, shaking can be performed along the inner wall of the main body 110 to shake the excess tablets back into the medicine bottle 200, and the excess tablets will not be spilled outside. Thirdly, the medicine dispenser 100 can be stably placed on the medicine bottle 200 by using the fitting.

Further, the bottom surface of the first fixing portion 111 and the bottom surface of the second fixing portion 112 are both flush with the bottom surface of the main body 110, so as to facilitate the installation of the fitting.

Preferably, the second abutting member 122 is provided with a hook 122a, the second end 112b of the second fixing portion 112 is provided with a fixing rod 114, and the fixing rod 114 is provided with a hanging hole 114a matched with the hook 122a. After the medicine dispenser 100 is used, the second abutting member 122 can be pulled to the fixing rod 114, and the second abutting member 122 can be fixed by the cooperation of the hook 122a and the hanging hole 114a. In the next use, the second abutting member 122 can be moved close to the first end 112a by releasing the engagement between the hook 122a and the hanging hole 114a, so as to cooperate with the medicine bottle 200 .

Further, the hanging hole 114 a is provided at the bottom end of the fixing rod 114 . At this time, it is convenient to hang the hook 122a in the hanging hole 114a. Preferably, the height of the fixing rod 114 is smaller than the height of the second abutting member 122 . It is convenient for the user to put his hand between the second abutting member 122 and the fixing rod 114, which is convenient for use.

In a preferred implementation of this embodiment, the medicine spoon 130 and the inner wall of the body 110 are detachably connected. At this time, it is convenient to store the medicine-taking spoon 130 . The detachable method can be as follows: In the first type, the main body 110 further includes a clip 115, and the clip 115 includes two elastic ends 115a disposed opposite to each other, and the two elastic ends 115a are connected to the main body 110 through a rigid connecting rod 115b respectively. The two elastic ends 115a are connected to the inner wall of the scoop, and the two elastic ends 115a enclose the clipping part for clipping and receiving the medicine spoon 130 . Preferably, the clip 115 is provided on the top of the main body 110 for easy use. In the second type, the top of the main body 110 is provided with a first magnetic patch, and the medicine scoop 130 is provided with a second magnetic patch. The magnetic poles of the first magnetic patch and the second magnetic patch are opposite to each other.

To sum up, the medicine taker 100 provided in this embodiment has at least the following advantages: 1. When the medicine spoon 130 reaches the top of the main body 110, since the main body 110 is a transparent structure, it is easy to observe how many tablets are taken; When there are too many tablets, it can be shaken along the inner wall of the body 110, and the excess tablets can be shaken back into the medicine bottle 200, and the excess tablets will not be spilled outside. 3. The medicine dispenser 100 can be stably placed on the medicine bottle 200 by using the fitting. 4. The medicine spoon 130 is detachably connected to the inner wall of the main body 110, which is convenient for storage.

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Replacement should be covered within the protection scope of the present invention.

Claims (9)

1. A medicine taker suitable for tablets, characterized in that it comprises a medicine taking spoon and a body made of a transparent material, the body is provided with a cavity, and both ends of the body are provided with the cavity. The opening communicated with the cavity, the opposite sides of the body are respectively provided with a first fixing part and a second fixing part, the bottom end of the body is provided with a fitting piece, and the fitting piece includes a first abutting piece and a second abutting piece the first abutting part is fixedly connected with the first fixing part, the second fixing part is provided with a chute extending along the width direction of the main body, and the top end of the second abutting part is set on the In the chute, the chute and the second abutting member are both in a "T" shape and cooperate with each other; the second fixing part includes a first end, and the first end is connected to the main body. the outer wall is connected, and the second abutting member is connected with the first end through a spring; The bottom surface of the first fixing portion and the bottom surface of the second fixing portion are both flush with the bottom surface of the body. 2 . The medicine dispenser for tablets according to claim 1 , wherein the second abutting member is provided with a hook, and the second fixing part further comprises a second fixing part opposite to the first end. 3 . The second end is provided with a fixing rod, and the fixing rod is provided with a hanging hole matched with the hook. 3 . The medicine extractor suitable for tablets according to claim 2 , wherein the hanging hole is provided at the bottom end of the fixing rod. 4 . 4 . The medicine dispenser for tablets according to claim 3 , wherein the height of the fixing rod is smaller than the height of the second abutting member. 5 . 5 . The medicine extractor suitable for tablets according to claim 1 , wherein the medicine extraction spoon and the inner wall of the body are detachably connected. 6 . 6 . The medicine dispenser for tablets according to claim 5 , wherein the body further comprises a clip, and the clip comprises two oppositely arranged elastic ends, the two elastic ends. 7 . The two elastic ends are respectively connected with the inner wall of the main body through connecting rods, and the two elastic ends enclose a clamping part for clamping the medicine-taking spoon. 7 . The medicine extractor suitable for tablets according to claim 6 , wherein the clip is arranged on the top of the body. 8 . 8 . The medicine dispenser according to claim 5 , wherein the top of the main body is provided with a first magnetic patch, the medicine spoon is provided with a second magnetic patch, and the first magnetic patch is provided on the top of the main body. 9 . A magnetic patch is opposite to the magnetic pole of the second magnetic patch. 9 . The medicine dispenser for tablets according to claim 1 , wherein the fitting is made of stainless steel. 10 .
