Abstract

A construction safety protection device relates to the technical field of construction equipment, in particular to a construction safety protection device. It includes a base plate, a fixing plate, a lighting device, a lighting switch, a reinforcing plate, a safety plate, and a fixing bolt. The upper surface of the base plate is provided with a fixing plate, the upper end of the fixing plate is connected with the lighting device, and the right end of the lighting device is provided with a lighting switch. The rear end of the fixing plate is provided with a reinforcing plate, the bottom end of the reinforcing plate is connected with the bottom plate, the front end surface of the fixing plate is provided with a safety plate, and the safety plate is connected with the fixing plate through fixing bolts; the front end surface of the fixing plate is provided with a safety plate. There are three sets of positioning holes on the upper, middle and lower sides, and the fixing bolts pass through the safety plate along the positioning holes for fixing. After adopting the above technical scheme, the beneficial effects of the utility model are: it is more sturdy, the connection is stable, the protection effect is improved, and a lighting device is installed on the upper end of the device for lighting to improve safety.

Description

A construction safety protection device

technical field

The utility model relates to the technical field of construction equipment, in particular to a construction safety protection device.

Background technique

Construction (production activities in the implementation stage of engineering construction) Construction construction refers to the production activities in the implementation stage of engineering construction, and is the construction process of various buildings. The process of becoming real. It includes foundation engineering construction, main structure construction, roofing engineering construction, decoration engineering construction and so on. The place of construction work is called "construction construction site" or "construction site", also called construction site.

At present, the construction safety protection devices on the market mostly use safety ropes or safety tapes to surround the dangerous area. The connection is unstable and not strong, and the protection effect is poor. Moreover, when the night falls, it is easy to see the protection devices clearly and cause injury.

SUMMARY OF THE INVENTION

The purpose of the present utility model is to aim at the defects and deficiencies of the prior art, to provide a safety protection device for building construction, which is more sturdy, stable in connection, and improves the protection effect. A lighting device is installed on the upper end of the device, which is used for lighting and improves safety. sex.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions: it comprises a base plate, a fixing plate, a lighting device, a lighting switch, a reinforcing plate, a safety plate and a fixing bolt, the upper end surface of the base plate is provided with a fixing plate, and the upper end of the fixing plate is The lighting device is connected to each other, the right end of the lighting device is provided with a lighting switch, the rear end of the fixed plate is provided with a reinforcing plate, the bottom end of the reinforcing plate is connected with the bottom plate, the front end surface of the fixed plate is provided with a safety plate, and the safety plate is connected to the safety plate through the fixing bolts. The fixing plates are connected; the front end surface of the fixing plate is provided with three sets of positioning holes, upper, middle and lower, and the fixing bolts pass through the safety plate along the positioning holes for fixing.

Further, the bottom plate is a square bottom plate.

Further, the positioning holes are in groups of four. The positioning holes are in groups of four, and the four positioning holes are arranged in a matrix of 2*2.

Further, the reinforcing plate is a right-angled trapezoidal reinforcing plate, and the top end of the reinforcing plate is connected with the lighting device.

Further, the lighting device is a hemispherical lighting device.

Further, the upper end surface of the bottom plate is provided with four fixing holes. When lighting is required at night, the lighting switch is turned on, and the lighting device emits bright light to illuminate the surrounding area, so that construction workers can find and avoid surrounding dangerous areas when the light is insufficient.

The working principle of the utility model is as follows: the devices are connected according to their positions, the fixing holes on the upper end surface of the base plate are used to fix the base plate, the upper end of the base plate is connected with the fixing plate, and the front end surface of the fixing plate is provided with upper, middle and lower three sets of positioning The safety plate is fixedly connected with the fixed plate through the fixing bolts. The safety plate has the same function as the guardrail, and the installation height of the safety plate can be selected according to the actual situation. Connected, the reinforcing plate makes the connection between the fixed plate and the bottom plate more stable and not easy to break; the two safety plates are connected by a connecting plate, and a connecting plate is placed at the front and rear ends of the connecting position of the two safety plates, and then Use bolts and pass through the safety board to connect the two connecting boards, so as to realize the connection of the two safety boards; the lighting device has a built-in dry battery, when the lighting needs to be illuminated at night, turn on the lighting switch, the lighting device emits bright light to illuminate the surrounding area, making the building Workers can also find and avoid surrounding dangerous areas when the light is insufficient.

After adopting the above technical scheme, the beneficial effect of the utility model is that it is more sturdy, the connection is stable, the protection effect is improved, and a lighting device is installed on the upper end of the device for lighting to improve safety.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

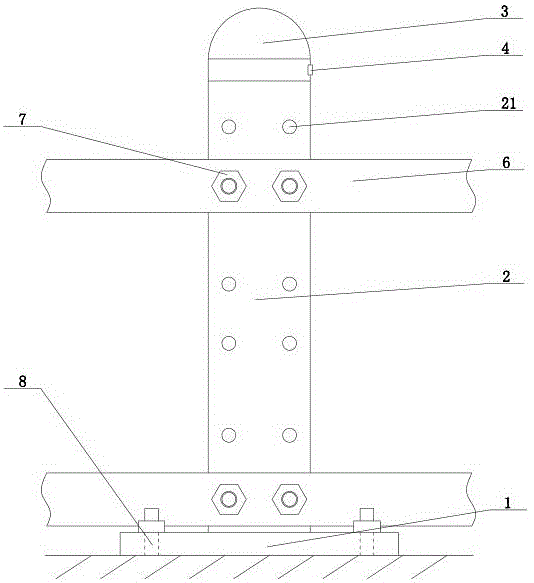

Fig. 1 is the structural representation of the present utility model;

Fig. 2 is the left side view corresponding to Fig. 1;

FIG. 3 is a schematic diagram of the connection of the safety plate 6 in the present invention.

Reference numeral description: base plate 1 , fixing plate 2 , lighting device 3 , lighting switch 4 , reinforcing plate 5 , safety plate 6 , fixing bolt 7 , fixing hole 8 , connecting plate 9 , positioning hole 21 .

Detailed ways

1-3, the technical solution adopted in this specific embodiment is: it includes a bottom plate 1, a fixing plate 2, a lighting device 3, a lighting switch 4, a reinforcing plate 5, a safety plate 6, a fixing bolt 7, and a bottom plate 1. The upper end surface of the fixed plate 2 is provided with a fixed plate 2, the upper end of the fixed plate 2 is connected with the lighting device 3, the right end of the lighting device 3 is provided with a lighting switch 4, the rear end of the fixed plate 2 is provided with a reinforcing plate 5, and the bottom end of the reinforcing plate 5 is provided Connected with the bottom plate 1, the front end surface of the fixing plate 2 is provided with a safety plate 6, and the safety plate 6 is connected with the fixing plate 2 through the fixing bolts 7; the front end surface of the fixing plate 2 is provided with three sets of positioning Hole 21, the fixing bolt 7 is fixed along the positioning hole 21 through the safety plate 6; the lighting device 3 has a built-in dry battery, when lighting is required at night, the lighting switch 4 is turned on, and the lighting device 3 emits bright light to illuminate the surrounding area, making the building Workers can also find and avoid surrounding dangerous areas when the light is insufficient.

The bottom plate 1 is a square bottom plate.

The positioning holes 21 are a group of four. Four positioning holes 21 are in a group, and the four positioning holes 21 are arranged in a matrix of 2*2.

The reinforcing plate 5 is a right-angled trapezoidal reinforcing plate, and the top end of the reinforcing plate 5 is connected with the lighting device 3 .

The lighting device 3 is a hemispherical lighting device. When lighting is required at night, the lighting switch 4 is turned on, and the lighting device 3 emits bright light to illuminate the surrounding area, so that construction workers can find and avoid surrounding dangerous areas when the light is insufficient.

The upper end surface of the bottom plate 1 is provided with four fixing holes 8 .

The working principle of the utility model: the devices are connected according to their positions, the fixing holes 8 on the upper end surface of the base plate 1 are used to fix the base plate 1, and the upper end of the base plate 1 is connected with the fixing plate 2, and the front end surface of the fixing plate 2 is provided with upper, The middle and lower three sets of positioning holes 21, the safety plate 6 is fixedly connected to the fixing plate 2 through the fixing bolts 7 (the fixing bolts 7 are fixed along the positioning holes 21 through the safety plate 6), the safety plate 6 has the same function as the guardrail, and can be The installation height of the safety plate 6 is selected according to the actual situation; a reinforcing plate 5 is provided at the rear end of the fixed plate 2, the bottom end of the reinforcing plate 5 is connected with the bottom plate 1, and the reinforcing plate 5 makes the connection between the fixed plate 2 and the bottom plate 1 more stable , it is not easy to break; the two safety plates 6 are connected through the connecting plate 9, and a connecting plate 9 is placed at the front and rear ends of the joint positions of the two safety plates 6, and then bolts are used to pass through the safety plate 6 to make The two connection boards 9 are connected to realize the connection of the two safety boards 6; the lighting device 3 has a built-in dry battery, and when lighting is required at night, the lighting switch 4 is turned on, and the lighting device 3 emits bright light to illuminate the surrounding area, so that the construction workers are in the absence of light. It can also detect and avoid surrounding dangerous areas.

After adopting the above technical scheme, the beneficial effect of the utility model is that it is more sturdy, the connection is stable, the protection effect is improved, and a lighting device is installed on the upper end of the device for lighting to improve safety.

The above is only used to illustrate the technical solution of the present invention and not to limit it. Other modifications or equivalent replacements made by those of ordinary skill in the art to the technical solution of the present invention are not departing from the spirit and scope of the technical solution of the present invention. , should be included in the scope of the claims of the present utility model.

Claims (6)

1. A construction safety protection device, characterized in that: it comprises a base plate (1), a fixing plate (2), a lighting device (3), a lighting switch (4), a reinforcing plate (5), a safety plate (6) , fixing bolts (7), the upper surface of the bottom plate (1) is provided with a fixing plate (2), the upper end of the fixing plate (2) is connected with the lighting device (3), and the right end of the lighting device (3) is provided with a lighting switch ( 4), the rear end of the fixed plate (2) is provided with a reinforcing plate (5), the bottom end of the reinforcing plate (5) is connected with the bottom plate (1), and the front end surface of the fixed plate (2) is provided with a safety plate (6) , the safety plate (6) is connected with the fixing plate (2) by the fixing bolts (7); the front end surface of the fixing plate (2) is provided with three sets of positioning holes (21), the upper, the middle and the lower, and the fixing bolts (7) ) through the safety plate (6) along the positioning hole (21) for fixing. 2 . The construction safety protection device according to claim 1 , wherein the bottom plate ( 1 ) is a square bottom plate. 3 . 3 . The construction safety protection device according to claim 1 , wherein the positioning holes ( 21 ) are a group of four. 4 . 4. A construction safety protection device according to claim 1, characterized in that: the reinforcing plate (5) is a right-angled trapezoidal reinforcing plate, and the top of the reinforcing plate (5) is in phase with the lighting device (3). connect. 5 . The construction safety protection device according to claim 1 , wherein the lighting device ( 3 ) is a hemispherical lighting device. 6 . 6. A construction safety protection device according to claim 1, characterized in that: the upper end surface of the bottom plate (1) is provided with four fixing holes (8).
