Abstract

The utility model discloses a waste heat recovery type large pot stove. The stove system comprises a stove body frame, a pot and a flue, and a burner is arranged below the pot; a water circulation system comprises a water tank and a first water circulation coil, and the water tank is an automatic water tank. The water supply and heat preservation water tank; the first water circulation coil is arranged on the inner wall of the stove frame, the water inlet end of the water-air linkage valve is connected with the first water outlet through the water pipe, and a circulating water pump is arranged on the pipeline between the water-air linkage valve and the first water outlet A check valve is arranged between the upper end of the first water circulation coil and the water tank; the second water outlet communicates with the water system through a water pipe. The water in the water tank is passed through the inside of the furnace of the large stove through the circulating water system. When the inside of the furnace is ventilated and burned, the pipeline of the water circulation system is turned on, and the water passing through the first water circulation coil starts to be heated. The water is returned to the water tank, so that the water in the water tank can be heated by circulation, which greatly increases the heat conversion rate of the large cooker.

Description

A waste heat recovery type large stove

technical field

The utility model belongs to the field of large pot stoves, in particular to a waste heat recovery type large pot stove.

Background technique

Aiming at the canteens, institutions, schools, troops, restaurants, hotels, kitchen facilities and catering industries in my country's industrial and mining enterprises, the most widely used, and also the most typical and traditional "gas cooking stoves for cooking", "Chinese gas cooking stoves" " and "Gas Steamer" are called the "Three Treasures" of gas appliances in the kitchen. Due to the backward conditions of the product in the past, such as high energy consumption and low thermal efficiency. Therefore, in view of the above-mentioned defects in the current prior art, it is necessary to conduct research to solve the defect of low thermal efficiency of the existing large cooker.

Utility model content

The utility model provides a waste heat recovery type large stove, which solves the problem of low thermal efficiency existing in the existing large stove.

The technical scheme adopted by the utility model is:

A waste heat recovery type large pot stove includes a stove system and a water circulation system, wherein the stove system includes a stove body frame, a pot, and a flue, and a burner is arranged below the pot; the water circulation system includes a water tank and a first water circulation coil. The water tank is an automatic water replenishment and heat preservation water tank; the water tank includes a first water inlet, a second water inlet, a first water outlet and a second water outlet;

The first water circulation coil is arranged on the inner wall of the frame of the stove body, and the lower end of the first water circulation coil is communicated with the water outlet end of the water-air linkage valve; the upper end of the first water circulation coil is communicated with the second water inlet through a water pipe;

The first water inlet is located at the top of the water tank, and the first water outlet and the second water outlet are located at the bottom of the water tank;

The water inlet end of the water-air linkage valve is communicated with the first water outlet through a water pipe, and a circulating water pump is arranged on the pipeline between the water-air linkage valve and the first water outlet;

A check valve is arranged between the upper end of the first water circulation coil and the water tank; the second water outlet is connected to the water system through a water pipe. The water in the water tank is set up to store water, and the water in the water tank is passed through the furnace of the large stove through the circulating water system. The water in the first water circulation coil is heated, and the heated water is returned to the water tank. Therefore, the water in the water tank can be heated by circulation. The water tank can be selected to automatically replenish water and keep warm. When the water volume of the water tank decreases, the water tank can automatically replenish water. , the heat preservation water tank can keep the heated water warm and enhance the practicability. When using it, a water valve can be set on the water supply pipeline to avoid the water tank supplying water while using the water tank water and reducing the water temperature of the water tank; The heat is dissipated, and its heat conversion rate is low. Therefore, the excess heat is converted into the water in the water tank through the first water circulation coil, and provided to other places where hot water is used, which greatly increases the capacity of the stove. The heat transfer rate can also save gas and hot water, and its practicality is high.

Further, the water circulation system further includes a second water circulation coil; one end of the second water circulation coil is connected to the upper end of the first water circulation coil, and the other end of the second water circulation coil is communicated with the second water inlet; the second water circulation coil A water circulation coil is located within the flue. Considering that all large stoves are equipped with flues, and the internal temperature of the flues is also very high, especially the end of the flue close to the furnace, therefore, by arranging the second water circulation coil inside the flue, the water from the first water circulation plate The water heated by the pipe is passed into the second water circulation coil to continue heating for heat recovery, and then the water is returned to the water tank by the second water circulation coil; thus, the waste heat in the flue is recovered, the heat conversion rate is increased, and the utility model is improved. sex.

Further, a booster pump is arranged on the pipeline connected to the second water outlet. By arranging a booster pump on the pipeline of the water end, it is ensured that the water tank can be supplied with water even when the water tank is on the same level as the water outlet or lower than the level of the water outlet, thereby increasing the practicability.

Further, the water tank is provided with a temperature sensor; the temperature sensor includes a display panel and a temperature sensing probe, the temperature sensing probe is located inside the water tank; the display panel is located outside the water tank. By setting the temperature sensor with display function to detect the water temperature in the water tank, you can use the water with reference to the water temperature.

Further, the water tank is located above the side of the cooktop frame and is disposed adjacent to the flue. Considering that the flue of the cauldron is one side of the principle operation position, setting the water tank at the flue will not hinder the operation. At the same time, the high temperature environment of the flue makes the ambient temperature of the water tank relatively high, which is the slow heat dissipation of the water tank. The thermal insulation effect of the water tank is better, and the practicability is improved.

Further, the water tank is provided with a longitudinal groove, and the flue is located in the groove. Since the flue will occupy part of the upper space of the stove frame, the space on both sides of the flue is almost useless. Therefore, the design of the water tank to wrap the flue can maximize the use of the wasted space on both sides of the flue. The package can maximize the use of flue heat to maintain the temperature of the water tank and reduce heat loss.

Further, the bottom of the water tank is provided with load-bearing feet. In order to increase the capacity of the water tank, independent water tank bearing feet are provided to support the water tank to improve the stability of the water tank.

Further, the length of the water tank is the same as the length of the stove body frame, and the width of the water tank is 20-30 cm. For the sake of beauty, the length of the water is designed to be the same as the length of the cooktop frame.

Further, the second water outlet is connected with a hot water faucet through a pipeline, and the hot water faucet is located on the side wall of the stove frame and above the pot.

Further, a refractory material heat insulating layer is arranged in the furnace of the stove body frame. The heat insulation layer of the refractory material is used to prevent too much heat loss inside the furnace, and it can also prevent the frame of the stove body from being seriously heated, which affects the operation.

The utility model has the following advantages and beneficial effects:

1. The utility model stores water by arranging a water tank, and the water in the water tank is passed through the inside of the furnace of the large stove through the circulating water system. The water passing through the first water circulation coil starts to be heated, and the heated water is returned to the water tank, so that the water in the water tank can be heated by circulation. The water tank can be automatically replenished when the water tank is reduced, and the heat preservation water tank can keep the heated water warm to enhance the practicability. When using, a water valve can be set on the water supply pipeline to avoid replenishing the water tank while using the water tank and reducing the water temperature of the water tank; when using a large pot When the stove is used, a large amount of heat is dissipated, and its heat conversion rate is low. Therefore, the excess heat is converted into the water in the water tank through the first water circulation coil and provided to other places where hot water is used. The heat transfer rate of the large stove can be improved, and the gas can be saved to burn hot water, which has high practicability;

2. The utility model considers that all large stoves are equipped with flue, and the internal temperature of the flue is also very high, especially the end of the flue close to the furnace. Therefore, by arranging a second water circulation coil inside the flue, the The water heated from the first water circulation coil is passed into the second water circulation coil to continue heating for heat recovery, and then the water is returned to the water tank by the second water circulation coil; thus the waste heat in the flue is recovered and the heat is increased. The conversion rate is improved to improve the practicability; by setting the booster pump on the pipeline of the water end, it is ensured that the water tank can be supplied with water on the same horizontal line as the water outlet end or lower than the horizontal line of the water outlet end, which increases the practicability; by setting the display function The temperature sensor detects the water temperature in the water tank, and can refer to the water temperature for water use;

3. The utility model considers that the flue of the cauldron is one of the operating positions of the principle. By setting the water tank at the flue, the operation will not be hindered. At the same time, the high temperature environment of the flue makes the ambient temperature of the water tank relatively high, which is a water tank. The heat dissipation is slow, which can make the heat preservation effect of the water tank better and improve the practicability; since the flue will occupy part of the upper space of the stove frame, the space on both sides of the flue can hardly be used. Therefore, the design of the water tank wraps the flue, which can Maximize the use of the wasted space on both sides of the flue, and at the same time, wrapping the flue can maximize the use of the heat of the flue to maintain the temperature of the water tank and reduce heat loss;

4. In order to increase the capacity of the water tank, the utility model supports the water tank by setting independent water tank bearing feet to improve the stability of the water tank; the heat insulation layer of the refractory material prevents too much heat loss inside the furnace, and also prevents the stove frame from being heated. Seriously, affect the operation.

Description of drawings

The accompanying drawings described herein are used to provide a further understanding of the embodiments of the present invention, and constitute a part of the present application, and do not constitute a limitation to the embodiments of the present invention. In the attached image:

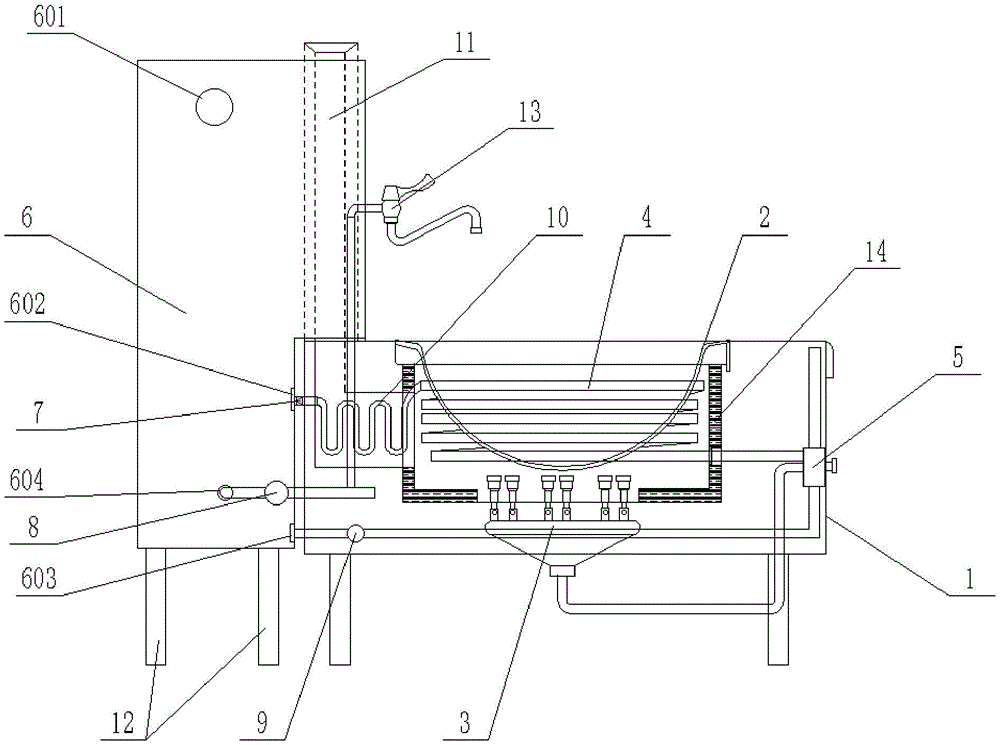

Fig. 1 is a side view sectional structure schematic diagram of the present invention.

FIG. 2 is a schematic structural view of the present invention from a top view.

The marks in the attached drawings and the corresponding parts names:

1-Stove frame, 2-Pot, 3-Burner, 4-First water circulation coil, 5-Water and gas linkage valve, 6-Water tank, 7-Check valve, 8-Booster pump, 9-Circulating water pump , 10-second water circulation coil, 11-flue, 12-load-bearing feet, 13-hot water tap, 14-refractory insulation layer, 601-first water inlet, 602-second water inlet, 603-first Water outlet, 604-Second water outlet.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model clearer, the present utility model will be described in further detail below in conjunction with the embodiments and the accompanying drawings. The invention is not intended to limit the present invention.

It should be understood that the terms first, second, etc. are only used to differentiate the description and should not be construed to indicate or imply relative importance. Although the terms first, second, etc. may be used herein to describe various elements, these elements should not be limited by these terms. These terms are only used to distinguish one unit from another. For example, a first element could be referred to as a second element, and similarly a second element could be referred to as a first element, without departing from the scope of example embodiments of the present invention.

It should be understood that in the description of the present utility model, the orientation or positional relationship indicated by the terms "upper", "vertical", "inside", "outside", etc. is the orientation or position that the utility model product is usually placed in when it is used. The relationship, or the orientation or position relationship commonly understood by those skilled in the art, is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation or be constructed in a specific orientation. and operation, so it should not be construed as a limitation of the present invention.

It will be understood that when an element is referred to as being "connected", "connected" or "coupled" to another element, it can be connected or coupled to the other element or intervening elements may be present. Conversely, when an element is referred to as being "directly connected" or "directly coupled" to another element, there are no intervening elements present. Other words used to describe the relationship between elements should be interpreted in a similar fashion (eg, "between" versus "directly between", "adjacent" versus "directly adjacent", etc.) .

In the description of the present utility model, it should also be noted that, unless otherwise expressly specified and limited, the terms "arrangement", "installation" and "connection" should be understood in a broad sense, for example, it may be a fixed connection or a Removable connection, or integral connection; can be mechanical connection, can also be electrical connection; can be directly connected, can also be indirectly connected through an intermediate medium, can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

The terminology used herein is used to describe particular embodiments only, and is not intended to limit the exemplary embodiments of the present invention. As used herein, the singular forms "a," "an," and "the" are intended to include the plural forms unless the context clearly dictates otherwise. It should also be understood that the terms "comprises," "includes," "includes," and/or "comprises," when used herein, specify the presence of stated features, integers, steps, operations, elements, and/or components properties, and does not preclude the presence or addition of one or more other features, numbers, steps, operations, units, components and/or combinations thereof.

Example 1:

As shown in FIG. 1 and FIG. 2 , this embodiment provides a waste heat recovery type large stove, including a stove system and a water circulation system, wherein the stove system includes a stove frame 1, a pot 2, and a flue 11. A burner 3 is arranged below; the water circulation system includes a water tank 6 and a first water circulation coil 4, the water tank 6 is an automatic water replenishment and heat preservation water tank; the automatic replenishment water tank 6 includes a first water inlet 601, a second water inlet 602, a a water outlet 603 and a second water outlet 604;

The first water circulation coil 4 is arranged on the inner wall of the stove frame 1, and the lower end of the first water circulation coil 4 is communicated with the water outlet end of the water-air linkage valve 5; the upper end of the first water circulation coil 4 is connected to the first The two water inlets 602 are connected;

The first water inlet 601 is located at the top of the water tank 6, and the first water outlet 603 and the second water outlet 604 are located at the bottom of the water tank 6;

The water inlet end of the water-air linkage valve 5 is communicated with the first water outlet 603 through a water pipe, and a circulating water pump 9 is provided on the pipeline between the water-air linkage valve 5 and the first water outlet 603;

A check valve 7 is provided between the upper end of the first water circulation coil 4 and the water tank 6 ; the second water outlet 604 is connected to the water system through a water pipe.

In specific implementation, as shown in FIG. 1 , the water circulation system further includes a second water circulation coil 10; one end of the second water circulation coil 10 is connected to the upper end of the first water circulation coil 4, and the other end of the second water circulation coil 10 is connected to the The second water inlet 602 is connected; the second water circulation coil 10 is located in the flue 11 . The second water circulation coil 10 is located at one end of the flue 11 close to the furnace, and a booster pump 8 is provided on the pipeline connected to the second water outlet 604 .

In specific implementation, the water tank 6 is provided with a temperature sensor; the temperature sensor includes a display panel and a temperature sensing probe, the temperature sensing probe is located inside the water tank 6 , and the display panel is located outside the water tank 6 . The water tank 6 is located above the side of the cooktop frame 1 and is disposed adjacent to the flue 11 . The water tank 6 is provided with a longitudinal groove, and the flue 11 is located in the groove.

In a specific implementation, the bottom of the water tank 6 is provided with load-bearing feet 12 . The length of the water tank 6 is the same as the length of the cooktop frame 1, and the width of the water tank 6 is 20-30 cm. The second water outlet 604 is connected with a hot water tap 13 through a pipe, and the hot water tap 13 is located on the side wall of the cooktop frame 1 and above the pot 2 .

A refractory insulation layer 14 is provided in the furnace of the stove frame 1 .

To sum up, the large stove is equipped with a water tank to store water, and the water in the water tank is passed through the inside of the furnace of the large stove through the circulating water system. The circuit is turned on, and the water passing through the first water circulation coil starts to be heated, and the heated water is returned to the water tank, so that the water in the water tank can be heated by circulation, and the automatic water replenishment and heat preservation water tank is selected through the water tank. When the water volume of the water tank is reduced, the water tank can automatically replenish water, and the thermal insulation water tank can keep the heated water warm to enhance the practicability. When using, a water valve can be set on the water replenishment pipeline to avoid replenishing the water tank and reducing the water temperature of the water tank while using the water in the water tank. When the stove is large, a large amount of heat is dissipated, and its heat conversion rate is low. Therefore, the excess heat is converted into the water in the water tank through the first water circulation coil, and is provided to other places where hot water is used. The heat transfer rate of the large stove is increased, and the gas can be saved to burn hot water, and its practicability is high;

Considering that all large stoves are equipped with flues, and the internal temperature of the flues is also very high, especially the end of the flue close to the furnace, therefore, by arranging the second water circulation coil inside the flue, the water from the first water circulation plate The water heated by the pipe is passed into the second water circulation coil to continue heating for heat recovery, and then the water is returned to the water tank by the second water circulation coil; thus, the waste heat in the flue is recovered, the heat conversion rate is increased, and the utility model is improved. By setting a booster pump on the pipeline of the water end, it is guaranteed that the water tank can be supplied with water when it is on the same horizontal line as the water outlet end or lower than the horizontal line of the water outlet end, increasing the practicability; by setting a temperature sensor with a display function to detect the water tank The water temperature inside, you can refer to the water temperature for water use;

The specific embodiments described above further describe the purpose, technical solutions and beneficial effects of the present invention in detail. It should be understood that the above are only specific embodiments of the present invention and are not intended to limit the present invention The protection scope of the utility model, any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model shall be included within the protection scope of the present utility model.

Claims (10)

1. A waste heat recovery type large pot stove, comprising a stove system and a water circulation system, wherein the stove system comprises a stove body frame (1), a pot (2) and a flue (11), and a burner is provided below the pot (2). The device (3) is characterized in that: the water circulation system includes a water tank (6) and a first water circulation coil (4), the water tank (6) is an automatic water replenishment and heat preservation water tank; the water tank (6) includes a first water inlet ( 601), a second water inlet (602), a first water outlet (603) and a second water outlet (604); The first water circulation coil (4) is arranged on the inner wall of the stove body frame (1), and the lower end of the first water circulation coil (4) is communicated with the water outlet end of the water-air linkage valve (5); the first water circulation plate The upper end of the pipe (4) is communicated with the second water inlet (602) through a water pipe; The first water inlet (601) and the second water inlet (602) are located at the top of the water tank (6), and the first water outlet (603) and the second water outlet (604) are located at the bottom of the water tank (6); The water inlet end of the water-air linkage valve (5) is communicated with the first water outlet (603) through a water pipe, and a circulating water pump ( 9); A check valve (7) is arranged between the upper end of the first water circulation coil (4) and the water tank (6); the second water outlet (604) is used to communicate with the water system. 2. A waste heat recovery type large cooker according to claim 1, characterized in that: the water circulation system further comprises a second water circulation coil (10); one end of the second water circulation coil (10) is connected to the first The upper end of a water circulation coil (4), the other end of the second water circulation coil (10) is communicated with the second water inlet (602); the second water circulation coil (10) is located in the flue (11). 3 . The waste heat recovery type large cooker according to claim 1 , wherein a booster pump ( 8 ) is arranged on the pipeline connected with the second water outlet ( 604 ). 4 . 4. A waste heat recovery type large cooker according to claim 1, characterized in that: the water tank (6) is provided with a temperature sensor; the temperature sensor comprises a display panel and a temperature sensing probe, the temperature sensing probe Located inside the water tank (6), the display panel is located outside the water tank (6). 5 . The waste heat recovery type large pot stove according to claim 1 , wherein the water tank ( 6 ) is located above the side of the stove body frame ( 1 ) and is arranged adjacent to the flue ( 11 ). 6 . 6 . The waste heat recovery type large cooker according to claim 5 , wherein the water tank ( 6 ) is provided with a longitudinal groove, and the flue ( 11 ) is located in the groove. 7 . 7 . The waste heat recovery type large cooker according to claim 5 , wherein the bottom of the water tank ( 6 ) is provided with load-bearing feet ( 12 ). 8 . 8 . The waste heat recovery type large pot stove according to claim 5 , wherein the length of the water tank ( 6 ) is the same as the length of the stove body frame ( 1 ), and the width of the water tank ( 6 ) is 20-20 mm. 9 . 30cm. 9 . The waste heat recovery type large pot stove according to claim 1 , wherein the second water outlet ( 604 ) is connected with a hot water tap ( 13 ) through a pipeline, and the hot water tap ( 13 ) is located in the stove. 10 . on the side wall of the body frame (1) and above the pot (2). 10 . The waste heat recovery type large pot stove according to claim 1 , characterized in that: the stove body frame ( 1 ) is arranged in the furnace chamber of the refractory material heat insulation layer ( 14 ). 11 .
