Abstract

The utility model discloses a double-ring rotatable ring, which comprises a ring body, the ring body is composed of a first finger ring and a second finger ring, the first finger ring and the second finger ring are interlocked to form a ring body, and the The inner diameter of the first ring and the second ring are the same, the first ring is mainly composed of a first wearing area, the second ring is mainly composed of a wearing area, and the first ring is formed with a first bend, The second bending place, the third bending place and the fourth bending place, a first bending area is formed between the first bending place and the second bending place, and the second bending place and the first bending place are formed. A second bending area is formed between the three bending points, which is reasonable in design and simple in structure. By staggering the first and second finger rings, the distance between the first and second finger rings can be adjusted, thereby changing the overall The shape of the ring can increase the firmness of the fit between the ring and the finger after being fixed.

Description

Ring with rotatable double rings

Technical Field

The utility model relates to an ornament field specifically is a dicyclo rotatable ring.

Background

The ring is not only a decorative jewelry, but also is endowed with rich emotional connotation, along with the improvement of the living standard of people and the desire for beautiful and pure emotion, the ring becomes an indispensable ornament in the life of people, and the ornament of the ring is generally accepted by people nowadays after thousands of years of weather washing and plays a role in modern life.

However, the existing aligning single-finger ring structure is not novel enough in appearance, and the ring with the structure is easy to fall off when being worn, so that a double-ring rotatable ring needs to be provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a dicyclo rotatable ring, reasonable in design, simple structure through the crisscross cooperation to first ring and second ring, can adjust the distance between first ring and the second ring to change whole shape, can increase the cooperation fastness between ring and the finger after fixed, with the problem of proposing in solving above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a dicyclo rotatable ring, includes the ring body, the ring body comprises first ring and second ring, first ring and the mutual joint of second ring form the ring body, just the internal diameter of first ring and second ring is the same, first ring mainly comprises first wearing district, the second ring mainly has and wears a district one and constitute.

Preferably, first ring is formed with first bending, second bending, third bending and fourth bending, be formed with first bending area between first bending and the second bending, be formed with second bending area between second bending and the third bending, just be formed with the third bending area between third bending and the fourth bending.

Preferably, the second finger ring is formed with a first bending part, a second bending part, a third bending part and a fourth bending part, a first bending area is formed between the first bending part and the second bending part, a second bending area is formed between the second bending part and the third bending part, and a third bending area is formed between the third bending part and the fourth bending part.

Preferably, the first wearing area is divided into a decorative area and a non-decorative area, and the decorative area is symmetrically provided with two parts.

Preferably, diamonds are arranged on the decorative area, the first bending part and the second bending part of the first finger ring.

Preferably, blind holes are formed in the decoration area, the first bending position and the second bending position on the first finger ring, and the diamonds are fixedly installed in the blind holes formed in the decoration area, the first bending position and the second bending position.

Compared with the prior art, the beneficial effects of the utility model are that

1. The utility model relates to a rationally, simple structure through the crisscross cooperation to first ring and second ring, can adjust the distance between first ring and the second ring to change whole shape, can increase the cooperation fastness between ring and the finger after fixed.

Drawings

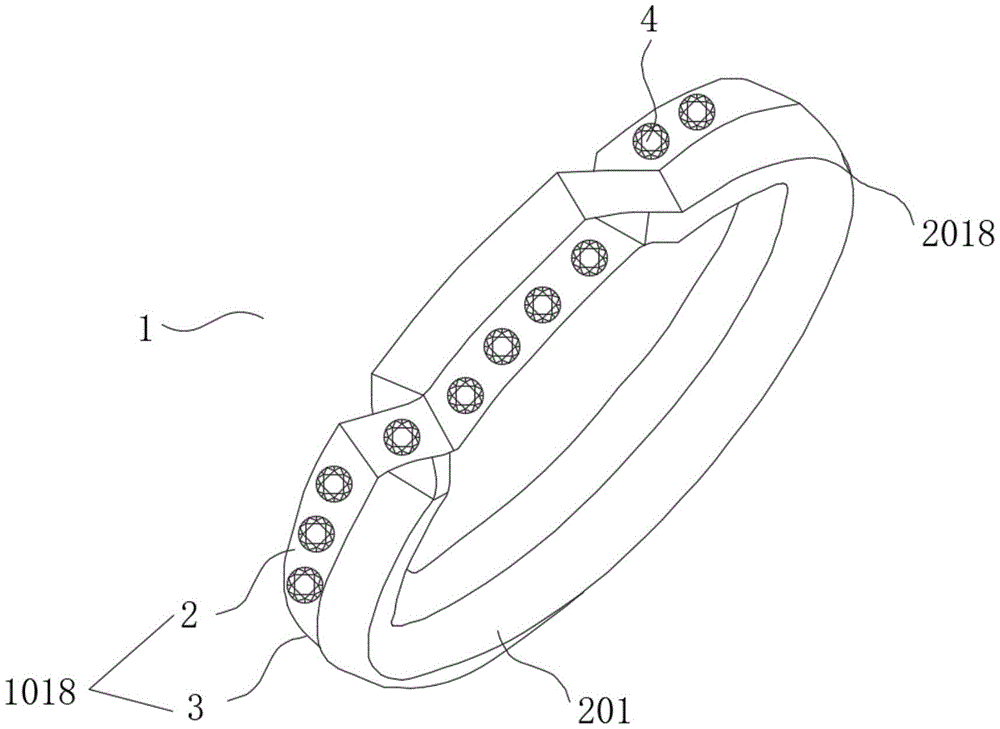

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a top view of the present invention;

FIG. 3 is a schematic structural view of a first ring of the present invention;

fig. 4 is a schematic structural view of the second finger ring of the present invention.

In the figure: 1. a ring body; 2. a decoration area; 3. no decorative area; 4. a diamond; 101. a first ring; 201. a second finger ring; 1011. a first bend; 1012. a second bend; 1013. a third bend; 1014. a fourth bend; 1015. a first bending zone; 1016. a second bending region; 1017. a third bending region; 1018. a first wearing area; 2011. a first bending part; 2012. a second bending part; 2013. a third bending part; 2014. a fourth bending part; 2015. a first bending area; 2016. a second bending area; 2017. a bending area III; 2018. and a first wearing area.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a double-ring rotatable ring comprises a ring body 1, wherein the ring body 1 is composed of a first ring 101 and a second ring 201, the first ring 101 and the second ring 201 are interactively clamped to form the ring body 1, the inner diameters of the first ring 101 and the second ring 201 are the same, the first ring 101 is mainly composed of a first wearing area 1018, the second ring 201 is mainly composed of a wearing area I2018, the distance between the first ring 101 and the second ring 201 can be adjusted through the staggered matching of the first ring 101 and the second ring 201, the integral shape is changed, and the matching firmness between the ring and fingers can be improved after the ring is fixed;

the first ring 101 is provided with a first bending part 1011, a second bending part 1012, a third bending part 1013 and a fourth bending part 1014, a first bending area 1015 is formed between the first bending part 1011 and the second bending part 1012, a second bending area 1016 is formed between the second bending part 1012 and the third bending part 1013, and a third bending area 1017 is formed between the third bending part 1013 and the fourth bending part 1014;

a first bending part 2011, a second bending part 2012, a third bending part 2013 and a fourth bending part 2014 are formed on the second ring 201, a first bending area 2015 is formed between the first bending part 2011 and the second bending part 2012, a second bending area 2016 is formed between the second bending part 2012 and the third bending part 2013, and a third bending area 2017 is formed between the third bending part 2013 and the fourth bending part 2014;

first wear district 1018 and divide into decorative area 2 and no decorative area 3, and the 2 symmetries in decorative area are provided with two, decorative area 2 on the first ring 101, install diamond 4 on first department of bending 1011 and the second department of bending 1012, decorative area 2 on the first ring 101, the blind hole has been seted up on first department of bending 1011 and the second department of bending 1012, diamond 4 fixed mounting is in decorative area 2, in the blind hole that first department of bending 1011 and second department of bending 1012 seted up, it can play the effect of decoration to set up diamond 4.

Working principle; this ring body 1 comprises first ring 101 and second ring 201, first ring 101 and the mutual joint of second ring 201 form ring body 1, and the internal diameter of first ring 101 and second ring 201 is the same, first ring 101 mainly comprises first wearing area 1018, second ring 201 mainly has wearing area 2018 to constitute, through the crisscross cooperation to first ring 101 and second ring 201, can adjust the distance between first ring 101 and the second ring 201, thereby change whole shape, can increase the cooperation fastness between ring and the finger after fixed.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A rotatable ring of dicyclo, includes ring body (1), its characterized in that: the ring body (1) comprises a first ring (101) and a second ring (201), the first ring (101) and the second ring (201) are connected in a clamped mode to form the ring body (1), the inner diameters of the first ring (101) and the second ring (201) are the same, the first ring (101) mainly comprises a first wearing area (1018), and the second ring (201) mainly comprises a first wearing area (2018).

2. A dual ring rotatable ring according to claim 1, wherein: first ring (101) are formed with first bending (1011), second bending (1012), third bending (1013) and fourth bending (1014), be formed with first bending district (1015) between first bending (1011) and second bending (1012), be formed with second bending district (1016) between second bending (1012) and third bending (1013), just be formed with third bending district (1017) between third bending (1013) and fourth bending (1014).

3. A dual ring rotatable ring according to claim 1, wherein: the second ring (201) is formed with a department of bending one (2011), a department of bending two (2012), a department of bending three (2013) and a department of bending four (2014), just bend a department of bending one (2011) and bend between two (2012) and be formed with the district of bending one (2015), bend a department of bending two (2012) and bend a department of bending three (2013) between be formed with the district of bending two (2016), bend a department of bending three (2013) and bend a department of bending four (2014) between be formed with the district of bending three (2017).

4. A dual ring rotatable ring according to claim 1, wherein: the first wearing area (1018) is divided into a decorative area (2) and a non-decorative area (3), and the two decorative areas (2) are symmetrically arranged.

5. A dual ring rotatable ring according to claim 1 and claim 4, wherein: and diamonds (4) are arranged on the decorative area (2), the first bending part (1011) and the second bending part (1012) of the first ring (101).

6. A dual ring rotatable ring according to claim 5, wherein: the blind holes are formed in the decoration area (2), the first bending part (1011) and the second bending part (1012) on the first ring (101), and the diamond (4) is fixedly installed in the blind holes formed in the decoration area (2), the first bending part (1011) and the second bending part (1012).
