CN215123713U - A room temperature storage box for stem cell culture

Info

Publication number: CN215123713U
Application number: CN202121350863.3U
Authority: CN
Inventors: 张权
Original assignee: Beijing Anyi Biotechnology Co ltd
Current assignee: Hongjianhua Zhiyu (Shanghai) Biotechnology Co.,Ltd.
Priority date: 2021-06-17
Filing date: 2021-06-17
Publication date: 2021-12-14
Anticipated expiration: 2031-06-17

Abstract

The utility model discloses a normal temperature preservation box for stem cell culture, which relates to the technical field of stem cell culture and preservation. question. The interior of the outer box body of the preservation box is provided with an inner box body of the preservation box, and a plurality of inner support bars are fixedly connected to the outer surface of the inner box body of the preservation box, and the inner support bars are located between the outer box body of the preservation box and the storage box. In the cavity between the boxes inside the box, the outer surface of the inner support bar is provided with a through hole, the outer surface of one side of the outer box of the storage box is fixedly installed with a cooling fan, and the outer box of the storage box is fixedly installed with a cooling fan. An air outlet is arranged on the outer surface of the symmetrical side of the body, and a storage box cover is hingedly connected to the upper edge of the outer box body of the storage box.

Description

Normal temperature storage box for stem cell culture

Technical Field

The utility model relates to a stem cell culture preserves technical field, specifically is a stem cell culture uses normal atmospheric temperature case of preserving.

Background

In recent decades, stem cells have played an increasingly important role in the biomedical field, and research institutes and enterprises have engaged in stem cell-related research to treat diseases by culturing and researching stem cells, and few preservation devices have been used in the stem cell transfer process.

The existing portable storage box does not have a heat dissipation structure, is inconvenient to move, cannot be placed in a high-temperature environment for a long time, and needs to be improved in practicability; therefore, the market urgently needs to develop a normal-temperature storage box for stem cell culture to help people to solve the existing problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a stem cell is cultivateed with normal atmospheric temperature and is preserved case to current preservation case does not possess the heat radiation structure in solving above-mentioned background art, can't put for a long time in higher temperature environment, and the practicality remains the problem that improves.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a case is preserved with normal atmospheric temperature to stem cell culture, is including preserving the outer box of case, the inside of preserving the outer box of case is provided with preserves the incasement box, a plurality of interior support bars of fixedly connected with on the surface of the incasement box of preservation, interior support bar is located the cavity between the case outer box of preservation and the incasement box, be provided with the through-hole on the surface of interior support bar, fixed mounting has radiator fan on the surface of one side of the case outer box of preservation, be provided with the gas outlet on the surface of one side of the symmetry of the case outer box of preservation.

Preferably, the upper end border position department hinged joint of the outer box body of save case has the save case lid, fixed mounting has two UV lamp mount pads on the inner wall of save case lid, the UV lamp is installed to the mounting groove inside buckle of UV lamp mount pad.

Preferably, a storage battery is fixedly mounted on the outer surface of one side of the outer box body of the storage box, and the storage battery is electrically connected with the UV lamp and the cooling fan respectively.

Preferably, the rectangular array has a plurality of spacing jars of placing on the inside bottom face of the outer box of deposit box, spacing cotton in the internally mounted of jar is placed to spacing, the jar upper cover is placed in spacing upper end outside the cup jointing of placing the jar.

Preferably, the middle shaft of the inner limiting cotton is provided with an inserting hole, and the stem cell culture vessel is arranged in the inserting hole.

Preferably, the upper cover of the placing tank and the limiting placing tank are both made of opaque plastic materials.

Compared with the prior art, the beneficial effects of the utility model are that:

1. the utility model discloses a through set up the inside preservation incasement box in the inside of the preservation incasement box, fixedly connected with a plurality of interior support bars on the surface of the preservation incasement box, interior support bar is located the cavity between preservation incasement box and the preservation incasement box, be provided with the through-hole on the surface of interior support bar, fixedly mounted with radiator fan on the surface of one side of the preservation incasement box, be provided with the gas outlet on the surface of one side of the symmetry of the preservation incasement box, this can utilize radiator fan's rotation to make outside air pass the cavity between the preservation incasement box and the preservation incasement box, make this preservation case possess heat radiation structure, and then make this preservation case still can keep the normal atmospheric temperature state under the higher temperature environment, the effectual functionality and the practicality that improve this preservation case;

2. the utility model discloses a through the upper end border position department hinged joint of the outer box body of preservation case lid, fixed mounting has two UV lamp mount pads on the inner wall of preservation case lid, the UV lamp is installed to the buckle in the mounting groove of UV lamp mount pad, this can utilize the UV lamp to come the inside operation of disinfecting to the preservation case, the effectual bacterium of having avoided in the preservation case inside air produces the influence to the stem cell, the effectual stability that improves the stem cell preservation, further promotion this preservation case's functionality.

Drawings

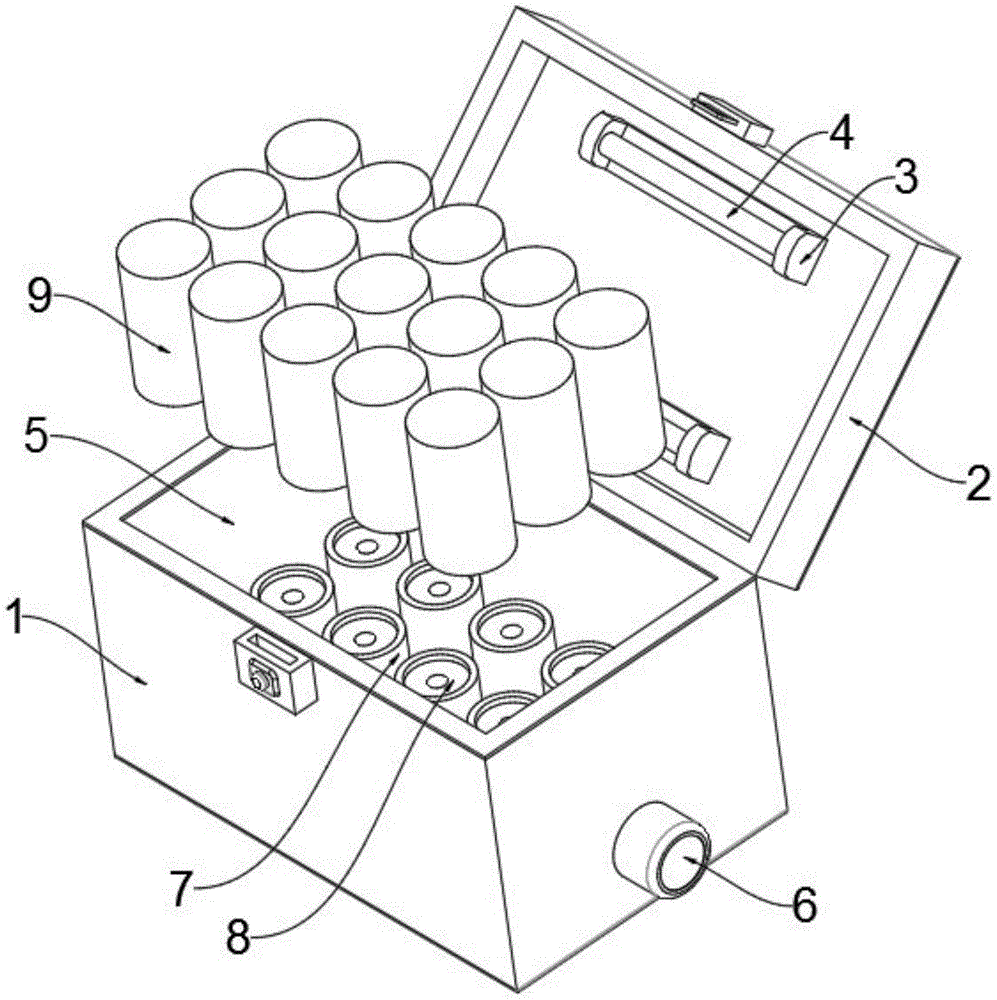

Fig. 1 is an overall schematic view of the present invention;

fig. 2 is a right side view of the present invention;

fig. 3 is an a-a analysis diagram of the present invention.

In the figure: 1. a box body outside the preservation box; 2. a box cover of the preservation box; 3. a UV lamp mounting base; 4. a UV lamp; 5. a box body in the preservation box; 6. a heat radiation fan; 7. a limiting placing tank; 8. inner limiting cotton; 9. placing the upper cover of the tank; 10. a storage battery; 11. the inner support bar.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1-3, the present invention provides an embodiment: a normal temperature preservation box for stem cell culture comprises a preservation box outer box body 1, a preservation box inner box body 5 is arranged inside the preservation box outer box body 1, a plurality of inner support strips 11 are fixedly connected to the outer surface of the preservation box inner box body 5, the inner support strips 11 are positioned in a cavity between the preservation box outer box body 1 and the preservation box inner box body 5, through holes are formed in the outer surface of the inner support strips 11, a cooling fan 6 is fixedly installed on the outer surface of one side of the preservation box outer box body 1, air outlets are formed in the outer surface of the symmetrical side of the preservation box outer box body 1, external air can penetrate through the cavity between the preservation box outer box body 1 and the preservation box inner box body 5 by utilizing the rotation of the cooling fan 6, and the preservation box is provided with a cooling structure, therefore, the storage box can still keep a normal temperature state under a higher temperature environment, and the functionality and the practicability of the storage box are effectively improved.

Further, there is storage box case lid 2 to preserve the upper end border position hinged joint of outer box body 1 of the case, fixed mounting has two UV lamp mount pads 3 on the inner wall of storage box case lid 2, UV lamp 4 is installed to the buckle in the mounting groove of UV lamp mount pad 3, fixed mounting has battery 10 on the surface of one side of the outer box body 1 of the case of preserving, battery 10 respectively with

UV lamp

4 and 6 electric connection of radiator fan, this can utilize UV lamp 4 to come the inside operation of disinfecting of preservation box, the effectual bacterium of having avoided in the inside air of preservation box produces the influence to the stem cell, the effectual stability that the stem cell was preserved has been improved, further promotion this preservation box's functionality.

Further, rectangle array has a plurality of spacing jars 7 of placing on the inside bottom face of the outer box body 1 of preservation case, and spacing cotton 8 in the internally mounted who places jar 7 is spacing, and spacing upper end outside of placing jar 7 has cup jointed places jar upper cover 9, places jar upper cover 9 and spacing jar 7 of placing and all adopts the preparation of opaque plastic material, and interior spacing cotton 8 axis position department is provided with ann jack, and the stem cell culture household utensils are arranged in ann jack.

The working principle is as follows: when the device is used, a stem cell vessel to be stored is inserted into the mounting hole at the middle shaft position of the inner limiting cotton 8, then the upper cover 9 of the storage tank is covered and buckled at the upper end of the limiting storage tank 7, then the storage tank cover 2 is covered, the UV lamp 4 and the cooling fan 6 are started through the locking fastener between the storage tank cover 2 and the outer box body 1 of the storage tank, at the moment, the storage battery 10 respectively supplies power for the UV lamp 4 and the cooling fan 6, the UV lamp 4 works to enable the inner part of the box body 5 in the storage tank to generate ultraviolet rays, the air detained in the box body 5 in the storage tank is subjected to ultraviolet sterilization by utilizing the ultraviolet rays, the influence of bacteria in the air on the stem cells is avoided, meanwhile, the rotation of the cooling fan 6 enables the outer air to penetrate through a cavity between the outer box body 1 of the storage tank and the inner box body 5 of the storage tank, the temperature of the storage tank is effectively reduced, and the storage tank can still be in a normal temperature state under a high-temperature environment, improves the stability of stem cells during storage.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A normal temperature preservation box for stem cell culture, comprising a preservation box outer box (1), characterized in that: a preservation box inner box (5) is provided inside the preservation box outer box (1), and the preservation box outer box (1) is provided with a preservation box inner box (5). A plurality of inner support bars (11) are fixedly connected on the outer surface of the inner box body (5) of the storage box, and the inner support bars (11) are located on the outer box body (1) of the storage box and the inner box body (5) of the storage box In the cavity between, a through hole is provided on the outer surface of the inner support bar (11), and a cooling fan (6) is fixedly installed on the outer surface of one side of the outer box body (1) of the storage box, so An air outlet is provided on the outer surface of the symmetrical side of the outer box body (1) of the storage box.

2. A normal temperature preservation box for stem cell culture according to claim 1, characterized in that: a preservation box cover (2) is hingedly connected at the upper edge position of the outer box body (1) of the preservation box, and the Two UV lamp mounting bases (3) are fixedly mounted on the inner wall of the storage box cover (2), and UV lamps (4) are snap-mounted in the mounting grooves of the UV lamp mounting bases (3).

3. A normal temperature preservation box for stem cell culture according to claim 2, characterized in that: a battery (10) is fixedly installed on one side outer surface of the outer box body (1) of the preservation box, and the battery (10) 10) are respectively electrically connected with the UV lamp (4) and the cooling fan (6).

4. A normal temperature storage box for stem cell culture according to claim 1, characterized in that: a plurality of position-limiting placing tanks (7) are arranged in a rectangular array on the inner bottom end surface of the outer box body (1) of the storage box, An inner position-limiting cotton (8) is installed inside the position-limiting placing jar (7), and a placing jug upper cover (9) is sleeved outside the upper end of the position-limiting placing jar (7).

5. A normal temperature storage box for stem cell culture according to claim 4, characterized in that: an insertion hole is provided at the central axis position of the inner limit cotton (8), and the stem cell culture vessel is placed in the insertion hole inside the hole.

6 . The normal temperature storage box for stem cell culture according to claim 4 , wherein the upper cover (9) of the placing tank and the position-limiting placing tank (7) are made of opaque plastic materials. 7 .
