Abstract
本实用新型公开了一种有效隔音减噪的半单元式玻璃幕墙，包括立柱、铝合金上横框、外玻璃面板、中空隔音玻璃和钢化玻璃，所述立柱的内部设有立柱连接套芯，所述立柱两侧的顶部和底部分别固定安装有铝合金上横框与铝合金下横框，所述铝合金上横框与铝合金下横框之间依次固定安装有外玻璃面板、中空隔音玻璃和钢化玻璃，所述双层密封胶层的顶部固定安装有内道密封层，所述内道密封层的顶部固定安装有间隔框，所述钢化玻璃的内部依次分别设有隔音阻尼胶、低辐射膜、夹层玻璃和EVA膜，所述钢化玻璃的边缘设有熔封层。本实用新型通过外玻璃面板、中空隔音玻璃、钢化玻璃之间的配合使用，实现了半单元式玻璃幕墙可有效的满足隔音减噪的需求。
The utility model discloses a semi-unit glass curtain wall with effective sound insulation and noise reduction, comprising a vertical column, an aluminum alloy upper horizontal frame, an outer glass panel, a hollow sound insulation glass and a tempered glass. The top and bottom of the two sides of the column are respectively fixed with an aluminum alloy upper horizontal frame and an aluminum alloy lower horizontal frame, and an outer glass panel and a hollow sound insulation are sequentially fixed between the aluminum alloy upper horizontal frame and the aluminum alloy lower horizontal frame. Glass and tempered glass, the inner channel sealing layer is fixedly installed on the top of the double-layer sealant layer, the spacer frame is fixedly installed on the top of the inner channel sealing layer, and the interior of the tempered glass is sequentially provided with sound insulation damping glue, Low-E film, laminated glass and EVA film, the edge of the tempered glass is provided with a sealing layer. The utility model realizes that the semi-unit glass curtain wall can effectively meet the requirements of sound insulation and noise reduction through the coordinated use of the outer glass panel, the hollow sound insulation glass and the tempered glass.
Description
Technical Field
The utility model relates to the technical field of building materials, in particular to a semi-unit type glass curtain wall capable of effectively insulating sound and reducing noise.
Background
The curtain wall is a light wall body with decorative effect, which is commonly used in modern large and high-rise buildings, and consists of a panel and a supporting structure system, and can have a certain displacement capacity relative to the main structure or a certain deformation capacity per se, and does not bear the function of the main structure (an outer wall frame type supporting system is also a kind of curtain wall system), the curtain wall is an outer wall construction method which utilizes various strong, light and beautiful building materials to replace the traditional masonry or window wall combination, and is an outer wall construction method which surrounds the periphery of the main structure to ensure that the whole building is beautiful and has complete and safe use functions, in short, the building is worn with a beautiful coat, and the semi-unit curtain wall is a curtain wall structure between the component type curtain wall and the unit type curtain wall, it means that panel material constructs the equipment completion in the factory with its partial fossil fragments, will assemble the plate at the job site and install on the main atress fossil fragments that major structure connects to accomplish the installation of curtain, now need the half unit formula glass curtain wall of an effective sound insulation noise reduction, but the half unit formula glass curtain wall of the effective sound insulation noise reduction of current has many problems or defects:
the existing semi-unit glass curtain wall has poor sound insulation effect and limitation, cannot meet daily requirements, and reduces the practicability of the glass curtain wall; and most of the devices are integrally structured, so that the devices are inconvenient for installation and transportation of workers, and manpower and material resources are wasted.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a semi-unit type glass curtain wall capable of effectively insulating sound and reducing noise so as to solve the problem that the semi-unit type glass curtain wall provided in the background technology is poor in sound insulation effect.
In order to achieve the purpose, the utility model provides the following technical scheme: a semi-unit glass curtain wall capable of effectively insulating sound and reducing noise comprises a stand column, an aluminum alloy upper transverse frame, an outer glass panel, hollow sound-proof glass and toughened glass, wherein a stand column connecting sleeve core is arranged inside the stand column, the top and the bottom of two sides of the stand column are respectively fixedly provided with the aluminum alloy upper transverse frame and the aluminum alloy lower transverse frame, an outer glass panel, the hollow sound-proof glass and the toughened glass are sequentially and fixedly arranged between the aluminum alloy upper transverse frame and the aluminum alloy lower transverse frame, the top of the bottom aluminum alloy lower transverse frame of the hollow sound-proof glass is fixedly provided with a double-layer sealing glue layer, the top of the double-layer sealing glue layer is fixedly provided with an inner sealing layer, the top of the inner sealing layer is fixedly provided with a spacing frame, and the toughened glass is sequentially and respectively provided with sound-proof damping glue, a low-radiation film, laminated glass and an EVA film, and the edge of the toughened glass is provided with a melt-sealing layer.
Preferably, inside, the aluminum alloy of stand go up horizontal frame and aluminum alloy down one side of horizontal frame be equipped with respectively and be connected the cover core with the stand and stand cooperation draw-in groove that uses, the stand is connected the cover core all around and the both sides of stand and all is equipped with the fixture block.
Preferably, all be equipped with on horizontal frame on the aluminum alloy and the aluminum alloy horizontal frame down with outer glass panels, cavity sound insulating glass and toughened glass cooperation use mounting groove.
Preferably, a drying agent used in cooperation is placed in the inner channel sealing layer.
Preferably, the edges of the outer glass panel, the hollow sound-proof glass and the toughened glass are all provided with aluminum alloy protective frames.
Compared with the prior art, the utility model has the following innovative effects: this half unit glass curtain wall of effective noise reduction that gives sound insulation is reasonable, has following advantage:
(1) through the matched use of the melt sealing layer, the sound insulation damping glue, the low radiation film, the laminated glass, the EVA film and the hollow sound insulation glass arranged in the toughened glass and the outer glass panel, the semi-unit type glass curtain wall can multiply block external noise interference, the condition that the sound insulation effect is poor due to insufficient thickness and density of the glass is avoided, effective sound insulation and noise reduction are realized, the sound insulation requirement on the glass curtain wall is met, and the application range of the device is improved;
(2) through the cooperation use between horizontal frame and the aluminum alloy horizontal frame on stand and stand connecting sleeve core and the aluminum alloy for half unit formula glass curtain wall is simple and convenient more swift at the process of installation and transportation, and the staff's of being more convenient for operation has alleviateed staff's operation burden, has saved manpower and materials, has also enlarged the practicality of device simultaneously.
Drawings

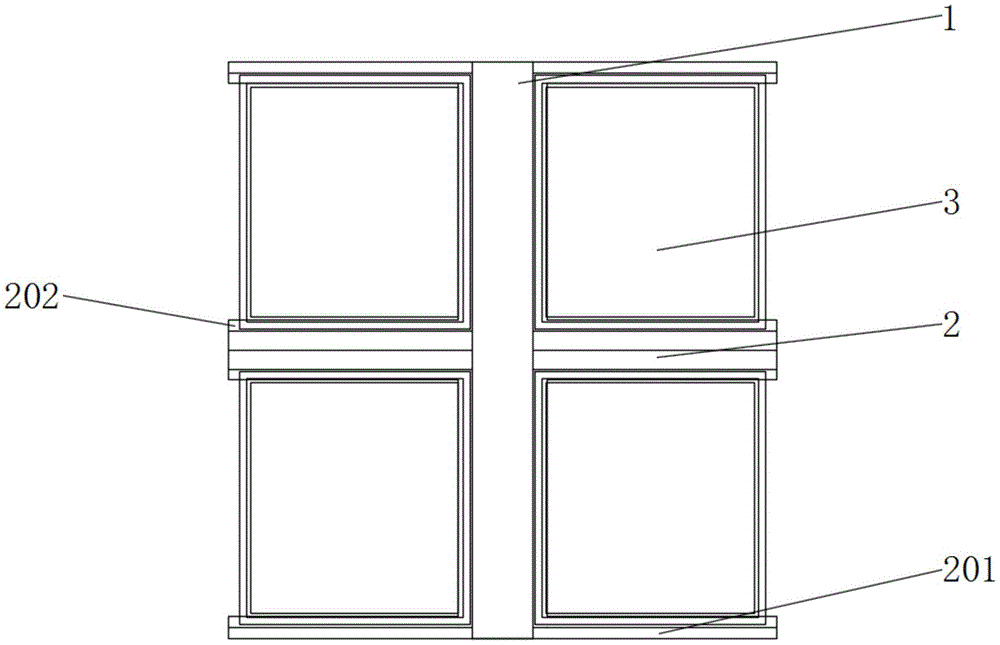

FIG. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a schematic side view of the present invention;
FIG. 3 is a schematic top view of the present invention;
fig. 4 is a partial cross-sectional structural diagram of the present invention.
In the figure: 1. a column; 101. the upright post is connected with the sleeve core; 2. an aluminum alloy upper transverse frame; 201. an aluminum alloy lower transverse frame; 202. installing a groove; 3. an outer glass panel; 4. hollow sound-insulating glass; 401. a spacing frame; 402. an inner channel seal layer; 403. a desiccant; 404. a double-layer sealing glue layer; 5. tempering the glass; 501. a melt seal layer; 502. sound insulation damping glue; 503. a low-emissivity film; 504. laminated glass; 505. an EVA film.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, an embodiment of the present invention is shown: a semi-unit glass curtain wall with effective sound insulation and noise reduction comprises a vertical column 1, an aluminum alloy upper transverse frame 2, an outer glass panel 3, hollow sound insulation glass 4 and toughened glass 5, wherein a vertical column connecting sleeve core 101 is arranged inside the vertical column 1, the top and the bottom of two sides of the vertical column 1 are respectively and fixedly provided with the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201, one side of the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201 inside the vertical column 1 is respectively provided with a clamping groove matched with the vertical column connecting sleeve core 101 and the vertical column 1 for use, the periphery of the vertical column connecting sleeve core 101 and two sides of the vertical column 1 are respectively provided with a clamping block, the installation and transportation process of the semi-unit glass curtain wall is more convenient and faster through the matching use between the vertical column 1 and the vertical column connecting sleeve core 101 and the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201, the operation of workers is more convenient, and the operation burden of the workers is lightened, manpower and material resources are saved;
an outer glass panel 3, hollow sound-proof glass 4 and toughened glass 5 are fixedly arranged between the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201 in sequence, and mounting grooves 202 matched with the outer glass panel 3, the hollow sound-proof glass 4 and the toughened glass 5 are formed in the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201;
the top of the aluminum alloy lower transverse frame 201 at the bottom of the hollow sound-proof glass 4 is fixedly provided with a double-layer sealant layer 404, the top of the double-layer sealant layer 404 is fixedly provided with an inner sealing layer 402, a drying agent 403 which is matched with the inner sealing layer 402 is placed in the inner sealing layer 402, the top of the inner sealing layer 402 is fixedly provided with a spacing frame 401, the interior of the toughened glass 5 is sequentially provided with a sound-proof damping adhesive 502, a low-radiation film 503, a sandwich glass 504 and an EVA film 505 respectively, the edge of the toughened glass 5 is provided with a fusion sealing layer 501, the edges of the outer glass panel 3, the hollow sound-proof glass 4 and the toughened glass 5 are provided with aluminum alloy protective frames, and the semi-unit glass curtain wall can multiply block external noise interference through the fusion sealing layer 501, the sound-proof damping adhesive 502, the low-radiation film 503, the sandwich glass 504, the EVA film 505, the hollow sound-proof glass 4 and the outer glass panel 3 which are matched with each other, thereby avoided thereby not enough making the poor condition of effect that gives sound insulation appear because of glass's thickness and density, realized effectual sound insulation noise reduction, satisfied the syllable-dividing demand to glass curtain wall.
The working principle is as follows: before the use, firstly, the upright post 1 is supported by the upright post connecting sleeve core 101, the upright post 1 is assembled and installed according to the required length, after the upright post 1 and the upright post connecting sleeve core 101 are butted and installed, the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201 are transversely spliced and installed, the aluminum alloy upper transverse frame 2 and the aluminum alloy lower transverse frame 201 are installed on the upright post 1 by the fixture block arranged on the upright post 1, the convenience in the installation of the glass curtain wall is ensured, when the toughened glass 5 is manufactured, the special sound insulation material sound insulation damping glue 502, the low-radiation film 503, the laminated glass 504 and the EVA film 505 are installed between the toughened glass 5, and the fusion sealing layer 501 is arranged on the periphery of the toughened glass 5, so as to increase the density of the toughened glass 5 and ensure that the glass curtain wall can achieve the required sound insulation effect to the maximum degree in the use process, in the installation of the hollow sound insulation glass 4 between the outer glass panel 3 and the toughened glass 5, in order to ensure that the seam generated in the installation process has no influence on use, a double-layer sealant layer 404 is firstly laid at the bottom of the hollow soundproof glass 4, an inner channel sealing layer 402 is arranged on the double-layer sealant layer 404, a drying agent 403 is arranged in the inner channel sealing layer 402, and finally a spacing frame 401 is arranged on the drying agent 403 to ensure the integrity of the whole.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (5)
1. The utility model provides an effective sound insulation noise reduction's half unit formula glass curtain wall, includes horizontal frame (2), outer glass panels (3), cavity sound-proof glass (4) and toughened glass (5) on stand (1), the aluminum alloy, its characterized in that: the inner part of the upright post (1) is provided with an upright post connecting sleeve core (101), the tops and the bottoms of the two sides of the upright post (1) are respectively fixedly provided with an aluminum alloy upper transverse frame (2) and an aluminum alloy lower transverse frame (201), an outer glass panel (3), hollow soundproof glass (4) and toughened glass (5) are sequentially and fixedly arranged between the aluminum alloy upper transverse frame (2) and the aluminum alloy lower transverse frame (201), the top of the bottom aluminum alloy lower transverse frame (201) of the hollow soundproof glass (4) is fixedly provided with a double-layer sealing glue layer (404), the top of the double-layer sealing glue layer (404) is fixedly provided with an inner sealing layer (402), the top of the inner sealing layer (402) is fixedly provided with a spacing frame (401), and the inner part of the toughened glass (5) is sequentially provided with soundproof damping glue (502), a low-radiation film (503), laminated glass (504) and an EVA film (505), the edge of the toughened glass (5) is provided with a melt-sealing layer (501).
2. A semi-unitized glass curtain wall effective in sound and noise insulation as claimed in claim 1, wherein: the aluminum alloy frame is characterized in that clamping grooves matched with the upright post connecting sleeve core (101) and the upright post (1) in use are respectively formed in the inner portion of the upright post (1), the aluminum alloy upper transverse frame (2) and one side of the aluminum alloy lower transverse frame (201), and clamping blocks are arranged on the periphery of the upright post connecting sleeve core (101) and on two sides of the upright post (1).
3. A semi-unitized glass curtain wall effective in sound and noise insulation as claimed in claim 1, wherein: all be equipped with on horizontal frame (2) and the aluminum alloy down horizontal frame (201) on the aluminum alloy with outer glass panels (3), cavity sound-proof glass (4) and toughened glass (5) cooperation use mounting groove (202).
4. A semi-unitized glass curtain wall effective in sound and noise insulation as claimed in claim 1, wherein: and a drying agent (403) matched with the inner channel sealing layer (402) is placed in the inner channel sealing layer.
5. A semi-unitized glass curtain wall effective in sound and noise insulation as claimed in claim 1, wherein: the edges of the outer glass panel (3), the hollow sound-proof glass (4) and the toughened glass (5) are all provided with aluminum alloy protective frames.
