A display structure for landscaping design

technical field

The utility model relates to the technical field of landscaping design, in particular to a display structure for landscaping design.

Background technique

With the rapid development of society and economy, people's living standards are gradually improving, and the requirements for the living environment are getting higher and higher. , Greening is always one of the most important parts. Greening design refers to the activities of planting plants to improve the environment in the beautiful natural, living and recreational areas created by using garden art and engineering techniques to create a certain geographical range. The landscaping design is usually displayed through drawings or videos, among which, the drawings need to be displayed through the display structure when the drawings are displayed. However, the existing display equipment is simple in structure, single in function, cannot be adjusted according to the size of the drawings, and has poor practicability.

The Chinese patent (application number: 202021087804.7) proposes "an auxiliary planning device for urban greening design". By putting the drawing on the outside of the rotating rod, the mounting plate can hold the drawing from below, which is convenient for fixing the drawing. Then, clamp the innermost end of the drawing on the rotating rod through the splint fixed by the shrapnel on the rotating rod. The pressing plate presses the outermost end of the drawing. After fixing both ends of the drawing, pull the mounting plate outward to unfold the drawing. The operation is simple. It is convenient to unfold and display the drawings, but it cannot adjust the height of the display mechanism, and the practicability is poor.

Utility model content

The purpose of the utility model is to propose a display structure for landscaping design in order to solve the shortcomings existing in the prior art.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical scheme:

A display structure for landscaping design, including a base, an adjustment component, an extension component, a fixed component, and a support component, the adjustment component is installed inside the base, the support component is installed on both sides of the base, and the fixed component and the extension component The adjustment assembly includes an adjustment slot opened on the inner wall of the base, a connecting rod slidably inserted into the inner wall of the adjustment slot, a telescopic slot welded on both ends of the outer wall of the top of the base, a first electric telescopic rod installed on the inner wall of the expansion slot, a welding The adjusting rod at the end of the first electric telescopic rod is slidably connected with the inner wall of the telescopic groove.

Preferably, the extension assembly includes a display board welded to the end of the adjustment rod, a stretch slot opened on the inner walls of the display board on two adjacent sides, a stretch board slidably inserted into the inner wall of the stretch slot, and a magnetic board arranged on the outer wall of the display board. , The fixed block attached to the outer wall of the magnetic plate.

Preferably, the fixing assembly includes a fixing frame installed on the outer wall of the magnetic plate, a groove opened on the outer wall of the bottom of the fixing frame, a second electric telescopic rod installed on the inner wall of the groove, and a fixing plate welded to the end of the second electric telescopic rod . The anti-skid pad is arranged on the outer wall of the fixed plate, and the size of the anti-skid pad is adapted to the size of the fixed plate.

Preferably, an induction groove is formed on the outer wall of the bottom of the fixing plate, a pressure sensor is installed on the inner wall of the induction groove, the pressure sensor is connected with a controller through a wire, and the controller is connected with the pressure sensor through a wire.

Preferably, the support assembly includes a mounting plate welded on the outer wall of the top of the base, a hydraulic cylinder mounted on the bottom outer wall of the mounting plate, and a support plate welded on the end of the hydraulic cylinder.

Preferably, the outer wall of the bottom of the support plate is provided with a friction pad, and the size of the friction pad is adapted to the size of the support plate.

Preferably, universal wheels are arranged around the outer wall of the bottom of the base, and the length of the connecting rod is the same as that of the extension plate.

The beneficial effects of the present utility model are:

1. In this utility model, the first electric telescopic rod drives the adjustment rod to lift and lower to adjust the height of the display structure, and the appropriate height can be selected according to the height of the interpreter or the visitor, and the practicability is strong. On the suction plate, the second electric telescopic rod drives the fixed plate to move to fix the drawing, the anti-skid pad increases friction, making the drawing not easy to slide, and the anti-slip pad protects the drawing, preventing the drawing from directly contacting the fixed plate and causing wear, after the fixing is completed , Adsorb the fixed block on the magnetic plate, and the fixed block fixes the edge of the drawing to prevent the edge of the drawing from shaking;

2. The expansion plate slides along the inner wall of the expansion groove, and the position is adjusted according to the length of the fixed drawings. It is suitable for fixing drawings of different sizes. It has strong practicability. The hydraulic cylinder drives the support block to lower to support the equipment, maintain the stability of the device, and prevent the installation Swipe while showing.

Description of drawings

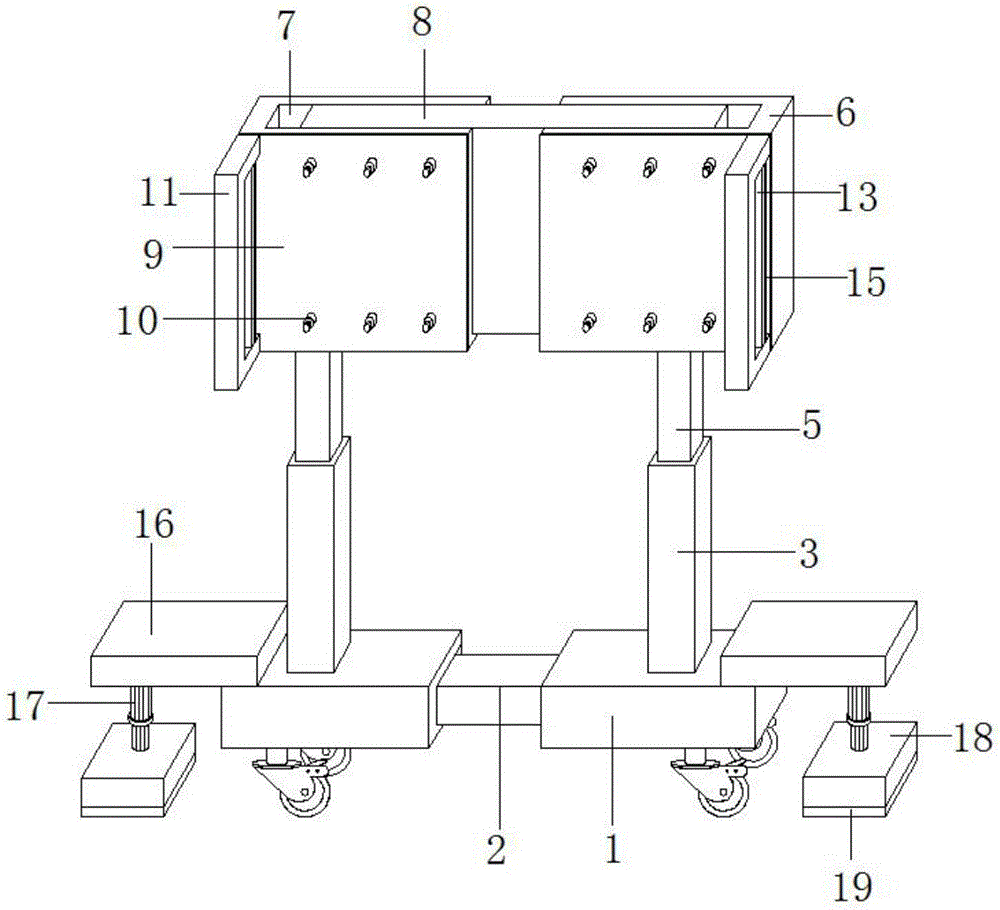

Fig. 1 is the main structure schematic diagram of a kind of display structure for landscaping design proposed by the utility model;

2 is a schematic structural diagram of a fixed component of a display structure for landscaping design proposed by the present invention;

3 is a schematic structural diagram of a support component of a display structure for landscaping design proposed by the present invention;

4 is a schematic structural diagram of a pressure sensor of a display structure for landscaping design proposed by the present invention;

FIG. 5 is a schematic structural diagram of an adjustment component of a display structure for landscaping design proposed by the present invention.

In the picture: 1 base, 2 connecting rod, 3 telescopic slot, 4 first electric telescopic rod, 5 adjustment rod, 6 display board, 7 extension slot, 8 extension board, 9 magnetic board, 10 fixing block, 11 fixing frame, 12 The second electric telescopic rod, 13 fixed plate, 14 pressure sensor, 15 anti-skid pad, 16 installation plate, 17 hydraulic cylinder, 18 support plate, 19 friction pad.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-5, a display structure for landscaping design includes a base 1, an adjustment assembly, an extension assembly, a fixed assembly, and a support assembly. The adjustment assembly is installed inside the base 1, and the support assembly is installed in the base 1. On both sides, the fixed assembly is adapted to the extension assembly. The adjustment assembly includes an adjustment slot, a connecting rod 2, an expansion and contraction slot 3, a first electric telescopic rod 4, and an adjustment rod 5. The adjustment slot, the connecting rod 2, the expansion and contraction slot 3. The first electric telescopic rod 4 and the adjustment rod 5, the adjustment groove is opened on the inner wall of the base 1, and the connecting rod 2 is slidably inserted into the inner wall of the adjustment groove, and the telescopic groove 3 is welded to the two ends of the outer wall of the top of the base 1. An electric telescopic rod 4 is installed on the inner wall of the telescopic slot 3, and the adjusting rod 5 is welded to the end of the first electric telescopic rod 4. The adjusting rod 5 is slidably connected with the inner wall of the telescopic groove 3, and an electric telescopic rod 4 drives the adjusting rod 5 to lift and lower the display structure. The height can be adjusted, and the appropriate height can be selected according to the height of the interpreter or the visitor, which is highly practical;

The extension assembly includes a display plate 6 , an extension slot 7 , an extension plate 8 , a magnetic plate 9 , and a fixing block 10 . The side inner wall, the extension plate 8 is slidably inserted into the inner wall of the extension slot 7, the magnetic plate 9 is arranged on the outer wall of the display plate 6, and the fixing block 10 is equidistantly adsorbed on the outer wall of the magnetic plate 9, and the fixing block 10 is adsorbed on the magnetic attraction plate 9 On, the edge of the drawing is fixed by the fixing block 10 to prevent the edge of the drawing from shaking, the outer wall of the bottom of the base 1 is all provided with universal wheels, and the length of the connecting rod 2 is the same as the length of the extension plate 8, and the extension plate 8 is along the extension groove 7. The inner wall slides, and the position is adjusted according to the length of the fixed drawing, which is suitable for fixing drawings of different sizes, and has strong practicability;

The fixing assembly includes a fixing frame 11, a groove, a second electric telescopic rod 12, a fixing plate 13, an induction groove, a pressure sensor 14, and an anti-skid pad 15. The fixing frame 11 is installed on the outer wall of the magnetic plate 9, and the groove is opened. On the bottom outer wall of the fixing frame 11, the second electric telescopic rod 12 is installed on the inner wall of the groove, the fixing plate 13 is welded to the end of the second electric telescopic rod 12, and the induction groove is opened on the bottom outer wall of the fixing plate 13, and the pressure sensor 14 is installed in the groove. On the inner wall of the induction groove, the pressure sensor 14 is connected to a controller through a wire, and the controller is connected to the pressure sensor 14 through a wire. , the second electric telescopic rod 12 drives the fixed plate 13 to move to fix the drawing, the anti-skid pad 15 increases the friction, so that the drawing is not easy to slide, and the anti-skid pad 15 protects the drawing to prevent the drawing from directly contacting the fixed plate 13 and causing wear;

The support assembly includes a mounting plate 16, a hydraulic cylinder 17, a support plate 18, and a friction pad 19. The mounting plate 16 is welded to the top outer wall of the base 1, and the hydraulic cylinder 17 is mounted to the bottom outer wall of the mounting plate 16. The support plate 18 is welded to the outer wall of the base 1. At the end of the hydraulic cylinder 17, the friction pad 19 is arranged on the bottom outer wall of the support plate 18, and the size of the friction pad 19 is adapted to the size of the support plate 18. The hydraulic cylinder 17 drives the support block 18 to descend to support the equipment and maintain the stability of the device. Prevent the device from sliding while on display.

Working principle: In this utility model, the first electric telescopic rod 4 drives the adjustment rod 5 to rise and fall to adjust the height of the display structure, and the appropriate height can be selected according to the height of the interpreter or the visitor, and the practicability is strong. Put it on the magnetic suction plate 9, the second electric telescopic rod 12 drives the fixing plate 13 to move to fix the drawing, the anti-skid pad 15 increases the friction, so that the drawing is not easy to slide, and the anti-skid pad 15 protects the drawing and prevents the drawing from being directly fixed. The contact of the plate 13 causes wear and tear. After the fixing is completed, the fixing block 10 is adsorbed on the magnetic plate 9. The fixing block 10 fixes the edge of the drawing to prevent the edge of the drawing from shaking. The stretch plate 8 slides along the inner wall of the stretch groove 7 and is fixed as required The length adjustment position of the drawing is suitable for fixing drawings of different sizes, with strong practicability. The hydraulic cylinder 17 drives the support block 18 to descend to support the equipment, maintain the stability of the device, and prevent the device from sliding during display.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "horizontal", "length", "width", "thickness", "upper", "lower", "front", " rear, left, right, vertical, horizontal, top, bottom, inside, outside, clockwise, counterclockwise, etc., or The positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation , so it cannot be construed as a limitation of the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first", "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (7)

1. A display structure for landscaping design, comprising a base (1), an adjustment assembly, an extension assembly, a fixed assembly, and a support assembly, wherein the adjustment assembly is installed inside the base (1), and the support assembly is It is installed on both sides of the base (1), the fixing assembly is adapted to the extension assembly, and the adjusting assembly includes an adjusting groove opened on the inner wall of the base (1), a connecting rod (2) slidably inserted into the inner wall of the adjusting groove, and welded on the inner wall of the adjusting groove. The telescopic grooves (3) at both ends of the outer wall of the top of the base (1), the first electric telescopic rod (4) installed on the inner wall of the telescopic groove (3), and the adjustment rod (5) welded to the end of the first electric telescopic rod (4), The adjusting rod (5) is slidably connected with the inner wall of the telescopic groove (3). 2. A display structure for landscaping design according to claim 1, characterized in that, the extension assembly comprises a display board (6) welded to the end of the adjustment rod (5), a display board (6) opened on the display board ( 6) The stretching grooves (7) on the inner walls of the adjacent two sides, the stretching plates (8) slidably inserted into the inner walls of the stretching grooves (7), the magnetic plates (9) arranged on the outer walls of the display board (6), and being adsorbed on the magnetic plates (9) The fixing block (10) of the outer wall. 3. A display structure for landscaping design according to claim 1, wherein the fixing component comprises a fixing frame (11) installed on the outer wall of the magnetic plate (9), a fixing frame (11) arranged on the fixing frame (11) ) groove on the outer wall of the bottom, a second electric telescopic rod (12) installed on the inner wall of the groove, a fixed plate (13) welded to the end of the second electric telescopic rod (12), an anti-skid mounted on the outer wall of the fixed plate (13) The size of the pad (15), the anti-skid pad (15) is adapted to the size of the fixing plate (13). 4. A display structure for landscaping design according to claim 3, characterized in that, the bottom outer wall of the fixing plate (13) is provided with an induction groove, and the pressure sensor (14) installed on the inner wall of the induction groove, The pressure sensor (14) is connected with a controller through a wire, and the controller is connected with the pressure sensor (14) through a wire. 5. A display structure for landscaping design according to claim 1, wherein the support assembly comprises a mounting plate (16) welded to the top outer wall of the base (1), a mounting plate (16) mounted on the mounting plate (16) ) The hydraulic cylinder (17) on the outer wall of the bottom, and the support plate (18) welded to the end of the hydraulic cylinder (17). 6. A display structure for landscaping design according to claim 5, characterized in that, a friction pad (19) is provided on the bottom outer wall of the support plate (18), and the friction pad (19) is sized and supported The size of the plate (18) is adapted. 7. A display structure for landscaping design according to claim 5, characterized in that, universal wheels are provided around the bottom outer wall of the base (1), and the length of the connecting rod (2) is the same as the extension plate (8) The lengths are the same.
