Abstract
本实用新型涉及果蔬汁生产相关技术领域，具体为一种果蔬汁液提取装置，果蔬汁液提取装置包括支架、升降组件、提取罐、上盖、搅拌轴、驱动电机，支架为门字型支架结构，且支架固定安装在底座上，且支架的横梁上转动安装有一级滚珠轴承，升降组件固定安装在底座上，提取罐为圆罐结构，且其罐体的侧壁上固定安装有环形座；通过设置由支架、升降组件、提取罐、上盖、搅拌轴和驱动电机组合构成的果蔬汁液提取装置，从而通过搅拌轴上的破碎刀片对蔬菜块进行破碎，并通过升降组件驱动提取罐上下往复运动，从而让破碎刀片与蔬菜块之间可以产生竖向方向的相对运动，从而提高破碎刀片对蔬菜块的破碎效果，从而提高蔬菜汁的提取效率。
The utility model relates to the technical field related to the production of fruit and vegetable juice, in particular to a fruit and vegetable juice extraction device. The fruit and vegetable juice extraction device comprises a bracket, a lifting component, an extraction tank, an upper cover, a stirring shaft and a drive motor, and the bracket is a door-shaped bracket structure. And the bracket is fixedly installed on the base, and a first-level ball bearing is rotatably installed on the beam of the bracket, the lifting component is fixedly installed on the base, the extraction tank is a round tank structure, and a ring seat is fixedly installed on the side wall of the tank body; A fruit and vegetable juice extraction device composed of a bracket, a lifting assembly, an extraction tank, an upper cover, a stirring shaft and a driving motor is set up, so that the vegetable pieces are crushed by the crushing blade on the stirring shaft, and the extraction tank is driven by the lifting assembly to reciprocate up and down. , so that the relative movement in the vertical direction can be generated between the crushing blade and the vegetable block, thereby improving the crushing effect of the crushing blade on the vegetable block, thereby improving the extraction efficiency of vegetable juice.
Description
Technical Field
The utility model relates to a fruit vegetables juice production correlation technique field specifically is a fruit vegetables juice extraction element.
Background
Fruit and vegetable juice is the raw materials with fresh or cold-stored fruit vegetables (also some adopt dry fruit), through washing, select the back, adopts the method of physics like squeezing, leaching, the fruit and vegetable juice that the method obtained such as centrifugation, is called fruit and vegetable juice, therefore fruit and vegetable juice also has the title of "liquid fruit and vegetable", but traditional fruit and vegetable juice production is with extraction element structure comparatively simple, and its extraction efficiency is lower, for this reason, the utility model provides a fruit and vegetable juice extraction element is used for solving above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a fruit vegetables juice extraction element to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a fruit and vegetable juice extraction device, the fruit and vegetable juice extraction device includes:
the support is of a door-shaped support structure, the support is fixedly arranged on the base, and a first-stage ball bearing is rotatably arranged on a cross beam of the support;
the lifting component is fixedly arranged on the base;
the extraction tank is of a round tank structure, an annular seat is fixedly mounted on the side wall of the tank body of the extraction tank, the annular seat is connected with the lifting assembly, a material returning port is formed in the lower end face of the extraction tank, and a material returning port valve is arranged at the end part of the material returning port;
the upper cover is covered on the extraction tank;
the shaft body of the stirring shaft is fixedly connected with the bearing inner ring of the primary ball bearing, and crushing blades are uniformly arranged on the shaft body of the stirring shaft;
and the driving motor is fixedly arranged on the cross beam of the bracket and is in transmission connection with the stirring shaft through a transmission mechanism.
Preferably, drive mechanism comprises driven pulley, drive belt combination, driven pulley fixed mounting is on the (mixing) shaft, drive pulley fixed mounting is on driving motor's rotor, and carries out the transmission through drive belt between driven pulley, the drive pulley and be connected.
Preferably, a connecting rod is fixedly mounted on a cross beam of the support, a mounting plate is fixedly mounted at the upper end of the connecting rod, a secondary ball bearing is fixedly mounted in a through hole in the center of the mounting plate, and a shaft body of the stirring shaft is fixedly mounted in a bearing inner ring of the secondary ball bearing.
Preferably, the lifting assembly is a telescopic electric cylinder, is in electric signal connection with a PLC (programmable logic controller) control module on the equipment and does reciprocating lifting motion.
Preferably, the upper cover is composed of a first cover body and a second cover body, a through hole is formed in the connecting position of the first cover body and the second cover body, the stirring shaft and the through hole are coaxially arranged, and the stirring shaft is not in contact with the side wall of the through hole.
Preferably, be provided with the extract import on the first lid, be provided with on the second lid and wait that the extract product import, the extract import, wait that extract product import port position all is provided with the seal closure, and carry out the block through the buckle lock between first lid, the second lid and the extraction jar and fix.
Compared with the prior art, the beneficial effects of the utility model are that:
1. by arranging the fruit and vegetable juice extraction device which is formed by combining the bracket, the lifting assembly, the extraction tank, the upper cover, the stirring shaft and the driving motor, the vegetable blocks are crushed by the crushing blade on the stirring shaft, and the extraction tank is driven by the lifting assembly to reciprocate up and down, so that the relative motion in the vertical direction can be generated between the crushing blade and the vegetable blocks, the crushing effect of the crushing blade on the vegetable blocks is improved, and the extraction efficiency of the vegetable juice is improved;
2. and through the fixed mounting connecting rod on the crossbeam of support to at connecting rod upper end fixed mounting panel, and install second grade ball bearing on the mounting panel, thereby use through the matching of second grade ball bearing and first grade ball bearing, thereby improve the stability when (mixing) shaft rotates.
Drawings

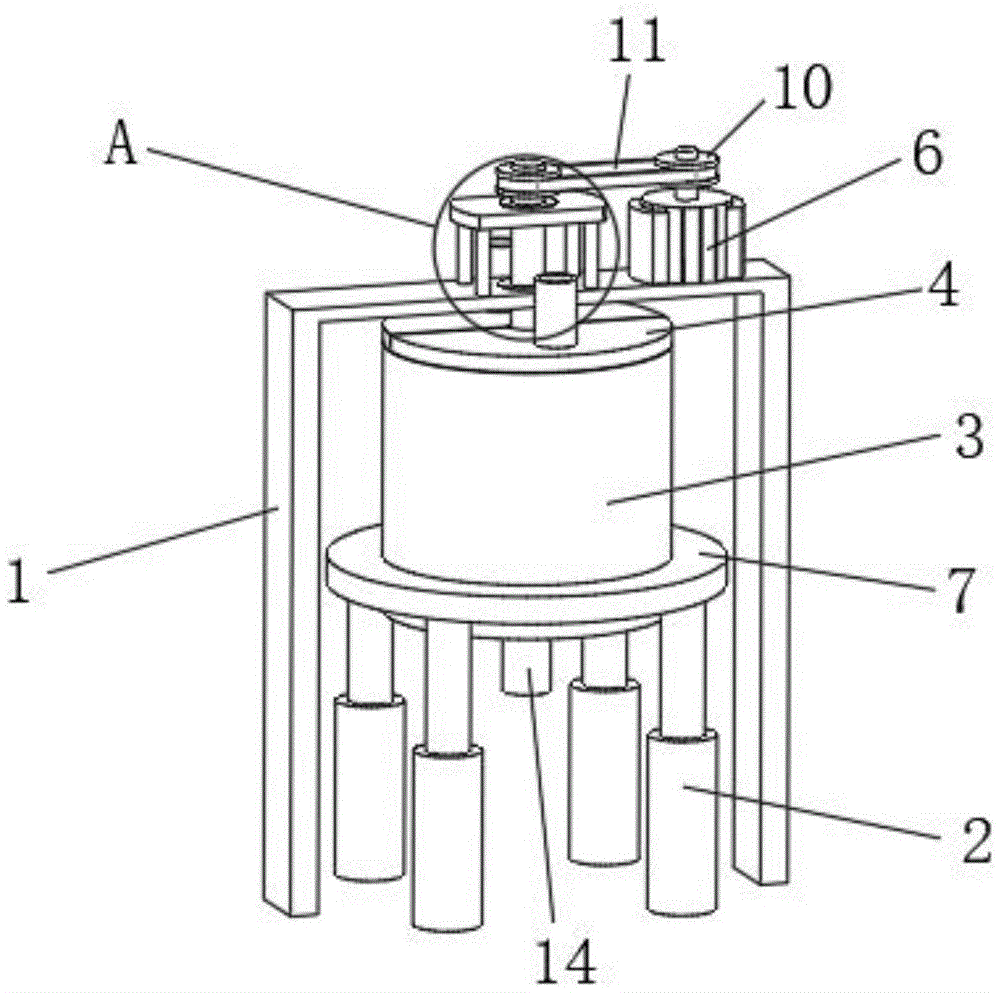

FIG. 1 is a schematic view of the present invention;
FIG. 2 is an enlarged view of the structure at A in FIG. 1;
fig. 3 is a schematic diagram of the structure of the extraction tank.
In the figure: support 1, lifting unit 2, draw jar 3, upper cover 4, (mixing) shaft 5, driving motor 6, annular seat 7, one-level ball bearing 8, driven pulley 9, drive pulley 10, drive belt 11, first lid 12, second lid 13, material returned mouth 14, extract import 15, treat extract import 16, connecting rod 17, mounting panel 18, second grade ball bearing 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a fruit and vegetable juice extraction device comprises a support 1, a lifting component 2, an extraction tank 3, an upper cover 4, a stirring shaft 5 and a driving motor 6, wherein the support 1 is of a door-shaped support structure, the support 1 is fixedly arranged on a base, a first-level ball bearing 8 is rotatably arranged on a cross beam of the support 1, the lifting component 2 is fixedly arranged on the base, the extraction tank 3 is of a round tank structure, an annular seat 7 is fixedly arranged on the side wall of a tank body of the extraction tank, the annular seat 7 is connected with the lifting component 2, a material returning port 14 is arranged on the lower end face of the extraction tank 3, a material returning port valve is arranged at the end part of the material returning port 14, the upper cover 4 covers the extraction tank 3, the shaft body of the stirring shaft 5 is fixedly connected with the bearing inner ring of the first-level ball bearing 8, crushing blades are uniformly arranged on the shaft body of the stirring shaft 5, the driving motor 6 is fixedly arranged on the cross beam of the support 1, and the driving motor 6 is in transmission connection with the stirring shaft 5 through a transmission mechanism.
The transmission mechanism is composed of a driven belt pulley 9, a transmission belt pulley 10 and a transmission belt 11 in a combined mode, the driven belt pulley 9 is fixedly installed on the stirring shaft 5, the transmission belt pulley 10 is fixedly installed on a rotor of the driving motor 6, and the driven belt pulley 9 and the transmission belt pulley 10 are in transmission connection through the transmission belt 11.
Fixed mounting has connecting rod 17 on support 1's the crossbeam, connecting rod 17 upper end fixed mounting has mounting panel 18, fixed mounting has second grade ball bearing 19 in the through-hole that mounting panel 18 central point put, the axis body fixed mounting of (mixing) shaft 5 is among second grade ball bearing 19's the bearing inner circle, through fixed mounting connecting rod 17 on support 1's the crossbeam, and at connecting rod 17 upper end fixed mounting panel 18, and install second grade ball bearing 19 on mounting panel 18, thereby use through second grade ball bearing 19 and 8 matches of one-level ball bearing, thereby improve the stability of (mixing) shaft 5 when rotating.
The lifting component 2 is a telescopic electric cylinder, the lifting component 2 is in electric signal connection with a PLC control module on equipment, the lifting component 2 performs reciprocating lifting motion, the upper cover 4 is formed by combining a first cover body 12 and a second cover body 13, a through hole is formed in the connecting position of the first cover body 12 and the second cover body 13, the stirring shaft 5 and the through hole are coaxially arranged, the stirring shaft 5 is not in contact with the side wall of the through hole, the vegetable juice extraction device formed by combining the support 1, the lifting component 2, the extraction tank 3, the upper cover 4, the stirring shaft 5 and the driving motor 6 is arranged, so that vegetable blocks are crushed by a crushing blade on the stirring shaft 5, the extraction tank 3 is driven by the lifting component 2 to reciprocate up and down, relative motion in the vertical direction can be generated between the crushing blade and the vegetable blocks, and the crushing effect of the crushing blade on the vegetable blocks is improved, thereby improving the extraction efficiency of the vegetable juice.
An extracting solution inlet 15 is formed in the first cover body 12, an inlet 16 to be extracted is formed in the second cover body 13, sealing covers are arranged at the port positions of the extracting solution inlet 15 and the inlet 16 to be extracted, and the first cover body 12, the second cover body 13 and the extracting tank 3 are clamped and fixed through clamping locks;
the working principle is as follows: through setting up by support 1, lifting unit 2, extract jar 3, upper cover 4, the fruit vegetables juice extraction element that (mixing) shaft 5 and driving motor 6 combination constitute, thereby smash the vegetable piece through the crushing blade on the (mixing) shaft 5, and extract jar 3 reciprocating motion from top to bottom through lifting unit 2 drive, thereby make and to produce the relative motion of vertical direction between crushing blade and the vegetable piece, thereby improve the crushing effect of crushing blade to the vegetable piece, thereby improve the extraction efficiency of vegetable juice, when in actual use, the staff adds into extracting jar 3 through the vegetable piece with the pure water of cutting the piece, then through starting driving motor 6 to drive (mixing) shaft 5 and move, thereby smash the vegetable piece, and lifting unit 2 can drive and extract jar 3 and carry out reciprocating motion from top to bottom, thereby drive crushing blade at vertical direction up-and-down motion, thereby driving the vegetable blocks in the purified water to move up and down, and better crushing the vegetable blocks.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
